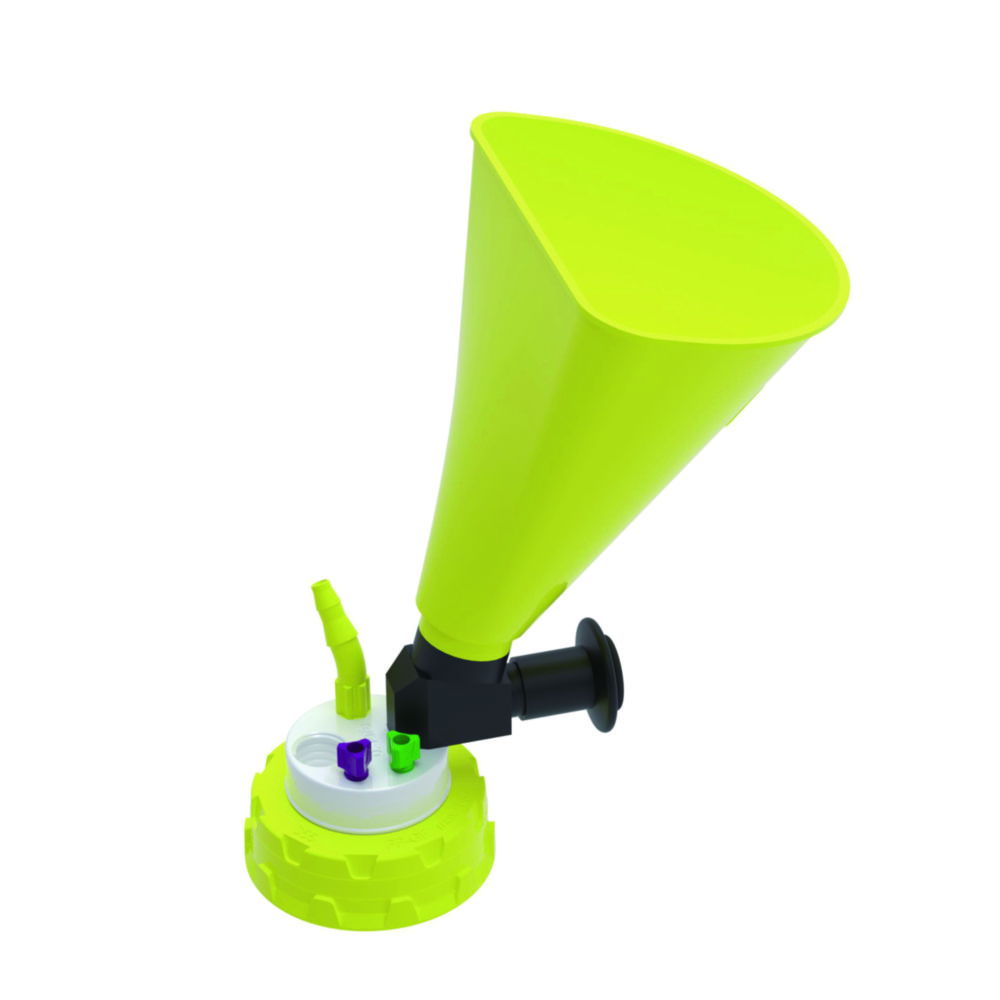

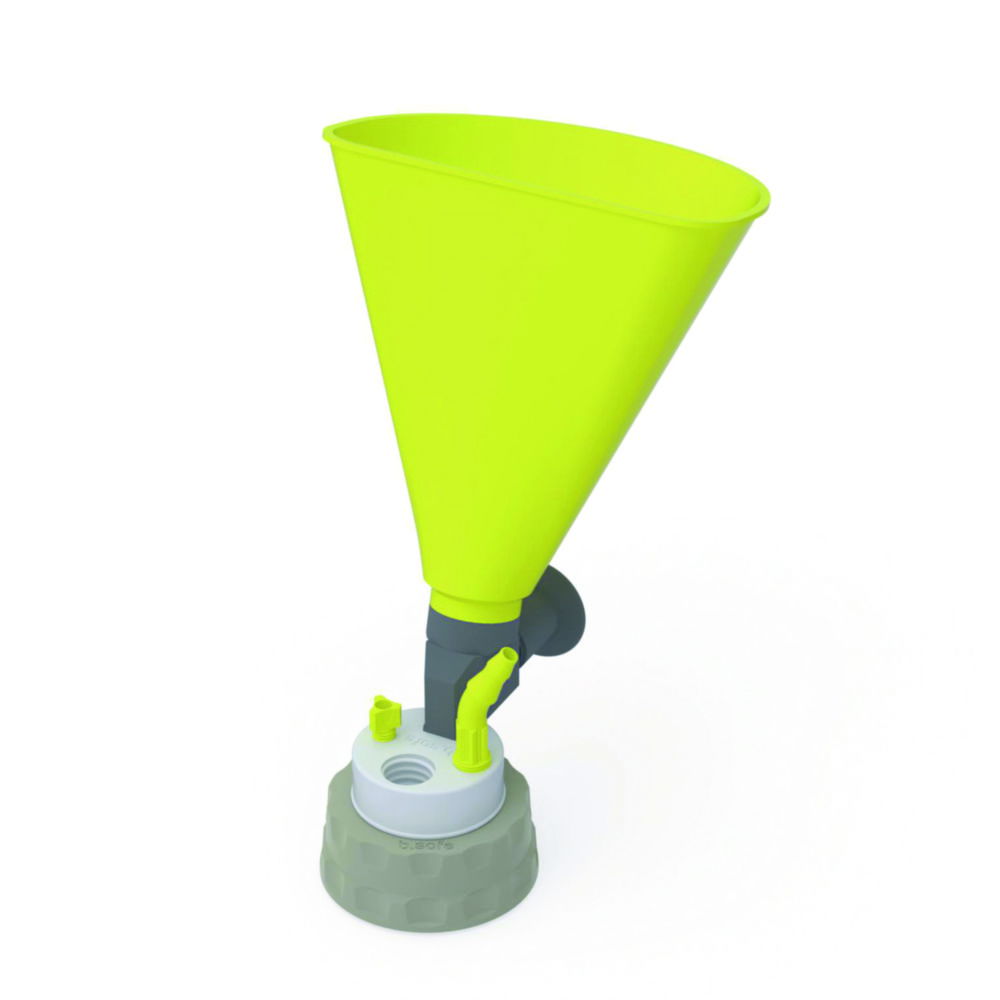

b.safe Waste Caps GL45, PPS, with filling funnel
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The filling funnel made of PP has an integrated stopcock. The stopcock with grip is opened by turning the grip and the grip position shows if the stopcock is closed. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.Scope of supply:Filling funnel (automatic stopcock/ with grip), fittings (UNF 1/4“), hose olive (NPT 1/8")

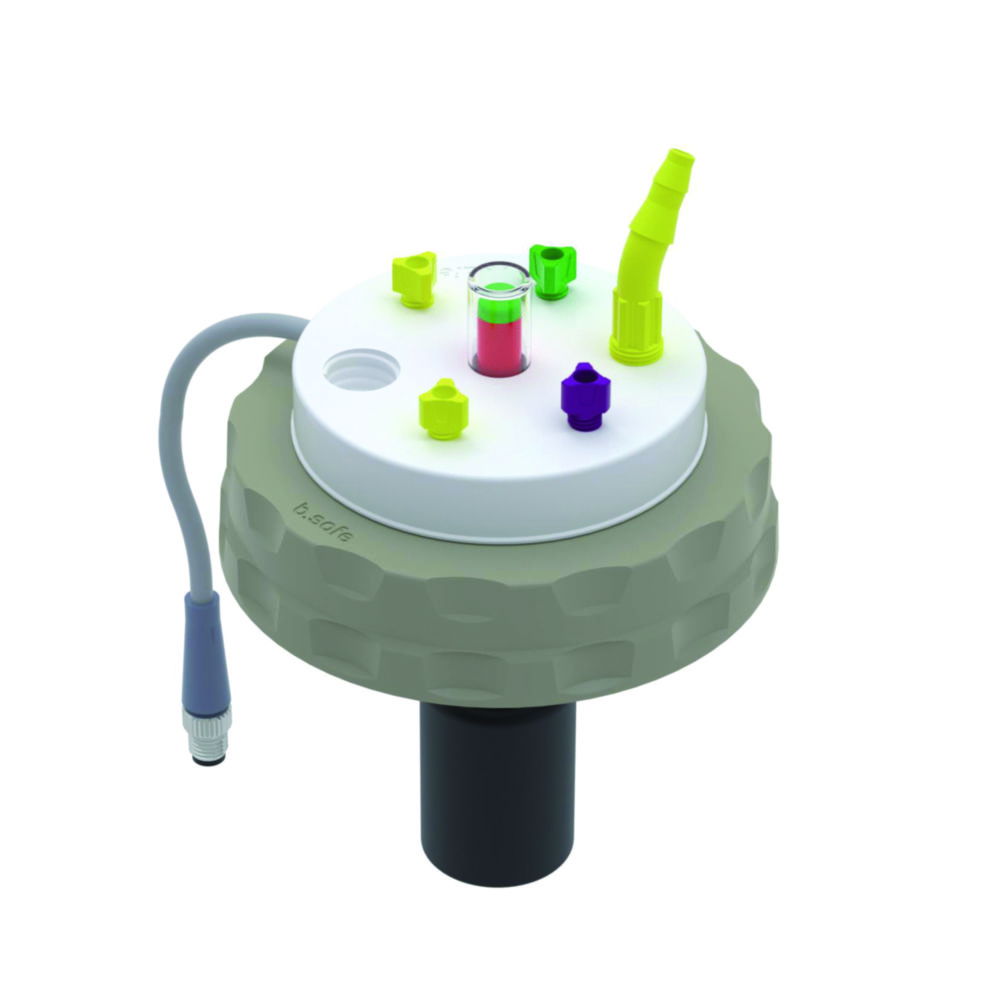

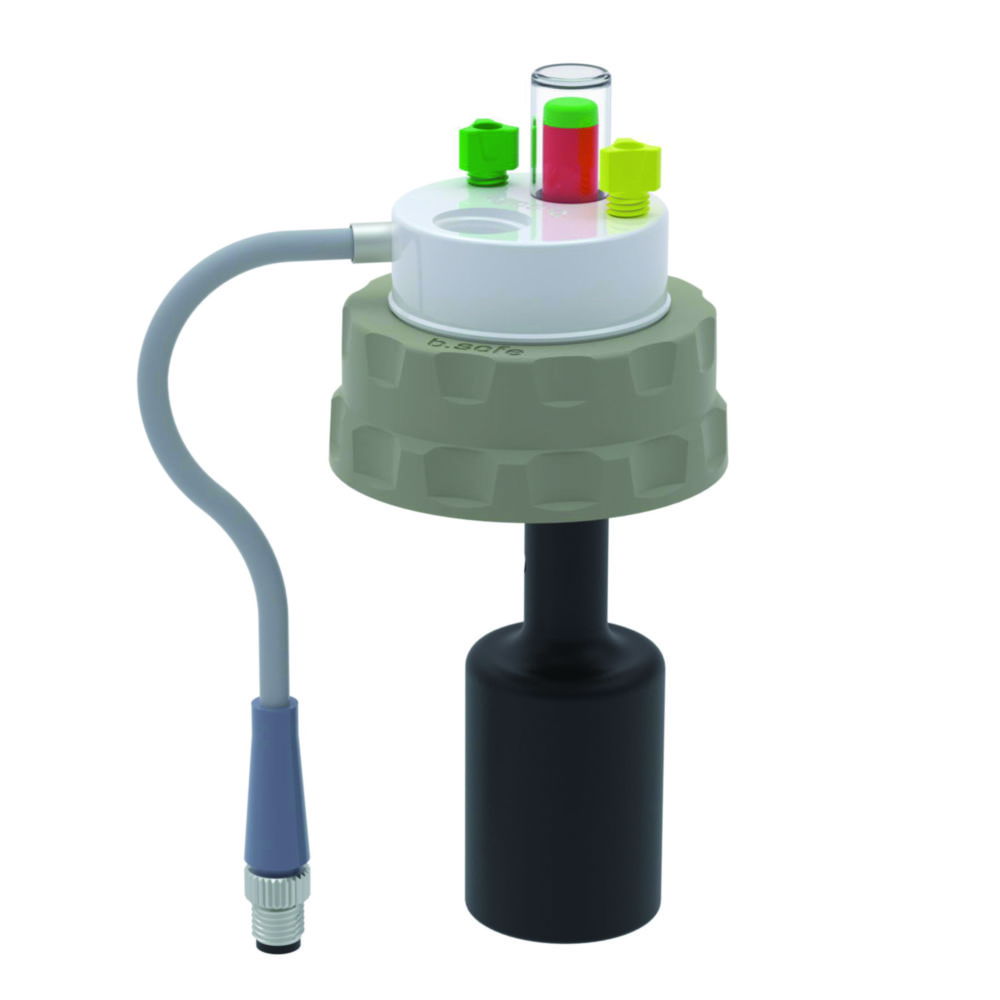

b.safe Waste Caps S 51, PP, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red pin on the Waste Caps enables visual monitoring of the fill level.Scope of supply: fittings (UNF 1/4“), blind fittings (UNF 1/4“)
b.safe Waste Caps S 51, PP, with filling funnel
Screw caps, with free movable insert made of PTFE, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The filling funnel made of PP has an integrated stopcock. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.Scope of supply: Filling funnel (automatic stopcock), fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 55, PP, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.Scope of supply:Fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 55, PP, with filling funnel
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The filling funnel made of PP has an integrated stopcock. The stopcock with grip is opened by turning the grip and the grip position shows if the stopcock is closed. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.Scope of supply:Filling funnel (automatic stopcock/ stopcock with grip), fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 60, PP, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.Optionally with grounding connection, a suitable grounding cable must be ordered separately.Scope of supply:Fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 60, PP, with electronic fill level control and grounding connection
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.A suitable grounding cable must be ordered separately.Scope of supply:Fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 60, PP, with filling funnel
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The filling funnel made of PP has an integrated stopcock. The stopcock with grip is opened by turning the grip and the grip position shows if the stopcock is closed. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.Scope of supply:Filling funnel (automatic stopcock/ with grip), fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 65, PE
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (notincluded in the scope of supply).Scope of supply:Fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 70/71, PP
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (notincluded in the scope of supply).Scope of supply:Fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 70/71, PP, with filling funnel
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The filling funnel made of PP has an integrated stopcock. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.Scope of supply: Filling funnel (automatic stopcock), fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")

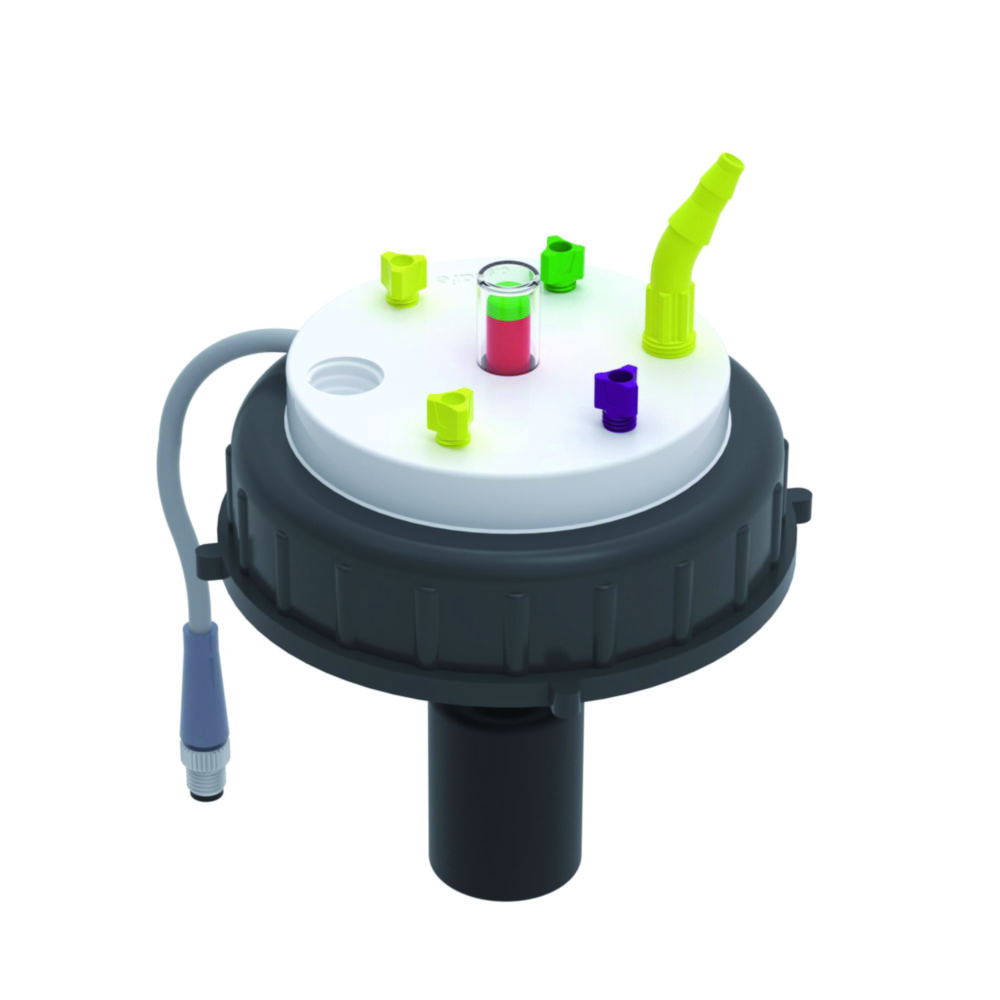

b.safe Waste Caps S 90, PE, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.Scope of supply: fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 90, PP
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (notincluded in the scope of supply).Scope of supply:Fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps S 95, PE, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.Scope of supply: fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps, B 53, PE
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply: Fittings, blind fittings (UNF ¼"), hose olive (NPT 1/8")

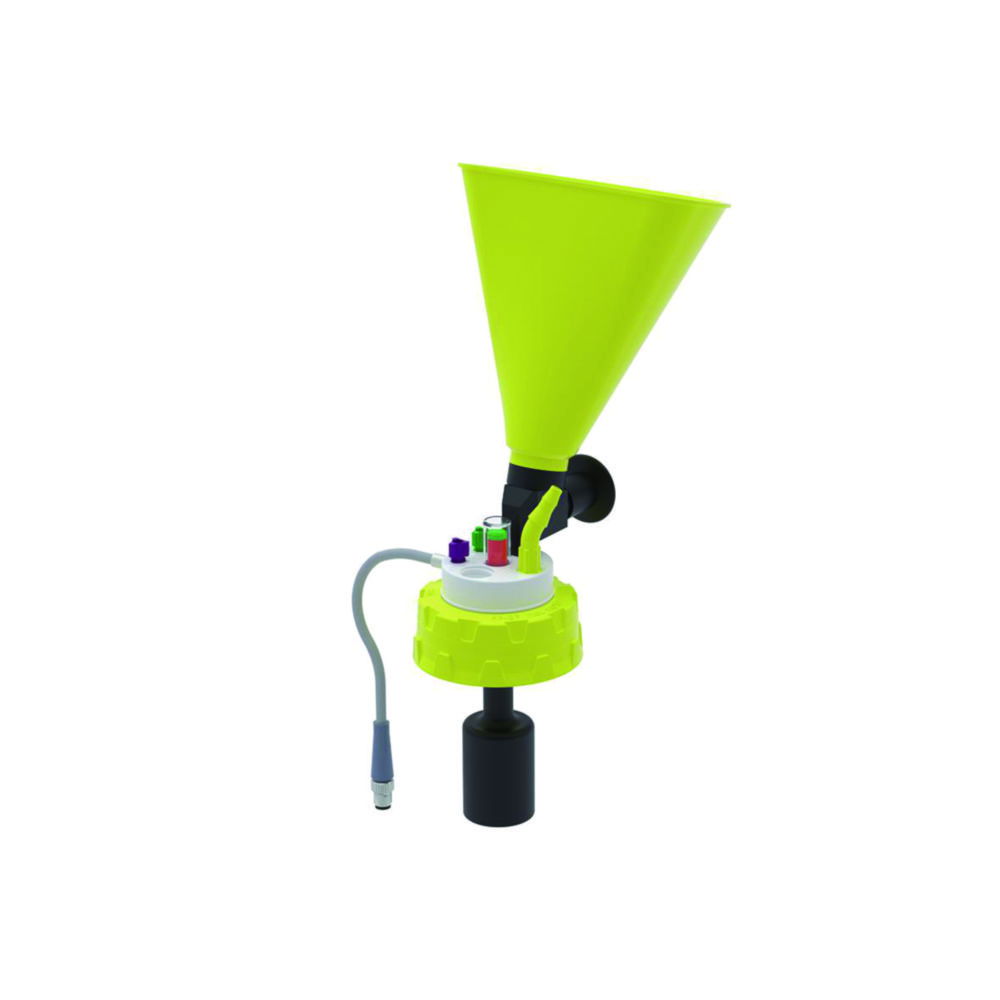

b.safe Waste Caps, PP, with electronic fill level control and filling funnel
Screw caps, with free movable insert made of PTFE, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.The filling funnel made of PP has an integrated stopcock. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.
b.safe Waste Caps, S 40, PPS
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply:Fittings, blind fitting (UNF ¼"), hose olive (NPT 1/8")
b.safe Waste Caps, S 50, PP
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply:Fittings, blind fittings (UNF ¼"), blind fittings (NPT 1/8"), hose olives (NPT 1/8")
b.safe Waste Caps, S 51, PP
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply:Fittings, blind fitting (UNF ¼"), hose olive (NPT 1/8")
b.safe Waste Caps, S 55, PP
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply:Fittings, blind fittings (UNF 1/4"), blind fittings (NPT 1/8"), hose olives (NPT 1/8")
b.safe Waste Caps, S 60, PP
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply:Fittings, blind fittings (UNF 1/4"), blind fittings (NPT 1/8"), hose olives (NPT 1/8")
b.safe WasteCaps, GL 45, PPS
Screw cap for thread GL 45 made of PPS, freely turnable distributor body made of PTFE with female threads: UNF ¼" 28 G for connecting capillary tubing (O. D. 1.6, 2.3 or 3.2 mm) or NPT 1/8" for a hose connector for flexible tubing with I.D. 6.4 or 9 mm, GL 14 for connecting a b.safe exhaust filter (not included).Scope of supply: Connections: UNF ¼'' 28G, NPT 1/8'', GL 14, Fittings, hose connector, blind fittings

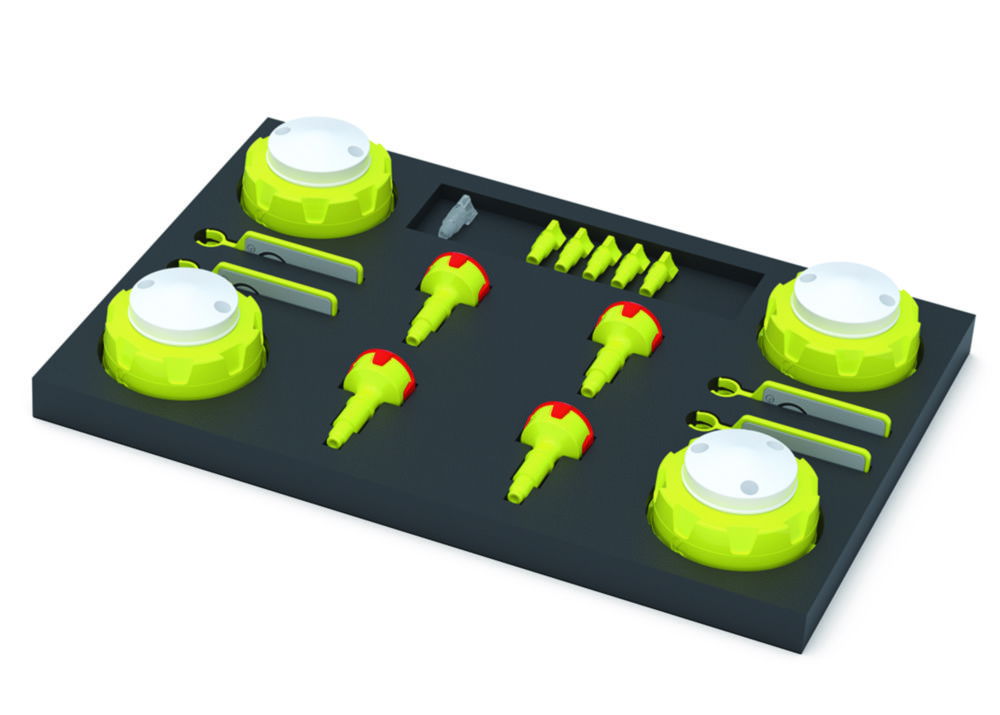

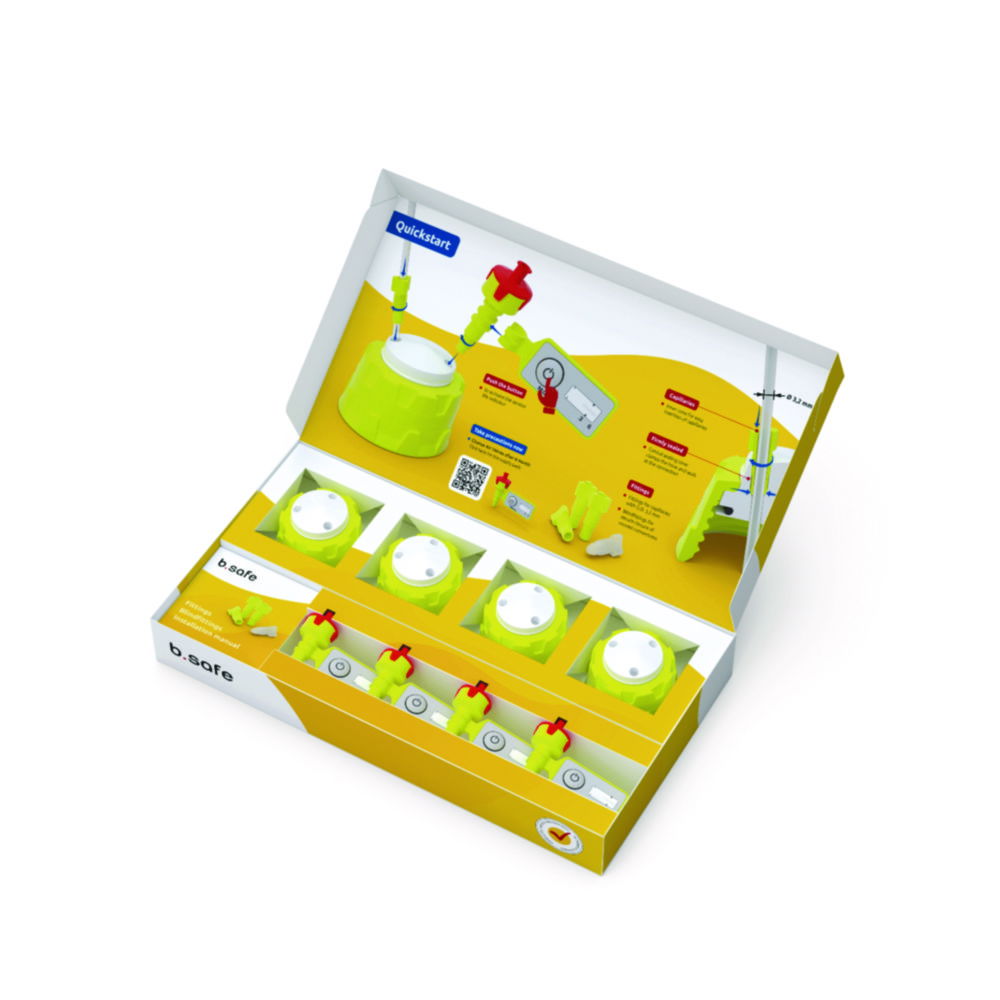

b.safe-Caps, GL 45, PPS, Starter box A
Initial equipment for HPLC with b.safe-Caps for bottles with thread GL 45. Furthermore fittings for easy connection of capillary tubing, blind fittings for closing unused connections and air valves for a trouble-free withdrawal of solvents are included. For up to 4 storage bottles. Scope of supply: 3 x b.safe-cap GL 45 with 1 connection UNF ¼" 28G, 1 x b.safe-cap GL 45 with 2 connections UNF ¼" 28G, 4 x air valve with service life indicator, 5 x fittings yellow for tubing O.D. 3.2 mm, 1 x blind fitting
b.safe-Caps, GL 45, PPS, Starter box B
Initial equipment for HPLC with b.safe-Caps for bottles with thread GL 45. Furthermore fittings for easy connection of capillary tubing, blind fittings for closing unused connections and air valves for a trouble-free withdrawal of solvents are included. For up to 4 storage bottles. Scope of supply: 4 x b.safe-cap GL 45 with 2 connections UNF ¼" 28G, 4 x air valve with service life indicator, 8 x fittings yellow for tubing O.D. 3.2 mm, 4 x blind fittings
