LLG Catalogue
Automatic Titrator TitroLine® 7000, with magnetic stirrer TM 235, 20 ml exchangeable unit and pH electrode
Compact titrator with intelligent exchangeable units with automatic recognition of unit size and reagent data. Thanks to the modern USB- and additional RS232 interfaces, connection of printer, balance and further accessories are possible at the same time. The brilliant, very high-contrast TFT-display allows the easy parameterisation and tracking of the titration curve.Measuring input pH/mV: pH/mV-input with DIN or BNC socket, TitroLine® 7000 additionally with ID function for automatic detection of electrodeMeasuring input Dead Stop: µA-input for double platinum electrode (socket 2 x 4 mm), pole voltage adjustableTemperature: for resistance probes Pt 1000/NTC 30 kOhm (socket: 2 x 4 mm)Interfaces: 3 x USB (2 x USB-A and 1 x USB-B), 2 x RS-232-C, 1 x LANExchangeable units: 5, 10, 20 ml or 50 ml exchangeable units with reagent recognitionConformity: ISO 8655, part 6Scope of supply: Basic unit with magnetic stirrer TM 235 and 20 ml exchangeable unit WA 20, incl. amber glass bottle for titration reagent, GL 45 and S 40-bottle adapter, tubes, drip off tube and titration tip. With pH-combination electrode A 162 2M-DIN-ID and buffer set.
Automatic Titrators Orion Star™ T910
Automatic titrators for redox and ion titrations.Create up to ten user-defined methodsSaves up to 100 titration data sets with date/time stampEasy data transfer to printer, computer or USB driveProgramming of automated titration sequencesTitrations can be performed unattendedShowcase titrations, onscreen instructions and help menus on a large color graphic touchscreen displayEasy to replace titrator partsLong lasting electrodesDisplay results in real time, in summary table and in data log (up to 100 entries)Tested and validated pre-defined methods can be loaded onto the titratorTitration of acidity of juices and wines, acidity of food, alkalinity of water, acidity and alkalinity of consumer goods, total acid number (TAN) and total base number (TBN)Scope of supply:START9100: Titrator incl. 20 ml burette, stirrer probe, dispenser probe, standard tubing kit, 1 l plastic bottle, GL38 bottle cap with drying tube, computer cable, manual on USB drive, 110-240 V power supplySTART9101: As START9100, additionally with ROSS Ultra pH electrode and probe for temperature compensation (ATC)START9102: As START9100, additionally with ROSS Sure-Flow pH electrode and probe for temperature compensation (ATC)SpecificationsTitration precision:±0.5 % RSDSpeed of stirrer probe:250 ... 3700 rpm, 5 selectable speedspH range: Resolution: Rel. accuracy:0 ... 14 0.001 / 0.01 / 0.1 (selectable) ±0.002 pHpH calibration mode:1 to 5 pointsmV range: Resolution: Rel. accuracy:-2000.0 ... +2000.0 mV 0.1 mV ±0.2 mVTemperature range: Resolution: Rel. accuracy:-5,0 ... 100.0 °C 0.1 °C ±0.2 °CDisplay:5.7'' Touchscreen, 640 x 480 resolutionBurette sizes:10 ml, 20 ml, 50 mlBurette resolution:25,600 micro-steps per motor revolution 2 million micro-steps over full stroke rangeDosing accuracy:Acc. to ISO 8655-3Dimensions (W x D x H):406 x 254 x 356 mmWeight:5.67 kgPower supply:100 ... 240 V, 50/60 HzCertification:TÜV 3-in-1, FCC, EN/EIC 61326-1, IEC 61010, IP-51
Automatic Titrators Orion Star™ T910
Automatic titrators for redox and ion titrations.Create up to ten user-defined methodsSaves up to 100 titration data sets with date/time stampEasy data transfer to printer, computer or USB driveProgramming of automated titration sequencesTitrations can be performed unattendedShowcase titrations, onscreen instructions and help menus on a large color graphic touchscreen displayEasy to replace titrator partsLong lasting electrodesDisplay results in real time, in summary table and in data log (up to 100 entries)Tested and validated pre-defined methods can be loaded onto the titratorFor the titration of ion concentrations, e.g. salt in food, chloride in drinking water and waste water, ammonia and total nitrogen in waste water as well as surfactants and total hardness.Scope of supply:START9300: Titrator incl. 20 ml burette, stirrer probe, dispenser probe, standard tubing kit, 1 l plastic bottle, GL38 bottle cap with drying tube, computer cable, manual on USB drive, 110-240 V power supplySTART9301: As START9200, additionally with 9780SC silver billet electrode and 91CBC electrode cableSpecificationsTitration precision:±0.5 % RSDSpeed of stirrer probe:250 ... 3700 rpm, 5 selectable speedsmV range: Resolution: Rel. accuracy:-2000,0 ... +2000,0 mV 0,1 mV ±0,2 mVTemperature range: Resolution: Rel. accuracy:-5,0 ... 100.0 °C 0.1 °C ±0.2 °CDisplay:5.7'' Touchscreen, 640 x 480 resolutionBurette sizes:10 ml, 20 ml, 50 mlBurette resolution:25600 micro-steps per motor revolution 2 million micro-steps over full stroke rangeDosing accuracyAcc. to ISO 8655-3Dimensions (W x D x H):406 x 254 x 356 mmWeight:5.67 kgPower supply:100 ... 240 V, 50/60 HzCertification:TÜV 3-in-1, FCC, EN/EIC 61326-1, IEC 61010, IP-51
Automatic Titrators Orion Star™ T910
Automatic titrators for redox and ion titrations.Create up to ten user-defined methodsSaves up to 100 titration data sets with date/time stampEasy data transfer to printer, computer or USB driveProgramming of automated titration sequencesTitrations can be performed unattendedShowcase titrations, onscreen instructions and help menus on a large color graphic touchscreen displayEasy to replace titrator partsLong lasting electrodesDisplay results in real time, in summary table and in data log (up to 100 entries)Tested and validated pre-defined methods can be loaded onto the titratorFor pH, redox and ion titrations, including equivalence point titration, titrations with pre-set pH or mV endpoint, and MKA mode for adding various known ions.Scope of supply: START9400: Titrator incl. 20 ml burette, stirrer probe, dispenser probe, standard tubing kit, 1 l plastic bottle,GL38 bottle cap with drying tube, computer cable, manual on USB drive, 110-240 V power supplySTART9401: As START9400, additionally with 8102BNUWP ROSS Ultra pH electrode and 927007MD ATC probeSTART9402: As START9400, additionally with 8172BNWP ROSS Sure-Flow pH Electrode and 927007MD ATC probespecificationsTitration precision:±0.5 % RSDSpeed of stirrer probe:250 ... 3700 rpm, 5 selectable speedspH range: Resolution: Rel. accuracy:0 ... 14 0.001 / 0.01 / 0.1 (selectable) ±0.002 pHpH calibration mode:1 to 5 pointsmV range: Resolution: Rel. accuracy:-2000.0 ... +2000.0 mV 0.1 mV ±0.2 mVTemperature range: Resolution: Rel. accuracy:-5,0 ... 100.0 °C 0.1 °C ±0.2 °CDisplay:5.7'' Touchscreen, 640 x 480 resolutionBurette sizes:10 ml, 20 ml, 50 mlBurette resolution:25600 micro-steps per motor revolution 2 million micro-steps over full stroke rangeDosing accuracy:Acc. to ISO 8655-3Dimensions (W x D x H):406 x 254 x 356 mmWeight:5.67 kgPower supply:100 ... 240 V, 50/60 HzCertification:TÜV 3-in-1, FCC, EN/EIC 61326-1, IEC 61010, IP-51
Automatic Titrators Orion Star™ T920
Automatic titrators for redox and ion titrations.Create up to ten user-defined methodsSaves up to 100 titration data sets with date/time stampEasy data transfer to printer, computer or USB driveProgramming of automated titration sequencesTitrations can be performed unattendedShowcase titrations, onscreen instructions and help menus on a large color graphic touchscreen displayEasy to replace titrator partsLong lasting electrodesDisplay results in real time, in summary table and in data log (up to 100 entries)Tested and validated pre-defined methods can be loaded onto the titratorFor redox titrations by equivalence point method or preset mV endpoint, e.g. sulfite/SO2, reducing sugar, ascorbic acid, peroxide as well as dissolved oxygen and dissolved organic substance.Scope of supply:START9200: Titrator incl. 20 ml burette, stirrer probe, dispenser probe, standard tubing kit, 1 l plastic bottle, GL38 bottle cap with drying tube, computer cable, manual on USB drive, 110-240 V power supplySTART9201: As START9200, additionally with 9778BNWP redox glass electrodeSpecificationsTitration precision:±0.5 % RSDSpeed of stirrer probe:250 ... 3700 rpm, 5 selectable speedsmV range: Resolution: Rel. accuracy:-2000.0 ... +2000.0 mV 0.1 mV ±0.2 mVTemperature range: Resolution: Rel. accuracy:-5,0 ... 100.0 °C 0.1 °C ±0.2 °CDisplay:5.7'' Touchscreen, 640 x 480 resolutionBurette sizes:10 ml, 20 ml, 50 mlBurette resolution:25600 micro-steps per motor revolution 2 million micro-steps over full stroke rangeDosing accuracy:Acc. to ISO 8655-3Dimensions (W x D x H):406 x 254 x 356 mmWeight:5.67 kgPower supply:100 ... 240 V, 50/60 HzCertification:TÜV 3-in-1, FCC, EN/EIC 61326-1, IEC 61010, IP-51
Automation Reservoirs Matrix™, PP
Handle reagents on automated systems simply and economically. Includes removable splash baffles.
Autosampler-vials, PFA
Raised graduation with 1 ml subdivisions. Translucent material. Conical interior.Delivered without lids. Please order the fitting lids separately.No memory effectsPractically no carryover due to the extremely hydrophobic, anti-adhesive, smooth surfacesHigh thermal stability, from -200 °C to 260 °CChemical inertness against nearly all chemicalsEasy to clean
b.safe caps, B 83, PE
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fittings (PFA), air valve
b.safe Caps, GL 28, PPS
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fitting (PFA), air valve
b.safe Caps, GL 45, PPS, lateral connections
Screw caps, with flat, freely movable insert made of PTFE, for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator. The connections are lateral, at a 90° angle to the bottle thread.Scope of supply:fittings (PFA), blind fitting (PFA), air valve
b.safe Caps, GL 45, PPS, preparative
Screw caps, with freely movable insert made of PTFE. With PFA fittings for capillaries with O.D. 3,2 mm (UNF 1/4"), PTFE fittings preparative for tubing with O.D. 6,35 mm (thread NPT 1/8"), and an air valve with service life indicator.Scope of supply:fitting (PFA, Ø 3,2 mm), fitting (PTFE, Ø 6,35 mm), blind fittings (PTFE), air valve
b.safe Caps, GL 45, PPS, with stopcocks
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator. All capillary connectors with integrated stopcock and additional capillary connector on the bottom side of the lid.Scope of supply:connections with stopcocks, fittings top (PFA), fittings bottom (PFA), air valve
b.safe caps, GL45, PP/PPS, PFAS Analytic
Screw caps, with freely movable insert made of PP, with female threads UNF ¼" 28G, for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve. Free from polyhaloolefins.Insert made of PPFittings made of PEIdeal for PFAS analysisDIN 38407-42 and DIN 38414-14 compliantEU Directive 202/2184 compliantScope of supply:Cap, fittings (PE), blind fittings (PE), air valve with service life indicator
b.safe caps, GLS 80, PP
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fittings (PFA), air valve
b.safe Caps, GPI 38/400, PPS
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fittings (PFA), air valve
b.safe Caps, GPI 38/430, PPS
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fittings (PFA), air valve
b.safe Caps, S 40, PPS
Screw cap with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) or a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fittings (PFA), air valve
b.safe Caps, S 40, PPS, with stopcocks
Screw caps, with freely movable insert made of PTFE, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator. All capillary connectors with integrated stopcock and additional capillary connector on the bottom side of the lid.Scope of supply:connection with stopcock, fitting top (PFA), fitting bottom (PFA), air valve
b.safe Caps, with ground joint, PTFE
Caps with ground joint cone NS 29/32, with female threads UNF ¼", for connecting capillary tubing (O.D. 3.2 mm) and a b.safe air valve with service life indicator.Scope of supply:fittings (PFA), blind fitting (PFA), air valve, locking nut (PP)

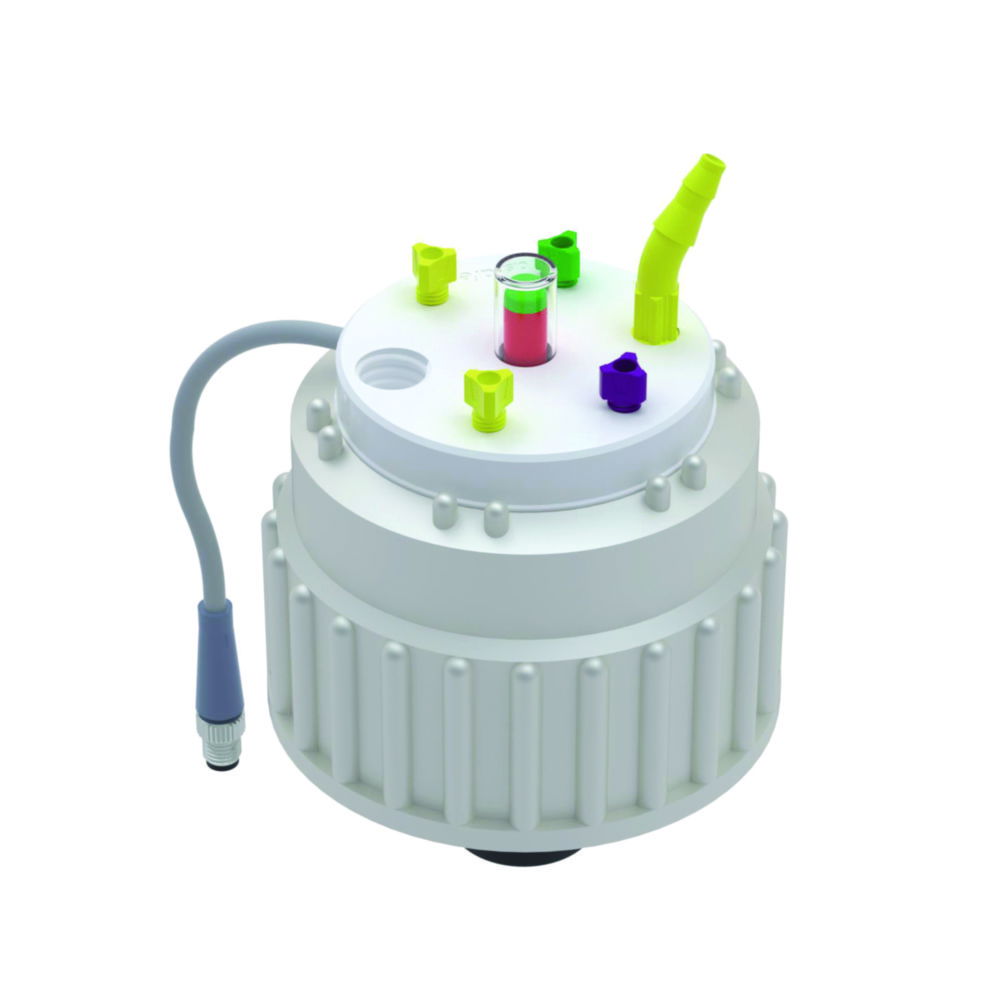

b.safe Waste Caps B 53, PE, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.Scope of supply: fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")

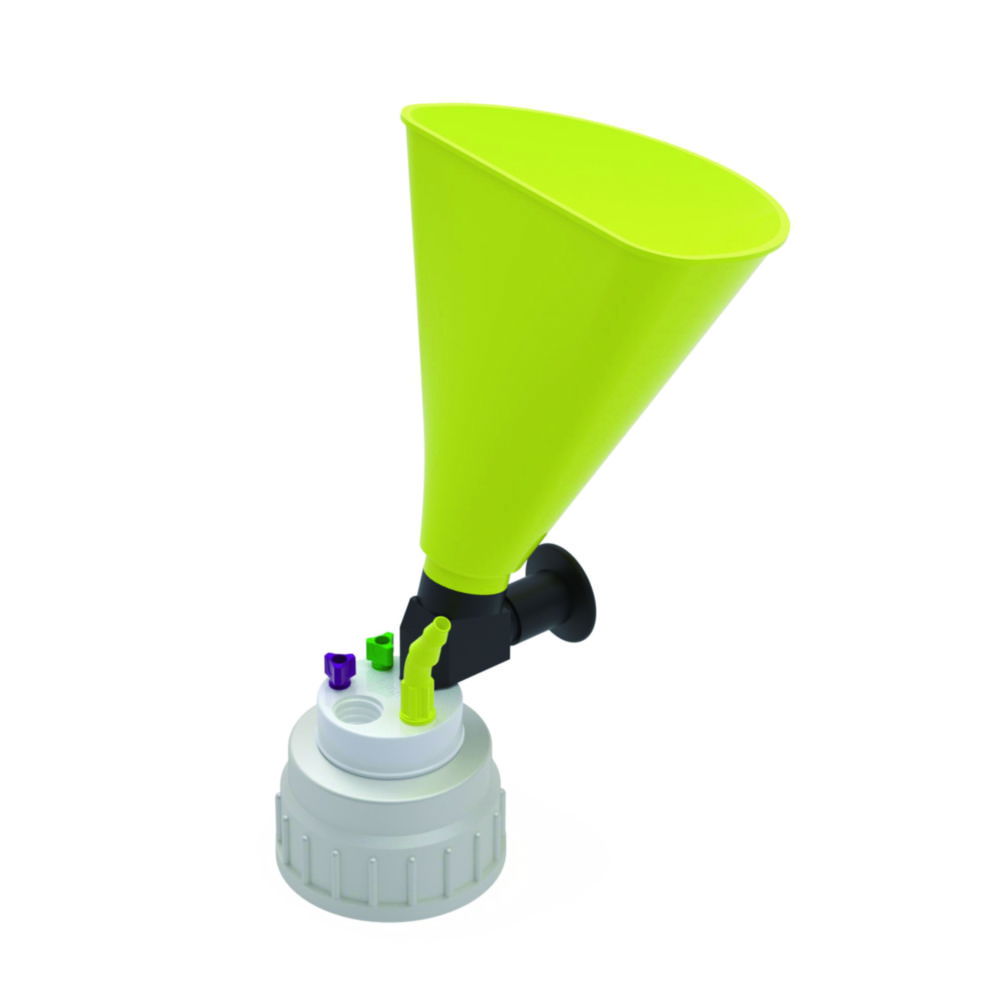

b.safe Waste Caps B 53, PE, with filling funnel
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The filling funnel made of PP has an integrated stopcock. The stopcock with grip is opened by turning the grip and the grip position shows if the stopcock is closed. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.Scope of supply:Filling funnel (automatic stopcock/ with grip), fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8")

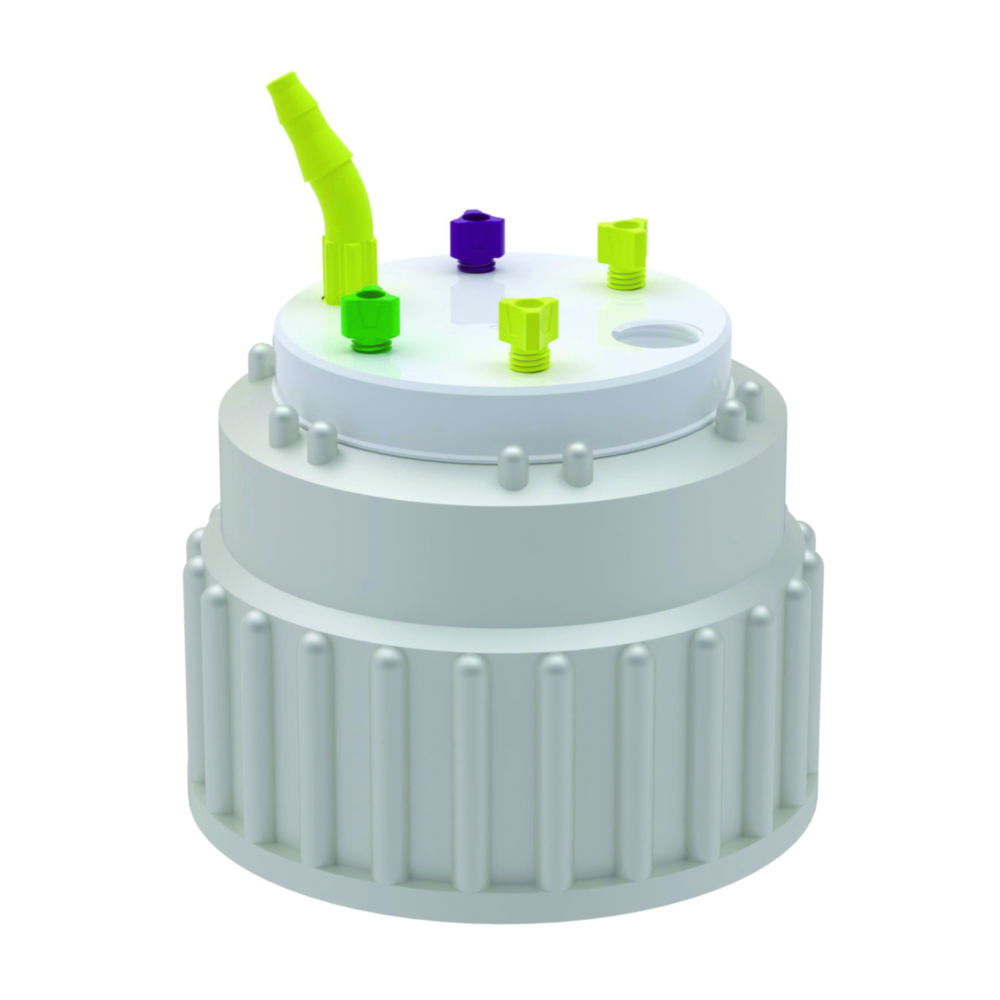

b.safe Waste Caps B 63, PE
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).Scope of supply:Fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps B 83, PE
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (notincluded in the scope of supply).Scope of supply: fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
b.safe Waste Caps B 83, PE, with electronic fill level control
Screw cap with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).The Waste Caps are supplied with a permanently mounted cable (400 mm length) to connect the b.safe display for level control. The red indicator pin on the Waste Caps enables visual monitoring of the fill level.Scope of supply: fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8")
