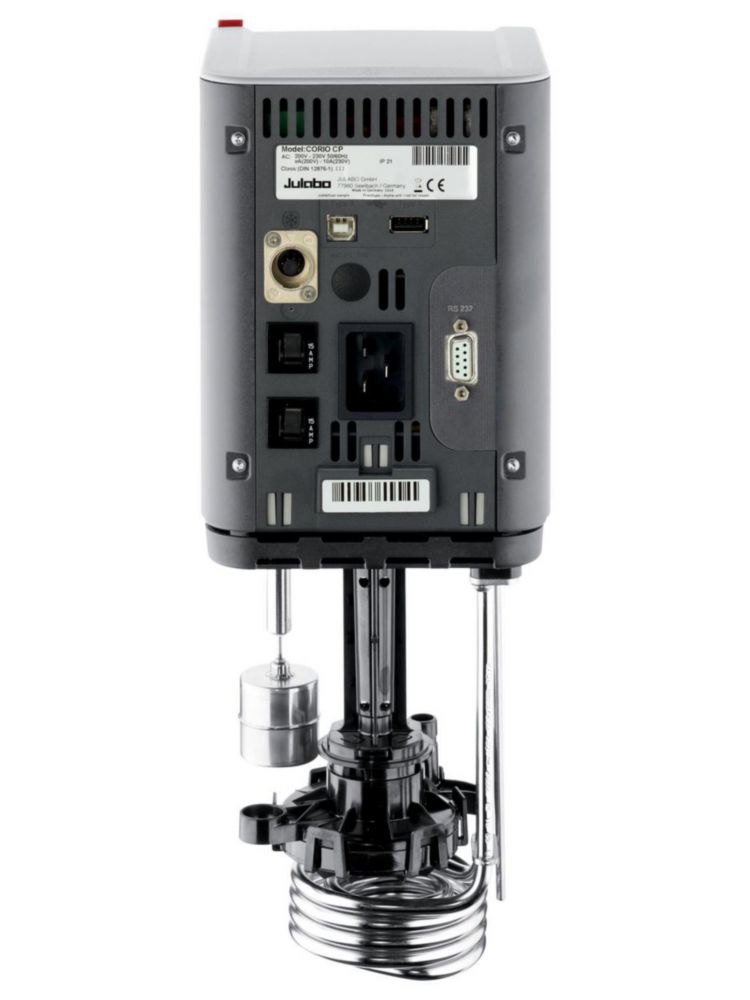

Thermoregulators CORIO™ CP
€0.00
Product information "Thermoregulators CORIO™ CP"
- For internal and external applications (accessories required)
- Bright, white, easily visible display, even from a distance
- Very quiet
- Easy operation
- Low-level warning system
- Pump switch for internal and external circulation
- Powerful, continously variable pump
- USB connection
- RS232 interface
- Class III (FL) according to DIN 12876-1
Scope of supply: Thermoregulator, mains power cable, bath attachment clamp
| Depth: | 160 mm |
|---|---|
| Dimensions (WxDxH): | 132 x 160 x 362 mm |
| Heating capacity: | 2 kW |
| Height: | 362 mm |
| IP code: | IP 21 |
| Immersion depth: | 75 ... 165 mm |
| Manufacturer Article Number: | 9013000 |
| Max. delivery pressure: | 0.7 bar |
| Max. flow rate: | 27 l/min |
| Max. immersion depth: | 165 mm |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Min. immersion depth: | 75 mm |
| Min. temperature: | 20 °C |
| Operation: | Membrane keyboard |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Programmable: | No |
| Temperature: | 20 ... 200 °C |
| Temperature stability: | ±0,02 °C |
| Type: | CORIO™ CP |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Weight: | 2.5 kg |
| Width: | 132 mm |
| With timer: | Yes |
