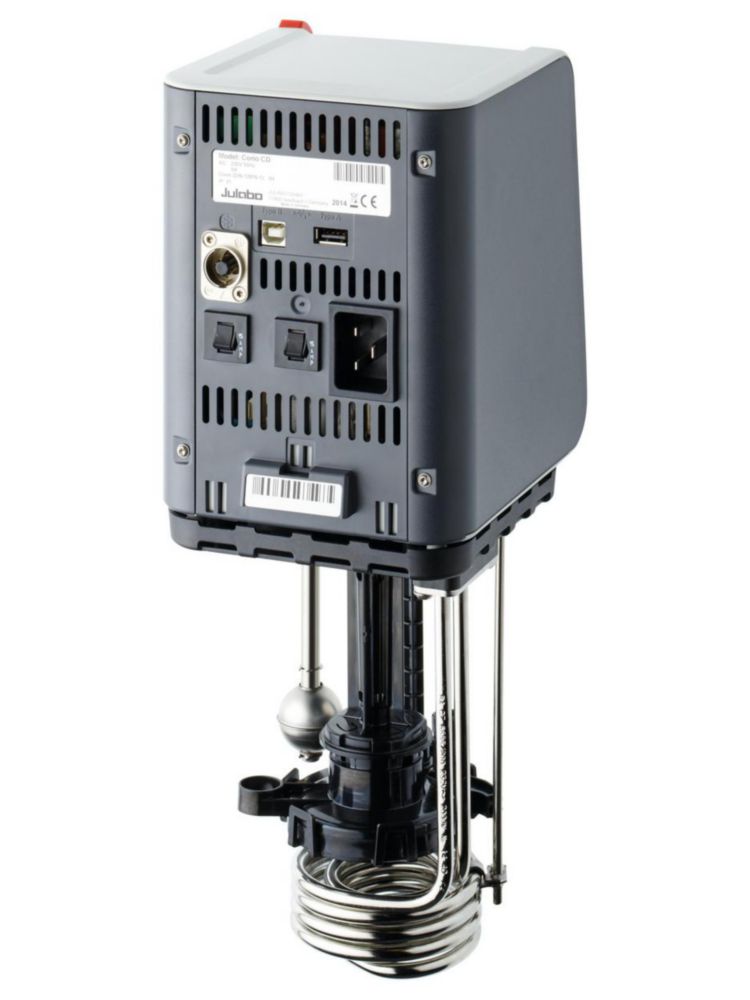

Immersion circulator CORIO™ CD
€0.00
Product information "Immersion circulator CORIO™ CD"
- Precise temperature control
- Bright, white, easy-to-read display
- Whisper quiet
- Easy operation
- For bath tank up to 50 litres
- Pump change-over between internal and external circulation
- Powerful, continously variable pump
- USB interface
- Timer: 0 to 999 min
- Class III (FL) according to DIN 12876-1
| Amperage: | 10 A |
|---|---|
| Depth: | 160 mm |
| Dimensions (WxDxH): | 132 x 160 x 366 mm |
| Heating capacity: | 2 kW |
| Height: | 366 mm |
| IP code: | IP 21 |
| Immersion depth: | 166 mm |
| Manufacturer Article Number: | 9012000 |
| Max. delivery pressure: | 0.35 bar |
| Max. flow rate: | 15 l/min |
| Max. immersion depth: | 166 mm |
| Max. temperature: | 150 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 20 °C |
| Operation: | Membrane keyboard |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz , 10 A |
| Power supply frequency: | 50 Hz |
| Temperature: | 20 ... 150 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CORIO™ CD |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Weight: | 2.6 kg |
| Width: | 132 mm |
| With timer: | Yes |
Login
Accessories
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4.6 bar (at 200 °C).
Stainless steel bath tanks (insulated) for immersion thermostats CORIO™.
Black. Tubing insulations for CR tubings.
Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.
Pump set for temperature control of external applications with pump connectors M16x1.
Transparent bath tanks made of PC for immersion thermostats CORIO™.
