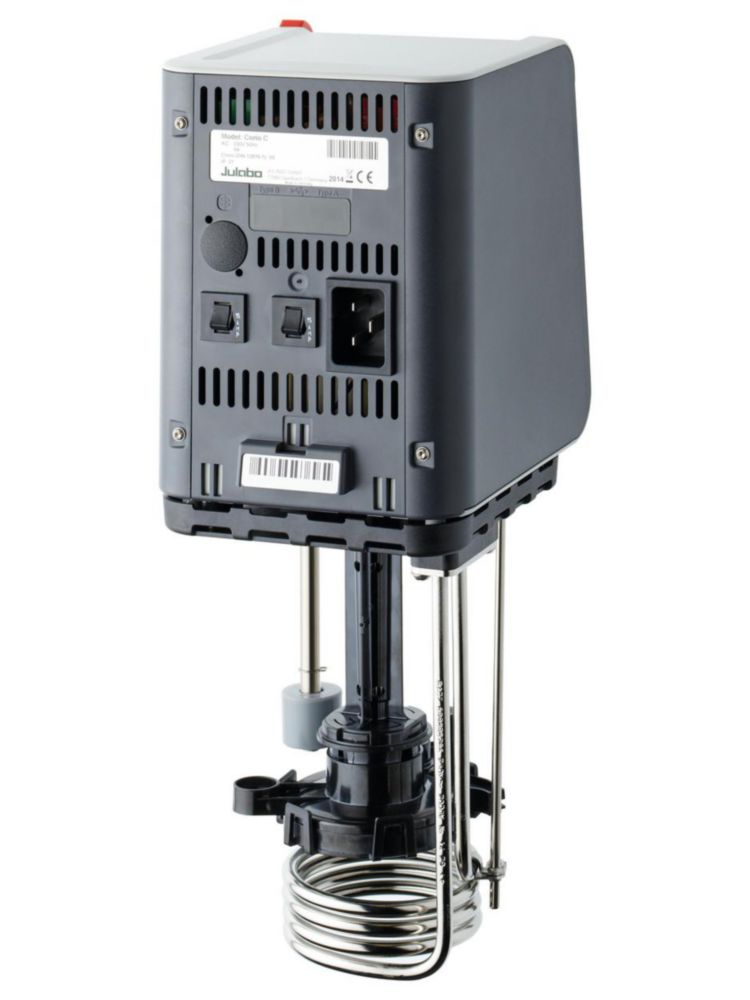

Immersion circulator CORIO™ C
€0.00
Product information "Immersion circulator CORIO™ C"
- Precise temperature control
- For internal standard applications
- Bright, white, easy-to-read display
- Easy operation
- For bath tank up to 30 litres
- Timer: 0 to 999 min
- Class I (NFL) according to DIN 12876-1
| Amperage: | 9 A |
|---|---|
| Depth: | 160 mm |
| Dimensions (WxDxH): | 132 x 160 x 362 mm |
| Heating capacity: | 2 kW |
| Height: | 362 mm |
| IP code: | IP 21 |
| Immersion depth: | 166 mm |
| Manufacturer Article Number: | 9011000 |
| Max. delivery pressure: | 0.1 bar |
| Max. flow rate: | 6 l/min |
| Max. immersion depth: | 166 mm |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 20 °C |
| Operation: | Membrane keyboard |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz , 9 A |
| Power supply frequency: | 50 Hz |
| Temperature: | 20 ... 100 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CORIO™ C |
| Type of auxiliary energy: | Mains connection |
| Type of display: | LED |
| Weight: | 1.9 kg |
| Width: | 132 mm |
| With timer: | Yes |
