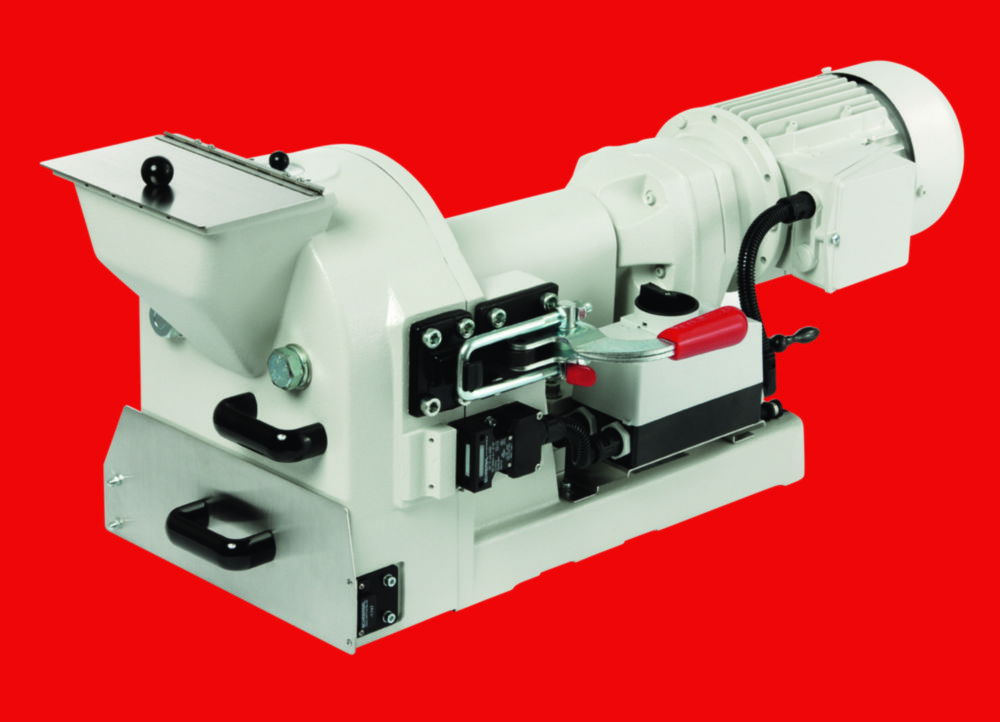

Cross beater mill SK 300
The cross beater mill SK 300 is used for batch-wise or continuous preliminary and fine size reduction. This robust mill is suited for laboratories as well as for the rough conditions of a production environment. Thanks to the powerful drive and rotor speed up to 4000 rpm it is often possible to achieve a final fineness <100 microns in one process.Features:High throughput for batch-wise size reduction of large sample volumesDefined final fineness due to bottom sieves with aperture sizes from 0.12 to 10 mmRapid cleaning thanks to easily removable cassette, hopper and push fit rotorRing filter and collecting vessel with convenient, dust-tight bayonet catchQuick-action door lock safety lock and electric brakeFunction principle:Size reduction in the SK 300 takes place by impact and shearing effects. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is separated off by a downstream filter system.Scope of supply: Cross Beater Mill with grinding insert, cross beater, baffle plates, filter hose, 5 l collecting vesselBottom sieves and base frame, please order separately.Feeders and bottom sieves in further sizes are available on request.

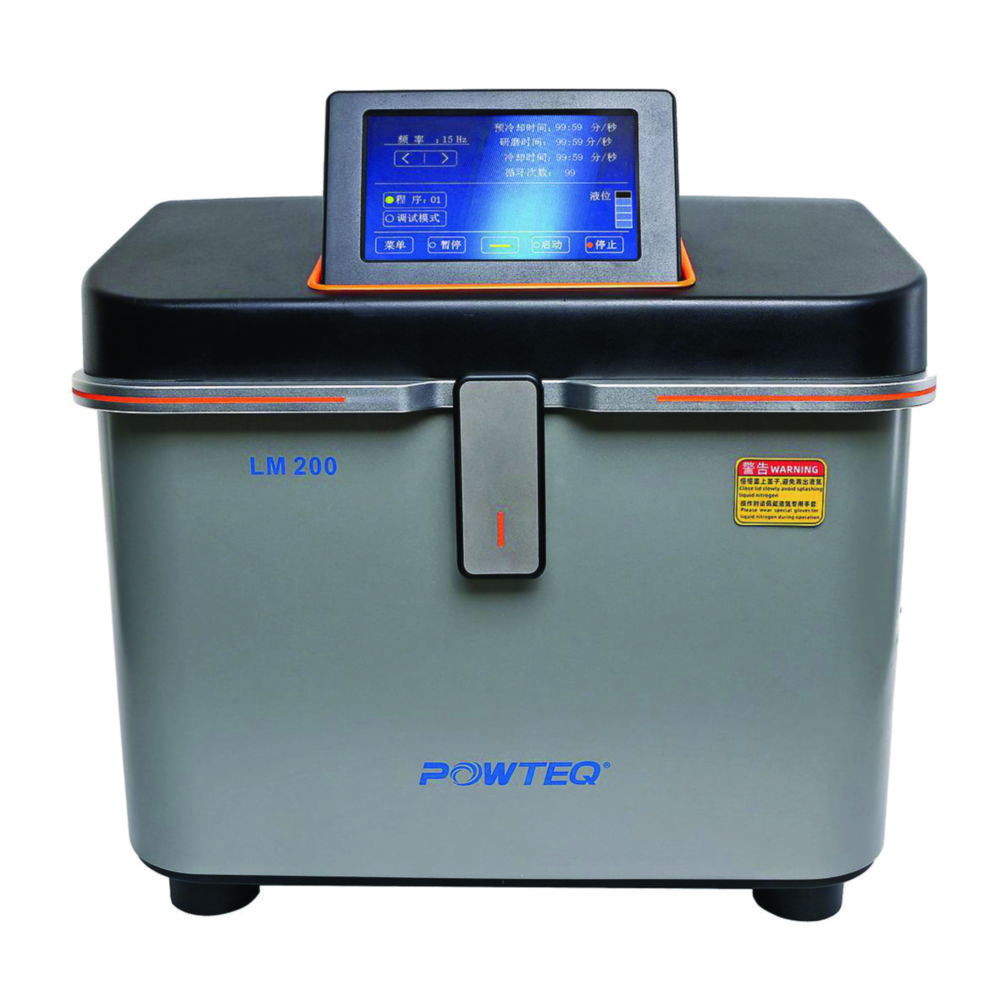

CryoGrinder LM200
For samples with strong toughness and thermal sensitivity that are difficult to grind at room temperature, such as rubber, plastic, food, minerals, animal and plant tissue samples, pharmaceuticals, samples for biochemical DNA detection and cell disruption. The samples are cooled in liquid nitrogen (-196 ℃) and pulverised with a magnetically driven impactor. The samples become brittle and the volatile components are preserved under the low temperature, so that a good grinding effect can be achieved.Liquid nitrogen automatic filling systemTouch screen control panelScope of supply:CryoGrinder LM200, host, cryogenic gloves, goggles
Cutting mill SM 100
Rapid and gentle size reduction of bulky, soft, medium-hard, fibrous, elastic and thermally sensitive materials. They can be equipped with various rotors and hoppers. Scope of supply: cutting mill, 5 l collecting receptaclePlease order rotor, hopper, bottom sieve and base frame separately.
Cutting mill SM 200
Rapid and gentle size reduction of bulky, soft, medium-hard, fibrous, elastic and thermally sensitive materials. They can be equipped with various rotors and hoppers. Optimum cutting effects thanks to double acting cutting barsQuick and easy cleaning without tools due to fold-back housing with smooth surfaces and push-fit rotor and sievesScope of supply: cutting mill, 5 l collecting receptacle, base framePlease order rotor, hopper and bottom sieve separately.
Cutting mill SM 300
Rapid and gentle size reduction of bulky, soft, medium-hard, fibrous, elastic and thermally sensitive materials. They can be equipped with various rotors and hoppers. The most powerful model, the SM 300, is especially suitable for cutting heterogeneous mixtures such as household waste, plastic materials, computer and electronic scrap. The mills are also used for organic materials like wood, roots, bones, plants and feed pellets.Powerful size reduction thanks to 3kW drive with high torque and RES technologyOptimum cutting effects thanks to double acting cutting bars Quick and easy cleaning without tools due to fold-back housing with smooth surfaces and push-fit rotor and sievesScope of supply: cutting mill, 5 l collecting receptacle, base framePlease order rotor, hopper and bottom sieve separately.
Cutting mills PULVERISETTE 15
Ideal for pre and fine comminution of soft to medium-hard as well as fibrous or brittle, tough materials. They are essential for the areas of plastics, textiles, agriculture and forestry, environmental, construction materials, chemistry and foodstuffs. All cutting parts can be removed for cleaning in just a few seconds without tools, unbeatable fast, simple and efficient. Variable rotational speeds, different rotors, various knife geometries and replaceable blades ensure maximum flexibility and durability. For controlling the abrasion properties, the cutting tools are offered in different materials. The optimum airflow ensures fast comminution and secure protection against clogging. The FRITSCH Cyclone seperators (optional) for sample exhaustion enable simple feeding due to the strong airflow, increase throughput, and reduce the thermal load of the samples.Funnels, rotors, sieve inserts/sieve cassettes and collecting vessels must be ordered separately.

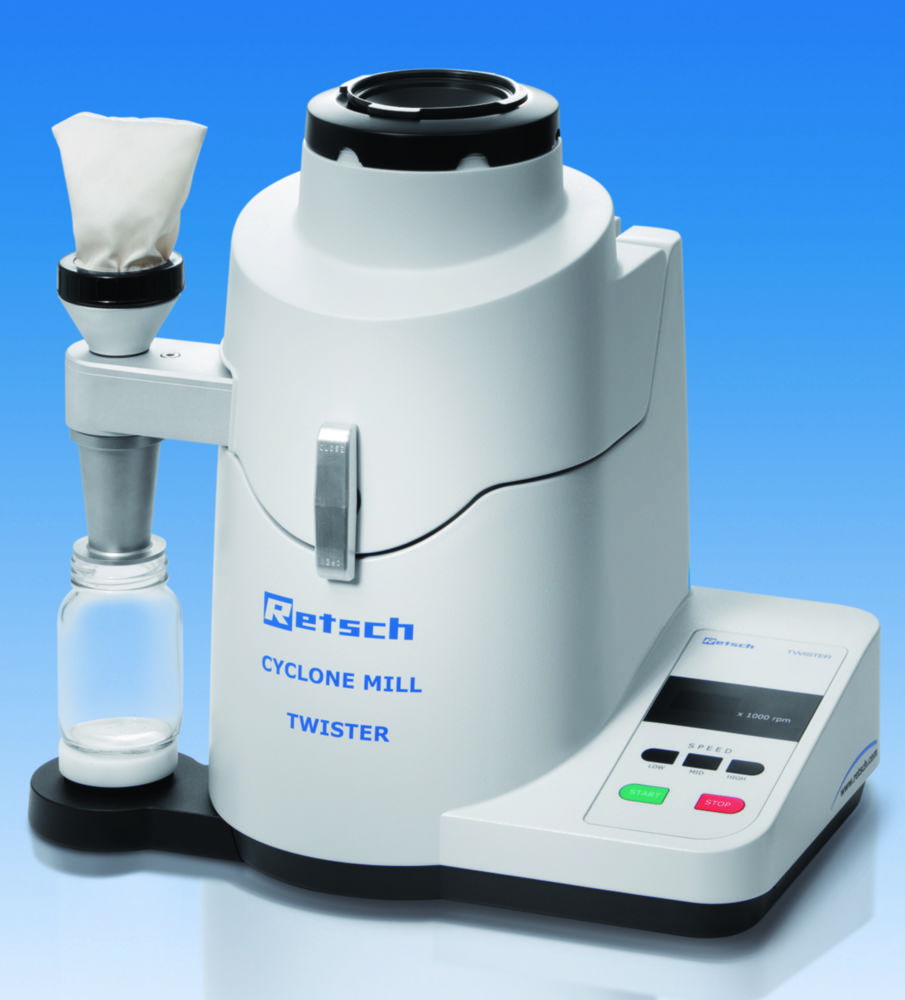

Cyclone Mill TWISTER
Application:The Cyclone Mill TWISTER is specially designed for the processing of foods and feeds for subsequent NIR analysis. The optimized form of rotor and grinding chamber generates an air jet which carries the ground sample through the integrated cyclone into the sample bottle. The air jet prevents the material from heating up, thus preserving the moisture content.Features:Ideal for grinding feeds, grains, forage and other similar products3 controlled speedsCyclone separator with 250 ml collecting bottle for quick extraction of sampleNo cross contamination thanks to easy cleaningConvenient operating panelProfessional industrial design with long lifetimeSpecifications:Feed size: <10mmFinal fineness: < 250 µmBatch size / feed quantity: <250 mlSpeed setting: 10000 / 12000 / 14000 rpmDimensions (W x D x H): 449 x 283 x 427mmWeight: approx. 14kgPower supply: 230 V, 50/60 HzSupplied with: Cyclone Mill TWISTER complete with rotor, grinding ring, sieve inserts (1.0 mm and 2.0 mm), 10 sample bottles 250mlFurther inserts and accessories available on request.

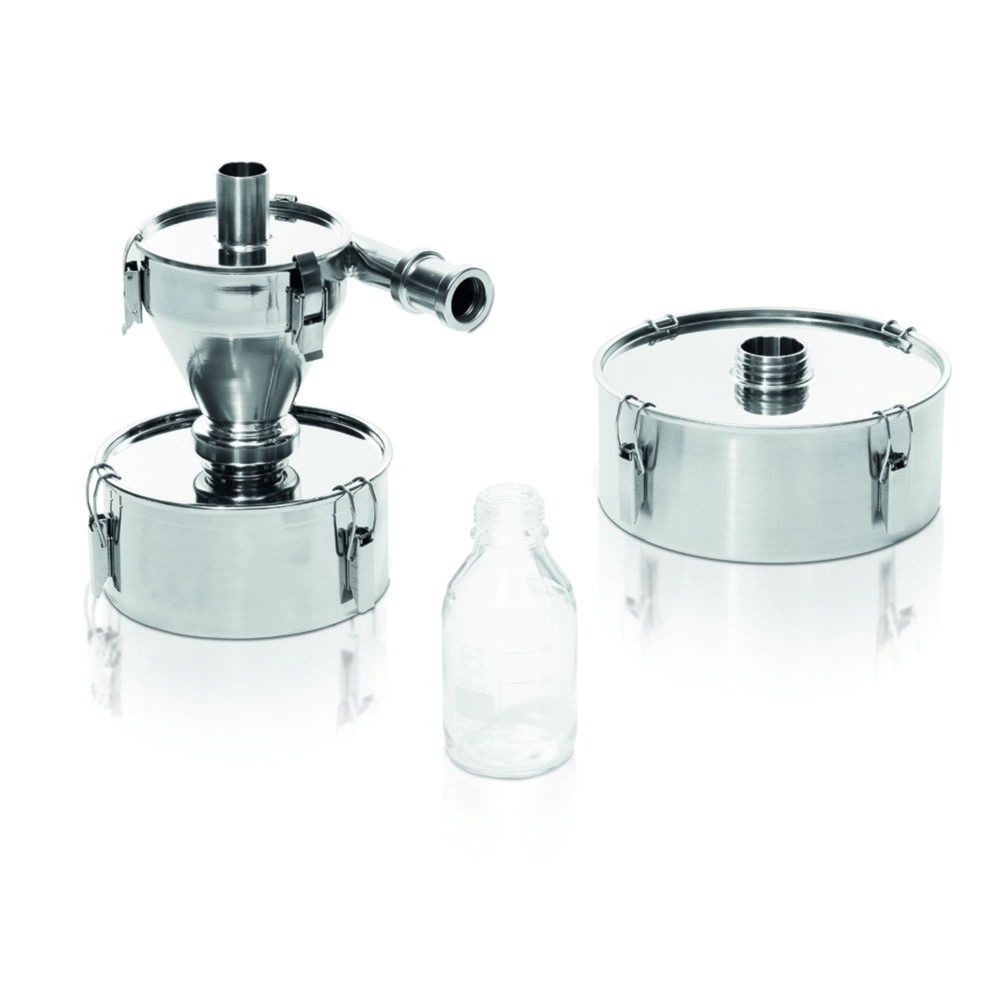

Cyclones for ultra centrifugal mill ZM 300
Cyclones incl. cassette bottom, with outlet and holder.
Disk mill PULVERISETTE 13 classic line
Ideal for intermittent and continuous fine grinding within the medium particle size range of soft to hard, tough and temperature-sensitive solids in the areas of mining and metallurgy, glass industry, ceramics industry, soil research, rocks and soils.Instrument also available in other voltages.Fixed and movable grinding disks must be ordered additionally.The Disk Mill is also available as premium line model: even more powerful, safer and easier to operate due to easy reproducible gap width setting via display.

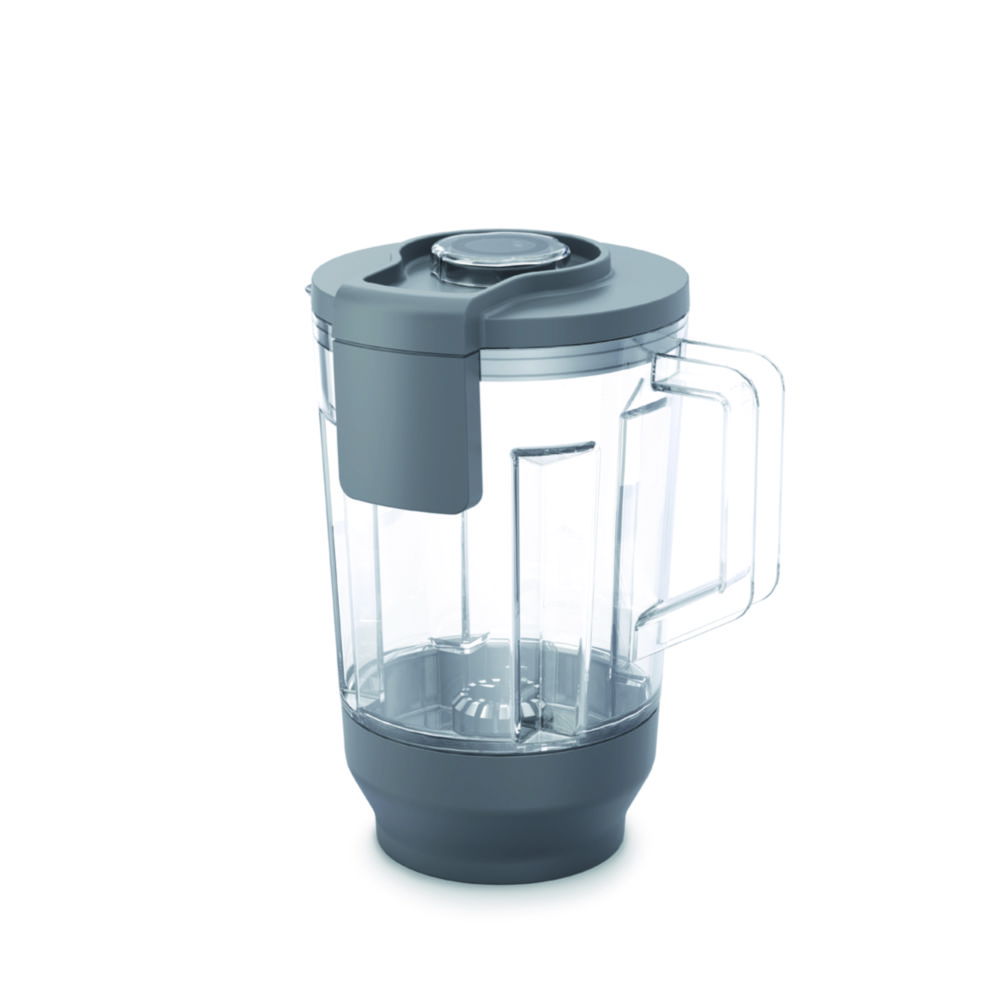

Dispersing vessel with temperature sensor for Universal mill MultiDrive control
Dispersing vessel with rotor-stator system and temperature sensor for dispersing a variety of samples. A temperature limit (-50 to 80 °C) can be set and monitored using the integrated temperature sensor. Particularly suitable for temperature-sensitive materials.

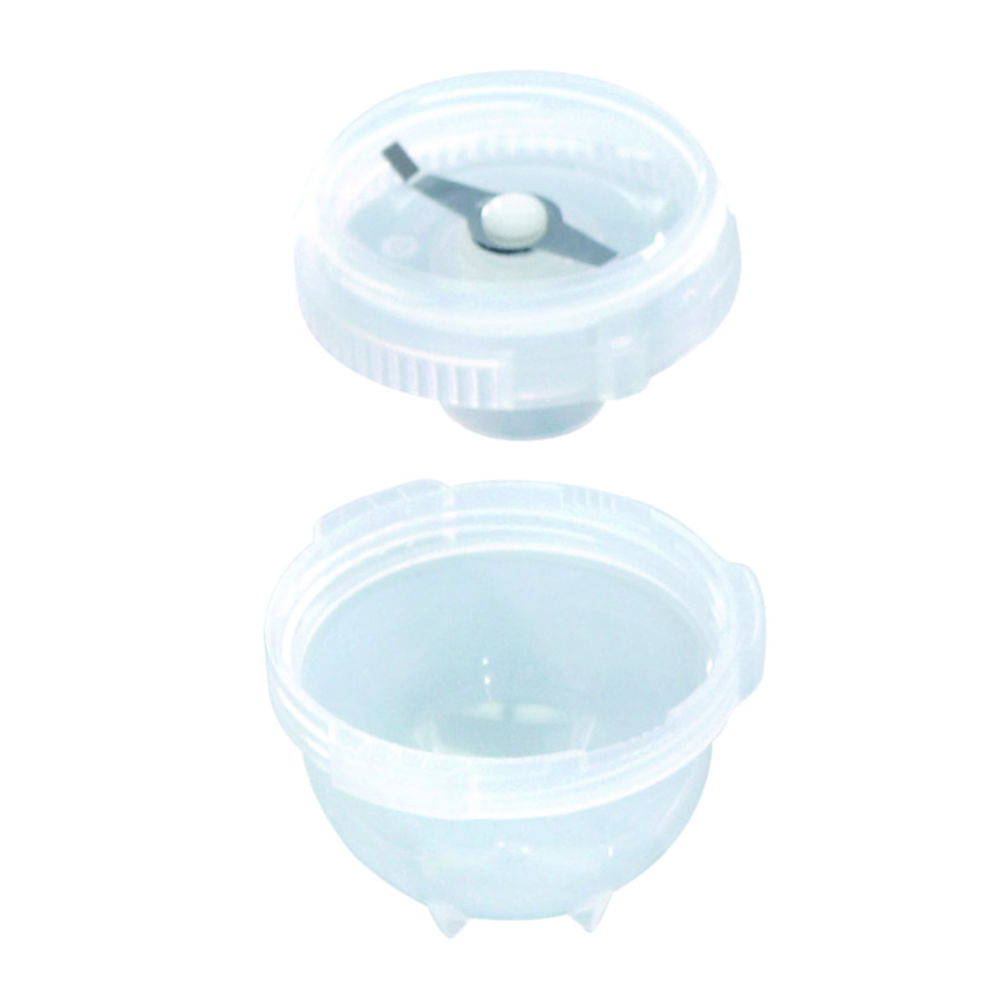

Disposable grinding chambers with bended beater for batch mill Tube Mill control/Tube Mill 100 control
Disposable grinding chambers with stainless steel beater. The beater is bent with a 45° angle to create an optimal flow in the chamber. Especially for mixing fine powders.
Disposable grinding chambers with stainless steel beater for batch mill Tube Mill control/Tube Mill 100 control
Disposable grinding chambers with stainless steel beaters allow grinding up to Mohs hardness 5.
Dry Mill POLYMIX® PX-MFC 90 D, with blade grinding attachment
The PX-MFC 90 D is suitable for dry sample grinding in the laboratory.The blade grinding attachment is used for processing of dried, stringy and fibrous and grease-free materials. Application: Wood, straw, dried grease-free meat, leather, paper, carbon, synthetics etc.Sieves 0.2 mm up to 6 mm diameter availableSafety system prevents start when lid is openPowerful three-phase motorMilling chamber with interchangeable insertsLED displayWorking volume of 300 ml (Funnel volume)1000 Watt, 3-phase motor provides a low noise level during operation, with 230 Volt connectionIntegrated speed control with LED display for speed and status messagesThe motor cannot be operated when the chamber door is openIntegrated overheating, overload and rotor blocking protectionSafety stopper for certain grinding materialsScope of supply: Mill with cutting mill sets, 2 mm sieve, tool set, wooden stand with 12 collection tubes
Dry Mill POLYMIX® PX-MFC 90 D, with hammer grinding attachment
The PX-MFC 90 D is suitable for dry sample grinding in the laboratory. The hammer grinding attachment is used for processing of dried, brittle and grease-free materials. Application: Dried grain, dried beans, bones, rock, ceramics etc.Sieves 0.2 mm up to 6 mm diameter availableSafety system prevents start when lid is openPowerful three-phase motorMilling chamber with interchangeable insertsLED displayWorking volume of 300 ml (Funnel volume)1000 Watt, 3-phase motor provides a low noise level during operation, with 230 Volt connectionIntegrated speed control with LED display for speed and status messagesThe motor cannot be operated when the chamber door is openIntegrated overheating, overload and rotor blocking protectionSafety stopper for certain grinding materialsScope of supply: Mill with hammer mill sets, 2 mm sieve, tool set, wooden stand with 12 collection tubes

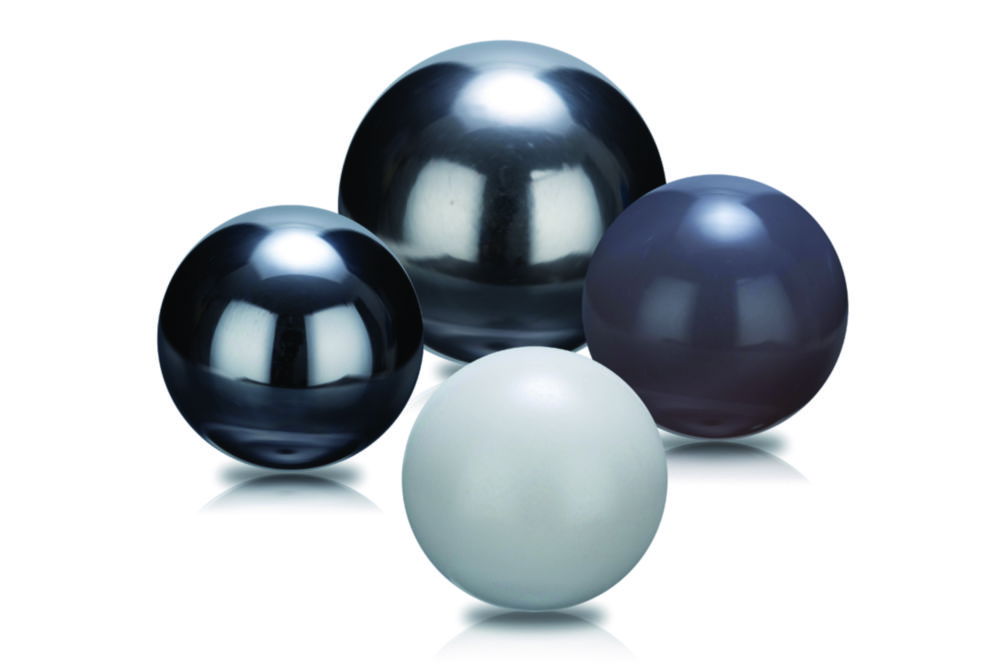

Grinding balls, agate
Grinding balls are available in different materials.Grinding balls are also offered in the diameters 0.1 mm to 3 mm (to achieve a fineness down to the nanometer-range).
