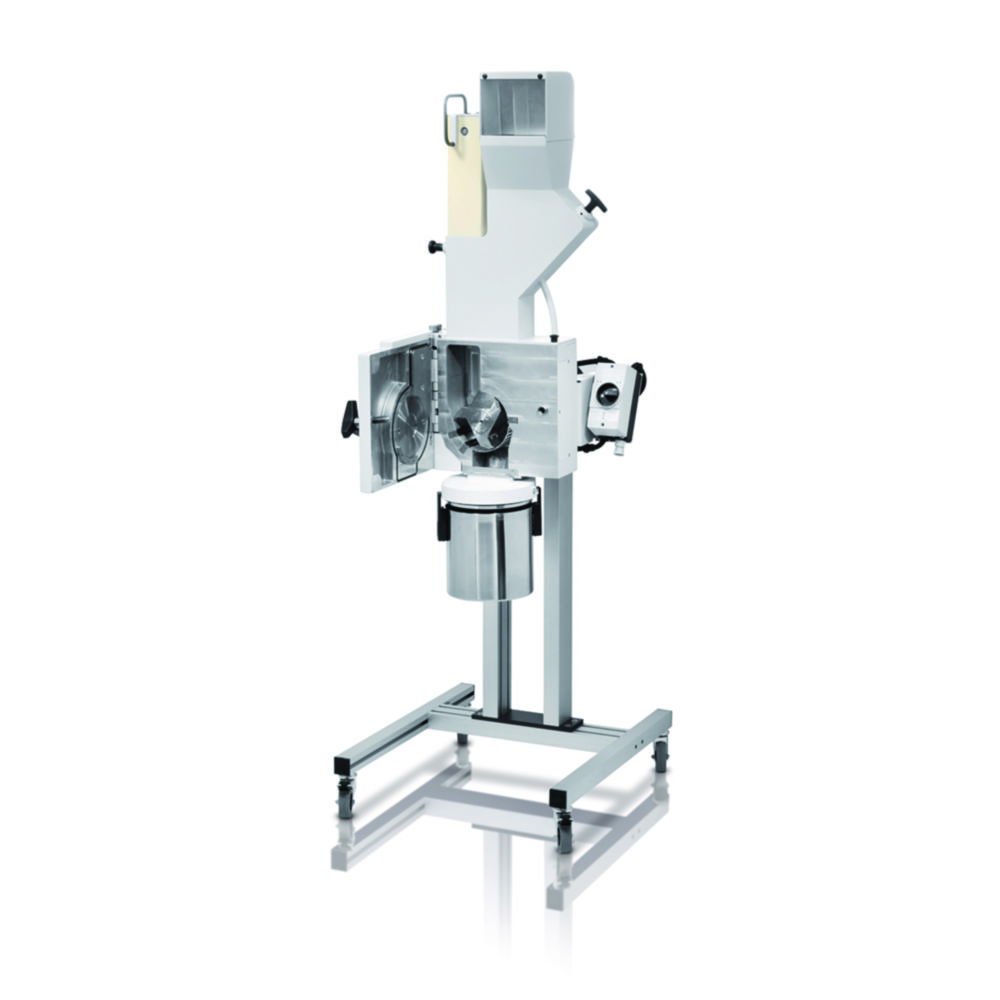

Cutting mill SM 100
Retsch GmbH
€0.00
Content: 1
Product number: 9739069
Product information "Cutting mill SM 100"
Rapid and gentle size reduction of bulky, soft, medium-hard, fibrous, elastic and thermally sensitive materials. They can be equipped with various rotors and hoppers.
Scope of supply: cutting mill, 5 l collecting receptacle
Please order rotor, hopper, bottom sieve and base frame separately.
Please order rotor, hopper, bottom sieve and base frame separately.
| Depth: | 700 mm |
|---|---|
| Dimensions (WxDxH): | 582 x 700 x 1,675 mm |
| Height: | 1675 mm |
| IP code: | IP 54 |
| Manufacturer Article Number: | 20.727.0001 |
| Max. feed particle size: | 80 mm |
| Max. final fineness: | 250 µm |
| Max. speed: | 1500 1/min |
| Max. voltage: | 400 V·3/N/PE |
| Nominal volume collecting vessel: | 5000 ml |
| Power supply: | 400 V·3/N/PE, 50 Hz |
| Power supply frequency: | 50 Hz |
| Rated capacity: | 1500 W |
| Speed: | 1,500 1/min |
| Type: | SM 100 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 73 kg |
| Width: | 582 mm |
| Ø rotor: | 129.5 mm |
