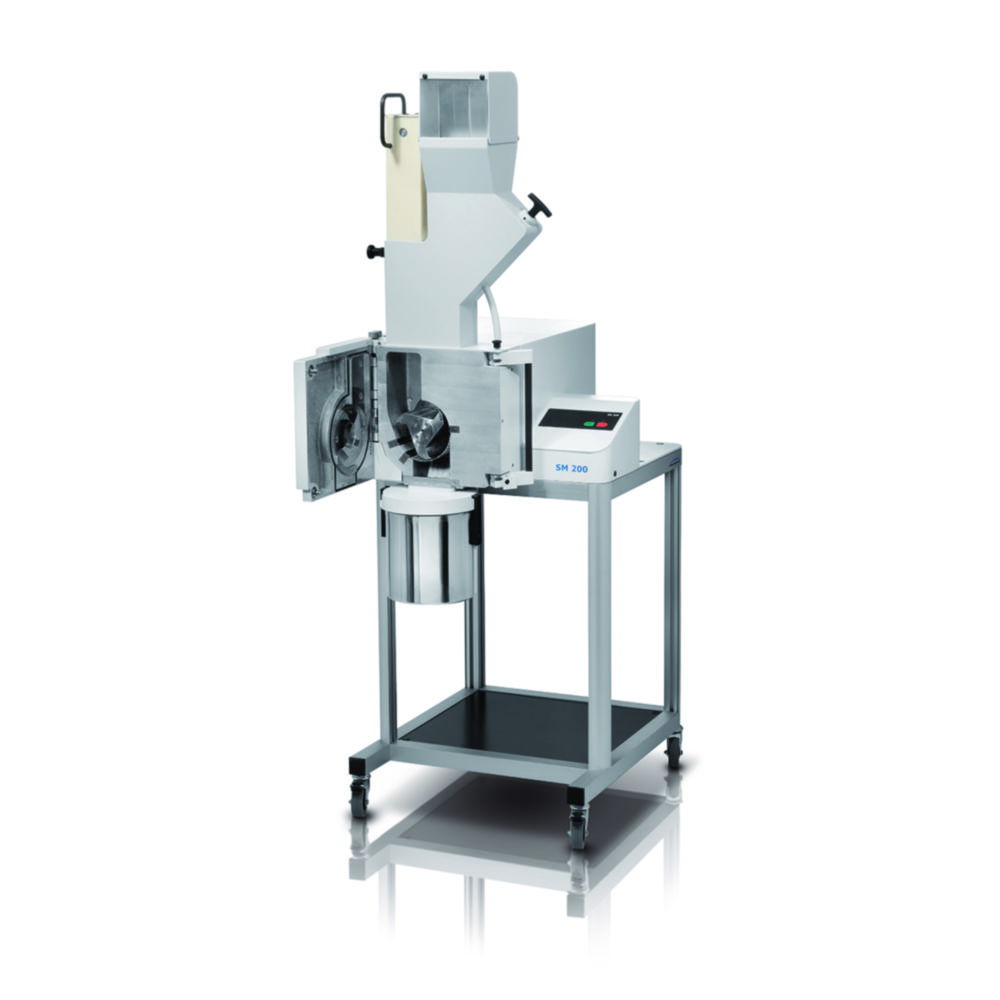

Cutting mill SM 200
Retsch GmbH
€0.00
Content: 1
Product number: 9739067
Product information "Cutting mill SM 200"
Rapid and gentle size reduction of bulky, soft, medium-hard, fibrous, elastic and thermally sensitive materials. They can be equipped with various rotors and hoppers.
Scope of supply: cutting mill, 5 l collecting receptacle, base frame
Please order rotor, hopper and bottom sieve separately.
- Optimum cutting effects thanks to double acting cutting bars
- Quick and easy cleaning without tools due to fold-back housing with smooth surfaces and push-fit rotor and sieves
Scope of supply: cutting mill, 5 l collecting receptacle, base frame
Please order rotor, hopper and bottom sieve separately.
| Depth: | 760 mm |
|---|---|
| Dimensions (WxDxH): | 576 x 760 x 1,675 mm |
| Height: | 1675 mm |
| IP code: | IP 54 |
| Manufacturer Article Number: | 20.728.0001 |
| Max. feed particle size: | 80 mm |
| Max. final fineness: | 250 µm |
| Max. speed: | 1500 1/min |
| Max. voltage: | 400 V·3/N/PE |
| Nominal volume collecting vessel: | 5000 ml |
| Power supply: | 400 V·3/N/PE, 50 Hz |
| Power supply frequency: | 50 Hz |
| Rated capacity: | 2200 W |
| Speed: | 1,500 1/min |
| Type: | SM 200 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 90 kg |
| Width: | 576 mm |
| Ø rotor: | 129.5 mm |
