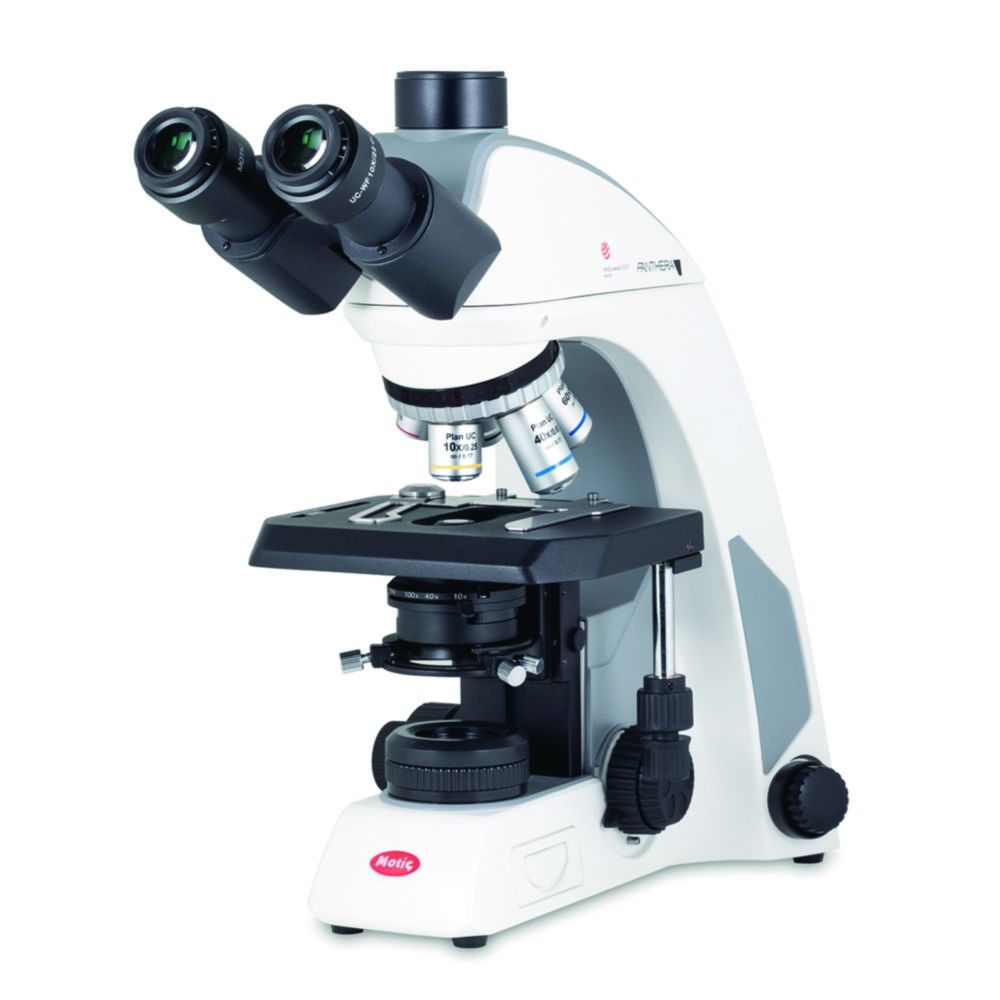

Light microscopes Panthera C2
Upright light microscopes for education, research and diagnostics. Due to high quality optics and digital features especially suited for professional users.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan achromatic objectives UC PLReversed coded nosepieceFocusable Abbe condenser with iris diaphragm and slotIllumination acc. to Köhler, with interchangeable illuminatorWith Motic LightTracer: LED light intensity, light memory, sleep mode (auto on-off), mode indicatorCoaxial coarse and fine focusing system with tension adjustmentCompact, built-in mechanical stageIntegrated power supply with sleep modeAdditional equipment depending on the model with common contrast methods such as phase contrast, darkfield, single polarization or LED fluorescence (single-channel) possible.With USB 2.0 port for external camera power supply.Scope of supply: Microscope, rubber eyecups, blue filter, LED and halogen modul, immersion oil (5 ml), allen key, dust cover, power cord

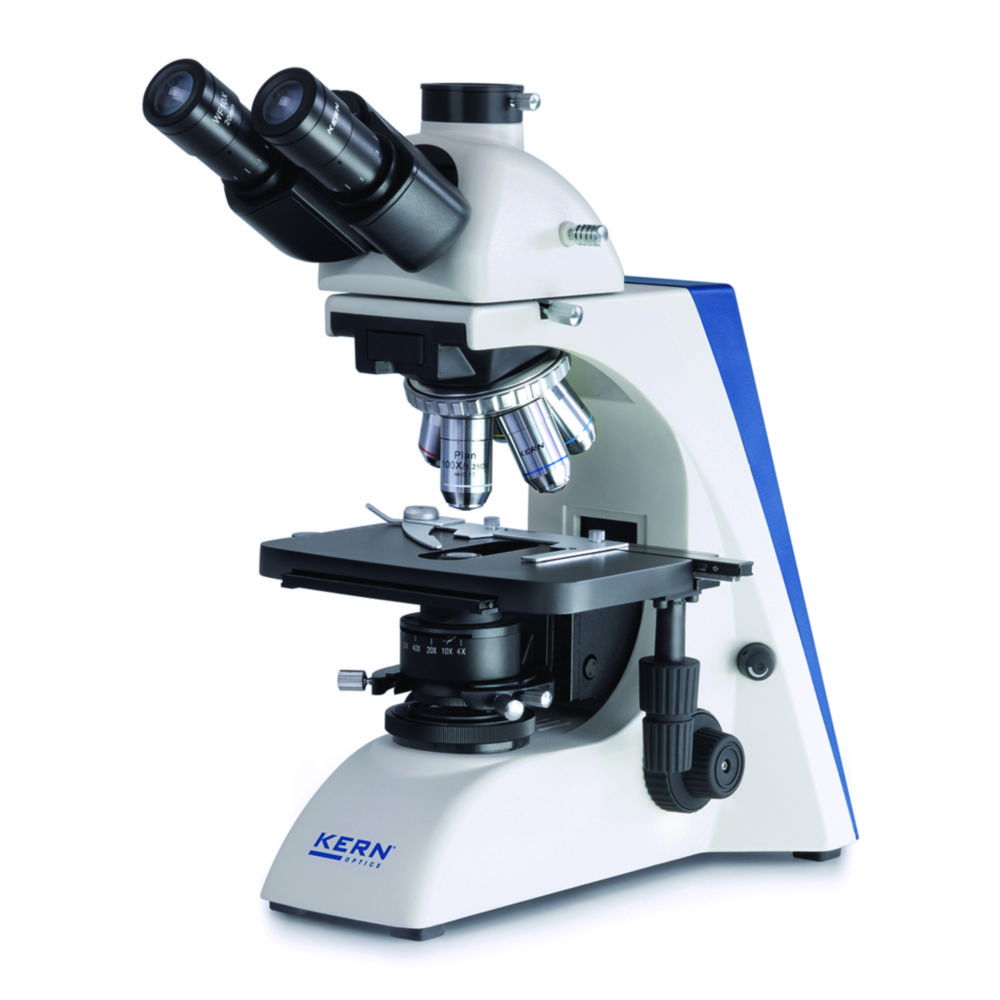

Light microscopes Professional Line OBN 13
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: Halogen illumination 20 W, including blue color filterOBN 135: LED illumination 3 WScope of supply: microscope, centring eyepiece, dust cover, eyepiece rubber caps, manual instruction

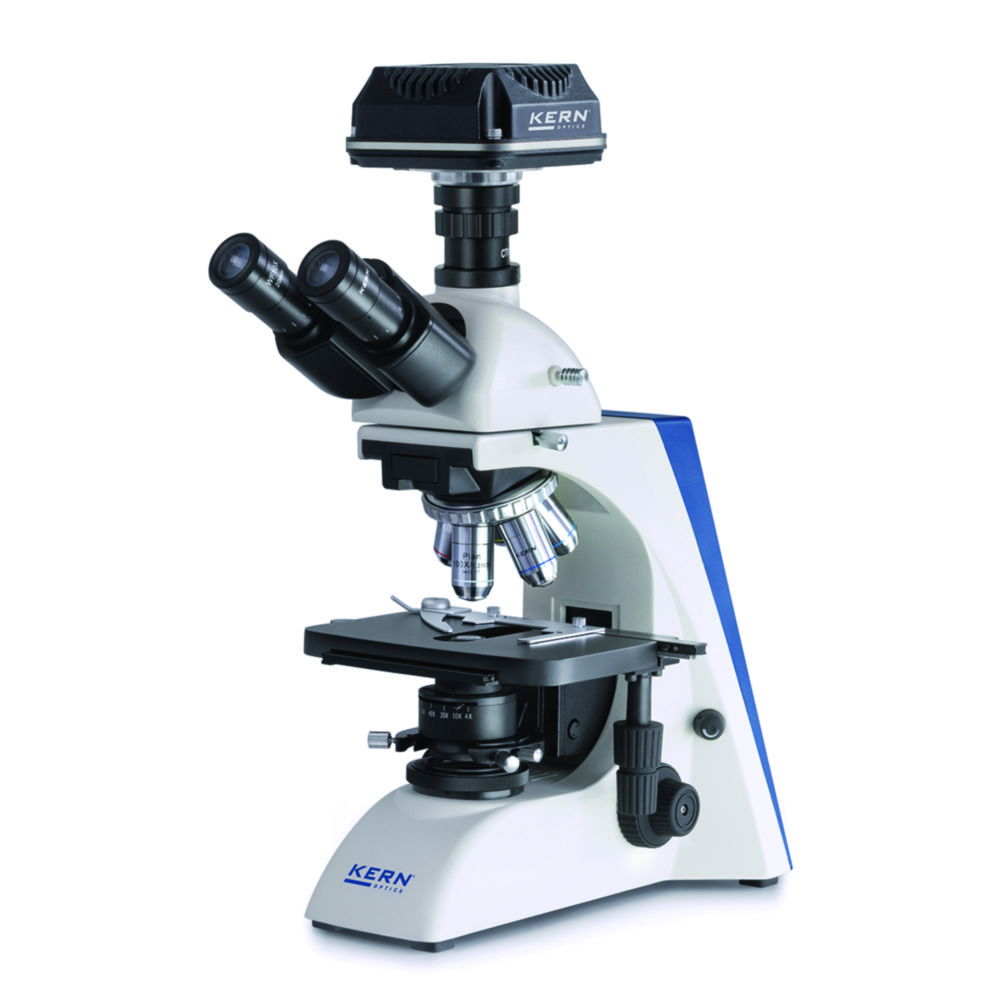

Light microscopes Professional Line OBN 13 sets, with C-mount camera
The sets are the complete digital solution for live investigations, including appropriate C-mount adapter. Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)

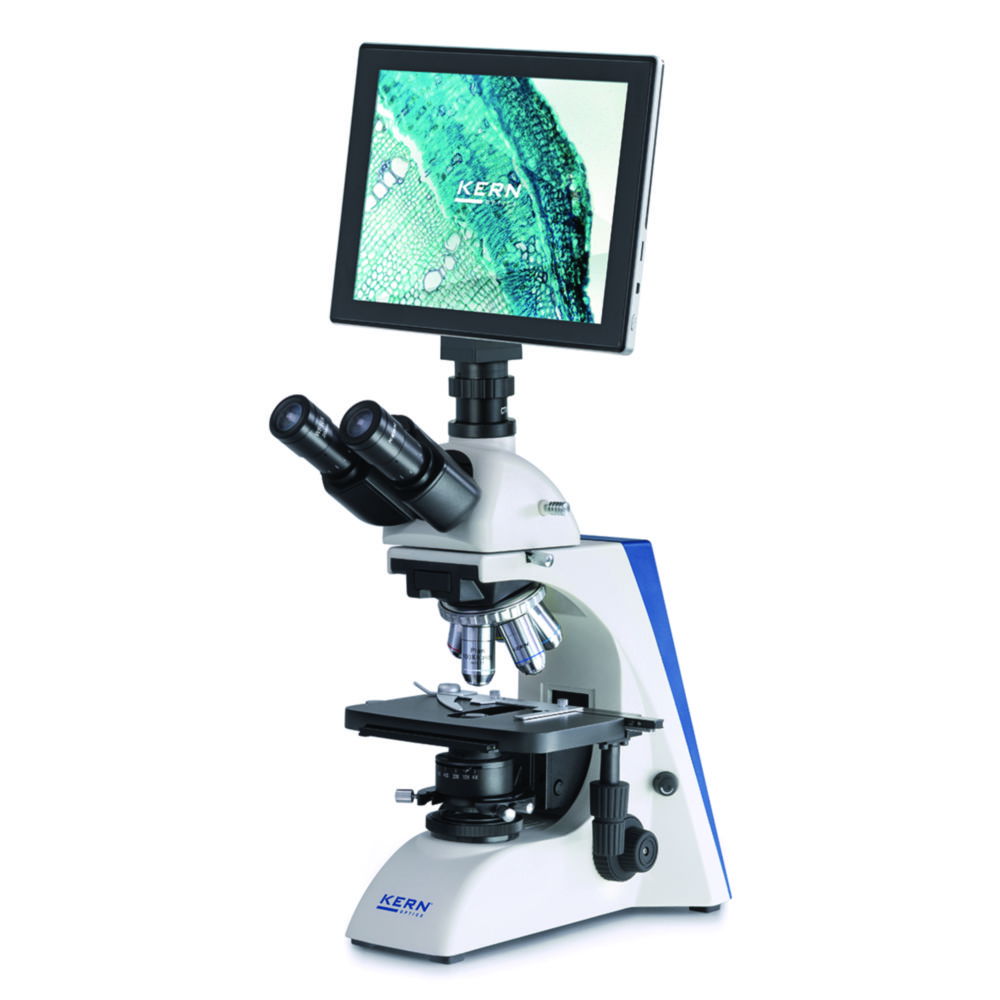

Light microscopes Professional Line OBN 13 sets, with tablet camera
The sets are the complete digital solution for live investigations. The adapted 5 MP tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen.Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)

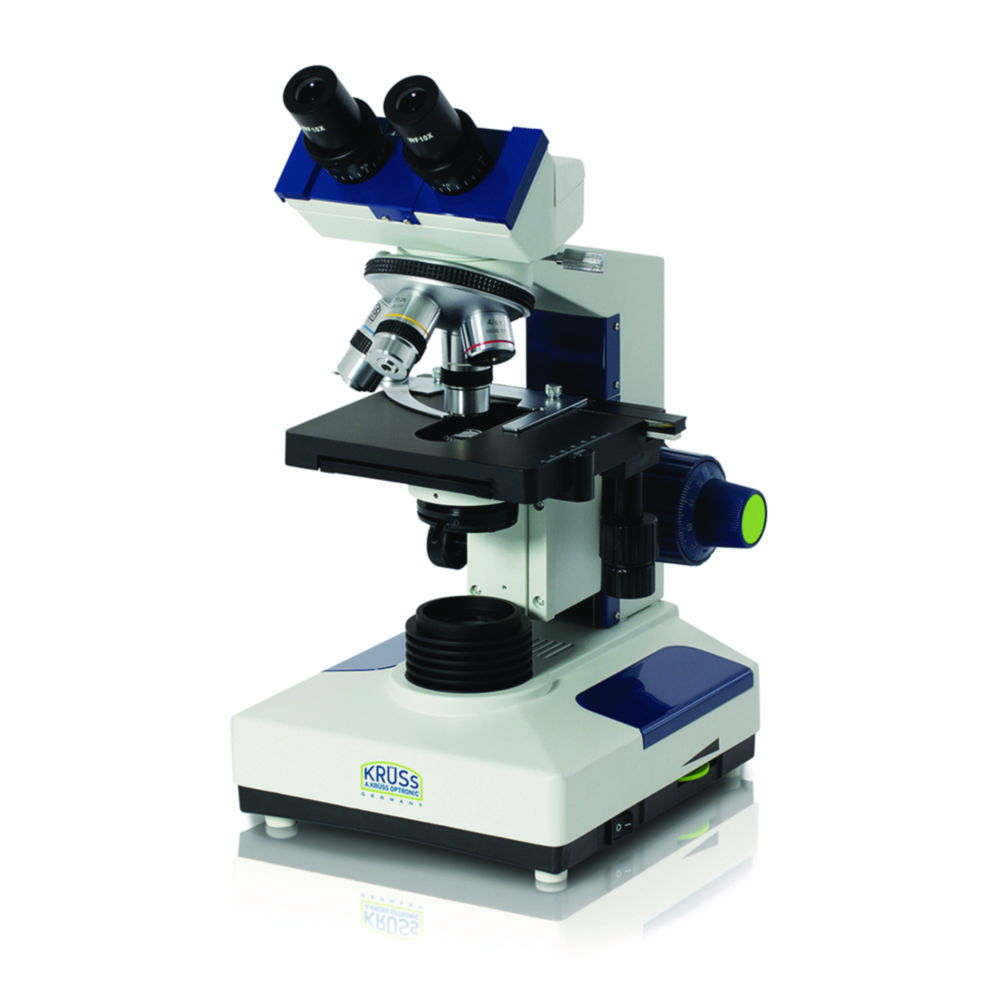

Microscope MBL2000
Binocular microscope for biological examinations, studies on animals, plants, microorganisms and cell cultures.Robust and universally applicableDioptre compensation with compensation scaleSturdy metal stand with graduated XY mechanical stage enabling coaxial operation and height adjustmentCoarse and fine drive, coaxial on both sidesLow-voltage illumination with light control and removable pre-condenserLED illuminationDouble-lens ABBE condenser: NA 1.25 with Iris diaphragmGlass filter: blue, yellow, greenRetractable filter holder

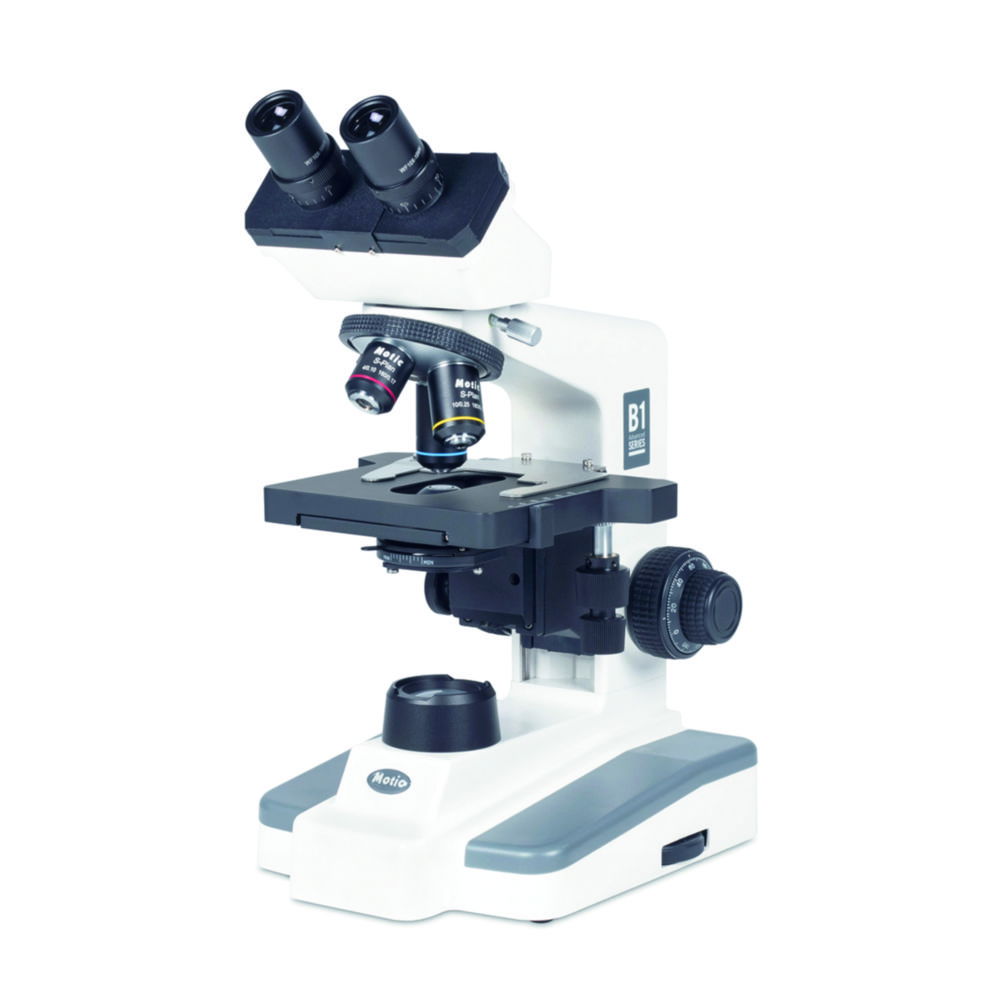

Microscopes B1 Elite
The B1 Elite series covers a wide range of the daily work for schools and laboratories.Monocular head 45°, binocular head 45°, trinocular head 30°, 360° rotatingWidefield eyepieces WF 10X/18mmQuadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X SDiopter adjustment on both eyepiece socketsCoaxial coarse and fine focusing system with tension adjustmentBuilt-in low position coaxial rackless mechanical stageFocusable 1.25 N.A. Abbe condenser with iris diaphragmLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover
Microscopes, binocular, MBL2000-T
Universal microscope for general applications.Can easily be adapted for many applications using the wide range of accessoriesEyepieces: 10x flat eyepiecesAchromatic objectives: 4x, 10x, 40x, 100xTrinocular microscopeWith phototube for photography and video

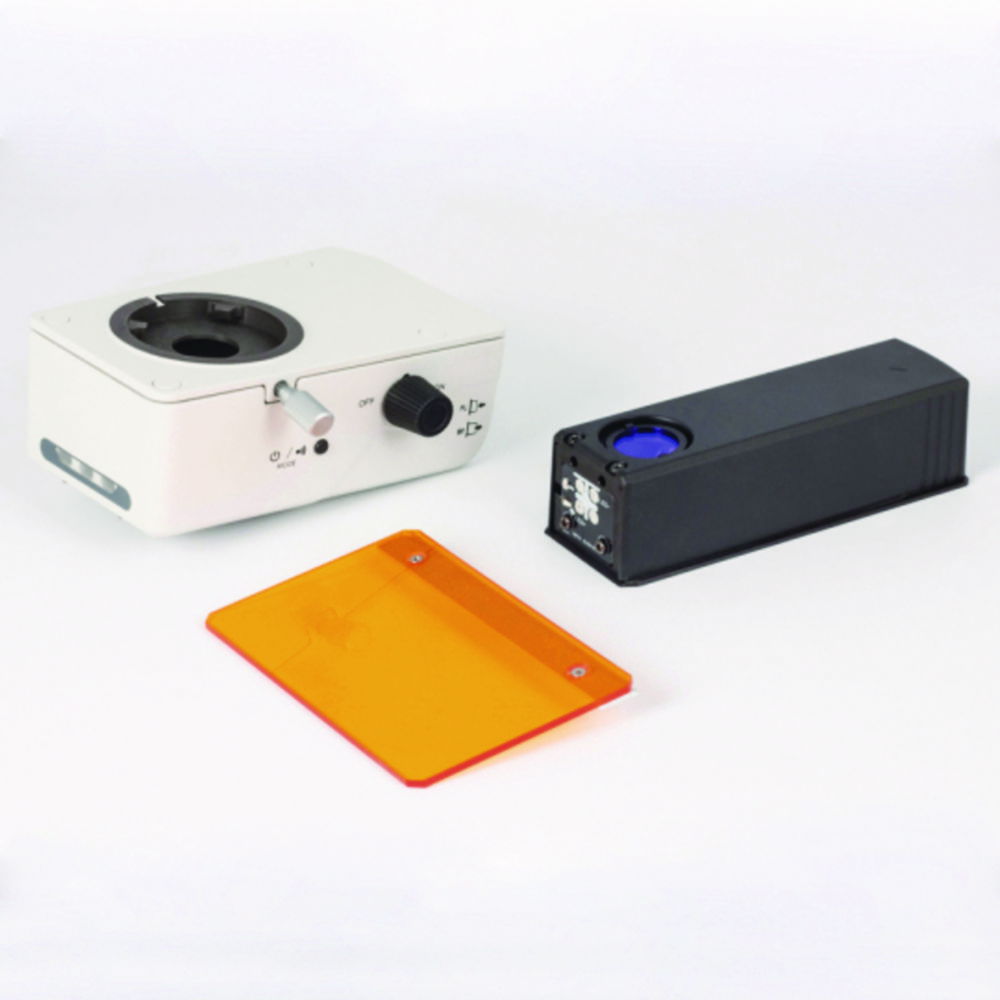

Modules EpiLED for Basic Biological Microscope BA210E
Three LED modules for safe handling of fluorescence applications in school and education environmentsThe new EpiLED S modules, to be combined with the basic upright microscope BA210Elite, for the first time allow an easy, trouble-free and economic access to fluorescence microscopy. From now on it is possible to implement the fluorescence method even in environments relevant to security, e.g. schools. Now is the time not only to demonstrate "fluorescence" by a teacher, but also to allow students to work on their own. Complete modules as well as separate inserts are available.The following complete modules respectively, inserts are available:Epi-LED S Auramin 0 combination: 455nm LED; filter EX: 480SP, D 505LP, B 520LPEpi-LED S FITC combination: 470nm LED; EX: 480SP, D 505LP, B 520LPEpi-LED S TRITC combination: 530nm LED; EX: 532-33, D 575LP, B 590LPThe scope of delivery contains:A condenser slider to minimize reflections from the condenser front lens of BA210ESpecial rubber eyecups to reject stray light from the sideA power supply with exchangeable plugs (UL,VDE,UK), Allen key, dust cover

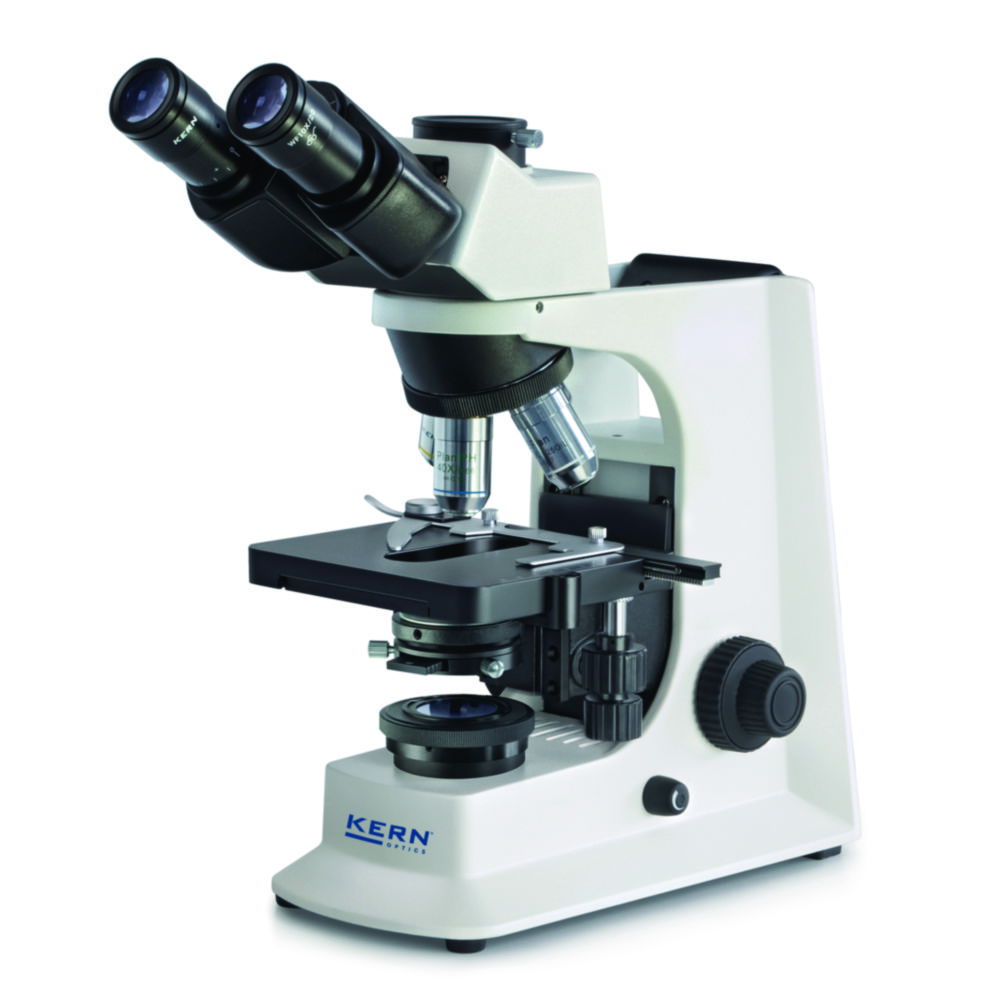

Phase contrast microscopes OBL 14/15
For extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.Infinity optical systemTube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingAbbe N.A. 1,25 precentered, for bright field and phase contrastLightfield diaphragm20 W halogen or 3 W LED illuminationScope of supply: Microscope, protective dust cover, eye cups, user instructions

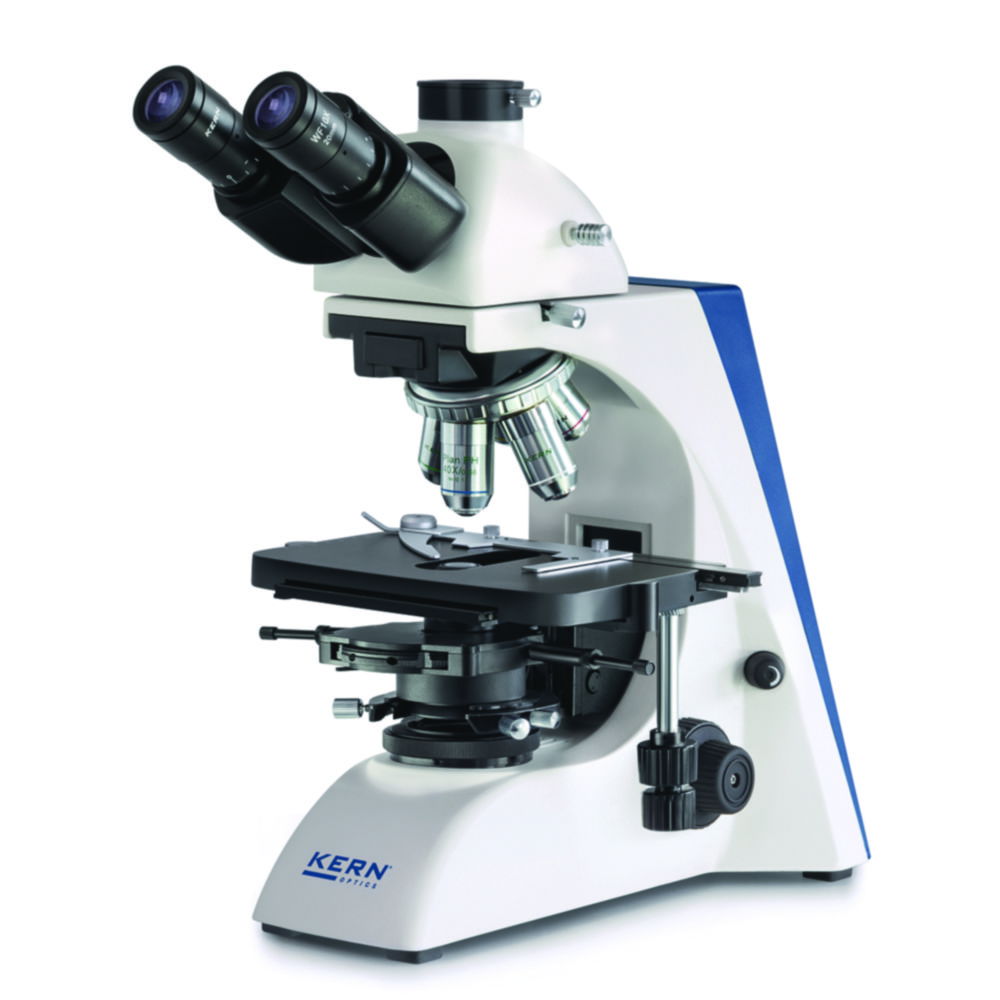

Phase contrast microscopes professional line OBN 15
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragmCoaxial coarse and fine focusingOBN 158: Halogen lighting 20 WOBN 159: LED lighting 3 WScope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual

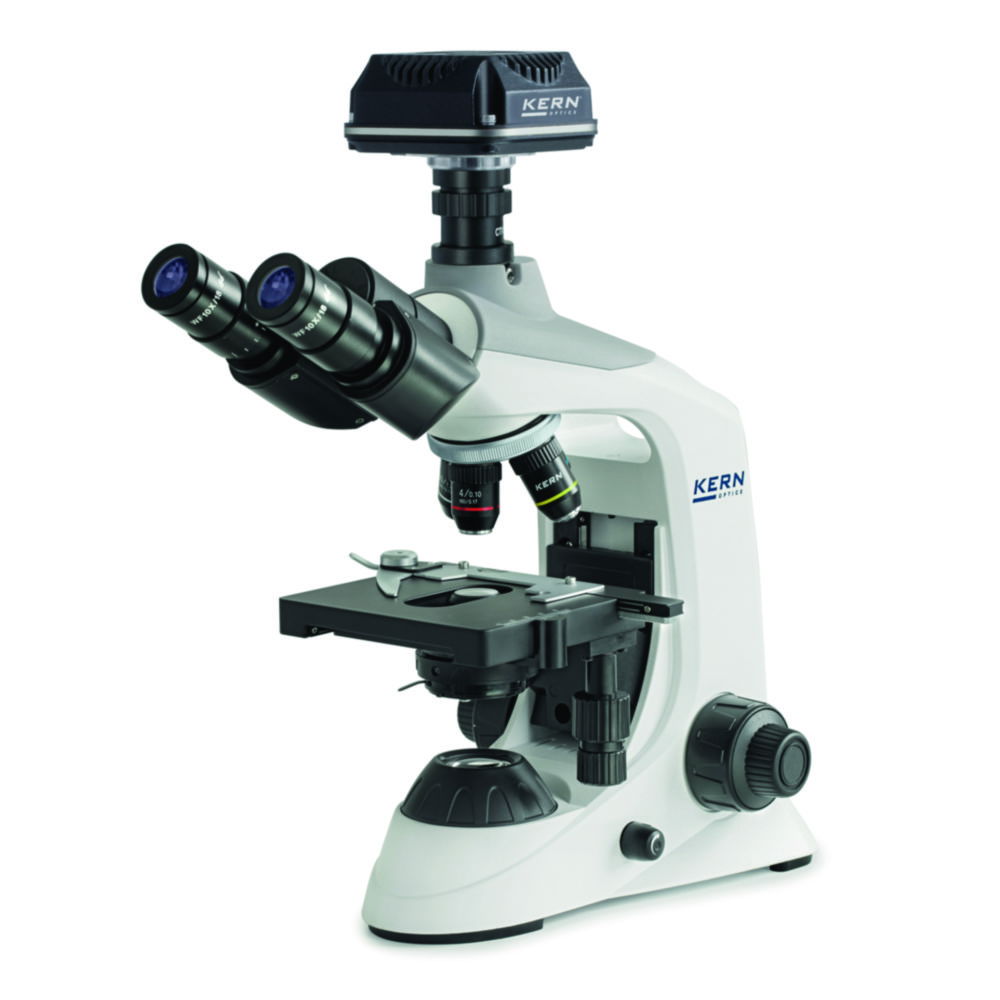

Transmitted light microscope-digital set OBE, with C-mount camera
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction

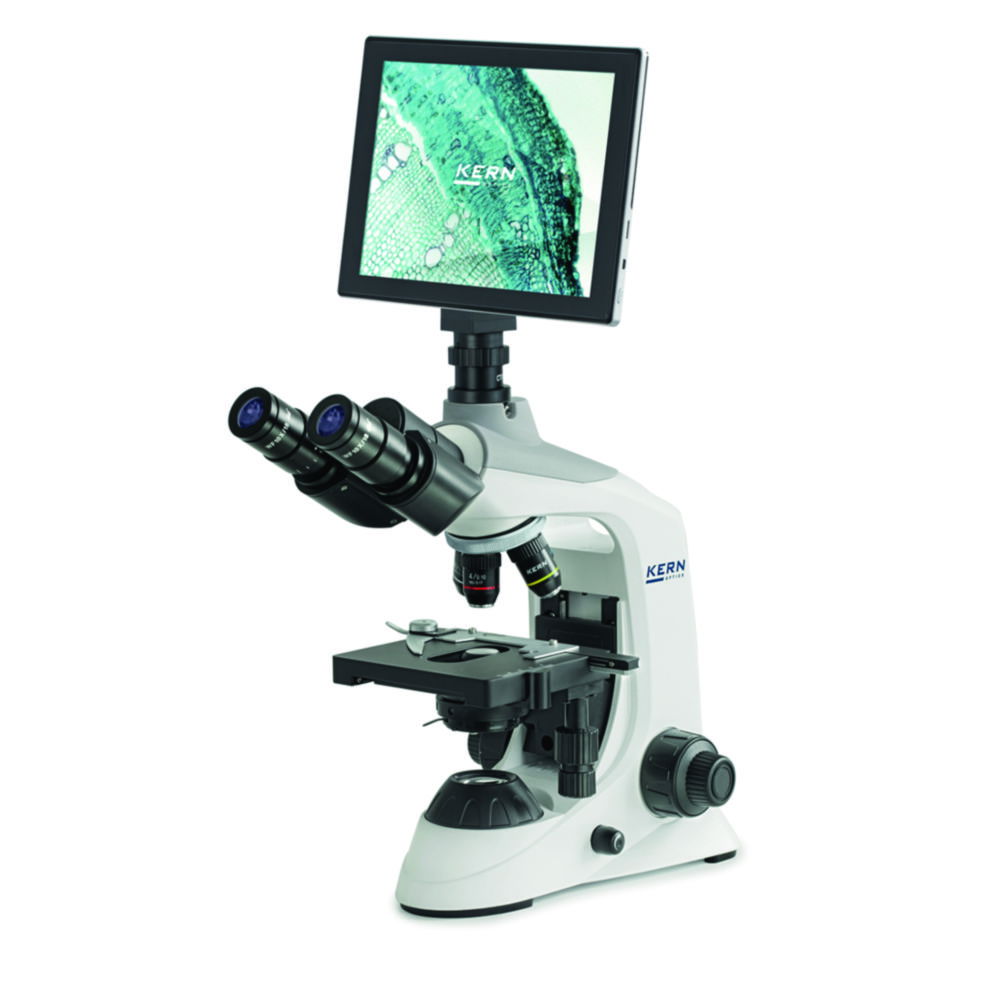

Transmitted light microscope-digital sets OBE, with tablet camera
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, dust cover, eye cups, manual instruction
