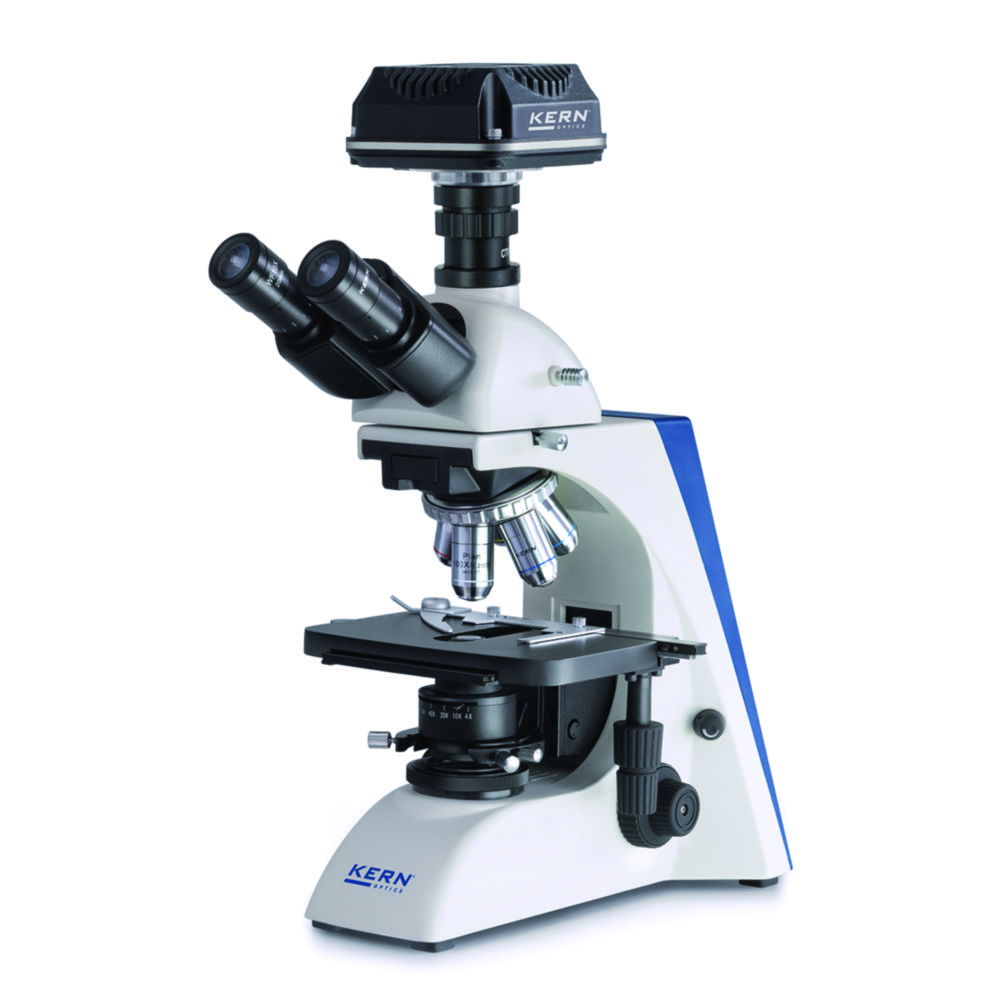

Light microscopes Professional Line OBN 13 sets, with C-mount camera

Specialists in microscopy for measurement, counting, documentation, archiving and image processing.C-Mount USB-camera with CMOS sensorUSB-cable, eyepiece adapter and calibration slide includedKern-Microscope-VIS Software in 6 languages inclusive, for WINDOWS XP and higher

The sets are the complete digital solution for live investigations. The adapted 5 MP tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen.Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)

This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: Halogen illumination 20 W, including blue color filterOBN 135: LED illumination 3 WScope of supply: microscope, centring eyepiece, dust cover, eyepiece rubber caps, manual instruction
