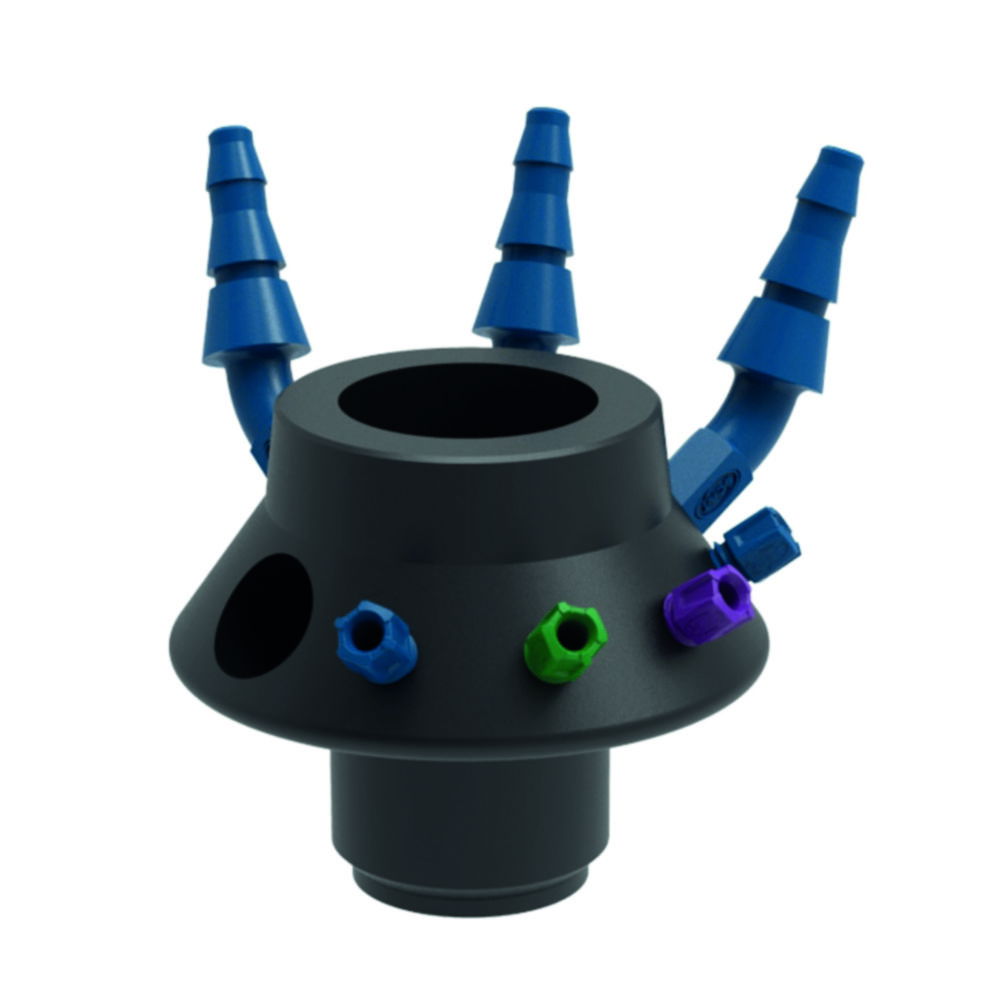

Satellite extension for Safety Waste Caps V3.0, electrostatic conductive
Satellite for connecting 4 capillaries (UNF 1/4" 28 G), 3 tube connectors (NPT 1/8") and an exhaust filter (GL 14).Scope of supply: Satellite (PTFE, black), PFA fittings: 4 x 1.6 mm (green), 4 x 2.3 mm (violet), 4 x 3.2 mm (blue), 4 blind plugs for capillary connections (PFA, transparent), 3 tube connectors for tubes with 5.0 - 11.5 mm ID (PP, blue), 3 blind plugs for tube connections (PTFE, white), 1 blind plug GL 14 (PTFE, white)

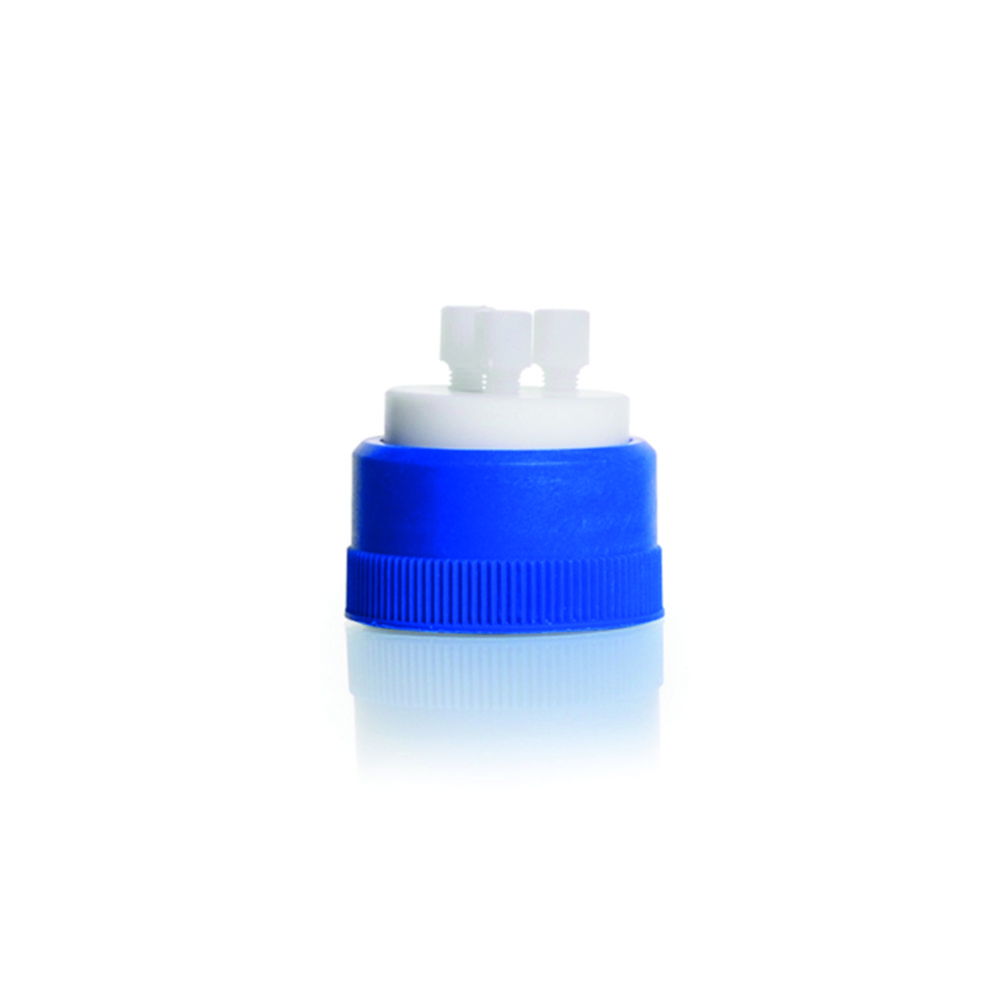

Screw caps HPLC, PTFE, GL 45
With 3 ports, for tubing outer diameter 3.2 mm, complete with 3 UNF 1/4" 28G ETFE plugs and seal (TFE / PP).

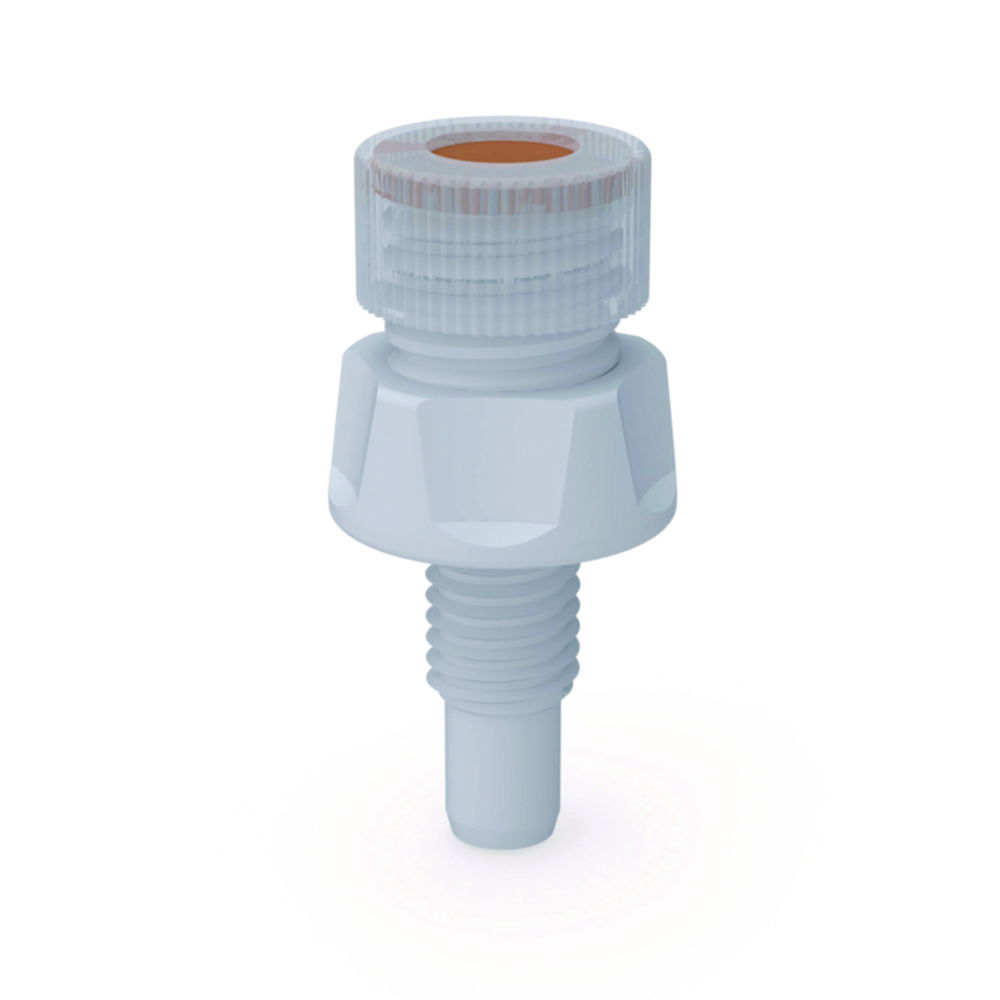

Septum adapters, PTFE
Threaded adapter to connect a septum cap with a capillary connector.

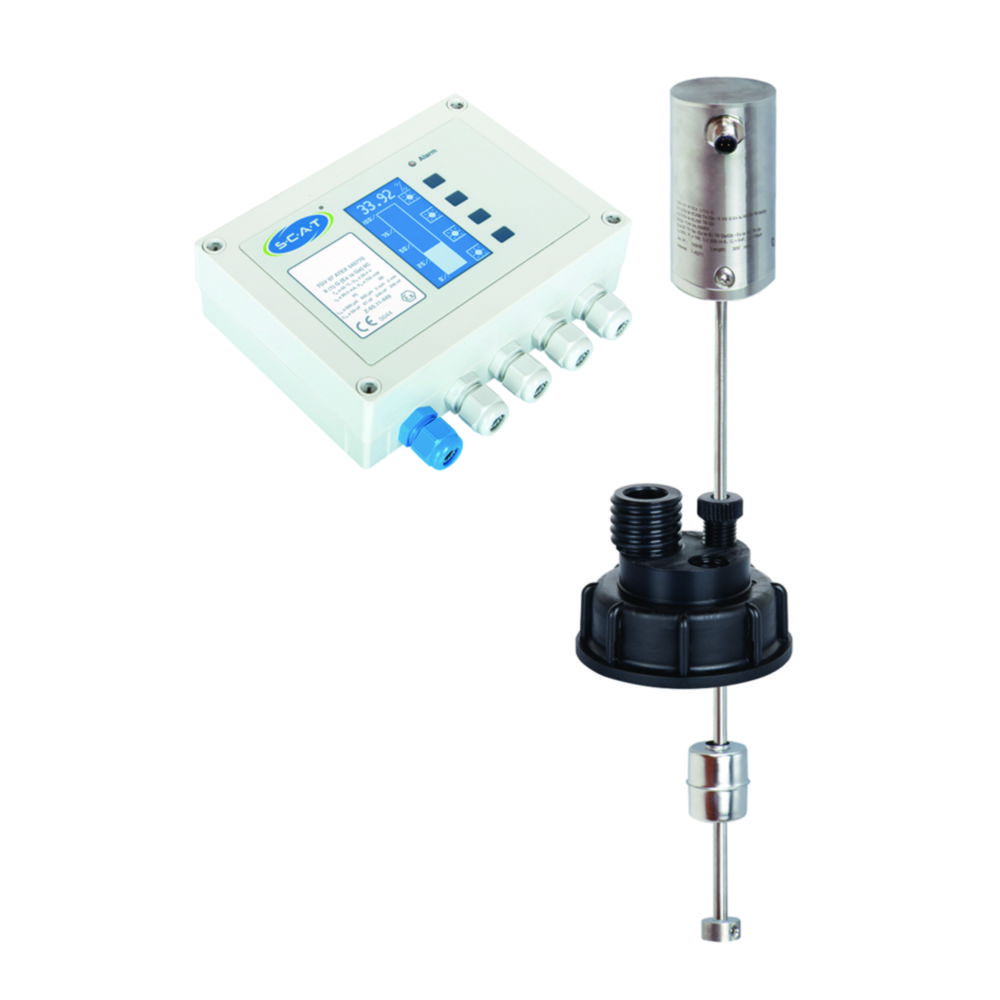

Set for continuous level control
For permanent level measurement. The signal box offers 4 freely configurable outputs for controlling external devices. The compact design and independent mains supply allow easy handling and installation even outside control cabinets.Automatic warning for 5 different levels freely selectableAccuracy of up to ± 0.5 mmProbe head: stainless steel 303/316LProbe tube: stainless steel 1.4571Probe length: 265 mmProbe tube Ø: 6 mmProtection class IP68Scope of supply: Signalbox UM-O-Ex with display unit, stainless steel sensor probe, cable with open ends, level sensor TORRIX Ex 6 B NT for Bypass without HART

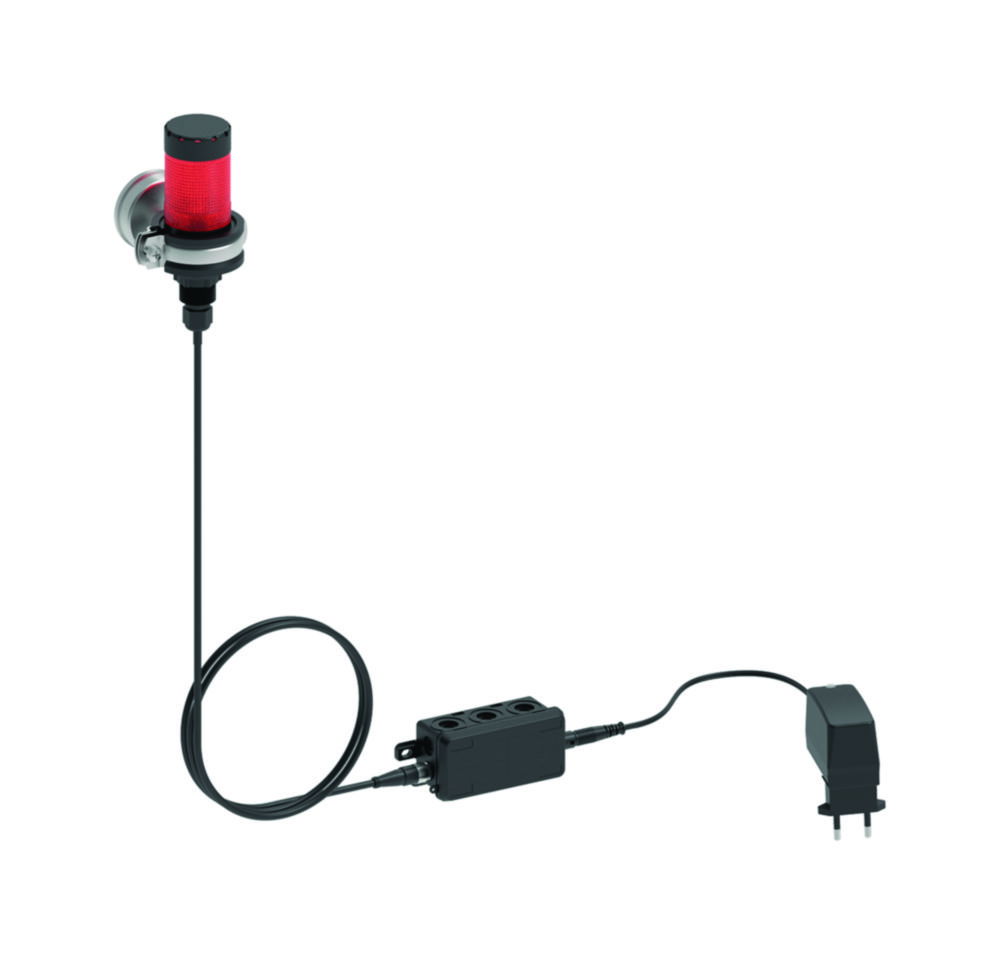

Signal lamps for level control
Visual signal when the level is reachedWith magnetic holderCable length 3 m

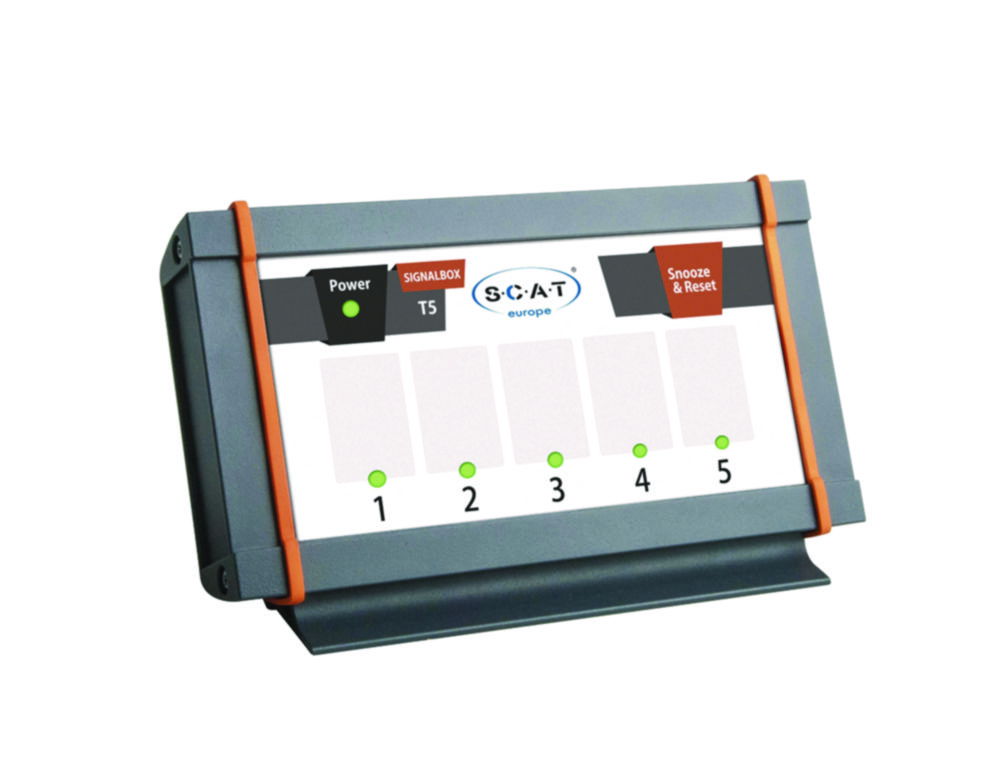

Signalbox T5
LED's and acoustic alarm warn before the level of collection containers reaches the critical level. With mute / snooze function and interface for controlling external devices such as pumps or valves. For SCAT sensors and Safety Waste Caps with electronic level control.LED display5 sensor inputs and 6 potential-free outputsOperating temerature: 5 to 40 °C

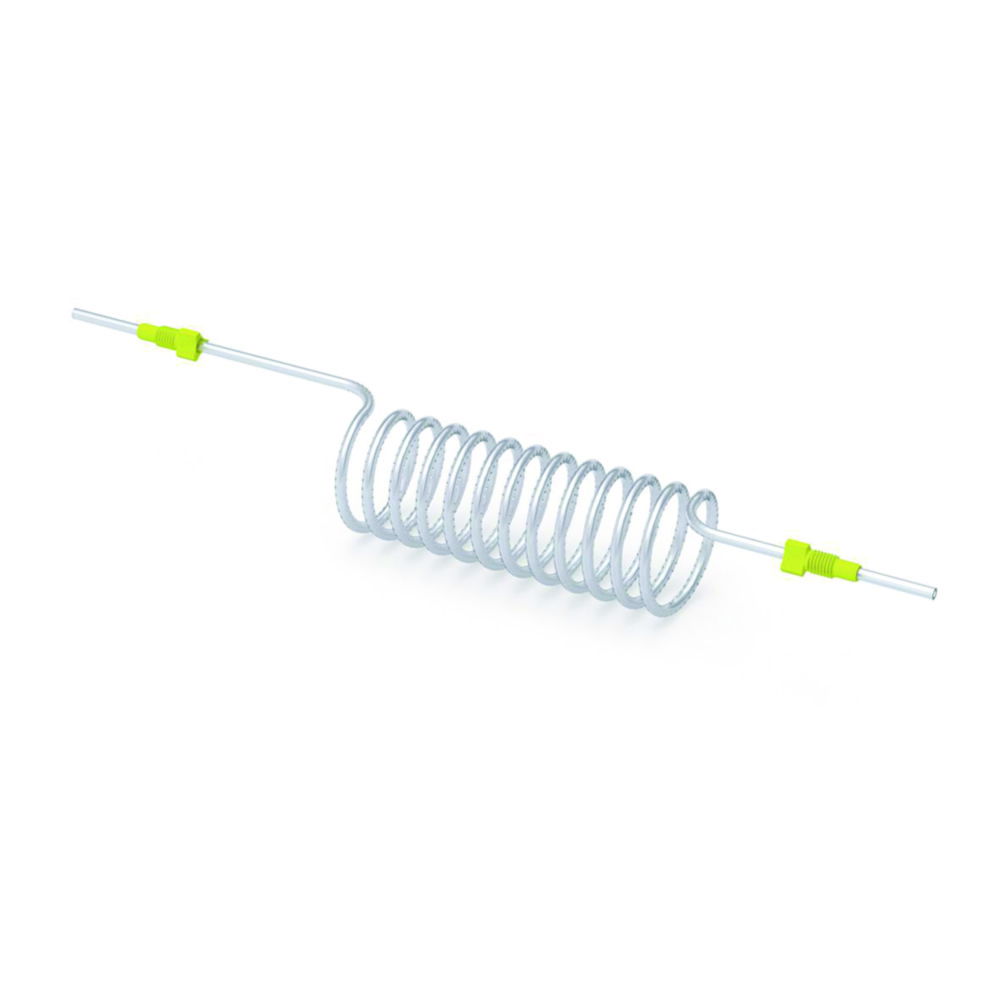

Spiral tubing, PFA, for b.safe Caps and b.safe Waste Caps
Spiral tubing with tubing ends (1x 300 mm, 1x 150 mm) and PFA fittings for tubing O. D. 3,2 mm.

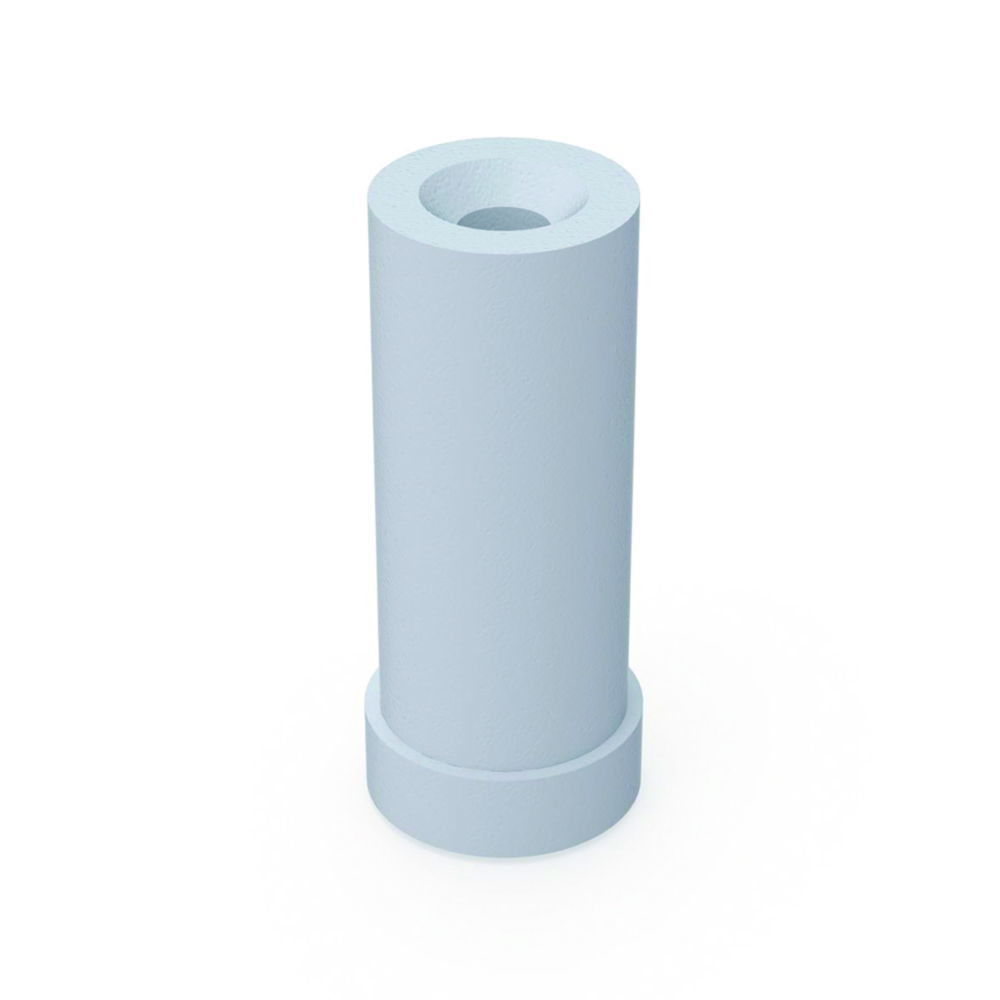

Suction filters, PE
Filter cartridges made of porous PE with a bore to be put on capillary tubing.

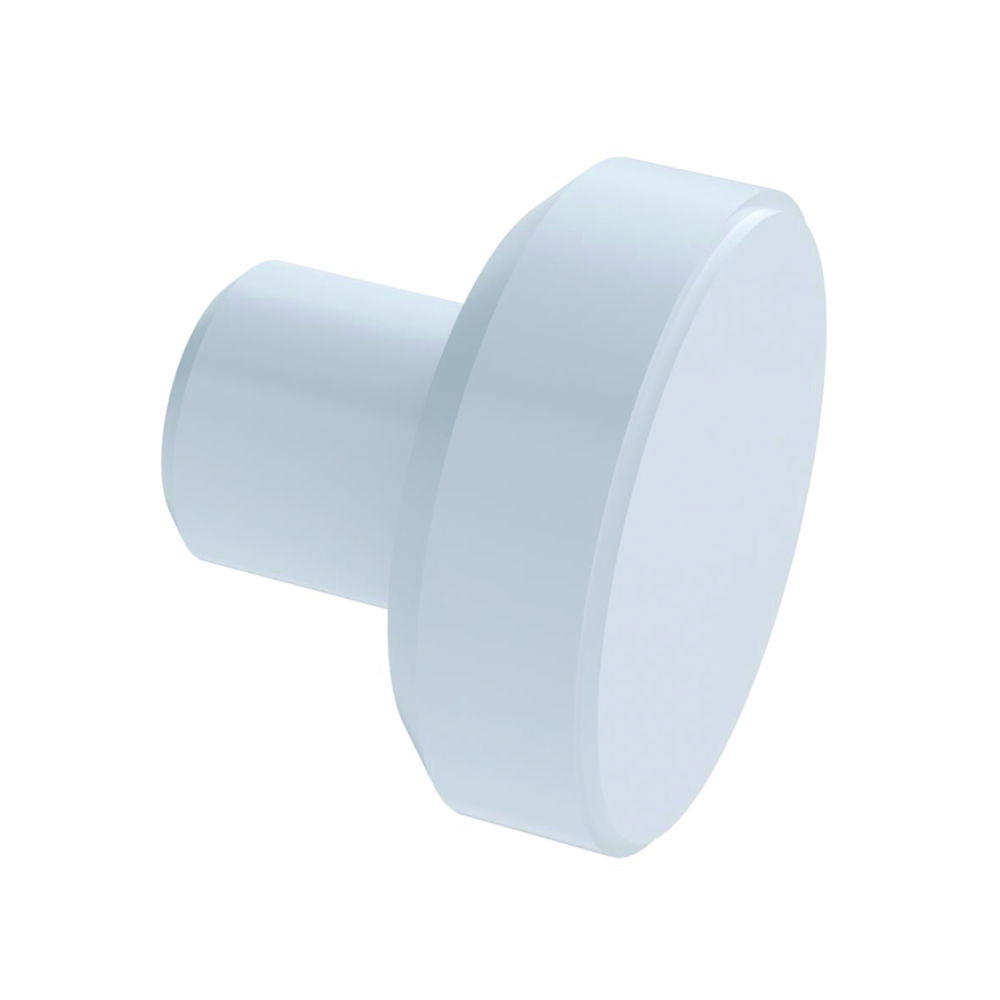

Suction filters, PFA
Suction filter with PTFE membrane to be put on capillary tubing.

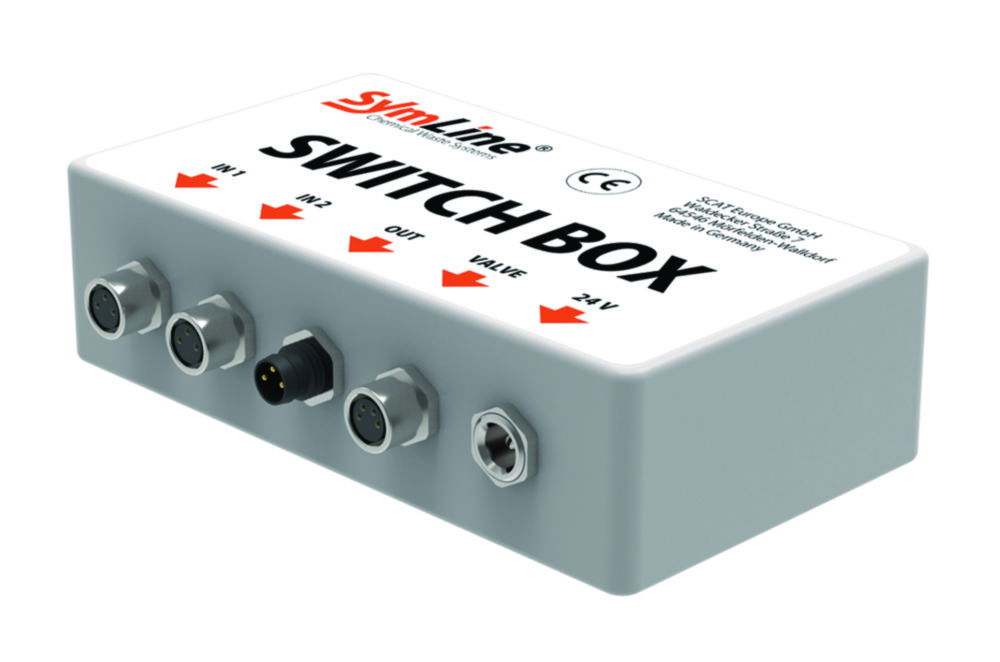

Switchbox II
Control unit for SCAT Built-in Signalbox or Signalbox T1/T5. For controlling the automatic switchover between two collection containers. This allows disposal to take place over the weekend, for example, without having to empty or change containers in the meantime. Aditionally, SwitchBox can be used in any kind of automation circuit (pump, valve, etc. control).

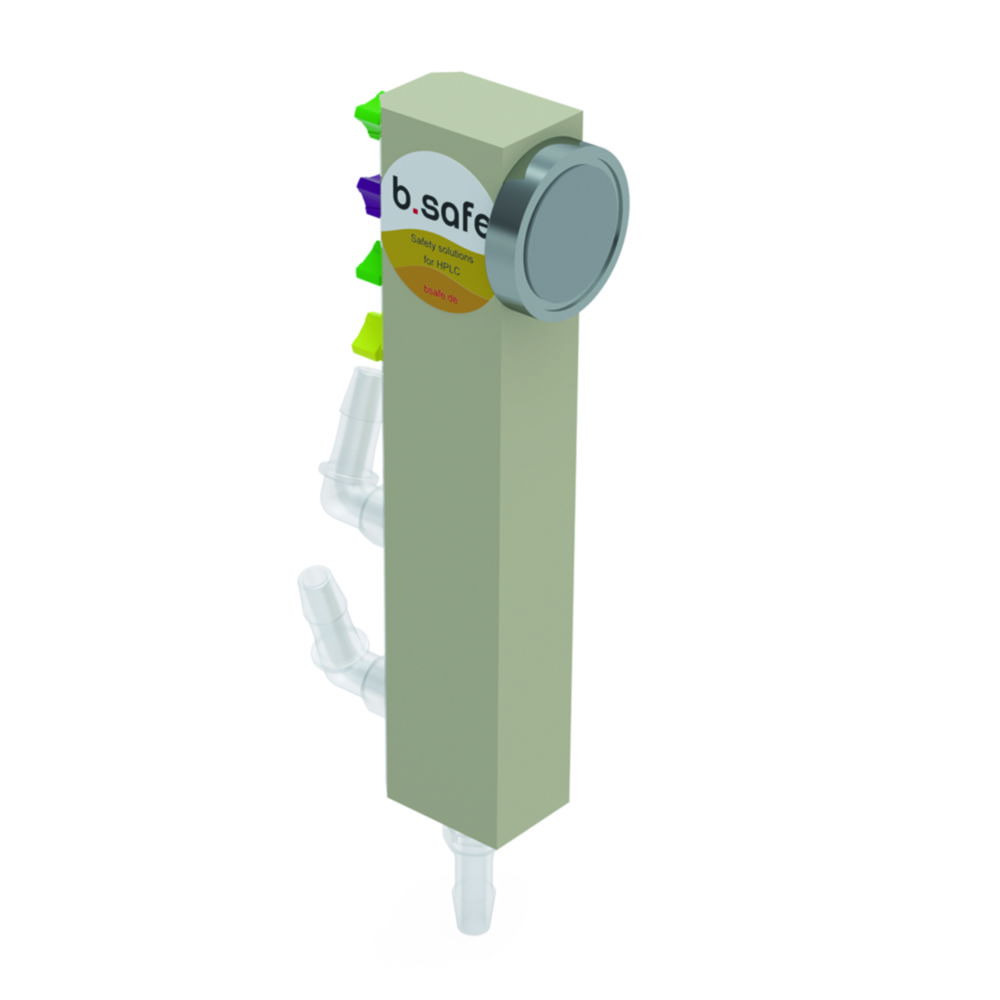

Table distributor b.safe, PP, with magnet
Central waste collection from several HPLC systems. Capillaries and tubes are connected without kinks using the fittings (thread UNF 1/4“) and tube connectors (thread NPT 1/8“) included in the scope of supply. The liquid solvent waste flows off directly and residue-free via the vertical hole inside the table distributor. Easy attachment to the worktable, either by magnet or silicone-free adhesive pad.Central waste collection from several HPLC systems. Capillaries and tubes are connected without kinks using the fittings (thread UNF 1/4“) and tube connectors (thread NPT 1/8“) included in the scope of supply. The liquid solvent waste flows off directly and residue-free via the vertical hole inside the table distributor. Easy attachment to the worktable, either by magnet or silicone-free adhesive pad.

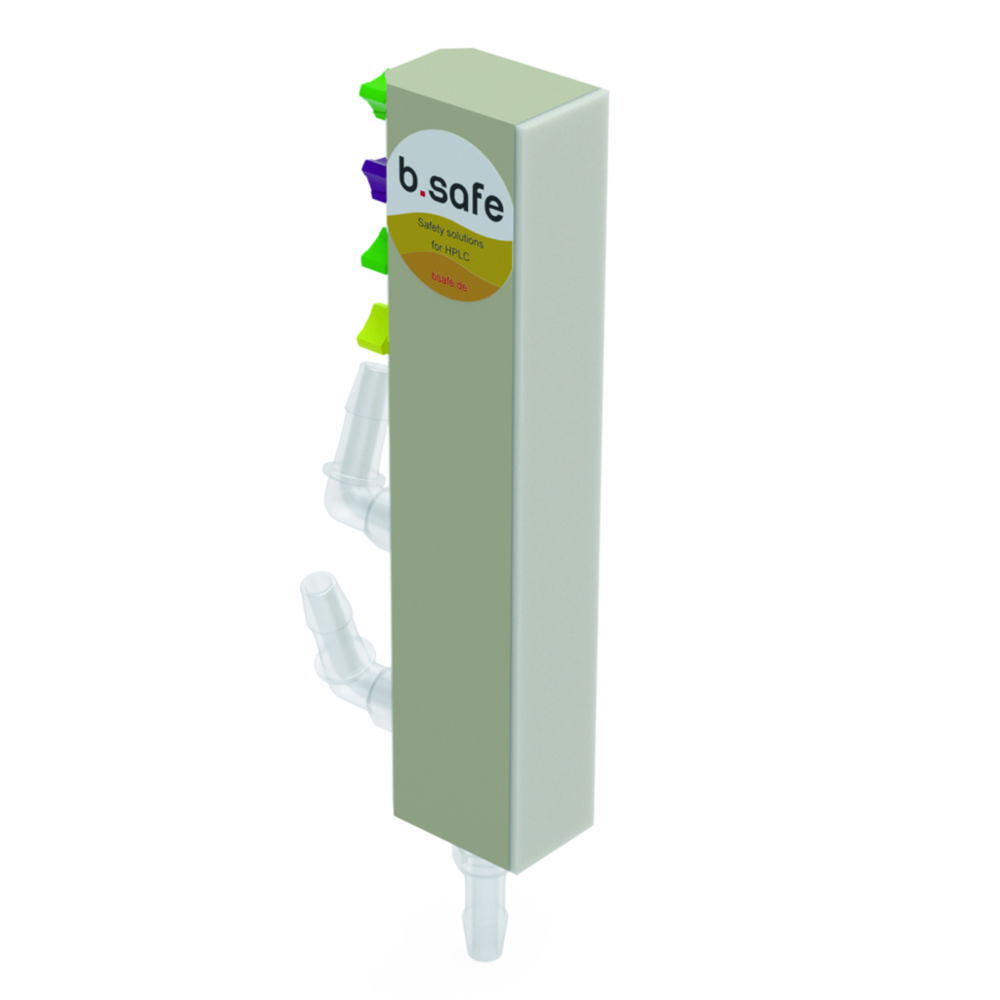

Table distributor b.safe, PP, with silicone-free adhesive pad
Central waste collection from several HPLC systems. Capillaries and tubes are connected without kinks using the fittings (thread UNF 1/4“) and tube connectors (thread NPT 1/8“) included in the scope of supply. The liquid solvent waste flows off directly and residue-free via the vertical hole inside the table distributor. Easy attachment to the worktable, either by magnet or silicone-free adhesive pad.Central waste collection from several HPLC systems. Capillaries and tubes are connected without kinks using the fittings (thread UNF 1/4“) and tube connectors (thread NPT 1/8“) included in the scope of supply. The liquid solvent waste flows off directly and residue-free via the vertical hole inside the table distributor. Easy attachment to the worktable, either by magnet or silicone-free adhesive pad.
Thread adapter, G1/2" (m) on thread GL25 (m)
Connection straight, with O-ring from EPDM.
Thread adapters for Eluent SafetyCaps / Waste SafetyCaps
Thread adapters for using the SafetyCaps on vessels with a different thread.

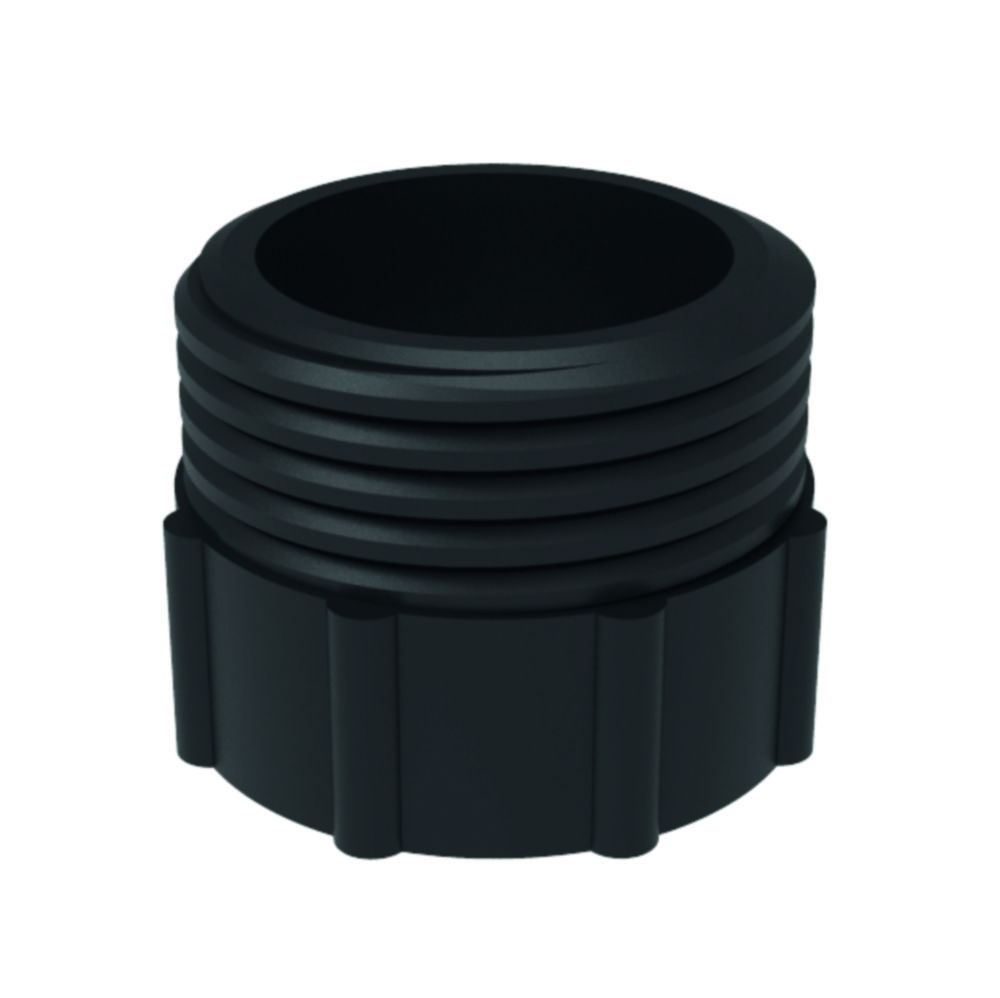

Thread adapters for SafetyCaps / SafetyWasteCaps, female / male thread
Use SafetyCaps and SafetyWasteCaps also for bottles with GL40 or GL38 thread. Further adapters in different thread sizes are available on request.
Thread adapters with ground joint for b.safe Caps and Waste Caps
Adapter for transition from socket NS 29/32 to inner thread GL 45.
Thread adapters with ground joint for b.safe Caps and Waste Caps
Adapter for transition from core NS 29/32 to external thread GL 45.
Thread adapters, type A, for Caps and Waste Caps
The adapters for caps and waste caps have one male thread, one female thread and recessed grips for easy mounting.
Thread adapters, type B, for Caps and Waste Caps
The adapters for caps and waste caps have two male threads and recessed grips for easy mounting.
Thread adapters, type C, for Caps and Waste Caps
The adapters for caps and waste caps have two female threads and recessed grips for easy mounting.
Tube fittings for the tube connector Safety Waste Caps
Connectors for variable tube connector sizes on Safety Waste Caps.Further configurations available on request.
Universal Waste Hub
The Universal Waste Hub can dispose solvent waste from HPLC units and other waste liquids safely and without smelling. It consists of a funnel with hinged lid on a SafetyWasteCap with exhaust air filter, hose olives (PP) for tubing I.D. 5 to 11.5 mm and capillary connections.Funnel with sealing ringRemovable sieveScope of supply: Safety funnel, 3 hose olives (NPT 1/8"), 3 blind fittings (NPT 1/8"), fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm, 4 x blind fittings (UNF 1/4"), 1 x blind fitting GL 14, exhaust filter size M
Universal Waste Hub, electrostatic conductive
The Universal Waste Hub can dispose solvent waste from HPLC units and other waste liquids safely and without smelling. It consists of a funnel with hinged lid on a SafetyWasteCap with exhaust air filter, hose olives (PP) for tubing I.D. 5 to 11.5 mm and capillary connections.With grounding cableFunnel with sealing ringRemovable sieveScope of supply: Safety funnel, 3 hose olives (NPT 1/8"), 3 blind fittings (NPT 1/8"), fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm, 4 x blind fittings (UNF 1/4"), 1 x blind fitting GL 14, exhaust filter size M
Universal Waste Hub, electrostatic conductive, with mechanical level control
The Universal Waste Hub can dispose solvent waste from HPLC units and other waste liquids safely and without smelling. It consists of a funnel with hinged lid on a SafetyWasteCap with exhaust air filter, hose olives (PP) for tubing I.D. 5 to 11.5 mm and capillary connections.With grounding cableFunnel with sealing ringRemovable sieveScope of supply: Safety funnel, 3 hose olives (NPT 1/8"), 3 blind fittings (NPT 1/8"), fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm, 4 x blind fittings (UNF 1/4"), 1 x blind fitting GL 14, exhaust filter size M
Vial disposer Arnold, PP
For the safe and quickly disposal of HPLC vials. Thanks to the safety funnel with an extra large neck diameter, your vials fall easily through the opening without jamming or clogging the opening. The hinged lid safely holds back solvent vapors and other contaminants. For the disposal of large quantities of sample vialsConnection for optional activated carbon filter availableScope of supply: 10 l canister, safety funnel
Vial disposer Marco, PP
For the safe and quickly disposal of HPLC vials. Thanks to the safety funnel with an extra large neck diameter, your vials fall easily through the opening without jamming or clogging the opening. The hinged lid safely holds back solvent vapors and other contaminants.For the disposal of large quantities of sample vialsLow overall height, also suitable for safety storage cabinetsScope of supply: 10 l canister, safety funnel
Waste SafetyCaps
Ideal for collecting liquid HPLC waste. The activated carbon in the exhaust filter binds all hazardous solvent vapours. Replacement of the exhaust filter after 6 months is recommended. Both capillaries and hose barbs can be inserted into the capillary connections.With timestrip stickerCaps and fittings made of PPBody and hose barbs made of PTFEPlease order exhaust filter separately.
