Level controls, PTFE, electrically conductive
Extension for SafetyWasteCaps 3.0.
Locking nuts, PP, for thread adapters with ground joint
To loosen stuck ground joints.

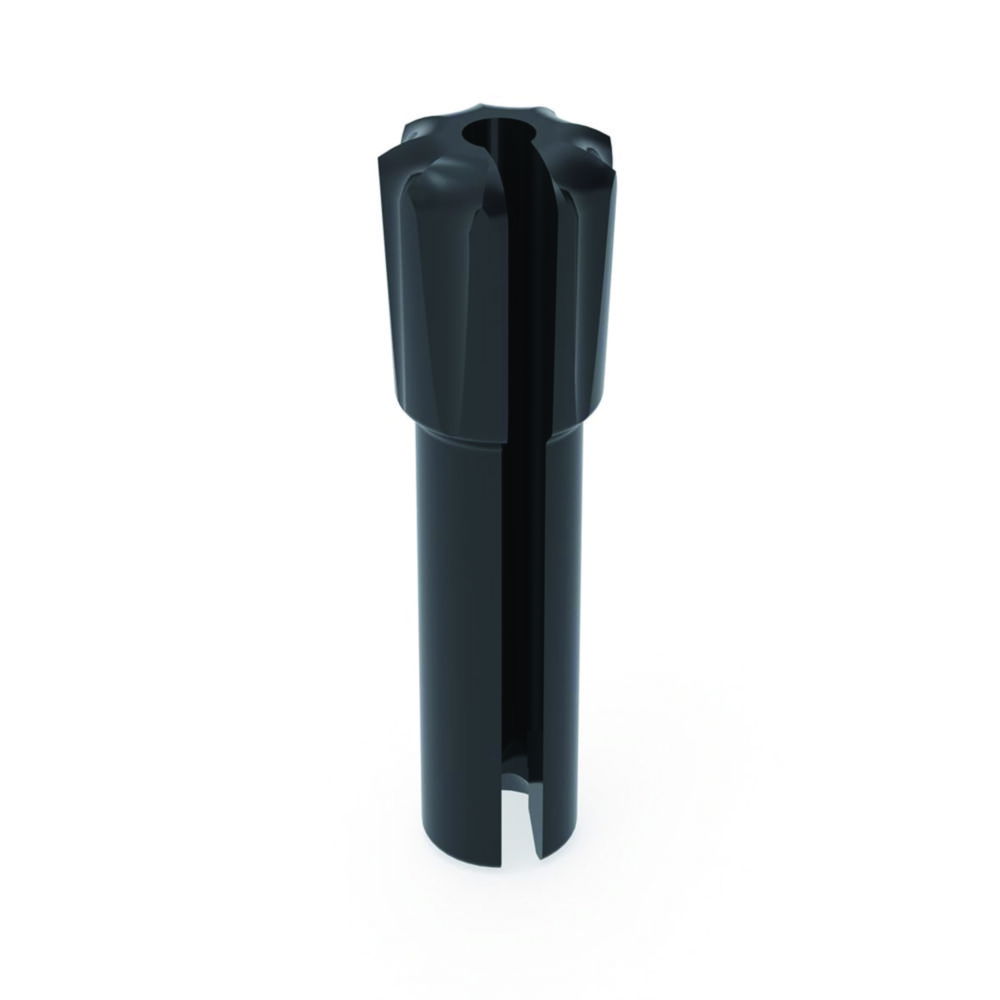

Mounting key for fittings, POM
For tightening and loosening fittings (1.6/2.2/3.2 mm OD), with lateral slot to lead through tubing.

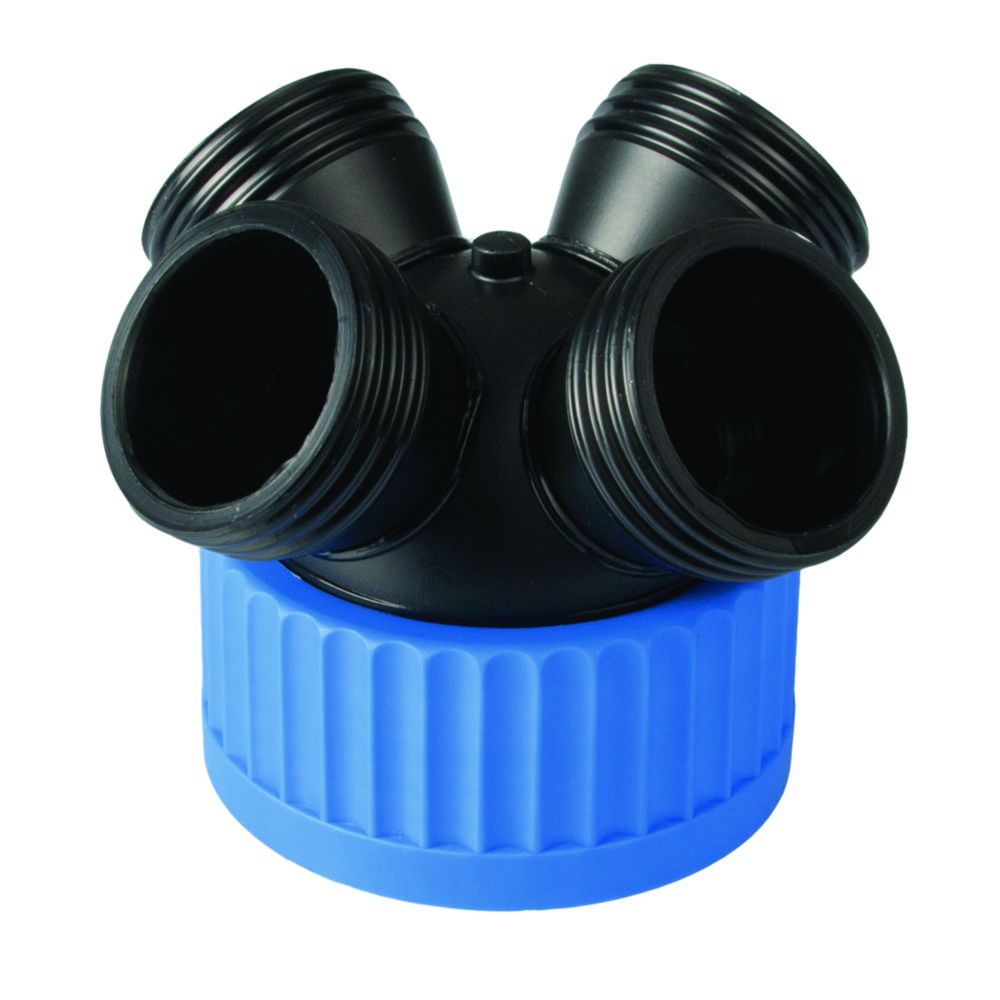

Multiple bottle distributors GL 45, HDPE
Up to 4 Safety Caps or Safety Waste Caps can be installed with the multiple bottle distributor.GL 45 (w) thread4 x GL 45 (m) connectionsElectrically conductiveIncl. 1 x blind cap
Multiple bottle distributors GLS 80, HDPE
The S.C.A.T. system for solvent safety remains permanently closed, the "safety chain" is not interrupted during the rinsing process of the HPLC system. After the analysis has been completed, the system is cleanly returned to its original state.Up to 4 SafetyCaps can be installed on the rinsing bottleSimple and safe handling due to firmly seated capillariesGLS 80 (w) thread4 x GL 45 (m) connectionsElectrically conductive

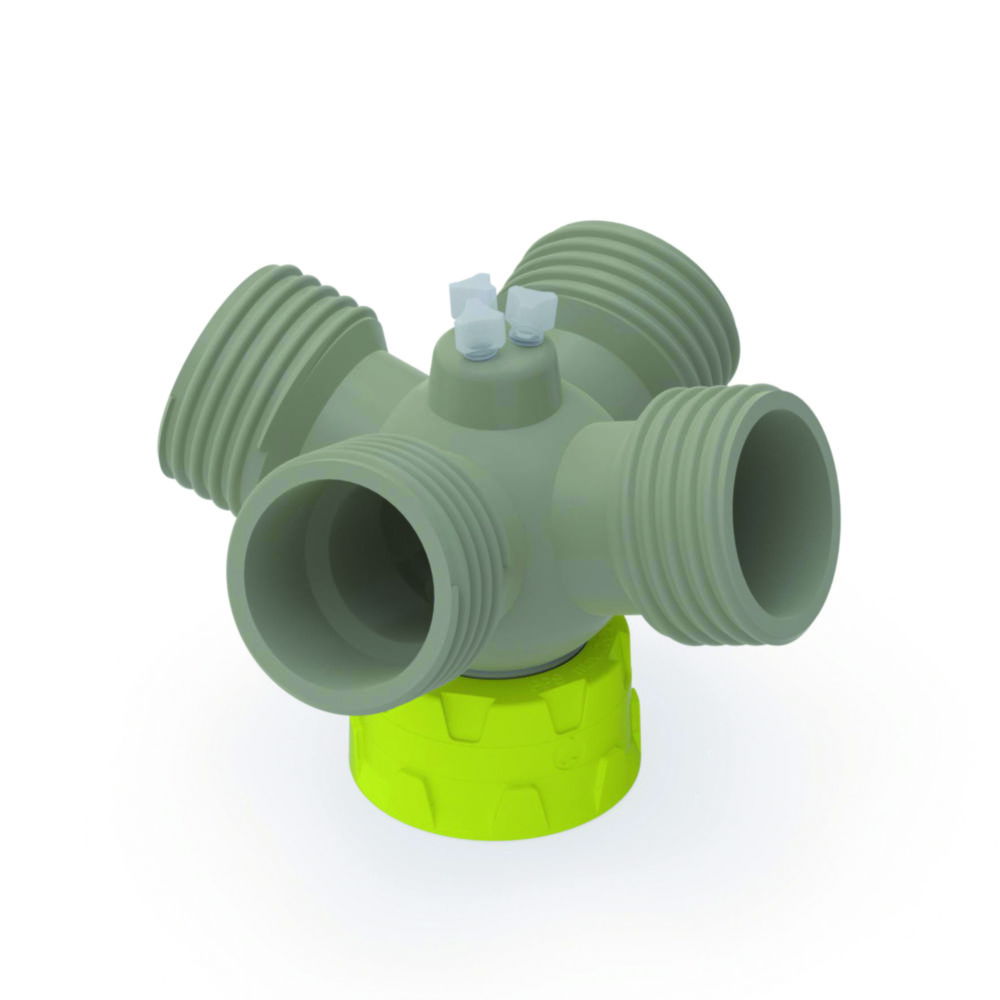

Multiple bottle distributors, PP/PPS
Screw cap with free movable insert made of PP, with 4 lateral connectors GL45 and 3 centric capillary connectors (UNF 1/4"), incl. 3 blind fittings.

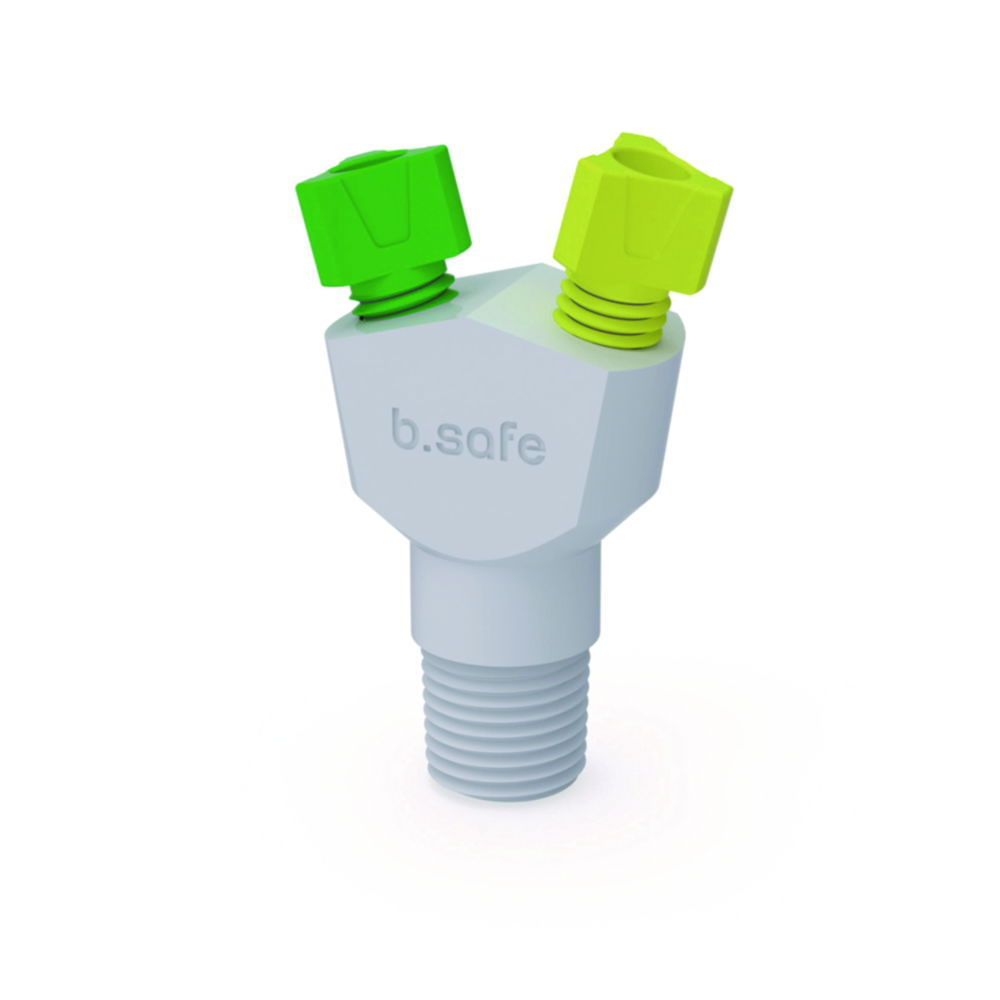

Multiport, PTFE
Multiport for capillary and tubing connectors on b.safe caps with thread NPT 1/8". With PFA fittings for capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8.0 mm. Fittings (UNF 1/4"), hose olives (NPT 1/8").
Power supply unit for electronic level control
EU 220/230 V / 24 V. Cable length 1900 mm.
Quick couplings 2.0, for Safety Caps / Safety Waste Caps, PP
For safe connection of capillaries with outer diameter 1.6 / 2.3 / 3.2 mm.Drip protection due to integrated locking valveClosed system for drip-free separationEPDM sealIncl. PFA fittings (1.6 / 2.3 / 3.2 mm ID)Quick couplings for screwing into the standard connectors of Safety Caps (UNF 1/4" 28G), incl. 3 PTFE sealing balls (1.6 / 2.3 / 3.2 mm ID)
Quick couplings, PP
Two-part tubing coupling with PFA Fitting to connect capillaries with O. D. 3,2 mm. When the couplings are separated, the valves are automatically closed in order to avoid solvent escape.
Safety Caps V2.0, GL 45
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of suppy:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plug, labelling field
Safety Caps, 38-430
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plug
Safety Caps, B 53
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plug
Safety Caps, B 83
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator,PFA fittings, PFA blind plugs
Safety Caps, GL 32
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plug
Safety Caps, GL 38
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plugs
Safety Caps, GL/ S 40
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plug
Safety Caps, GL/ S 40, with shut-off valve
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, shut-off, air valve, change indicator, PFA fittings, PFA blind plug, labelling field
Safety Caps, GL/ S 40, with shut-off valve
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings
Safety caps, GL45, PPS/PP, PFAS Analytic
Screw caps, with freely movable insert made of PP, for connecting capillary tubing and air valve. For PFAS analysis of polyfluorinated chemicals according to DIN 38407-42/ DIN 38414-14.Insert made of PPFittings made of PPScope of supply:Cap, fittings (PP), air valve, service life indicator, labelling field
Safety Caps, GLS 80
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap, air valve, change indicator, PFA fittings, PFA blind plugs
Safety Caps, NS 29/32
For the safe withdrawal of solvents. Screw caps, with freely movable insert made of PTFE, with PFA fittings for capillaries and an air valve. For maximum efficiency, we recommend that the vent is changed every 6 months.Scope of supply:Safety Cap with NS 29/32, lock nut, air valve, change indicator, PFA fittings, PFA blind plug
