Measuring instrument for viscosity analysis ViscoClock plus M2
The ViscoCIock plus is an electronic timing unit for glass capillary viscometers used to determine kinematic and relative viscosity. Succeeding the well-proven ViscoCIock, the new instrument features data storage and simpler handling. The ViscoCIock plus is designed for SI AnalyticsUbbelohde (DIN; ASTM; Micro) and Micro Ostwald viscometers. To determine absolute kinematic viscosities, viscometers have to be used which are calibrated for automatic measurements. The ViscoClock plus automatically measures the flow time of temperature-stabilized liquids in capillary viscometers by means of infrared light barriers. The viscometer including a sample is inserted into the ViscoClock plus and immersed into a thermostatic bath for temperature stabilization. After thermostating, the sample is pumped into the measuring bulb, and the flow time is detected automatically. The large display enables easy read-off of flow times and additional information: date, time, sample ID and viscometer ID.The ViscoClock plus can be used in all SI Analytics bath types.Scope of supply: Device incl. thermostatic bath CT72/2 for temperatures from -40 to 150 °C

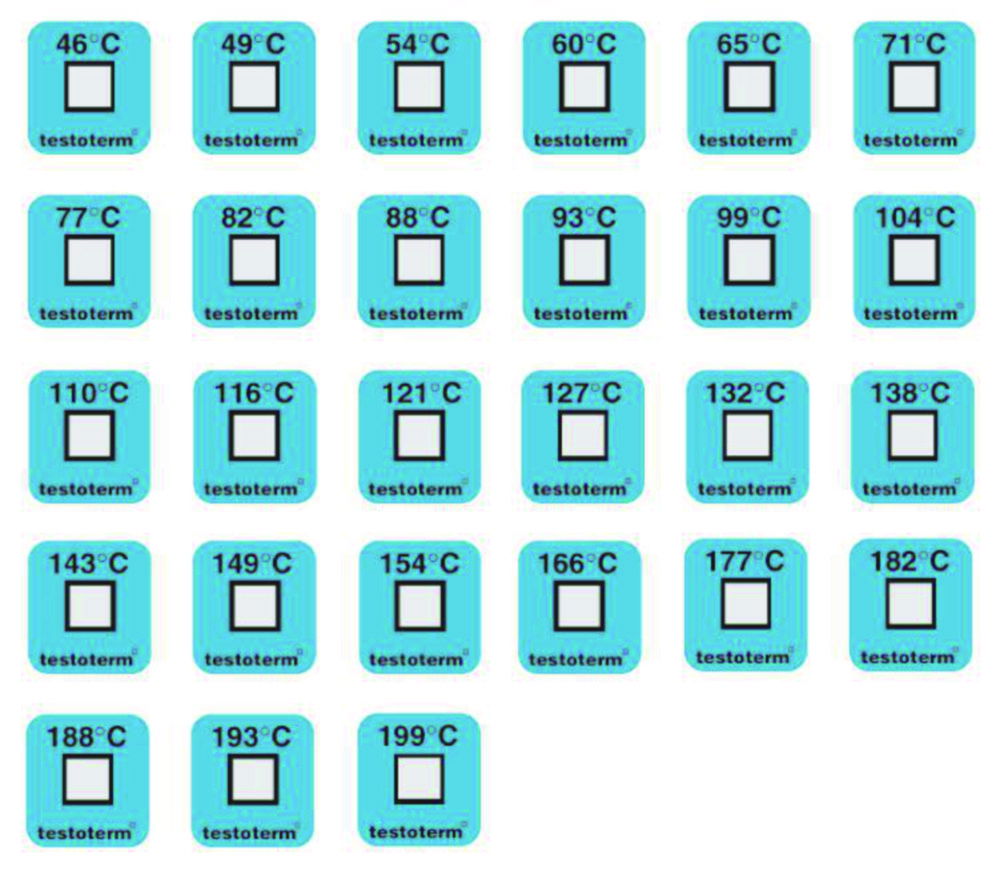

Measuring points testoterm
The self-adhesive testoterm measuring points can be affixed to the measurement object for temperature monitoring purposes and respond to temperature increases within 2 to 3 seconds by changing colour. Storage in refrigerator is recommended. The maximum transportation temperature is 25 °C and may not be exceeded.

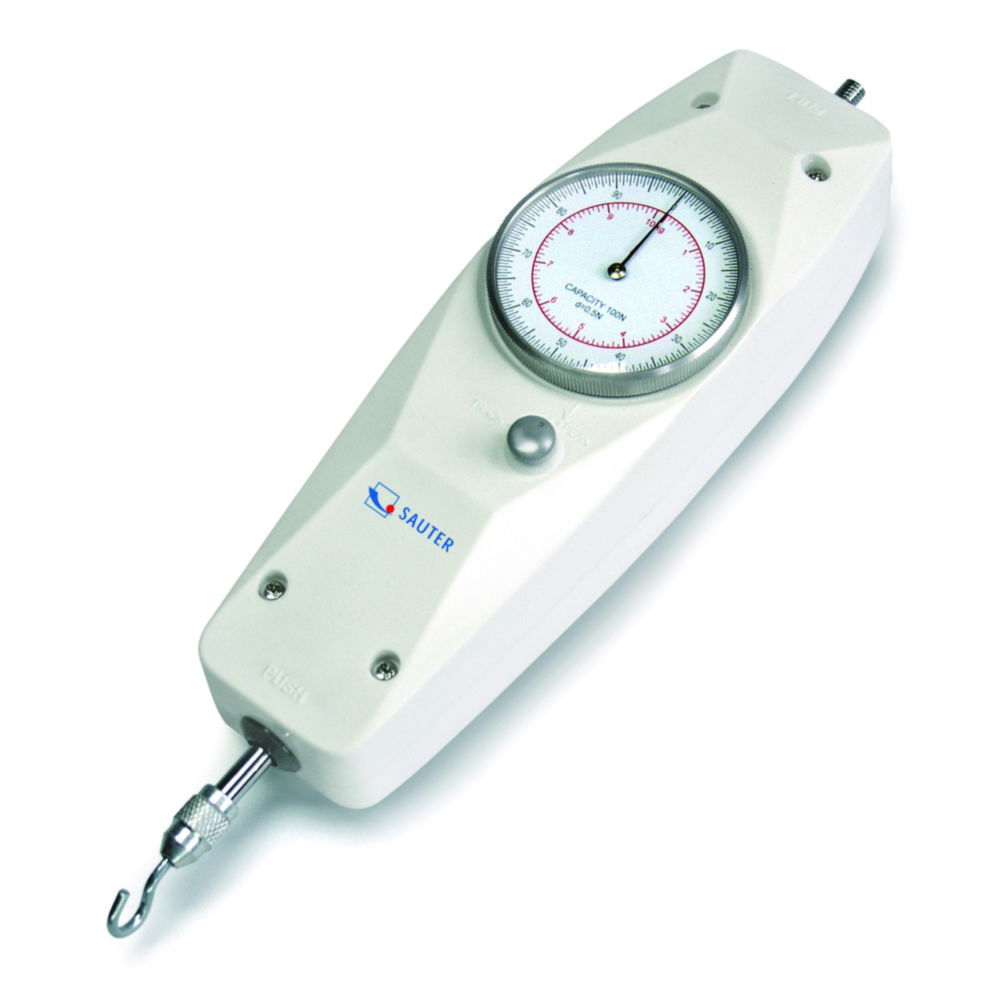

Mechanical force gauge FA
For measuring push and pull forces with peak hold function.Dual scale: shows Newton and kgRotatable display unit for an easy calibration of the instrumentPeak hold function by drag pointerCan be mounted on all manual test standsZeroing by a short push of the switchScope of supply:Mechanical force gauge, carrying case, standard attachments, extension rod 90 mm

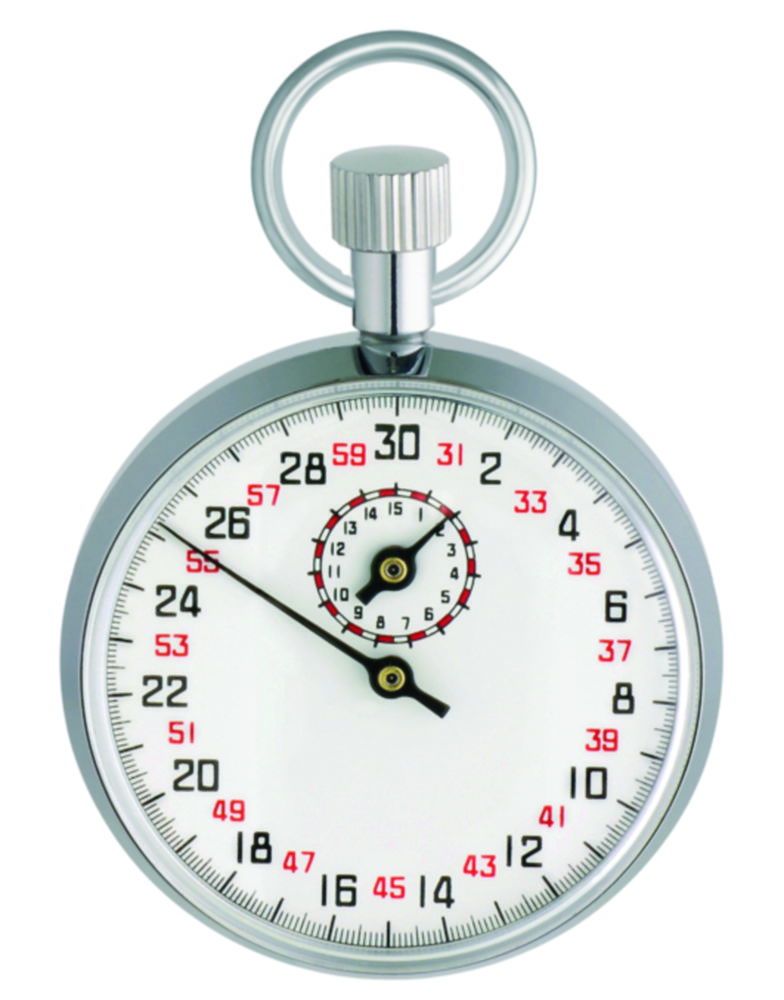

Mechanical stopwatch
Start/stop/reset by single crown, clockwork mechanism, 13 jewels, chrome metal case, measuring range 15 minutes, 1/10 second increments. Supplied with lanyard and soft case.
Melting point apparatus MP-200D / MP-200D-HR
Supplied with 100 melting point tubes, open one end.With BioCote, silver-based, antimicrobial protection.SpecificationMP-200D / MP-200D-HRNumber of samples:2Temperature range:Ambient to 300ºCTemperature accuracy:± 1.0ºC at 20ºC, ± 2.5ºC at 300ºCDisplay:Three digit LED / Four digit LEDDisplay resolution:1ºC / 0.1ºCDisplay hold facility:No/ YesRamp rates:20ºC per minute to plateau, 2ºC per minute to melt / 20ºC per minute to plateau, variable between 1 and 10ºC per minute to meltDimensions (w x d x h):160 x 220 x 170mmNet weight:1.8kgElectrical supply:230V, 50Hz, 75W
Melting Point Apparatus MP-400D
The MP-400D can take three samples simultaneously within the optimised heating block. To allow maximum flexibility a plateau facility is included with variable ramp rate between 0.5 and 10°C in 0.1°C increments. The tubes are illuminated with bright white LED's to give the clearest view of the samples during the melt. The block has been designed for easy access for cleaning. To allow the most comfortable viewing angle the MP-400D features a two stage head adjustment. The MP-400D features the patent pending head up display, this unique feature displays a floating image of the block temperature, visible through the eyepiece, in front of the tubes.Maximum temperature 400°CPatented head up displayIntegrated cooling 350°C to 50°C in 12 minutesLarge easy to read user friendly interfaceAn accessory printer is available separately to produce a written record of the melt.SpecificationsNo of samples:3Temperature range:Ambient to 400°CTemperature resolution:0.1°CDisplay:40 x 4 segment LCDRamp rates:0.5 to 10°C in 0.1°C incrementsMemory:7 results per tubeDate/time display:YesCool down time:350 to 50°C (~12 mins)Heat up time:50 to 350°C (~ 6 mins)Supply requirements:120V / 230V 50HzLanguage variants:English, German, French, ItalianTemperature unit:°C

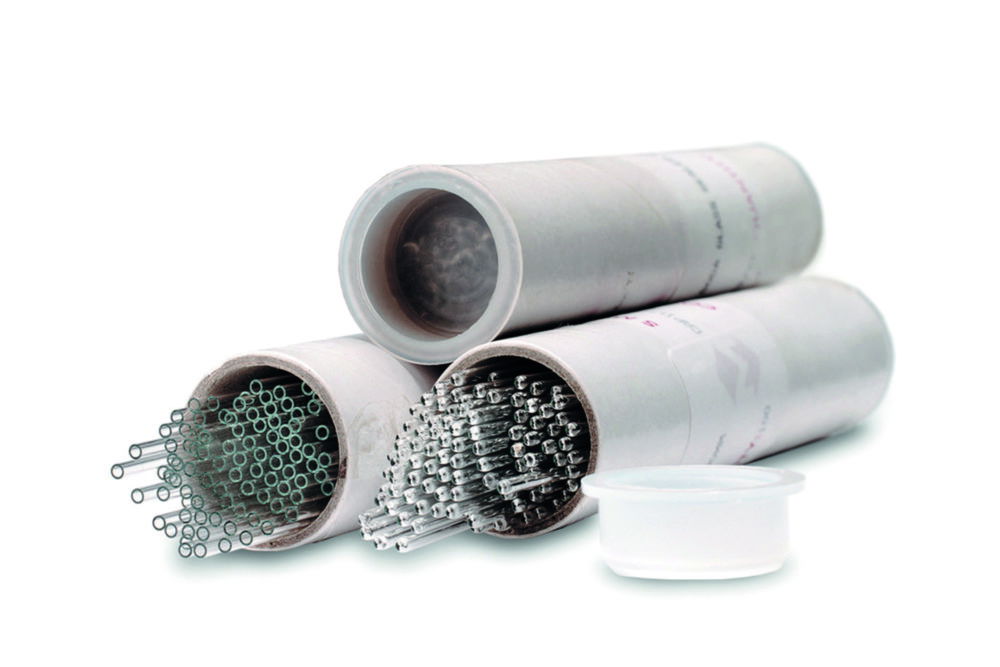

Melting point capillary tubes KIMAX®, open both ends
Capillary tubes are made of borosilicate glass. A partial immersion thermometer, calibrated for 75 mm, is specified in most methods for the determination of melting points.
Melting point capillary tubes KIMAX®, sealed one end
Capillary tubes are made of borosilicate glass. A partial immersion thermometer, calibrated for 75 mm, is specified in most methods for the determination of melting points.

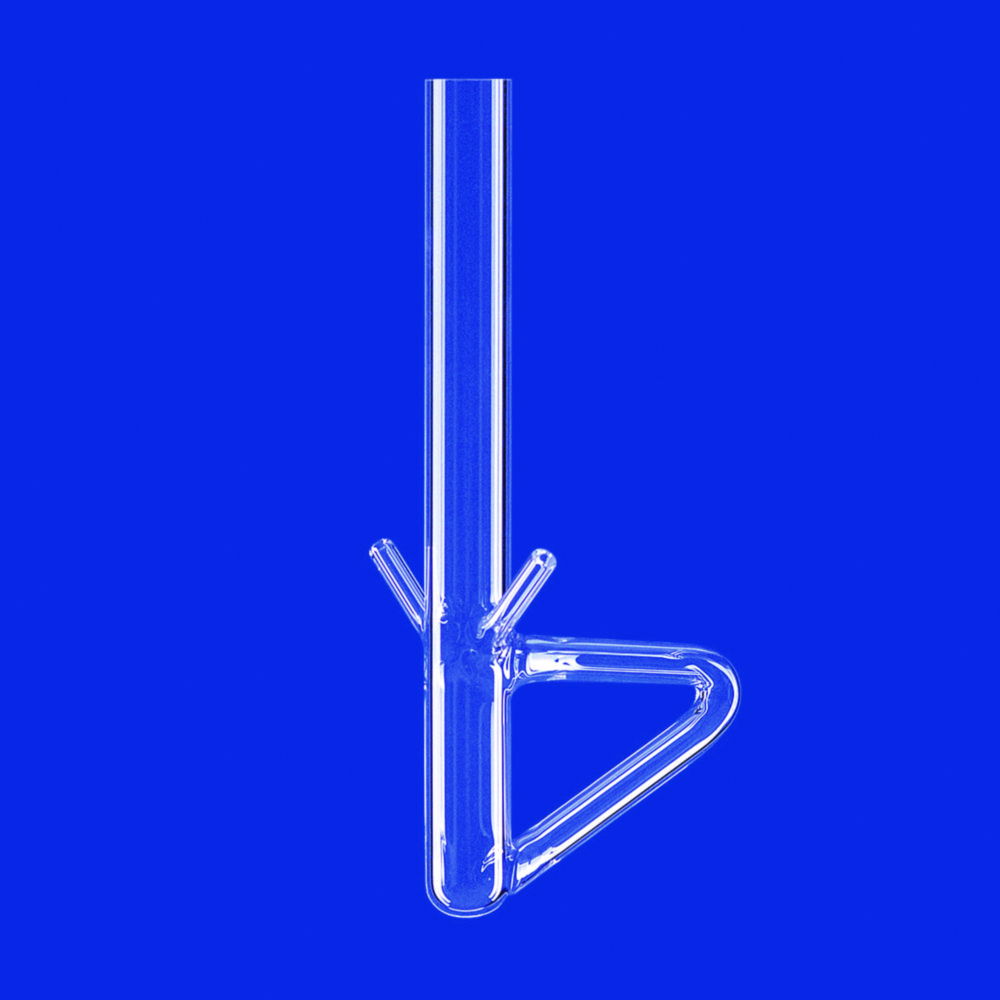

Melting point determination apparatus acc. to Thiele, DURAN® tubing
Made of DURAN® tubing, with side limbs.
Melting Point Meter M3000
The M3000 provides fast and easy examination of powdery substances with a melting point up to 360 °C. Due to the triple capillary intake, it is possible to analyse three samples within one measurement run. Thanks to the preheating rate and the integrated fan cooling, fast measurements are possible in any temperature range.Semi-automatic measurement by means of 10x magnification optics3 capillary intakesLCD displayMonitoring of the illuminated sample via lensFast cooling through integrated fanDigital display of all important dataDisplay in German or EnglishWith RS-232 interface for printer CBM910Easy-to-clean membrane keypadScope of supply: Melting Point Meter, protective cover, 100 capillariesSpecificationsTemperature range:30 ... 360 °CResolution:0.1 °CAccuracy:±0.3 °C (30 ... 200 °C) ±0.5 °C (200 ... 360 °C)Preheating rate:up to 200 °C approx. 4.0 min up to 300 °C approx. 8.0 minHeating rate:1 °C min-1Capillary-Ø:1.4 mmCapillary intake:3Dimensions (W x D x H):210 x 230 x 360 mmWeight:4.3 kgPower supply:90 ... 264 VIP code:IP20

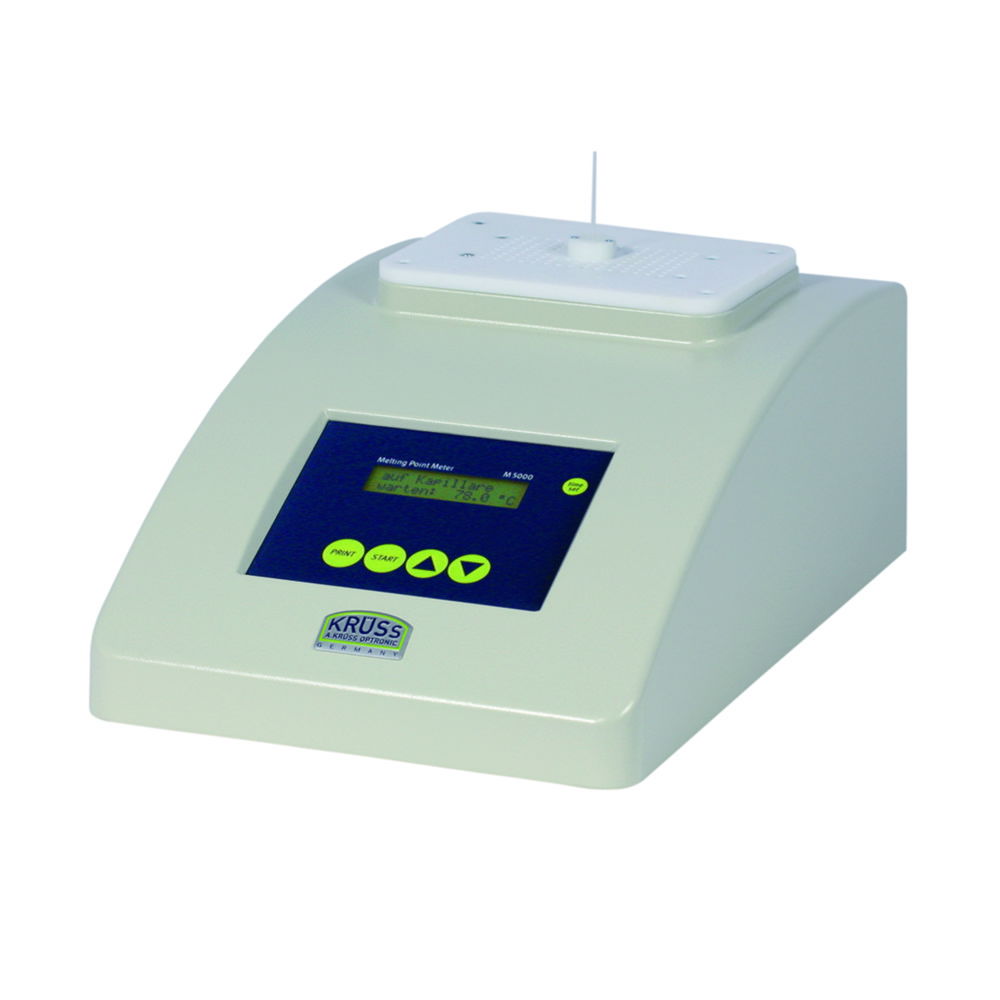

Melting Point Meter M5000
For powdery substances with a melting point up to 400 °C. A fan cooling allows fast measurements in every range of temperature. The display provides a clearly-arranged readout of all important measuring data.Fully automatic measurement by means of transmission optics1 capillary intakeLCD displayAlarm signal when reaching the melting pointFast cooling through integrated fanDigital display of all important dataDisplay in German or EnglishWith RS-232 interface for printer CBM910Easy-to-clean membrane keypadScope of supply: Melting Point Meter, protective cover, 100 capillariesSpecificationsTemperature range:25 ... 400 °CResolution:0.1 °CAccuracy:± 0.3 °C (25 ... 200 °C) ± 0.5 °C (200 ... 400 °C)Preheating rate:up to 200 °C approx. 4.0 min up to 300 °C approx. 9.0 minHeating rate:1 °C min-1Capillary-Ø:1.4 mmCapillary intake:1Dimensions (W x D x H):220 x 340 x 150 mmWeight:4.1 kgPower supply:90 ... 264 VIP code:IP20

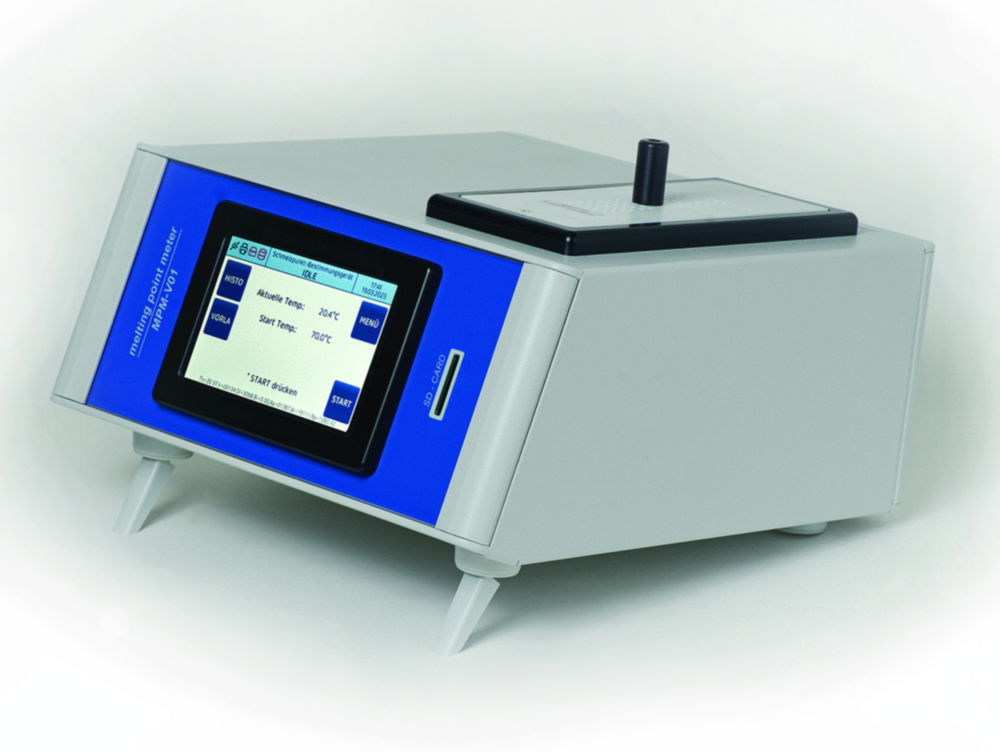

Melting point meter MPM-V01
With the MPM-V01, substances with a melting point of up to 340 °C can be analysed quickly and easily. During the measurement, the progress of the transparency is shown on a progress bar in the display. Substances can be entered and stored with the corresponding start value in the database (Excel) on the SD card, which can be expanded as required, to enable routine measurements to be carried out more quickly. The device stores 10 measurement results that are not deleted even after switching off. Alternatively, measurement results can be temporarily stored on the SD card in csv format. All measurement data can be transferred to a computer and added to a measurement report using the PC software, and can also be saved as a PDF file.Colour touch display1 capillary intakeCapillary drops and centres automaticallyFor melting point tubes with 1.4 mm outer diameter and 80 mm lengthAdjustable heating rateDisplay of start temperature, melting point, and graphic of transparency progression after measurementSD memory card functionFast cooling by integrated fanOptionally, a printer can be connected for easy documentation of the measured values. Please order separately.Scope of supply: Melting point meter, USB cable, PC software, SD memory card, mains cable, 100 melting point tubesSpecificationsMeasuring range:40 ... 340 °CAccuracy:±0.3 °C (40 ... 200 °C), ±0.5 °C (200 ... 340 °C)Heating rate:0.5 / 1 / 2 / 3 / 4 / 5 °C/minDimensions (W x D x H):275 x 285 x 125 mmWeight:3 kgPower supply:100 ... 240 VIP code:IP 20

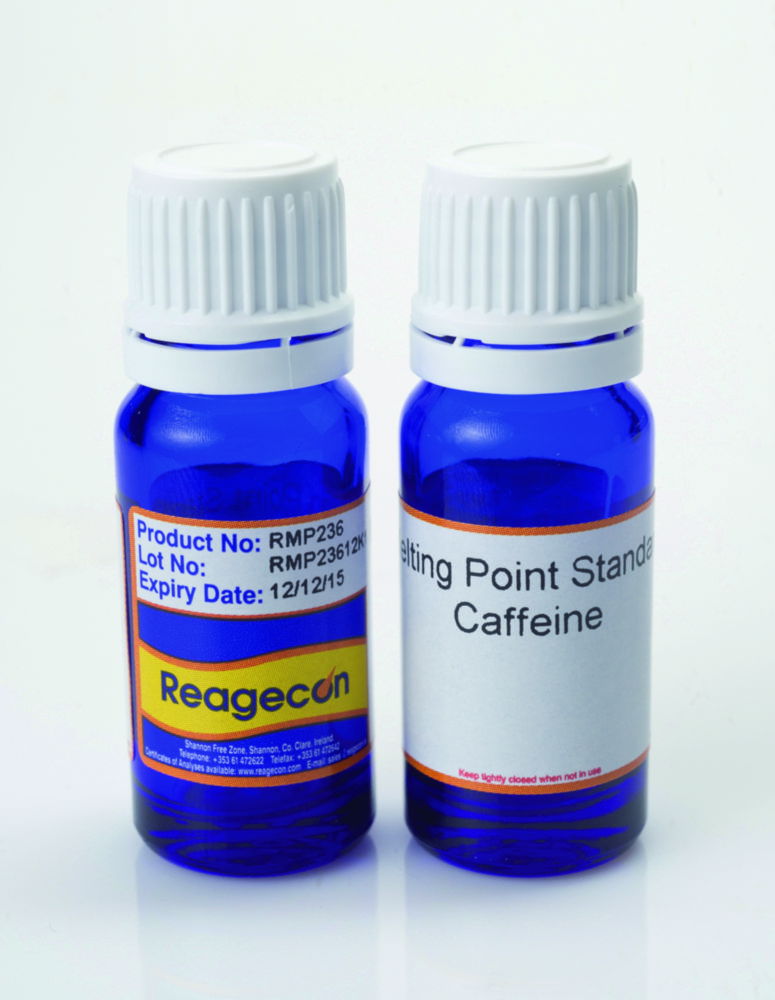

Melting point Standards
High Purity range compatible with all Melting Point Instruments. Tested on a high specification melting point apparatus. Shelf life of 3 years (from date of manufacturing). Available as Single Melting Point Standard or as a Set of 3 different Standards. Glass bottles of 1 g. Sets include 3 bottles of 1 g.

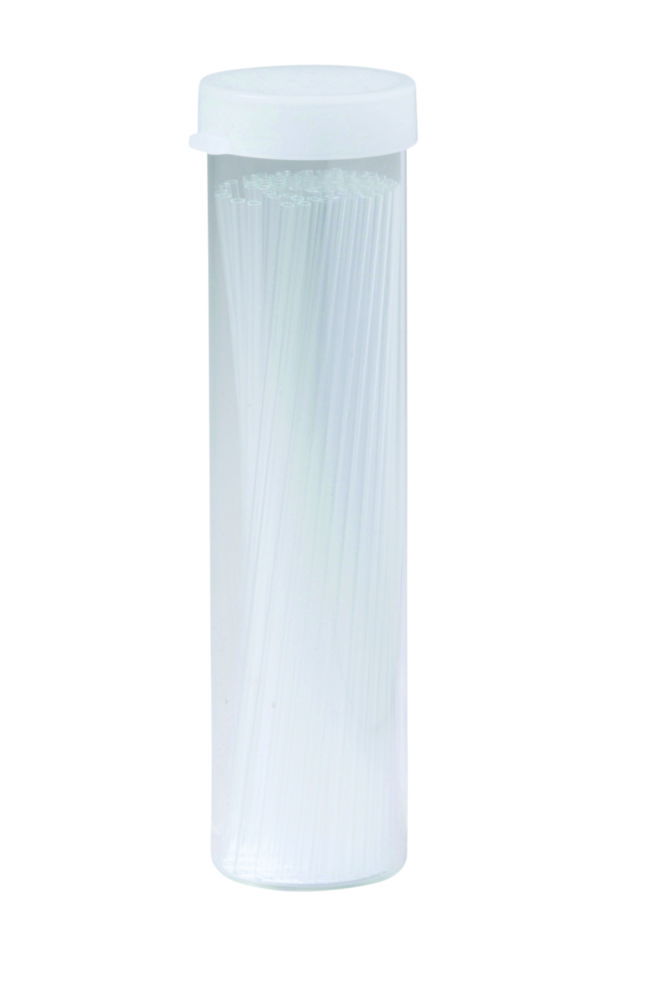

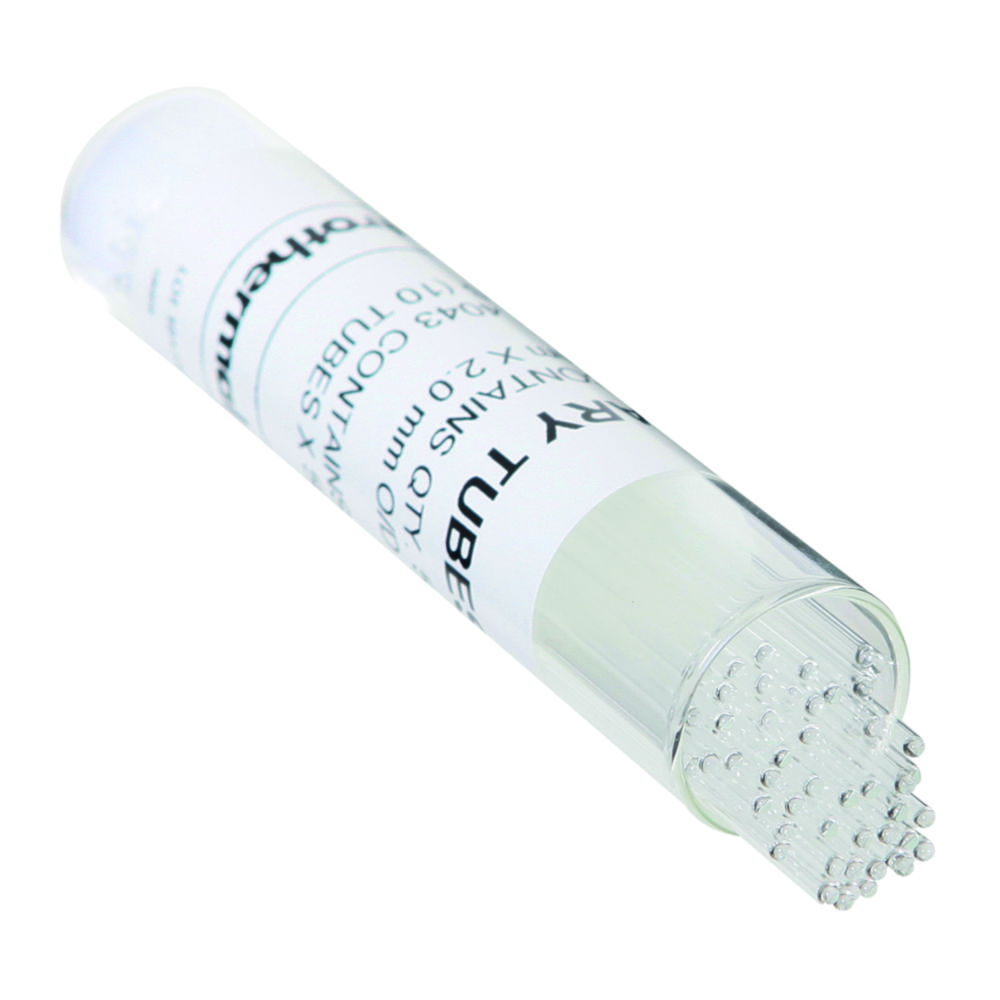

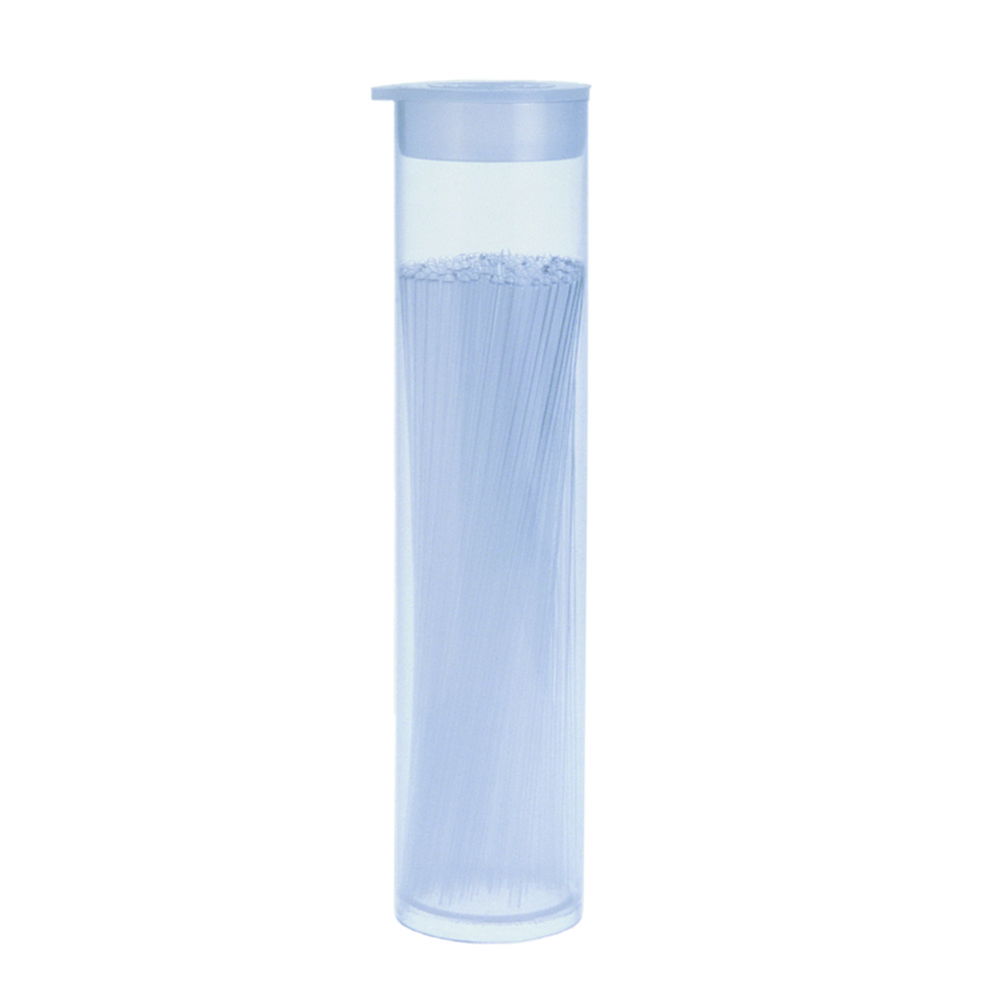

Melting point tubes
Capillary tubes for melting point analysis. Clear glass, different diameters and lengths. Special remarks are available. Other sizes on request.
Membrane module set NH 995 for ammonia electrodes
Set for replacing the membrane module of the ammonia electrode consisting of 3 membrane modules and 3 caps.
Metal (ORP) electrodes ScienceLine Ag 6180
With glass shaft, Silamid® reference system and plug head.
Metal (ORP) electrodes ScienceLine Ag 6280
With glass shaft, Silamid® reference system and plug head.
Metal (ORP) electrodes ScienceLine AgCl 62
With glass shaft, Silamid® reference system and plug head. Sensor Ag/Cl coated.
