Sieving aids
For difficult to separate materials which require dry sieving. Different aids are used according to mesh size.

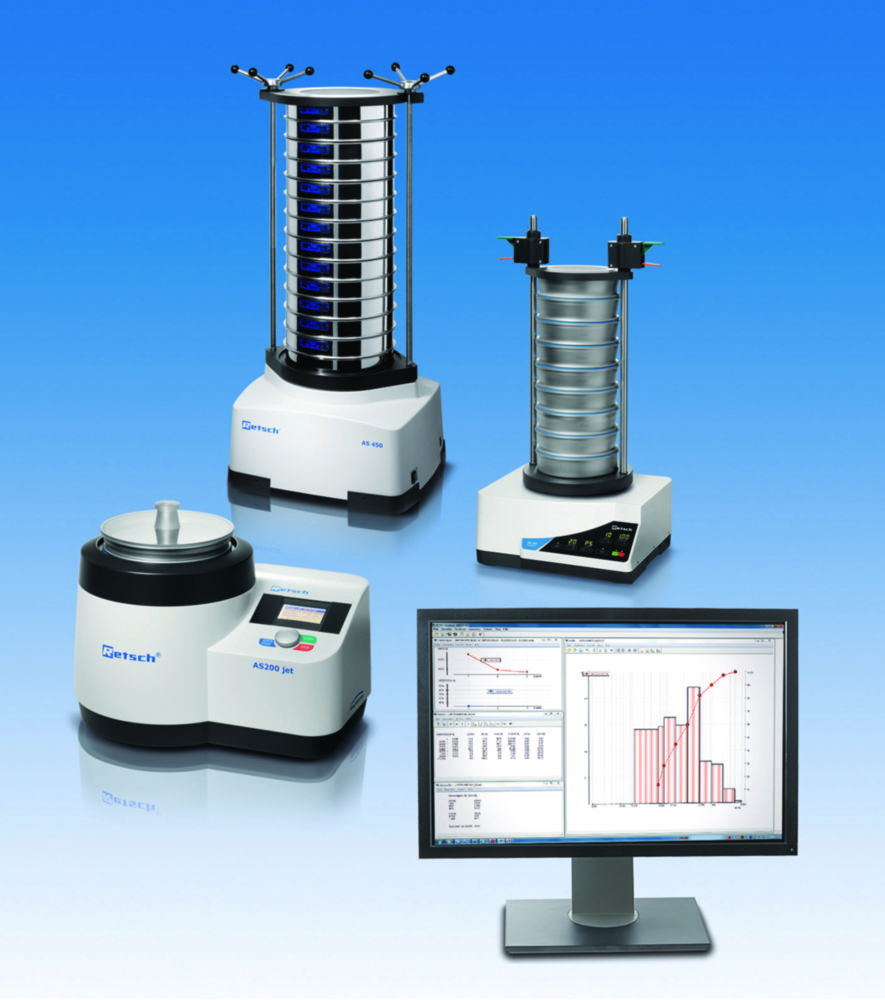

Software EasySieve® for Sieve Shakers AS control / AS 200 tap / AS jet
Software for particle size analyses.Features:Automatic registration, evaluation and administration of measurement dataLogical design, self-explanatoryMeasurement protocol in accordance with standardsEasy selection and configuration of common analytical scalesEnglish and GermanFor automatic control of sieve shakers AS 200 control, AS 300 control, AS 450 control, AS 400 control, AS 200 tap, AS 200 jetFor Windows® 2000 / XP / Vista / 7 / 8

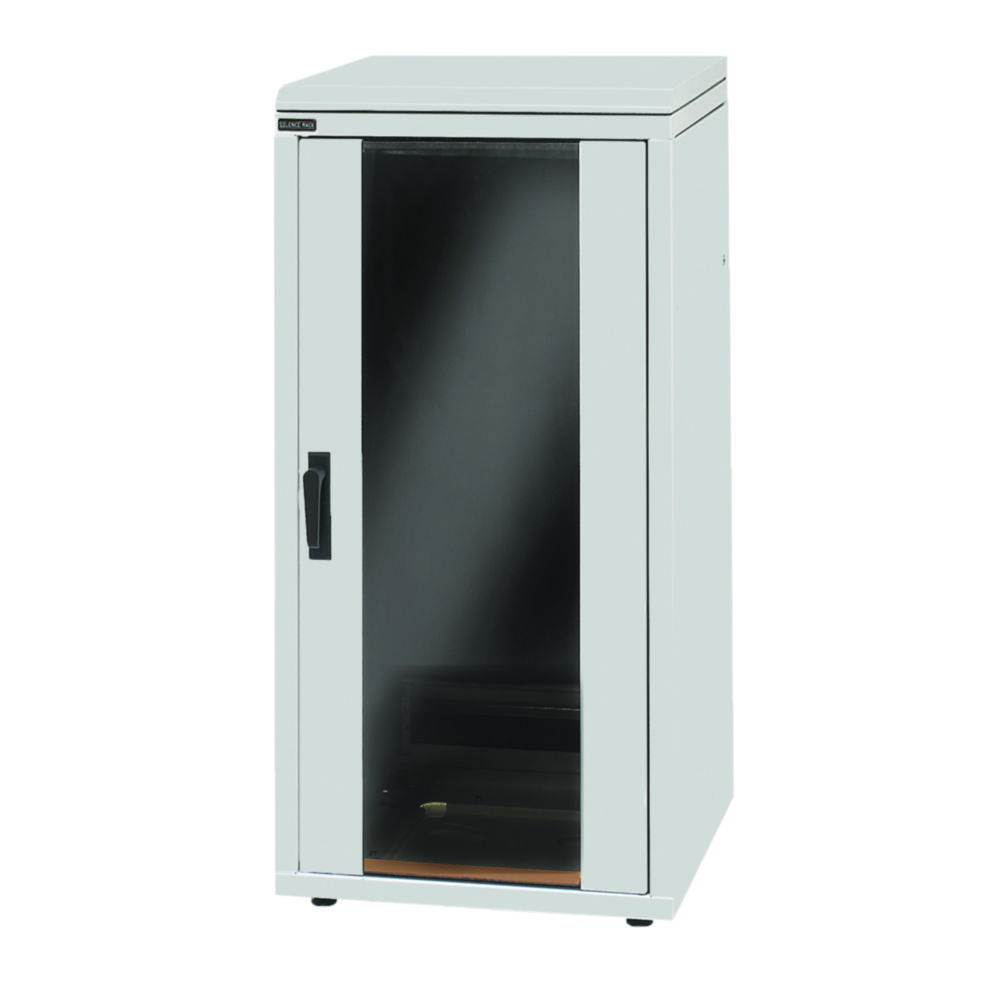

Sound absorbing cabinets for test sieve shakers EML/UWL
Sound absorbing cabinets can reduce the noise level by up to 28 dB (A). They also have a recess for power cables, connection cables and hoses.
Test sieve sets for Sieve Shakers AS series
Each set with one collecting pan.Other accessories, such as sieve lids and intermediate receivers, are available on request.

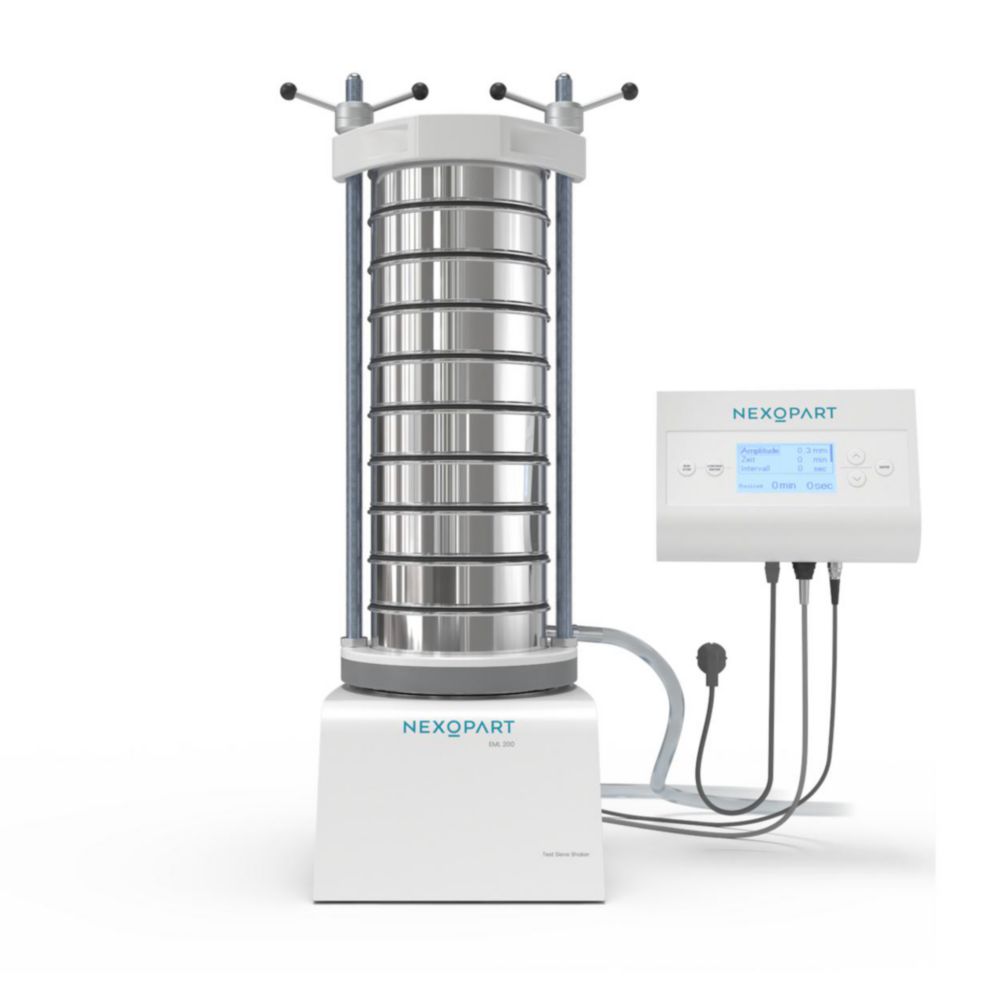

Test Sieve Shaker EML 200 Premium Remote, with clamping system Classic
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmSuitable for dry and wet sievingSeparate control unitCover with integrated full cone nozzleWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass and full cone nozzle, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), 1 water plug with socket and 2 hose clips, 1 PVC water hose (length 3 m), Basic licence of the evaluation software CSA
Test Sieve Shaker EML 200 Premium Remote, with quick-release clamping system TwinNut
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmSuitable for dry and wet sievingSeparate control unitCover with integrated full cone nozzleWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass and full cone nozzle, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), 1 water plug with socket and 2 hose clips, 1 PVC water hose (length 3 m), Basic licence of the evaluation software CSA

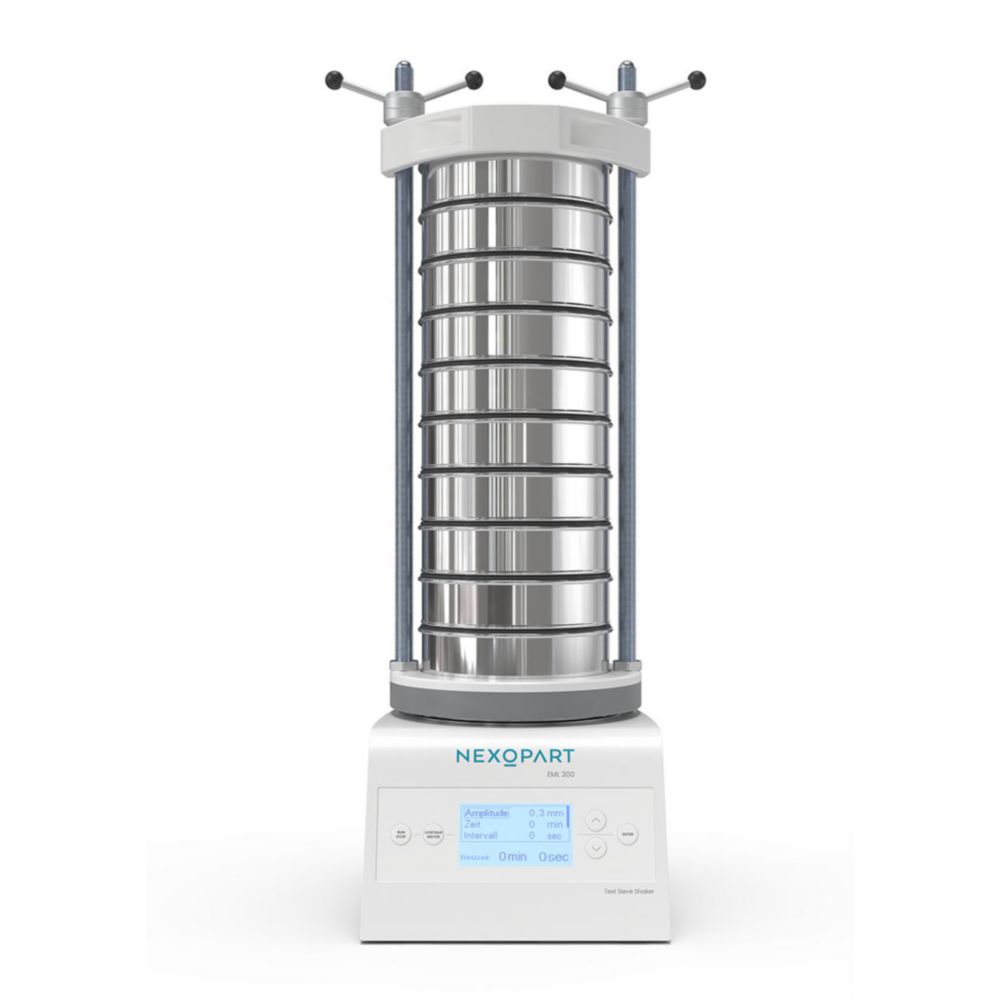

Test Sieve Shaker EML 200 Premium, with clamping system Classic
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmExtra-large displayWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), Basic licence of the evaluation software CSA
Test Sieve Shaker EML 200 Premium, with quick-release clamping system TwinNut
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmExtra-large displayWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), Basic licence of the evaluation software CSA

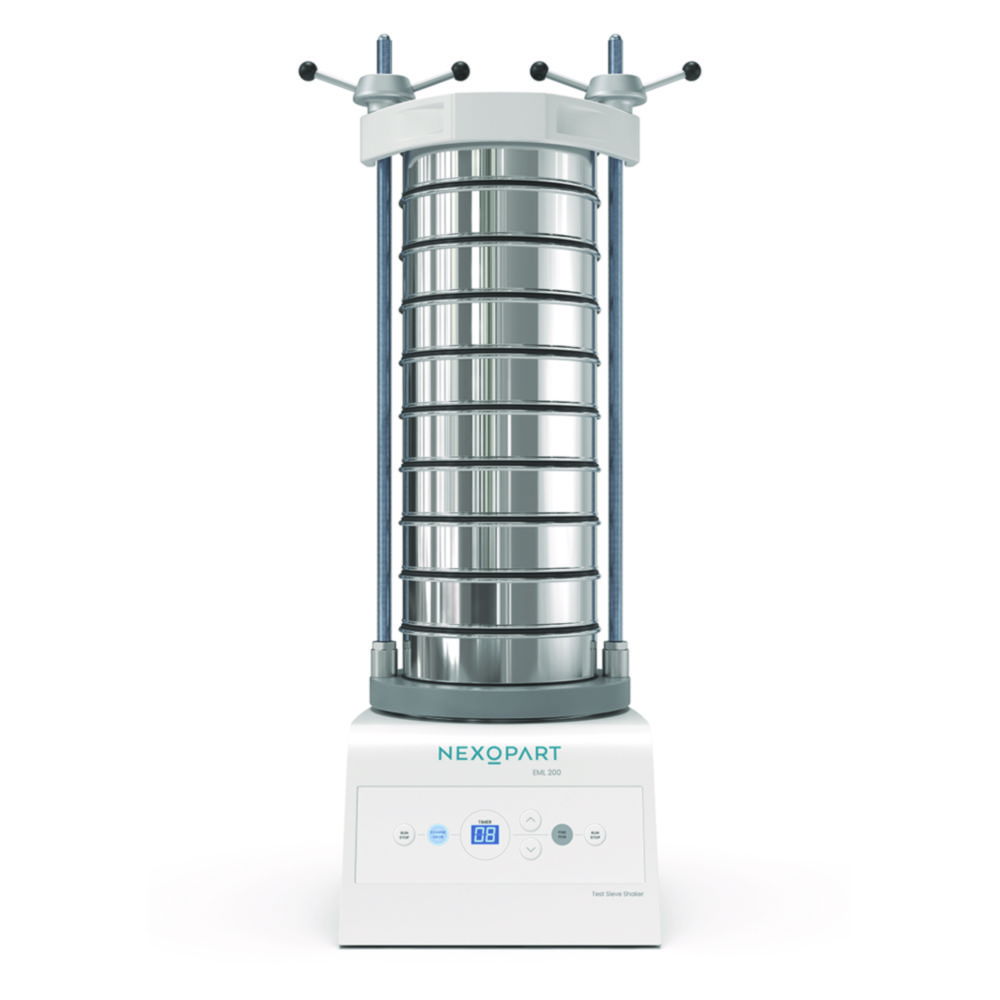

Test Sieve Shaker EML 200 Pure, with clamping system Classic "eco"
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mm2 amplitude options: fine (0.9 mm) and coarse (2.2 mm)Fixed interval (every 10 seconds)Scope of supply: Test Sieve Shaker, cover with inspection glass, clamping system (2 guide rods M16 x 660 mm, 2 clamping nuts), Basic licence of the evaluation software CSA

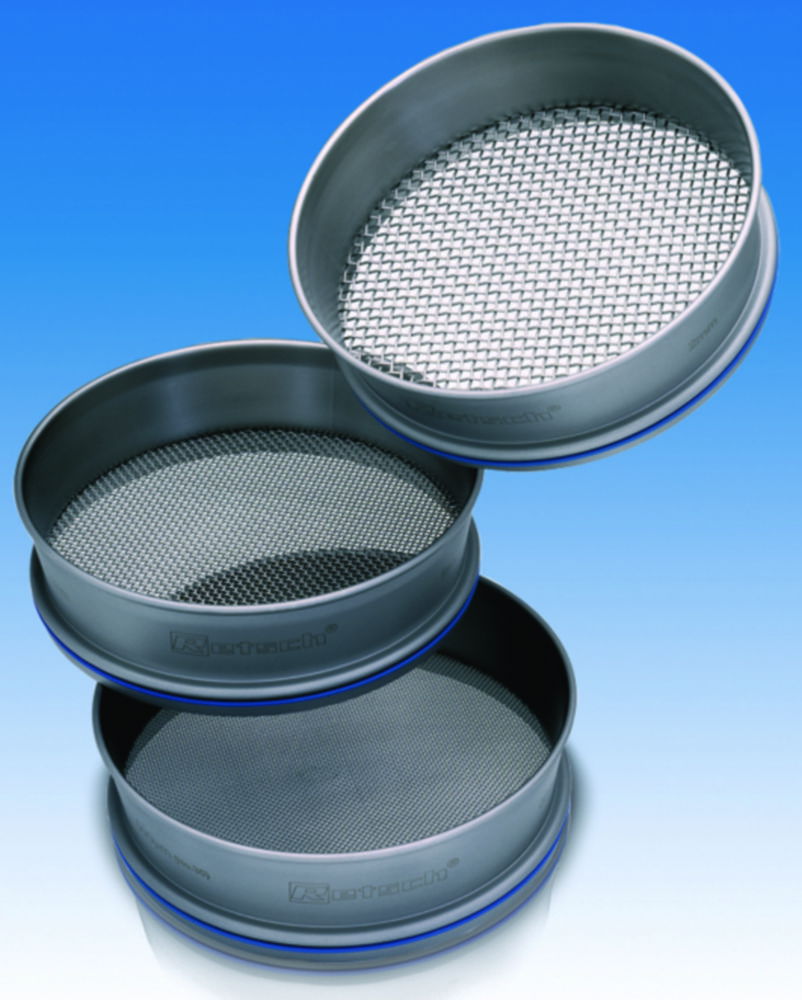

Test sieves
With welded seam (heat resistant up to 170 °C). Diameter: 200 mm.Height: 50 mm.
Test sieves
With soft solder seam (temperature resistant to 170°C). 200mm diameter. Height 50mm.
Test sieves
With soft solder seam (temperature resistant to 170°C). 200mm diameter. Height 50mm.
Test sieves
With soft solder seam (temperature resistant up to 170 °C).Diameter: 200 mm.
Test sieves
With soft solder seam (temperature resistant to 170°C).200mm diameter.Height 25mm.
Test sieves
With welded seam (heat resistant up to 170 °C). Diameter: 100 mm.Height 45 mm.
Test sieves
With soft solder seam (temperature resistant to 170°C). 100mm diameter. Height 45mm.
Test sieves
With soft solder seam (temperature resistant to 170øC).100mm diameter.Height 45mm.
Test sieves
With welded PVC seam (temperature resistant up to 70 °C). Diameter: 200 mm. Height: 50 mm.
Test sieves
With welded PVC seam (temperature resistant to 70 °C).200 mm diameter. Height 50 mm.
Test sieves 200 LS-N
Robust screen construction with plain stainless steel frame. With 2.1 certificate of conformity, acc. to EN 10204.
Test sieves A200 LS
Robust screen construction with plain stainless steel frame. With 2.1 certificate of conformity, acc. to EN 10204.
Test sieves e200 LS
Robust screen construction with plain stainless steel frame.

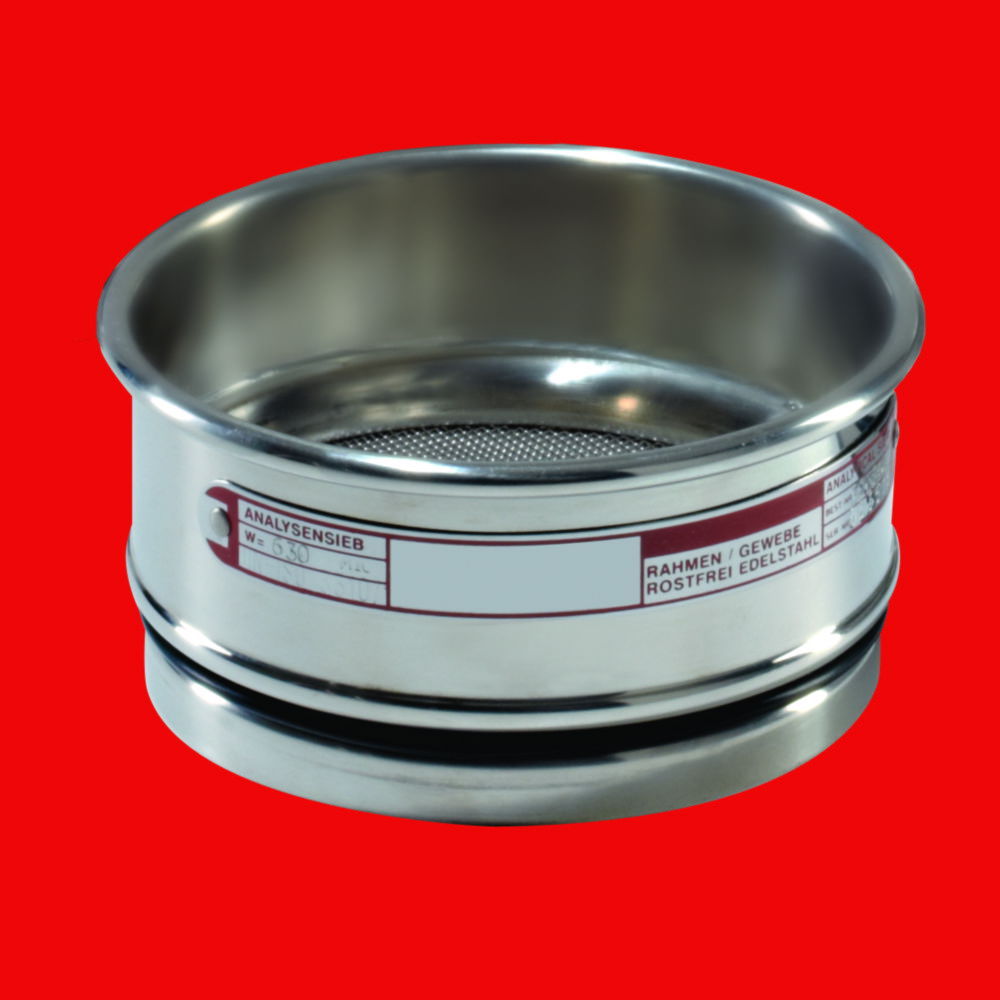

Test sieves, 100 x 40 mm
Frame and mesh made of stainless steel according to ISO 3310-1 with a compliance certificate.Further test sieves and sieving accessories in other diameters and mesh widths also according to ASTM on request.
Test Sieves, 200 x 25 mm
Previously unattained product quality owing to advanced manufacturing processes and continuous optical inspectionHigh quality joining technology guarantees permanently taut wire meshHigh level of corrosion resistance and easy to clean owing to the use of high-alloy stainless steel"one-piece cast" sieve frame and seamless mesh joint prevent cross contaminationMaximum stability and optimum density of the sieve stackClear sieve marking and traceability by individual laser engraving on each sieveDIN ISO 3310-1.
