Analytical Sieve Test Sand
Test materials can be used to check analytical sieves between the schedulded calibration dates and to demonstrate the presence of the required properties, as well as the suitability of analytical sieves. A test material for analytical sieves with frequent mesh widths ( 2.0mm - 1.0mm - 0.5mm - 0.25mm - 0.125mm ).Pack of 3 bottles, 202g eachGrain size : from 0.125mm to 2.00mmData sheet for the use of traceability for analytical sievesEach bottle contains a mixture of different sizes.
Clamping device for Sieve Shakers AS series
Other accessories, such as sieve lids and intermediate receivers, are available on request.
Dividing heads for rotary cone sample divider LABORETTE 27
All dividing heads are delivered inclusive of sample bottles and funnels.
Drive unit for vibratory feeder DR 100
For the continuous feeding of bulk materials.Please order feeding kit separately.
EVO industrial vacuum cleaner FEX 1000
Vacuum cleaner for use with the air jet sieve machine e200 LS eControl.Air flow rate 350 m3/hVacuum 100 mbar
Feeding kits for vibratory feeder DR 100
Scope of supply: push-fit feed chute, holder, funnel, fixture
Grindometer
For sieving. Acc. to ISO 1524. Further measuring ranges available on request.
High-performance cyclone GAZ 120
For the safe and clean recovery of sieve material without contamination by e.g. filter fluff. Suitable for material quantities up to 1 litre. Dismantlable and washable stainless steel design.

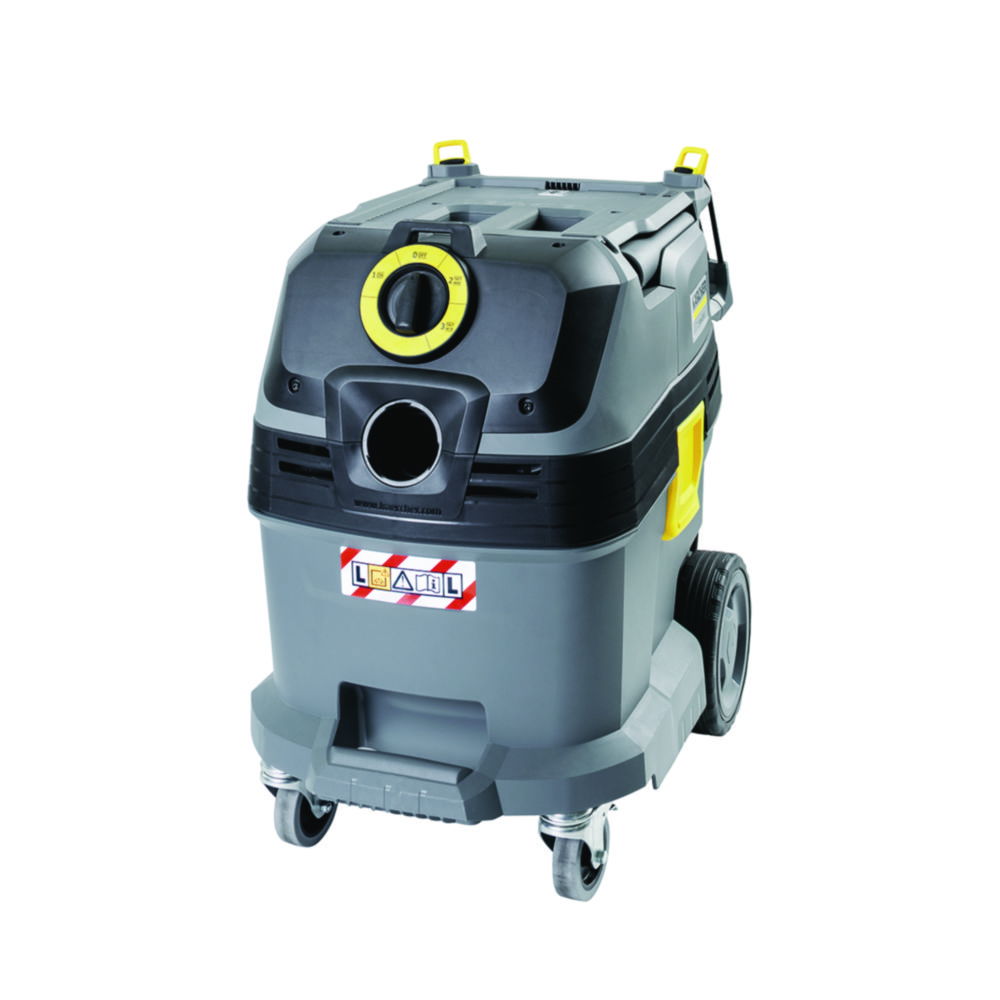

High-performance industrial vacuum cleaner Type L
Vacuum cleaner with automatic filter cleaning system Tact. Targeted, powerful blasts of air automatically clean the filter itself, the suction power remains constantly high.Dust class L (max. permeability 1 % acc. to EN 60335-2-69)Removable filter housingAir flow rate 150 m3/hVacuum 230 mbarThis vacuum cleaner is not designed for continuous operation.
Mesh, Polyamide
Thermo-fixed Polyamide (Nylon) mesh is temperature stable from -40 °C to 115 °C. In water from 95 °C to 100 °C. Stability in acids is limited and dependent on concentration and temperature. Nylon exhibits outstanding stability in alkalis, including sodium and potassium solutions. Its chemical behaviour with respect to organic solvents is moderate to good. Minimum mesh width: 102 cm, Length: 1 mOther sizes available on request.
Mesh, polyester
Thermo-fixed PE mesh with temperature resistance from -75 °C to 150 °C (short). For long term heating max. 125 °C. Resistant to acids but not alkalis.Dimensions: Minimum width 102 cm, Length 100 cm.Other sizes available on request.
NEXOPART Test sieves, 200 x 32 mm
Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1
NEXOPART Test sieves, 200 x 32 mm
Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1
NEXOPART Test sieves, 200 x 50 mm
Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1
NEXOPART Test sieves, 200 x 50 mm
Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1

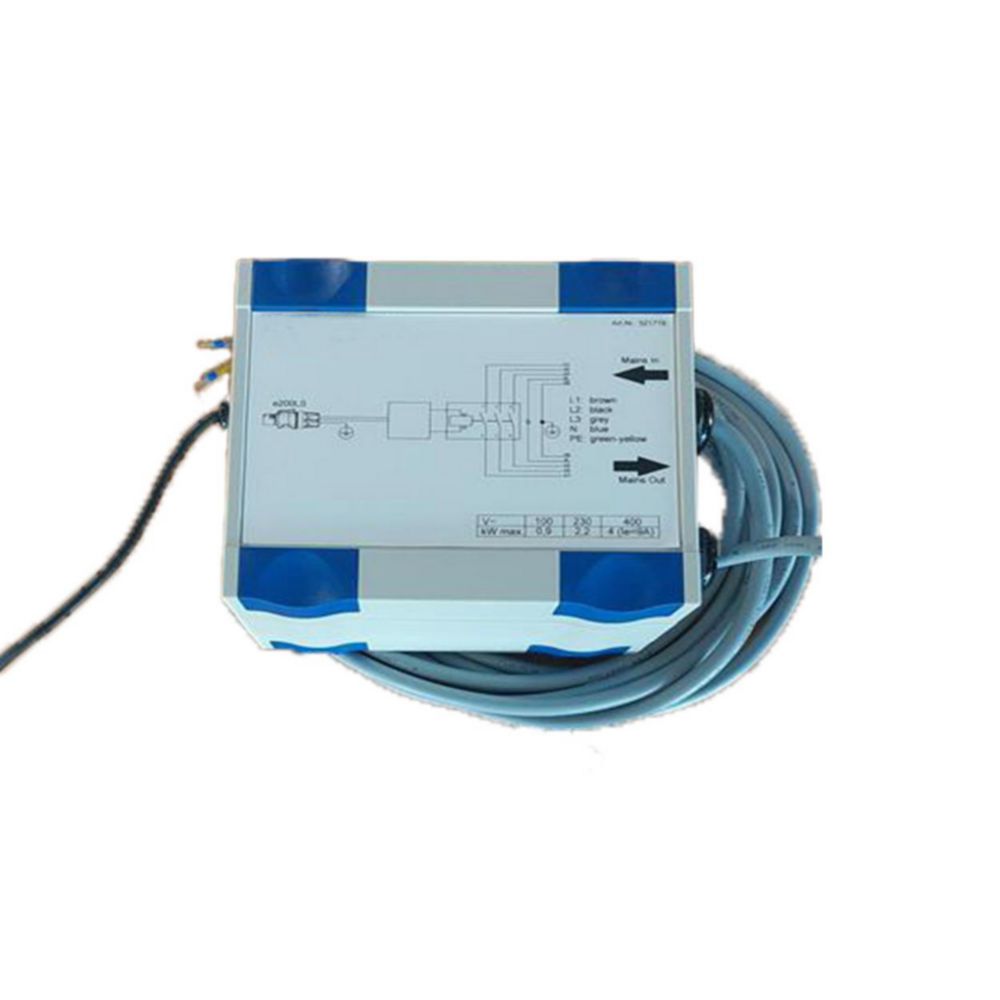

Power contactor for air jet sieve machine e200 LS eControl LITE
Electrical regulation unit for connecting vacuum cleaners of different brands.
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type M acc. to EN 60335-2-69, for separating dust with an exposure limit value of higher than 0.1 mg/m3Polyester filter cartridge with a filter surface of 1.2 m2
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M + ATEX
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type M acc. to EN 60335-2-69, for separating dust with an exposure limit value of higher than 0.1 mg/m3Polyester filter cartridge with a filter surface of 1.2 m2Antistatic, ATEX Zone 22 marking II 3 D
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M + H
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type H acc. to EN 60335-2-69, separation of different dust types with all exposure limits, including carcinogenic and pathogenic dustsHEPA filter, filter class (EN 1822) H14 with a filter surface of 2.05 m2
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M + H + ATEX
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type H acc. to EN 60335-2-69, separation of different dust types with all exposure limits, including carcinogenic and pathogenic dustsHEPA filter, filter class (EN 1822) H14 with a filter surface of 2.05 m2Antistatic, ATEX Zone 22 marking II 3 D
Rotary cone sample divider LABORETTE 27
For reliable, representative sample division of solids and suspensions without conversion. Divides the samples at up to 3000 graduations per minute into up to 30 partial streams via a rotating cone head. Dividing accuracy up to 99.9 %. Can be combined with 6 different dividing heads.Compact basic unit with robust cast aluminium housingEasy cleaning due to removable dividing headvariable partition ratiosMaintenance-free drive motor with slipping clutchQuick clamping device for sample tubes 250 and 500 mlFor optimum sample allocation, the vibratory feeder LABORETTE 24 (optional) is recommended.Instrument also available in other voltages.Dividing heads must be ordered separately.
Rotary sample divider RSD200
With the optional dividing heads, the filled sample material can be divided into 6, 8 or 10 equal subsamples. The composition of each subsample corresponds exactly to the total sample. In addition, the bulk material is added and divided automatically and without loss of material.High division accuracyModular designDigital time settingSpeed monitoring and constant speed controlMaintenance-freeEasy collection and cleaningScope of supply: Rotary sample divider RSD200, vibration feeder VF200, 10 sample bottles of 250 mlPlease order rotary dividing heads separately.Number of divisions:6/8/10 (depending on dividing head)Sample bottle capacities:10/25/50/100/250/500 mlTimer:1 min ... 99 h 59 minDimensions (W x D x H):460 x 456 x 850 mmWeight:30 kgPower supply:220 V, 50/60 HzSpeed range:80 ... 120 rpm
Sample Splitters, RT series
To provide separation of pourable powders and bulk materials on site and in the laboratory. Operates independently of mains supply. Available in 6 sizes. Number of samples: 2.
