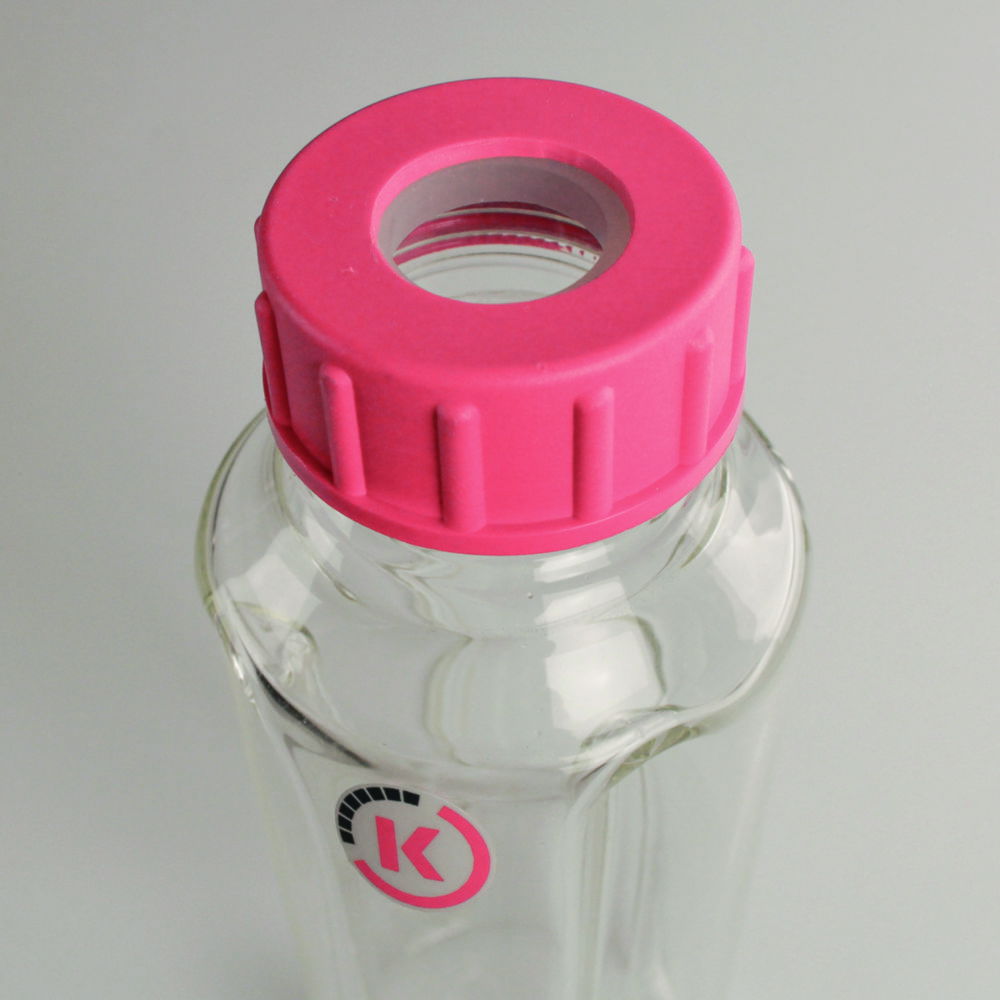

Dispersing vessels POLYTRON® GS
GS vessels for homogenisers POLYTRON® are available in borosilicate glass or stainless steel. GS jars have a cloverleaf-like shape creating high turbulences optimizing the mixing and the dispersing efficiency. This minimizes the machining time and reducing the application of energy.The GS-stainless steel containers with lid are equipped with baffles. The crossbars radically disturb the flow and generate additional opposing flows, optimizing the mixing in the dispensing vessel. The sterilisable screw caps with PTFE or a silicone seal are temperature-resistant up to 180 °C. The stainless steel 18/10 is rustproof, durable, has good insulating properties, completely hygienic, not toxic and not magnetic.*with flow disturber

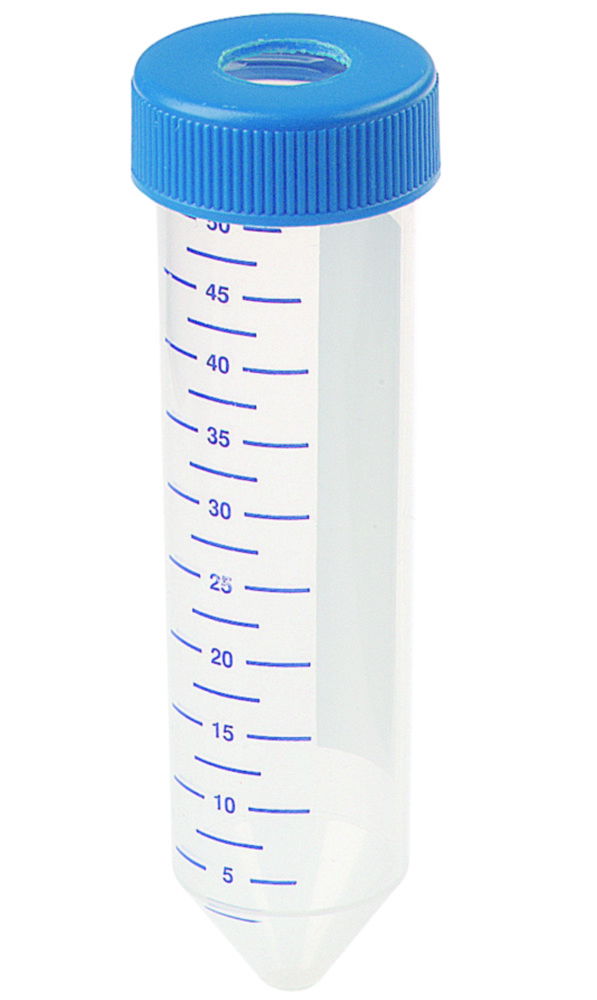

Disposable tube S 18/25-ET 50
PP. Capacity 50 ml for attaching onto plastic tools from S18D and S25D series. Allows dispersion within a closed system (splash guard).
Filter bag FILTRA-BAG
The filtra bag is a blender bag designed t facilitate aliquot sampling. The filter membrane allows bacteria to circulate between compartments while keeping larger amonts of residue separate. It´s ideal solution for samples that have to be free of solid particles for microbiological analysis.Full-size filter membrane for optimal filtrationPE terephthalate outer membrane for added strengthIntegrated secure closure system with 1 round wire and 1 flat wire
Filter bag FILTRA-BAG, with tear-off protection strip
The filtra bag is a blender bag designed t facilitate aliquot sampling. The filter membrane allows bacteria to circulate between compartments while keeping larger amonts of residue separate. It´s ideal solution for samples that have to be free of solid particles for microbiological analysis.Full-size filter membrane for optimal filtrationPE terephthalate outer membrane for added strength
Flow cell reactor FC7K for ultrasonic homogenisers UP200Ht / UP200St, stainless steel
Stainless steel flow cell with cooling jacket, NBR O-ring, hose connection, plastic clamps and 2 m long hose. Suitable for sonotrodes S26d2D or S26d7D.
Flow-through cell for SONOPULS Ultrasonic homogenisers, stainless steel
Stainless steel, sealed, vibration-free reaction vessel with cooling jacket. For direct ultrasonic irradiation. For connection to SH 70 G or SH 213 G with TT 13. Flow rate up to 30 L/hr.
Flow-through standard horn for Sonopuls Ultrasonic homogenisers
For indirect ultrasonic irradiationFlow-through standard horn FZ 5 G with external screwthread and titanium flat tip TT 13 FZFlow-through standard horn FZ 7 G with external screwthread and titanium flat tip TT 13 FZ
Flow-through vessels, Borosilicate glass 3.3 for Ultrasonic homogenisers SONOPULS
For direct ultrasonic irradiation, with cooling jacket.
Glass sample vessels, Borosilicate glass 3.3 for Ultrasonic homogenisers SONOPULS, cooling vessel
For direct ultrasonic irradiation.
Glass sample vessels, Borosilicate glass 3.3 for Ultrasonic homogenisers SONOPULS, rosette cell
For direct ultrasonic irradiation.

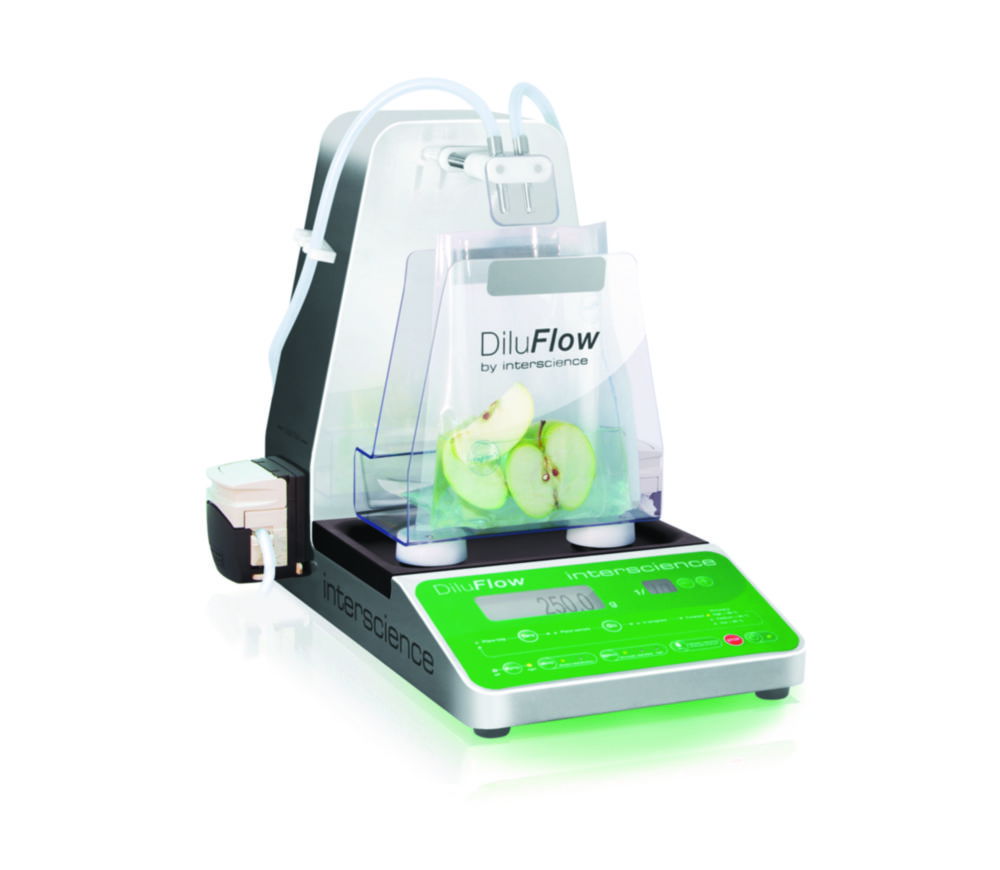

Gravimetric dilutor DiluFlow®, 1 or 2 pumps
All stainless steel with a new design, ultra-low profile for easy use under laminar flow. USB port.Available in 1 or 2 pumps.Quick and accurateCompact and user-friendlyRS232 output for LIMS and printer, USBSupplied with1 BagOpen® 400 DiluFlow®, 1 fixed arm, 1 power cord, 1 ø 6.4 mm tubings set per pump for GL45 bottle, 1 drip tray, 1 user's manual, guaranteeSpecificationsRange: Dilution Precision:from 0.1 g to 3000g 98%Dimensions (W x L x H): Weight:310 x 415 x 400mm 10.5kg
Gravimetric dilutor DiluFlow®Elite, 1 or 2 pumps
Fast and accurate gravimetric dilutor for the dilution of the sample. All stainless steel.Its robotic arm enables the secureness of the analyses and great user-comfort. Use up to 6 pumps with bi-directional connectivity. Patented multi-dispenser mode.Available in 1 or 2 pumps.Quick and accurateHigh-speed robotic arm2 USB (A) port, 1 USB (B) port, Jack plug, Ethernet port for LIMSSupplied with1 BagOpen® 400 Diluflow®, 1 cap for 2 ends, 1 power cord, 1 ø 6.4 mm tubings set per pumpfor GL45 bottle, 1 drip tray, 1 user's manual, guaranteeSpecificationsRange: Dilution Precision:from 0.1 g to 5000g 98%Dimensions (W x L x H): Weight:310 x 415 x 375mm 13kg
Gravimetric dilutor DiluFlow®Pro, 1 or 2 pumps
Fast and accurate gravimetric dilutor for the dilution of the sample. All stainless steel.Its robotic arm enables the secureness of the analyses and great user-comfort.Available in 1 or 2 pumps.Quick and accurateHigh-speed robotic armRS232 output for printer, USB (B) for computer, Jack plug for pedalSupplied with1 BagOpen® 400 DiluFlow®, 1 fixed arm, 1 power cord, 1 ø 6.4 mm tubings set per pumpfor GL45 bottle, 1 drip tray, 1 user's manual, guaranteeSpecificationsRange: Dilution Precision:from 0.1 g to 5000g 98%Dimensions (W x L x H): Weight:310 x 415 x 375mm 12.5kg
H-stand R 2722 for overhead stirrers and Disperser T 50 digital ULTRA-TURRAX®
Stable stands with H-shaped base. Stands have a levelling screw to compensate for unevenness on the laboratory bench. Max. load 10 kg.

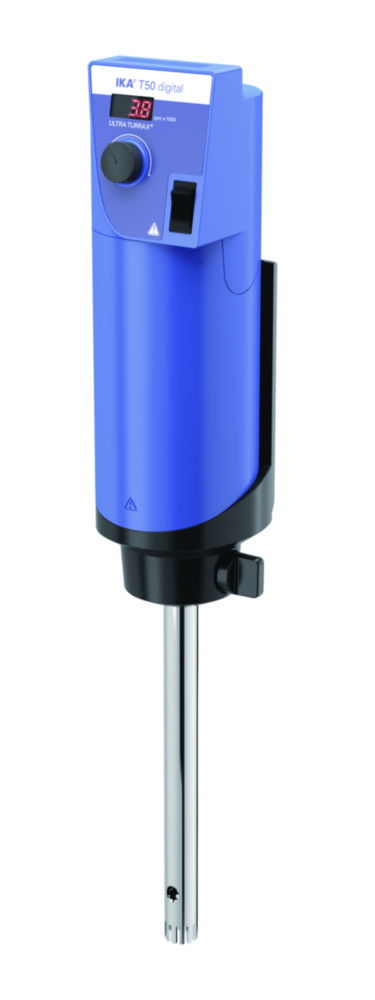

High-power homogeniser T 50 digital ULTRA-TURRAX®
Powerful dispersing instrument for volumes from 0.25 to 30 l (H2O) with digital speed display. It offers a wide speed range from 600 to 10000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.Digital speed displayElectronic speed controlElectronic overload protectionStainless steel dispersing elements can be cleaned quickly and easilySmooth startError code displayDispersing heads must be ordered separately.
High-power homogeniser T 65 digital ULTRA-TURRAX®
Extremely powerful dispersing instrument for volumes from 2 to 50 l (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 to 9500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.Digital speed displayElectronic speed controlElectronic overload protectionCables and plugs not included in the deliveryPlug-in connectors facilitate exchange of dispersing elementsStainless steel dispersing elements for use under vacuum and pressureError code display
Holding frame for Ultrasonic homogenisers SONOPULS
For correct and variable positioning of the ultrasonic transducers.Suitable for direct and indirect sound reinforcementCan be used with and without LS 40 noise protection boxCommercially available sockets can be mounted on stand rod (d=16 mm)Material base and rod: stainless steel
Homogeniser set T 18 brushless digital ULTRA-TURRAX® Solution
High performance dispersing instrument with brushless DC motor and digital speed display for volumes from 1 to 1500 ml (H2O). It offers a wide speed range from 3000 to 25000 rpm that enables users to work at high circumferential speeds. Broad range of stainless steel dispersing tools with high chemical resistance or disposable plastic tools available.Brushless motor for improved motor life, quieter operation and hygienic applicationsDigital speed display and settingTimer function for unattended operationQuick coupling for easy and fast exchange of dispersing toolsUSB interface for remote control and parameter documentation with the laboratory software labworldsoft®Scope of supply: Homogeniser, dispersing head S 18 N - 19 G, stand R 1826, boss head clamp R 182
Homogeniser set T 18 digital ULTRA-TURRAX® Solution
Competitively priced dispersing instrument for volumes from 1 to 1500 ml (H2O) with digital speed display. It offers a wide speed range from 3000 to 25000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.Digital speed displayElectronic speed controlElectronic overload protectionStainless steel dispersing elements can be cleaned quickly and easilyPlastic disposable dispersing elements are available in two sizesError code displayQuiet operationScope of supply: Homogeniser, dispersing head S 18 N - 19 G, stand R 1826, boss head clamp R 182
Homogeniser set T 18 mini digital ULTRA-TURRAX® Solution
Economical high-performance disperser for working with small rotor diameters and high circumferential speeds. Compact design for use in confined spaces, e.g. in fume hoods, with the large TFT display allowing readout from a distance. For simple applications for homogenising samples with low viscosity.Digital speed display and adjustmentBrushless motorTimer function for unattended operationWide selection of stainless steel and plastic dispersing elementsWith quick couplingUSB interface for remote control and documentation with IKA labworldsoft® softwareScope of supply: Homogeniser, dispersing head S 18 N - 19 G, stand R 1826, boss head clamp R 182

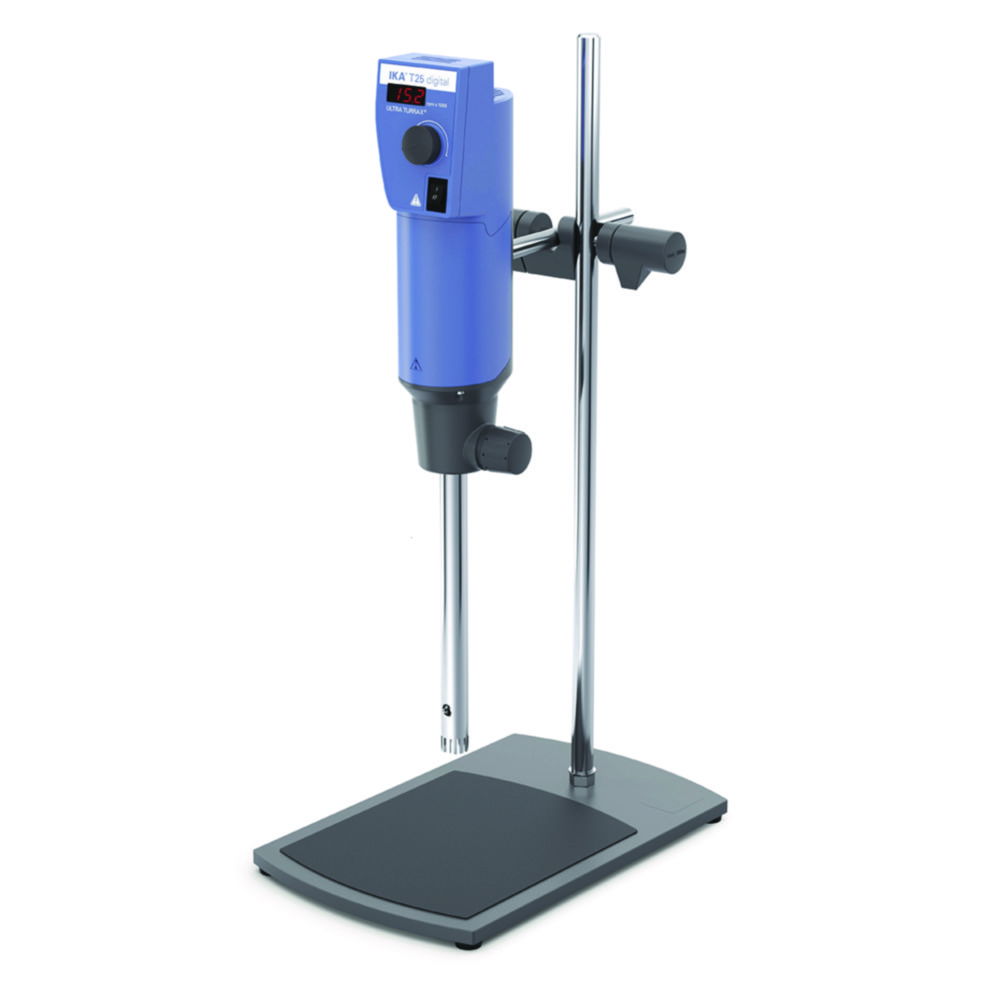

Homogeniser set T 25 digital ULTRA-TURRAX® Solution
High-performance dispersing instrument for volumes from 1 to 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 to 25000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum/pressure and sample preparation in medical diagnostics.Digital speed displayElectronic speed controlElectronic overload protectionStainless steel dispersing elements can be cleaned quickly and easilyPlastic disposable dispersing elements are available in two sizesError code displayQuiet operationScope of supply: Homogeniser, dispersing head S 25 N - 25 G, stand R 1826, boss head clamp R 182

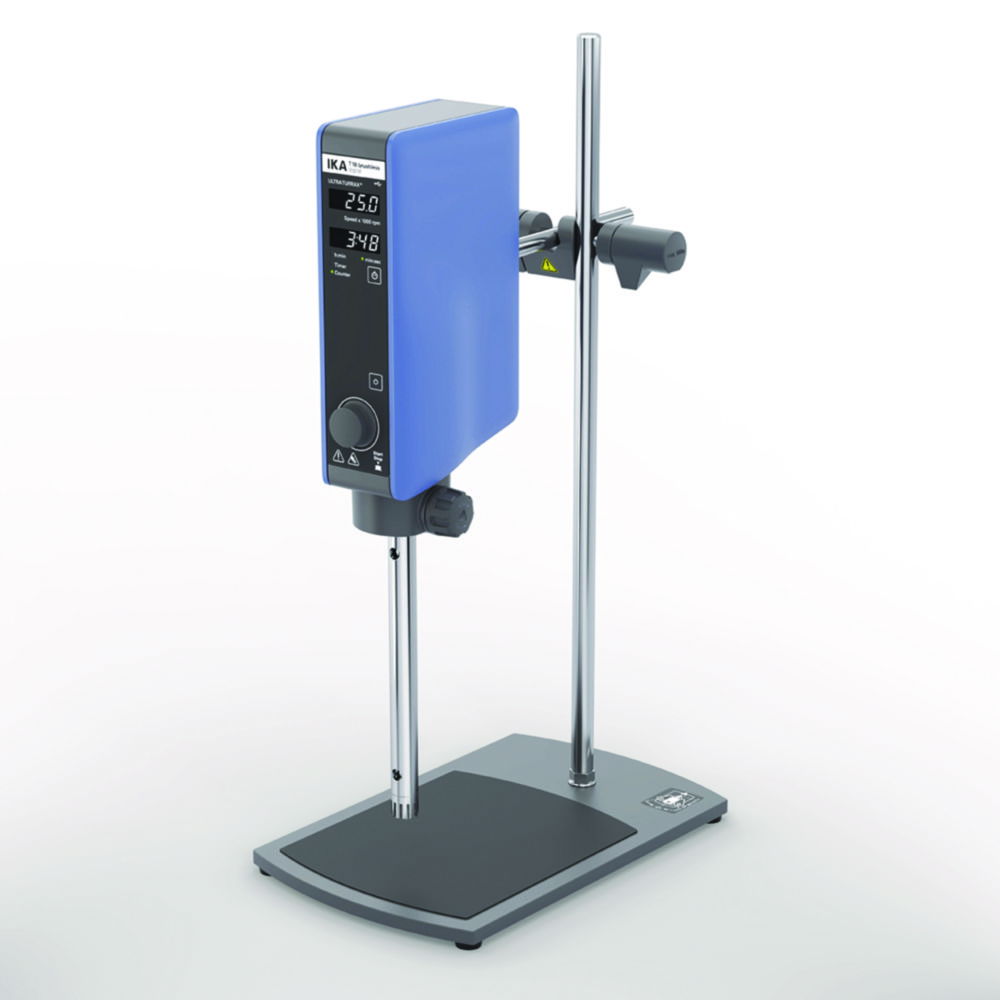

Homogeniser set T 25 easy clean control Solution
High-performance homogeniser with electronic speed control and a large variety of dispersing heads for many fields of applications.Quick and easy cleaning of the dispersing tools, no disassembling requiredBrushless motor guarantees dust-free and silent operationUSB interface for control and documentation via labworldsoft®Timer/counter functionIncreased safety through tool recognition and IP-CodeRemote control with WiCo (not included)Continuous temperature measurement with S 25 EC-T-C-18G-ST tool with an integrated temperature sensorOperation time detection through RFIDScope of supply: Homogeniser, dispersing head S 25 EC-C-25 G, stand 1826, Boss head clamp R 182

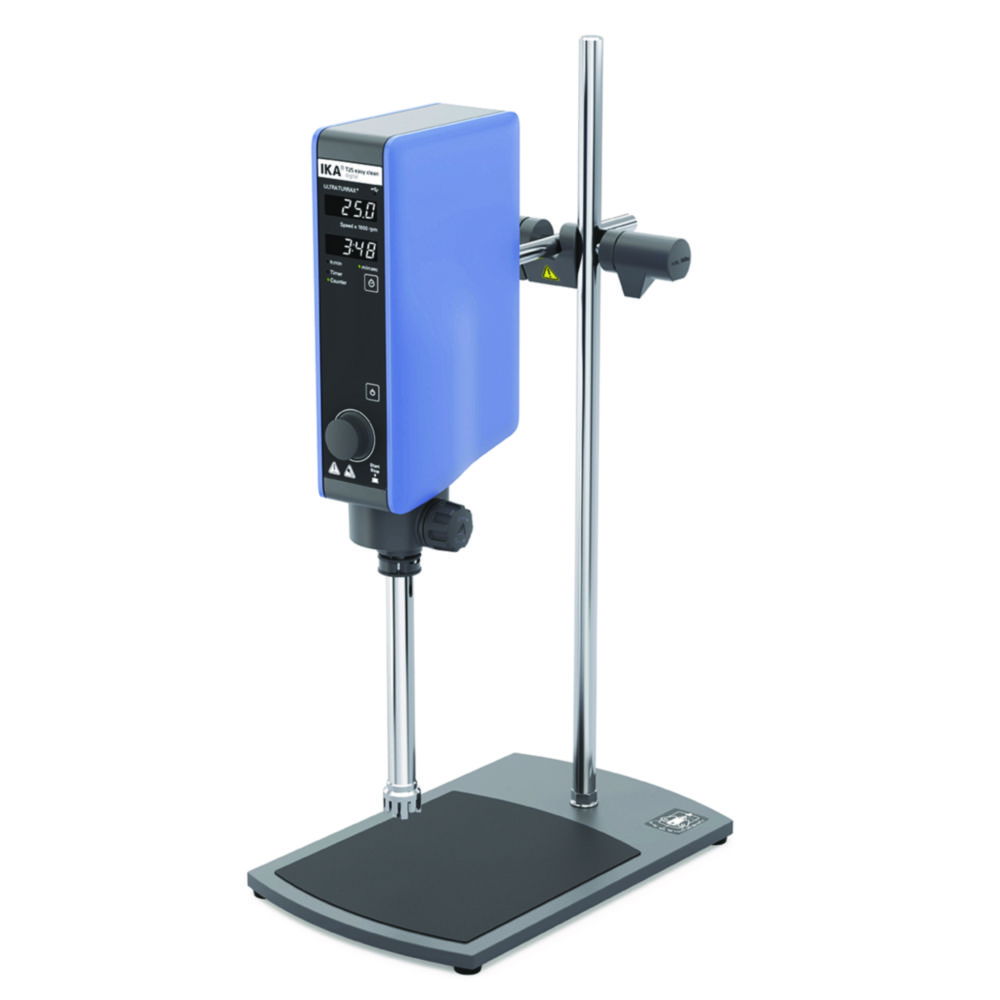

Homogeniser set T 25 easy clean digital Solution
High-performance homogeniser with electronic speed control and a large variety of dispersing heads for many fields of applications. In combination with an IKA laboratory reactor it is also possible to conduct dispersion tasks under vacuum or pressure.Quick and easy cleaning of the dispersing tools, no disassembling requiredBrushless motor guarantees dust-free and silent operationUSB interface for control and documentation via labworldsoft®Timer/counter functionIncreased safety through tool recognition and IP-CodeScope of supply: Homogeniser, dispersing head S 25 EC-C-25 G, stand R 1826, Boss head clamp R 182

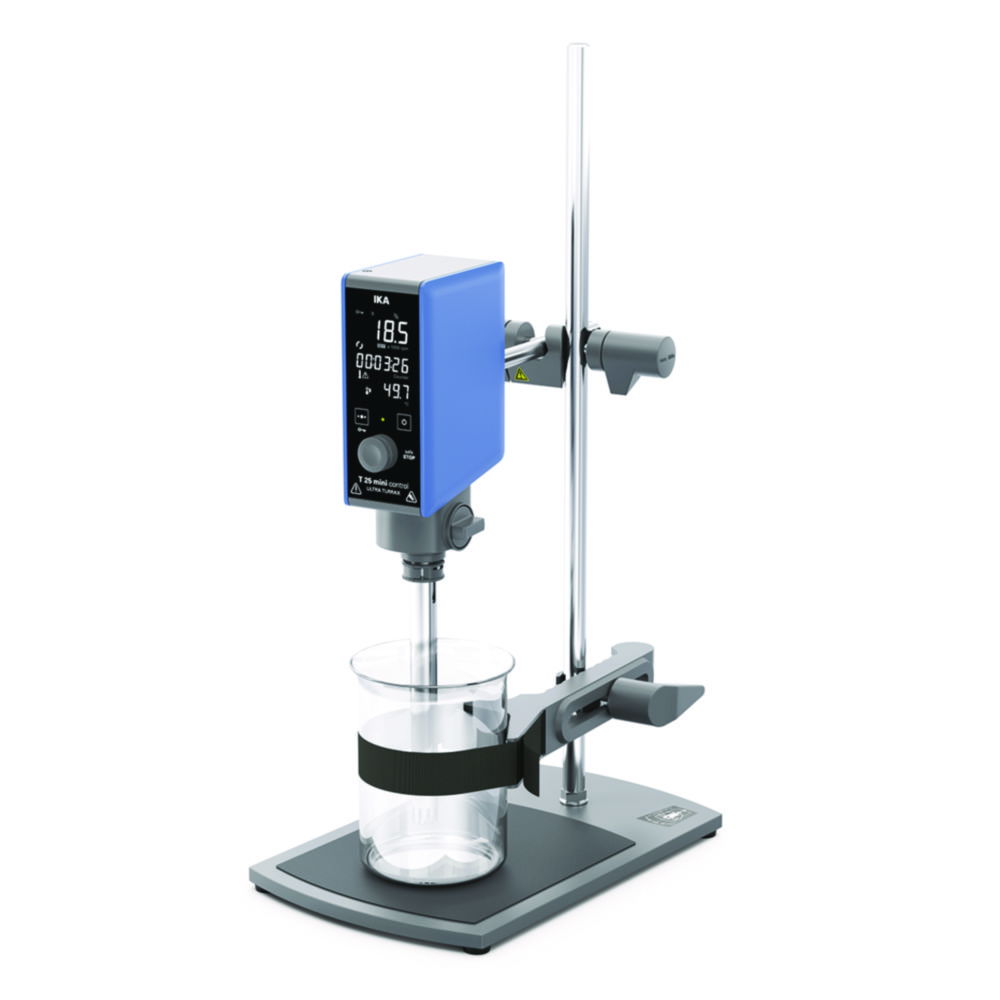

Homogeniser set T 25 mini control ULTRA-TURRAX® Solution
High-performance disperser with temperature measurement up to 125 °C for working with small rotor diameters and high circumferential speeds. Compact design for use in confined spaces, e.g. in fume hoods, with the large TFT display allowing readout from a distance. For simple applications for homogenising samples with low viscosity.Digital speed display and adjustmentBrushless motorTimer function for unattended operationWide selection of stainless steel and plastic dispersing elementsWith quick couplingUSB interface for remote control and documentation with IKA labworldsoft® softwareScope of supply: Homogeniser, dispersing head S 25 EC-T-C-18 G, stand R 1826, boss head clamp R 182
