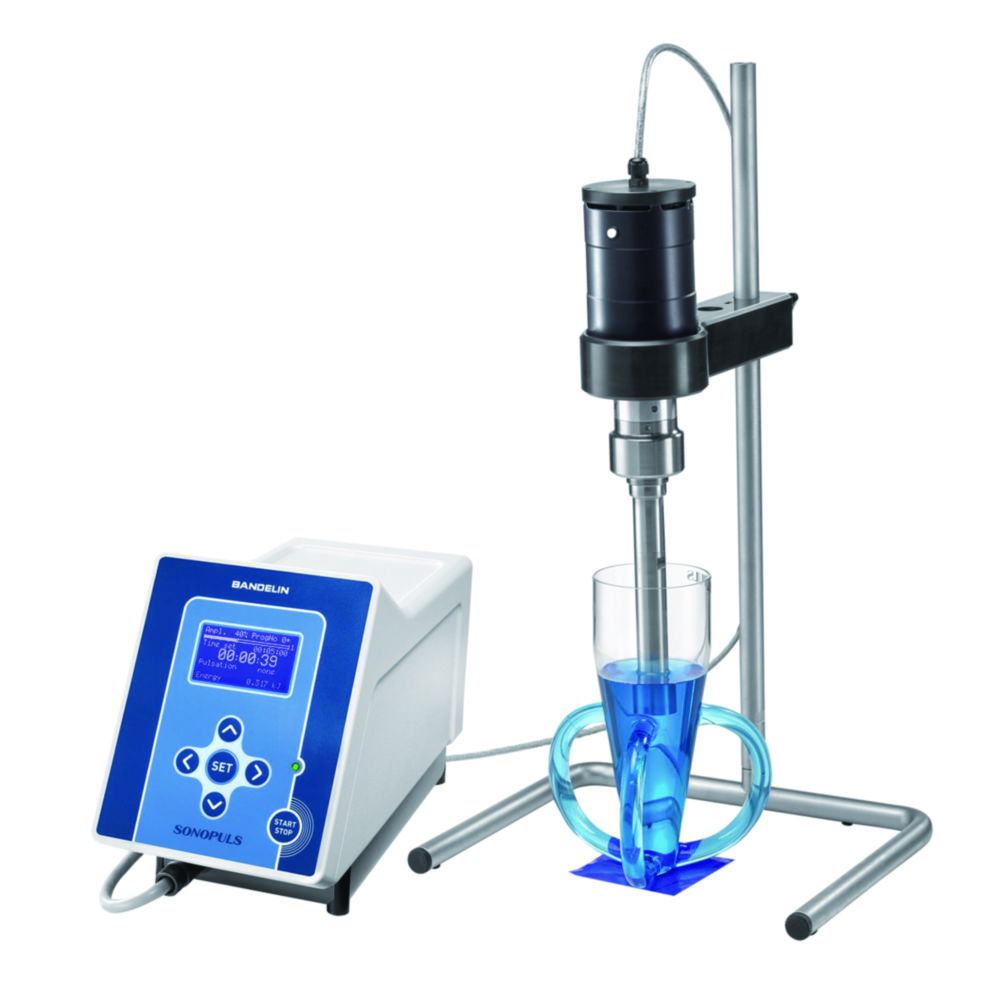

Ultrasonic homogeniser, SONOPULS HD 4100, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes 2 to 200 ml. Ready-to-operate set for volumes from 3 to 50 ml consisting of:HF generator GM 4200Ultrasonic converter UW 100Standard horn SH 100 GTitanium probe TS 103, diam. 3 mmFurther Titanium probes with diam. 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm available on request.

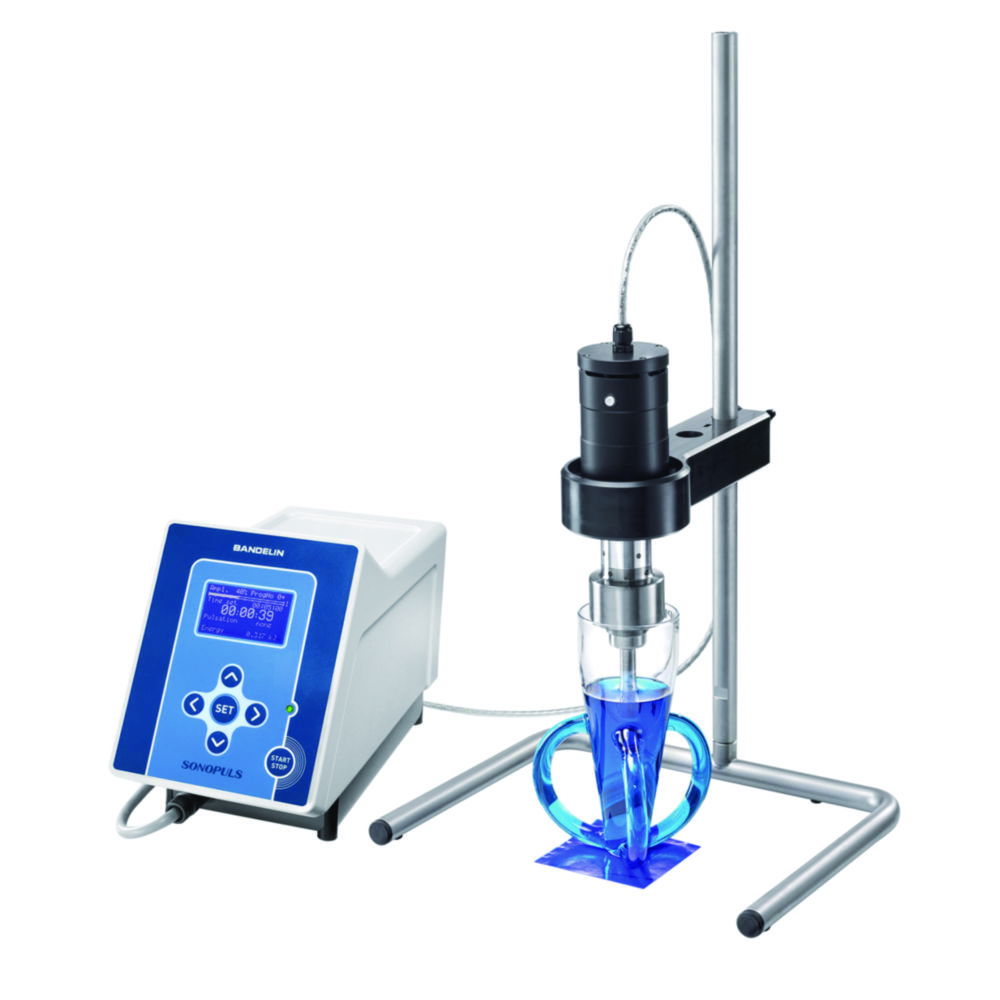

Ultrasonic homogeniser, SONOPULS HD 4200, set without stand and vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes 5 to 1000 ml. Ready-to-operate set for volumes from 20 to 900 ml consisting of:HF generator GM 4200Ultrasonic converter UW 200Standard horn SH 200 GTitanium probe TT 213, diam. 13 mmFurther Titanium probes with diam. 4.5 mm, 6 mm, 9 mm, 16 mm and 25 mm available on request.
Ultrasonic homogeniser, SONOPULS HD 4400, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes 100 to 3000 ml. Ready-to-operate set for volumes from 500 to 2000 ml consisting of:HF generator GM 4400Ultrasonic converter UW 400Standard horn SH 400 GTitanium probe TS 425, diam. 25 mmFurther Titanium probes with diam. 13 mm, 16 mm, 19 mm, 32 mm and 38 mm available on request.

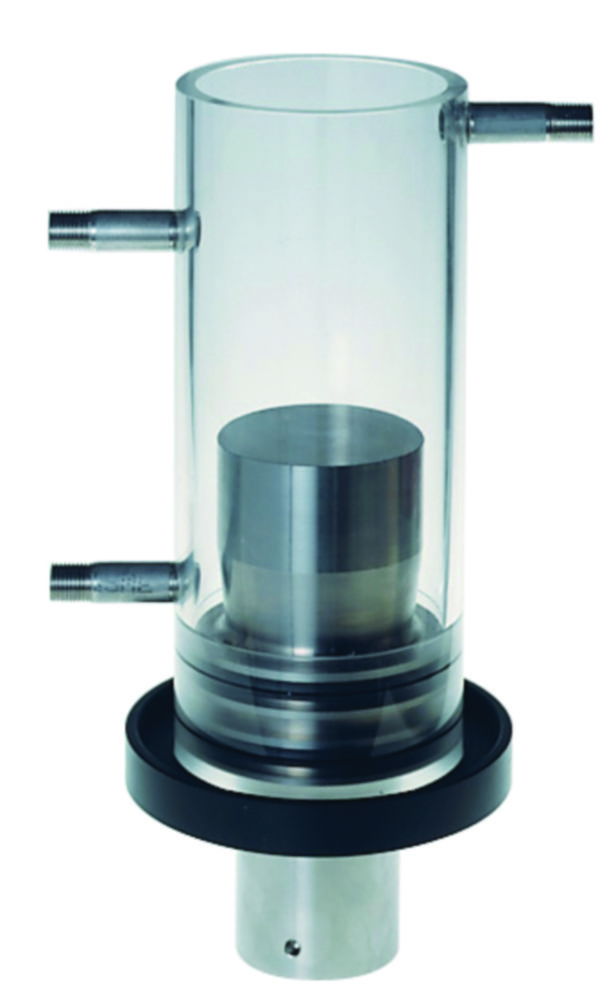

Ultrasonic processing vessels for SONOPULS Ultrasonic homogenisers
Ultrasonic processing vessels made of plastic and Titanium alloy (TiAl6V4). For indirect ultrasonic irradiation. Compatible with UW 200/2200/3200.

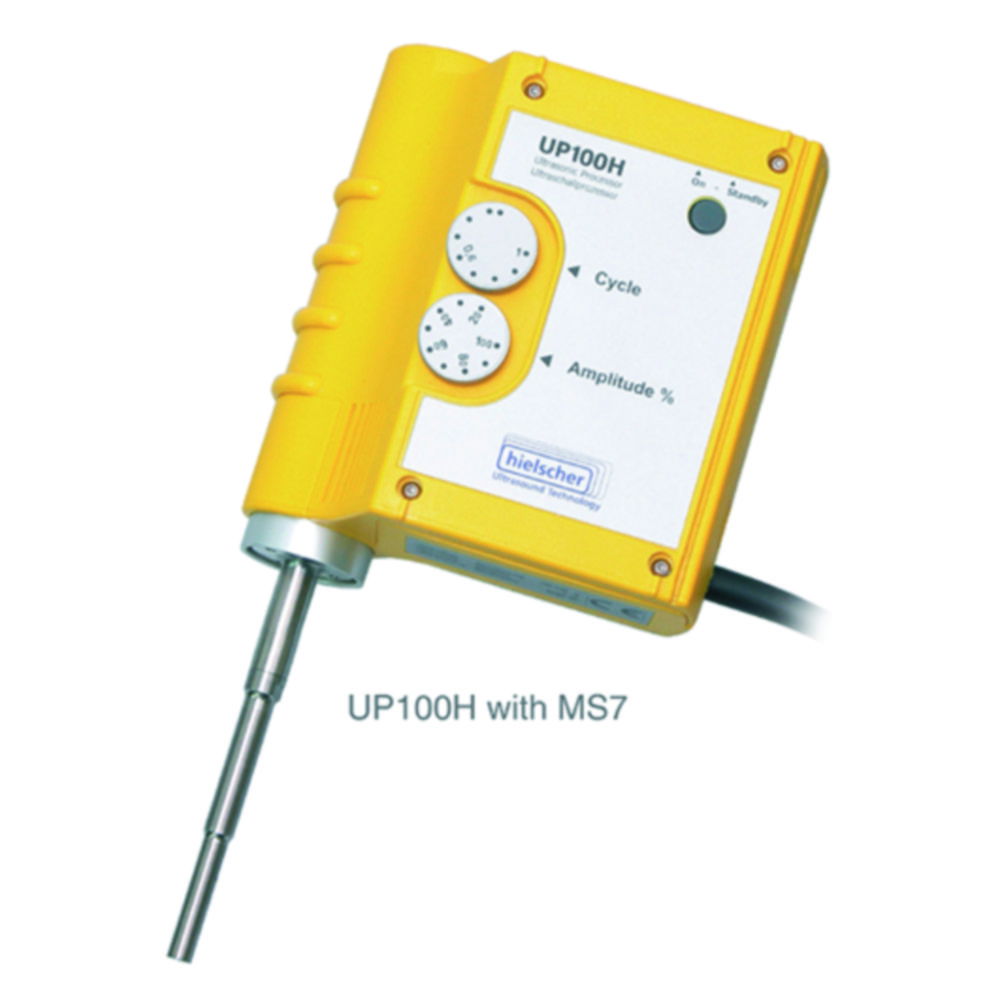

Ultrasonic Processor UP50H/UP100H
For manual operation or for stand use, frequency 30kHz, automatic frequency tuning system, amplitude adjustable 20% to 100%, pulse 0 to 100%, dry running protected, in portable case, with mounting for stand STH-16 and mounting tools, 230V a.c.
Ultrasonic transducer UP200St-T
The UP200St-T is suitable for sonication of 2 to 1000 ml sample volumes at 26 kHz and accomodate sonotrodes with a diameter from 2 to 40 mm.Push button for switching on/off2 LEDs for sample illuminationPlease order sonotrodes separately.

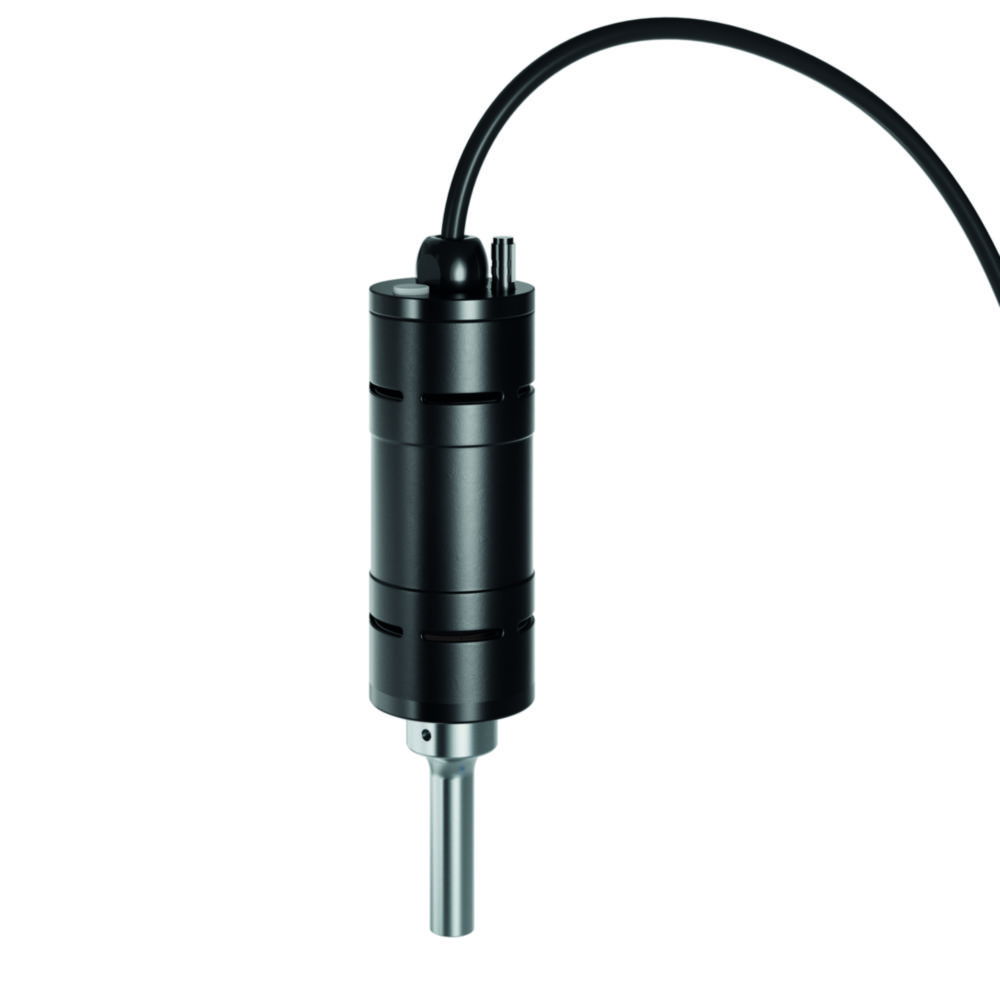

Ultrasonic transducer UW 5020
The ultrasonic transducer converts the electrical energy supplied by the ultrasound generator into mechanical vibrations.Button for switching the ultrasonic operation on/offConnection for optional temperature sensor to monitor the sample temperatureThe UW 5020 is particularly suitable for gentle sonication of the smallest sample volumes of 0.1 to 25 ml at 40 kHz and sonotrodes with a diameter of 1.5 to 2.5 mm.Please order optional temperature sensor and sonotrodes separately.

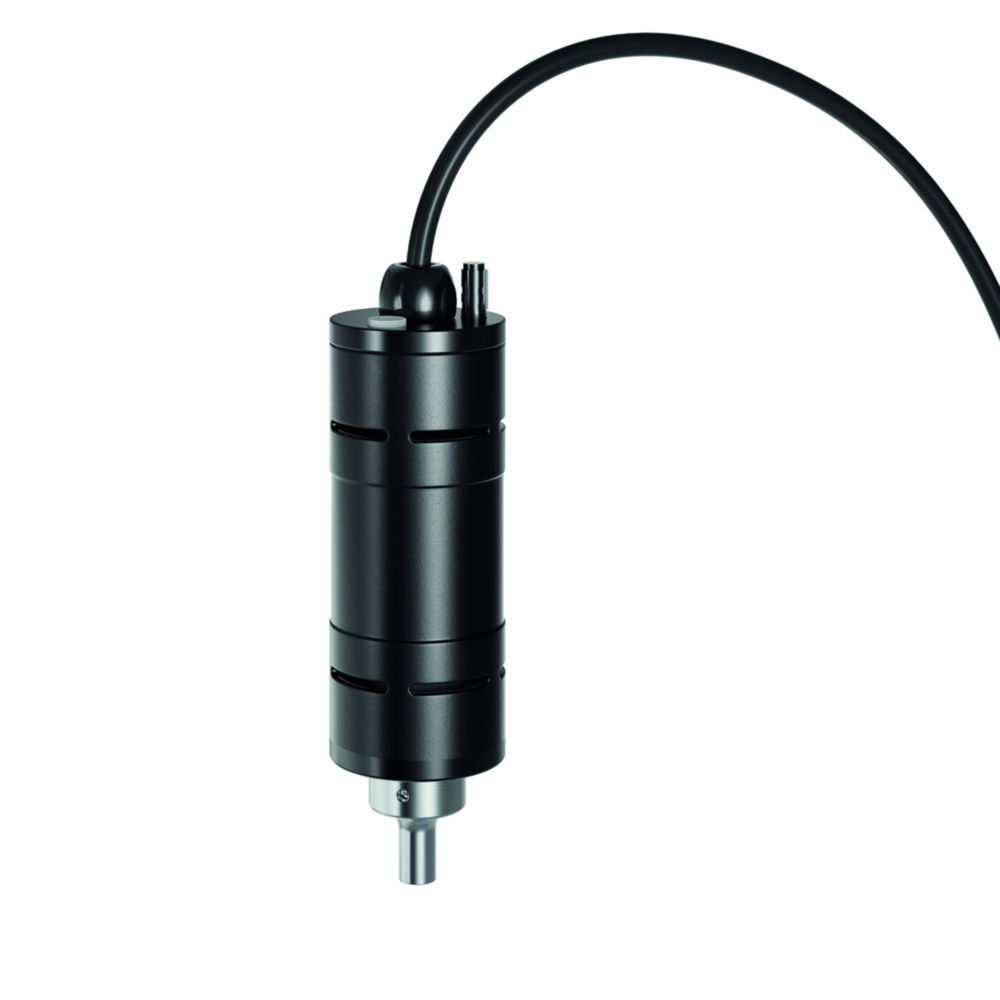

Ultrasonic transducer UW 5050
The ultrasonic transducer converts the electrical energy supplied by the ultrasound generator into mechanical vibrations.Button for switching the ultrasonic operation on/offConnection for optional temperature sensor to monitor the sample temperatureThe UW 5050 is particularly suitable for gentle sonication of smaller sample volumes of 0.5 to 100 ml at 20 kHz and sonotrodes with a diameter of 2 to 9 mm.Please order optional temperature sensor and sonotrodes separately.

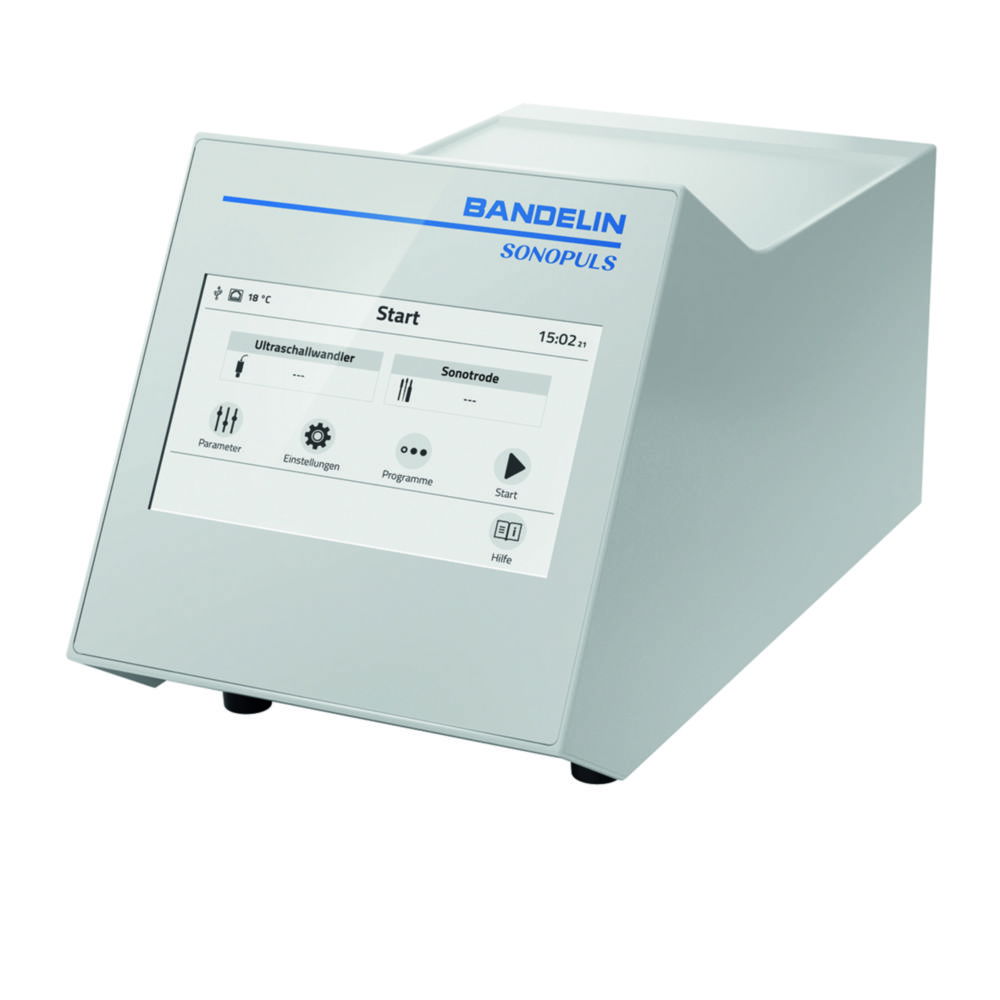

Ultrasound generator GM 5200
The ultrasound generator converts the low-frequency mains voltage into a high-frequency voltage. In combination with a compatible ultrasonic transducer and sonotrode, suitable for homogenisation, deagglomeration, emulsification, suspension, acceleration of chemical reactions or disruption of cells, bacteria, fungi or spores.Sturdy plastic housing7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceFor SONOPULS ultrasonic transducer of the UW 5100/ UW 5200Please order compatible ultrasonic transducer and sonotrodes separately.
Ultrasound generator UP200St-G
In combination with ultrasonic transducer and sonotrode, suitable for cell disruption, homogenisation, dispersion and emulsification of samples.Colour touch displayDigital setting and control functionsAutomatic frequency tuningAmplitude and pulse adjustableCountdown timer from 0.1 s to 99 daysOperation and control via LAN for display and remote control via browser without software installation on PCEthernet interfaceTemperature display in °C and °FData recording on internal SD card (1 GB)Dry run protectionPlease order ultrasonic transducer and sonotrodes separately.
