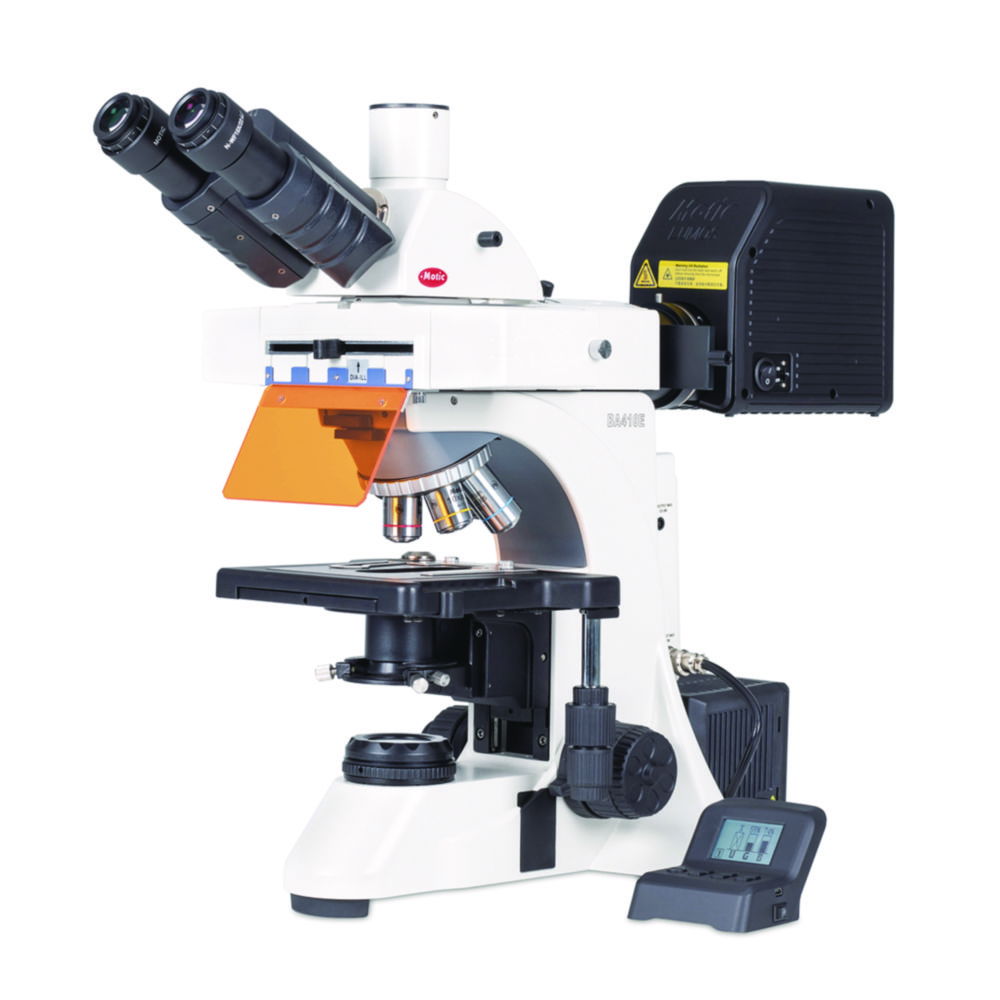

Laboratory and research microscopes BA410E LED-Fluorescence
Professional microscope for numerous applications in biomedical research.Observation tube Siedentopf type, 360° rotatingCCIS® EC-H Plan achromatic objectivesWide-field eyepieces for spectacle wearers incl. eyecupsDioptre compensation on both eyepiecesReversed nosepieceMechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)Achromatic swing-out condenser with iris diaphragmAdjustable illumination, quartz halogen according to Köhler with external lamphouseAuto-OFF and Light Memory FunctionScope of supply: Microscope, complete epi-fluorescence equipment, LUMOS FL LED high-performance light source, Halogen illumination 12V/50W, blue filter (Ø 45 mm), immersion oil (5 ml), arm rest, mains cable, Allen key, dust coverPlease order fluorescence filter sets separately.

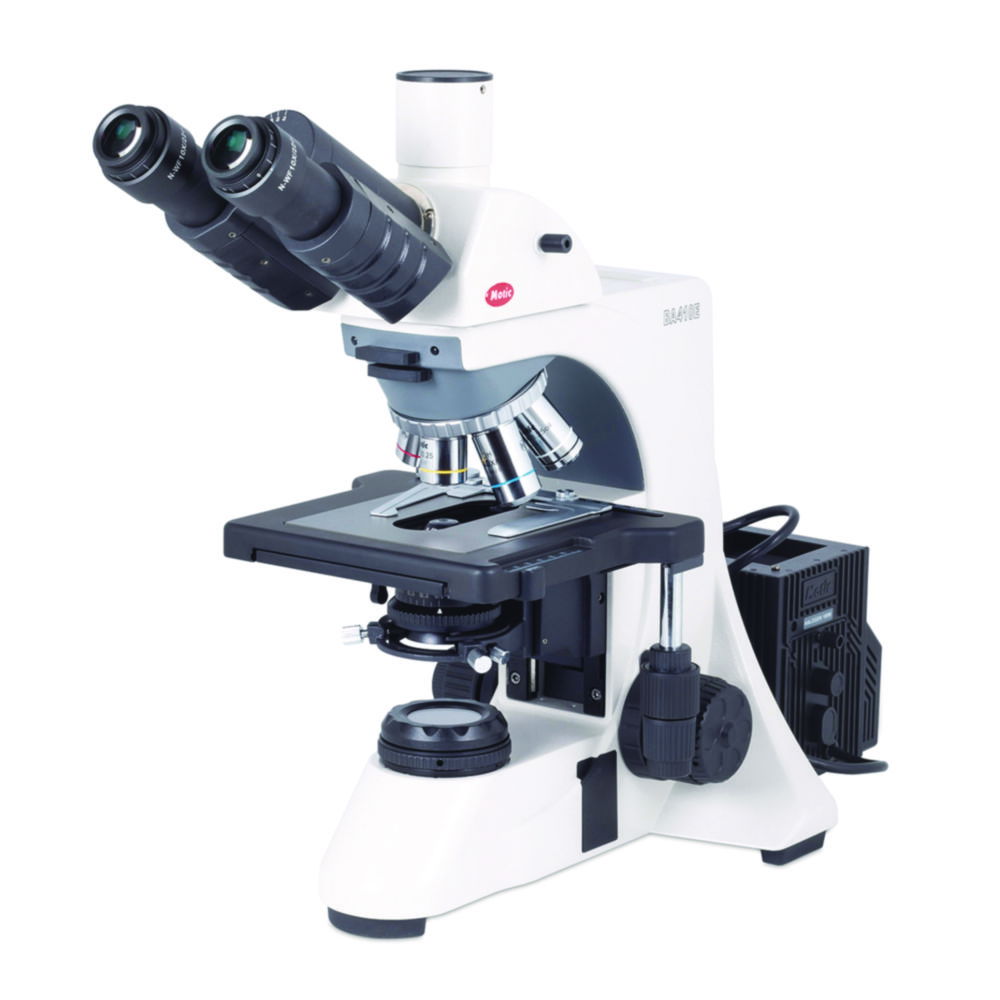

Laboratory and research microscopes BA410E Trinocular 100W
Professional microscope for numerous applications in biomedical research.Observation tube Siedentopf type, 360° rotatingCCIS® EC-H Plan achromatic objectivesWide-field eyepieces for spectacle wearers incl. eyecupsDioptre compensation on both eyepiecesReversed nosepieceMechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)Achromatic swing-out condenser with iris diaphragmAdjustable illumination, quartz halogen according to Köhler with external lamphouseAuto-OFF and Light Memory FunctionScope of supply: Microscope, Halogen illumination 12V/100W, Ø 45 mm blue filter, immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover, arm rest, spare fuse
Laboratory and research microscopes BA410E Trinocular 50W
Professional microscope for numerous applications in biomedical research.Observation tube Siedentopf type, 360° rotatingCCIS® EC-H Plan achromatic objectivesWide-field eyepieces for spectacle wearers incl. eyecupsDioptre compensation on both eyepiecesReversed nosepieceMechanical stage with integrated ceramic insert and coaxial, rackless drive (right-handed operation)Achromatic swing-out condenser with iris diaphragmAdjustable illumination, quartz halogen according to Köhler with external lamphouseAuto-OFF and Light Memory FunctionScope of supply: Microscope, Halogen illumination 12V/50W, Ø 45 mm blue filter, immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover, arm rest, spare fuse

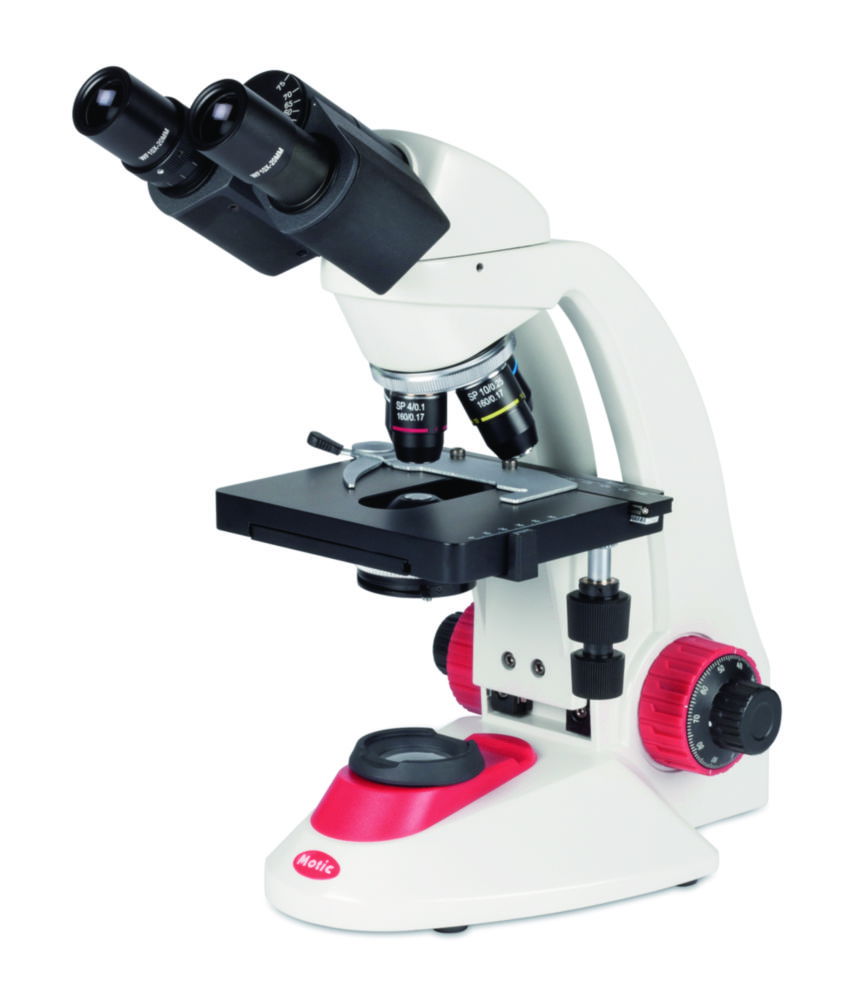

Laboratory Microscope RED 220
Designed for advanced biology students, teachers, doctors and lab technicians.Binocular head Siedentopf type, 30° inclined, 360° rotatingWidefield eyepieces WF10X/20 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40X S, 100X S OilCoaxial coarse and fine focusing system with tension adjustmentBuilt-in low position coaxial mechanical stageFocusable Abbe condenser N.A. 1.25 with iris diaphragmLED illumination 3 W with intensity controlPower supply 100-240 V (CE)Dust cover, immersion oil (5 ml) and cord hangerMonocular-/Trinocular equipment available

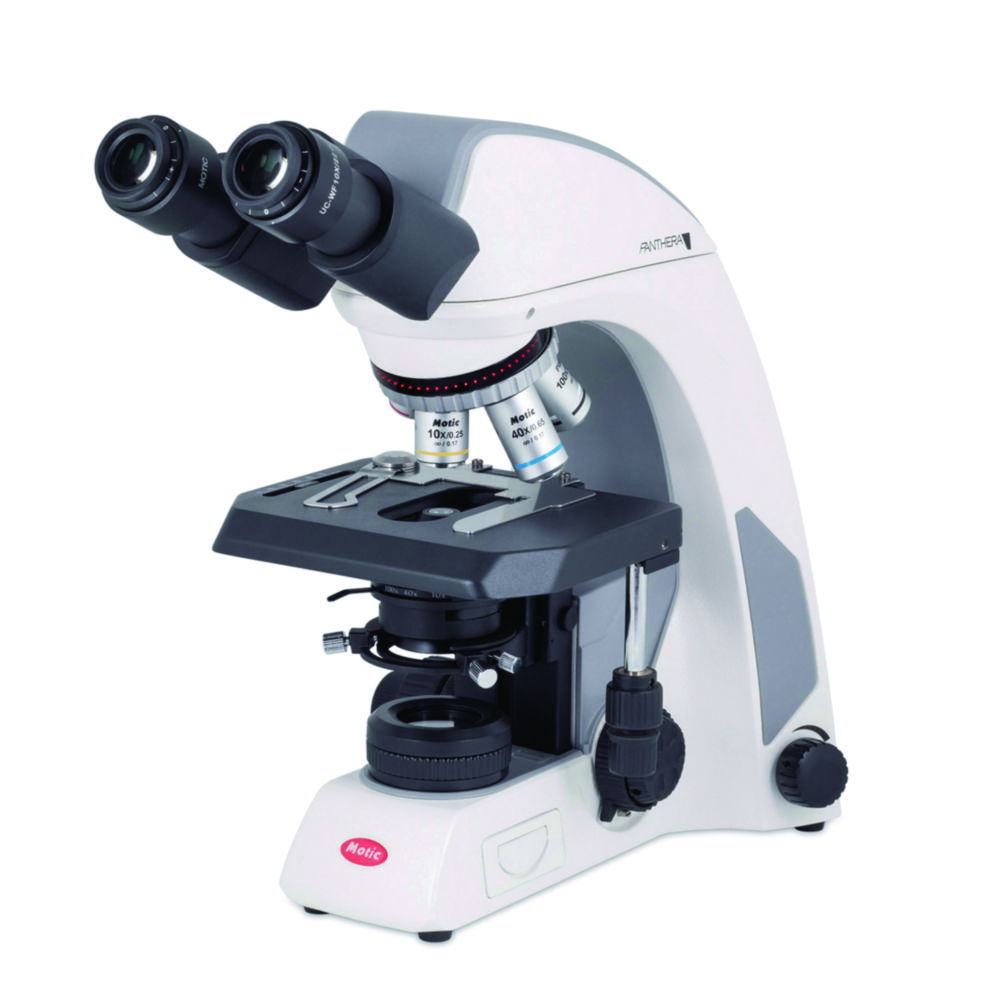

Light microscope Panthera DL
Upright light microscopes for education, research and diagnostics. Due to high quality optics and digital features especially suited for professional users.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan achromatic objectives UC PLReversed coded nosepieceFocusable Abbe condenser with iris diaphragm and slotIllumination acc. to Köhler, with interchangeable illuminatorWith Motic LightTracer: LED light intensity, light memory, sleep mode (auto on-off), mode indicatorCoaxial coarse and fine focusing system with tension adjustmentCompact, built-in mechanical stageIntegrated power supply with sleep modeAdditional equipment depending on the model with common contrast methods such as phase contrast, darkfield, single polarization or LED fluorescence (single-channel) possible.Digitale microscope with integrated Wi-Fi camera for wireless image transfer to tablet or smartphone via the MotiConnect app or integration into a network via Ethernet.Ethernet and Wi-FiLive image in FullHDSaved image with 4 MPScope of supply: Microscope, software Motic Images Plus 3.0 for Windows, OSX and Linux, MotiConnect App for iOS and Android, rubber eyecups, blue filter, LED and halogen modul, immersion oil (5 ml), allen key, dust cover, power cord

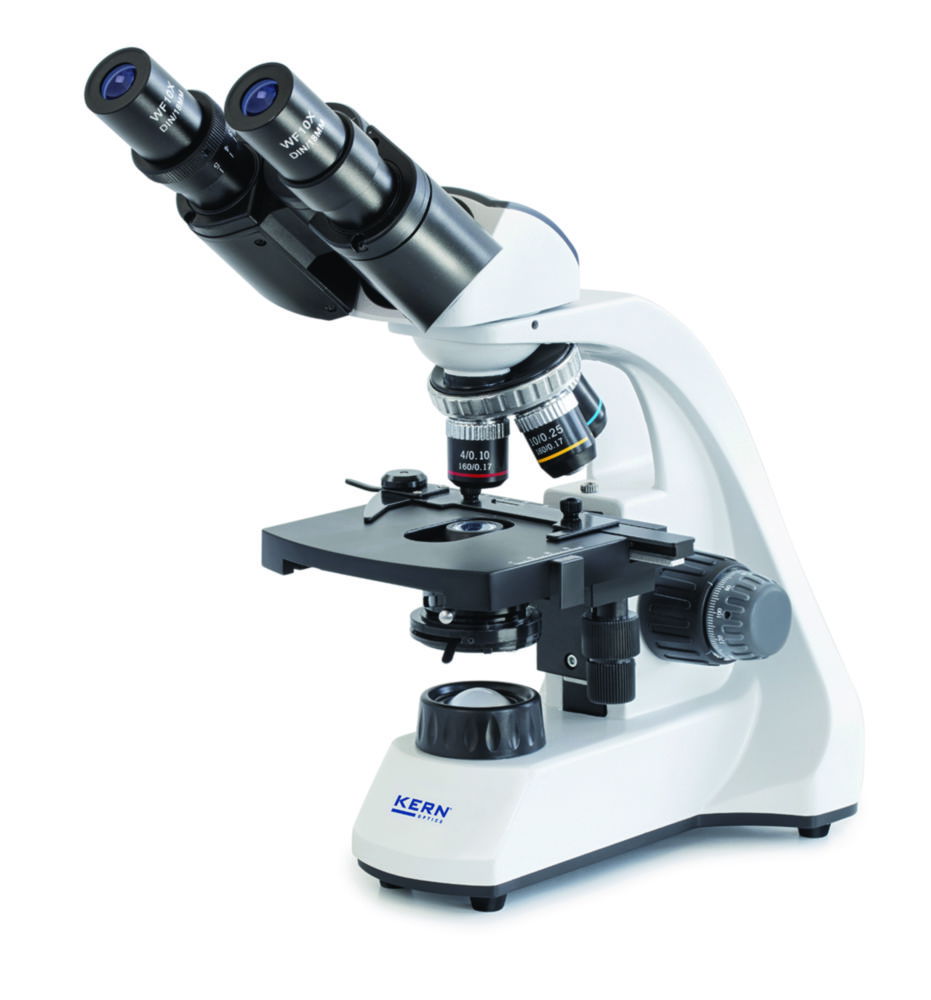

Light Microscopes Educational-Line Basic OBS
The school microscope for the first steps in microscopy and for use in biology lessons.Tube 360° rotatableDiopter adjustment on both sides for binocular models3 achromatic objective 4x, 10x, 40x included (60x and 100x optionally as accessoires)Coaxial pre-and fine focussingSimple condenser N.A. 0.65 or ABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 0,5 W LED illumination (rechargeable)Battery operation possible (OBS 101-106)Scope of supply:Light microscope, dust cover, manual instructions, mains adapter

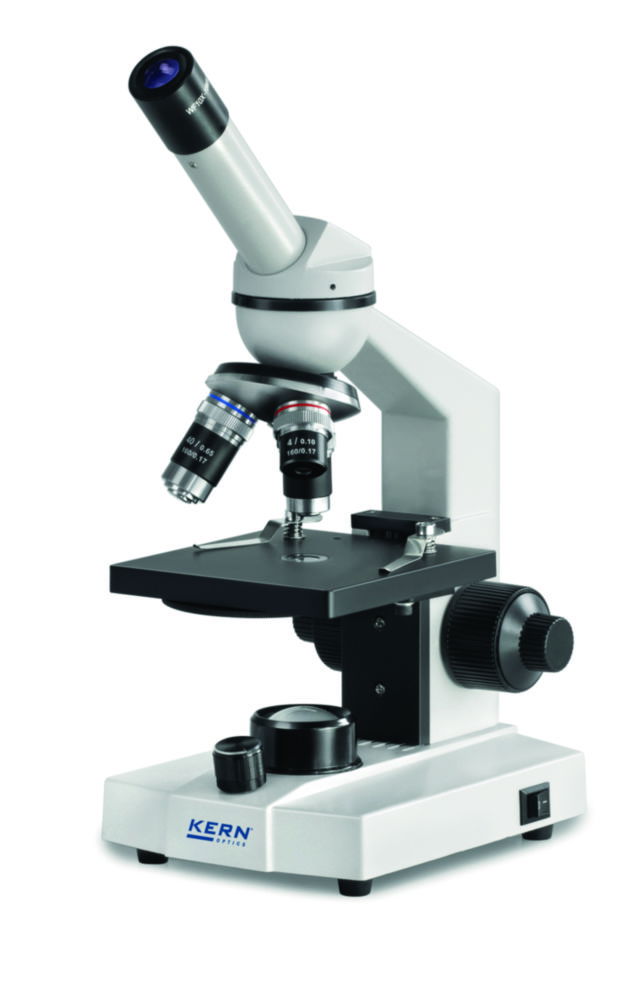

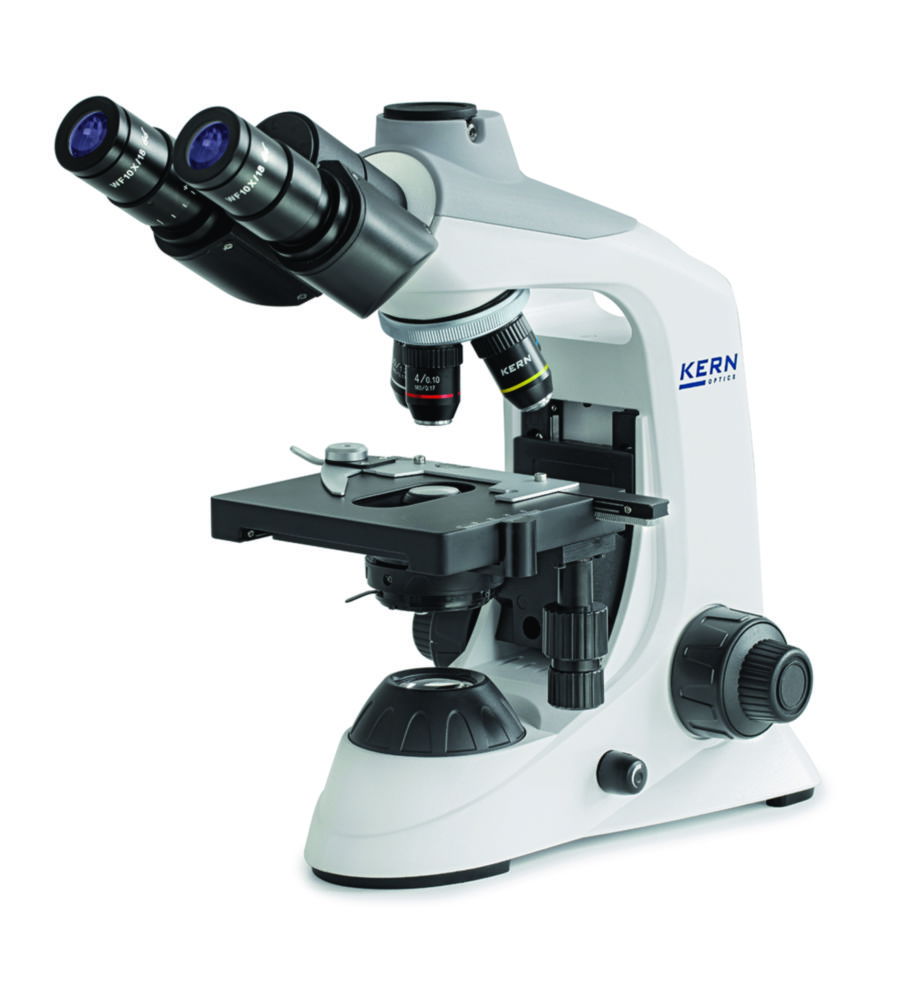

Light Microscopes Educational-Line OBE
The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 111), Binocular (OBE 112)Tube 30° inclined , 360° rotatableWidefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepiece (forward inclined)Achromatic objective 4x, 10x, 40x, 100x (oil immersion)Coaxial pre-and fine focussingAbbe 1,25 N.A. Condensor focussed with aperture diaphragmDimmable 3 W LED IlluminationDust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available
Light Microscopes Educational-Line OBE 12 / 13
The fully equipped all-round compound microscope for school, training and laboratories.Monocular (OBE 121, 131): Tube 30° inclinedBinocular (OBE 122, OBE 132): Tube Butterfly 30° inclined, 360° rotatableTrinocular (OBE 124, 134): Tube Butterfly 30° inclined, 360° rotatableachromatic objective 100x (oil immersion)Widefield Eyepiece: WF 10x/18 mmDiopter adjustment at bino- and trinocular Version available (at one eyepiece tube)Quadruple nosepieceCoaxial pre-and fine focussingAbbe 1,25 condensor focussed with aperture diaphragmDimmable 3 W LED illuminationStorage compartment on the rear sideUSB connection (only as power source)Dust Cover, eyepiece rubber caps and manual instruction includedDifferent colour filters as accessoires available

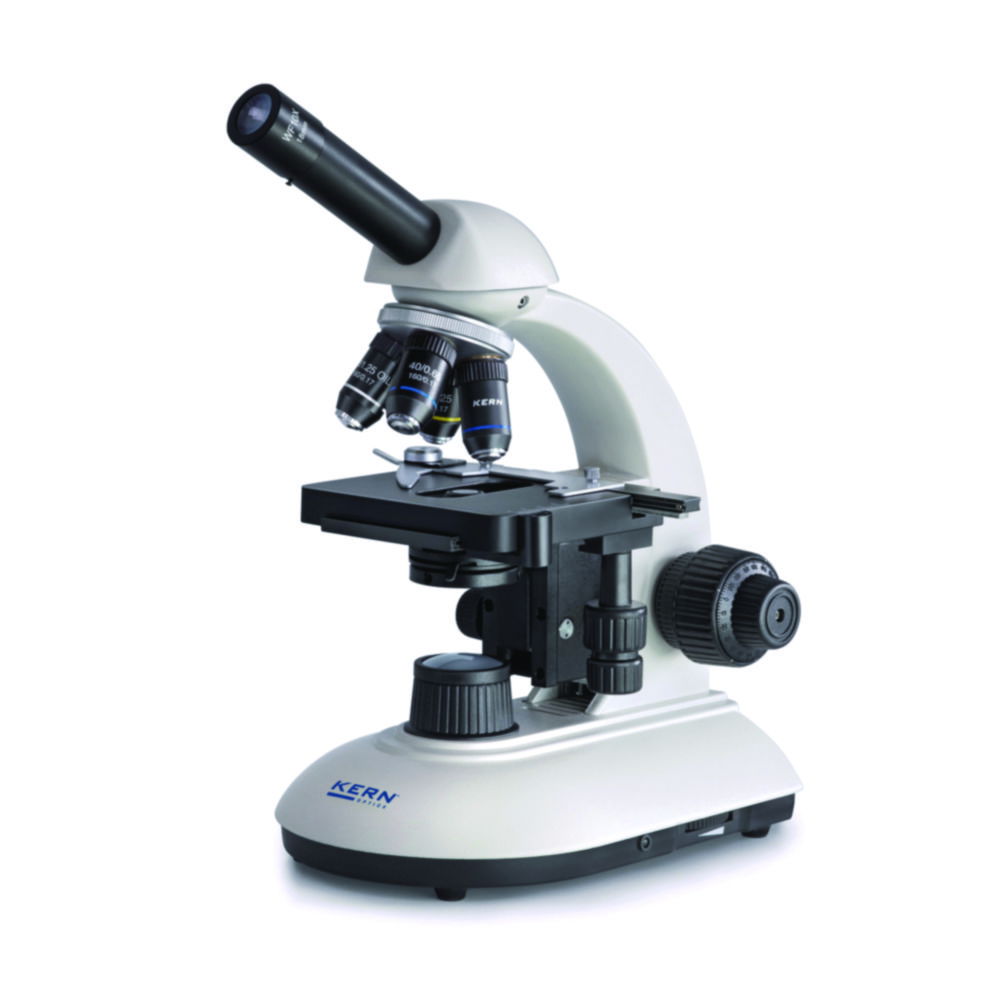

Light Microscopes Educational-Line OBT
The fully equipped all-round compound microscope for school, training and laboratories.Monocular and BinocularWidefield Eyepiece: WF 10x/18 mmDiopter adjustment one-sided (for binocular models)Coarse and fine focussing on both sidesOBT 101: simple 0.65 condenser lens with adjustable aperture diaphragm, triple nosepieceOBT 102 - 106: Abbe 1,25 condensor focussed with aperture diaphragm, quadruple nosepieceDimmable 1 W LED illuminationDust Cover and manual instruction includedOptionally available are various color filters, as well as eyepieces with pointer needle or 0.1 mm scale

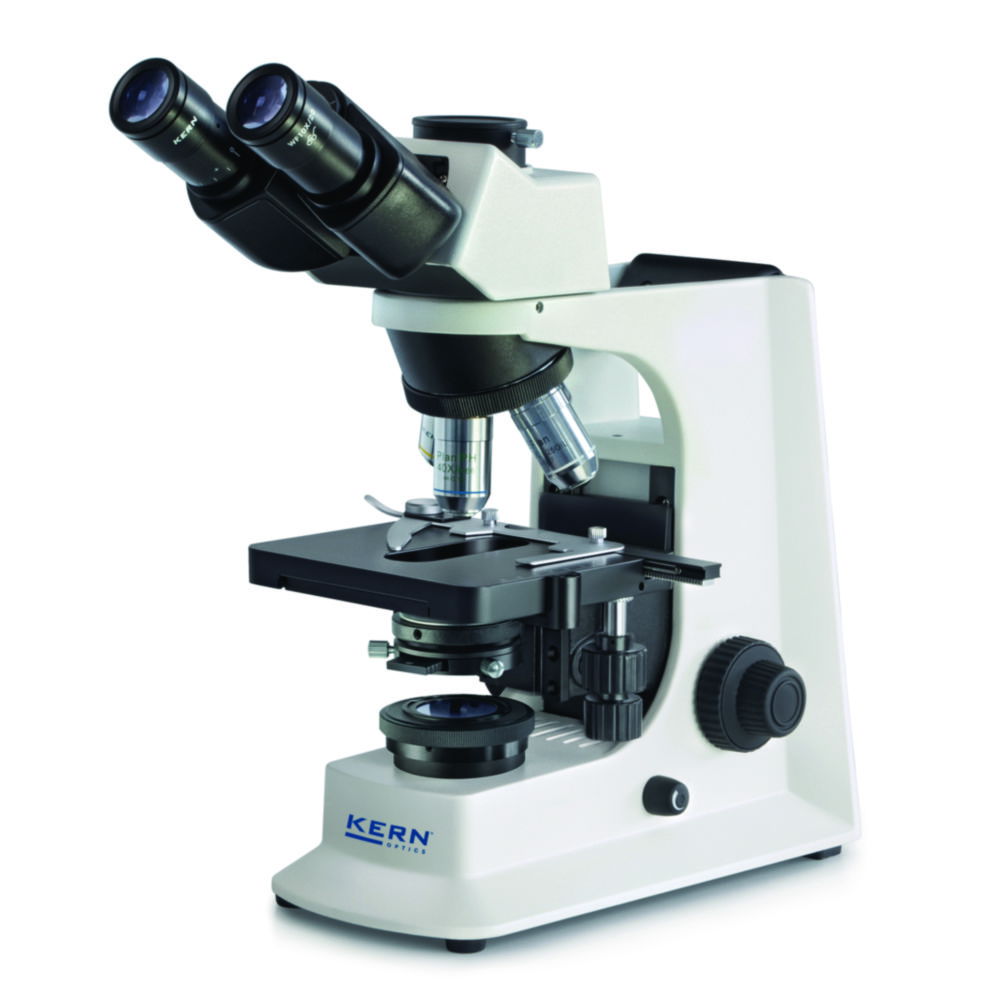

Light Microscopes Lab-Line OBL 12/13
The flexible laboratory assistant with infinity optical system and fixed, pre-centred Koehler illumination.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm20 W Halogen or 3 W LED illuminationScope of supply:Light microscope, dust cover, eye cups, manual instruction
Light Microscopes Lab-Line OBL sets, with C-mount camera
The sets are the complete digital solution for live investigations.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm3 W LED illuminationScope of supply:Light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction

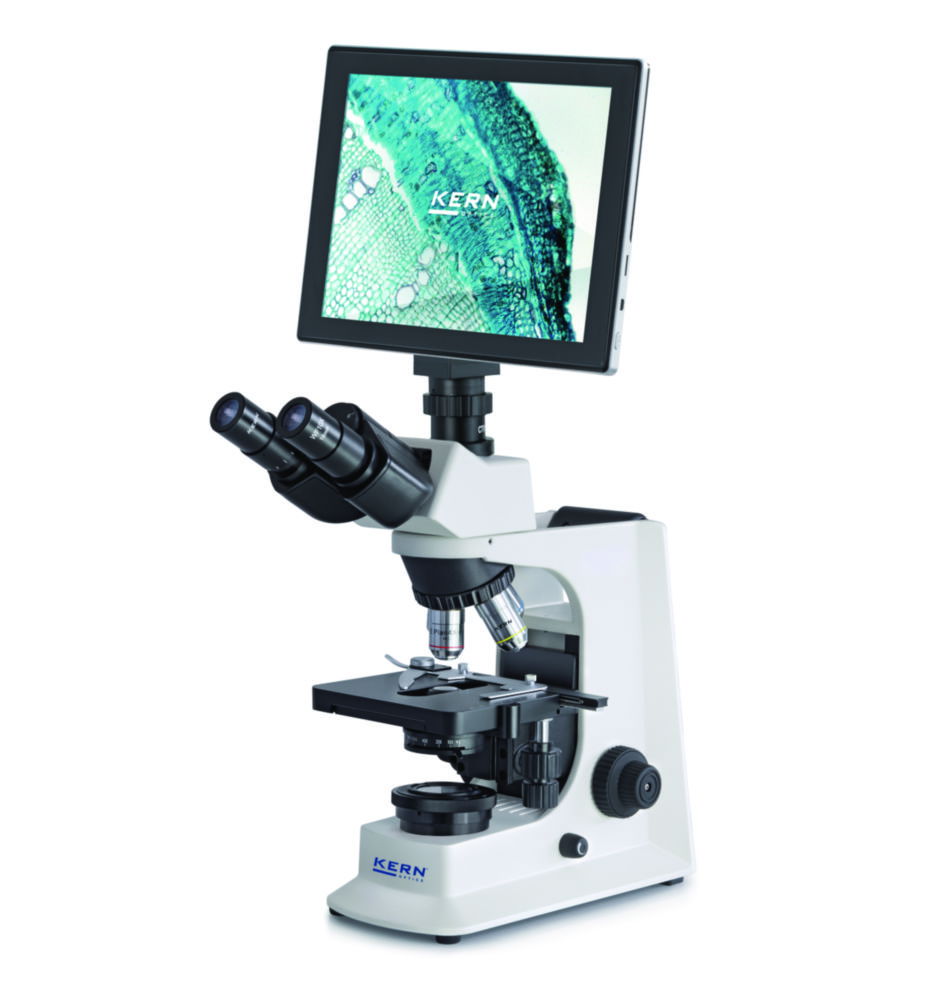

Light Microscopes Lab-Line OBL sets, with tablet camera
The sets are the complete digital solution for live investigations.Tube 30° inclined, 360° rotatableDiopter adjustment one-sidedCoaxial pre-and fine focussingABBE 1,25 N.A. condensor with aperture diaphragm, focusable and pre-centered koehler illuminationLightfield diaphragm3 W LED illuminationScope of supply:Light microscope, camera, dust cover, eye cups, manual instruction
Light microscopes Panthera C2
Upright light microscopes for education, research and diagnostics. Due to high quality optics and digital features especially suited for professional users.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan achromatic objectives UC PLReversed coded nosepieceFocusable Abbe condenser with iris diaphragm and slotIllumination acc. to Köhler, with interchangeable illuminatorWith Motic LightTracer: LED light intensity, light memory, sleep mode (auto on-off), mode indicatorCoaxial coarse and fine focusing system with tension adjustmentCompact, built-in mechanical stageIntegrated power supply with sleep modeAdditional equipment depending on the model with common contrast methods such as phase contrast, darkfield, single polarization or LED fluorescence (single-channel) possible.With USB 2.0 port for external camera power supply.Scope of supply: Microscope, rubber eyecups, blue filter, LED and halogen modul, immersion oil (5 ml), allen key, dust cover, power cord

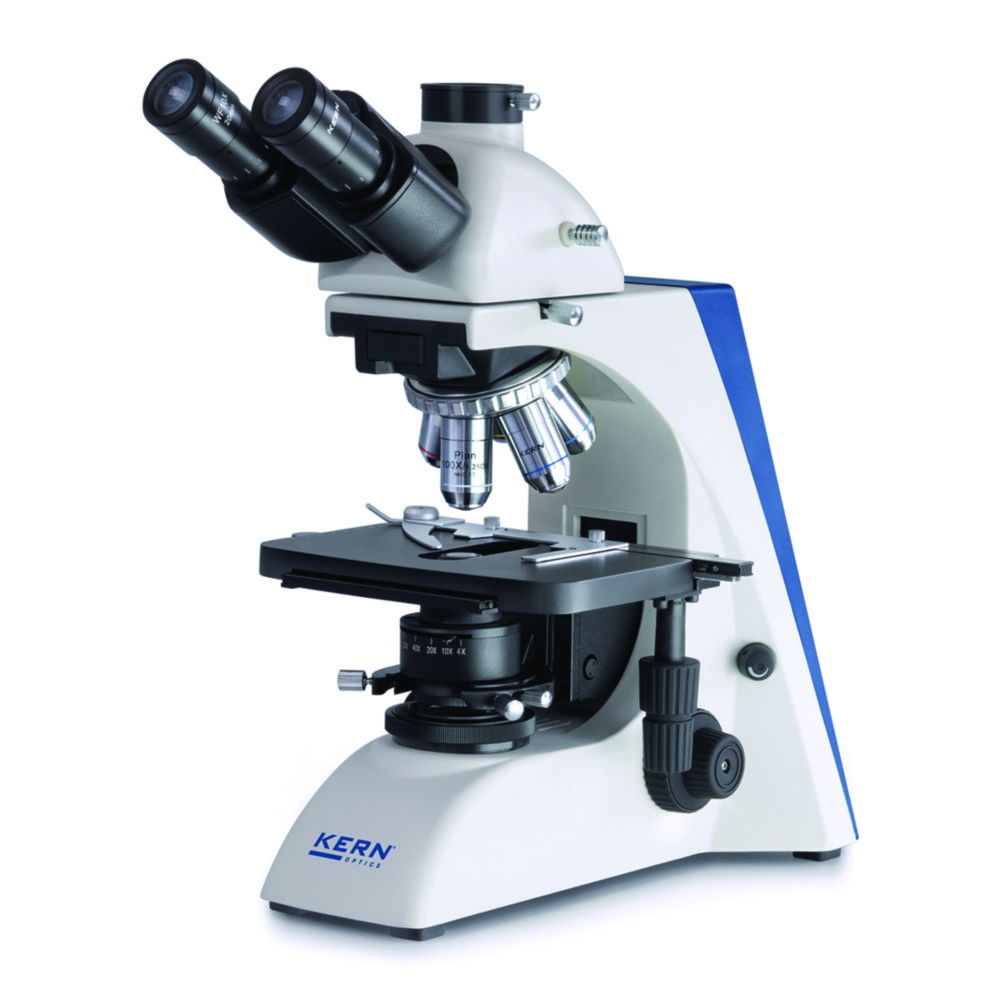

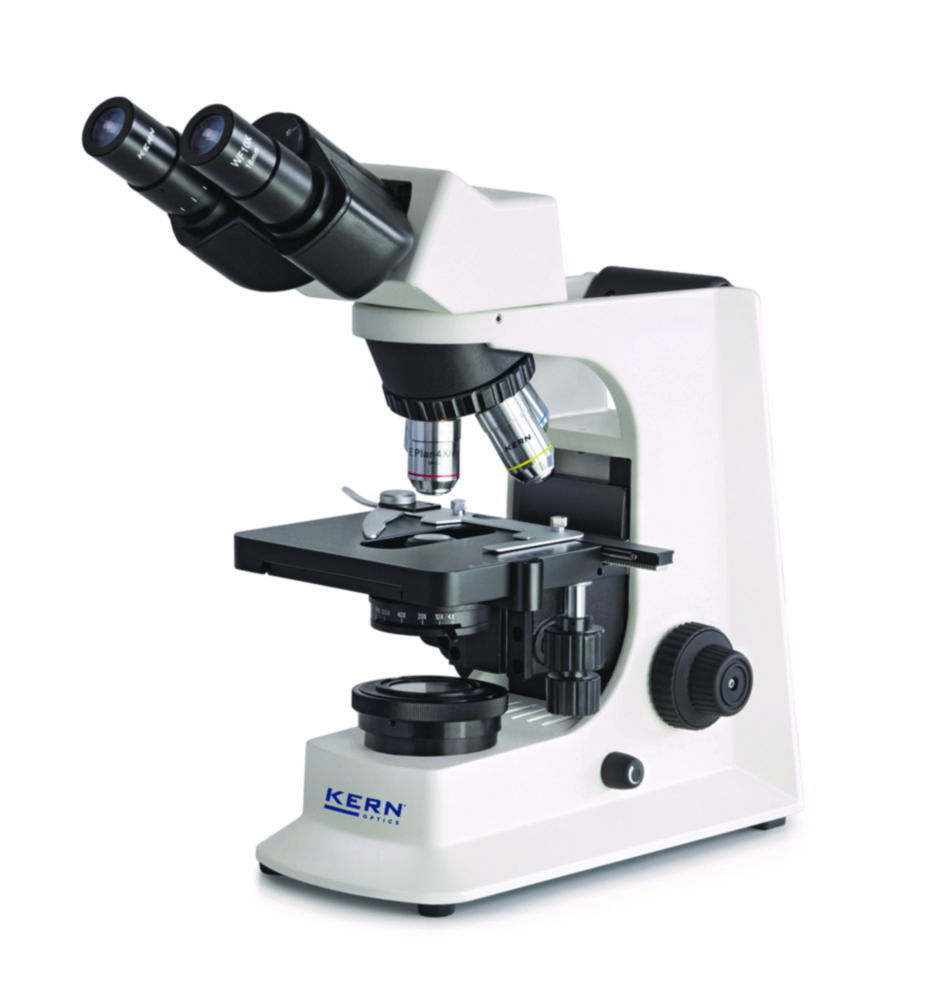

Light microscopes Professional Line OBN 13
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: Halogen illumination 20 W, including blue color filterOBN 135: LED illumination 3 WScope of supply: microscope, centring eyepiece, dust cover, eyepiece rubber caps, manual instruction

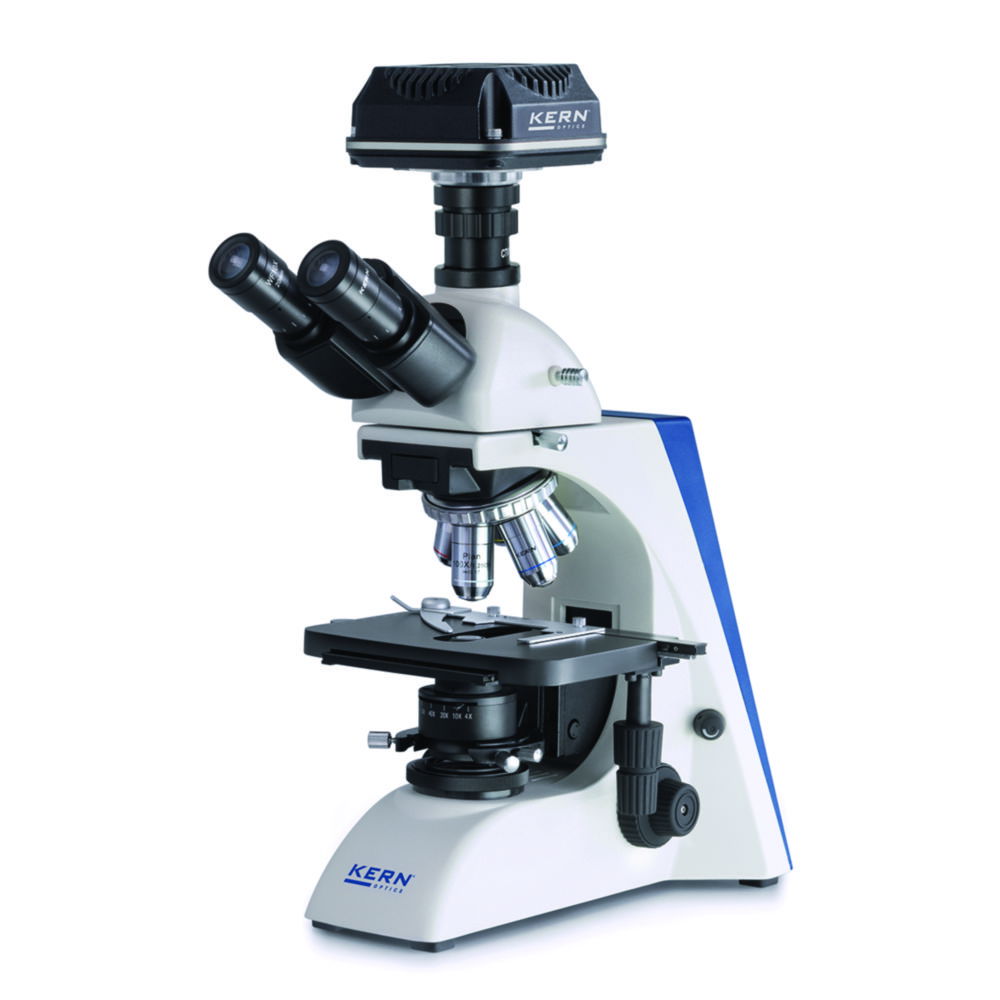

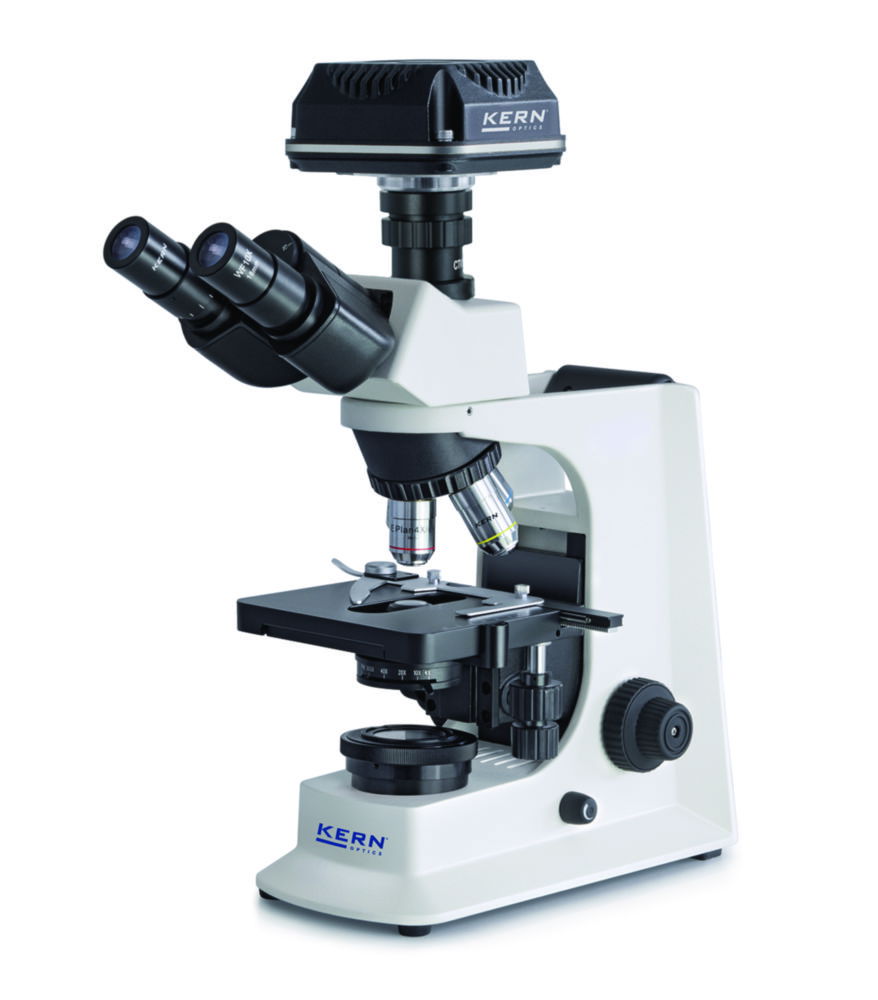

Light microscopes Professional Line OBN 13 sets, with C-mount camera
The sets are the complete digital solution for live investigations, including appropriate C-mount adapter. Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)

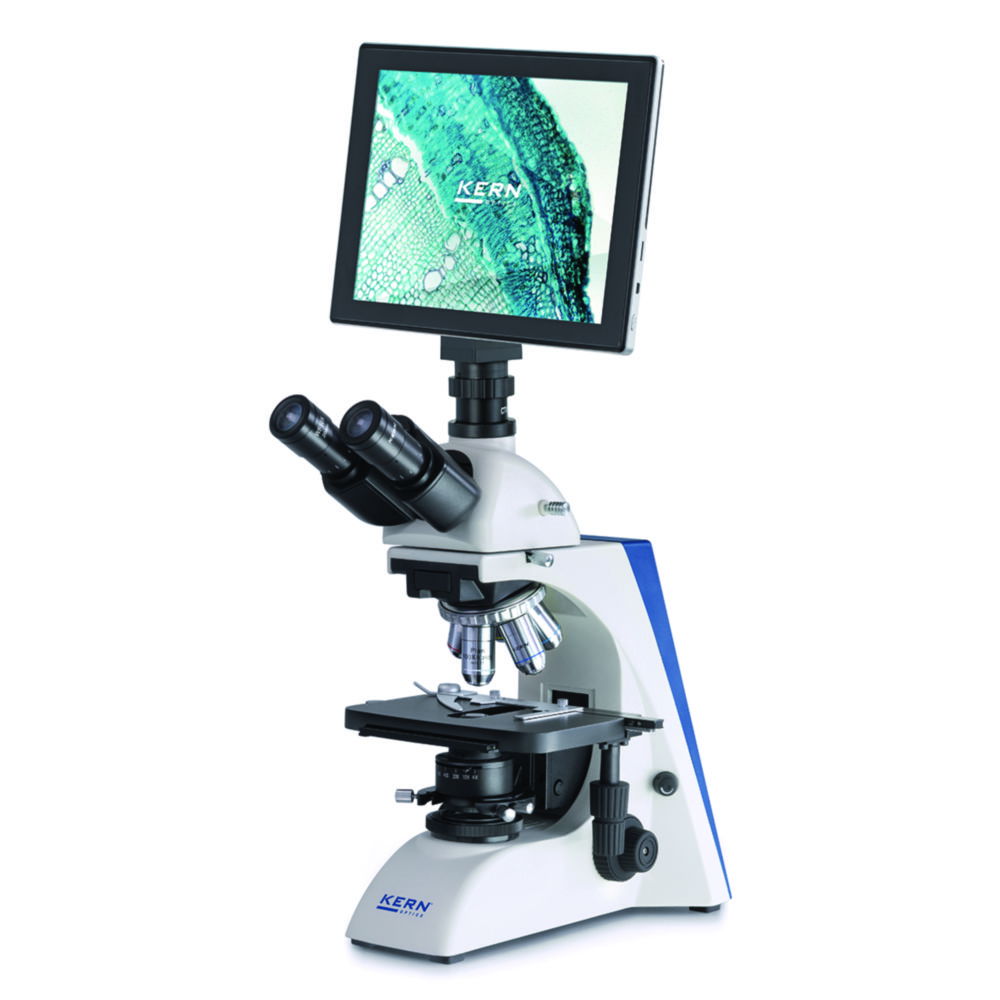

Light microscopes Professional Line OBN 13 sets, with tablet camera
The sets are the complete digital solution for live investigations. The adapted 5 MP tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen.Objectives 4x, 10x, 20x, 40x, 100xCentering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragmOBN 132: 20W halogen illumination (transmitted light), blue colour filterOBN 135: 3W-LED illumination (transmitted light)

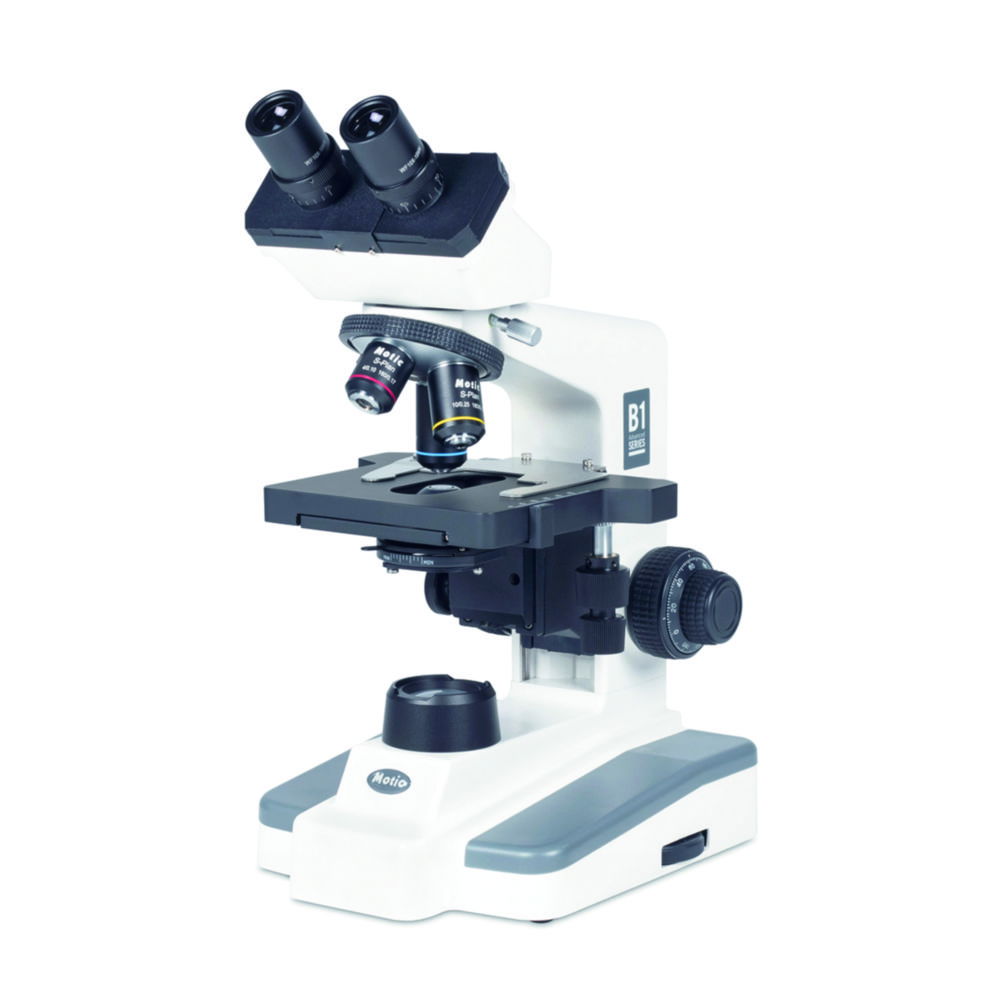

Microscopes B1 Elite
The B1 Elite series covers a wide range of the daily work for schools and laboratories.Monocular head 45°, binocular head 45°, trinocular head 30°, 360° rotatingWidefield eyepieces WF 10X/18mmQuadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X SDiopter adjustment on both eyepiece socketsCoaxial coarse and fine focusing system with tension adjustmentBuilt-in low position coaxial rackless mechanical stageFocusable 1.25 N.A. Abbe condenser with iris diaphragmLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover

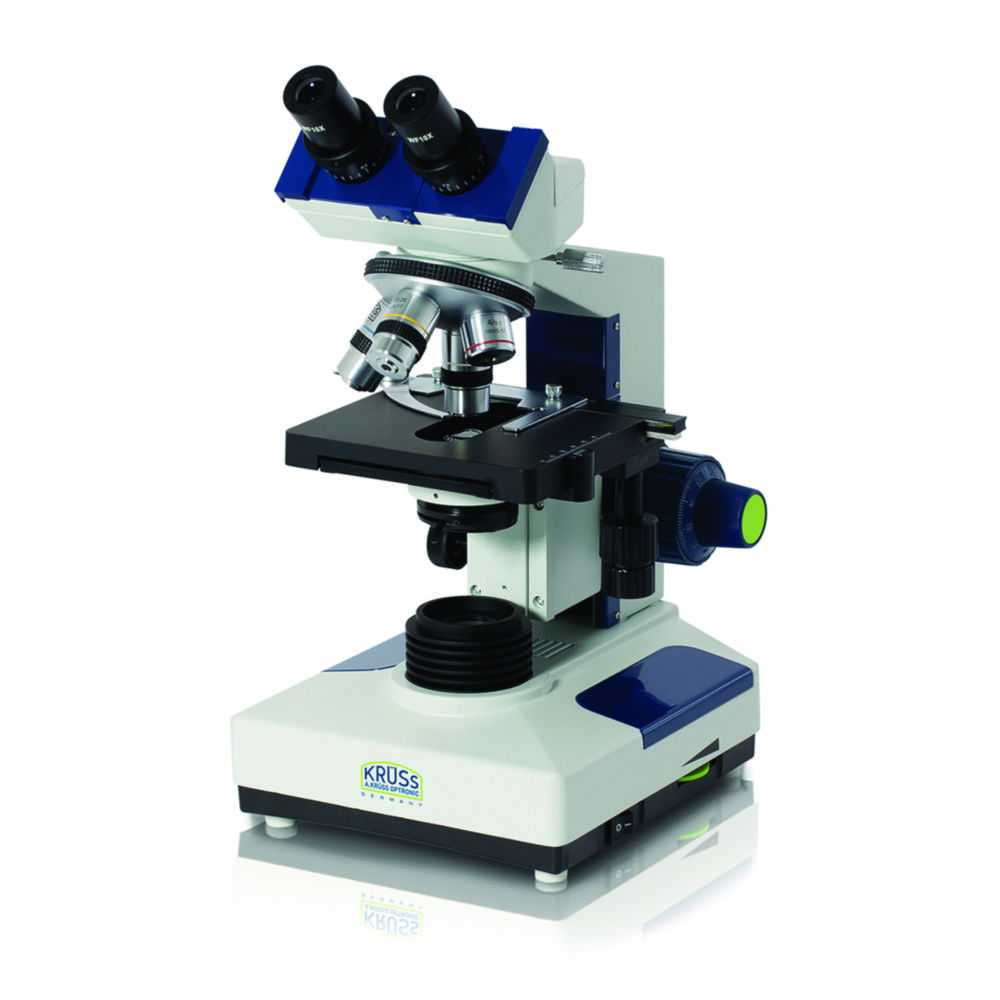

Microscopes, binocular, MBL series
MBL 2000.Universal microscope for general applicationsCan easily be adapted for many applications using the wide range of accessoriesBinocular head with inclined viewing tubeEyepieces: 10x flat eyepiecesAchromatic objectives: 4x, 10x, 40x, 100xMBL 2100-T.Trinocular microscopeAs MBL2000 but with phototube for photography and videoComplete kit available

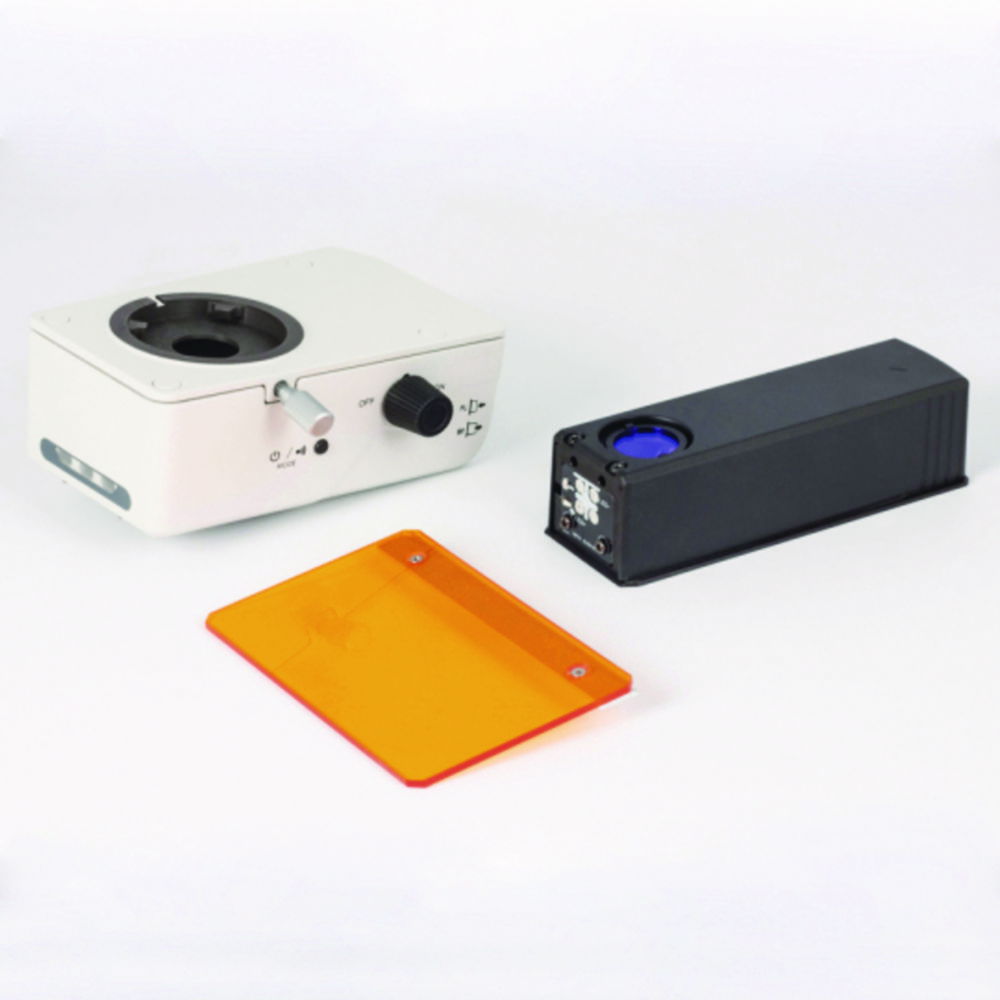

Modules EpiLED for Basic Biological Microscope BA210E
Three LED modules for safe handling of fluorescence applications in school and education environmentsThe new EpiLED S modules, to be combined with the basic upright microscope BA210Elite, for the first time allow an easy, trouble-free and economic access to fluorescence microscopy. From now on it is possible to implement the fluorescence method even in environments relevant to security, e.g. schools. Now is the time not only to demonstrate "fluorescence" by a teacher, but also to allow students to work on their own. Complete modules as well as separate inserts are available.The following complete modules respectively, inserts are available:Epi-LED S Auramin 0 combination: 455nm LED; filter EX: 480SP, D 505LP, B 520LPEpi-LED S FITC combination: 470nm LED; EX: 480SP, D 505LP, B 520LPEpi-LED S TRITC combination: 530nm LED; EX: 532-33, D 575LP, B 590LPThe scope of delivery contains:A condenser slider to minimize reflections from the condenser front lens of BA210ESpecial rubber eyecups to reject stray light from the sideA power supply with exchangeable plugs (UL,VDE,UK), Allen key, dust cover
Phase contrast microscopes OBL 14/15
For extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.Infinity optical systemTube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingAbbe N.A. 1,25 precentered, for bright field and phase contrastLightfield diaphragm20 W halogen or 3 W LED illuminationScope of supply: Microscope, protective dust cover, eye cups, user instructions

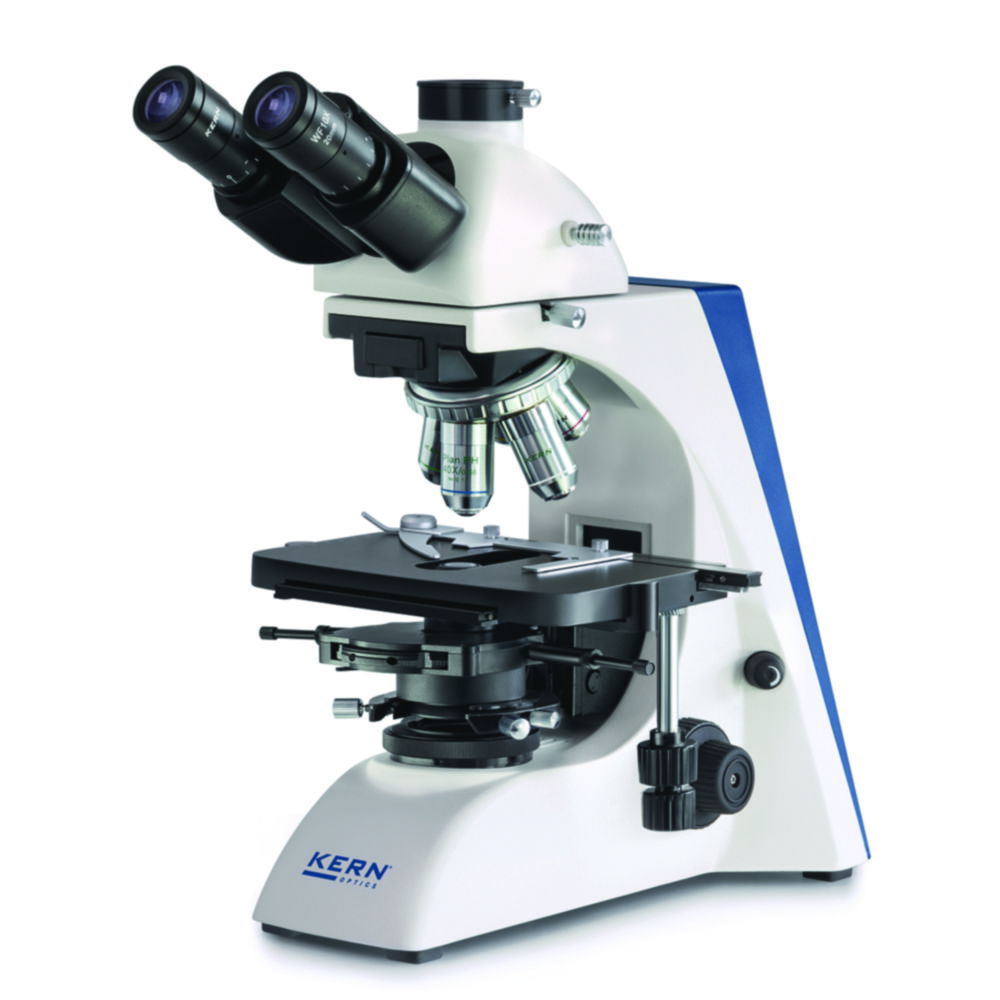

Phase contrast microscopes professional line OBN 15
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).Tube 30° inclined, 360° rotatableDiopter adjustment: both-sidedObjective quality: Infinity PlanCoaxial pre-and fine focussingCentre and height adjustable PH universal rotary condenser, aperture diaphragm and field diaphragmCoaxial coarse and fine focusingOBN 158: Halogen lighting 20 WOBN 159: LED lighting 3 WScope of supply: Phase contrast microscope, centring eyepiece, protective dust cover, eye cups, user manual
Transmitted light microscope-digital set OBE, with C-mount camera
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Transmitted light microscope-digital sets OBE, with tablet camera
The set is the comprehensive digital solution for school, training and laboratory.Tube 30° inclined, 360° rotatableDiopter adjustment at one eyepiece tubeCoaxial pre-and fine focussingABBE 1,25 N.A. condensor focussed with aperture diaphragmDimmable 3 W LED illuminationScope of supply:Transmitted light microscope, camera, dust cover, eye cups, manual instruction
