Pendulum beaker, stainless steel
Nothing can be spilt because beaker automatically swings into a vertical position. Dimension of the beaker: 100 mm diameter, 130 mm height, 1 liter volume. With universal connecting part. For use with INGENIOUS telescopic poles.
Plankton net
Mesh width 65 µm, robust version with sturdy aluminium ring of 200 mm diameter. The ring is covered with nylon fabric to protect the silk gauze from ripping up. With 100 ml collecting vessel (100 ml Kautex flask). Net could be opened at the botton for filling the bottles. With universal connecting part. For use with INGENIOUS telescopic poles.
Sample bottles, PP
Sturdy bottles with wide-necked opening. For viscous media, powder, granules and pastes.
Sampler AquaSampler, PTFE/FEP
Sample collector for groundwater samples from wells, shafts and other sources.Suitable for all common well shafts with inspection openings from Ø 2’, without jamming or snagging.Ultra-pure material guarantees maximum sample purityEasy cleaning thanks to rounded edges and threads
Sampler Liquid CupSampler, stainless steel V4A
For point sampling of liquids of varying viscosity. Media containing particles can also be sampled. Container diameter: 55 mm.Easy cleaning thanks to unscrewable cupFood-safeAutoclavable
Sampler LiquiSampler, PP
DIN EN ISO 15528. For liquids. For contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.
Sampler LiquiSampler, PTFE/FEP
DIN EN ISO 15528. For liquids. Made of ultra pure and chemically inert PTFE/FEP for contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.
Sampler Mini-Sampler, PTFE
For ultrapure sampling. Also suitable for viscous oils.Complete with one PFA Sample Jar 180 ml, 5 m PTFE suction tubing (6 x 8 mm), one tubing cutter, one tubing weight (V2A/nickel-plated brass) and 20 seal-it safety seal labels in case.
Sampler ProfiSampler, aluminium
Vacuum-operated sample collector for sampling solvents and flammable liquids (Explosion Categories IIA, IIB and IIC) out of drums, tanks, road tankers, railway wagons, ships, lakes, ground water.Filling level control, automatic return flow and overfill protection by built-in venting valveSuction volume: 200 ml, suction pressure 0.5 bar and suction depth down to 4m of waterWith bottle thread GL 45 (suitable for Schott glass bottles 100 to 1000ml)Can be supplied with optimized, straight suction tube for simpler samplingTransport case for tidy transport and disposalAlways check the chemical resistance of parts coming into contact with the sampleWhen taking samples of flammable liquids, the device must be earthedWear protective clothing!Scope of supply: aluminium vacuum pump, with feet (aluminium), venting valve and GL45 bottle thread, 1 x 500 ml glass bottle, 5 x 220 mm long, conductive, black PA suction tubes, 1 tubing cutter, 1 brass hose weight, 20 seal-it bottle seals, earthing cable
Sampler UniSampler "Ex", for sampling class A1 flammable liquids
Specially developed for sampling class A1 flammable liquids (e.g. benzene, petrol). Glass bottles and tubing electrically connected and grounded via an earthing cable. The UniSampler "EX" was developed in cooperation with "Gütegemeinschaft Tankschutz e.V."PTB approval D-333-009 618/00.Operation:1. Earth the Uni-Sampler. 2. Lower the suction hose to the desired depth. 3. Attach the adapter to the sample bottle. 4. Generate vacuum with the hand pump and collect sample. 5. Remove the filled sample bottle, seal and label.Scope of delivery: UniSampler with 4 m sample tubing, glass sample bottle, manual vacuum pump, bottle adapter, brass hose weight and earthing cable in carry case
Sampler ViscoSampler, PP
Ultra-pure sampler with powerful suction for viscousmedia. Specially developed for viscous substances, such as slurries, silt, wet clay and soil samples, sediments, oils, emulsions and creams. The suction flask sucks up and discharges the material. All surfaces are non-porous and crevice-free, preventing dirt accumulation. Only round-profile threads, suitable for food hygiene applications, are used. Allow easy dismantling and cleaning.
Sampler ViscoSampler, PTFE/FEP
Ultra-pure sampler with powerful suction for viscousmedia. Specially developed for viscous substances, such as slurries, silt, wet clay and soil samples, sediments, oils, emulsions and creams. The suction flask sucks up and discharges the material. All surfaces are non-porous and crevice-free, preventing dirt accumulation. Only round-profile threads, suitable for food hygiene applications, are used. Allow easy dismantling and cleaning.
Sampling Dippers DispoDipper LaboPlast® / SteriPlast®, PP, blue transparent
Scaled sampling tube manufactured in a clean room specially designed for disposable use. Due to the blue colour, it is also perfect for use in the food, animal feed and pharmaceutical industries. After sampling, the container can be closed and is leakproof. DispoDipper is completely manufactured in one piece and can be used for sampling and subsequent transport of the sample in one device. In this way, cross-contamination or sample impurities are almost impossible. For sampling, first remove the cover at the predetermined breaking point. Then take the sample with the sample container and close it securely. After sampling, the handle at the predetermined breaking point can be detached from the sample container. This allows for easy and space-saving transport of the sample.Individually packaged and optionally sterilised by gamma rays (SteriPlast®)Production and packaging according to clean room class 7Complies with EU food requirements and FDA regulations
Sampling Dippers DispoLadle, HDPE
The DispoLadle is a sampling scoop specially designed for disposable use. The scaled scoop with embossing can be used for measuring. It shows contents in increments of 10 ml, up to 200 ml. An ergonomic handle and a spout on both sides for right or lefthand operation make handling simple and easy.Cleanroom manufacturedIndividually packagedOptionally sterilised by gamma rays
Sampling dippers, PTFE
Beaker with reinforced rim and spout. PTFE handle with steel core. Optional extension rod for increased handle length (Extension rod, length 600 mm).
Sampling Dippers, Sterilin™ Dippas™, PS, with screw cap, sterile
Facilitate sample collection to reduce risk of cross-contamination.Individually wrappedHandle neatly snaps off after sample collectionSterilized by gamma radiation

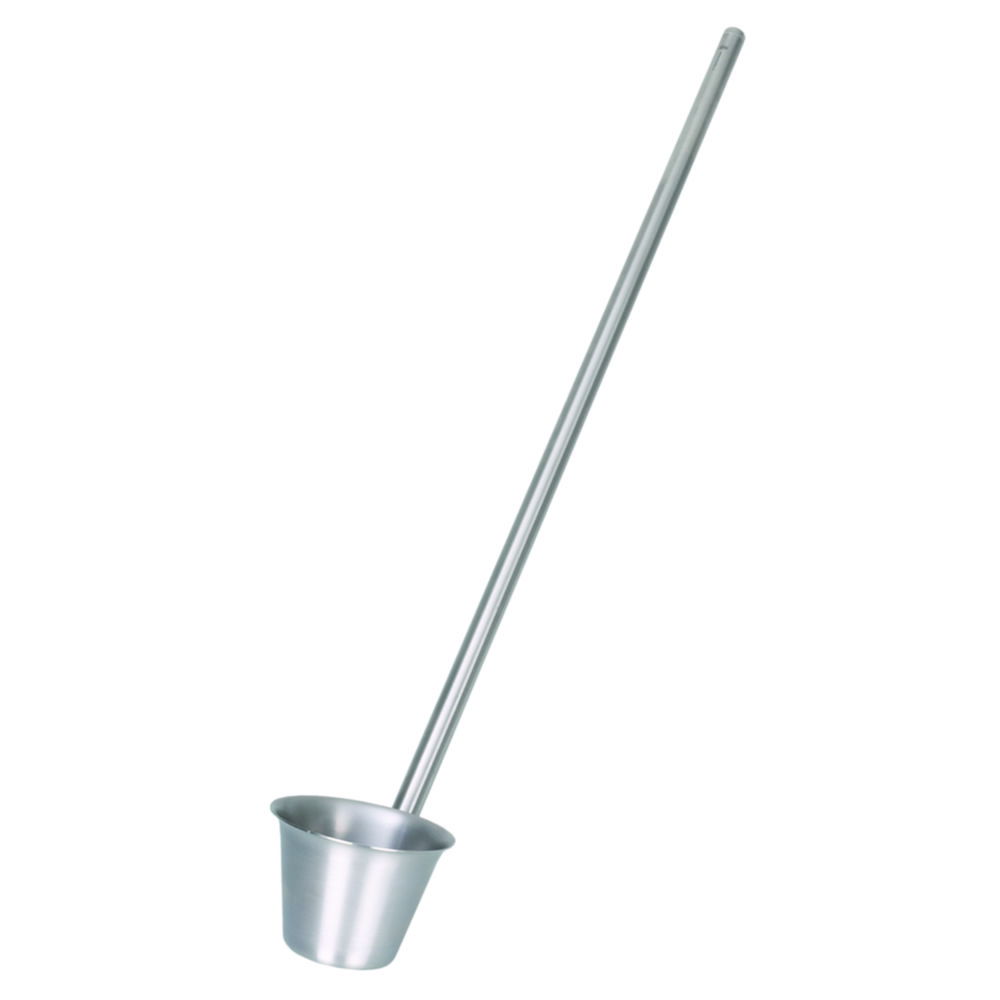

Scoop, stainless steel V2A, sterilisable
Without openings, undercuts or crevices in which residues could collect. Pore-free finishing produced by high-quality laser welding seams. The dip sampler is sterilisable by flame sterilisation or steam sterilisation and can therefore be made completely germ-free. Complete with rod.

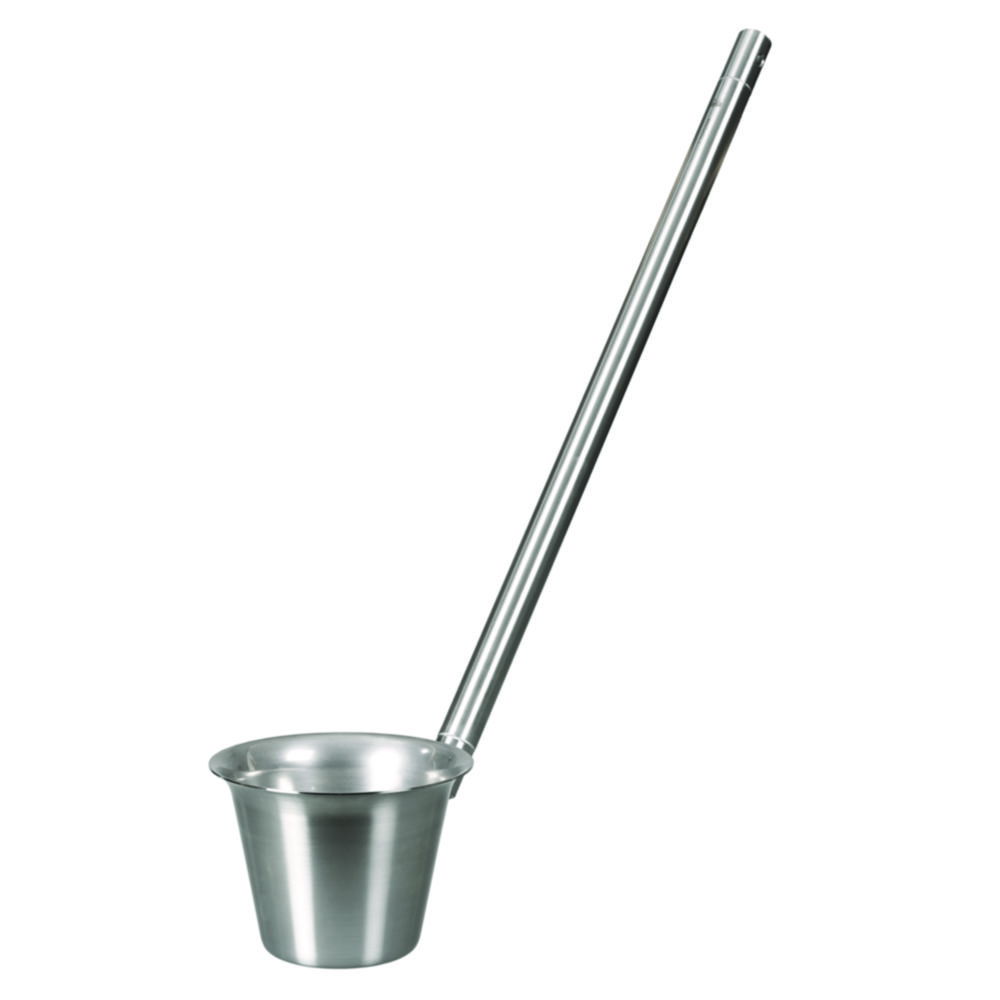

Scoops, stainless steel, extended
The scoop cup, with extended, completely closed handle, has no openings or undercuts up to an immersion depth of approx. 500 mm. The closed design makes the scoop cup suitable for sampling water from wells, sludges or waste water.Stainless steel V2A (1.4301)Steam sterilisableCompletely flammable

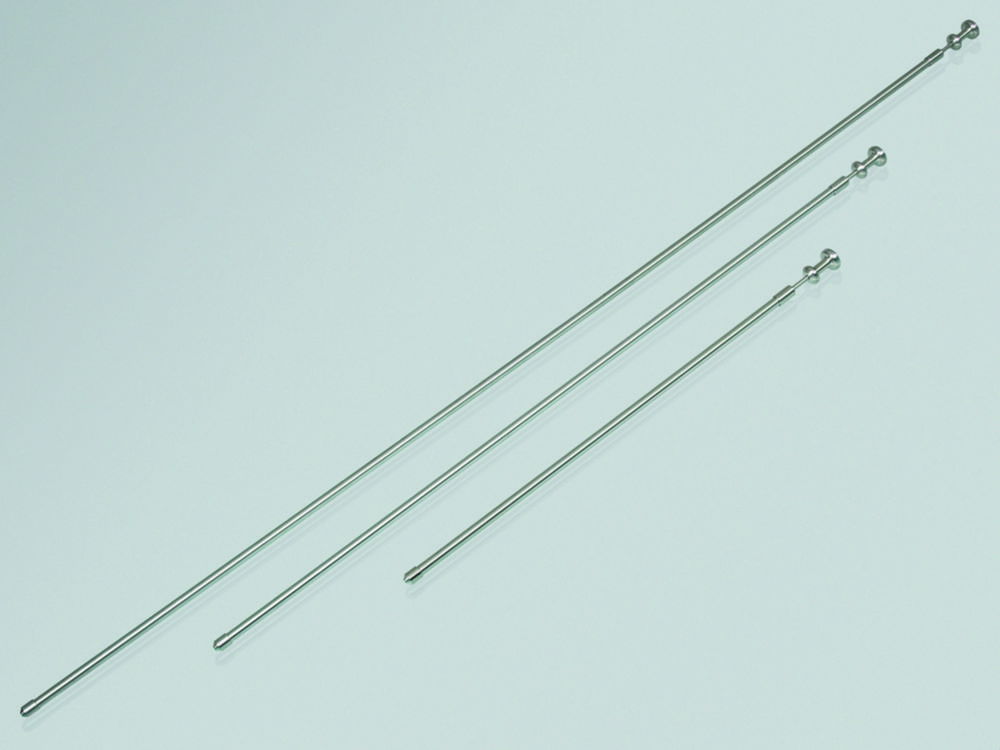

Suction sampler, Mini ViscoSampler

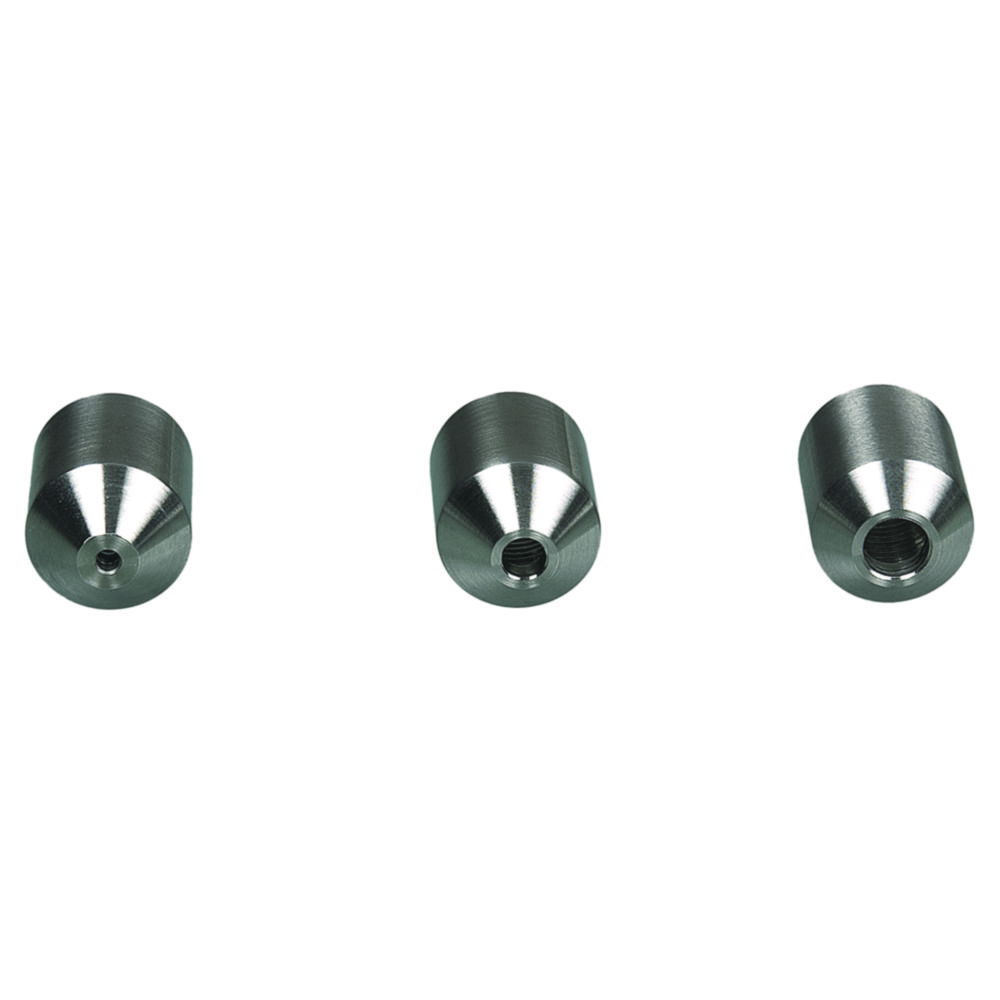

For viscous media such as pastes, sludge, creams, oils, e.g. for pharmaceutical and cosmetic industry. Depending on the viscosity, the removable suction tip can be fitted with suction drills of 2 mm to 6 mm (supplied with 2 mm drill tip).Electropolished V4A stainless steelPiston made of PTFESterilizable

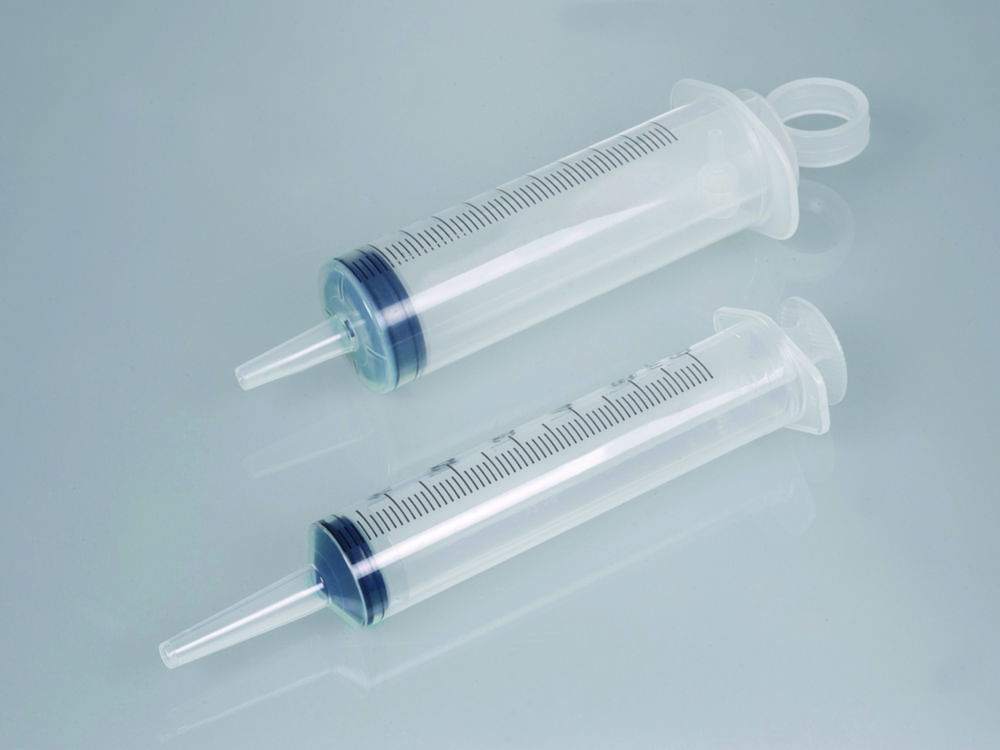

Syringe SteriPlast® , PP
Sterilised, individually packaged, transparent. A Luer adapter is supplied for the 100 ml syringe.
Target immersion cylinder
With the Target immersion cylinder, liquid samples can be taken from a particular point. The immersion cylinder is lowered on a strong and sealed tube. When the target has been reached, a valve at the tube end is opened. This vents the immersion cylinder and fills it with the sample. The immersion cylinder is pulled up and emptied via the screw thread. With 5 m venting tube. Screw off top enables easy cleaning.
TeleScoop Telescopic Rods, aluminium
Different tools can be attached to the telescopic rod (snap-in joint). The individual rods have been provided with an end stop. This means that one rod cannot accidentally slip out of another rod. The telescopic rods cannot be rotated radially.Increased rigidity by using cold-rolled profile rodSprings made of stainless steel
Thermometer insert for well scoop thermometers
Well Scoop Thermometer and Tank Thermometer for sampling and temperature measurement at the same time.Please order thermometer insert and armour separately.Calibratable. Immersion depth - total. Yellow enameled prismatic. Red filling.
Vampire Sampler
The self-priming peristaltic pump is also suitable for dirty or particle-containing substances with a viscosity of max. 500 mPas. Ideal for sampling from barrels, tanks, wells, water separators, waste water and sewage treatment plants. The samples are fed directly into the sample container via the closed hose system.Battery-powered hose pumpEasy cleaning and exchangeable hoses prevent impuritiesSuction depth up to 5 metresScope of supply: Drive unit, pump head, pump hose (30 cm, Marprene), suction hose (5 m, PE), hose connector (PP), sample bottle (250 ml, LDPE), bottle basket, two rechargeble batteries, battery charger
Waterlanding net
Very robust, with nylon net, for catching flees, bugs, floating particles and water insects. Mesh width 0.8 mm. With robust aluminium ring of 200 mm diameter. Double-stitched version. With universal connecting part. For use with INGENIOUS telescopic poles.
Well scoop thermometers
Well scoop thermometer and tank thermometer in brass armour, scooping vessel 70 x 32 mm, thermometer with milk glass scale, calibratable, red filling, capillary blue reflecting.
Wire sieve net
Robust wire sieve net, very robust and reinforced net version with crossed protection strings at the outside (to prevent the net from deforming). This landing net also has a reinforced net at the edges and therefore allows you to catch small animals directly off the ground. A possible bending is avoided by the strong and simple construction. Net diameter of 200 mm, mesh width 1.5 mm. With universal connecting part. For use with INGENIOUS telescopic poles.
Mini immersion cylinders
For sampling liquids in narrow places where access is difficult. Can also be used in curved dipping tubes and barrels with narrow openings. Without lowering cable. Upper body unscrews for easy cleaning.
