Sonotrodes for ultrasonic homogenisers UP200Ht / UP200St, titanium
Sonotrodes made of titanium. With M6x0.75 male thread. Autoclavable.Sonotrodes S26d2D and S26d7D with seal for closed systems for use with flow cell reactor.
Sonotrodes for ultrasonic processor UP50H/UP100H
Sonotrodes made of titanium, approx. length 80 mm.
Sound insulation box for ultrasonic homogenisers
Sound insulation box made of acrylic glass with divisible rod (Ø 16 mm), height-adjustable table and anti-slip mat. Sound insulation 22 dB (A) open air measurement.
Sound proof box LS 40
To reduce the noise level when sonicating samples with an ultrasonic homogeniser. The lower part of the interior and the removable bottom tray are made of stainless steel and are therefore chemically resistant and easy to clean.Noise reduction of up to 30 dB-AULED interior lightingAcrylic glass windowWith effective ventilation systemWith opening (40 x 70 mm) for cooling tubing, sample circulation or the SONOPULS temperature sensor on the backRemovable bottom trayEasy retrofitting for use with sonotrodes or cup booster possibleThe stand HG 40 is required to attach the ultrasonic converter. Please order separately.
Special dispersing heads for disperser T50 digital
R 50 "high speed" stirring shaftUsing the R 50 stirring shaft, the T50 digital is quickly converted into a high speed stirrer. 700W power and 10000rpm are provided for rapid mixing, dissolving, and breaking up pigment agglomerates. The conical shaft is supported by means of ball bearings, the mixing elements have a screw connection. For operational safety a protective cage is fitted around the mixing element.S 50 N - W 80 SMK Jet mixer headFor shortening mixing and dissolving times. The vertical flow and the high tangential speed, up to 10000rpm, ensure intensive mixing. The head is used for adding gases or liquids, for lump-free suspension of difficult to dissolve powders or for dissolving sedimented, accreted substances.S 50 N - W 65 SK Cutting headTo crush large pieces (up to 50mm) of fibrous materials, such as plant matter, vegetables and fruit.
Stand for ultrasonic homogenisers, stainless steel
Stand made of stainless steel, incl. stand rod (Ø 16 x 500 mm).
Stand Homogenisers POLYTRON® PT 10-35 GT (Ecoline)
Cost effective dispersing unit for applications with operating volumes up to 10 liters. The powerful motor is useful for sample preparation and also for formulation in scale-up matters. More than 30 dispersion aggregates with different geometries, designs, sizes, materials and coatings are available for selection. The electronic control system continuously compares the pre-selected rpm speed with the actual speed and adjusts it so that the speed remains constant even as the viscosity increases.Aggregate tip speeding up to 34 m/sSoft start to prevent splashing of homogenate from sample vesselIntegrated overheating, overload and blocking protectionSpeed remaining constant even when viscosity changesAggregate replacement using one-handed quick-release coupling (type F)Insulated motor housing keeps motor noise to a safe, approved level during operationVarious models of EasyClean dispersing aggregatesApplications: General homogenisation applications (dispersion and emulsification), Formulation of lotions, creams and food, Production of oil-water emulsions, Dispersion of small quantities from plants, animals or human tissueStand and Dispersing heads must be ordered separately.
Stand Homogenisers POLYTRON® PT 3100 D / PT 6100 D (High-End-Line)
The PT 3100 D / PT 6100 D dispersion unit is unique in its class. Applications with highest demands on reproducibility or requiring a scale-up step are excellently served by this unit. The complete digitalised control and regulating system can be easily operated using the membrane keyboard. The bright and informative display shows all parameters. Via PC interface, diverse parameters such as speed profile or times can be specified using the enclosed KIN software. Results can be recorded as an Excel file. Up to 30 dispersion aggregates with different geometries, design sizes, materials and coatings are available for selection.Soft start (e.g. for pre-selected speed, prevents splashing sample vessel)Integrated overheating, overload and blocking protectionSpeed stability in the case of viscosity changesSimple operating concept using membrane keyboardSelection of three operating modes: standard, timer, autoPC interface (RS232) for control via KIN softwareAggregate replacement using one-handed quick-release coupling (type F)Sound-insulated housingDigital LCD display with membrane keypad for showing process parameters and messagesComprehensive aggregate portfolio with easy cleaning in Easy Clean designAggregate tip speeds up to 32 m/sStand and Dispersing heads must be ordered separately.
Stand Homogenisers POLYTRON® PT 45-80 GT (Ecoline)
High performance dispersing unit with powerful drive, stepless speed control, high tip speed and a variety of interchangeable dispersion aggregates for a wide range of dispersing and mixing applications.Aggregate tip speeding up to 32 m/sEasy operation with an on-off switch, speed control and membrane keypadIntelligent variable speed control for long equipment lifeIntegrated overheating, overload and blocking protectionSpeed remaining constant even when viscosity changesAggregate replacement using one-handed quick-release coupling (type F)Easy cleaning of the unit thanks to EasyClean designApplications: General homogenisation applications (dispersion and emulsification), Formulation of lotions, creams and food, Production of oil-water emulsions, Dispersion of small quantities from plants, animals or human tissueDispersing heads must be ordered separately.
Stands for Homogenisers POLYTRON®
HS 1200 E: Holder for the support of drive, transformer, four dispersing aggregates and two tools.ST-P 13/320: Stainless steel plate stand with anti-slip mat made of silicone, with height-adjustable holder for the drive and for fastening the base station.ST-P 01/200: Stainless steel joint stand (gas spring) with two rivet plugs for safe fixing of the basic station The drive holder can be rotated in any direction, raised and lowered.ST-P 15/320: Stainless steel plate stand with height-adjustable holder for drive support and for safe fixing of the basic station.ST-P 20/600: Plate stand with two rod design. Height adjustable.ST-P 10/600: Plate stand with one rod design. Allows easy and safe height adjustment of the drive unit. Material: AluminumST-F 10/600: H-foot stand made of anodized aluminum and the height adjustable, swiveling PTFE-coated work table with vessel holder. Material: AluminumST-P 14/590+500: Electric plate stand with lifting telescopic bar for more ease of use. Incl. up/down button and mat to prevent slipping. Stroke 500 mm. The electronics are designed for ambient temperatures of +5°C to +40°C and were tested per EN 60335-1 and UL 962.ST-P 21/700: Stainless steel plate stand with two rod design. Height adjustable. For more safety, the drive unit cannot be twisted sidewise or rotated.
Strap clamps RH 3 for overhead stirrers and Dispersers T 18 and T 25
For vessel Ø 40 to 300 mm.
Strap clamps RH 5 for overhead stirrers an Disperser T 50 digital ULTRA-TURRAX®
With R 270 bosshead. For vessel Ø 40 to 300 mm.
Telescopic stand R 2723 for overhead stirrers and Disperser T 50 digital ULTRA-TURRAX®
Stable stands with H-shaped base. Stands have a levelling screw to compensate for unevenness on the laboratory bench. Max. load 10 kg.
Temperature probe TM 5000
The temperature probe can be connected to the socket of the ultrasonic transducer. This activates the temperature detection and enables user-defined temperature monitoring during the sonication process. On the ultrasonic generator, either a warning signal or a shutdown of the ultrasound can be set when the limit temperature is reached.
Timer for ultrasonic processor UP50H/UP100H
Timer from 00:00 to 99:59 (min:sec).
Ultrasonic homogeniser SONOPULS HD 5020, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 5000 series are characterised by optimised process times and quickly available reproductive results.7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceConnection socket for optional temperature sensorFor volumes from 0.1 to 25 ml (depending on the sonotrode used).Ready-to-operate set for volumes from 0.1 to 10 ml consisting of:Ultrasound generator GM 5050Ultrasonic converter UW 5020Titanium sonotrode MS 1.5, Ø 1.5 mmOptional temperature sensor and further titanium sonotrodes with Ø 2.0 mm and 2.5 mm available separately.
Ultrasonic homogeniser SONOPULS HD 5050, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 5000 series are characterised by optimised process times and quickly available reproductive results.7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceConnection socket for optional temperature sensorFor volumes from 0.5 to 100 ml (depending on the sonotrode used).Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:Ultrasound generator GM 5000Ultrasonic converter UW 5050Titanium sonotrode TS 102, Ø 2 mmOptional temperature sensor and further titanium sonotrodes with Ø 3 mm, 4.5 mm, 6 mm and 9 mm available separately.
Ultrasonic Homogeniser UP200Ht
Digital ultrasonic processor, 200 watts, for handheld and stand-mounted use, frequency 26kHz (auto-scan), amplitude 20-100%, pulse 10-100%, titanium horn Ø10mm (max. amplitude at horn 70µm), colored touch-screen, amplitude or power control, countdown (timer): 0.1sec to 99 days, shutdown when final energy input reached (Ws, Wh, kWh), autom. Calibration of the amplitude-dependent idle power, data recording: amplitude, power, time, temperature on internal SD/USB ComboCard (1GB), display and remote control via browser on PC/MAC without software installation, remote control via PLC, with temperature sensor, temperature indication: °C/°F (-50°C to 200°C), temperature monitoring, dry running protected, sample illumination, anti-bacterial plastic housing, simplified exchange sonotrodes, power supply 100-240V~, 50-60Hz, IP41 grade, set weight: 1300g, Carrying case incl. fixture for stand STH-12 and 3m network cable
Ultrasonic homogeniser UP200St
Ultrasonic homogeniser consisting of generator and transducer for flexible use in various laboratory areas. Ideal for sample preparation for cell disruption, homogenisation, dispersion and emulsification of samples. The ultrasonic homogeniser can be used both as a hand-held device and on a stand. Colour touch displayDigital setting and control functionsAutomatic frequency tuningAmplitude and pulse adjustableCountdown timer from 0.1 s to 99 daysOperation and control via LAN for display and remote control via browser without software installation on PCEthernet interfaceTemperature display in °C and °FData recording on internal SD card (1 GB)2 LEDs for sample illuminationDry run protectionScope of supply: Generator UP200St-G, transducer UP200St-TSonotrodes and stand material are not included in the scope of supply. Please order separately.
Ultrasonic homogeniser, SONOPULS HD 4050, set without stand and vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes from 0.5 to 100 ml. Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:HF generator GM 4200Ultrasonic converter UW 50Titanium probe TS 102, diam. 2 mmFurther Titanium probes with diam. 3 mm, 4.5 mm and 6 mm available on request.
Ultrasonic homogeniser, SONOPULS HD 4100, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes 2 to 200 ml. Ready-to-operate set for volumes from 3 to 50 ml consisting of:HF generator GM 4200Ultrasonic converter UW 100Standard horn SH 100 GTitanium probe TS 103, diam. 3 mmFurther Titanium probes with diam. 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm available on request.

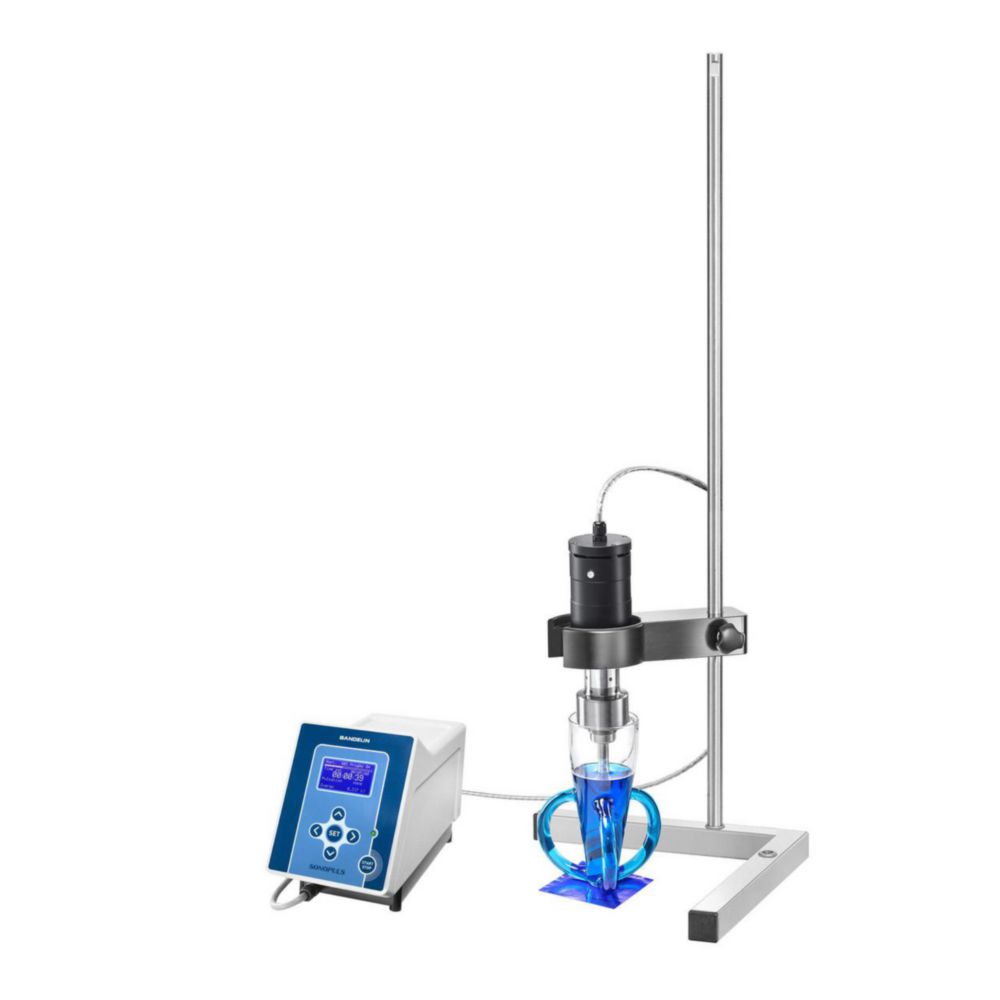

Ultrasonic homogeniser, SONOPULS HD 4200, set without stand and vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes 5 to 1000 ml. Ready-to-operate set for volumes from 20 to 900 ml consisting of:HF generator GM 4200Ultrasonic converter UW 200Standard horn SH 200 GTitanium probe TT 213, diam. 13 mmFurther Titanium probes with diam. 4.5 mm, 6 mm, 9 mm, 16 mm and 25 mm available on request.

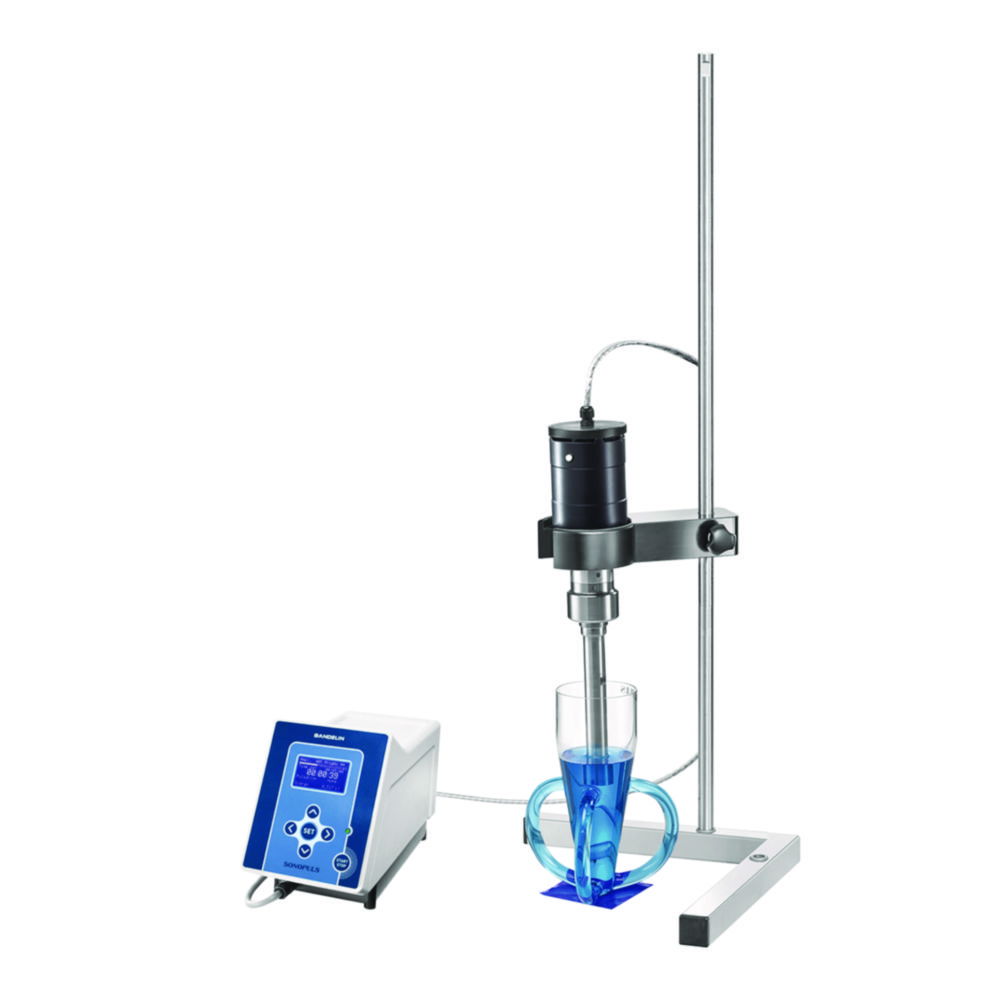

Ultrasonic homogeniser, SONOPULS HD 4400, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results. Also available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionFor volumes 100 to 3000 ml. Ready-to-operate set for volumes from 500 to 2000 ml consisting of:HF generator GM 4400Ultrasonic converter UW 400Standard horn SH 400 GTitanium probe TS 425, diam. 25 mmFurther Titanium probes with diam. 13 mm, 16 mm, 19 mm, 32 mm and 38 mm available on request.

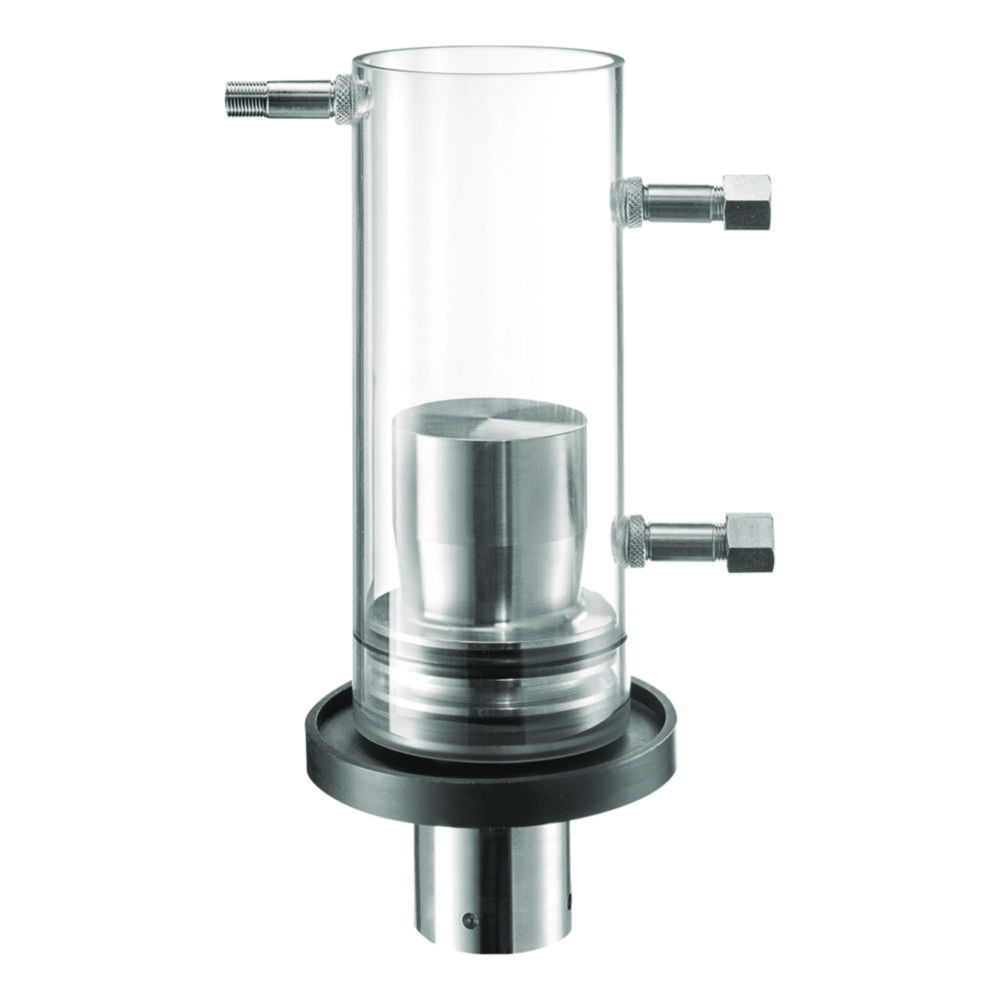

Ultrasonic processing vessels for SONOPULS Ultrasonic homogenisers
Ultrasonic processing vessels made of plastic and Titanium alloy (TiAl6V4). For indirect ultrasonic irradiation. Compatible with UW 200/2200/3200.

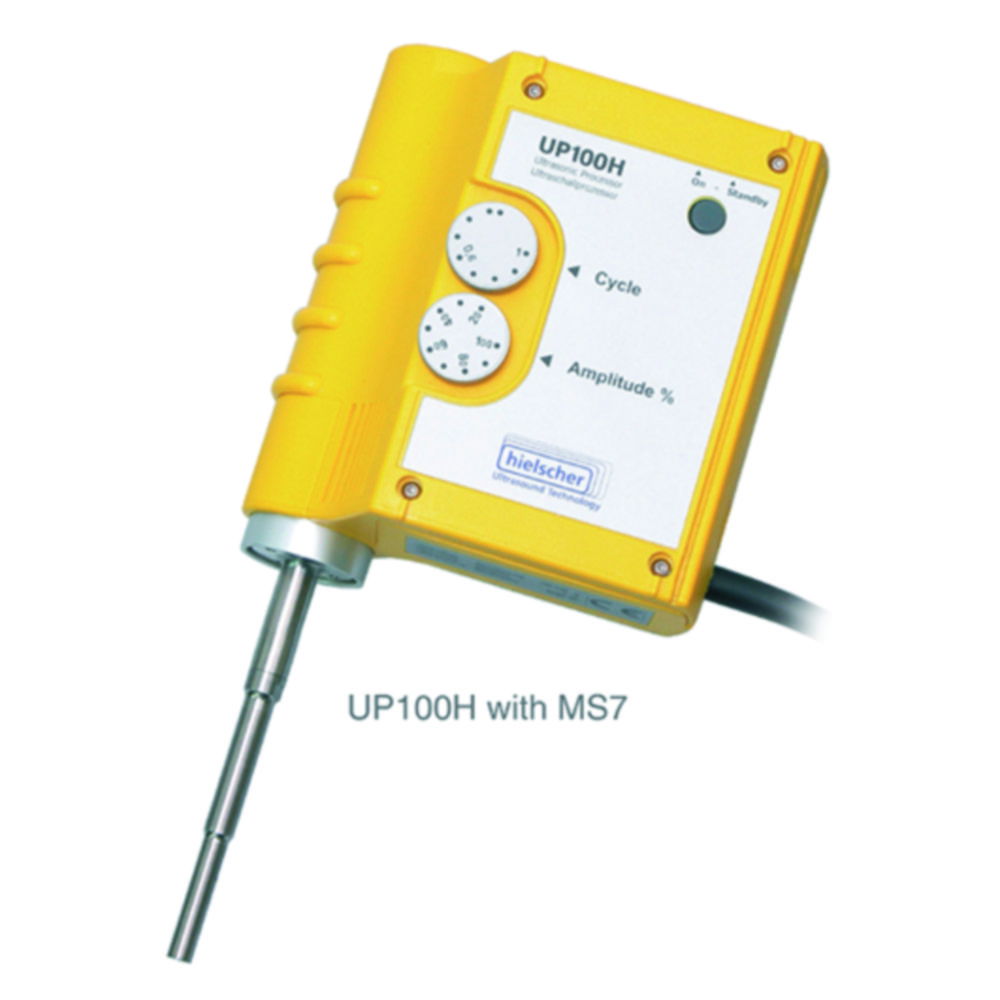

Ultrasonic Processor UP50H/UP100H
For manual operation or for stand use, frequency 30kHz, automatic frequency tuning system, amplitude adjustable 20% to 100%, pulse 0 to 100%, dry running protected, in portable case, with mounting for stand STH-16 and mounting tools, 230V a.c.
Ultrasonic transducer UP200St-T
The UP200St-T is suitable for sonication of 2 to 1000 ml sample volumes at 26 kHz and accomodate sonotrodes with a diameter from 2 to 40 mm.Push button for switching on/off2 LEDs for sample illuminationPlease order sonotrodes separately.

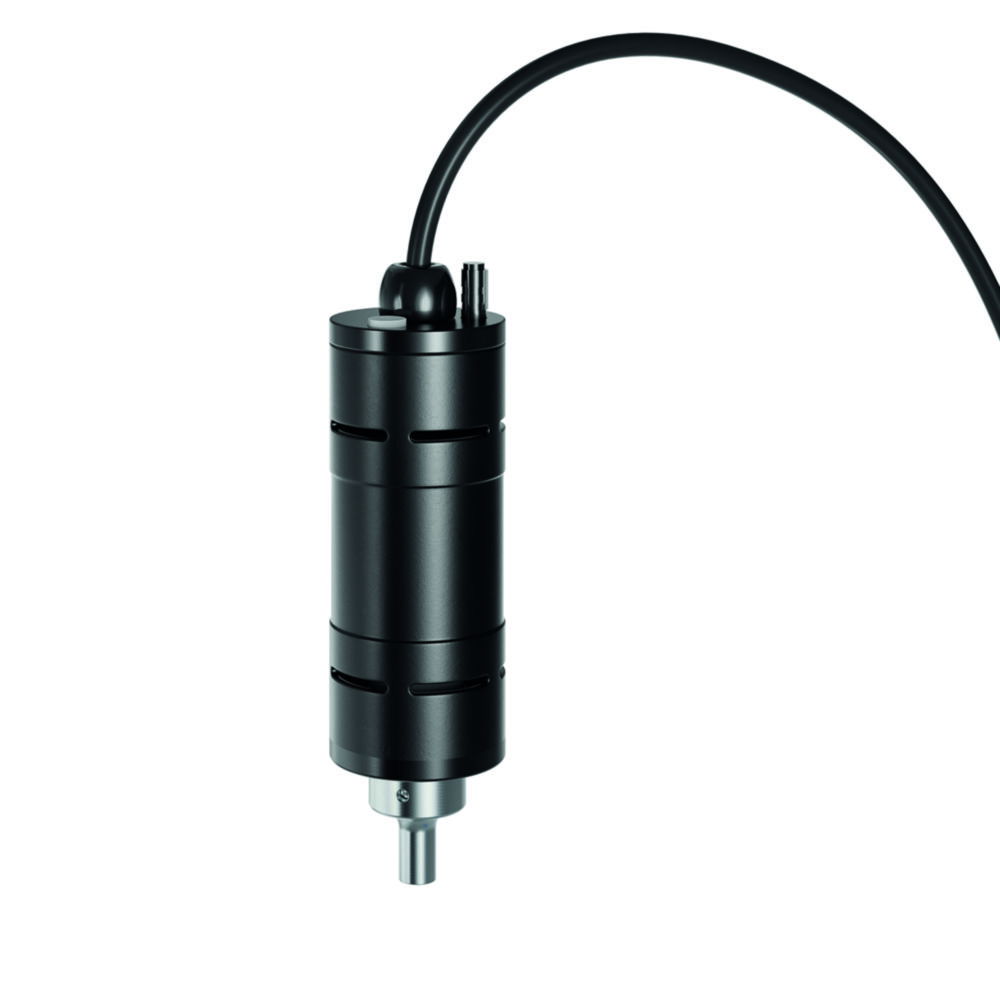

Ultrasonic transducer UW 5020
The ultrasonic transducer converts the electrical energy supplied by the ultrasound generator into mechanical vibrations.Button for switching the ultrasonic operation on/offConnection for optional temperature sensor to monitor the sample temperatureThe UW 5020 is particularly suitable for gentle sonication of the smallest sample volumes of 0.1 to 25 ml at 40 kHz and sonotrodes with a diameter of 1.5 to 2.5 mm.Please order optional temperature sensor and sonotrodes separately.

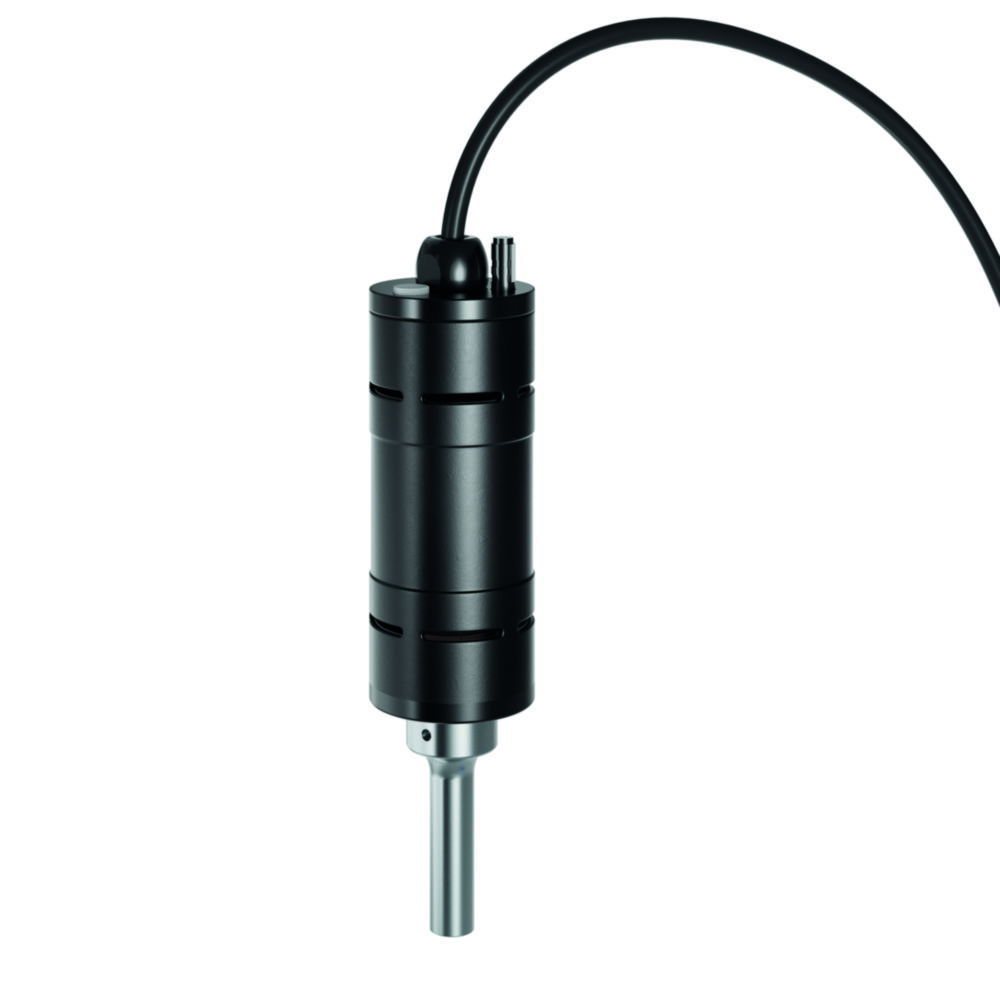

Ultrasonic transducer UW 5050
The ultrasonic transducer converts the electrical energy supplied by the ultrasound generator into mechanical vibrations.Button for switching the ultrasonic operation on/offConnection for optional temperature sensor to monitor the sample temperatureThe UW 5050 is particularly suitable for gentle sonication of smaller sample volumes of 0.5 to 100 ml at 20 kHz and sonotrodes with a diameter of 2 to 9 mm.Please order optional temperature sensor and sonotrodes separately.

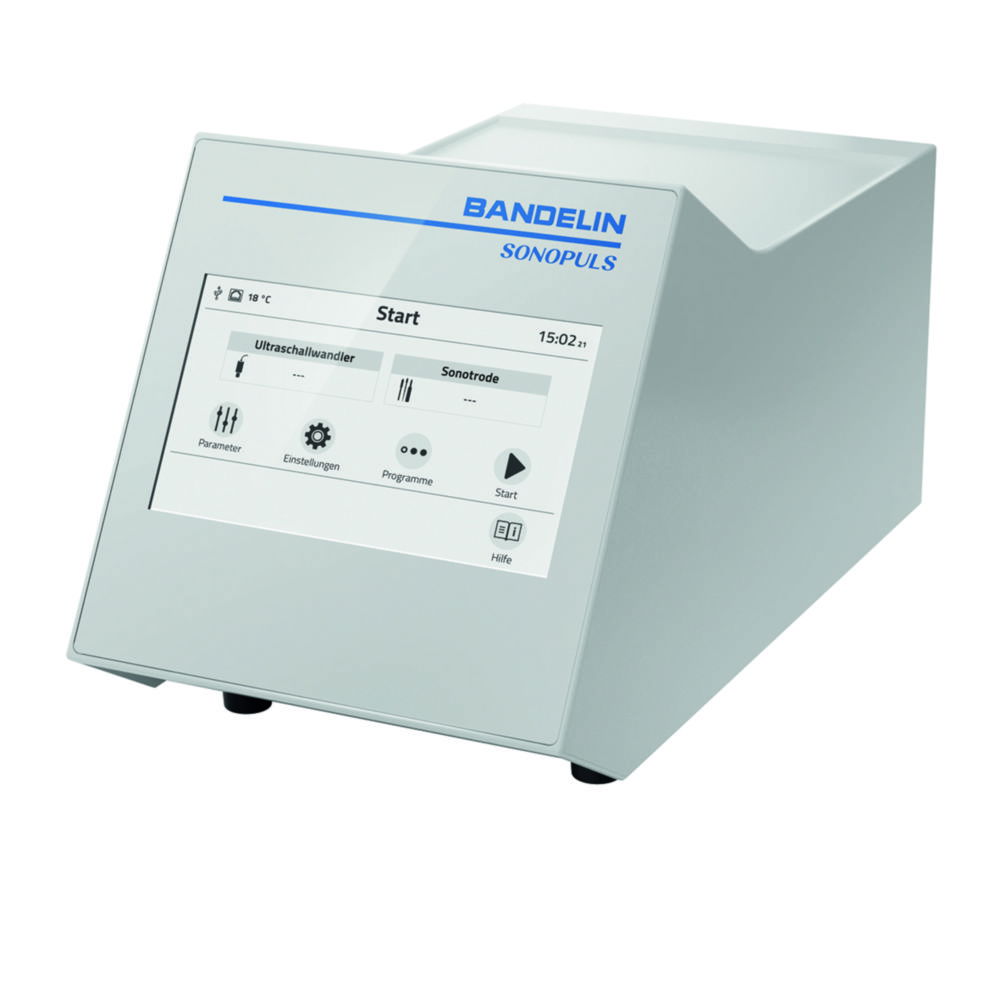

Ultrasound generator GM 5200
The ultrasound generator converts the low-frequency mains voltage into a high-frequency voltage. In combination with a compatible ultrasonic transducer and sonotrode, suitable for homogenisation, deagglomeration, emulsification, suspension, acceleration of chemical reactions or disruption of cells, bacteria, fungi or spores.Sturdy plastic housing7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceFor SONOPULS ultrasonic transducer of the UW 5100/ UW 5200Please order compatible ultrasonic transducer and sonotrodes separately.
Ultrasound generator UP200St-G
In combination with ultrasonic transducer and sonotrode, suitable for cell disruption, homogenisation, dispersion and emulsification of samples.Colour touch displayDigital setting and control functionsAutomatic frequency tuningAmplitude and pulse adjustableCountdown timer from 0.1 s to 99 daysOperation and control via LAN for display and remote control via browser without software installation on PCEthernet interfaceTemperature display in °C and °FData recording on internal SD card (1 GB)Dry run protectionPlease order ultrasonic transducer and sonotrodes separately.
