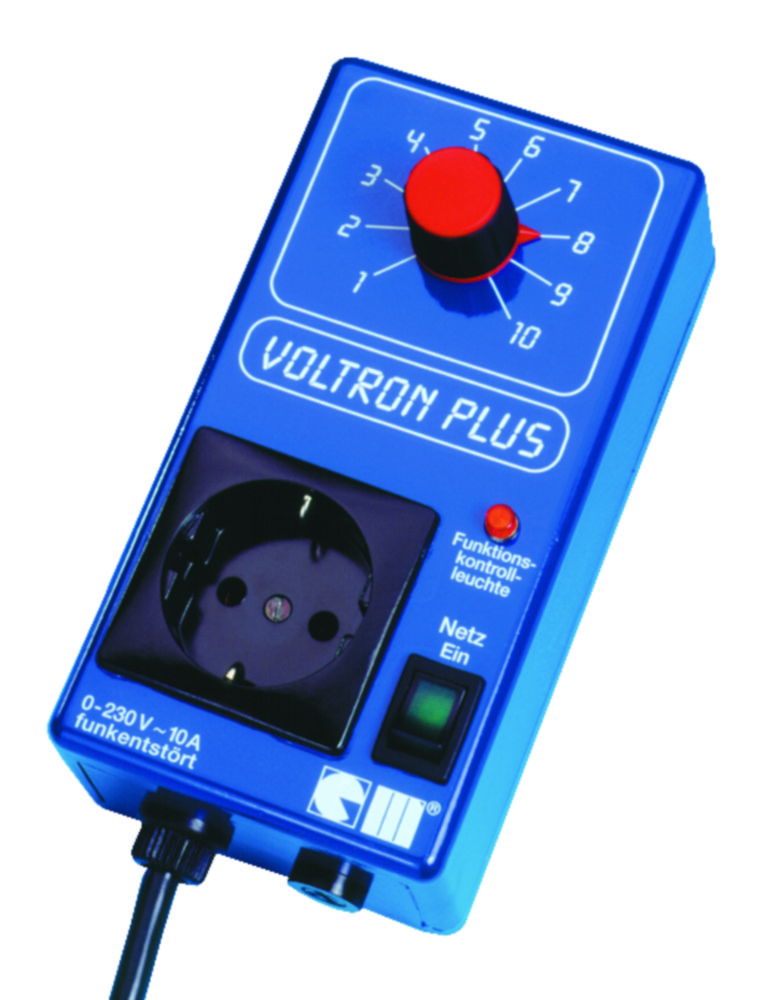

Power controller, VOLTRON-PLUS F
Alternating current controller for variable and no-loss control of resistive and inductive power devices with the following additional features:On/off luminous rocker switch, dipole switching, 10 A (4)IC controlled, hysteresis freeQuiet runningAnti-interference grade NFast-blow fuseProtected fuse holderPower-on indicator lampSpecifications Voltage: 220-235V, 50/60HzSwitching capacity:Max. 2000VASwitching current:Max. 10AElectronics:Phase controlsRegulating range:0 to 235V a.c.Dimensions:150 x 80 x 55mmWeight:0.7kg
Power supply system for controlled rate freezer CRFT
Uninterruptible power supply system for a 3 hour cycle in the event of an electrical power failure.

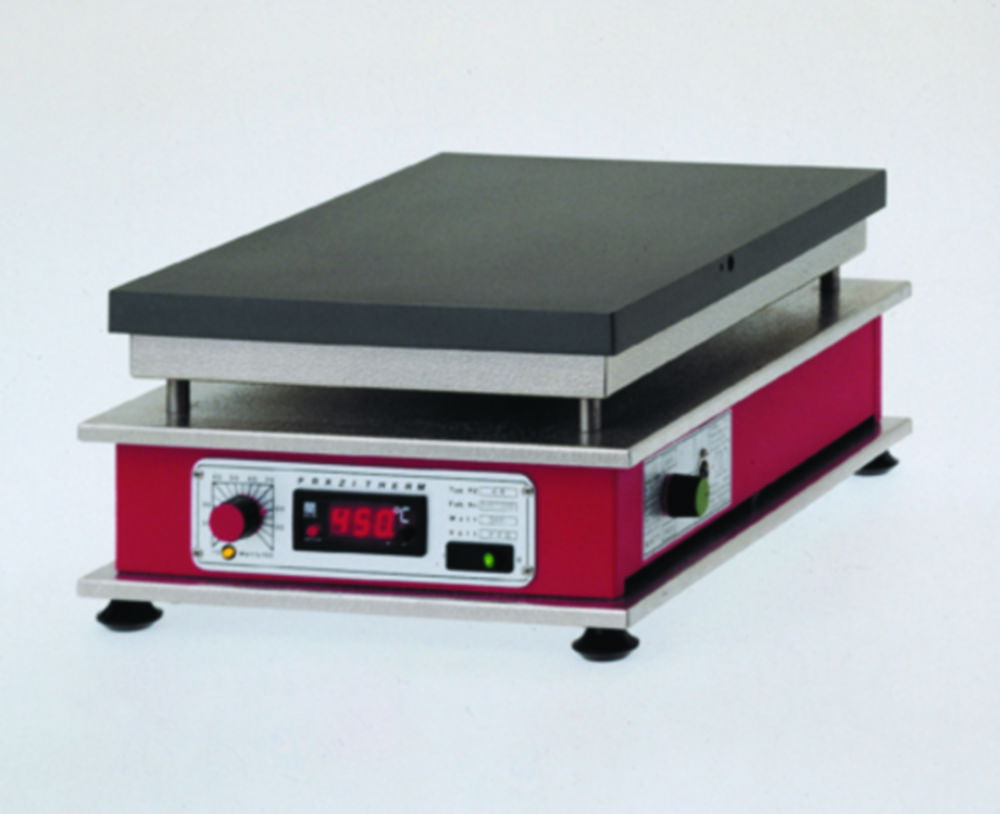

Precision hotplate PZ 44
Automatic, precise regulation of temperatures between 20 and 450 °C. Digital presetting and temperature display. Three power levels (825 W, 1650 W and 3300 W) can be set and an additional electronic power controller (adjustable 10 % to 100 %) is provided. At 825 W and 3300 W settings the entire plate surface is heated. At 1650 W setting only the right hand side of the plate is heated. As a result of heat conduction, the temperature from the right hand side to the left edge of the plate varies by approx. 40 %. Built-in relay allows direct connection of electronic contact thermometers. With solid, flat, low-distortion, cast GG15 alloy. Switching differential ±1 K.

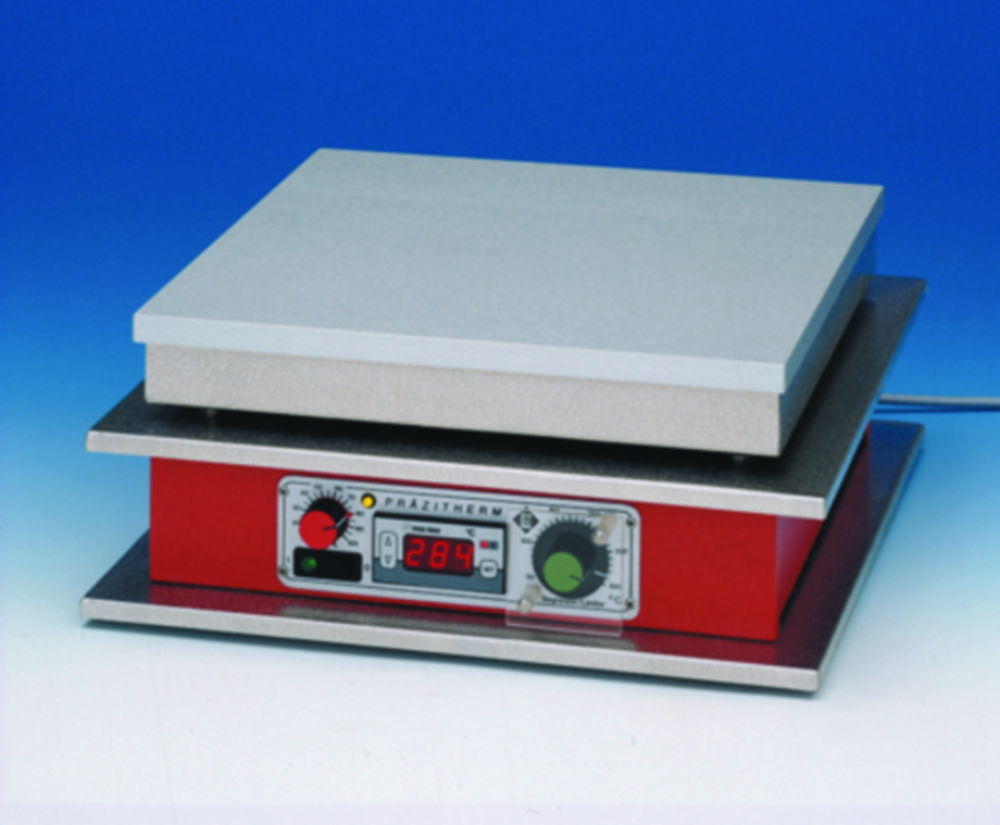

Precision hotplates PZ
For continuous operation. Provide extremely accurate, uniform temperatures, even in plate corners and on edges. Polished anodised aluminium heating surface. Microprocessor-controlled temperature controller with temperature setting up to 99.9 in 0.1 °C steps, over 99.9 in 1 °C steps. Actual temperature displayed continuously. With separate power controller for performance adjustment to the heating requirements from 10 to 100 %. Built-in relay allows direct connection of electronic contact thermometers.

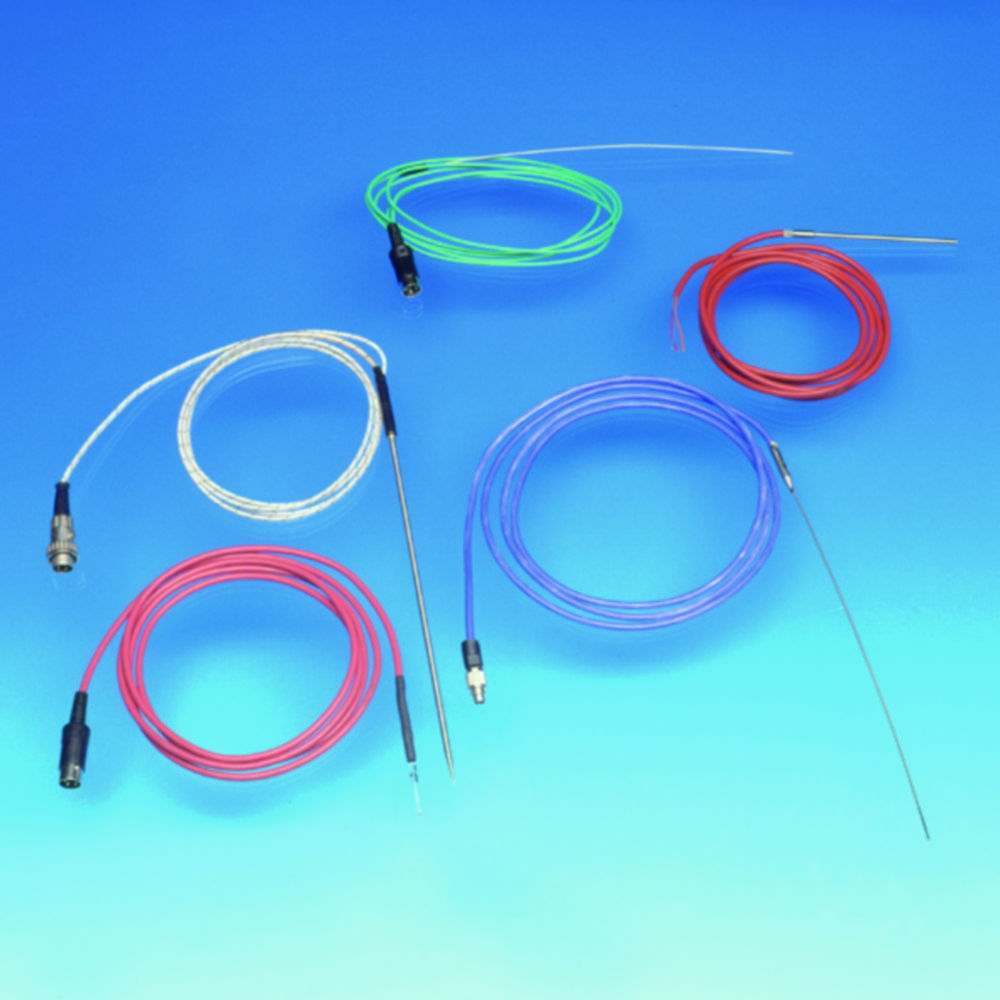

Probe for temperature controllers, TEMPAT®
All probes with 2m connecting cable and plug.* probe tube stainless steel 4301.** mantle of austenitic stainless steel.
ProfiNet Interface
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.
Pump adapters
Complete, for KISS E, CC-E and with baths as indicated. Incl. hose connectors NW 12.
Pump cabinet set VD with vacuum pump VP1
Set consisting of VP1 vacuum pump, pump cabinet (under cabinet) for housing the pump and a connection kit for connecting the pump to the VD series vacuum drying oven. The under cabinet raises the vacuum drying chamber to an ergonomic working height, reduces pump noise and protects the pump from mechanical damage. The pump cabinet contains a switchable socket that can be controlled via the controller of the vacuum drying oven.
Pump cabinet set VD with vacuum pump VP2
Set consisting of VP2 vacuum pump, pump cabinet (under cabinet) for housing the pump and a connection kit for connecting the pump to the VD series vacuum drying oven. The under cabinet raises the vacuum drying chamber to an ergonomic working height, reduces pump noise and protects the pump from mechanical damage. The pump cabinet contains a switchable socket that can be controlled via the controller of the vacuum drying oven.
Pump cabinet set VDL with vacuum pump VP5 EX
Set consisting of VP5 EX vacuum pump, pump cabinet (under cabinet) for housing the pump and a connection kit for connecting the pump to the VDL series vacuum drying oven. The under cabinet raises the vacuum drying chamber to an ergonomic working height, reduces pump noise and protects the pump from mechanical damage. The pump cabinet contains a stainless steel drip tray. There is an exhaust port (Ø 100 mm) on the rear wall of the pump cabinet for connection to an on-site exhaust system.
Pump set for immersion circulators CORIO™ and DYNEO™
Pump set for temperature control of external applications with pump connectors M16x1.
Quick sample access for CO2 incubators CB / CBF
Viewing window (13 x 25 cm) in the inner door for quick access to the samples.

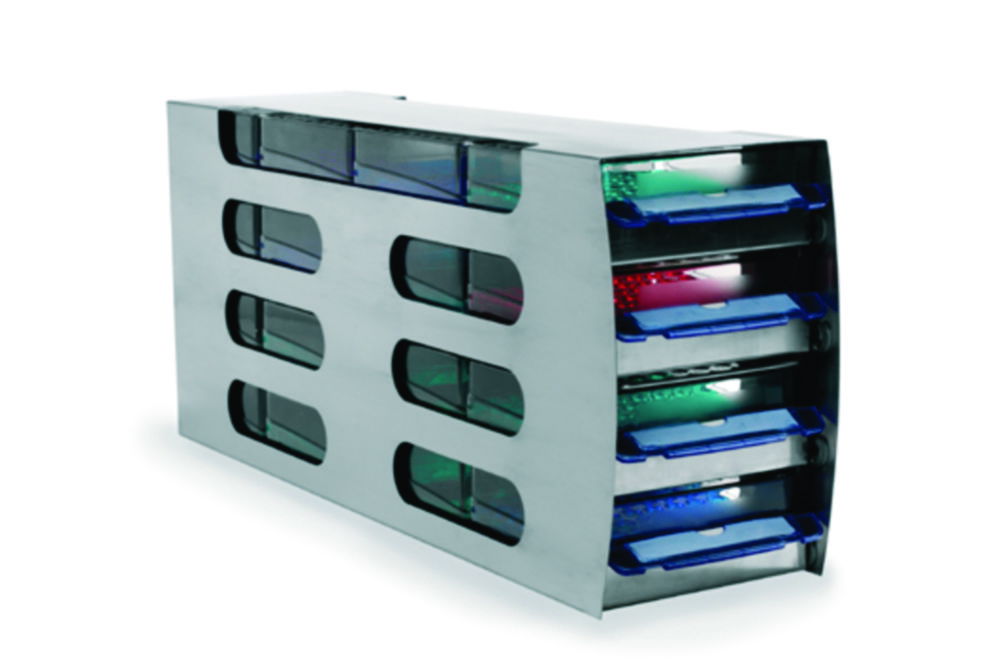

Racks for cryoboxes Arctic Squares®, Stainless steel
Stainless steel. Fits most standard upright freezers. Overall rack size (H x W x D): 238 x 139 x 571 mm. With four drawers to hold 16 boxes of 133 x 133 x 53 mm. Drawers feature a unique stop that when fully extended pivot down allowing for easy box access. Freezer rack also includes a pull-out wire handle for easy removal off the shelf. Polycarbonate drawer handles provide a user-friendly grip. Includes a slot and label for drawer/sample identification.

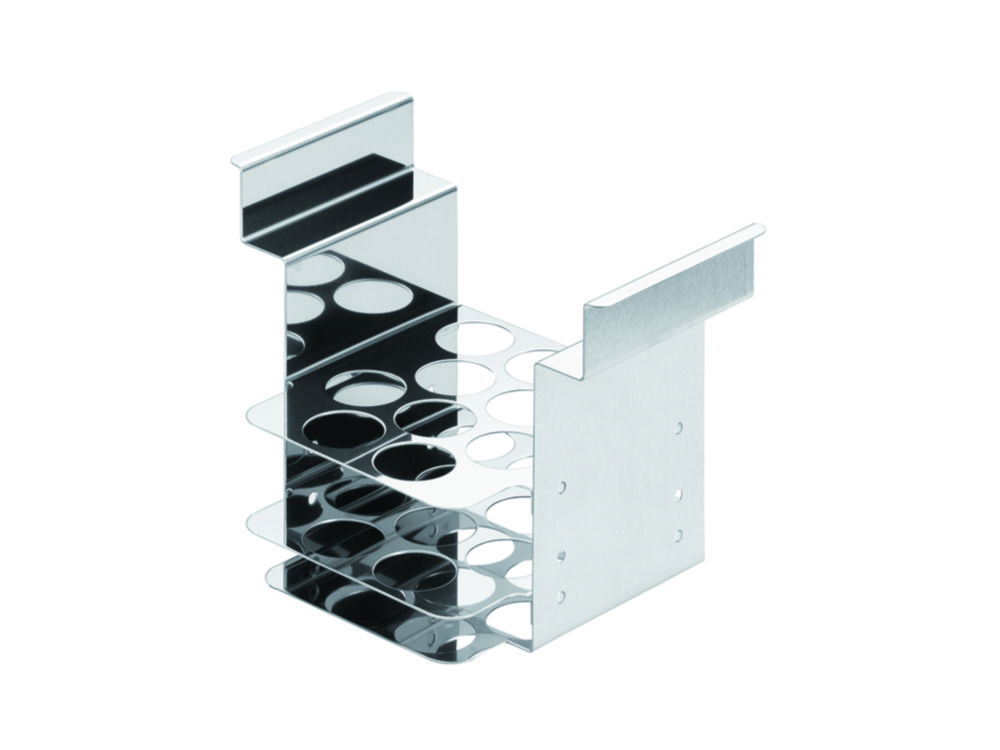

Racks for Falcon tubes for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™
Racks for Falcon tubes made of stainless steel.Suitable for heating circulators with the bath types BC4, BC6, B5, BT5 and refrigerated circulators with the bath types 200F, 201F, 300F, 310F, 450F.
Racks for microscope slideboxes, for chest freezers, comfort, stainless steel
For storage of slideboxes (SBS format) with 32 mm height. The racks have spring locks to secure the boxes.

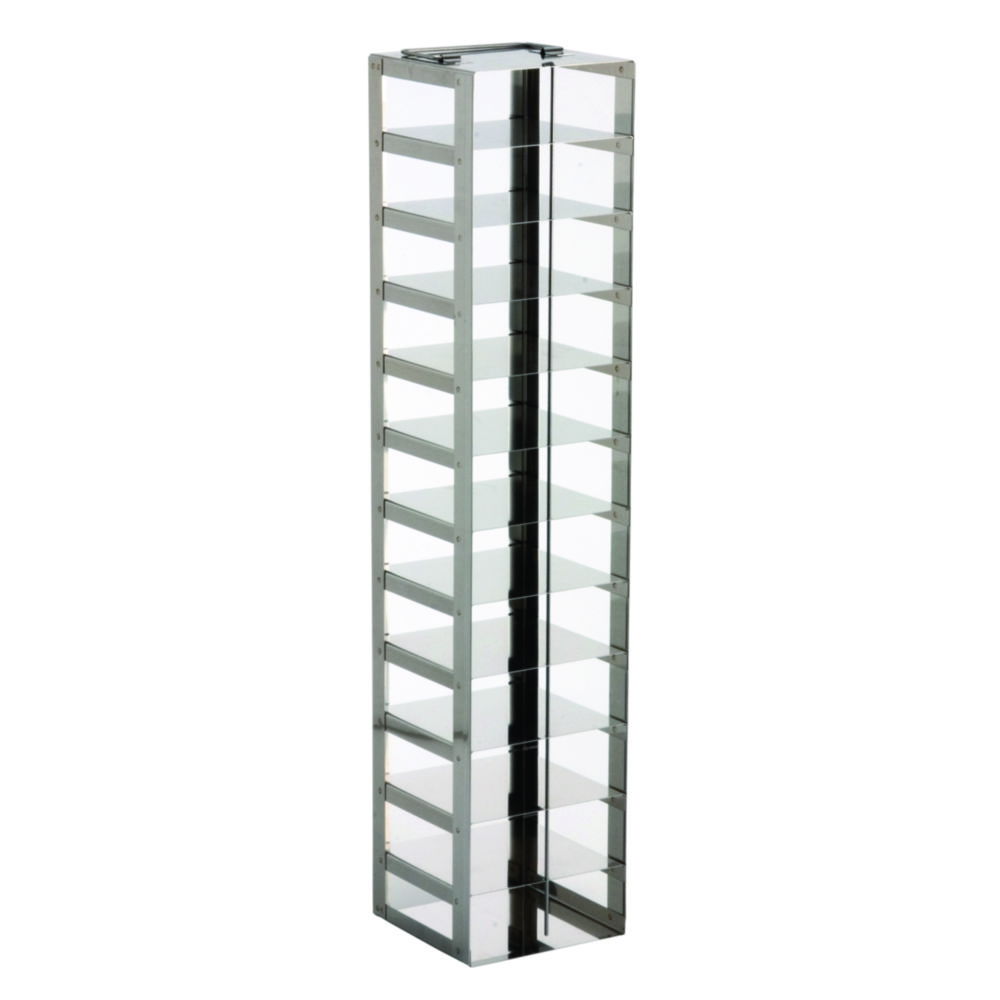

Racks for microscope slideboxes, for upright freezers, comfort, stainless steel
For storage of slideboxes (SBS format) with 32 mm height. The racks have spring locks to secure the boxes.
Racks for microscope slideboxes, for upright freezers, stainless steel
For storage of slideboxes (SBS format) with 32 mm height.
