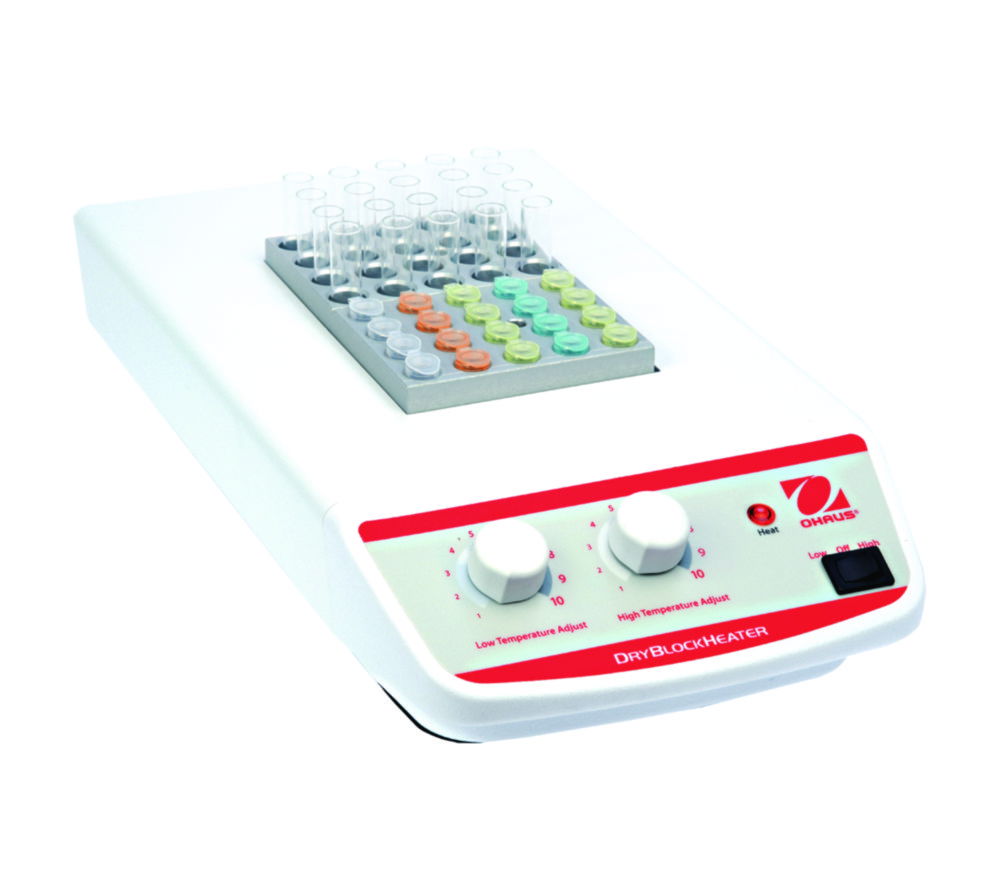

Dry Block Heaters, analogue
High wattage, constant-temperature Dry Block Heaters are economical, versatile and compact. These multi-purpose units are ideal for incubation and activation of cultures, enzyme reactions, immunoassays, melting/boiling points and a wide variety of other laboratory procedures. Each of the five models accept separate interchangeable modular blocks, accommodating various sample enclosures such as micro-tubes, centrifuge tubes, vials, microplates, and PCR strips or tubes. Each block has a thermometer well for measuring block temperature. Anodized aluminum modular blocks provide superior temperature stability and heat transfer.Microprocessor ControlAdjustment knobsWithout blocks. Please order separately.SpecificationsTemperature range lower / upper range:ambient +5 to 100 °C / 75 to 150 °CUniformity within block at 37 °C:±0.2 °CTemperature stability at 37 °C1 block: 2 blocks: 4 / 6 blocks:±1.5 °C ±2.0 °C ±2.5 °CUniformity across blocks at 37 °C / Heat up time to 100 °C:1 block: 2 blocks: 4 blocks: 6 blocks:- / 45 min ±0.1 °C / 50 min ±0.2 °C / 70 min ±0.3 °C / 75 minPermissible ambient conditions:18 to 33 °CPower supply:230 V, 50/60 Hz

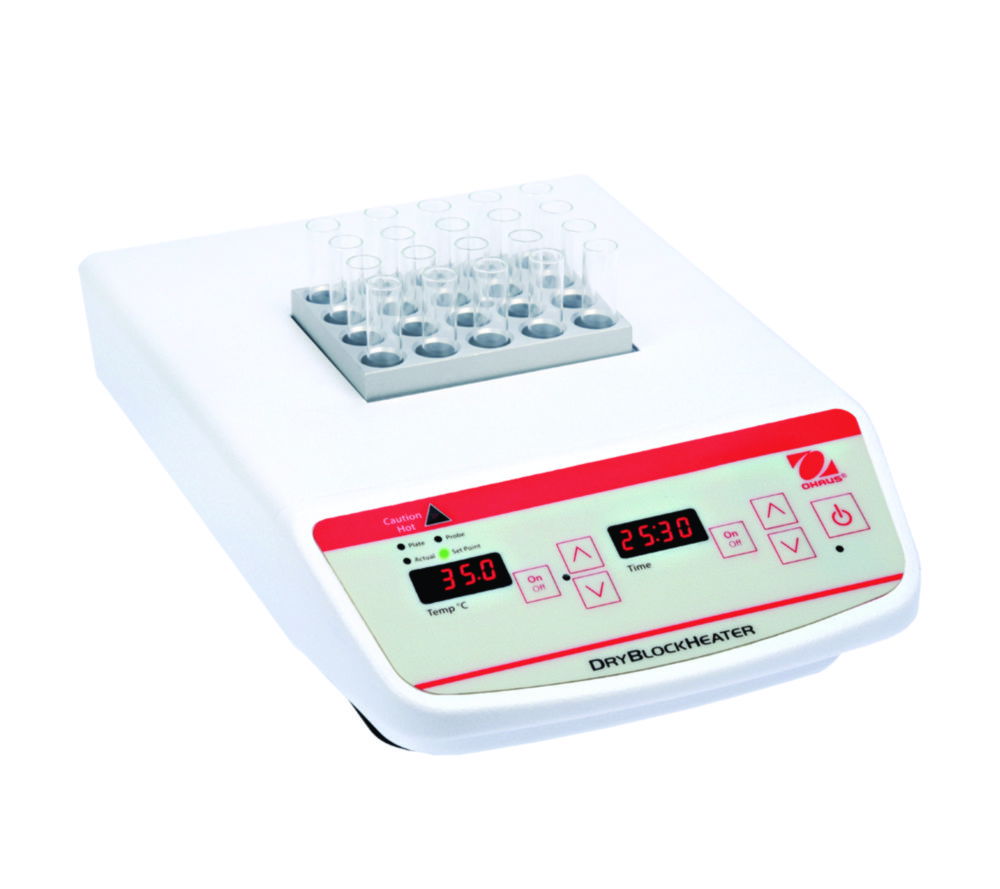

Dry Block Heaters, digital
Designed for applications that require repeatable results and superior temperature stability. These multi-purpose units are ideal for incubation and activation of cultures, enzyme reactions, immunoassays, melting/boiling points, and a wide variety of other laboratory procedures. Integral support rod holder with locking knob accepts optional External Temperature Probe Kit. Optional External Temperature Probe Kit monitors actual block or sample temperature. Each of the models accept separate interchangeable modular blocks, accommodating various tube sizes from 0.2 ml microtubes to 50 ml centrifuge tubes. Each block has a thermometer well for measuring block temperature. Efficient heating due to close tube-and-block contact for maximum heat retention.Microprocessor ControlLED DisplayTemperature Calibration ModeCaution Hot IndicatorAudible AlarmWithout blocks. Please order separately.SpecificationsTemperature range: Temperature stability at 37 °C:ambient +5 to 120 °C ±0.2 °CUniformity within block at 37 °C:±0.2 °CUniformity across blocks at 37 °C / Heat up time to 100 °C1 block: 2 blocks: 4 blocks: 6 blocks:- / 45 min ±0.1 °C / 50 min ±0.2 °C / 60 min ±0.3 °C / 65 minPermissible ambient conditions:18 to 33 °CPower supply:230 V, 50/60 Hz
Exchangeable blocks Eppendorf SmartBlocks™
Flexibility has never been this easy. Eppendorf offers a variety of SmartBlocks™ for tubes from 0.5 ml to 50 ml.Fast and simple block exchange due to Eppendorf Quick ReleaseOptimized block design guarantees maximum temperature transfer to the sample
Exchangeable blocks for Thermomixers and BlockThermostats
The right physical weight and fitting is important for high temperature accuracy inside the sample. All blocks are made out of temperature conductible aluminium. Customized blocks on request. All blocks are autoclavable.

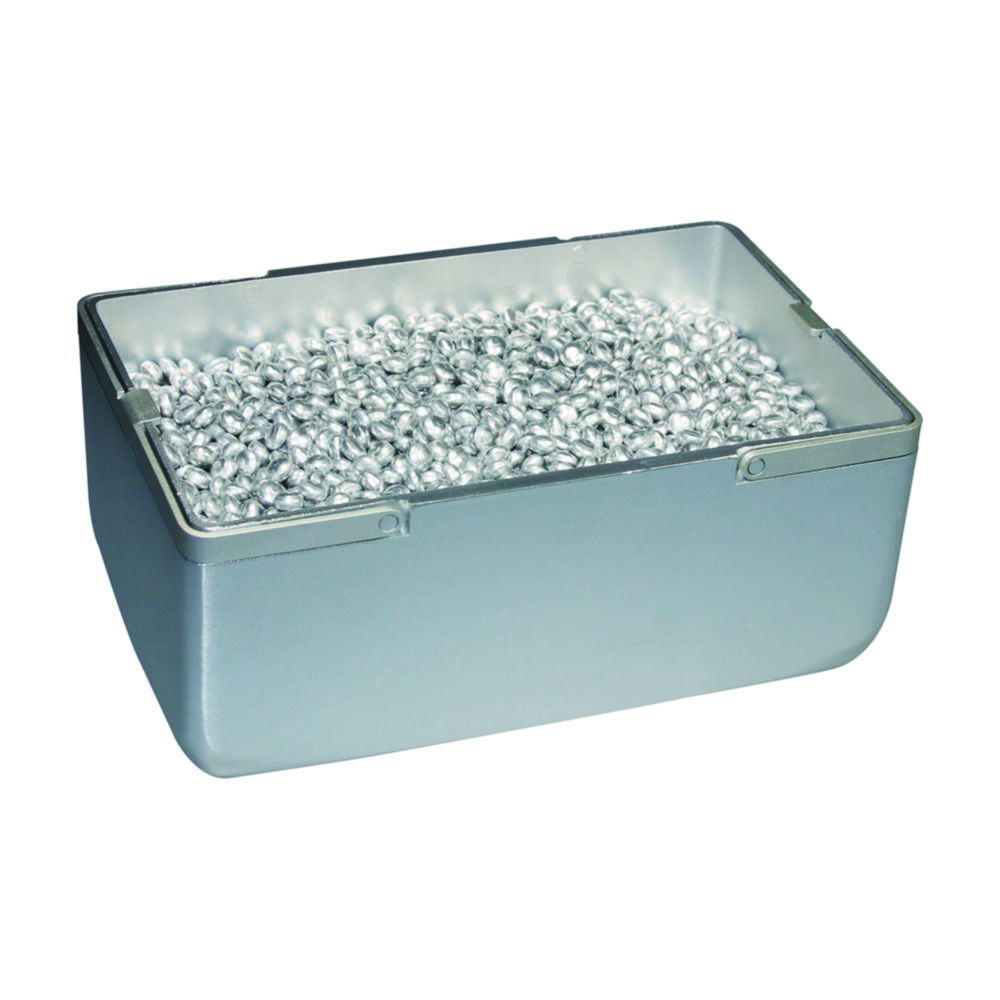

Heating block set for digital dry bath LLG-uniBLOCKTHERM
Heating block with aluminium beads as an alternative to exchangeable blocks with borings.The aluminium beads ensure high thermal conductivity. Various types of vessels, such as tubes, bottles, and microtitre plates can be individually assembled and simultaneously tempered in the dry bath. Easy to remove from the LLG-uniBLOCKTHERM thanks to two handles. The heating block holds a max. capacity of 700 ml.Scope of supply: Heating block, aluminium beads (1 kg)
HeatingThermoMixer MHR 13
Extremely short heating rate.Highest accuracy: max. 0.1°C deviation.Specifications:Temperature operation range:Amb. +3°C to +130°CTemperature adjustable range:0°C to +137°CAccuracy/ resolution:±0.1°C / 0.1°CMax. heating time:11.5°C / minShaking frequency MHR 11: Shaking frequency MHR 13:80rpm to 1500rpm 200rpm to 1500rpmOrbit:3mm orbitalDimensions (W x D x H):220 x 330 x 109mmCapacity:1 exchangeable block (not included)Weight:6.5kgElectrical heating power:200WSupply requirements:230V, 50HzEasy Control MHR 11:Timer 19h 59min, slider for shaking frequencySmart Control MHR 13:30 program steps, short mix, interval shakingFurther power connectors on request.
HeatingThermoMixer MHR 23 / MHL 23
Our bestseller: universally applicableDouble capacity.Specifications:Temperature operation range:Amb. +3°C to +130°CTemperature adjustable range:0°C to +137°CAccuracy/ resolution:±0.1°C / 0.1°CMax. heating time:9.5°C / minShaking frequency MHR 23: Shaking frequency MHL 23:200rpm to 1500rpm 200rpm to 1300rpmOrbit MHR 23: Orbit MHL 23:3mm orbital 3mm linearDimensions (W x D x H):220 x 330 x 109mmCapacity:2 exchangeable blocks (not included)Weight:7.0kgElectrical heating power:350WSupply requirements:230V, 50HzSmart Control:30 program steps, short mix, interval shakingFurther power connectors on request.

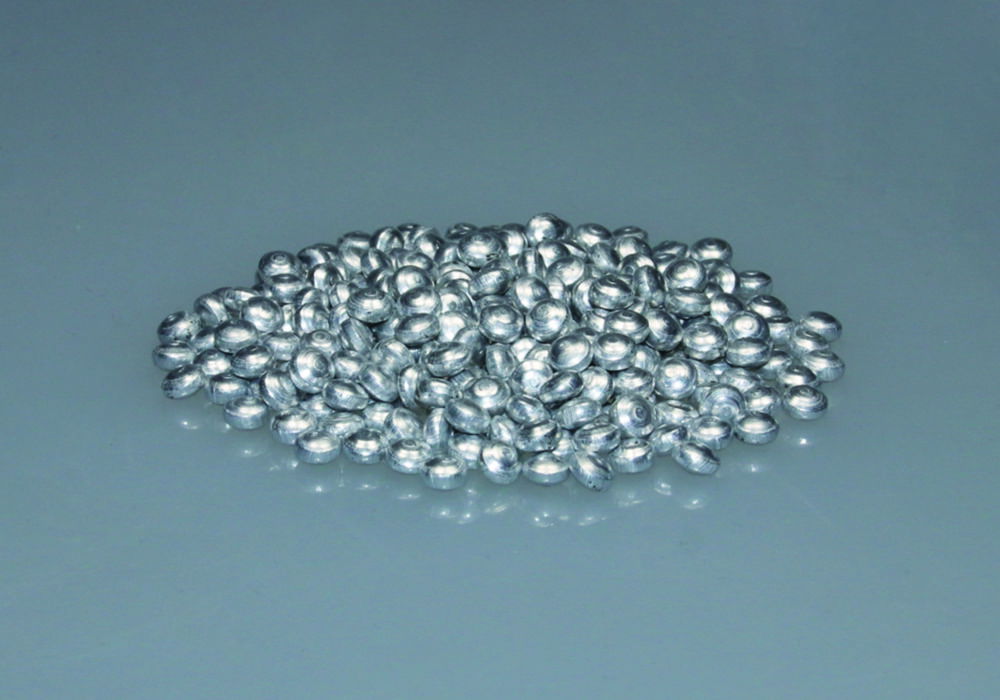

LLG-Aluminium beads
For use with a heating block for aluminium beads. The beads have a weight of 1 kg and occupy a volume of 580 ml.

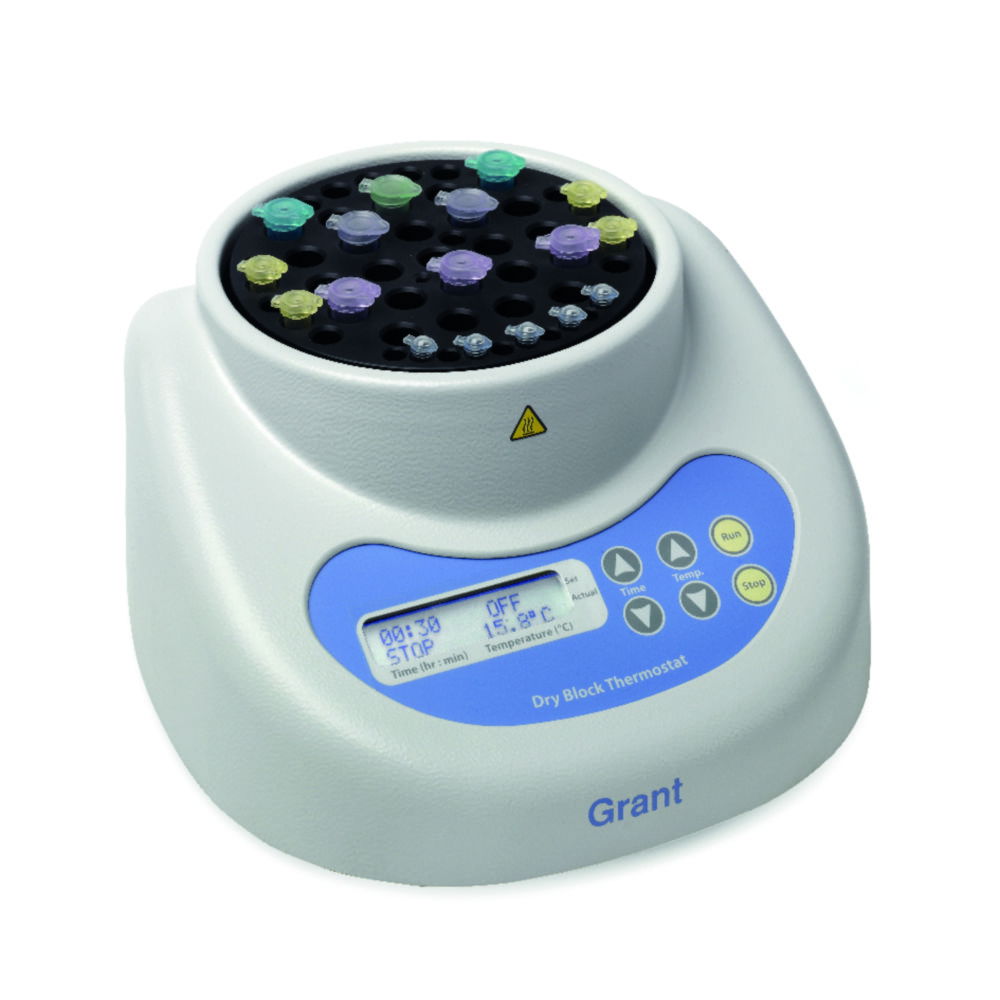

Microtube block thermostat BTD
Grantás block heating system BTD with fixed block is designed for rapid and precise heating of microtubes up to 100ºC.Digital temperature control for optimum precisionHeating block holds combinations of four microtube sizes simultaneously - up to a total of 49 tubes: 24 x 1.5/2.0 ml, 15 x 0.5 ml, 10 x 0.2 mlFlexible tube sizes and rapid heat-up time enables swift change of applicationConvenient integral timer for time-sensitive incubationsSturdy, durable, easy-to-clean plastic construction; compact design with small footprint2-line display for simple and precise setting of temperature/time and for monitoring current status during operationSpecificationsTemperature range:ambient +5 to 100°CStability at 37°C:±0.1°CUniformity:±0.1°CHeat-up times:25ºC to 100ºC in 15 min 25ºC to 37ºC in 4 minTimer:1 min to 96 hPower supply:230V, 50/60Hz

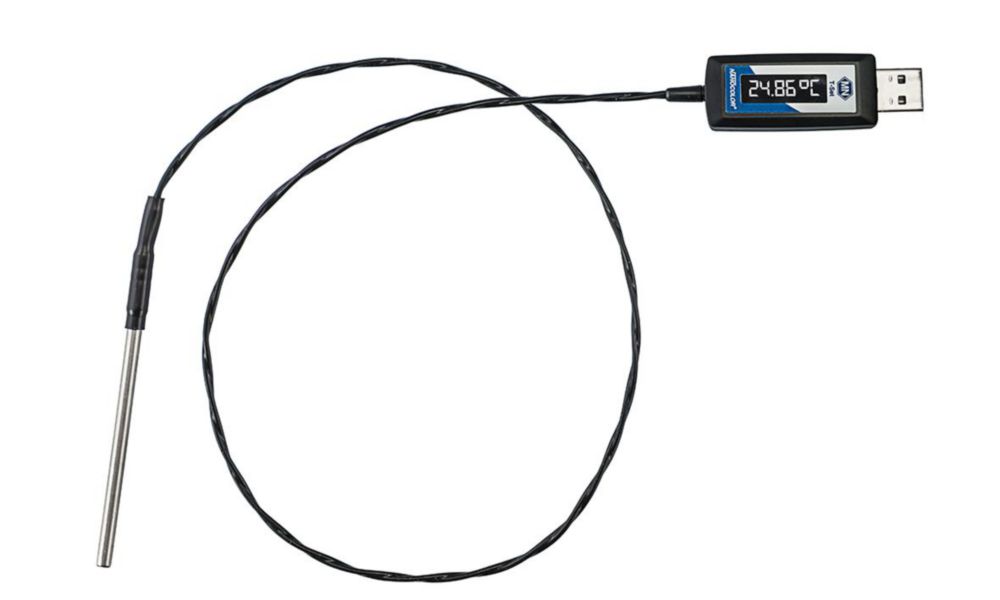

NANOCOLOR® T-SET
Electronic temperature control and calibration of heating blocksnspection equipment monitoringanalytical quality control according to GLPrecording of heating curvestransfer of test and calibration data to PCcreation of certificates and protocolsprogramming of heating blocksSpezifikationen:Detector:PT 1000 (95 x ø 4 mm)Display:via LED-Displays of the heating block and NANOCOLOR® T-Set softwareOperation:via foil-covered symbol keys of the heating block and NANOCOLOR® T-Set softwareTemperature range:0 - 200 °CPrecision:± 1 °CAccuracy:± 0.2 °CLong-term stability:± 0.1 °CInterface:bidirectional serial RS 232Operating range:10 - 40 °C, max. 80 % rel. humidityPower supply:via RS 232Power consumption:max. 20 mWDimensions: Weight:75 cm (length) incl. cable approx. 60 gWarranty:2 years
SmartExtender™ for Eppendorf ThermoMixer™ C and ThermoStat C
A heatable frame/attachment for mixer, with separate temperature control (3 °C above RT to 110 °C), for simultaneous operation at two different temperatures.

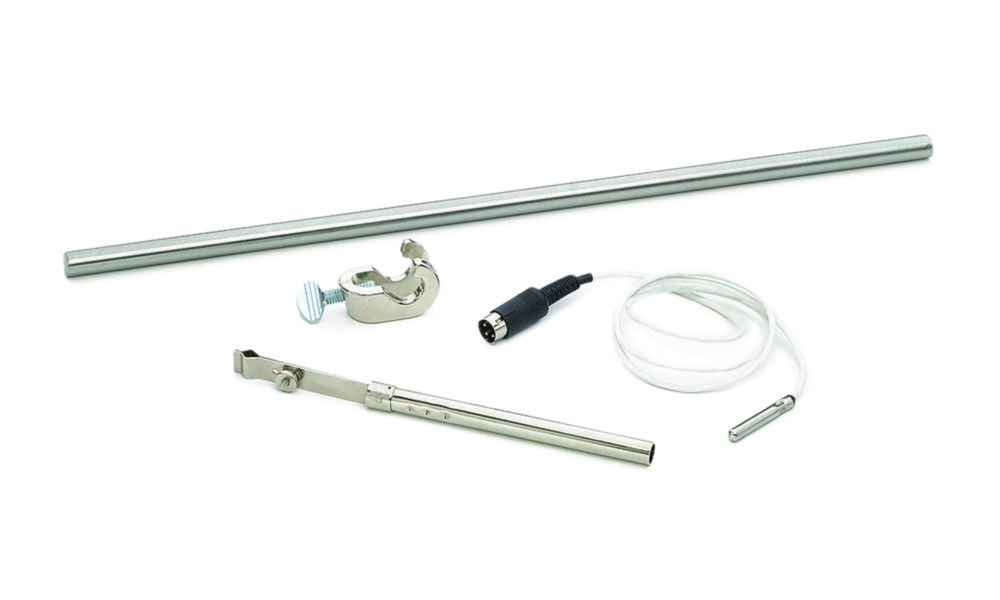

Temperature Probe Kit for Dry Block Heaters
Enables the unit to read actual block or sample temperature and display that temperature on the control panel. The optional External Temperature Probe Kit includes a stainless steel RTD PT100 probe, 457 mm stainless steel support rod, thermometer/temperature probe extension clamp and hook connector. The PT100 RTD probe is designed to fit perfectly in to the thermometer well of each modular block.

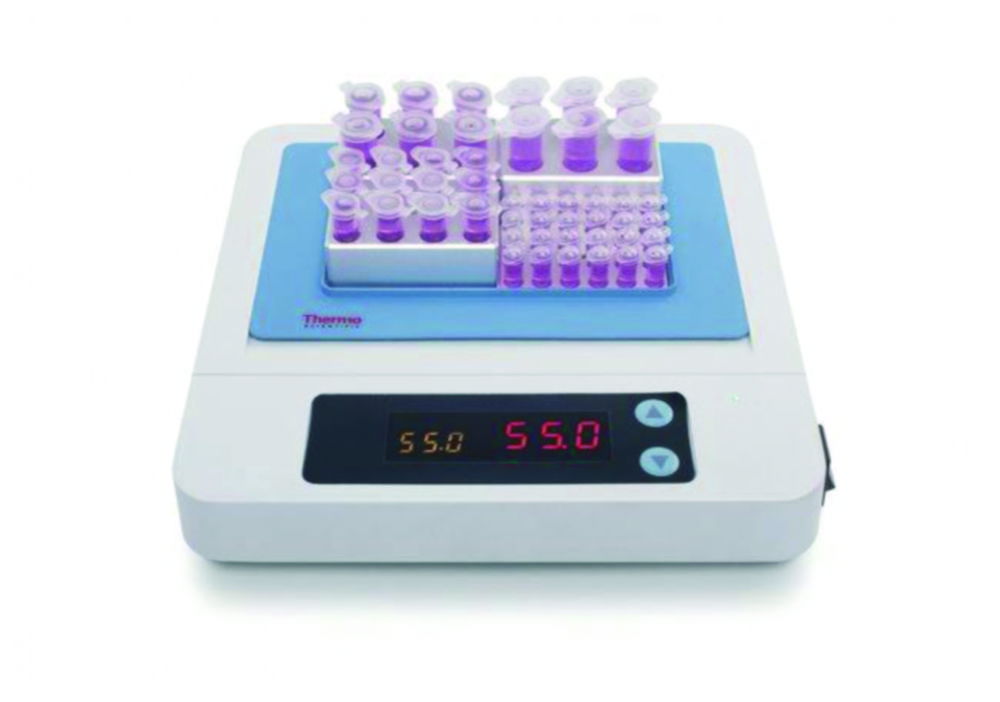

Thermo Scientific™ Compact Digital Dry Bath/Block Heater S and D
Built-in temperature-sensing probe assists with outstanding temperature accuracy and controlDesigned for precise temperature controlFast heating rateMultiple combination of different size of blocks allows for maximum tube size versatility during experimental procedure12 V low voltage power inputModel S can hold 1 full block, 2 half blocks, 2 quarter blocks or 1 half Block and 2 quarter blocks.Model D can hold 2 full blocks, 4 half blocks, 8 quarter blocks or a combination of full/half and quarter blocks.Blocks are not included. Please order separately.Temperature RangeAmbient +2 °C ... 100 °CTemperature Accuracy at 37 °C≤ ± 0.5 °CTemperature stability at 37 °C≤ ± 0.5 °CHeating rate (30 °C to 100 °C, ambient at 25 °C, with one 0.2 ml block)16 min. // 20 min.Voltage100 ... 240 VElectrical Requirements12 V DC, 5 A // 12 V DC, 7 A

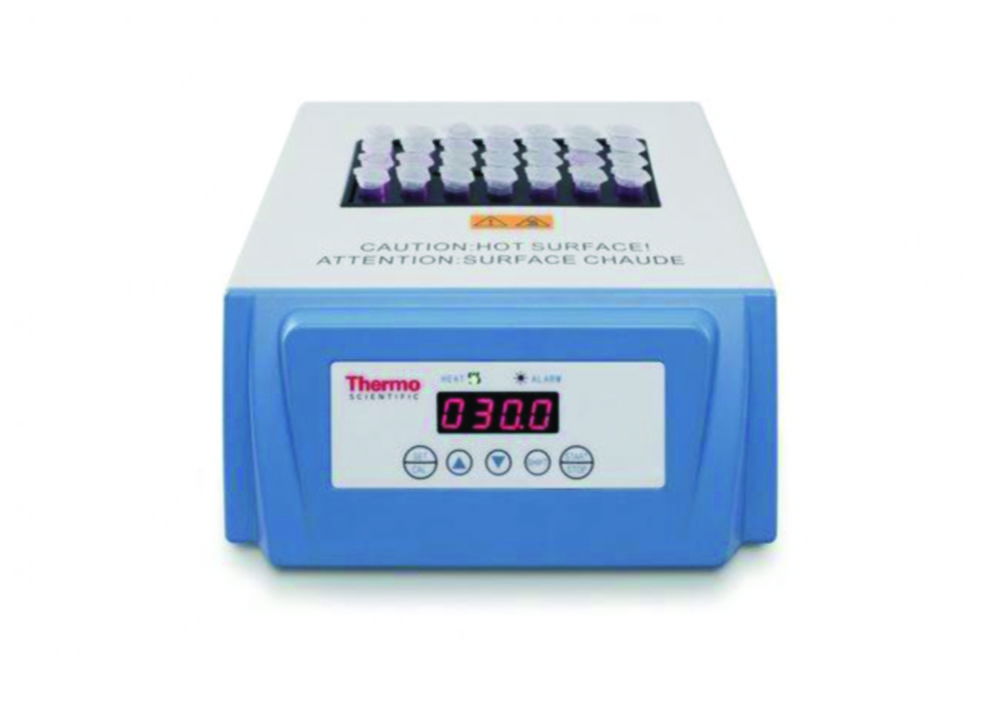

Thermo Scientific™ Digital Dry Bath / Block Heater
Thermo Scientific™ digital dry baths, which offer a range of configurations with interchangeable modular blocks for a variety of application needs.Designed for basic to advanced applications with a max temperature of 130 °C, a timer and available in 1, 2 and 4 block sizes.Digital controls and display of time and temperatureAdvanced internal temperature sensing probe for outstanding temperature accuracy and controlPrecise temperature control with PID circuitTemperature calibration enables to offset the temperature to desired valueTimer allows the user to accurately monitor the heating timeWide range of interchangeable aluminum alloy heat blocks provide versatility and allow for easy cleaning and disinfectingPowder-coated steel body construction ensures durabilityBuilt-in over-temperature protection device warrants sample and user safetyTemperature deviation adjustmentBlocks are not included. Please order separately.Relative Humidity≤ 80%Temperature Accuracy≤ ± 0.5 °CTimer0 ... 99:59 min or continuousControllerPID digitalTemperature RangeAmbient + 5 °C – 130 °C (Ambient at 25 °C)Power supply200 ... 240 V, 50/60 Hz
Thermo Scientific™ Digital Dry Bath / Block Heater Touch Screen
Thermo Scientific™ digital dry baths, which offer a range of configurations with interchangeable modular blocks for a variety of application needs.Designed for basic to advanced applications with a max temperature of 130 °C, a timer and available in 1, 2 and 4 block sizes.Touch screen control displays time and temperatureAdvanced internal temperature sensing probe for outstanding temperature accuracy and controlPrecise temperature control with PID circuitTemperature calibration enables to offset the temperature to desired valueTimer allows the user to accurately monitor the heating timeWide range of interchangeable aluminum alloy heat blocks provide versatility and allow for easy cleaning and disinfectingPowder-coated steel body construction ensures durabilityBuilt-in over-temperature protection device warrants sample and user safetyTemperature deviation adjustmentBlocks are not included. Please order separately.Temperature RangeAmbient + 5 °C ... 130 °C (Ambient at 25 °C)Temperature Accuracy≤ ± 0.5 °CTimer0 ... 99:59 min or continuousControllerPID digitalRelative Humidity≤ 80%Power supply200 ... 240 V, 50/60 Hz

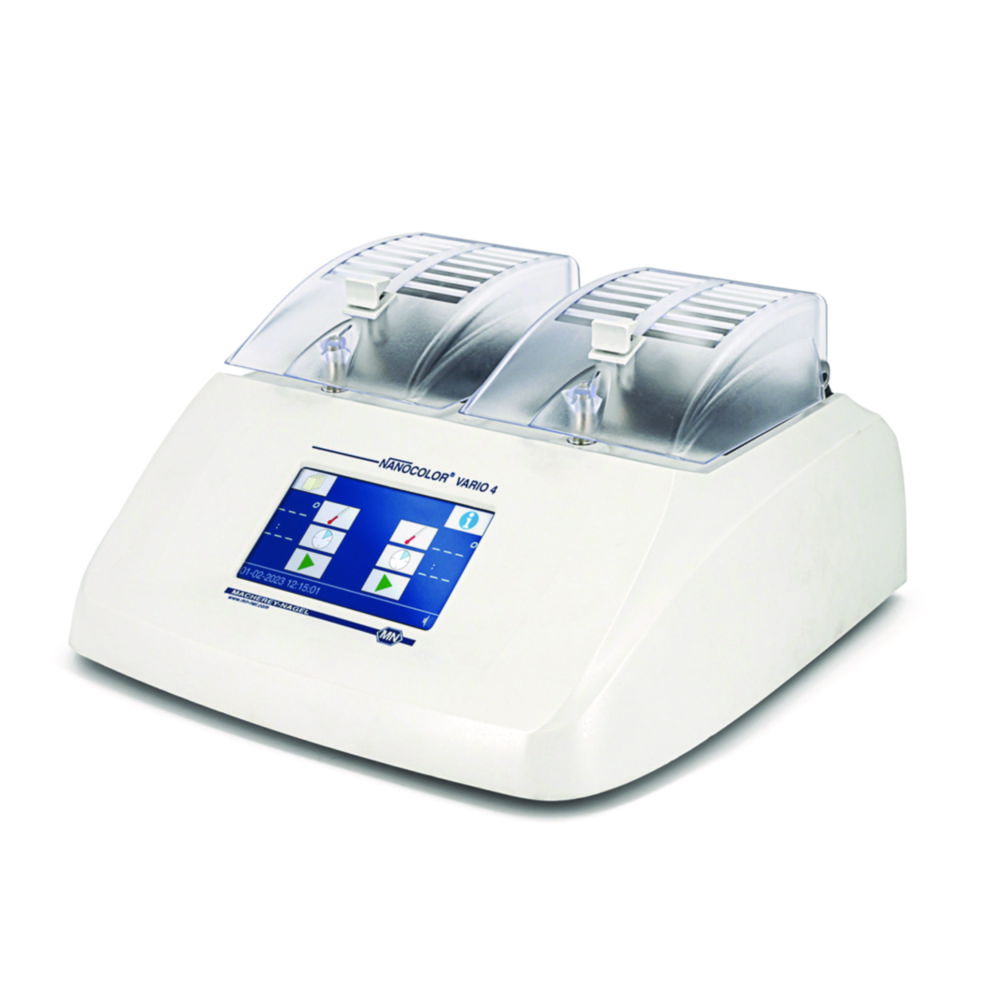

Thermoblock NANOCOLOR®
An important step in photometric water analysis is the digestion of the sample. The heating blocks NANOCOLOR® VARIO 4 and NANOCOLOR® VARIO C2 guarantee a fast and safe performance of all required sample digestions in water and waste water analysis.Thanks to its active cooling function, the new NANOCOLOR® VARIO HC features, in addition to its quick heating phase, an equally fast cool-down time. Thereby, the instrument provides an even faster sample digestion, which leads to a siginifcant saving of time.With the new NANOCOLOR® VARIO Mini, its compact size and flexible power supply, sample digestions on the road are no longer a challenge.
Transfer racks for Eppendorf ThermoMixer™ C and ThermoStat C
Autoclavable transport aid for tubes from 0.5 to 2.0 mlFor transferring up to 24 tubes in / from the heating block at the same timeOffers protection against burns when transferring hot samples
