Plug tubing connectors, PE
PE. Comprising of two pull-apart sections, similar to conical ground joint. Not suitable for high pressure applications.
Pump tubings Tygon®SI 3350, with 2 colour-coded bridges
Silicone tube, platinum-cured. Meets FDA and USP Class VI and ISO 10993. 6.266 859 without bridges.
Quick-lock coupling plugs non valved, Sixtube™-Series, Acetal
The coupling elements provide a quick lock for up to six independent connections for liquid media. The coupling is designed for various applications, such as packaging systems, pneumatic regulators, filling of air chambers, semiconductor production, water softeners and measuring equipment. Integrated connections for short installation lengths and fast installation for up to six connections.
Quick-lock coupling plugs with valve, PLC Series, Acetal
For applications such as floor cleaning equipment, deionized water filtration, automated machines, compression therapy and leak detectors. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveCombinable with LC Series couplings
Quick-lock coupling plugs with valve, PLC12 Series, PP
For more demanding applications, such as battery filling systems, disinfectants, dosing pumps, pharmaceutical production and chemical processing in the semiconductor industry. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveSterilizable with gamma rays
Quick-lock coupling plugs with valve, PMC Series, Acetal
For standard applications, such as optical testing equipment, analytical equipment for chemicals, medical equipment and gas testing systems. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveCombinable with MC Series couplings
Quick-lock coupling plugs with valve, PMC12 Series, PP
For more demanding applications, such as microbiological analysis equipment, cleaner concentrates, electroplating fluids, sterilisation equipment and water pollutant analysis. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveSterilizable with gamma rays
Quick-lock couplings with valve, PLC Series, Acetal
For applications such as floor cleaning equipment, deionized water filtration, automated machines, compression therapy and leak detectors. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveCombinable with LC Series couplings
Quick-lock couplings with valve, PLC12 Series, PP
For more demanding applications, such as battery filling systems, disinfectants, dosing pumps, pharmaceutical production and chemical processing in the semiconductor industry. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveSterilizable with gamma rays
Quick-lock couplings with valve, PMC Series, Acetal
For standard applications, such as optical testing equipment, analytical equipment for chemicals, medical equipment and gas testing systems. The coupling elements are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of acetal. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: Buna-N.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveCombinable with MC Series couplings
Quick-lock couplings with valve, PMC12 Series, PP
For more demanding applications, such as microbiological analysis equipment, cleaner concentrates, electroplating fluids, sterilisation equipment and water pollutant analysis. The coupling parts are fitted with a valve. When disconnecting the coupling, both sides close tightly. Main components and stop valve made of PP. Unlocking button, springs and pins made of stainless steel 316. Material O-rings: EPDM.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installationWith stop valveSterilizable with gamma rays
Quick-lock couplings with valve, Sixtube™-Series, Acetal
The coupling elements provide a quick lock for up to six independent connections for liquid media. Stop valves can be used in the coupling, but not in the plug. With the unlocking button, six lines can be disconnected at once by pressing with the thumb. The coupling is designed for various applications, such as packaging systems, pneumatic regulators, filling of air chambers, semiconductor production, water softeners and measuring equipment.Main components, stop valve (natural white) and unlocking button (turquoise green) made of acetal, springs made of stainless steel 316. Material O-rings: Buna-N.Unlocking button for one-handed operationIntegrated connections for short installation lengths and fast installation for up to six connectionsWith stop valve
Reducing tube connectors, PP
For connecting elastic tubes with different inner diameter.Temperature resistant from 0 to 110 °CGood chemical resistance
Rubber Tubing, Viton®
Fluoroelastomer Rubber (FPM), blackTemperature range -10 to over 200 °CGood resistance to ozone and weathering, as well as benzine and mineral oilDurometer 75 Shore ASupplied per meter.
Safety gas hoses, rubber, without reinforcement
According to DIN 30664 section 1. Without cable armor. Connecting line for connecting between safety gas connection fitting according to DIN 3383-4 and gas burners for laboratories according to DIN 30665 section 1. For all gases according to DVGW worksheet G 260, at pressures up to 100 mbar and temperatures up to 70°C. Installations according to DVGW-TRGI 2008 and DVGW worksheet G 621. DVGW Reg.-No. NG-4607AU2362. Supplied per meter.

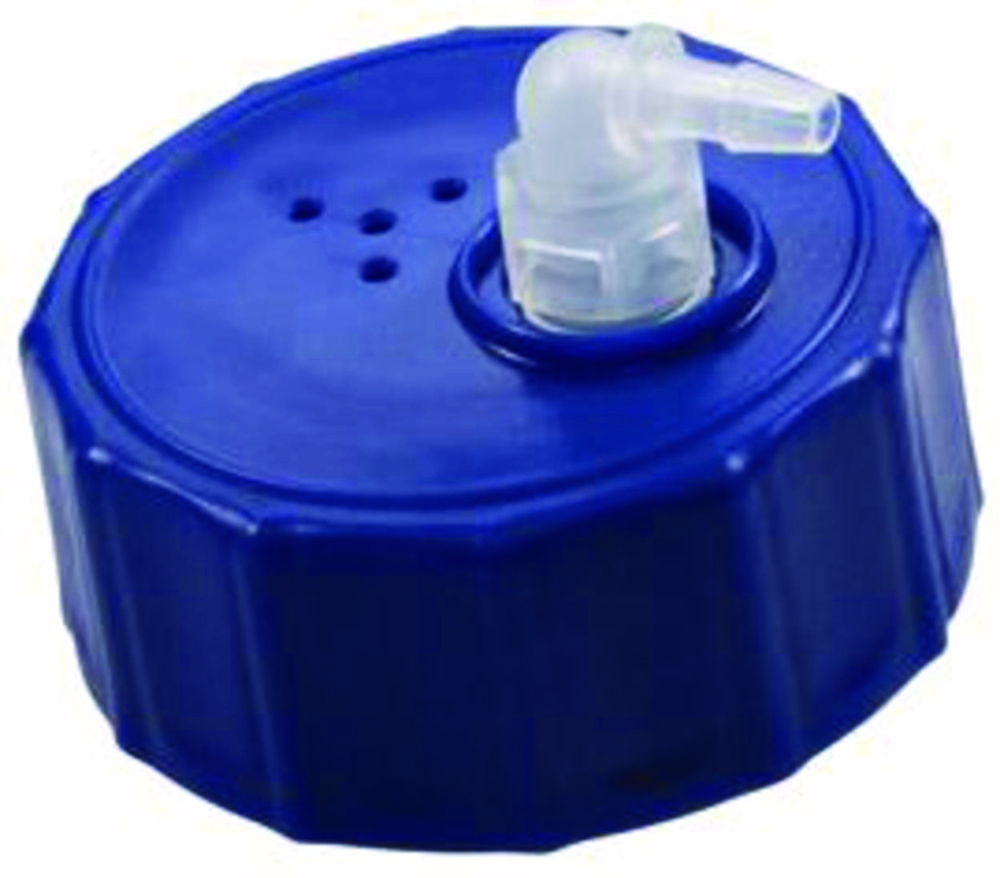

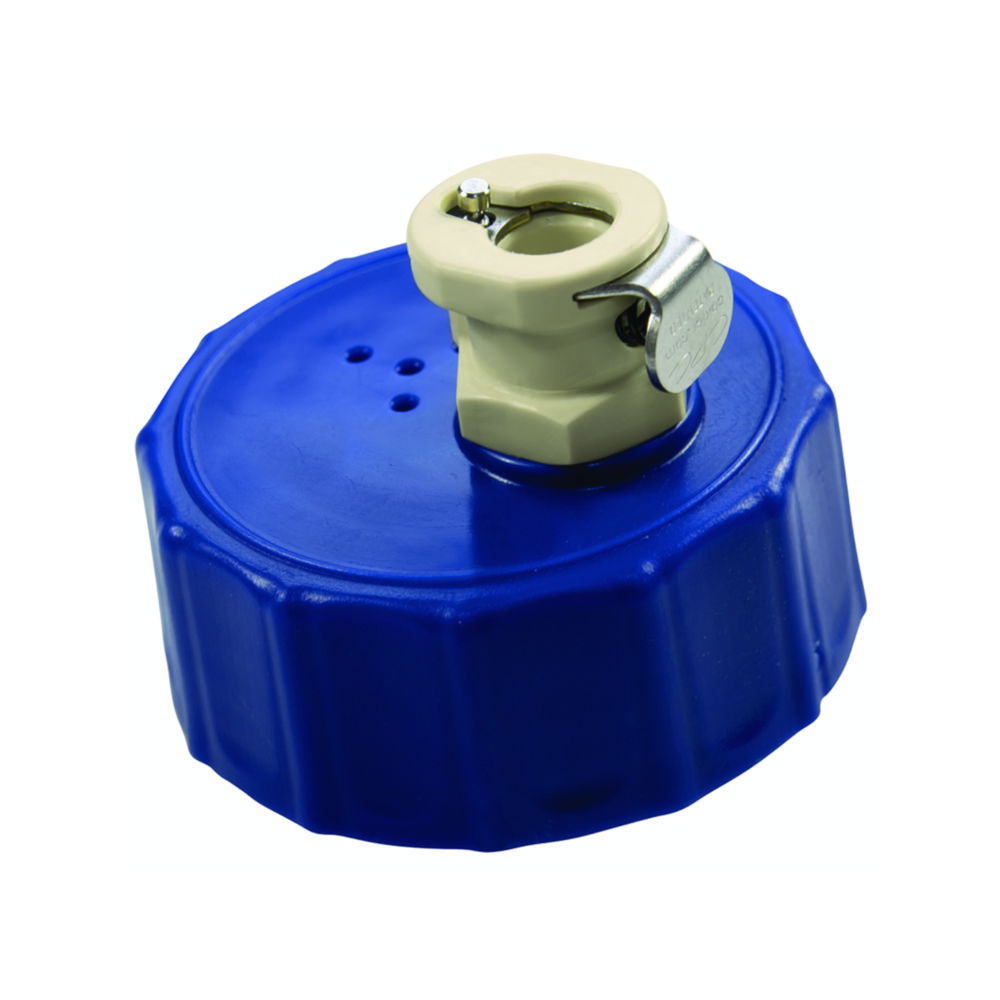

Screw caps GL 45 with general purpose coupling, BQ45GL Series
The bottle caps with quick disconnect coupling or FitQuik® tubing connection integrated in a cap for all common laboratory bottles with GL 45 thread, blue. The BQ45GL series has a hydrophobic packaging vent, a polyethylene gasket and hose barb with 1/1'' (6.35 mm) ID for mounting a dip tube.For all bottles with thread GL 45Factory-installed quick couplingsTight closure even without sealOne hand operationSpecificationsNominal size:1/4"Operating temperature:0 ... 49 °C
