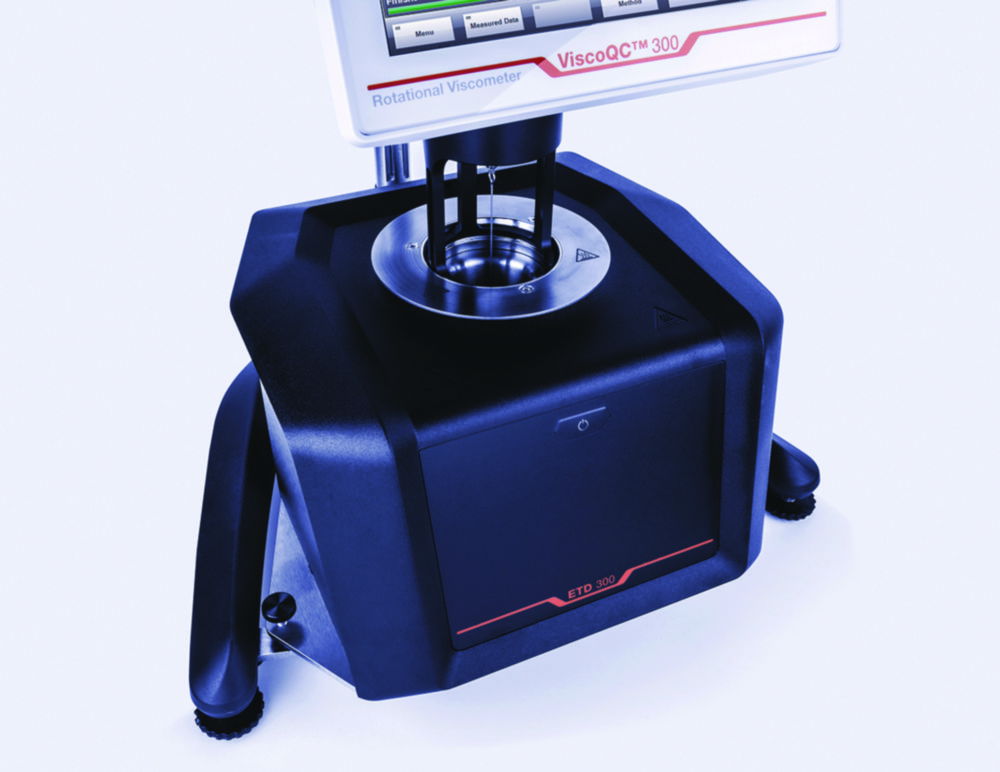

Temperature chamber ETD 300 for rotational viscometers VisQC
Temperature control from +25 to +300 °CFull control via the ViscoQC displayFor measurement of bitumen, hot melts, polymers, waxesComplies with ASTM D4402, D3236, AASHTO T316, EN 13302 and more
Test and standard liquids
Under ISO 9000 Quality protocols, all meters used in production and testing processes must be periodically recalibrated using nationally-treaceable standards. Thermo offers these in different qualities. Other test liquids are available on request.
Thermostat vessel for ViscoClock plus, DURAN®
For tempering of samples in a viscometer, as an alternative to a special glass-panelled bath thermostat. ViscoClock plus has to be connected via hoses to a suitable thermostat bath circulator. For safety reasons, the range of measuring temperatures is restricted to ±15 °C compared to room temperature. The use of an additional magnetic stirrer is recommended.Temperature range: 10 to 40 °CAccuracy: ±0.05 KTubing olive (diam.): 10.5 mmMagnetic stirring bar: approx. 40 mm

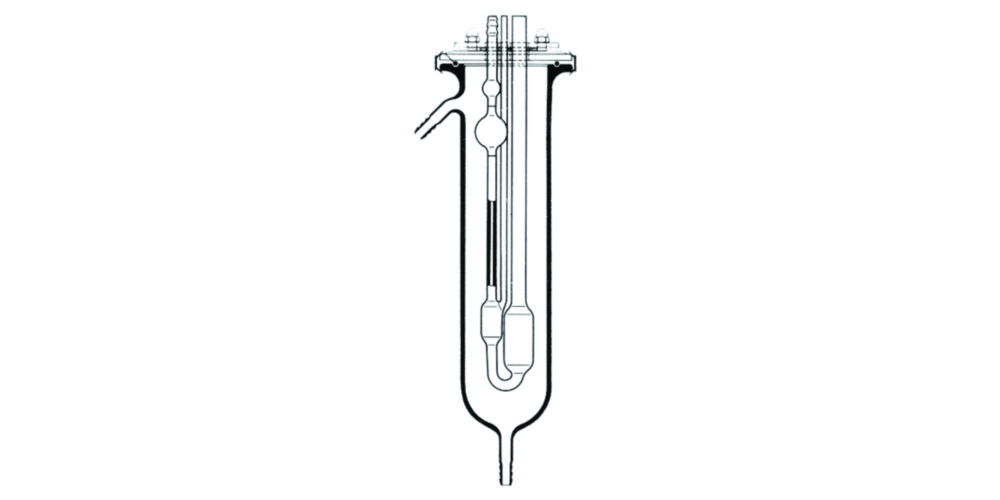

Viscometer heating jacket
With support plate for Ubbelohde and capillary viscometers. Can be thermoregulated in temperature control mantles with circulation thermostats.

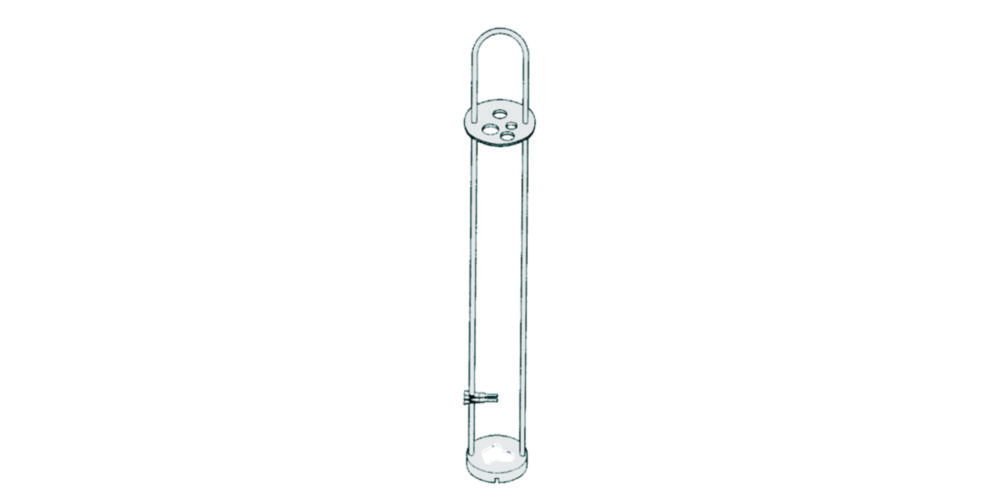

Viscometer holders
VA steel. Suitable for all Ubbelohde viscometers without TC sensors. For manual and automatic measurements. Holds the viscometer perpendicularly. Accuracy <1°. Protects the viscometer from damage.
Viscometer RM 100 PLUS
For determination of the dynamic viscosity of liquids. With wide speed and torque range, integrated PT100 temperature probe and springless measuring system. Various spindles available, e.g. compatible with DIN and ASTM methods (Brookfield). Operated via a large 7" touch display. The viscometer is widely used, for example in the food, cosmetics and chemical industries.One device for the complete viscosity rangeEasy to useUnlimited number of rotation speedsDisplay of viscosity, speed, torque, time and temperatureAvailable units: P/cP, Pas/mPas or shear rateUser interface in English, French, Spanish and RussianRS 232 and USB interface for data transferPrinter connectionIntegrated user managementMethods can be programmed and stored Please order measuring spindles and accessories separately.SpecificationsSpeed range:0.3 ... 1500 rpmViscosity range: Torque range:1 ... 780,000,000 mPa s 0.05 ... 30 mNmtemperature range:-50 ... 300 °CAccuracy:±1 % (full scale)Repeatability:±0.2 %Dimensions head (L x W x H):180 x 135 x 250 mmDimensions stand (L x W x H):280 x 200 x 30 mmLength of rod: Weight:500 mm 6.7 kgPower supply:90 ... 240 V, 50/60 Hz

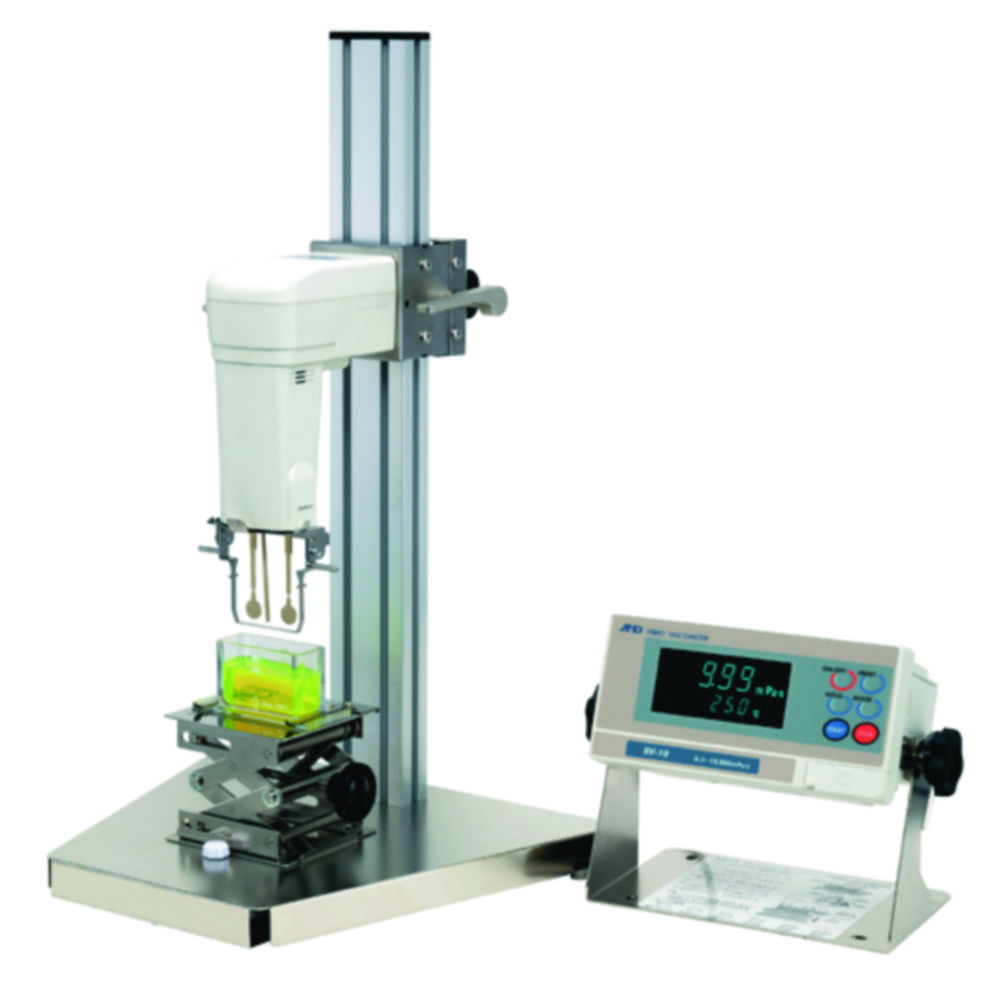

Viscometer SV-10 / SV-100
Sine-wave Vibro Viscometer SV-10/SV-100 measures viscosity by detecting the driving electric current necessary to resonate the two sensor plates at constant frequency of 30 Hz and amplitude of less than 1 mm.Wide range of measurementsTemperature measurements: 0 to 160 °CHigh accuracy: ±1% of measured valueSmall sample size of 35 ml and optional 10 ml sample vial or 13 ml quartz glass vialEasy cleaning of stainless steel sensor plates and temperature sensor (all gold plated)WinCT-Viscosity is software to import the measured data of viscosity and temperature to a PC and graphically display the changes in real-time for your analysisEasy calibration with distilled water (SV-10)Sample heating or cooling with "Water Jacket"Approved measuring method acc. to JCSS (Japan Calibration Service Systems)

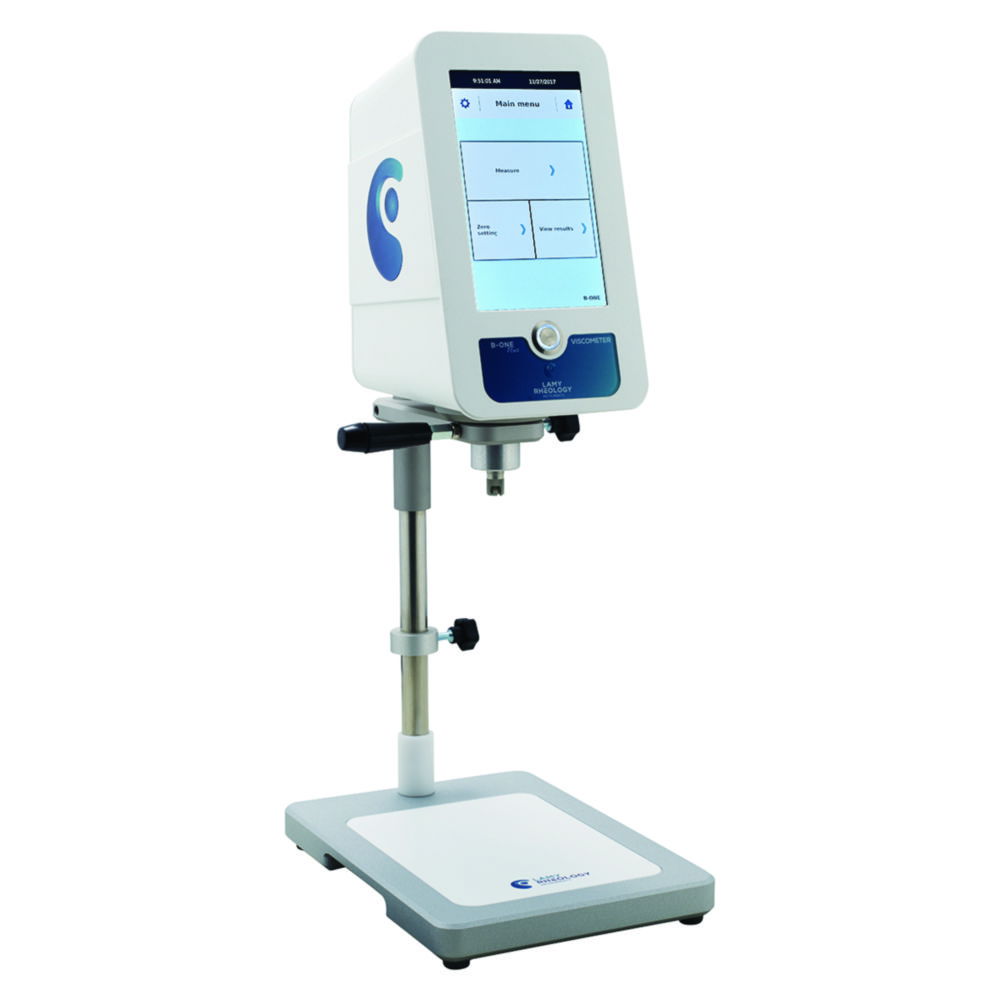

Viscometers B-ONE PLUS / FIRST PLUS
The rotational viscometer determines the viscosity of liquids by the torque with different measuring spindles. With the B-ONE PLUS, you can determine measurement times for thixotropic products. When entering the density of the product, the kinematic viscosity can also be determined. The viscometer is used mainly in the areas of cosmetics, pharmacy, colour production and chemistry.Delivery as a single unit or with the spindle sets L1-L4 or R2-R7.Measurement at different speedsViscosity range up to 240 000 000 mPas7" touch screenDifferent spindle setsEasy to useWide range of applicationsStable standDisplay settings: viscosity, speed, torque, measuring time, measurement geometryViscosity unit cp or mPasLanguage French, English, Russian, SpainFIRST PLUS additionally with:PT100 for accurate temperature measurementConnections for RS232, USB, LANSoftware optionalSpecificationsRotation speed:0.3 ... 250 rpmTorque range: Torque range LR versions:0.05 ... 13 mNm 0.005 ... 0.8 mNmTemperature range FIRST PLUS:-50 ... 300 °CAccuracy:± 1 % of full scaleRepeatability:± 0.2 %Viscosity range B-ONE PLUS with spindles L1 - L4 / R2- R7: 15 ... 22 000 000 mPas / 200 ... 240 000 000 mPasDimensions head (L x W x H):180 x 135 x 250 mmDimensions stand (L x W x H):280 x 200 x 30 mmRod length:500 mmWeight:6.7 kgPower supply90-240 VAC, 50/60 Hz

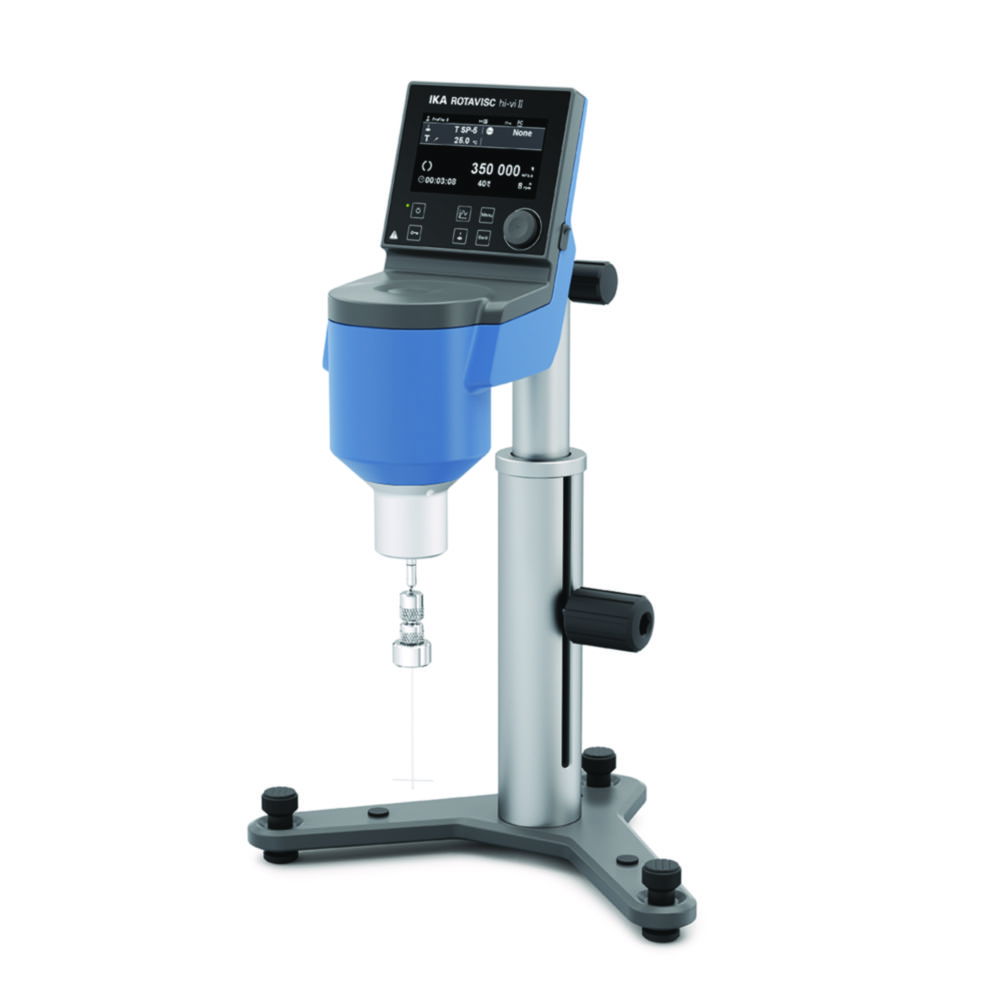

Viscometers ROTAVISC Complete
Viscometers with a large range of functions to determine the viscosity of liquids in all areas of application, ranging from laboratory to quality control. The devices are suited for different viscosity ranges. With the optional software labworldsoft 6 visc, several devices can be operated at the same time, thus expanding data processing and connecting thermostats.Highest measurement accuracyStepless speed adjustment4.3" TFT displayDigital levelSimple ramp functionWith connection for ext. PT100 sensorScope of supply: Viscometers, stand ROTASTAND, spindles SP set-2, temperature sensor PT 100.8, protective bracket

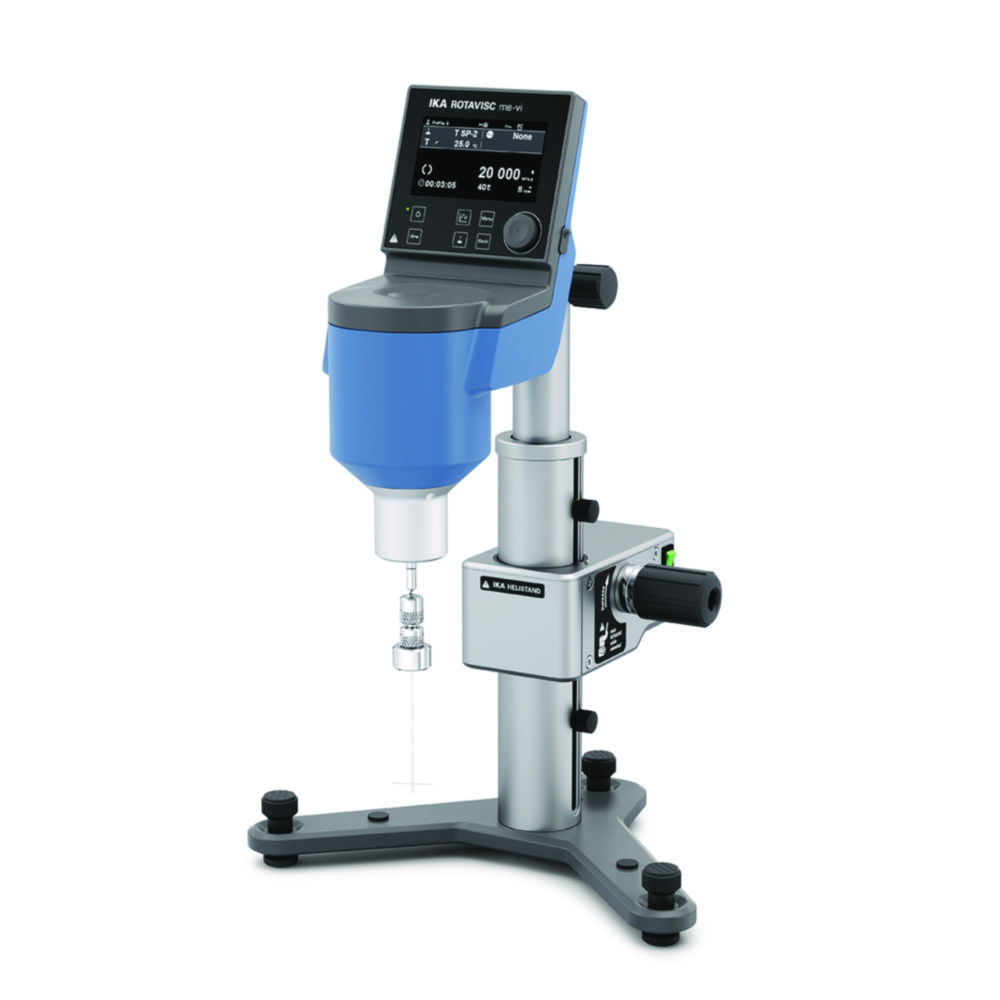

Viscometers ROTAVISC HELI Complete
For simple or demanding viscosity measurement of low-viscosity liquids in all areas of application, ranging from the laboratory to quality control. The motorized HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample.Highest measurement accuracyStepless speed adjustment4.3" TFT displayDigital levelSimple ramp functionWith connection for ext. PT100 sensorScope of supply: Viscometers, stand HELISTAND, spindles SP set-2 and T-SP-SET, temperature sensor PT 100.8, protective bracket

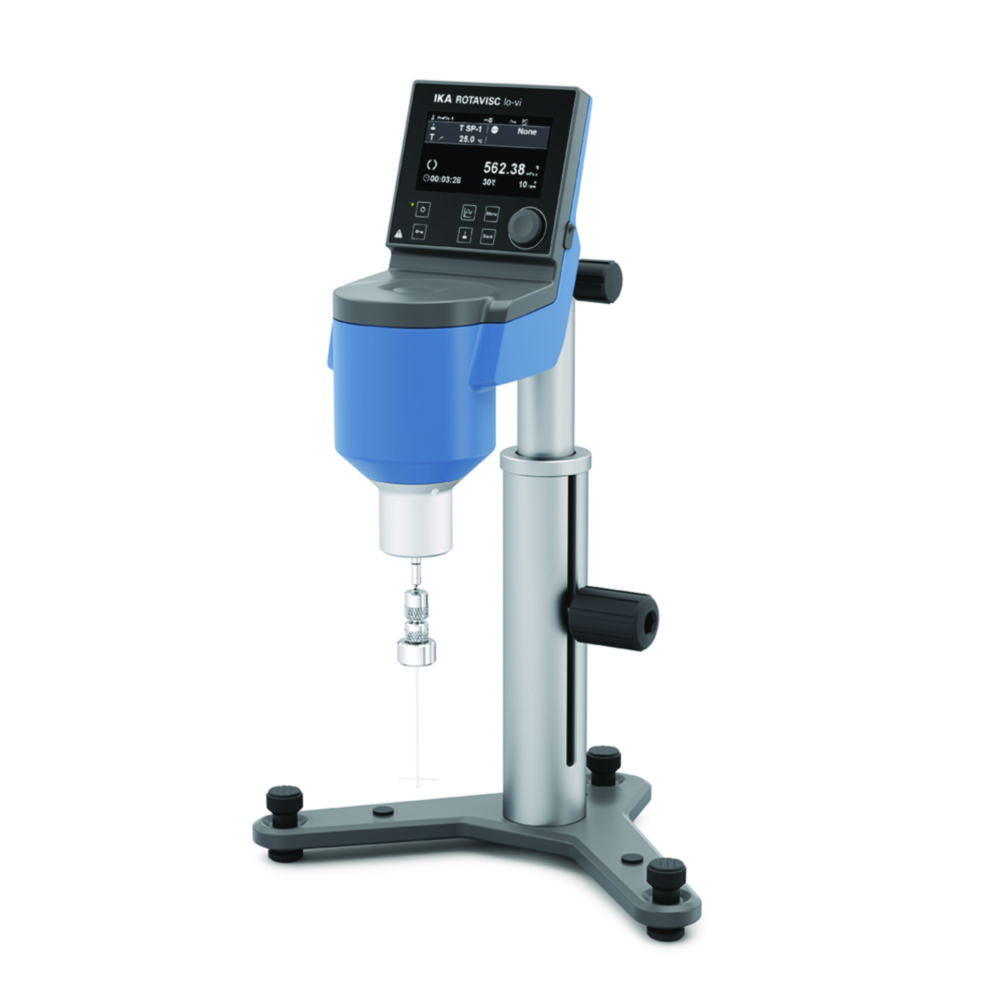

Viscometers ROTAVISC lo-vi Complete
Viscometers with a large range of functions to determine the viscosity of liquids in all areas of application, ranging from laboratory to quality control. The devices are suited for different viscosity ranges. With the optional software labworldsoft 6 visc, several devices can be operated at the same time, thus expanding data processing and connecting thermostats.Highest measurement accuracyStepless speed adjustment4.3" TFT displayDigital levelSimple ramp functionWith connection for ext. PT100 sensorScope of supply: Viscometers, stand ROTASTAND, spindles SP set-1, temperature sensor PT 100.8, protective bracket

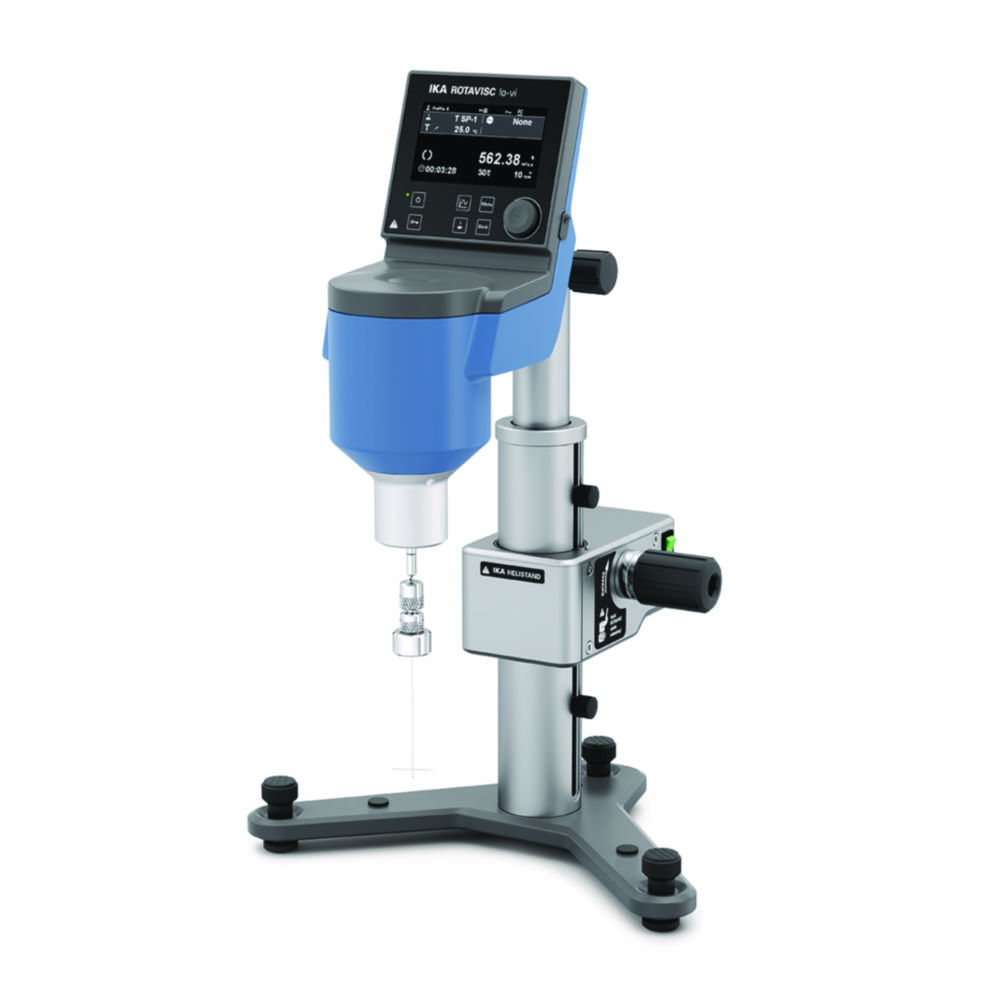

Viscometers ROTAVISC lo-vi HELI Complete
For simple or demanding viscosity measurement of low-viscosity liquids in all areas of application, ranging from the laboratory to quality control. The motorized HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample.Highest measurement accuracyStepless speed adjustment4.3" TFT displayDigital levelSimple ramp functionWith connection for ext. PT100 sensorScope of supply: Viscometers, stand HELISTAND, spindles SP set-1 and T-SP-SET, temperature sensor PT 100.8, protective bracket

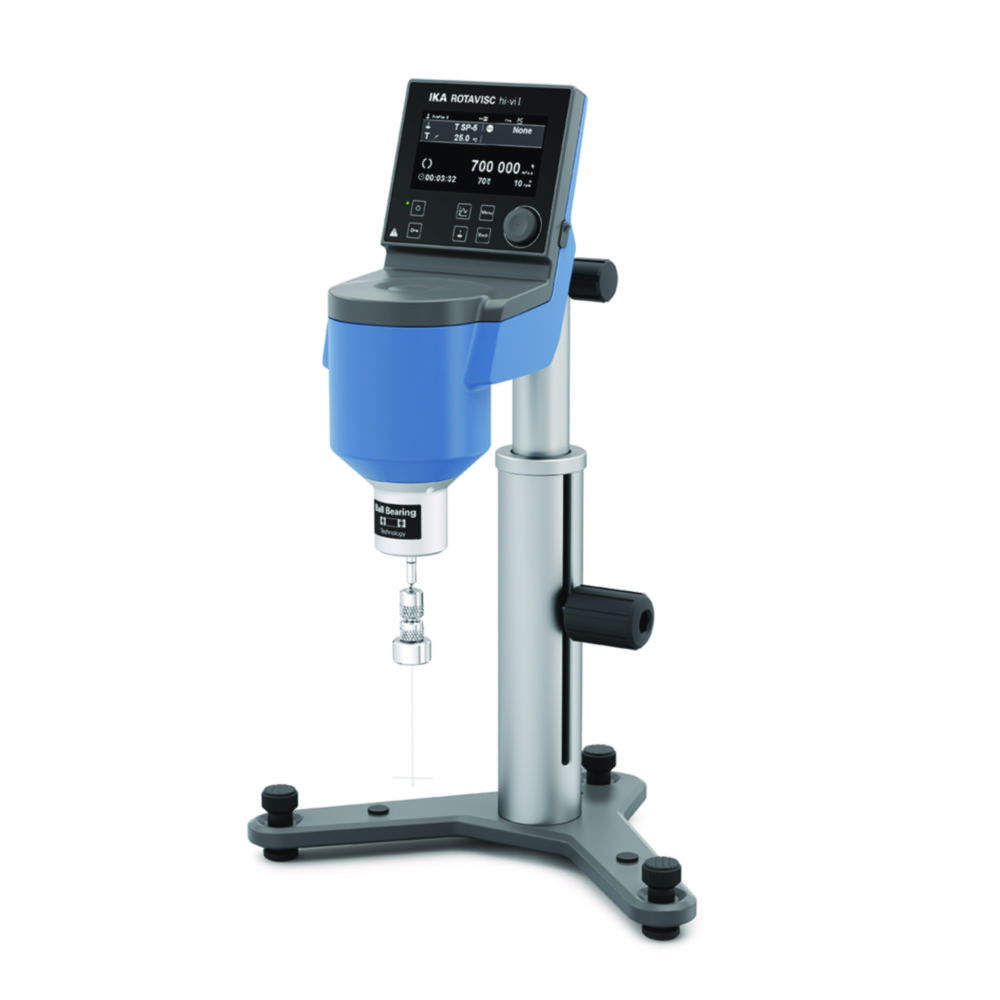

Viscometers ROTAVISC SBS Complete
Viscometers with a large range of functions to determine the viscosity of liquids in all areas of application, ranging from laboratory to quality control. The devices are suited for different viscosity ranges. With the optional software labworldsoft 6 visc, several devices can be operated at the same time, thus expanding data processing and connecting thermostats.Highest measurement accuracyStepless speed adjustment4.3" TFT displayDigital levelSimple ramp functionWith connection for ext. PT100 sensorEquipped with advanced ball bearing technology for demanding applications such as high sample throughput or frequent spindle changesScope of supply: Viscometers, stand ROTASTAND, spindles SP set-2, temperature sensor PT 100.8, protective bracket

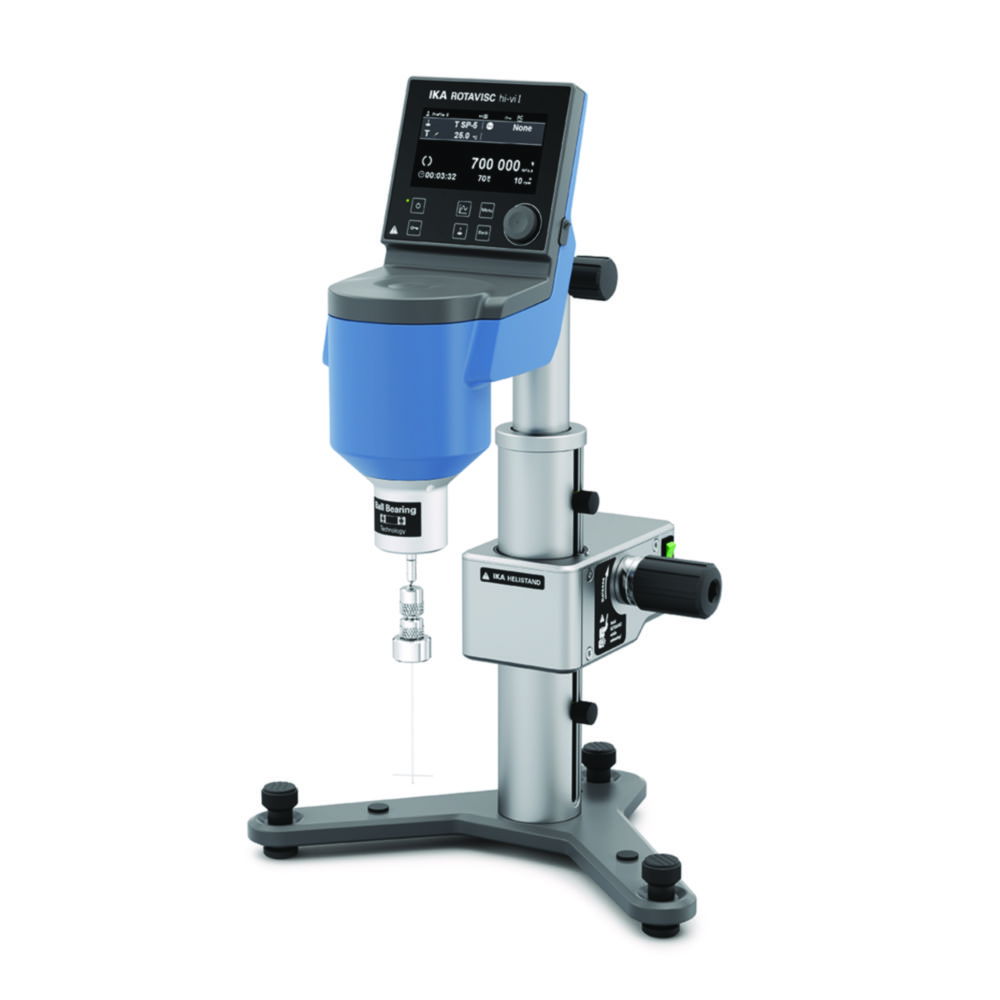

Viscometers ROTAVISC SBS HELI Complete
For simple or demanding viscosity measurement of low-viscosity liquids in all areas of application, ranging from the laboratory to quality control. The motorized HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample.Highest measurement accuracyStepless speed adjustment4.3" TFT displayDigital levelSimple ramp functionWith connection for ext. PT100 sensorEquipped with advanced ball bearing technology for demanding applications such as high sample throughput or frequent spindle changesScope of supply: Viscometers, stand HELISTAND, spindles SP set-2 and T-SP-SET, temperature sensor PT 100.8, protective bracket

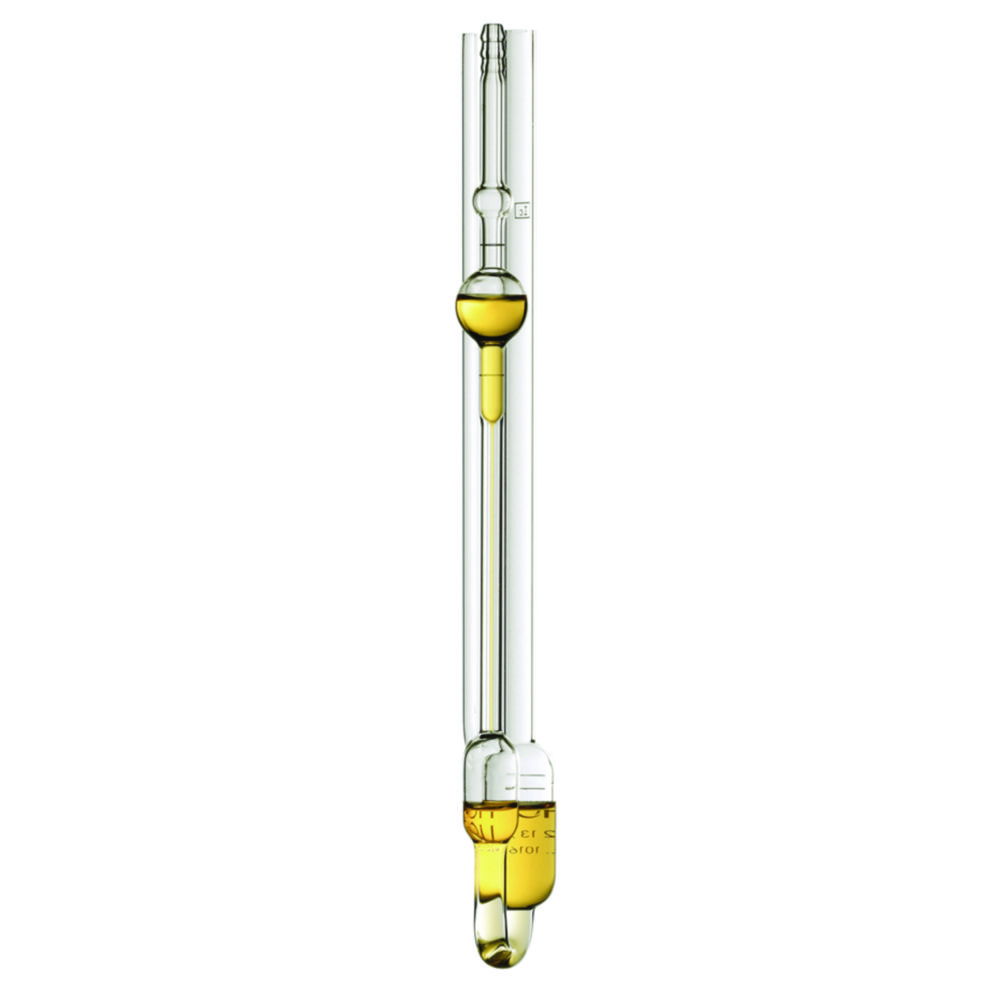

Viscometers Ubbelohde, glass, kinematic
ISO 3105, DIN 51562.For manual (type 501 ..) or automatic (type 532 ..) measurements.Constants documented in manufacturer's certificate.

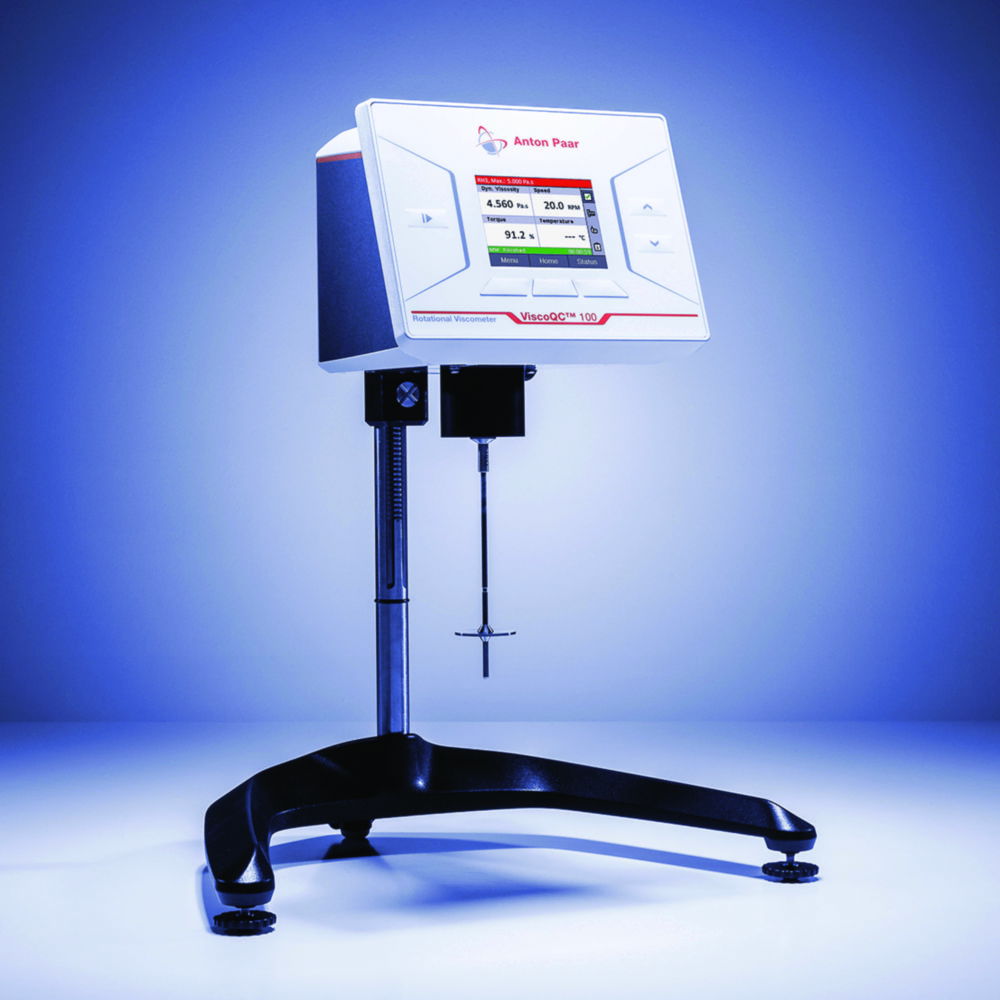

Viscometers ViscoQC 100
These viscometers cover the entire viscosity range with three models: L for low viscosity, R for medium viscosity and H for highly viscous samples.Digital levelling function for verification of the alignmentMagnetic spindle coupling for a quick exchange of spindlesAutomatic spindle recognition Toolmaster™ prevents errors in spindle selectionT-Ready™ automatically displays the adjustment of the sample temperatureAutomatic speed search TruMode™ finds the right speed for unknown samplesAutomatic spindle protection detection TruGuard™ for automatic detection of the guardPredefined modes/methods: manual mode TruMode™, stop at specific torque / specific temperatureData transfer via V-Collect PC software Dymo® LabelWriter™Scope of supply: Viscomerter, Toolmaster™, magnetic coupling, 6 spindles (R and H) or 4 spindles (L) out of AISI 316L, tripod, power supply unit, USB-cable, data collection software V-Collect, printed SOP, instructions3.5" colour LC displayDirect print / export

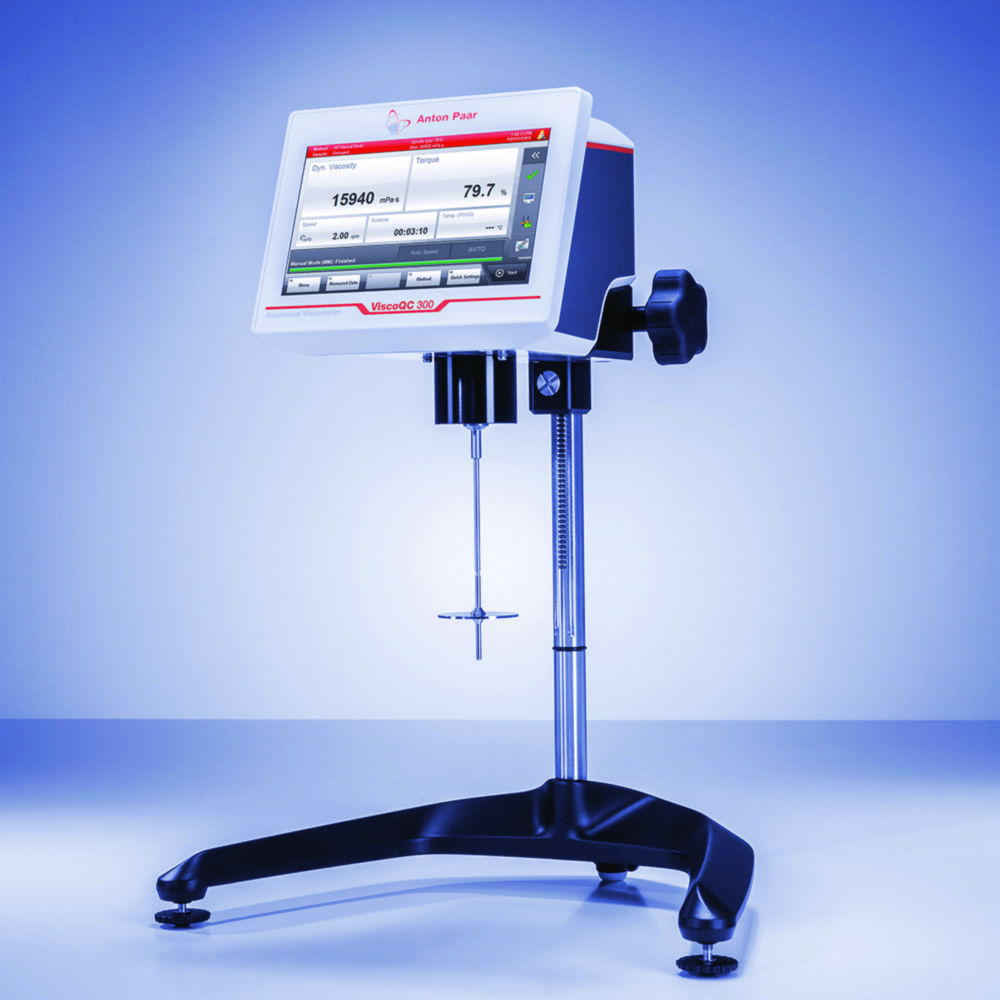

Viscometers ViscoQC 300
These viscometers cover the entire viscosity range with three models: L for low viscosity, R for medium viscosity and H for highly viscous samples.Digital levelling function for verification of the alignmentMagnetic spindle coupling for a quick exchange of spindlesAutomatic spindle recognition Toolmaster™ prevents errors in spindle selectionT-Ready™ automatically displays the adjustment of the sample temperatureAutomatic speed search TruMode™ finds the right speed for unknown samplesAutomatic spindle protection detection TruGuard™ for automatic detection of the guardPredefined modes/methods: manual mode TruMode™, stop at specific torque / specific temperatureData transfer via V-Collect PC software Dymo® LabelWriter™Scope of supply: Viscomerter, Toolmaster™, magnetic coupling, 6 spindles (R and H) or 4 spindles (L) out of AISI 316L, tripod, power supply unit, USB-cable, data collection software V-Collect, printed SOP, instructions7" colour LC displayData memory (up to 999 measurements)Print/export from data memory, PDF-export, CSV-table, LIMS page printer (USB or network)Predefined modes / methods: stop at specific viscosity, speed / temperature scanAll methods with QS-Limit-function, instructionsUser, user groupsUpgradeable software packages (V-Curve and / or V-Comply)
Viscometers, glass, kinematic, Ubbelohde
To ISO 3105, DIN 51562.Not calibrated, without documentation of the viscometer constant.For manual and automatic relative measurements.
