Immersion circulator IC control
Immersion thermostat for tempering liquids in open or covered vessels up to a temperature of 250 °C. With integrated, extendable stainless steel bath bridge for hanging in bath tanks of various sizes. The control has a large, color TFT graphic display that displays all relevant process parameters. The multilingual user interface is controlled by pushbuttons and rotary knobs. With powerful pressure and suction pump in a temperature and chemical resistant plastic housing. The IC control enables fast heat-up times and stable temperature conditions and can also be used with flammable liquids. With integrated cooling coil and easy switching between internal and external control.Complete packages with all necessary components (bath vessels, covers, bath bridges, pump connection sets and cooling coils) are also available.Detachable display for wireless remote control, e.g. outside of closed fume hoodsVisual and acoustic warning functionsWith integrated M16 x 1 connections for external applicationsAdjustable safety circuitElectronic timer function: 0 - 99 h 59 minConnection for solenoid valvesUSB/RS 232 interface

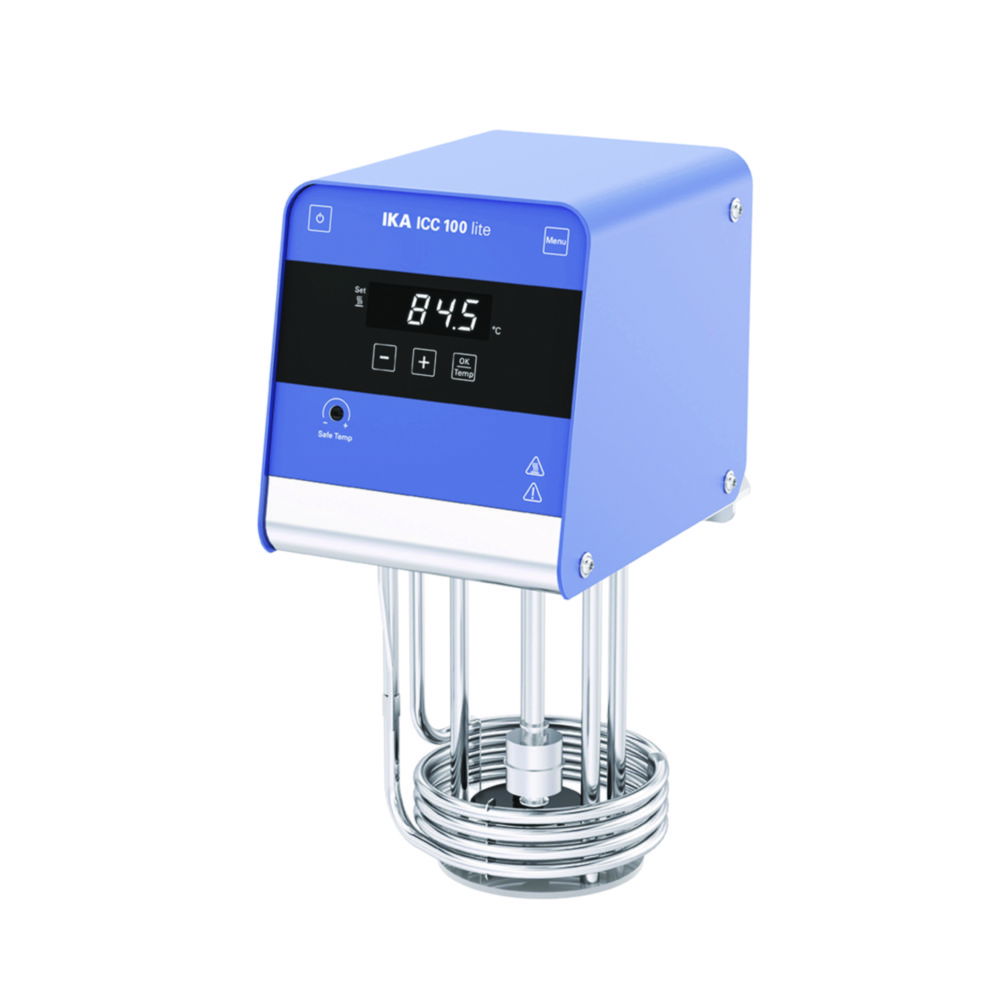

Immersion circulator ICC 100 lite
Compact and powerful immersion circulators with focus on essential basic functions, excellent performance and efficient operation.Approved for use with flammable liquids in accordance with DIN 12876, safety class IIIDurable and low-maintenance thanks to robust design and high-quality materialsHousing made of coated stainless steelIntegrated stand enables easy cleaning and prevents important components from being damagedUSB and RS232 interfaceSuitable for temperature control of liquids up to 100 °C. With internal circulation.

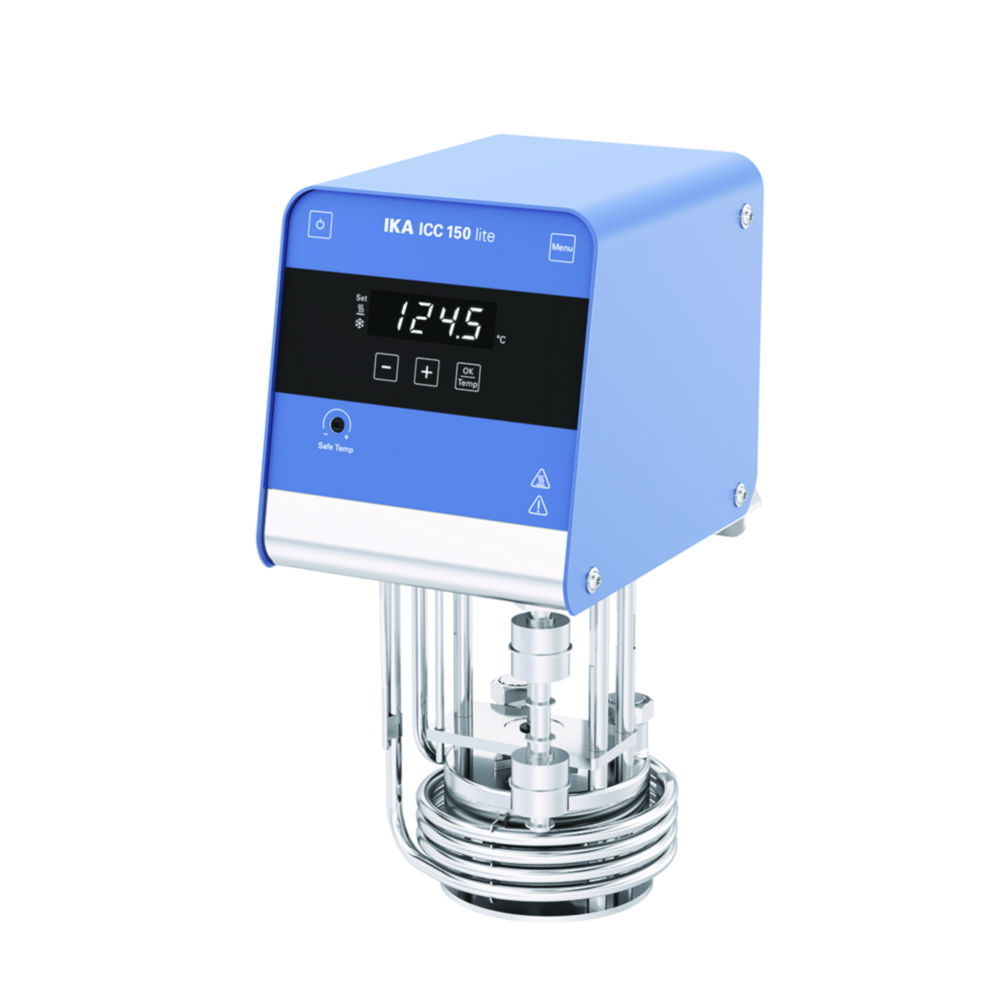

Immersion circulator ICC 150 lite
Compact and powerful immersion circulators with focus on essential basic functions, excellent performance and efficient operation.Approved for use with flammable liquids in accordance with DIN 12876, safety class IIIDurable and low-maintenance thanks to robust design and high-quality materialsHousing made of coated stainless steelIntegrated stand enables easy cleaning and prevents important components from being damagedUSB and RS232 interfaceSuitable for temperature control of liquids up to 150 °C. The integrated pressure/suction pump enables the use of for internal and external applications.

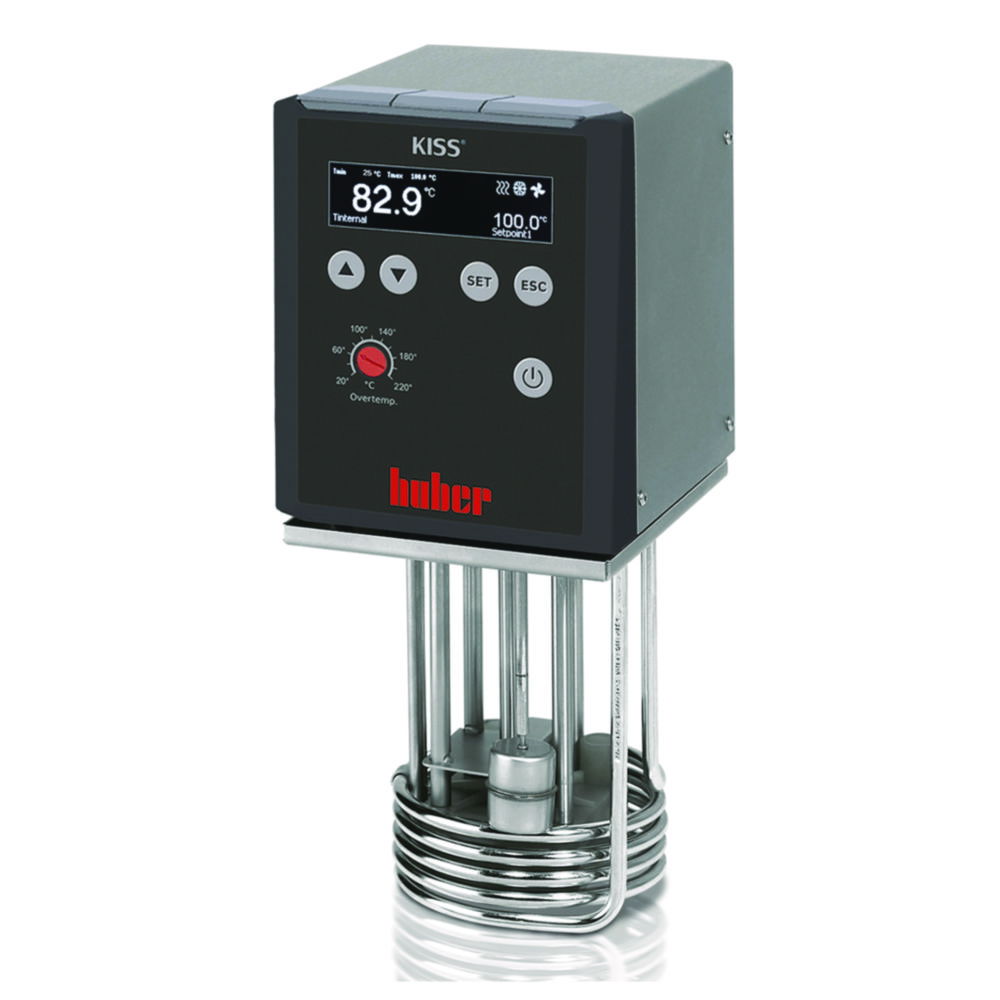

Immersion circulator KISS E
Immersion circulator with powerful pressure/suction pump and KISS controller. Ideally suited for a variety of typical laboratory applications, such as sample temperature control, analytics, material testing, as well as for external temperature control of measuring devices or test set-ups. The device is equipped with overtemperature and low level protection. The scope of supply includes a screw clamp, which allows the thermostats to be mounted very easily on any type of vessel.Large, bright OLED displaySimple operation with menu navigationSimultaneous display of setpoint, actual temperature, Tmin, TmaxStatus displays for pump, cooling and heatingRS232 and USB interfaceAutostart function for power failureSafety class III (FL) acc. to DIN 12876

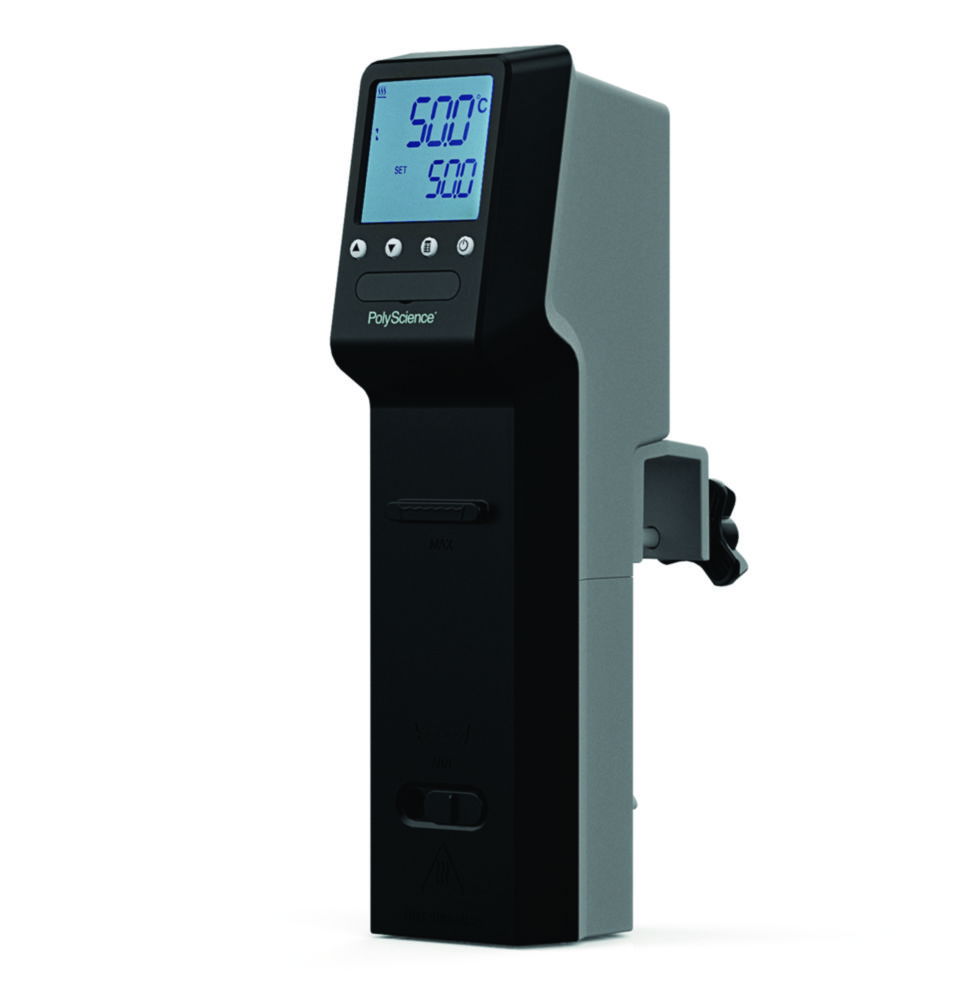

Immersion circulator MX
Immersion circulator for all kinds of water baths. It clamps securely to both straight and curved tank walls. The patented, closed housing protects the user and the heating element.Minimum working depth 7,5inch/19 cmLarge LCD-displayDisplay resolution 0,1 °CDisplays actual and set point temperature simultaneouslyIntegrated pump and heater protectionIntegrated over-temperature protectionLow liquid level protectionIncluded clamp for straight and curved tank walls
Immersion cooler IC40/50
The modern immersion cooler is used for rapid cooling of fluids, for counter-cooling in conjunction with heating circulators or as a dry ice substitute. It is primarily used for open applications. Thanks to its simple operation and handling, the device is recommended for a wide range of cooling tasks. All models work with natural, climate-friendly refrigerant. The magnetic probe holder enables flexible and stable attachment of the probe. The tool-free removable venting grid facilitates regular cleaning.Preventing unnecessary tap water consumption for coolingProbe dimensions (L x Ø) 100 x 50 mmClassification I (NFL)
Immersion cooler IC50E
The modern immersion cooler is used for rapid cooling of fluids, for counter-cooling in conjunction with heating circulators or as a dry ice substitute. It is primarily used for open applications. Thanks to its simple operation and handling, the device is recommended for a wide range of cooling tasks. All models work with natural, climate-friendly refrigerant. The magnetic probe holder enables flexible and stable attachment of the probe. The tool-free removable venting grid facilitates regular cleaning.Inclined OLED touch display with intuitive menu navigationWarnings and messages in easy-to-understand full-text languageAutoStart functionUSB interfaceConnection for a Pt100 temperature sensorPreventing unnecessary tap water consumption for coolingProbe dimensions (L x Ø) 100 x 50 mmClassification I (NFL)

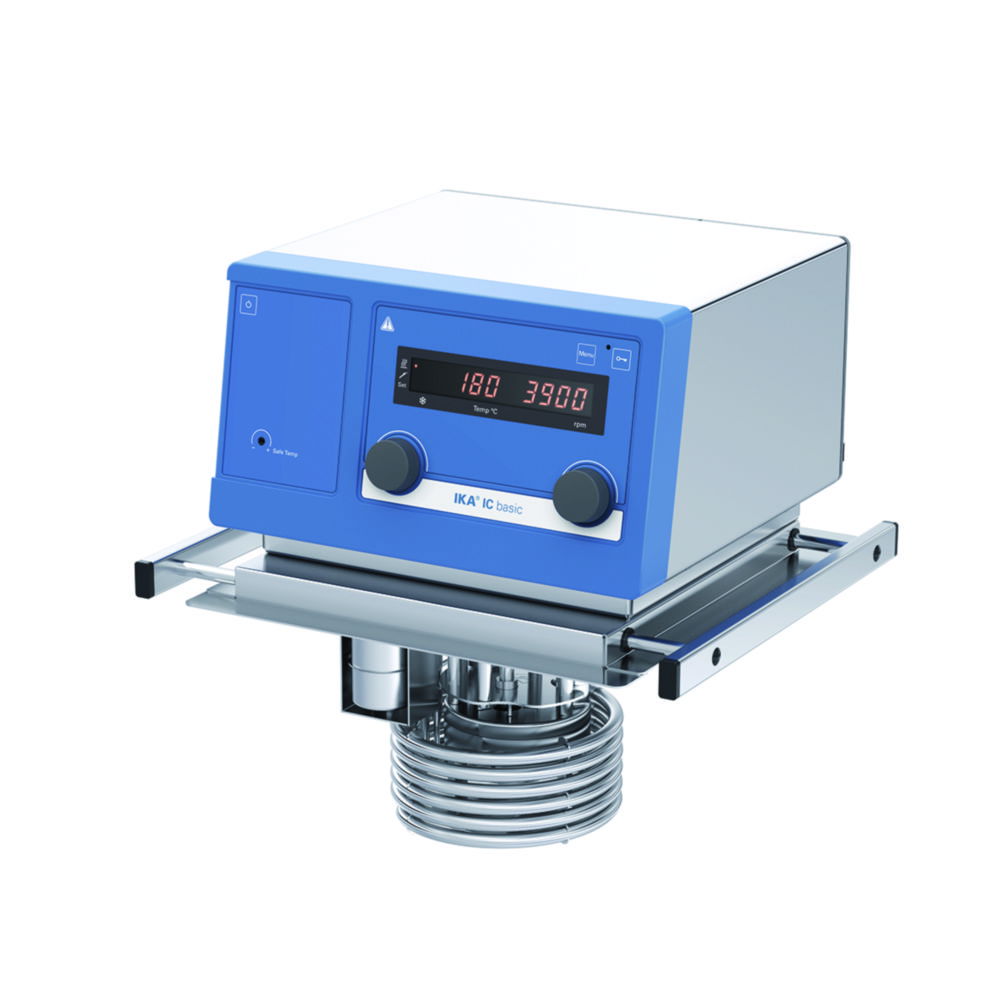

Immersion thermostat IC basic
Immersion thermostat for tempering of liquids in open or covered vessels up to a temperature of 250 °C. With integrated, extendable bath bridge for hanging in bath tanks of various sizes. The integrated, adjustable pressure and suction pump allows the IC basic to be used for internal or external applications. An optional cooling coil can be connected to the unit for temperature control below or near the ambient temperature. The IC basic ensures fast heat-up times and stable temperature conditions and can be used even with flammable liquids.Complete packages with all necessary components (bath vessels, covers, bath bridges, pump connection sets and cooling coils) are also available.Visual and acoustic warning functions for excess temperature, sub-level and over-levelLED display for adjustment of relevant parametersMenu navigation via push and turn buttonsAdjustable safety circuitIntegrated M16 x 1 connectors for external applicationsConnection for external Pt100 temperature probeUSB/RS 232 interface
Laboratory chiller LABOCOOL LC 200
The laboratory chiller LABOCOOL LC 200 is used to remove process heat and was specially developed for cooling samples in open vessels during sonication with a SONOPULS ultrasonic homogeniser. The LC 200 is characterised by a closed water circuit without an equalisation tank. This allows a constant water level in the sonication vessel and prevents overflow.Digital display shows water temperature and status of the cooling functionPowerful peristaltic pump with adjustable volume flowPractical recessed grips in the housingEnvironmentally friendly thanks to natural refrigerant R-290Protection class IIncl. connection material and hose (4 m)
Laboratory chiller LABOCOOL LC 400
The laboratory chiller LABOCOOL LC 400 is used to remove process heat and was specially developed for cooling samples during sonication in an ultrasonic bath. The LC 400 is characterised by a closed water circuit without an equalisation tank. This prevents the ultrasonic bath from overflowing.Digital display shows water temperature and status of the cooling functionPowerful centrifugal pumpPractical recessed grips in the housingEnvironmentally friendly thanks to natural refrigerant R-290Suitable for all SONOREX ultrasonic baths with bottom drainProtection class IIncl. connecting hub, three-way ball valve and hose (3 m)
Labwise software for Thermostatic controllers Optima™ series
Permits the remote set-up and programming of thermostats with interface from a PC. Real-time temperature / time profile and graphic representation of processes. Profile documentation and programme memory on disk. Minimum requirements: Microsoft Windows XP, Vista (32/64 bit), or Windows 7 (32/64 bit). Pentium III / Celeron 866 MHz or equivalent.
Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Minimizes oil vapors and odors at high bath temperatures.Suitable for heating circulators with the bath type BC12 and refrigerated circulators with the bath types 600F, 601F, 1000F.
MaloClean Aquastabil
Stabilising agent for water baths, thermostats etc.Should be prepared with distilled water if possible.Attention: Toxic to aquatic organisms with long-term effects. Avoid release into the environment.
Non-refrigerated cooler Model 3370
An economical cooling solution for applications where cooling fluid temperature is higher than ambient and temperature control is not requiredQuiet liquid-to-air coolingPositive displacement or turbine pumpBuilt-in low liquid level indicatorSpecificationsWorking Temperature Range:+5 to 70 °CMaximum Fluid Temperature:70 °CCooling Capacity:4 kW based on 11 °C ΔT (water)Overall Dimensions (L x W x H):520 x 381 x 546 mm

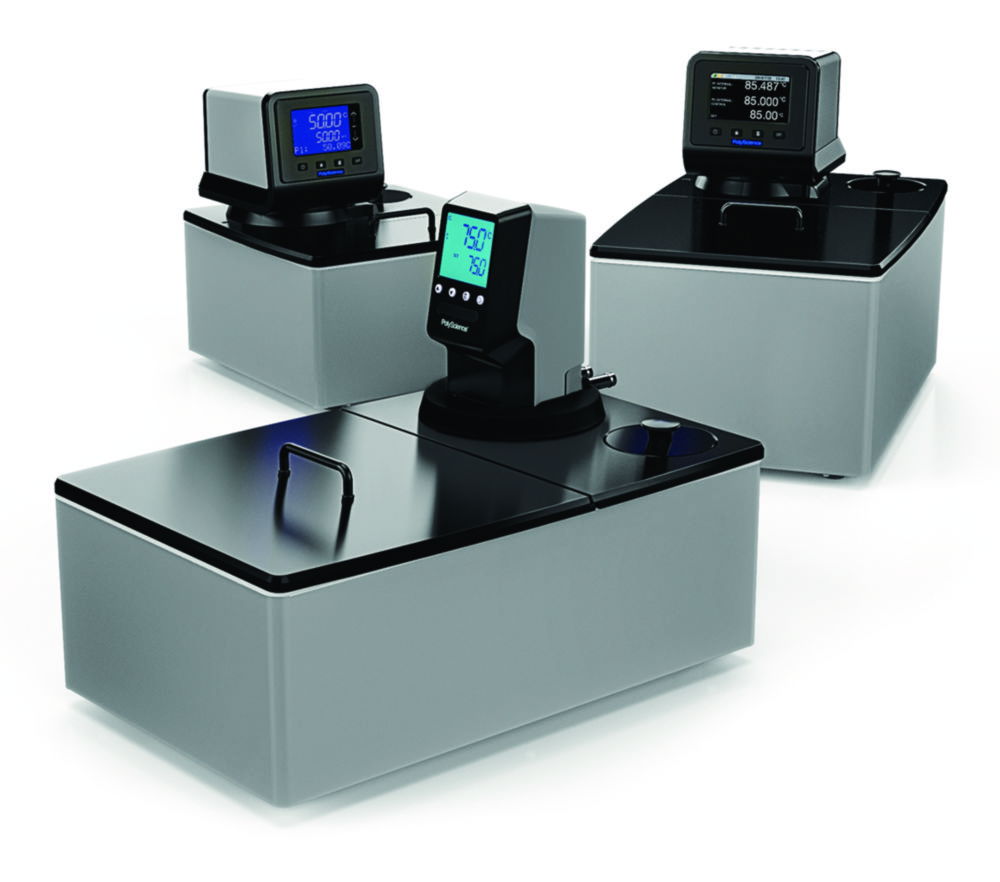

Open bath system AD, with stainless steel bath
Bath system with Advanced Digital (AD) temperature controller. Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.Intuitive 3.75" display with touch-pad controlLarge 180° rotatable Swivel 180™ displayPressure/suction pump with variable speed and external circulation capability in open and closed control loopsUSB, Ethernet, RS-232/RS-485 interfaceConnection for external Pt100 temperature sensor4 languages selectableAutomatic performance optimization and specific heat tuningSingle-point calibration capabilityClass I (NFL) acc. to DIN 12876-1
Open bath system AP, with stainless steel bath
Bath system with Advanced Programmable (AP) temperature controller. Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.Intuitive 4.3" SmartTouch displayLarge 180° rotatable Swivel 180™ displayPressure/suction pump with variable speed and external circulation capability in open and closed control loopsUSB, Ethernet, RS-232/RS-485 interfaceConnection for external Pt100 temperature sensorOpenMode time/temperature programmingEvent scheduling (time and date) with real-time clock11 languages selectableReview temperature trends for up to 10 daysMultiple selectable ‘home’ screensAutomatic and/or user adjustable performance optimisation10-point calibration capabilityClass I (NFL) acc. to DIN 12876-1
Open bath system MX, with stainless steel bath
Bath system with MX temperature controller. The Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.3.25" LCD displayPressure pump with 1 pump speedExternal circulation: closed loopSingle-point calibration capabilityClass I (NFL) acc. to DIN 12876-1
Peltier-recirculating chiller TE 400
Robust Peltier chiller with precise temperature control for simple temperature control tasks in laboratories and research facilities. It works without refrigerant and is therefore very environmentally friendly and low-maintenance. The TE 400 offers a cooling capacity of up to 400 watts and a pump capacity of up to 7 l/min. The operating mode "Silent Mode" for lower cooling power requirements significantly reduces the noise level.High temperature stabilityTouch display for easy operationEconomical and environmentally friendly operation thanks to high energy efficiency and low energy consumptionRS232 interfaceLow-maintenancePump connection thread M16x1 external thread
ProfiNet Interface
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.
Pump adapters
Complete, for KISS E, CC-E and with baths as indicated. Incl. hose connectors NW 12.
Pump set for immersion circulators CORIO™ and DYNEO™
Pump set for temperature control of external applications with pump connectors M16x1.
