Tubing insulations for refrigerated and heating circulators
Black. Tubing insulations for CR tubings.

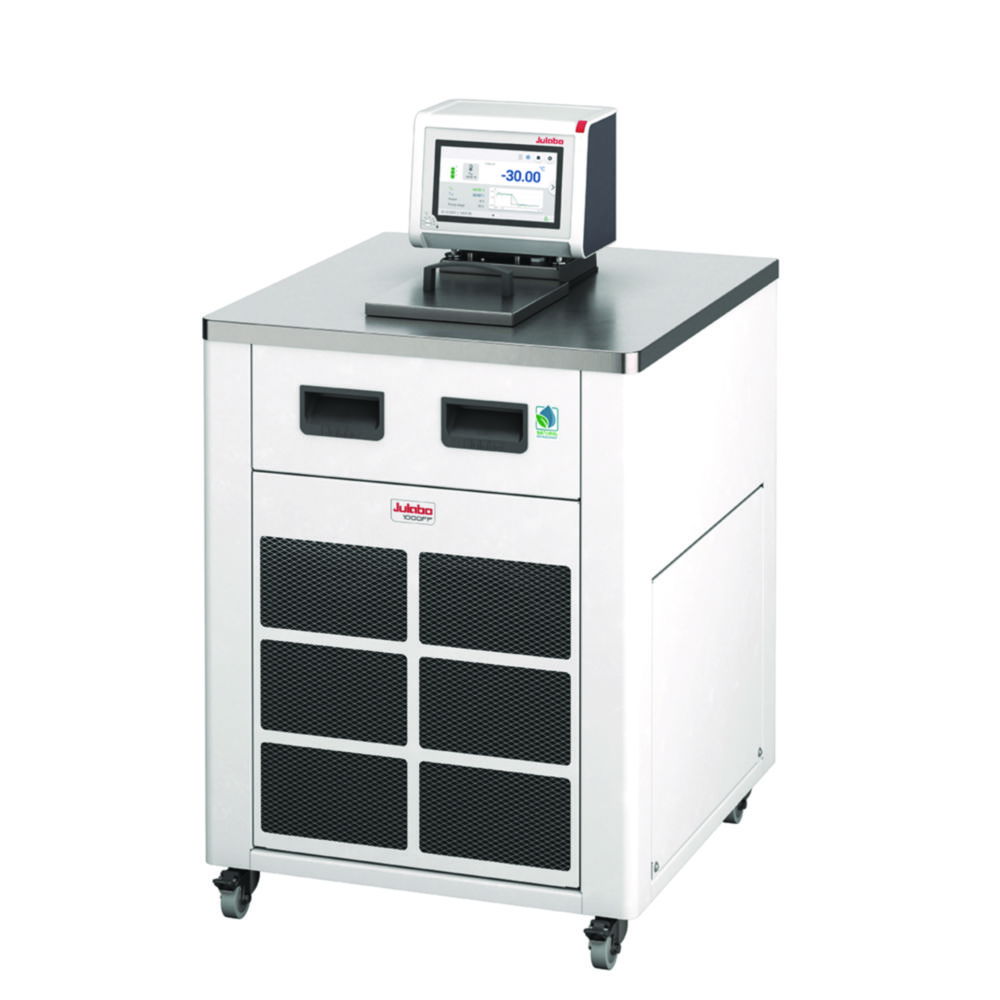

Ultra-low refrigerated circulator MAGIO MS
The ultra-low refrigerated circulator covers a wide working temperature range and offers a continuously adjustable, powerful pressure and suction pump to fulfil the high requirements for temperature control of demanding external applications. The cooling machine is equipped with sustainable, natural refrigerant in both cooling stages. The tool-free removable venting grid facilitates cleaning of the condenser and the heated bath cover plate prevents the condensation and ice build-up.Large, high-resolution TFT touch display with multilingual user interfaceIntegrated programmer for automatically running of temperature-time profilesFlow rate 16 to 31 l /min, delivery pressure 0.24 to 0.92 bar, suction pressure 0.03 to 0.4 barParts in contact with the medium made of stainless steelUSB and external Pt100 connectionEthernet and RS232 interfaceModbus TCP/IPStakei sockets for cooling water solenoid valveIntegrated pump connections M16×12 barbed fittings each suitable for tubing inner diameters of 8 and 12 mm includedClass III (FL) acc. to DIN 12876-1

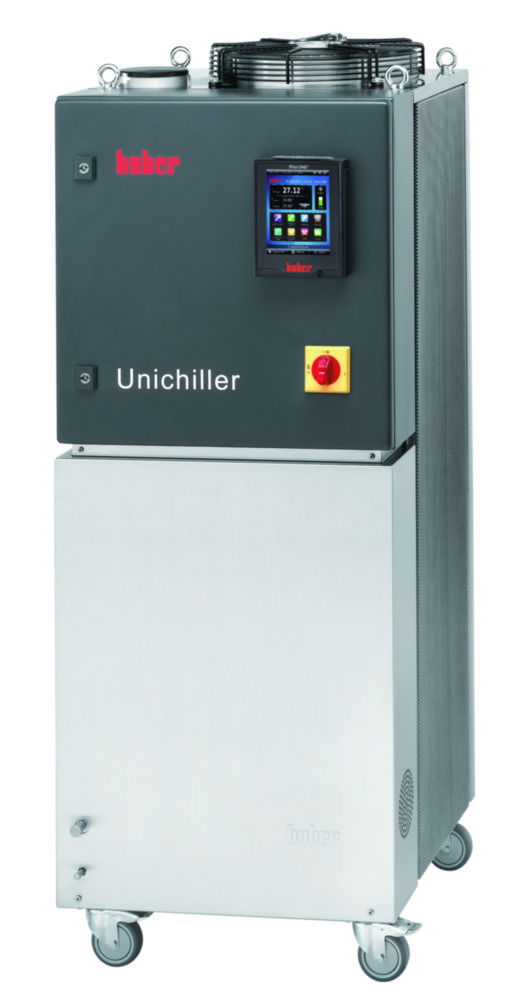

Unichiller® (tower housing) with air cooled refrigeration
Many applications depend on a reliable source of cooling. Circulating chillers in the Unichiller range offer an ideal solution for environmentally friendly and economical cooling in laboratory and industry. There are over 50 air and water cooled models to choose from, with cooling powers from 0.3 to 50 kW. Efficient energy management in all Huber chillers ensures low operating costs and reduced usage of valuable fresh water. Huber circulating chillers are a resource saving solution with a quick return on investment.Options on request: heating, natural refrigerant, externally open applications, winter option, outdoor setup.

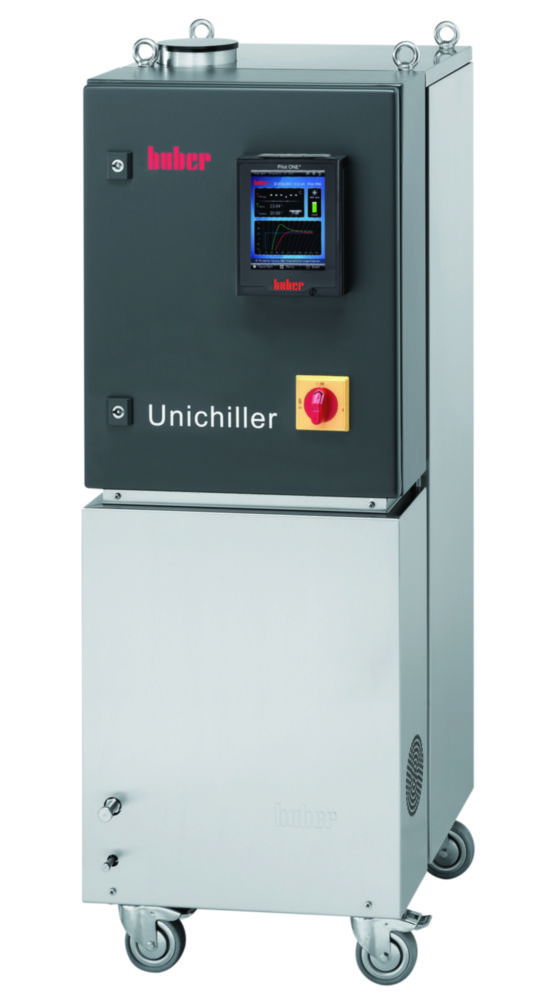

Unichiller® (tower housing) with water cooled refrigeration
Many applications depend on a reliable source of cooling. Circulating chillers in the Unichiller range offer an ideal solution for environmentally friendly and economical cooling in laboratory and industry. There are over 50 air and water cooled models to choose from, with cooling powers from 0.3 to 50 kW. Efficient energy management in all Huber chillers ensures low operating costs and reduced usage of valuable fresh water. Huber circulating chillers are a resource saving solution with a quick return on investment.Options on request: heating, natural refrigerant, externally open applications, winter option, outdoor setup.

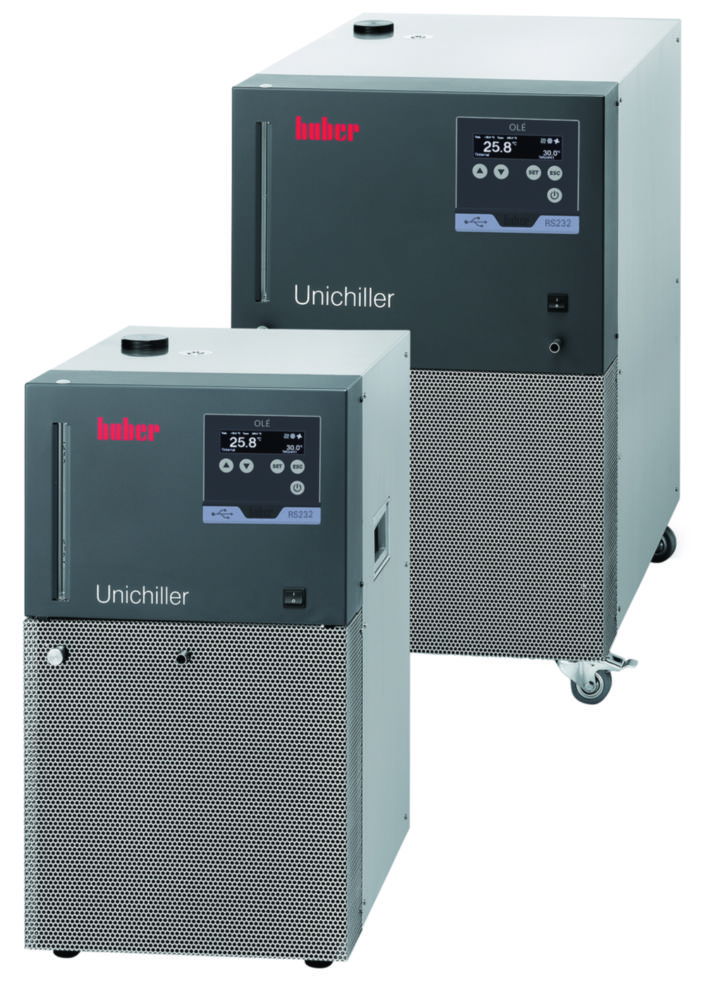

Unichiller® with OLÉ controller
High performance Unichiller with OLÉ controller for standard applications. The Unichiller with the OLÉ controller offers cooling powers up to 2.5 kW. The chiller is ideal for standard cooling applications in the laboratory or in industry. The energy efficient function of the chiller reduces the water consumption for many applications, helping to protect the environment and reducing operating costs. All models are fitted with the OLÉ controller with its modern OLED display as well as for RS232, USB interfaces and PT100 measurement sensor connection.P-models include circulating pumps with a high discharge pressure for applications with high pressure drops.Cooling power up to 2.5 kWAir- and watercooled modelsCompact, robust stainless steel housingsFitted with wheels for easy handlingOptional heating up to +100°CPower supply:230 V, 50/60 Hz
Unichiller® with Pilot ONE controller
High performance Unichiller with Pilot ONE controller for standard applications. The Unichiller offers cooling powers up to 2,5 kW. The chiller is ideal for standard cooling applications in the laboratory or in industry. The energy efficient function of the chiller reduces the water consumption for many applications, helping to protect the environment and reducing operating costs. The models are fitted with the Pilot ONE controller including 5.7" colour touch screen and 2 x USB, Ethernet and RS232 connections. P-models include circulating pumps with a high discharge pressure for applications with high pressure drops.Cooling power up to 2.5 kWAir- and watercooled modelsCompact, robust stainless steel housingsFitted with wheels for easy handlingOptional heating up to +100°CPower supply:230 V, 50/60 Hz

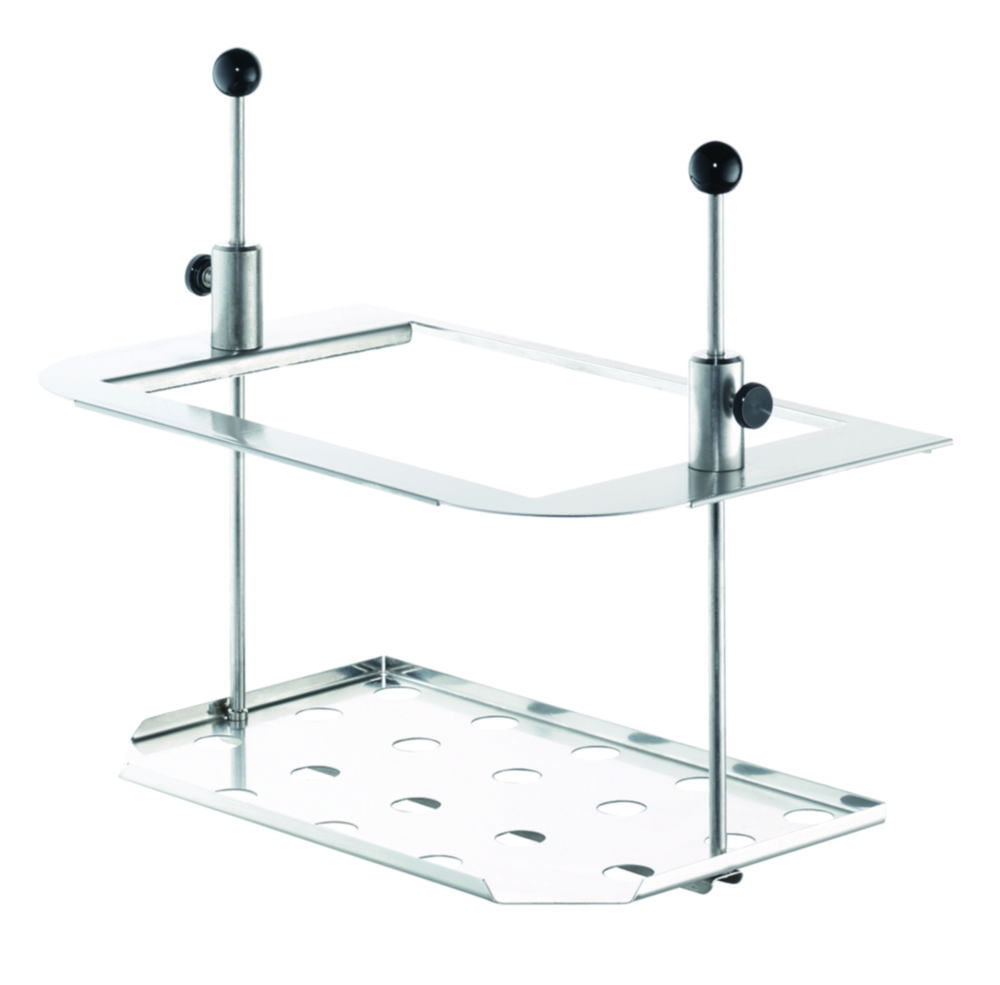

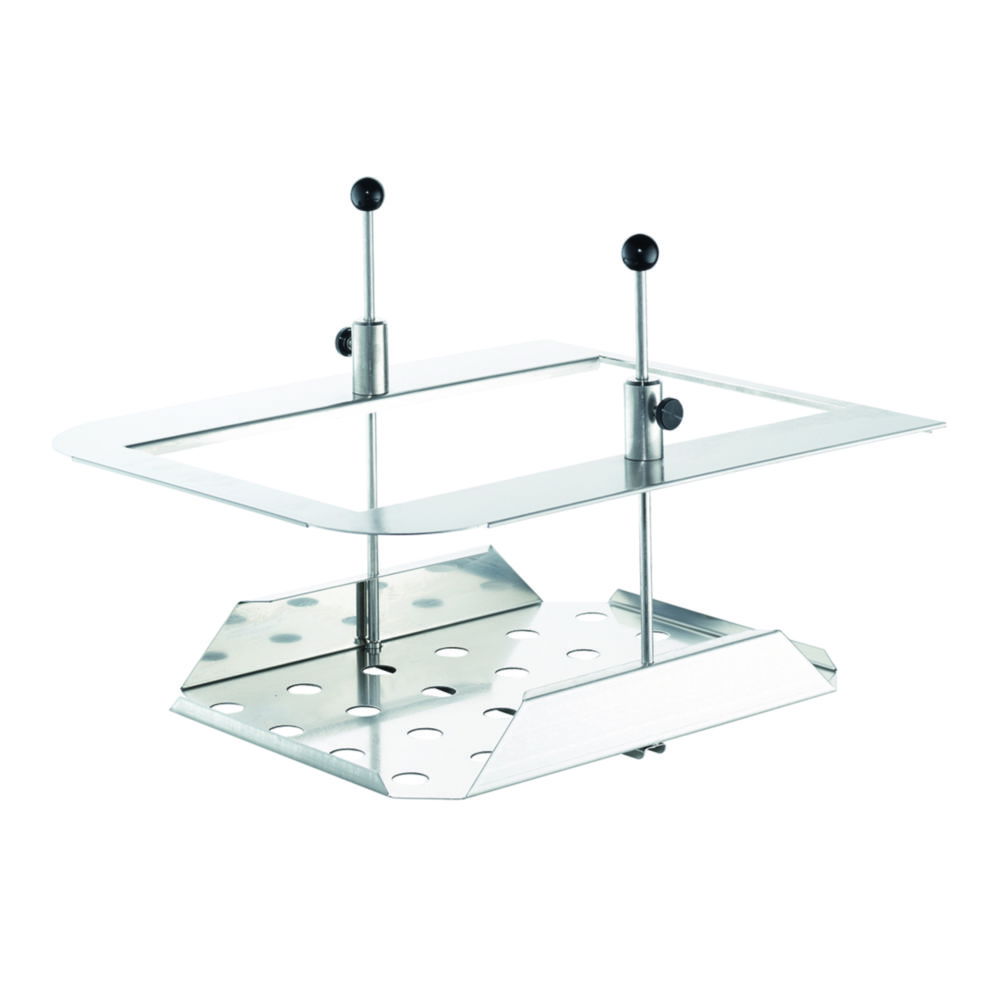

Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Height adjustable.Suitable for heating circulators with the bath type BC26 and refrigerated circulators with the bath type 900F.
Variable platforms for heating bath circulators CORIO™ C and heating circulators CORIO™ CD
Height adjustable.

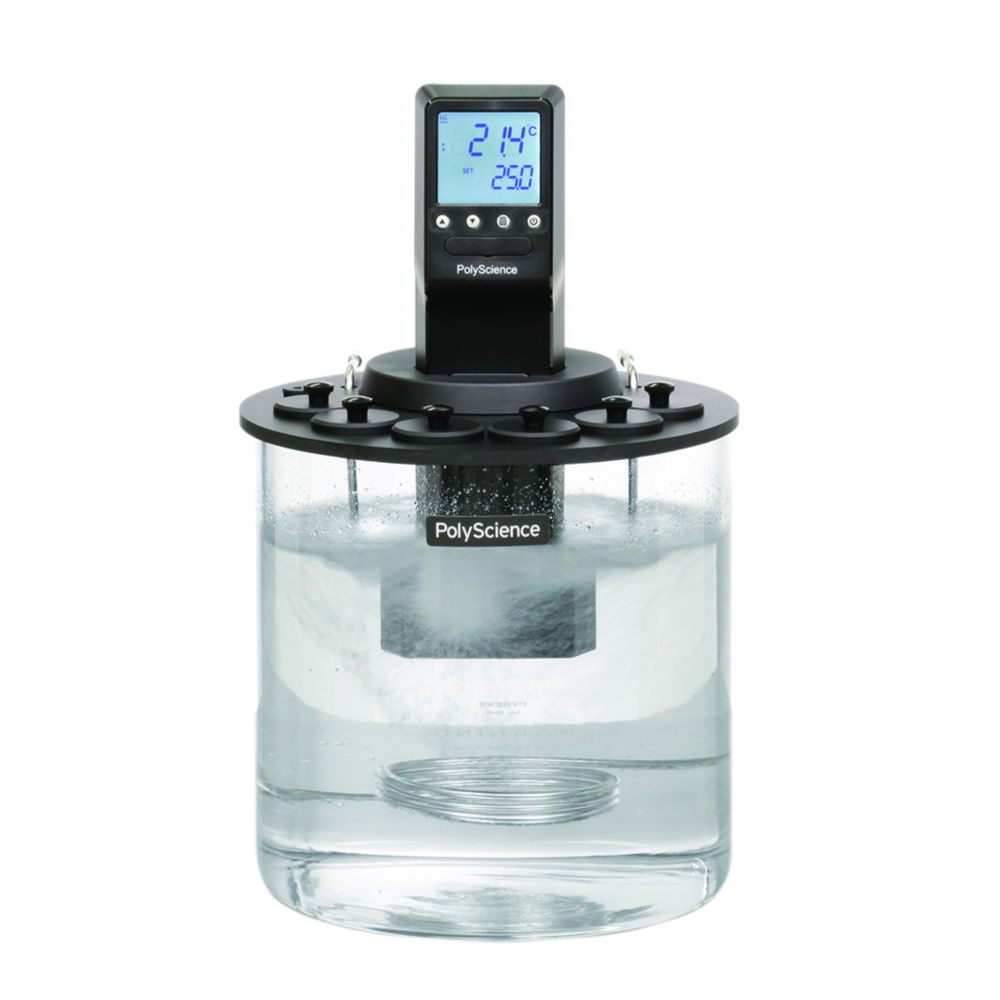

Viscosity baths AD
Viscosity baths are suitable for precise temperature control tasks and have been specially designed for viscosity tests with all common capillary viscometers including ASTM D0445. 6 viscosimeter openings (Ø 51 mm) are located in the insulating and chemical-resistant DuraTop™ bath top. The devices are additionally equipped with a tap water cooling coil and an over-temperature protection.Round glass tankAdvanced digital temperature controller4 languages: english, french, spanish, germanSwivel 180™ rotating controllerConnectivity: Ethernet, USB A and B, RS232/ adressable RS485Variable speed pump with external circulation in open and closed loopAutomatic performance optimizationSingle-point calibration capabilitySpecificationsBath capacity:17 lWorking temperature range:Amb. + 10°C ... 200 °CTemperature stability:± 0.01 °CHeating power:2200 WDisplay:3.75" display with touch pad controlFlow rate max.:16.6 l/minPressure max.:0.25 barOverall dimensions (Ø x H):318 x 521 mmWeight:34 kgSafety class:FL, IIIPower supply:240 VAC, 50 Hz
Viscosity baths MX
Viscosity baths are suitable for precise temperature control tasks and have been specially designed for viscosity tests with all common capillary viscometers including ASTM D0445. 6 viscosimeter openings (Ø 51 mm) are located in the insulating and chemical-resistant DuraTop™ bath top. The devices are additionally equipped with a tap water cooling coil and an over-temperature protection.Round glass tankMX temperature controllerPump with 1 speed and external circulation in closed loopSingle-point calibration capabilitySpecificationsBath capacity:17 lWorking temperature range:Amb. + 10°C ... 135 °CTemperature stability:± 0.07 °CHeating power:1100 WDisplay:3.25" LCDFlow rate max.:11.9 l/minPressure max.:0.12 barOverall dimensions (Ø x H):318 x 521 mmWeight:15.9 kgSafety class:FL, IPower supply:240 VAC, 50 Hz

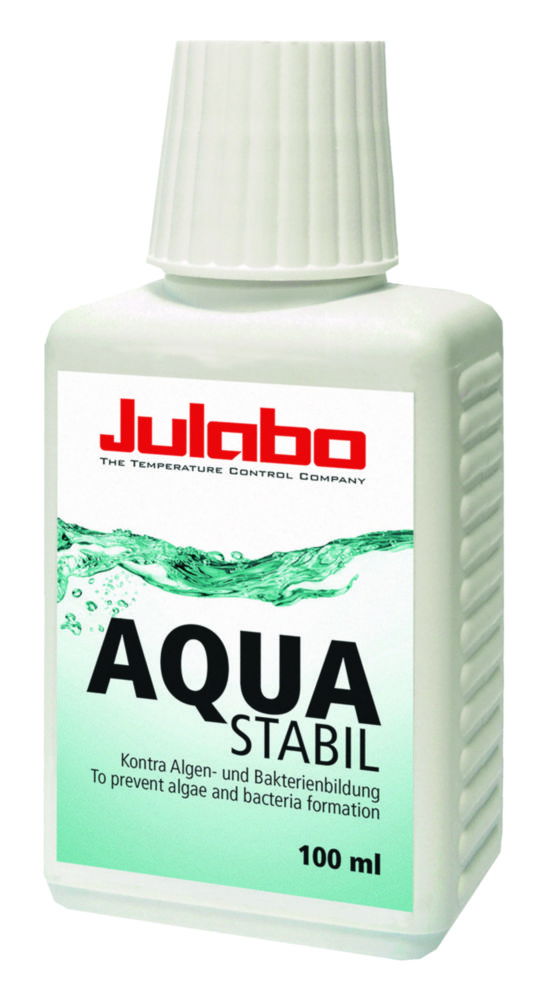

Water bath preservative liquid Aqua Stabil
Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.
Water bath stabiliser ThermoClean DC
Stabilising concentrate with blue indicator for water circulation systems, such as water baths or circulators. Prevents the growth of algae, bacteria and mould. Also suitable for closed temperature control systems.Prevents odour formationNo foam formation100 % water soluble
Weighting rings, C-shape, lead
LAB-Rings to stabilise glassware and plasticware on shakers or to immerse in water baths. Vinyl-coated lead rings will not mark or scratch benchtops and labware.

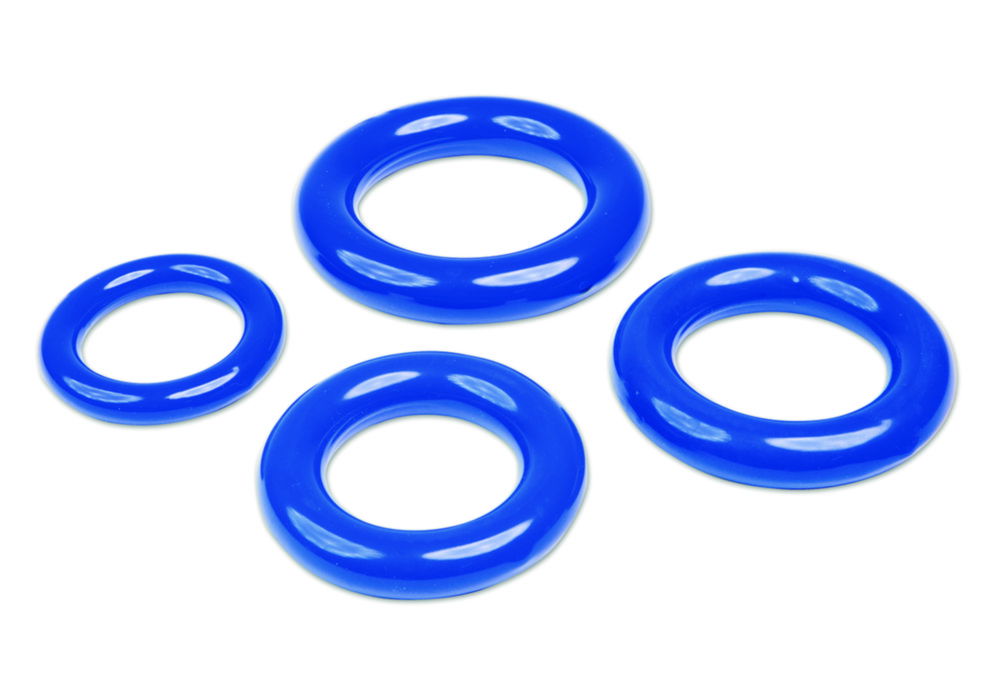

Weighting rings, O-shape, lead
LAB-Rings to stabilise glassware and plasticware on shakers or to immerse in water baths. Vinyl-coated lead rings will not mark or scratch benchtops and labware.
