Ashing furnaces SNOL 10/1300, up to 1300 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 10/1300, up to 1300 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing furnaces SNOL 13/1100, up to 1100 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 13/1100, up to 1100 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing furnaces SNOL 22/1100, up to 1100 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 22/1100, up to 1100 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing furnaces SNOL 3/1100, up to 1100 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 3/1100, up to 1100 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing furnaces SNOL 39/1100, up to 1100 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 39/1100, up to 1100 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing furnaces SNOL 6.7/1300, up to 1300 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 6.7/1300, up to 1300 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)
Ashing furnaces SNOL 8.2/1100, up to 1100 °C, Omron E5CC-T controller
Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments
Ashing/Burn off furnaces LV 3/11 - LVT 15/11
The models LV 3/11 - LVT 15/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.Tmax 1100°CHeating from two sidesCeramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replaceInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Housing made of sheets of textured stainless steelDual shell housing for low external temperatures and stabilityOptional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operatorSolid state relays provide for low noise operationAir exchange of more than 6 times per minuteGood temperature uniformity due to preheating of incoming air220-240 V 1/N/PE 50/60 Hz connector as standardOption:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadObservation hole in the oven doorProcess control and documentation via VCD software package for monitoring, documentation and controlHeight incl. exhaust tube (diam. 80 mm)External dimensions vary for versions with additional equipment. Dimensions on request.
Chamber furnaces
The chamber furnaces are suitable for Annealing, Hardening and Brazing. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium can be implemented without the use of expensive and complicated annealing systems.Robust insulation with light refractory bricksDeep furnace chamber with three-sides heating: from both side walls and bottomLow energy consumption due to multi-layer insulationBase frame includedN 7/H - N 17/HR designed as table-top modelParallel guided downward swinging door (user protected from heat radiation)NTLog Basic for Nabertherm controller: recording of process data with USB-flash driveEquipped with the B 500 programmable controller (with touch panel, 5 programmes with 4 segments each), optionally available with the C 540 controller
Charging rack for ashing furnaces
Charging rack to load the furnace in different levels, including holders to insert and remove the trays.
Collecting Pans for Muffle and Ashing Furnaces
Ceramic collecting pans for temperatures up to max. 1300 °C, steel collecting pans for temperatures up to max. 1100 °C.
Exhaust Systems for Muffle Furnaces
Chimney for connection to an exhaust pipe, catalytic to clean the exhaust air. Compatibility between the furnace and the exhaust system must be checked individually.
Glass Oven B-585 Drying
For gentle drying of small and medium sized samples and removal of residual solvents in the temperature range up to 300 °C. The process can be accelerated by optionally applying vacuum. An adjustable angle of up to 90° allows larger sample volumes.High yield by gentle sample treatmentEasy operation with multiple pre-settingsFull control due to optimal visibility of the samplesCompact designSpecificationsDrying volume:100 ... 250 mlWarm-up time:approx. 10 min. (from 20 to 300 °C)Temperature range:40 ... 300 °CTemperature precision:± 5 °CDimensions (W x D x H):410 x 300 x 300 mmWeight:9.5 kgPower consumption:450 WPower supply:100 ... 230 V, 50/60 Hz

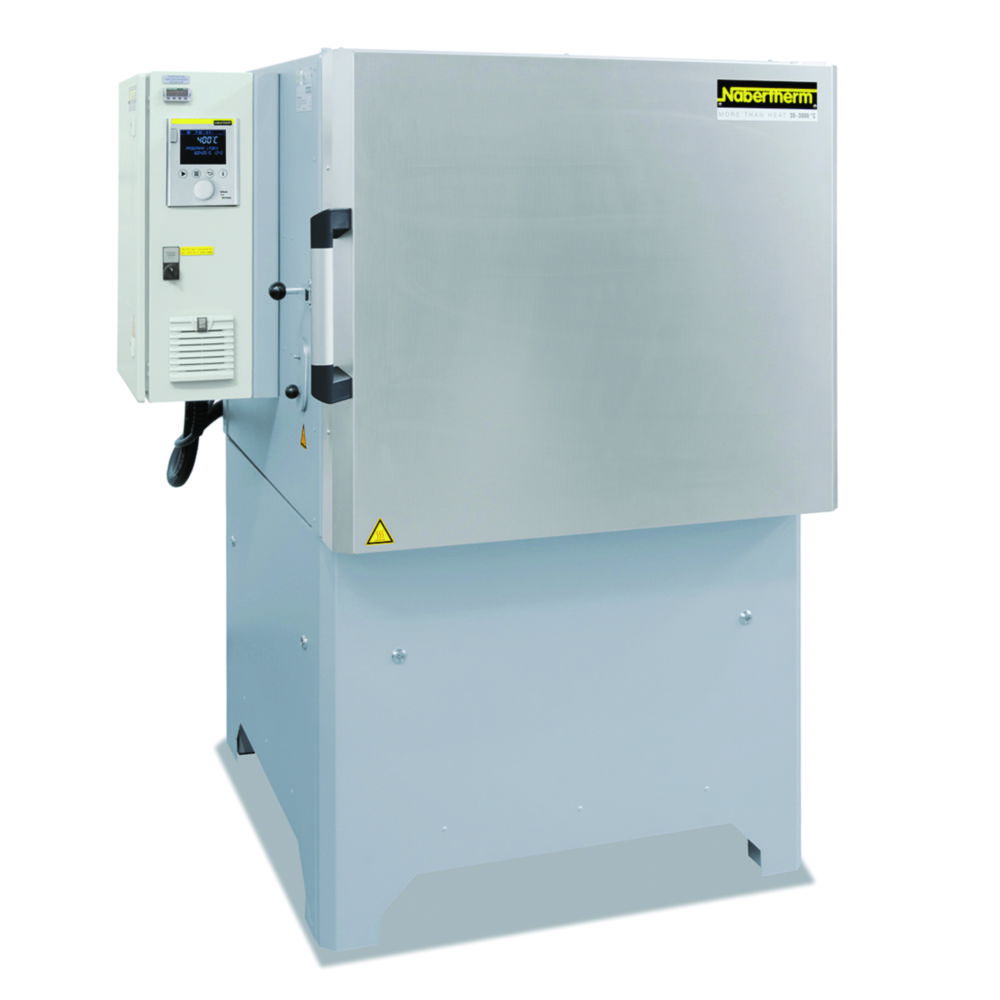

High-temperature chamber furnaces with air circulation NA / NAT
These chamber furnaces with air circulation are characterized by their extremely high temperature uniformity. Hence, they are especially suitable for processes such as cooling, crystalizing, preheating, curing, but also for numerous processes in tool making. Due to the modular concept, the forced convection furnaces can be adjusted to the process requirements by adding suitable equipment.Tmax 450 °C, 650 °C, or 850 °CHorizontal air circulationSwing door hinged on the rightTemperature uniformity up to ±4 °C according to DIN 17052-1 (model NA 15/65 and NAT 30/85 up to ±5 °C)Optimum air flow and temperature uniformity through high circulation ratesOne frame sheet and rails for two additional trays included in the scope of delivery (NA 15/65 and NAT 30/85 without frame sheet)Stainless steel air-baffles in the furnace for optimum air circulationBase frame included in the delivery, NA 15/65 and NAT 30/85 designed as table-top modelAir inlet and exhaust air flaps as additional equipment for using as drying ovenNTLog Basic for Nabertherm controller: recording of process data with USB-flash driveAvailable with the programmable controllers B 500 and C 540 with adjustable ramps and hold times (NA 15/65 with B 510 or C 550)Standard power supply 400 V 3/N/PE 50/60 Hz (NA 15/65: 220 - 240 V, 1/N/PE)External dimensions vary for versions with additional equipment. Dimensions on request.

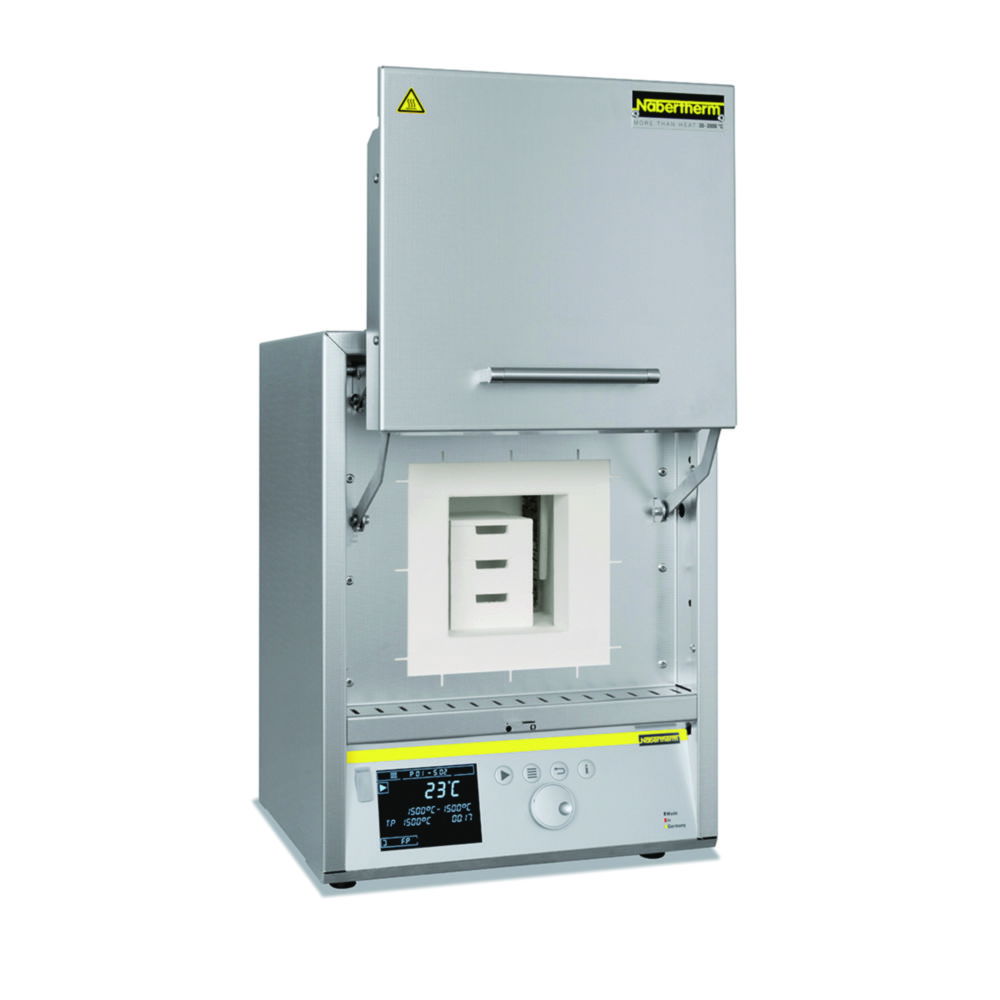

High-temperature chamber furnaces with SiC rod heating LHTC/LHTCT
These powerful laboratory muffle furnaces are available for temperatures up to 1600 °C. The durability of the SiC rods in periodic use, in combination with their high heating speed, make these furnaces the all-rounders in the laboratory.Working Temperature 1500 °C (for models LHTC ../16), increased wear and tear of heating elements must be expected in case of working at higher temperaturesInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Housing made of sheets of textured stainless steelDual shell housing for low external temperatures and high stabilityFurnace room lined with durable fiber material, not classifiedOptional flap door (LHTC) which can be used as work platform or lift door (LHTCT) with hot surface facing away from the operator (HTCT 01/ only with lift door)Switching system with solid-state-relays, power tuned to the SiC rodsController is the programmable C 550 with adjustable ramps and holding timesEasy replacement of heating rodsAdjustable air inlet opening, exhaust air opening in the roof400 V 3/N/PE 50/60 Hz connector as standardOption:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadSquare saggar for charging of up to three layersLid for top saggarManual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlHeight plus max. 255 mm for the open LHTCT models.External dimensions vary for versions with additional equipment. Dimensions on request.
High-temperature Tube Furnaces RHTH/RHTV series
The high-temperature tube furnaces are available in either horizontal (type RHTH) or vertical (type RHTV) designs. High-quality insulation materials made of vacuum-formed fibre plates enable energy-saving operation and a fast heating time due to low heat storage and heat conductivity. By using different gas supply systems, operations can be performed under a protective gas atmosphere, vacuum, or even with flammable gasses.Tmax 1600 °C, 1700 °C or 1800 °CMoSi2 heating elements, mounted vertically for easy replacementInsulation with vacuum-formed ceramic fibre platesRectangular outer housing with slots for convection coolingModels RHTV with hinges for wall mountingHousing made of sheets of textured stainless steelCeramic working tube made of material C 799 incl. fibre plugs operation under airType B thermocoupleSwitchgear separate from furnace in separate floor standing cabinetSwitchgear with control unitPossible controller variants are the programmable B 500, C 550 and P 570 (threes) with adjustable ramps and hold times.Over-temperature limit controller with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the oven and loadInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Standard power supply 400 V 3/N/PE 50/60 HzDimensions without tube.Option:Charge control with temperature measurement in the working tube and in the oven chamber behind the tubeAlternative working tubes designed for process requirementsDisplay of inner tube temperature with additional thermocoupleGas-tight flanges for protective gas and vacuum operationManual or automatic gas supply systemThree- or five-zone control for optimization of temperature uniformityCheck valve at gas outlet avoids intrusion of false air
