Muffle furnaces Thermolyne™
The muffle furnaces are suitable for ashing, annealing processes, digestion, heat treatment of metals and drying processes at high temperatures.Built-in ventilation portDoor safety switch: when the door is opened, the power supply to the heating elements is interruptedPort in the rear of the chamber for external temperature monitoring
Ribbed plates for muffle and ashing furnaces, ceramic
For temperatures up to max. 1200 °C.

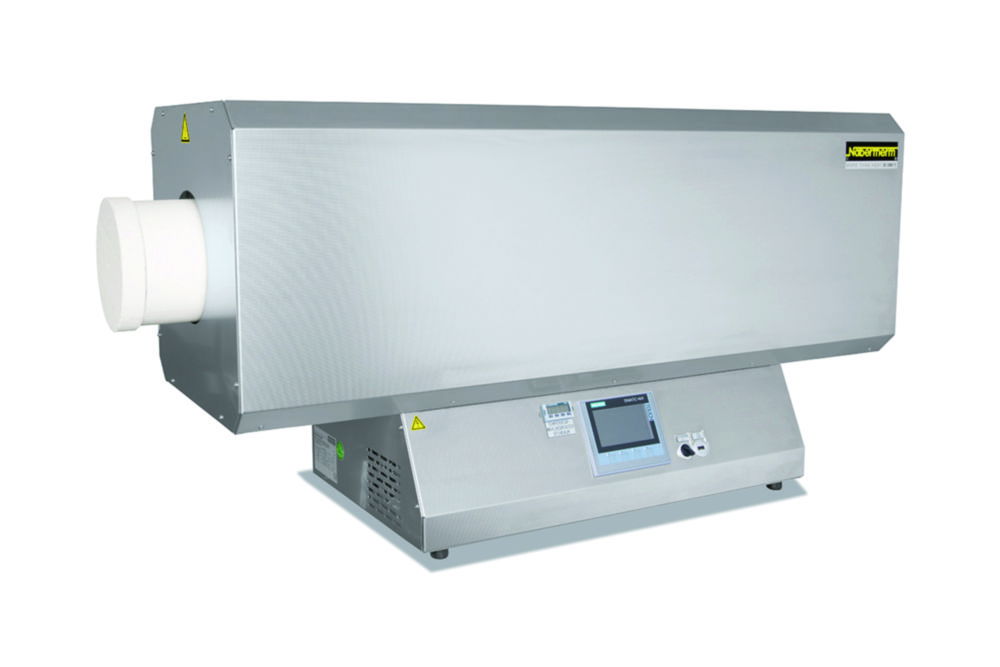

Tube Furnaces
These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have an unbeatable price/performance ratio.Tmax 1200 °C or 1300 °CSingle-zoned design as standardDual shell housing made of sheets of textured stainless steelOuter tube diameter of 50 to 170 mm, heated length from 250 to 1000 mmWorking tube of C 530 ceramic including two fiber plugs as standard equipmentSolid state relays provide for lownoise operationAvailable with the programmable controllers B 510, C 550 and P 580 (for three-zoned design) with adjustable ramps and hold timesStandard power supply 400 V 3/N/PE 50/60 Hz (R 50/250 und R 50/500: 220 V, 1/N/PE, 50/60 Hz)Option:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadCharge control with temperature measurement in the working tube and in the furnace chamber outside the tubeThree-zoned design (heated length from 500 mm)Working tubesGas supply systems for protective gas or vacuum operationProcess control and documentation with VCD software package

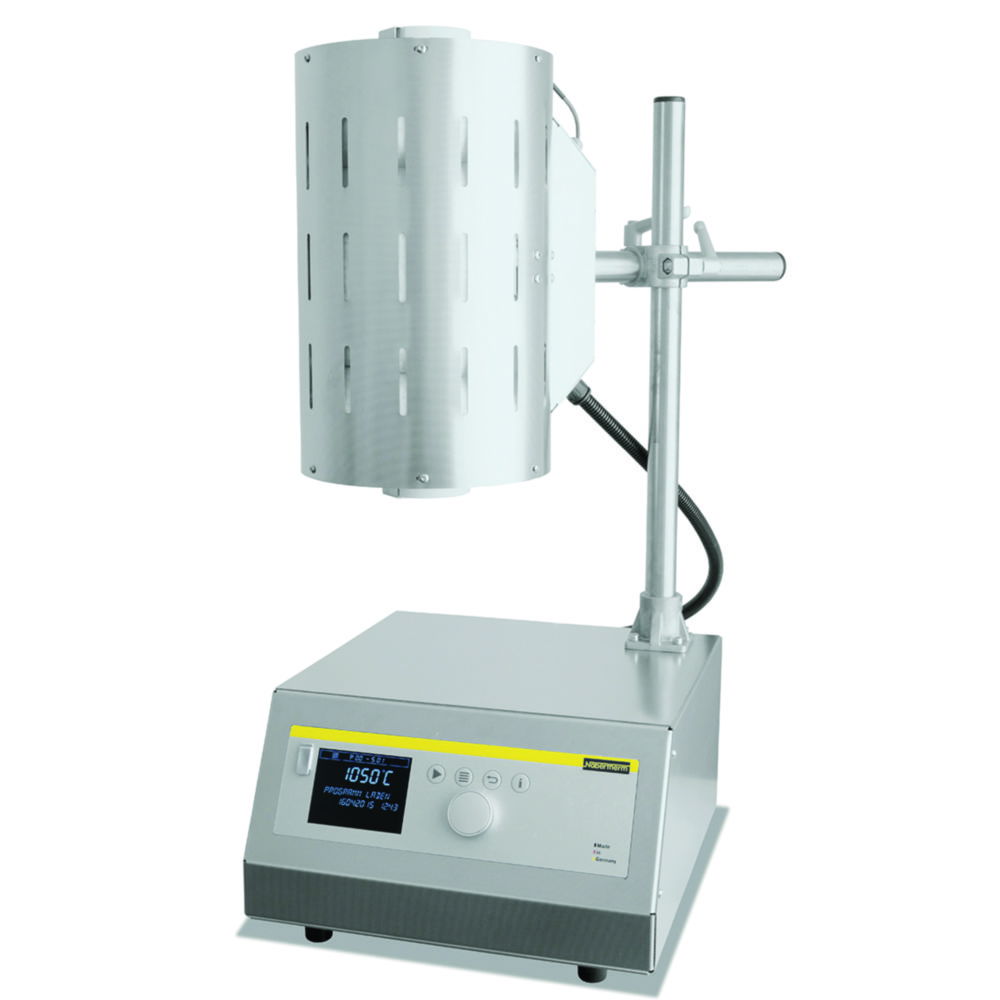

Tube Furnaces with Stand
These compact tube furnaces are used when laboratory experiments must be performed horizontally, vertically, or at specific angles. The ability to configure the angle of tilt and the working height, and their compact design, also make these tube furnaces suitable for integration into existing process systems.Vertical or horizontal operation freely adjustableWorking height freely adjustableWorking tube made of C 530 ceramicControl system integrated in furnace baseNTLog Basic for Nabertherm controller: recording of process data with USB-flash driveEquipped with the programmable controller B 510 (with touch panel, 5 programmes with 4 segments each), optionally available with the C 550 controller (with touch panel, 10 programmes with 20 segments each)
