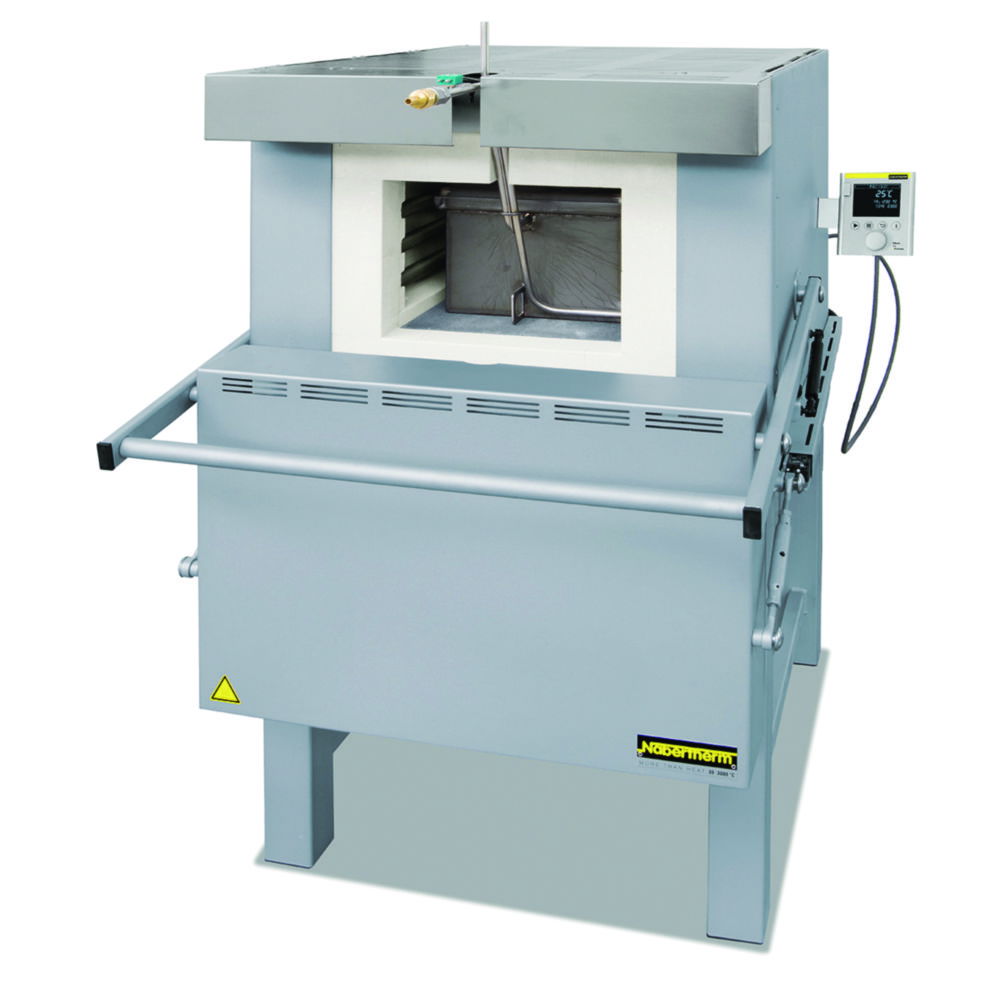

Chamber furnaces
Nabertherm GmbH
€0.00
Content: 1
Product number: 6241122
Product information "Chamber furnaces"
The chamber furnaces are suitable for Annealing, Hardening and Brazing. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium can be implemented without the use of expensive and complicated annealing systems.
- Robust insulation with light refractory bricks
- Deep furnace chamber with three-sides heating: from both side walls and bottom
- Low energy consumption due to multi-layer insulation
- Base frame included
- N 7/H - N 17/HR designed as table-top model
- Parallel guided downward swinging door (user protected from heat radiation)
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Equipped with the B 500 programmable controller (with touch panel, 5 programmes with 4 segments each), optionally available with the C 540 controller
| Depth int.: | 500 mm |
|---|---|
| Door opening: | Downwards |
| Ext. depth: | 1250 mm |
| Ext. height: | 1340 mm |
| Ext. width: | 1040 mm |
| External dimensions (WxDxH): | 1,040 x 1,250 x 1,340 mm |
| Height int.: | 250 mm |
| Int. width: | 350 mm |
| Internal dimensions (WxDxH): | 350 x 500 x 250 mm |
| Manufacturer Article Number: | N05H1NKNE |
| Max. temperature: | 1280 °C |
| Max. voltage: | 400 V·3/N/PE |
| Nominal capacity: | 40 l |
| Power supply: | 400 V·3/N/PE, 50 Hz |
| Power supply frequency: | 50 Hz |
| Type: | N 41/H/B500 |
| Type of auxiliary energy: | Mains connection |
| Type of door: | Parallel swinging door |
| Weight: | 260 kg |
