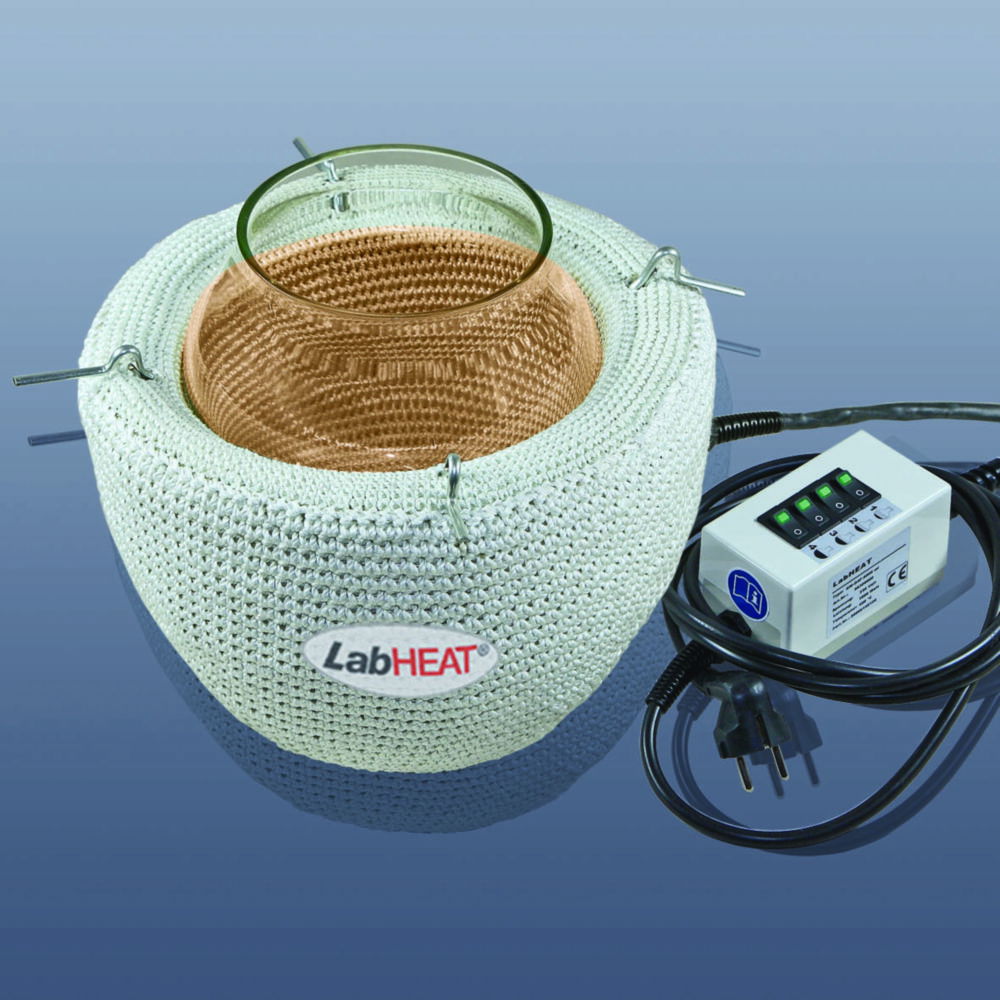

Standard heating mantles series KM-GF
LabHEAT®-Heating cover for reaction vessels. Flexible glass yarn heating element, outer jacket in glass silk, with Ø 60 mm bottom outlet from 500 ml, max. heating element temperature 450 °C, 1.5 m power supply (earthed) cable with heating-zone and RCD (residual current detection.

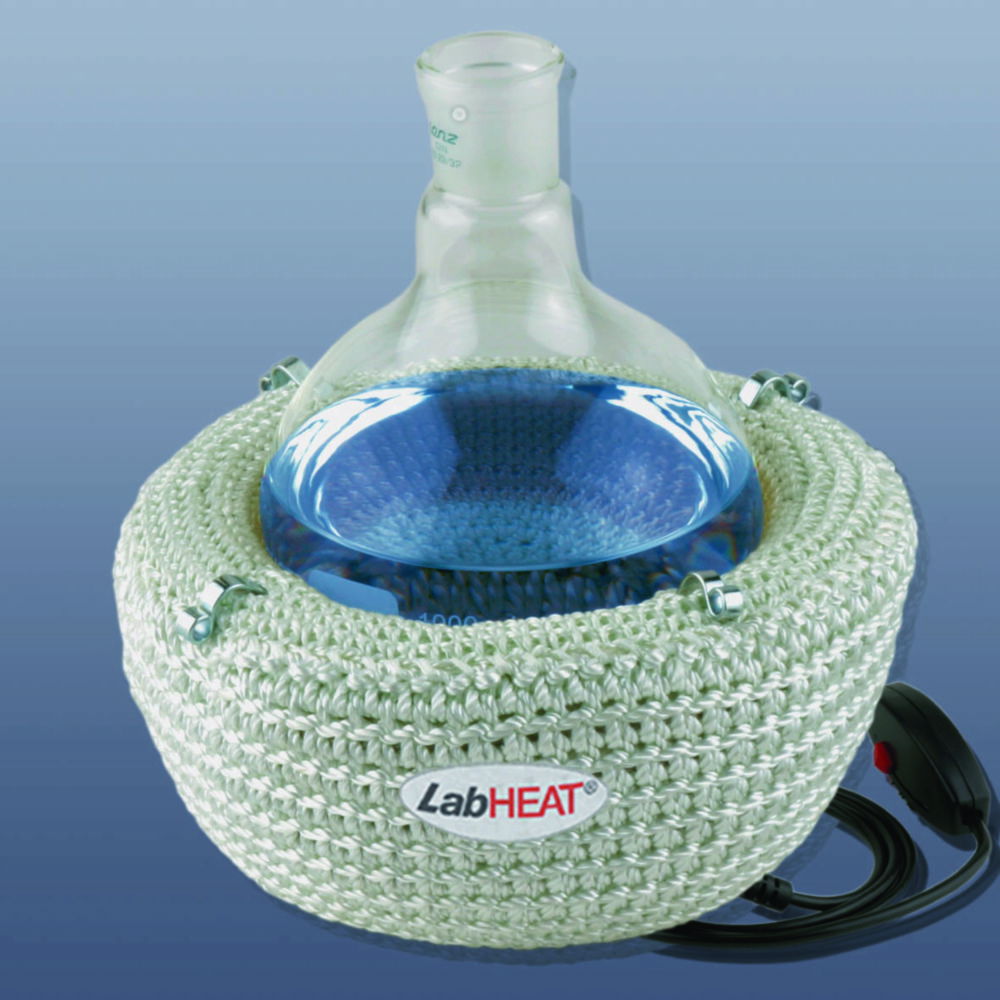

Standard heating mantles series KM-GH
LabHEAT®-Heating mantles for flasks, round bottom. Designed identical to series KM-G, but the heating element is made of heat-resistant quartz yarn and permits a maximum temperature up to 900 °C; 1.5 m power supply (earthed) cable with heating-zone switch and RCD (residual current detection).

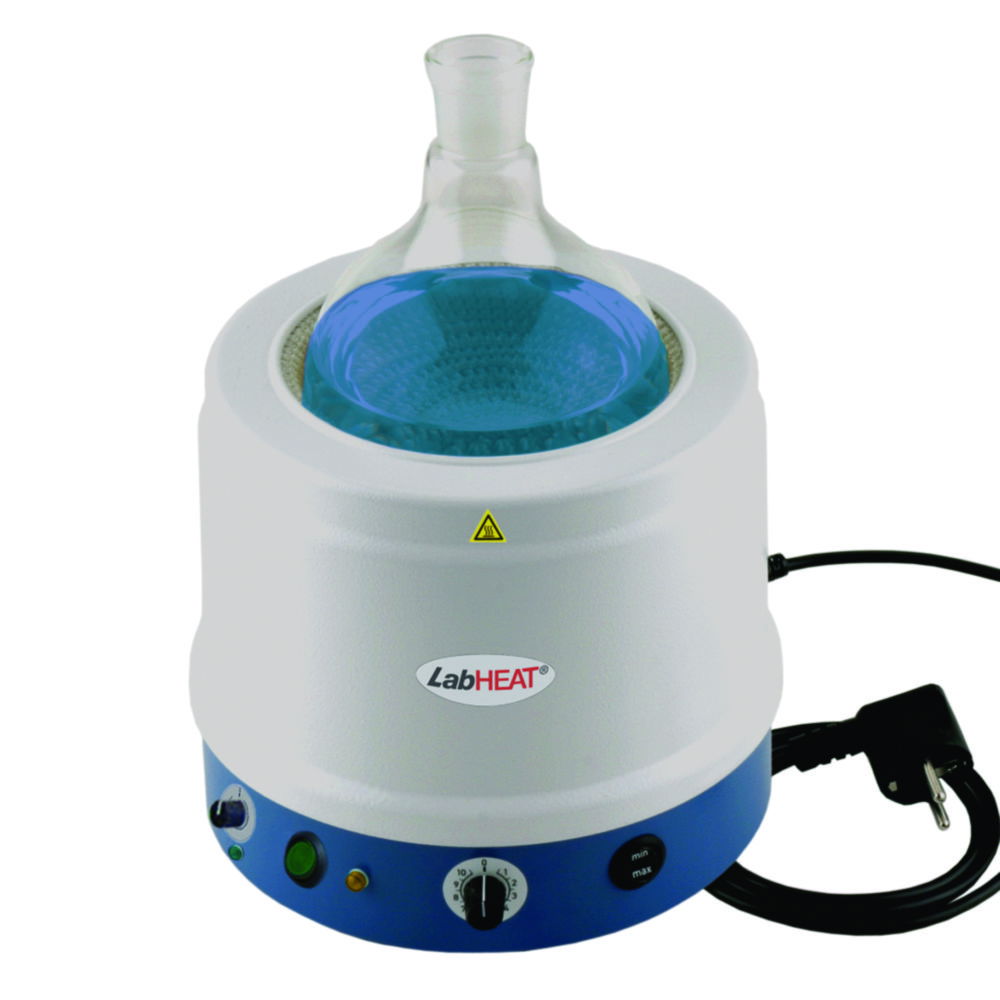

Stirring heating mantles LabHEAT® KM-MER series
LabHEAT® - Heating mantles for flasks, round bottom. Designed and technical identical to series KM-ME, but in addition equipped with a magnetic stirrer; rotational frequency up to 1600 rpm max. heating element temperature 450 °C, 1.5 m power supply (earthed) cable and RCD (residual current detection).

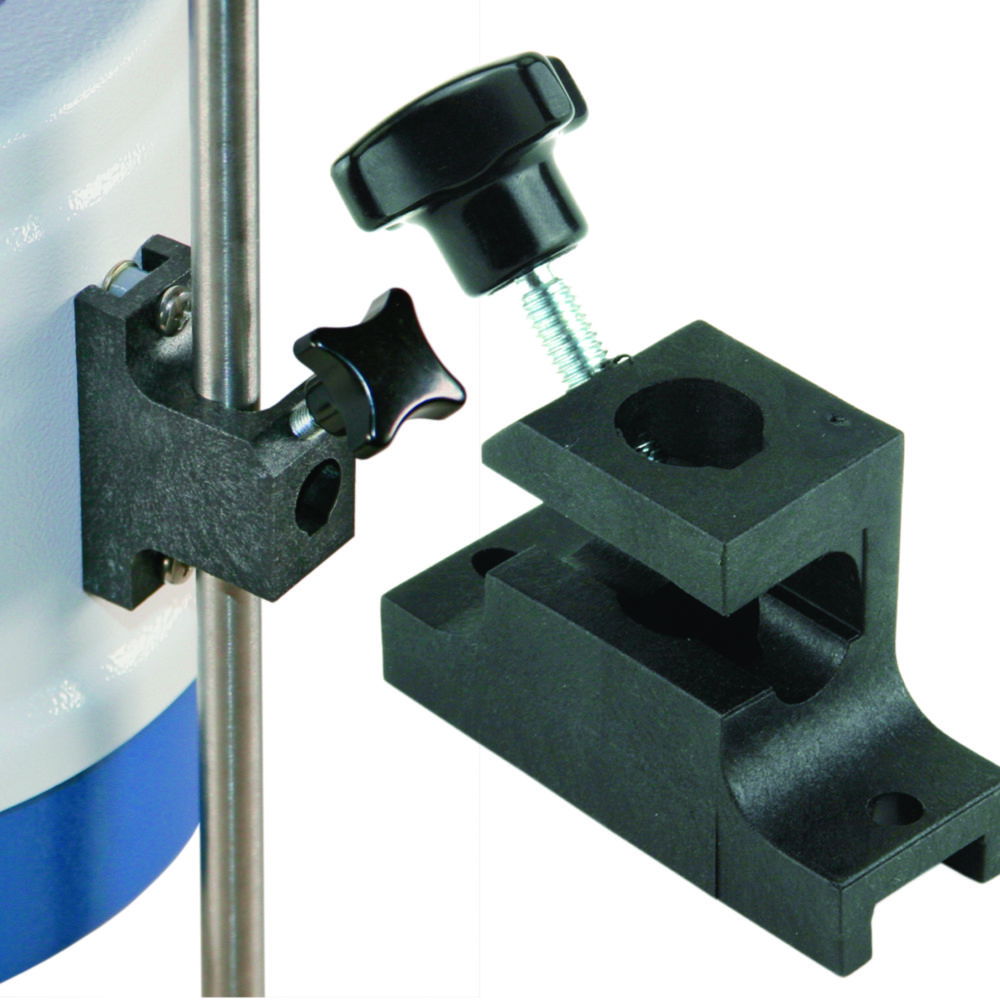

Support clamp KM-SK
LabHEAT®-Accessories for metal-cased heating mantles and serial heating unit to fix support rods up to diameter 12 mm or to integrate the metal-cased heating mantles within support wall.

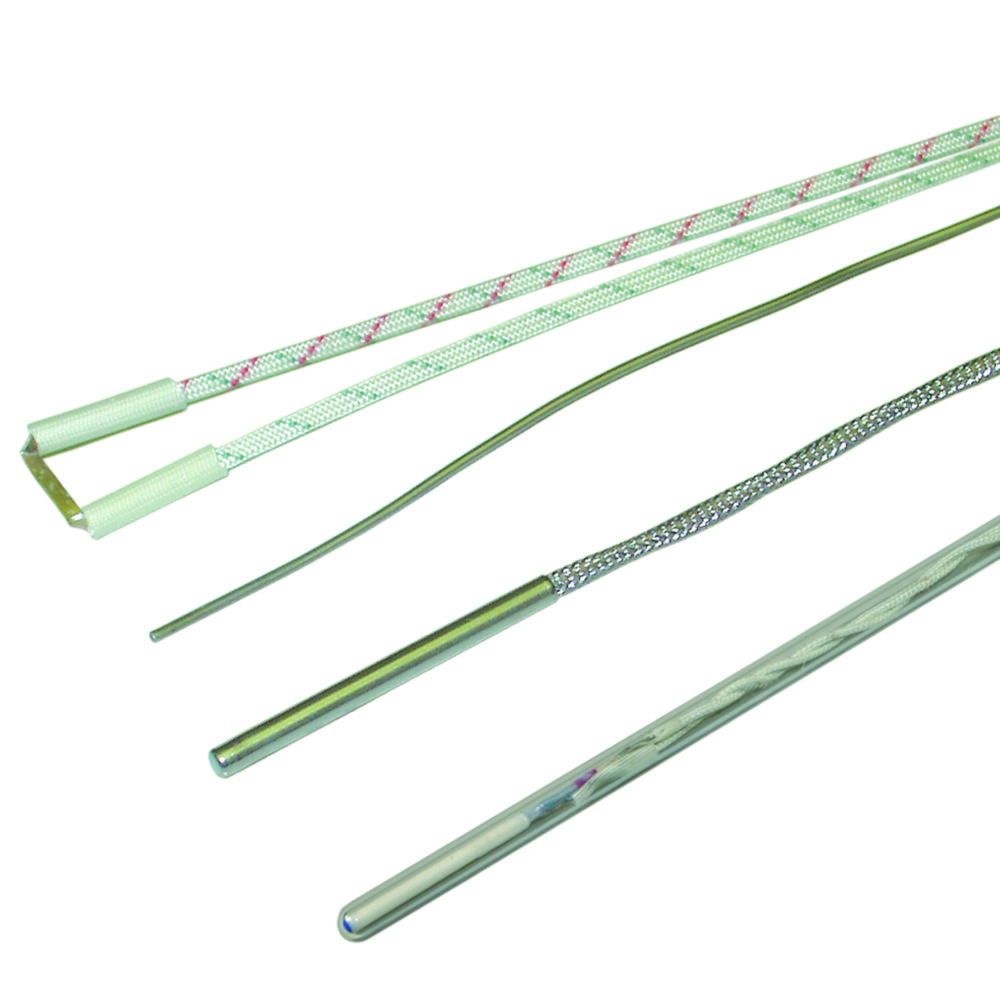

Temperature sensors for Laboratory regulator series KM-RX
LabHEAT®-sensors. Suitable for temperature control and KM-KM-RX1001 RX1004 with permanently attached cable, with or without diode plug.KM-TP2: Pt100, up to 400 °C, sheated element V2A, dia. 4 x 50 mm,KM-TPG: Pt100, up to 250 °C, glass tube, dia. 6 x 40 0mm,KM-TNS: NiCr-Ni, up to 1200 °C, rod sensor in Inconell, dia. 1.5 x 300 mmKM-TNF: NiCr-Ni, up to 400 °C, flat sensor, 0.4 x 15 x 400 mmFurther models available on request.
