Conductivity meters
Model P 2/30 SK.With analogue display 0 to 30µS/cm and connector coupling. With quick couplings and integrated cell (c=0.2).Model P2/30.With analogue display 0 to 30µS/cm and threaded connections. With screw connections 3/4" and integrated cell (c=0.2).Model P1/50 WAWith analogue display, measuring range 0 to 50µS/cm, potential free switching contact (value free selectable), for wall mounting. Cell not included. Please order separately.Model LFW 200.With digital display 0.1 to 199.9µS/cm. With potential free switching contact (adjustable value), malfunction alarm indicator, connections for solenoid valve, K = 0.2 cell with or without temperature compensation (Pt 500) and reservoir float switch with external indication. Designed for wall mounting. Cell not included. Please order separately.
Consumables for Ultra Clear™ / LaboStar™ RO DI
* Interval of exchanges depends on raw water quality and throughput

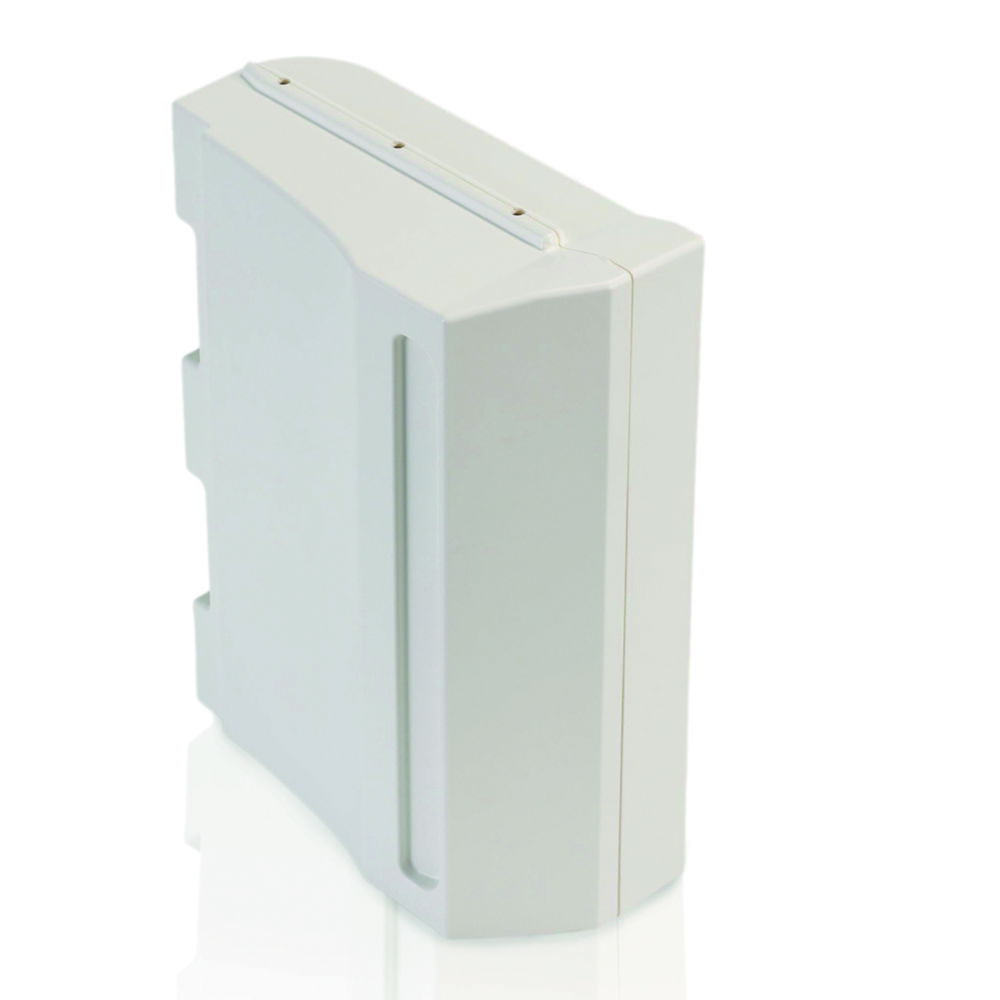

De-Ionization pack for pure and ultrapure water system Aquanex™
Pack including right and left DI cartridge.

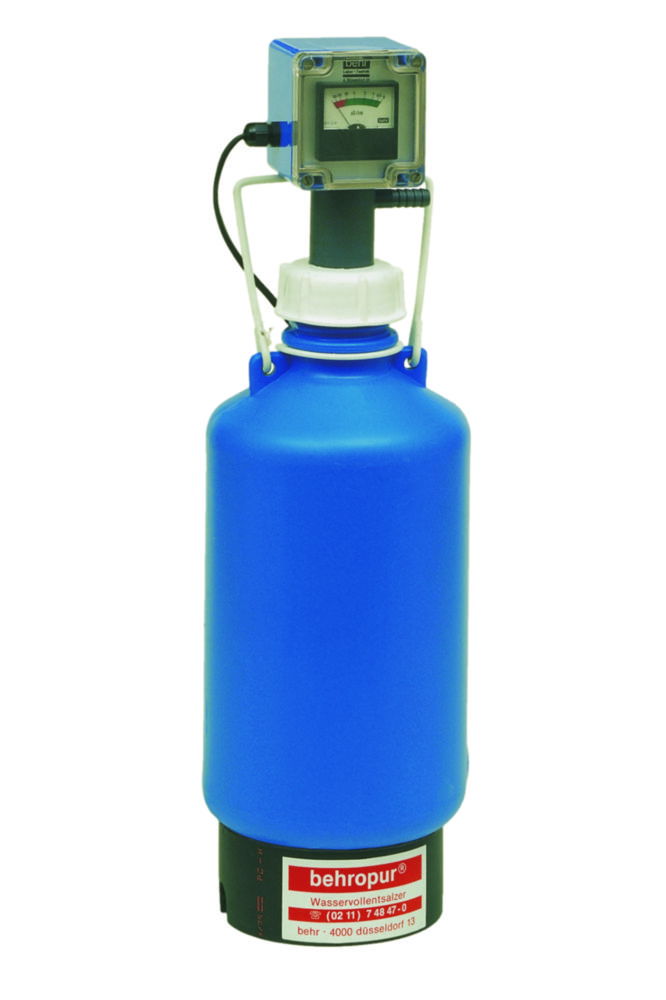

Deioniser, behropur®
behropur® mixed-bed ion exchangers deliver de-ionized water according to Grade 3 of the ISO 3696 standard, -Water for analytical laboratory use;Specification and test methods.The resins inside the behropur® ion exchangers are of certified quality.The completely equal distribution of water inside the ion exchanger leads to the maximum utilization of the exchange capacity of the unit. Thus the user benefits from very low conductance water throughout the life cycle of each exchanger charge.Heavy-walled, robust and practical mixed bed deioniser in blue polyethylene with free flow output to the reservoir. Also ideal for the post desalination of reverse osmosis systems or for aquariums.Can be directly connected to the water supply and is immediately ready for operation.Automatic venting as water is supplied from below.Minimal risk of contamination due to slotted filter in the raw water inlet.Nozzles are durable and easy to clean. Highly resistant to abrasion or shocks.Extremely sturdy, heavy-duty nozzle welding by the manufacturer's own welding process.Resistivity meter fitted.B5 and B10 can also be used as wall mounted devices (wall mounting included).Also available with water quality cut-out and solenoid valve which engages if specified limits are exceeded and reservoir level control.Resistivity control available directly on the unit or remotely at any location.Output data:B5 / B10Cation exchange capacity* at 10°dH: Flow max.: Dia.: Height:500 L / 1000 L 50 / 100 L/hr. 16 / 21 cm 53 / 63 cm* Limiting value 20 µS

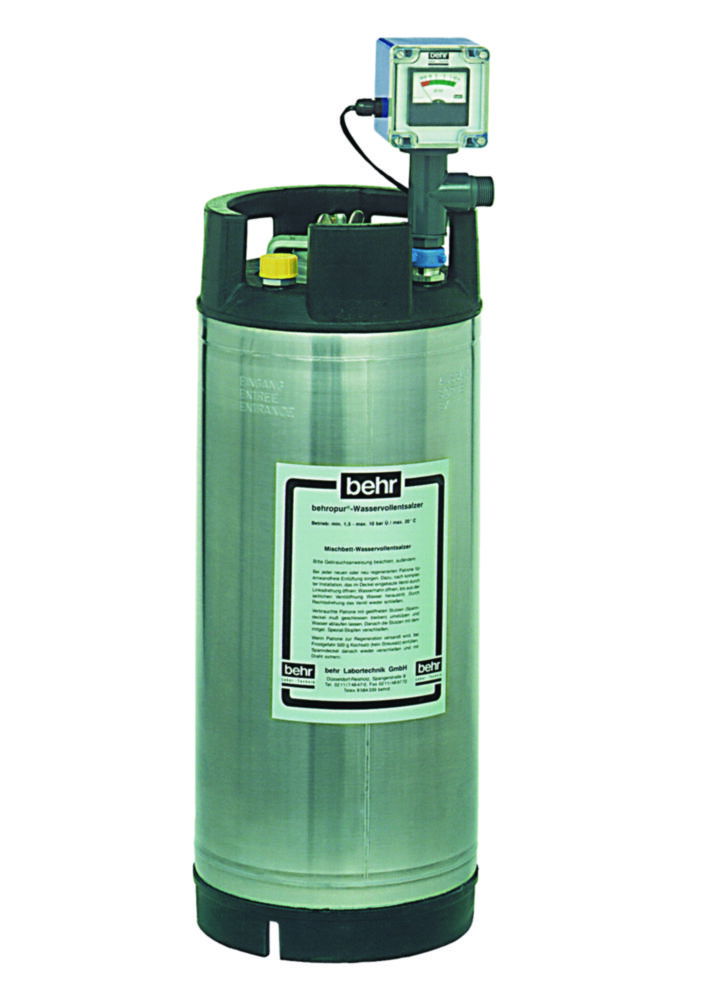

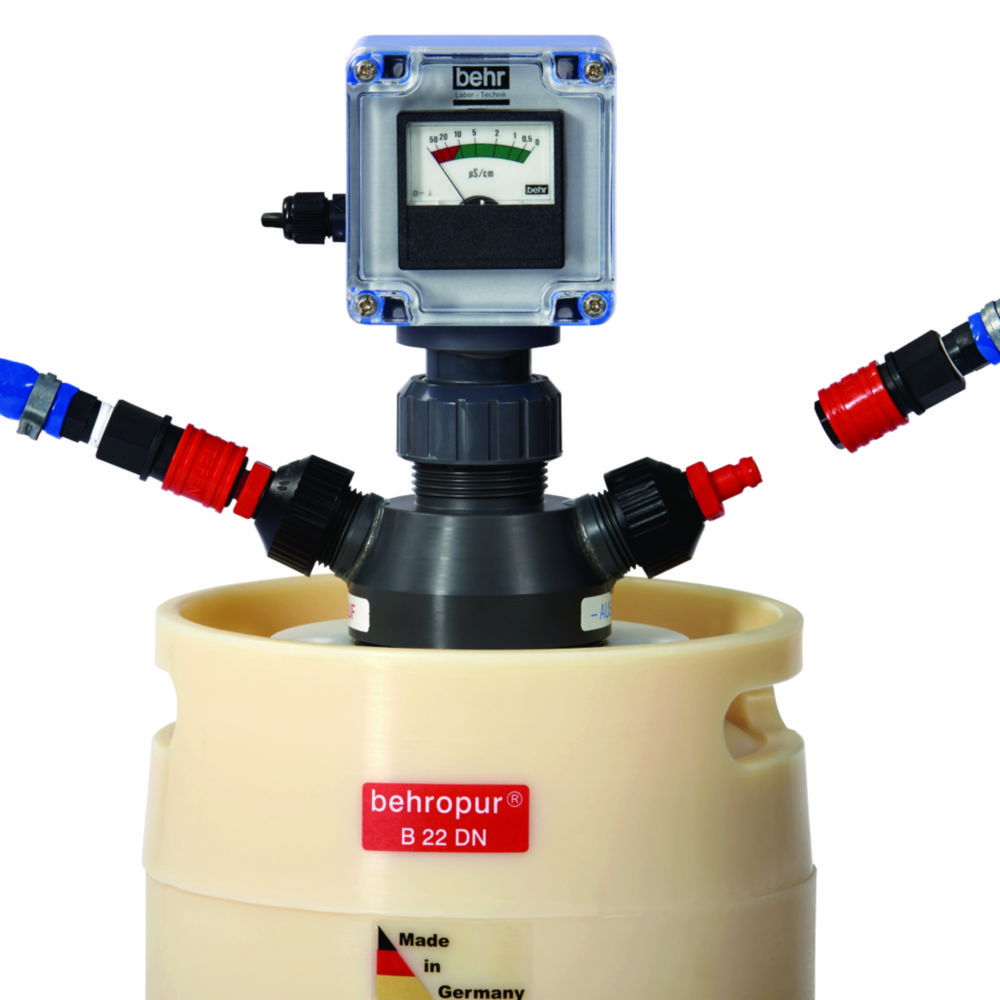

Deionisers, pressure-resistant, behropur®
Compact and secure mixed bed deionisers for small to medium-sized volumes of ultra pure water. Ideal for feeding laboratory washing machines, general requirements in the laboratory, low level consumption in industry and for post-treatment desalination of the output from reverse osmosis systems.Optimal utilisation of the deioniser due to totally uniform water distribution in the resin chamber.Can be connected directly to the raw water mains without a pressure reducer.Back pressure resistant.Also available with water quality cut-out and solenoid valve, which engages if specified limits are exceeded, and reservoir level control.Resistivity control available directly on the unit or remotely at any location.Performance data:B10dN / B22dN / B45dNCation exchange capacity at 10°dH: Flow max.: Dia.: Height incl. LF:1200 L / 2400 L / 5500 L 300 / 500 / 800 L/hr 21 / 21 / 26 cm 68 / 112 / 125 cmHeight, cartridge only:55 / 98 / 110 cm* Limit value 20 µS/cm
Deionisers, stainless steel (V4A), empty cartridge, without resin
High quality stainless steel ion exchanger (V4A) pressure resistant up to 10 bar. High quality and longevity, parts in stainless steel in contact with medium. Optimised water distribution.Without conductivity meter. Please order separately.
Deionisers, stainless steel (V4A), mixed bed resin
High quality stainless steel ion exchanger (V4A) pressure resistant up to 10 bar. High quality and longevity, parts in stainless steel in contact with medium. Optimized water distribution.Without conductivity meter. Please order separately.

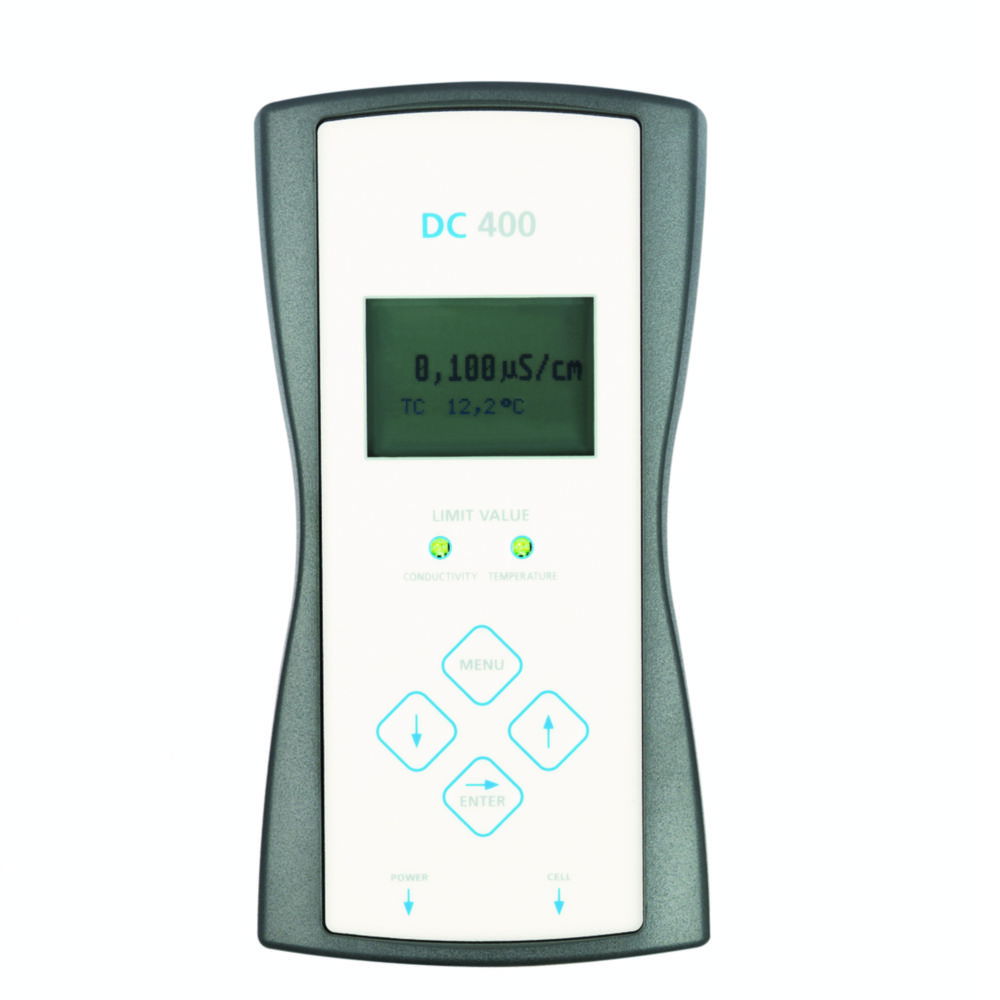

Digital conductivity meters DC 400
For online measurement of pure and ultrapure water downstream of ionexchange cartridges and for monitoring ring-main systems.Large, 2-colour, back-lit graphic digital displayDirect connection of peripheral equipment at potential-free contact (optionally)Wall mountingScope of delivery: DC 400, connecting cable, plug-type power supply unit, set of two 1.5 m hoses and measuring cell.Specifications:Conductivity measuring range:0.1 ... 300 µS/cmTemperature measuring range:0.1 ... 50 °CConductivity limiting value setting:0.1 ... 30 µS/cm, infinitely variableTemperature limiting value setting:1 ... 50 °C infinitely variableSignal when limiting value is exceeded:red/green LED indicator + buzzer (both can be deactivated)Connector:R ¾"Interface:potential-free contact (optionally)Dimensions ( W x D x H):73 x 32 x 141 mmPower supply:110/230 V, 50 ... 60 Hz
Disinfection Tablets for Ultra Clear Water Systems PURELAB®
Reduce bio film and protect Ultra Clear water systems against bacterial growth. Environmentally hazardous substance, solid, n.a.g UN 3077, 9, III, (E).Use biocides safely. Always read the labelling and the product information before use.

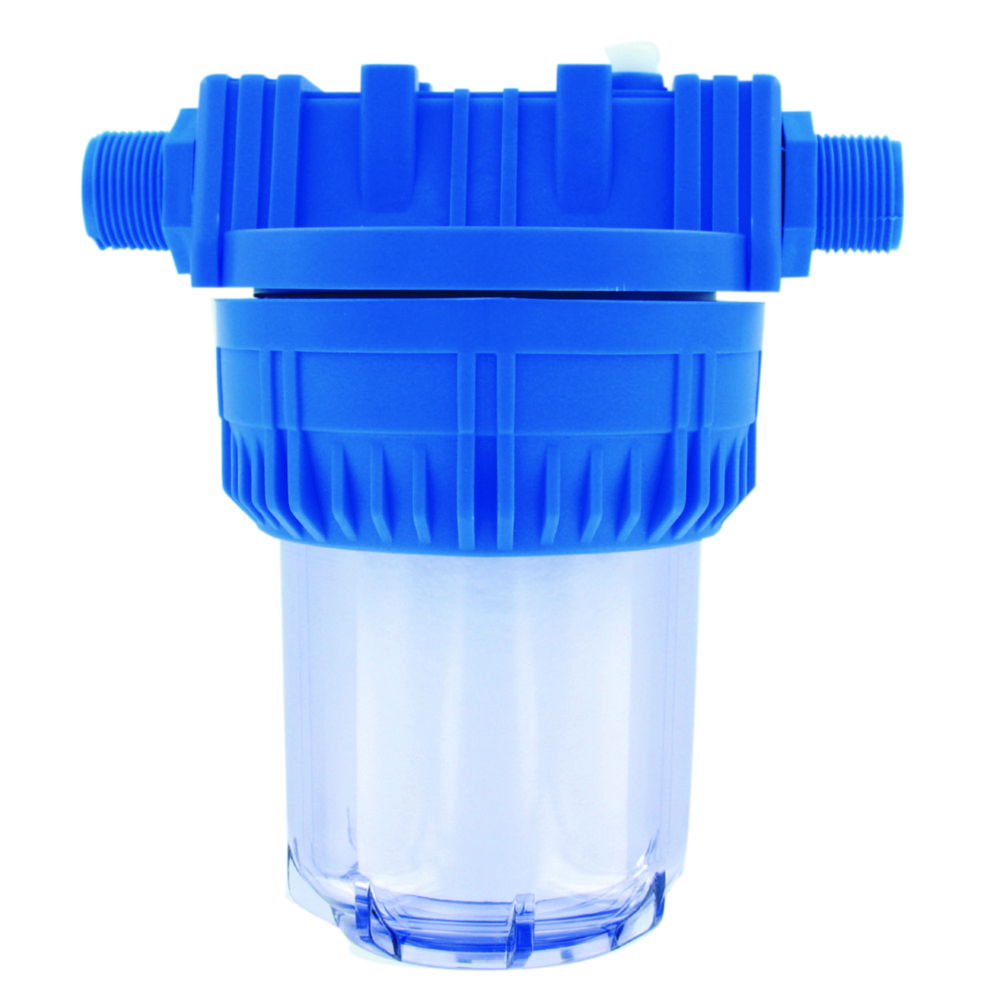

Filter for behropur® mixed-bed ion exchanger
Filter for pressure-resistant behropur® mixed-bed ion exchangers. Transparent casing. Once added to the ion exchanger, it completely retains even the finest particles and protects your high-quality equipment. Due to the transparent casing of the FG 130, you can see the state of the filter insert at any time and at a glance.Depending on the requirements, you can use a universal filter (5µ) or a carbon filter (20µ). Downstream filters may only be used on pressure-resistant behropur® ion exchangers. Pressure-free exchangers are destroyed by the counter pressure. It could also subsequently result in expensive damage.FG 130 behropur® filter housing for filter inserts with a length of 5". Transparent casing made of PP. Connections ¾", maximum operating pressure 8bar, max. temp. 50°CFE 130 behropur® filter insert, PP, 5µ, length 5", max. pressure 6bar, max. temp. 80°CAF 130 behropur® filter insert, carbon, 20µ, length 5", max. pressure 6bar, max. temp. 50°C
Filters Millipak® Express
For the separation of particles and microorganisms from pure water. The filter can be installed at the tapping points of water treatment systems.High water flowHydrophilIncl. quality certificateHousing Material:SANInlet connection:1/4"Outlet connection:8 mm hose olive with protective bell
Hand dispenser kit for water purification systems Barnstead™
With 3 m long cable for connection to a the water system reservoir. Inclusing 0.2 µm final filter.For use with Pacific™ TII models, the optional storage reservoirs must be equipped with a pressure pump.

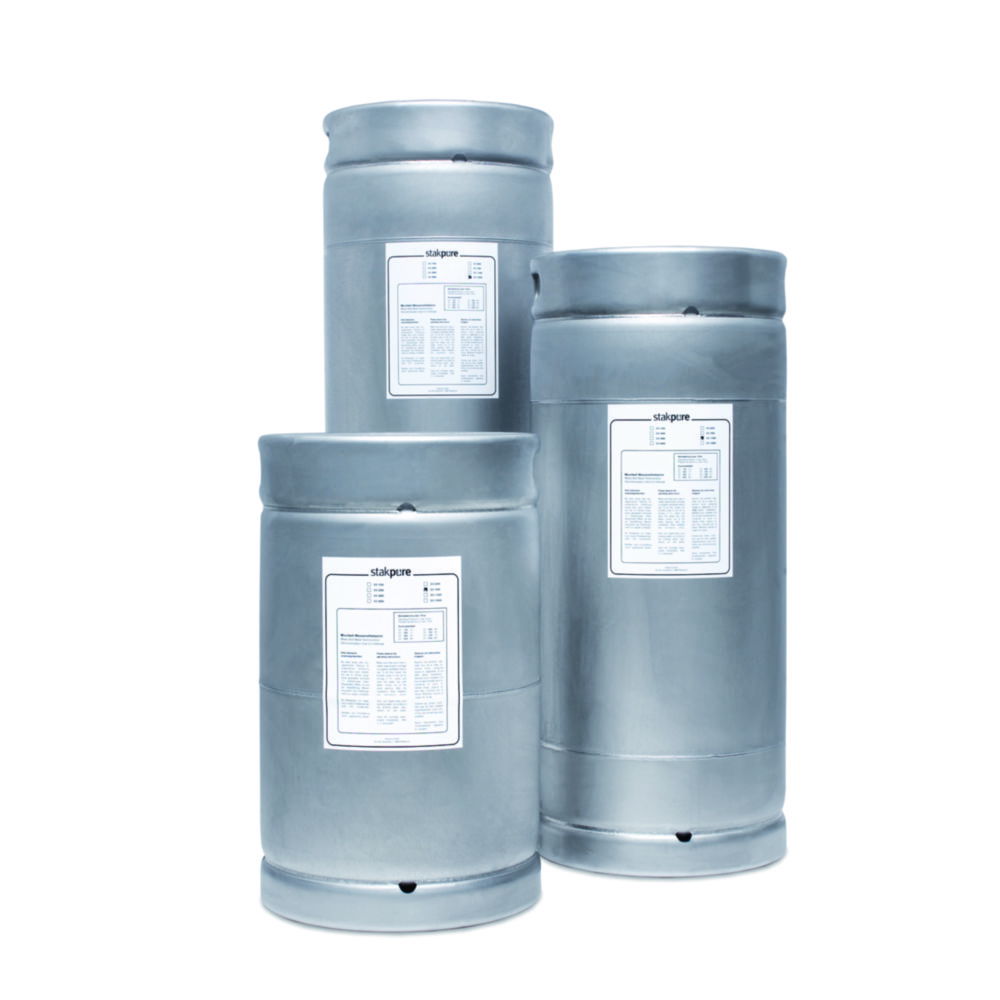

Ion exchange system with pressure-resistant stainless steel cartridges
Pressure-resistant (up to 10 bar) ion exchanger cartridges made of stainless steel for simple and cost-effective production of demineralised water. Ideal for supplying ultrapure water systems, dishwashers, autoclaves, sterilisers, air conditioning units, steam boilers etc. as well as for general laboratory applications. Capacity at 10° total salinity.
Ion exchange system with unpressurised plastic cartridges
Pressureless plastic cartridges made of blue polyethylene filled with quality mixed-bed resins incl. analogue conductivity meter, hose connection and wall bracket (DI 425 only). Ideal for treating small quantities of water for laboratories, medical and dental practices, etc.Convenient pure water production directly at the workplaceExtremely easy handling and maximum efficiencyNo algae build-up in the blue light protection cartridgePure water quality: 0.1 to 10 µS/cm

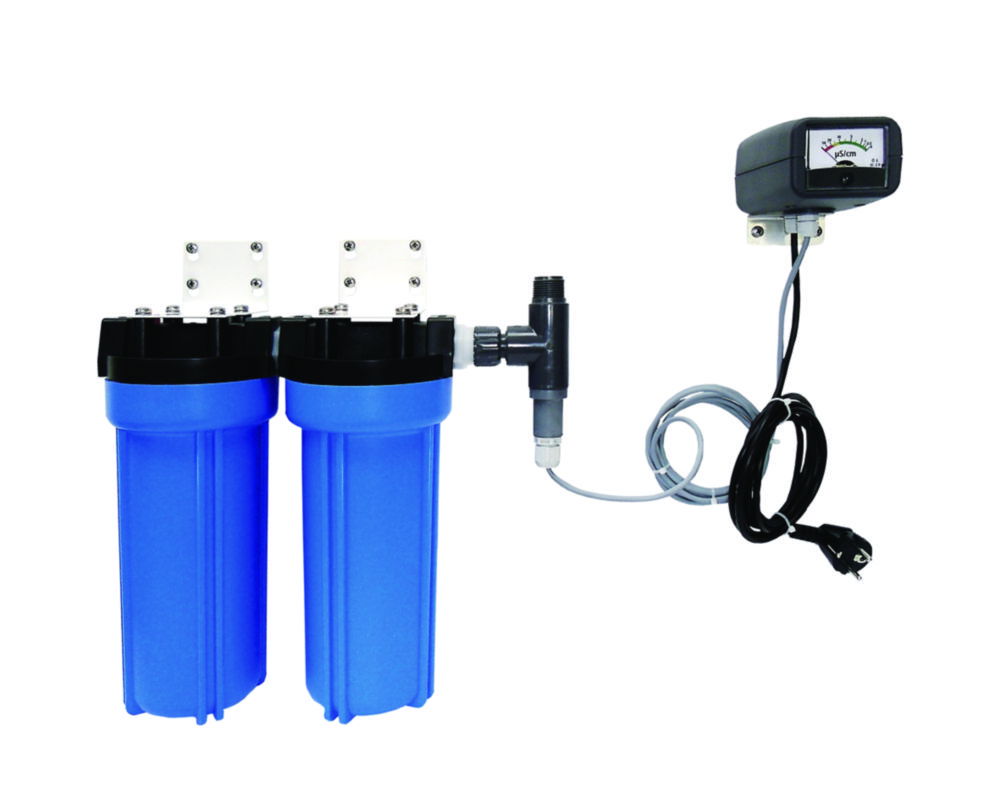

Ion exchangers DS 150 / DS 150 Duo, PE
Pressure-resistant ion exchanger systems, for a daily requirement of up to 10 litres. A filter system prevents any resin from escaping.Scope of delivery: DS 150 / DS 150 Duo, analogue conductivity meter, set of hoses and wall mount.Specifications:Pure water quality:0.1 ... 20 µS / cmMax. water temperature:30 °CConnection:R ¾"Power supply:230 V / 50 ... 60 Hz* At 10° total dissolved solids

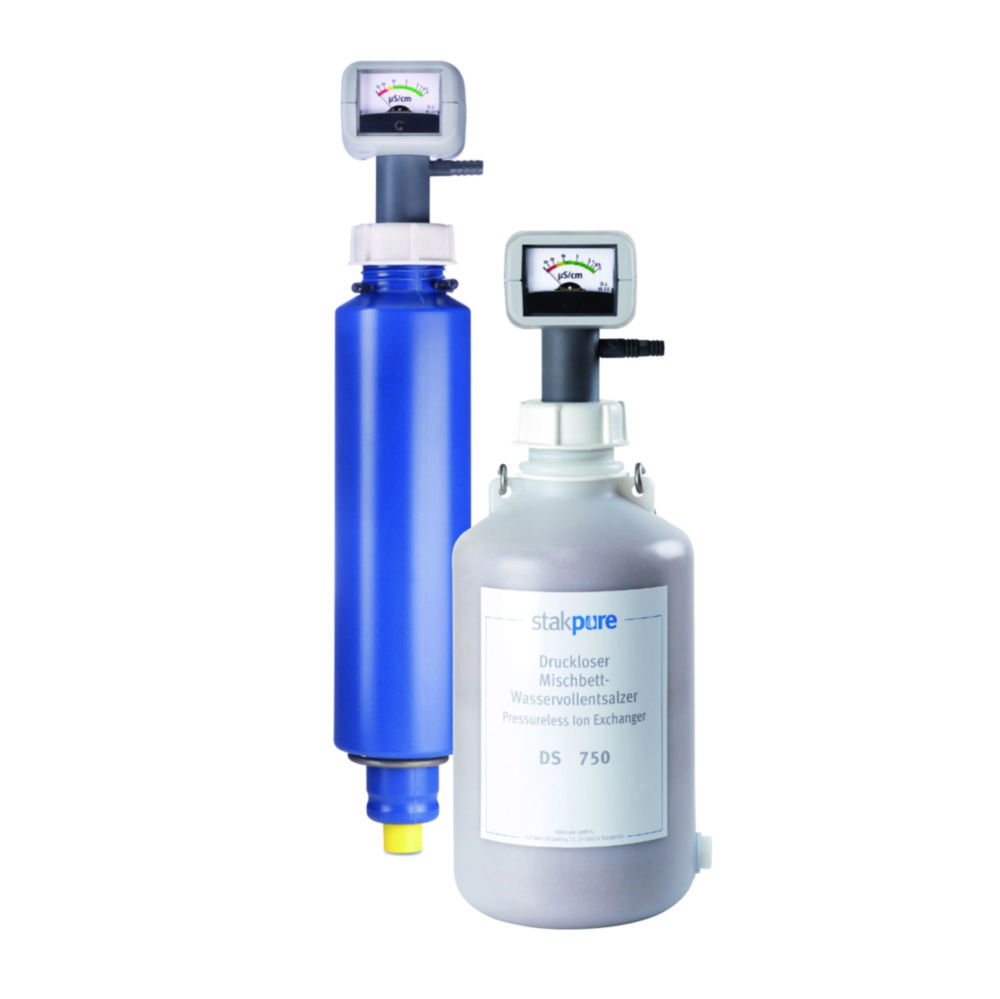

Ion exchangers DS 450 / DS 750, PE
The non-pressurised cartridges, which are suitable for a daily requirement up to 15 litres, are simply replaced after a prolonged period of service. A filter system prevents any resin from escaping.Scope of delivery DS 450: incl. analogue conductivity meter, set of hoses and wall mount.Scope of delivery DS 750: incl. analogue conductivity meter and set of hoses.Specifications:Pure water quality:0,1 ... 20 µS / cmMax. water temperature:30 °CConnection:R ¾"Power supply:230 V / 50 ... 60 Hz* At 10° total dissolved solids

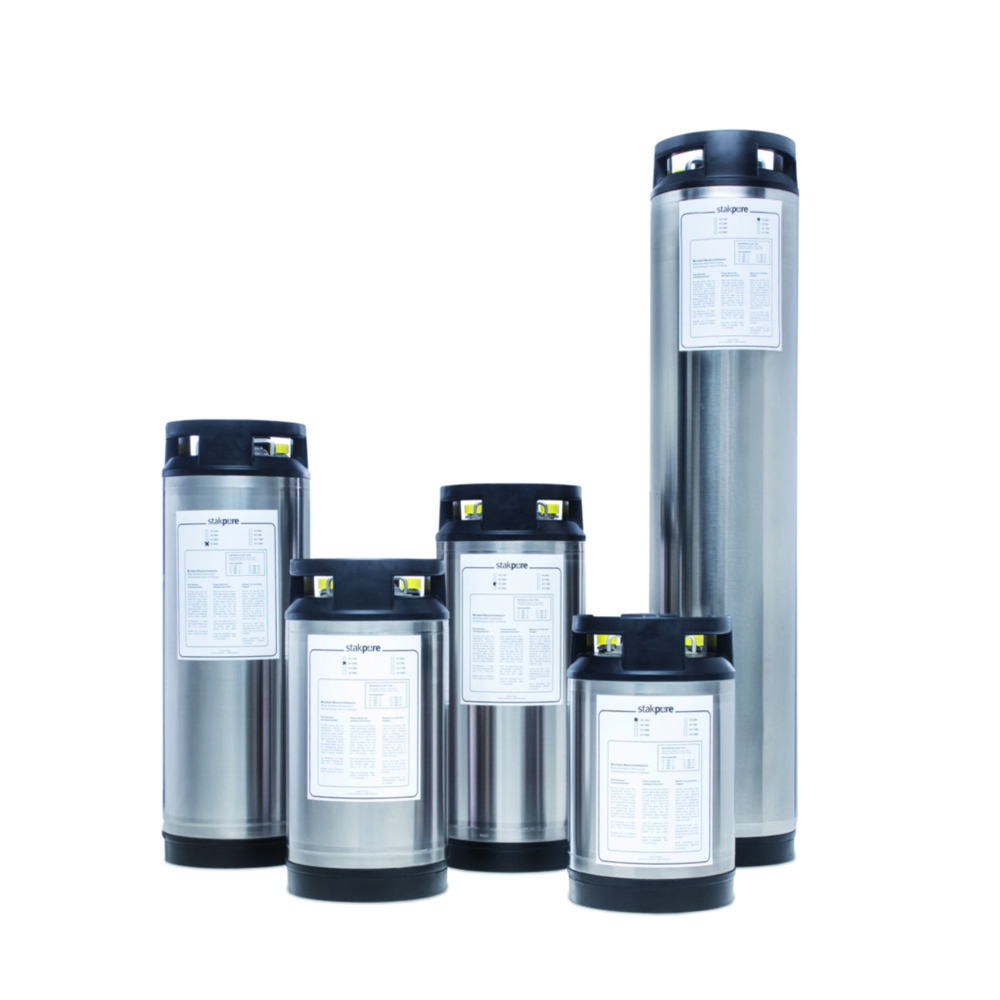

Ion exchangers series DS for industry, stainless steel AISI 316
Pressure resistant stainless steel cartridge, specifically for laboratory applications, with a particularly high capacity and flow rates of up to 1000 litres an hour. The flow system ensures a fast and effective flow through the mixed-bed system with ion-exchange resins.Capacity at 10° total dissolved solidsSpecifications:Max. pressure:10 barPure water quality:0.1 ... 20 µS / cmMax. water temperature:30 °CConnection:R ¾"

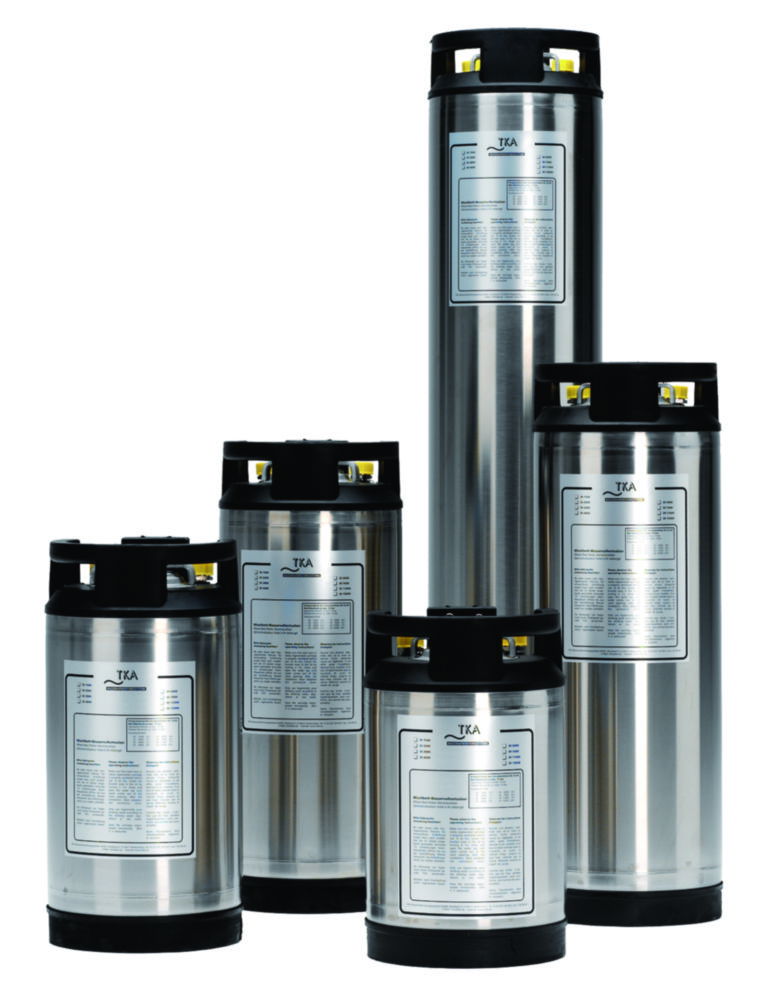

Ion exchangers series DS, stainless steel AISI 316
Pressure resistant stainless steel cartridge, specifically for laboratory applications, with a particularly high capacity and flow rates of up to 1000 litres an hour. The flow system ensures a fast and effective flow through the mixed-bed system with ion-exchange resins.With hard rubber carrying handlesCapacity at 10° total dissolved solidsSpecifications:Max. pressure:10 barPure water quality:0.1 ... 20 µS / cmMax. water temperature:30 °CConnection:R ¾"

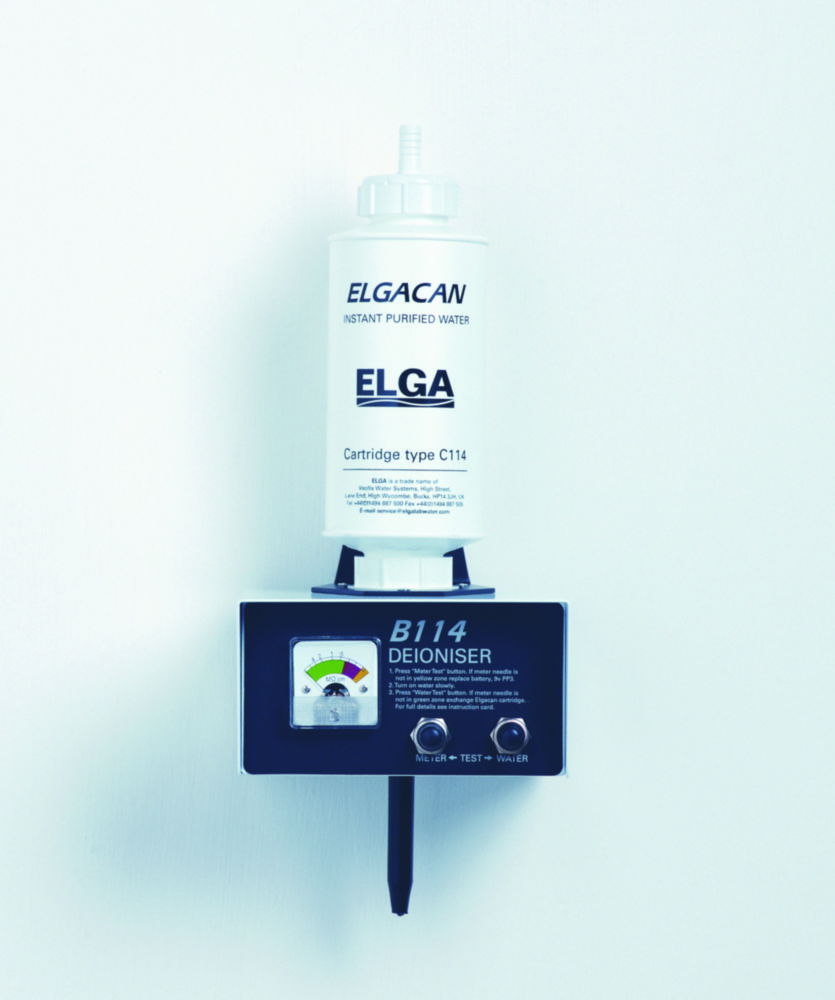

Laboratory ion exchanger Elga B114
The ultra pure water, as produced by these Elga ion exchanger is almost entirely free of dissolved mineral salts, including silica, and has a neutral pH since the dissolved CO2 has been removed. From an inorganic standpoint, ultra pure water conforms to International Pharmacopeia and laboratory grade specifications for purified water.The B114 model for wall-mounting is ideal for users who require low volumes of ultra pure water. It has a conductivity meter with a colour scale, which is powered by a 9 V battery. The quality of the treated water can be called up immediately by pressing the water test switch. When exhaustion of the ion exchange resins is indicated, cartridge replacement is a simple, rapid operation.Scope of supply: Ion exchanger, four C114 disposable cartridges, without batteriesThe amount of ultra pure water produced depends on the local water quality.Technical dataOutput min/max litre:20/250Water purity µS/cm:1 ... 0.1Meter:3

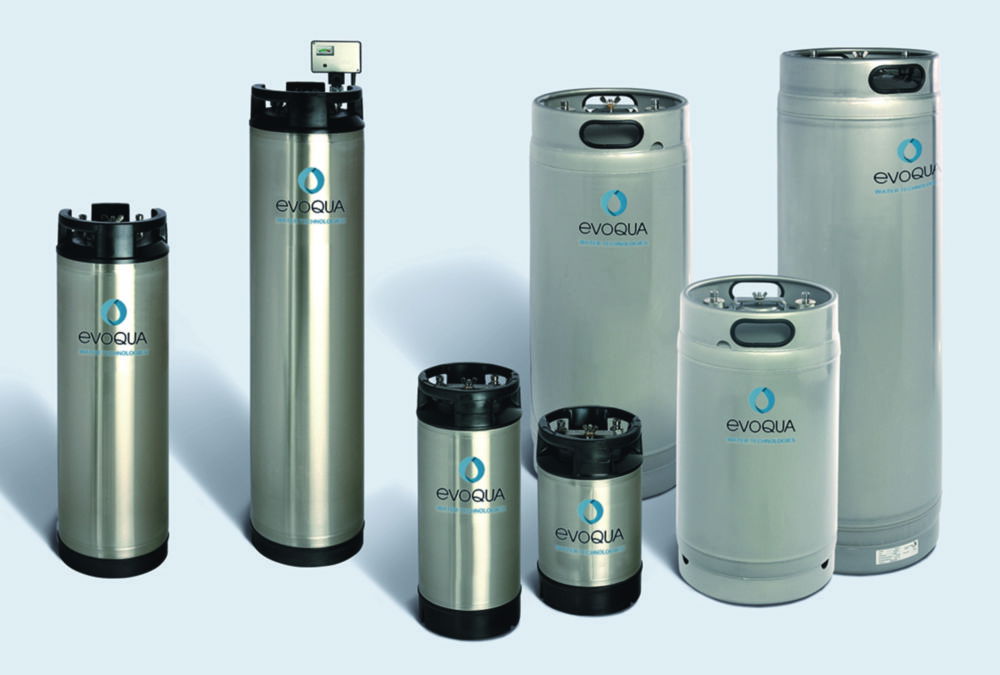

Mixed-bed ion exchanger made of stainless steel
Standard cartridge made of V4A stainless steel for general purpose application: To supply laboratory glassware washers, for general laboratory maintenance and for small industrial consumers. For subsequent demineralization of reverse osmosis systems.pressure resistant to 10 bar / 8 bar at E40dAoptimum exploitation of the ion exchanger capacity due to absolute uniform water distribution in the unitflow rates up to 700 litres/hourthe unique behropur® jet nozzle system distributes the raw water over the entire resin bed. This ensures an optimum exchange capacity and qualitycan be connected to the raw water network directly and without a pressure reducerresistant to alternating pressurehard rubber collars vulcanized to the base and top of the unit offer effective protectionconvenient transport thanks to the handles embedded into the top part of the unitconductivity is controlled directly on the unit (installed measuring equipment) or with remote location meterAlso available with shut-off when the limit value is reached and limit controlSpecificationsE 28 / E 40 dExchange capacity* at 10°dH2800 litres / 4000 litresFlow max. litres/hour500 / 700Diameter in cm 24 / 24Height incl. LF in cm74 / 84Height of cartridge only in cm60 / 70* Limit value 20 µS/cm
Pre-treatment cartridges Progard® for water purification systems
The pre-treatment cartridges contain polyphosphates, activated carbon and depth filter for water pre-treatment and serve to protect reverse osmosis membrane against organic fouling, chlorine oxidation, and mineral scaling.
