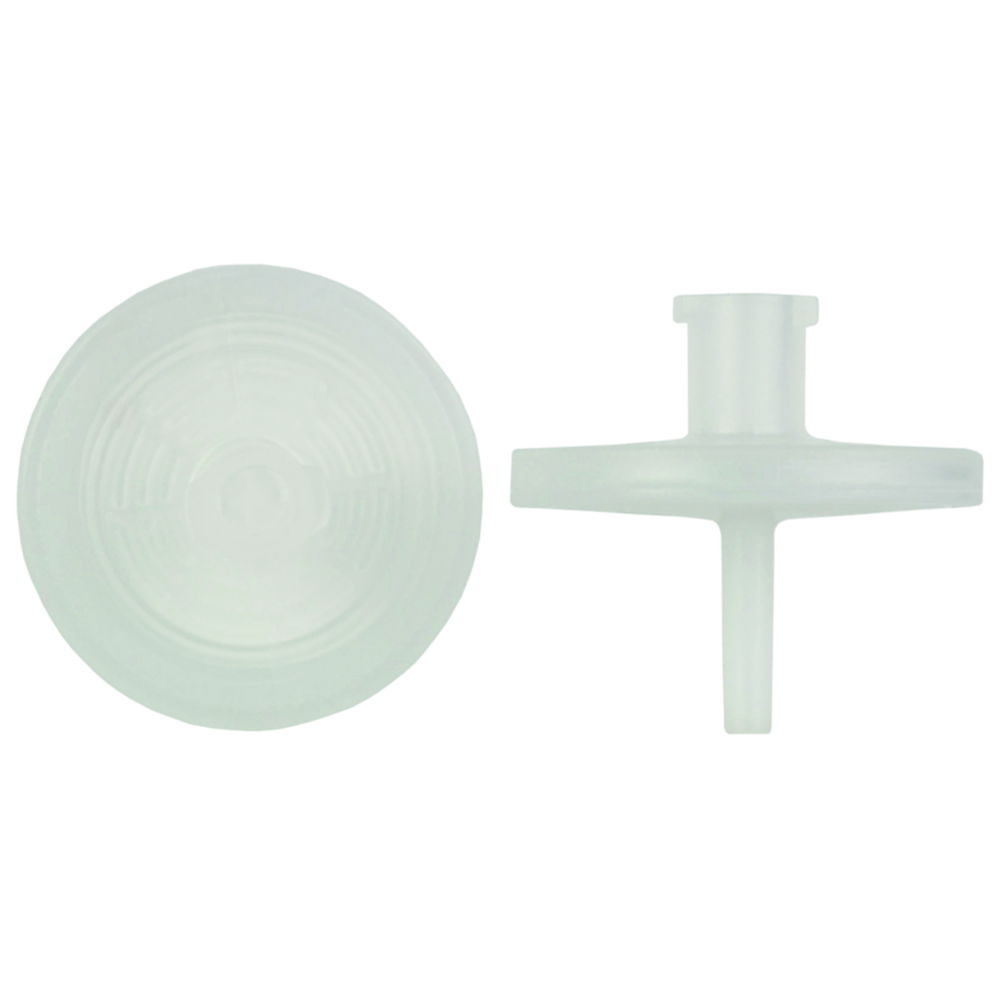

LLG-Syringe filters SPHEROS, Nylon
Cost-effective syringe filters for filtration of a broad variety of solvents, as well as aqueous, or inorganic solutions. These syringe filters cover most applications in HPLC, pharmaceutical, environmental, biotechnology, and food and beverage testing laboratories.Robust polypropylene housingMultifunctional syringe filters with female Luer-Lock inlet and male Luer-Slip outletSuitable for all syringes with Luer connectionHydrophilic membrane for filtration of aqueous, organic, and medium polar solutionsVery good chemical resistance to esters, alkaline solutions, and alcohols
LLG-Syringe filters SPHEROS, PES
Cost-effective syringe filters for filtration of a broad variety of solvents, as well as aqueous, or inorganic solutions. These syringe filters cover most applications in HPLC, pharmaceutical, environmental, biotechnology, and food and beverage testing laboratories.Robust polypropylene housingMultifunctional syringe filters with female Luer-Lock inlet and male Luer-Slip outletSuitable for all syringes with Luer connectionHydrophilic membrane for aqueous and polar organic solutions with low protein binding capacityEspecially suitable for sterile filtration of solutions and media in cell culture, as well as for ion chromatography and organic acidsSterile filters individually packed in a hard blister package and dispenser box.For research and development only.
LLG-Syringe filters SPHEROS, PTFE
Cost-effective syringe filters for filtration of a broad variety of solvents, as well as aqueous, or inorganic solutions. These syringe filters cover most applications in HPLC, pharmaceutical, environmental, biotechnology, and food and beverage testing laboratories.Robust polypropylene housingMultifunctional syringe filters with female Luer-Lock inlet and male Luer-Slip outletSuitable for all syringes with Luer connectionHydrophobic membrane for filtration of non-polar liquids and gasesVery good chemical resistance to all kinds of solvents and alkaline solutions
LLG-Syringe filters SPHEROS, PVDF
Cost-effective syringe filters for filtration of a broad variety of solvents, as well as aqueous, or inorganic solutions. These syringe filters cover most applications in HPLC, pharmaceutical, environmental, biotechnology, and food and beverage testing laboratories.Robust polypropylene housingMultifunctional syringe filters with female Luer-Lock inlet and male Luer-Slip outletSuitable for all syringes with Luer connectionHydrophilic membrane for aqueous polar and light non-polar solutionsVery low protein bindingSuitable for high flow ratesIdeal for use with biological macromolecules, water-soluble oligomers and polymersSterile filters in individual hard blister packaging and dispenser box.For research and development only.
Membrane filter holders, PC
Reusable filter holder, without filter. Filter has to be selected separately. For particle removal, sterile filtration of aqueous solutions or for venting of sterile vessels. Autoclavable. With Luer connection.
Mini Filtration cartridges Sartoclean® CA Mini Cartridge, with prefilter
Housing PP. Filters made of cellulose acetate for prefiltration in the biophamacy area.Bayonet adapter with o-ringLow adsorptionAutoclavable at 134 °C for 30 minutes at 2 barManufactured according to ISO 9001 QMS standardPre-filter pore size 3 µm
Mini-cartridge filters, Sartobran-P
Mini-cartridge filters are inserted into a stainless steel housing. The bayonet closure provides a secure seal against back-pressure surges. An inner O-ring seals the lower part of the housing (except for the aeration housing). For the filtration of larger volumes and for long service lives. Individually tested. Their integrity can be checked at any time. Can be autoclaved repeatedly.Heterogeneous double membrane of cellulose acetate, for the sterile filtration of liquids. Pore size pre-filter 0,45 µm.
Mini-cartridge filters, Sartofluor
Mini-cartridge filters are inserted into a stainless steel housing. The bayonet closure provides a secure seal against back-pressure surges. An inner O-ring seals the lower part of the housing (except for the aeration housing). For the filtration of larger volumes and for long service lives. Individually tested. Their integrity can be checked at any time. Can be autoclaved repeatedly.Hydrophobic PTFE membrane filter, for the sterile filtration of air and gases.
Mini-cartridge filters, Sartopure-PP3
Mini-cartridge filters are inserted into a stainless steel housing. The bayonet closure provides a secure seal against back-pressure surges. An inner O-ring seals the lower part of the housing (except for the aeration housing). For the filtration of larger volumes and for long service lives. Individually tested. Their integrity can be checked at any time. Can be autoclaved repeatedly.High performance PP fleece prefilters for particle reduction.
Mini-Spike®
Vented dispensing pin with swabable needle-free access valve for injections and withdrawals of non-toxic fluids . Protection against the risk of chemical contamination.Mini-Spike® ChemoWith integrated 0.2 µm ventilation filterWith integrated 5 µm particle filterWith snap capMini-Spike® Chemo Vpossesses an integrated two way valve which protects against free-flow when the system is turned upside down.Mini-Spike® Chemo with micro tipoffers a thinner spike to perforate smaller vials to prevent small rubber stoppers from being pushed into the vial.Mini-Spike® 2Vented dispensing pin with swabable needle-free access valve for injections and withdrawals of non-toxic fluids from containersProtection against the risk of chemical contaminationIntegrated air vent making over-pressure release techniques unnecessary
Sample filtration in trace analysis
Applications:Filtration of aqueous samples with the regulation of COD, TOC, DOC.Properties:Low blank value, due to pre-rinsed, hydrophilic cellulose acetate membrane.

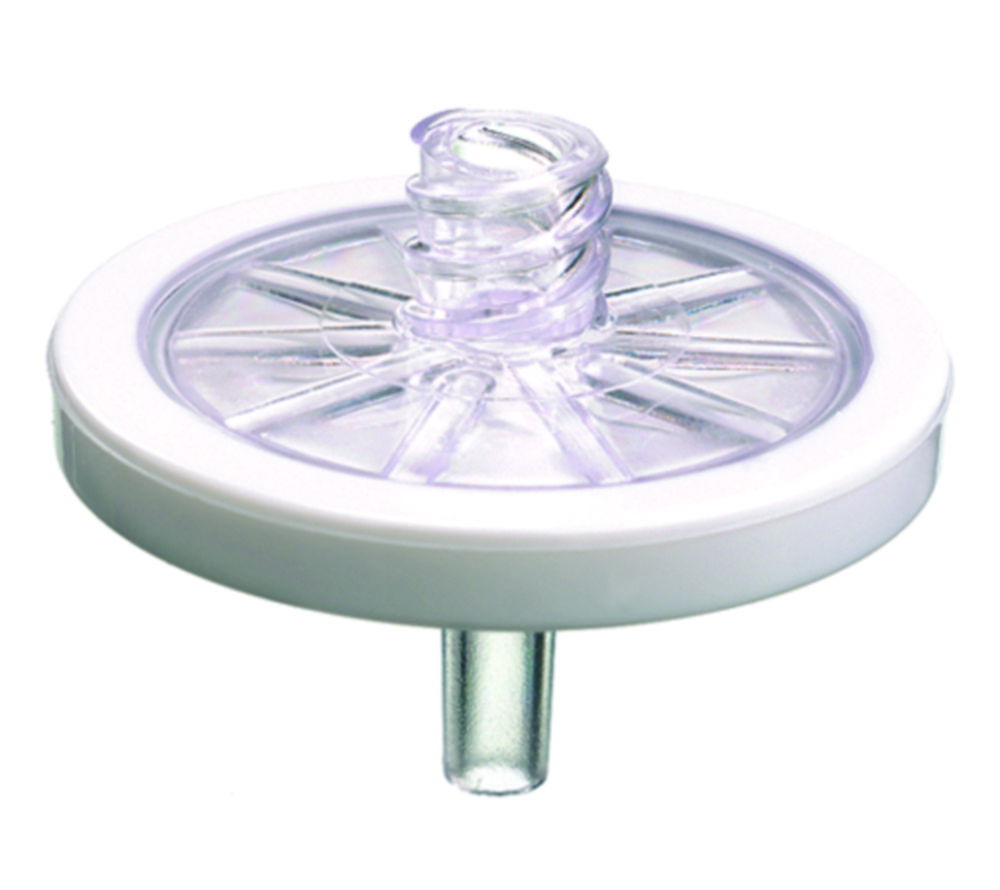

Selectron® filter holders FP 025/1 and FP 050/1
In polysulphone for use with syringes for analytical and preparative use. Filtration-media must be selected separately.Applications of FP 025/1:Clarification and sterile filtration of aqueous liquids and gases.Applications of FP 050/1:Sampling and flow rate applications. Ideal for filtrations using peristaltic pumps and for gas sterilisation.

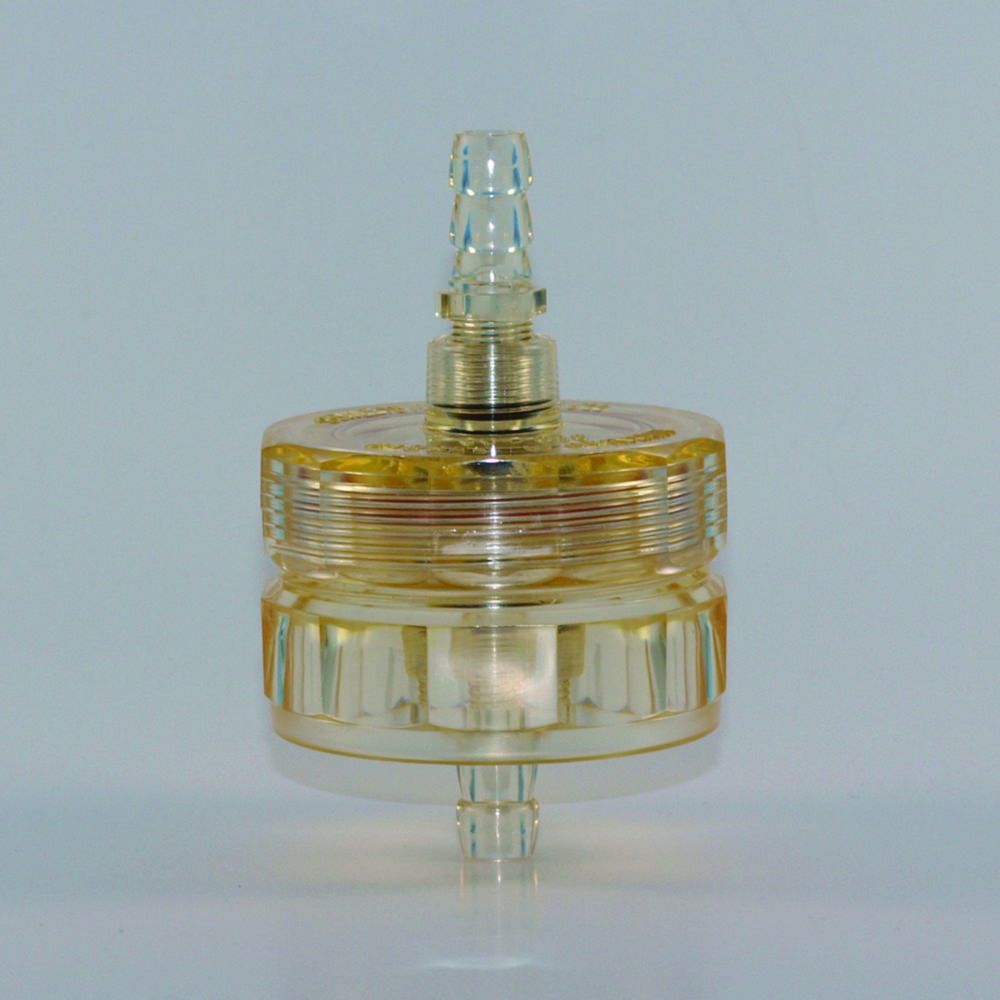

Spritzenvorsatzfilter Vacusart®, PTFE
Housing PP. Watertrap between filter flask and vacuum pump to prevent wetting of the devices.

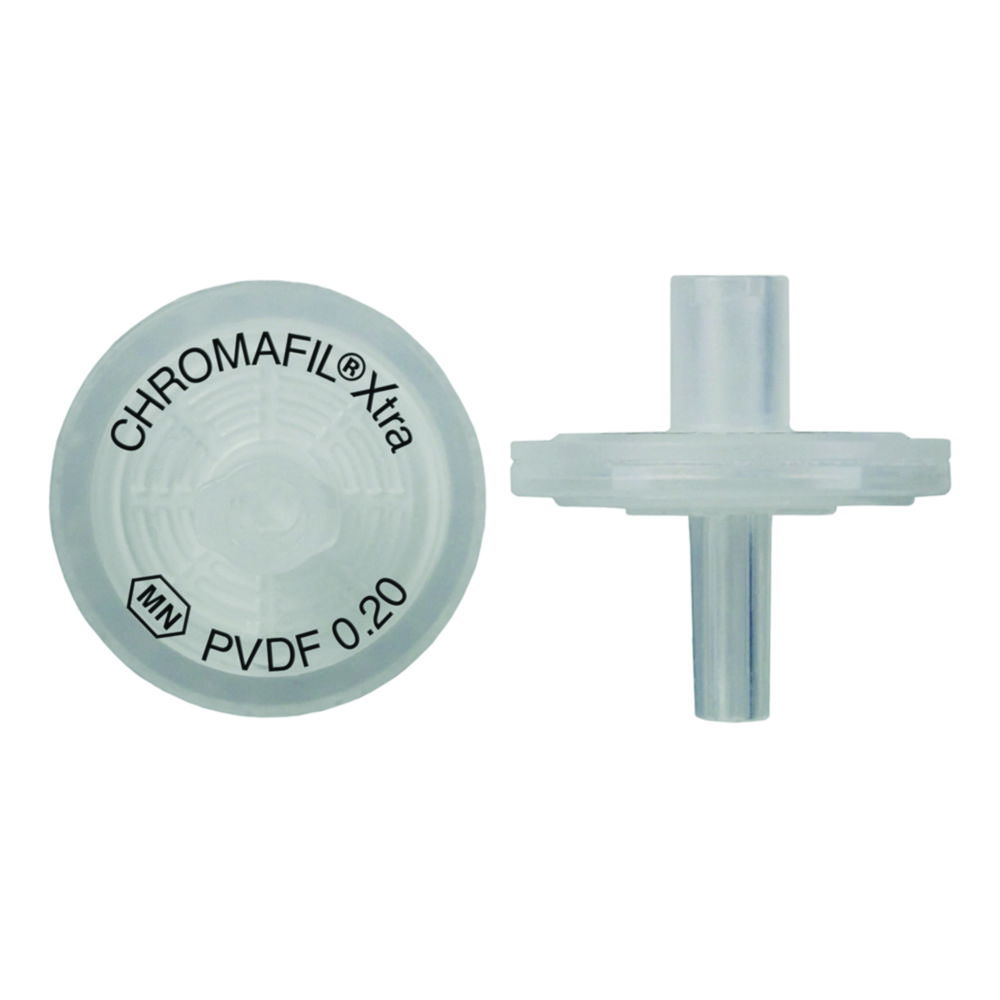

Syringe filter CHROMAFIL® Xtra, Polyvinylidenfluoride (PVDF)
The syringe filters are used for filtration of suspended matter from liquid samples and are certified for HPLC. Standard CHROMAFIL syringe filters are color coded. CHROMAFIL Xtra syringe filters are labeled for method validation and certification. All CHROMAFIL syringe filters are autoclavable (121 °C and 1.1 bar for 30 min).Hydrophilic membrane, for aqueous solutions, water-soluble oligomers and polymers like proteins binding capacity for proteins 20 µg/25 mm filter.

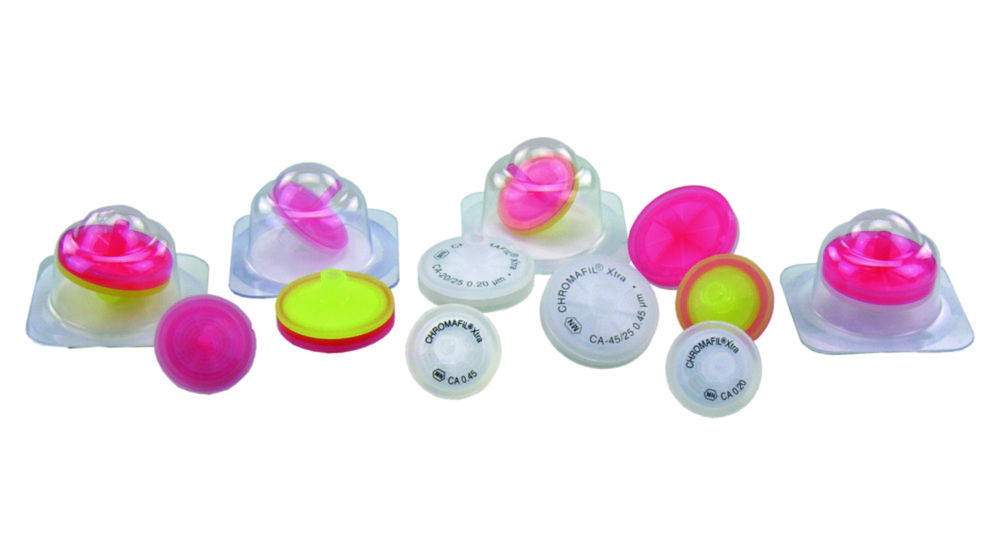

Syringe filter CHROMAFIL®, Cellulose acetate (CA)
Hydrophilic membrane for filtration of water-soluble oligomers and polymers, especially suited for biological macromolecules. Very high shape stability in aqueous solutions extremely low binding capacity for proteins (21µg/ 25mm filter).

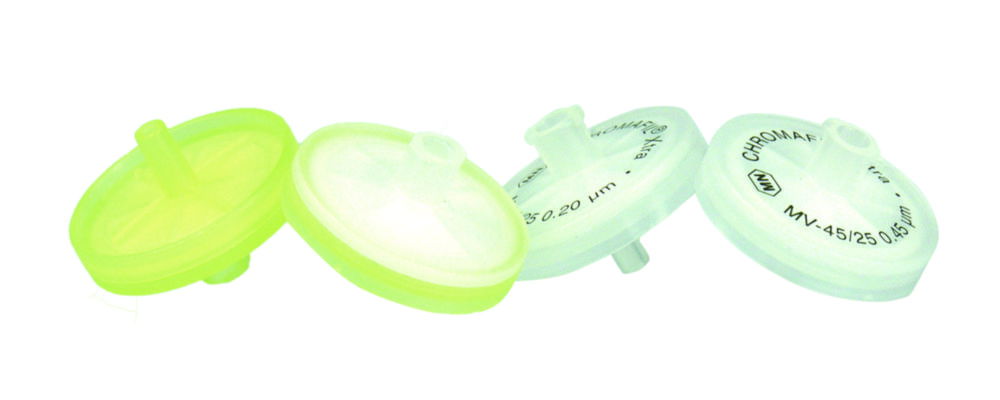

Syringe filter CHROMAFIL®, Cellulose mixed ester (MV)
Hydrophilic membrane. This membrane is recommended for all filtrations of aqueous or polar organic samples.

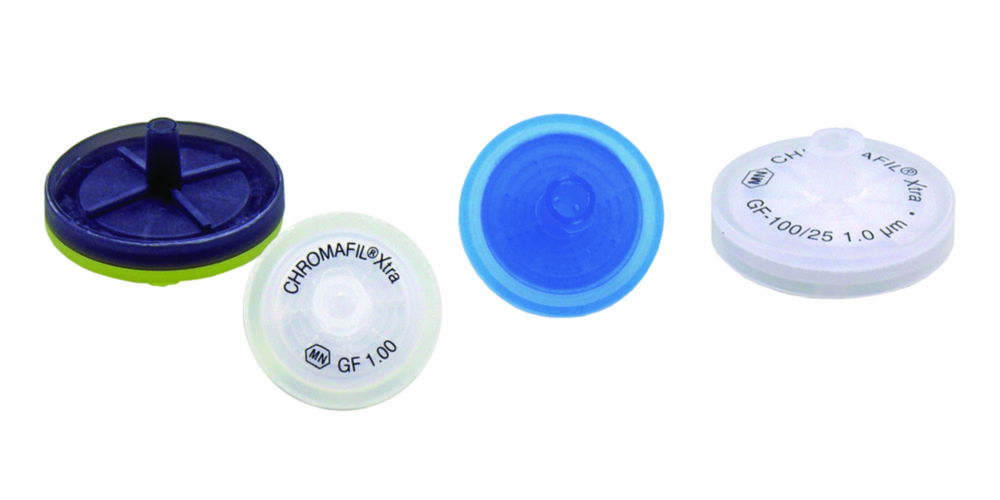

Syringe filter CHROMAFIL®, Glass-fibre (GF)
Inert Filter, nominal pore size 1µm, allows higher flow rates than smaller pore filters. For solutions with high loads of particulate matter or for highly viscous solutions (e. g. soil samples, fermentation broths) as prefilters for other CHROMAFIL® filters, they prevent plugging of the membrane.

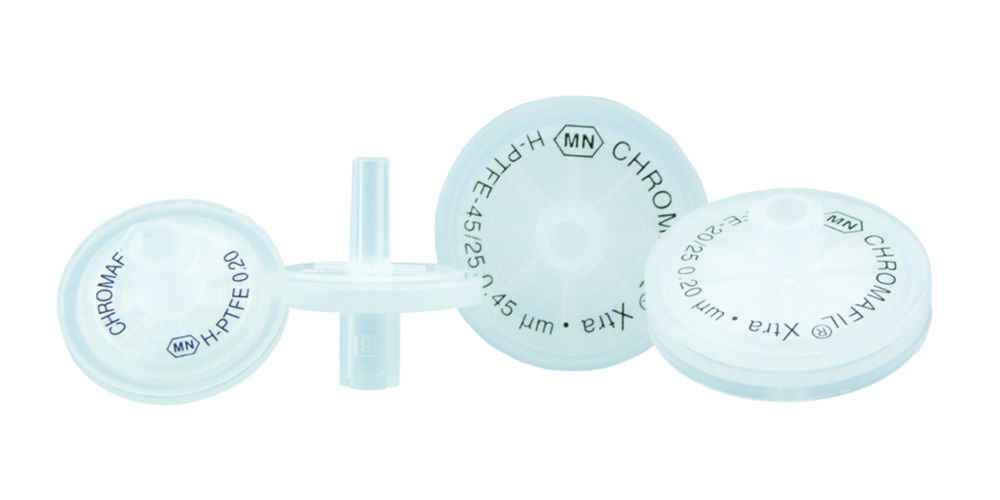

Syringe filter CHROMAFIL®, Hydrophilized Polytetrafluoroethylene (H-PTFE)
Hydrophilized polytetrafluoroethylene syringe filters labelled for method validation and certificationHydrophobic membrane with additional hydrophilic characteristicsFor polar and nonpolar solutionsResistant against all kinds of solvents as well as acids and bases

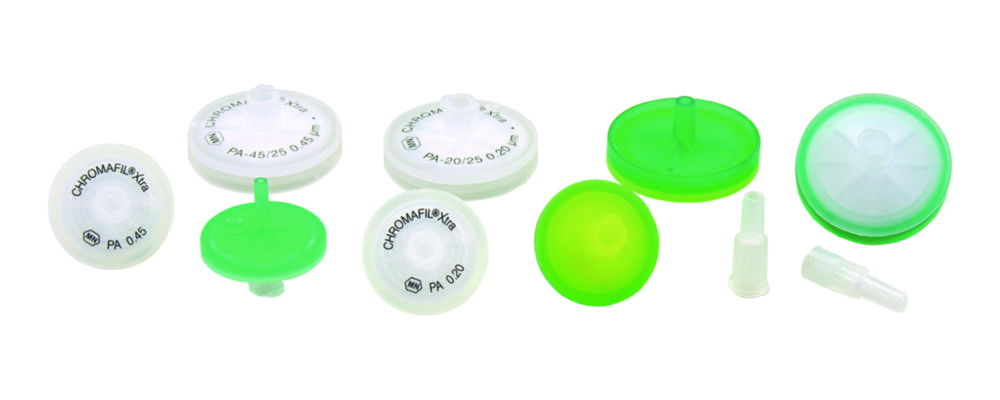

Syringe filter CHROMAFIL®, Polyamide (PA)
Hydrophilic membrane. The membrane is recommended for filtration of medium polar organic/aqueous liquids.

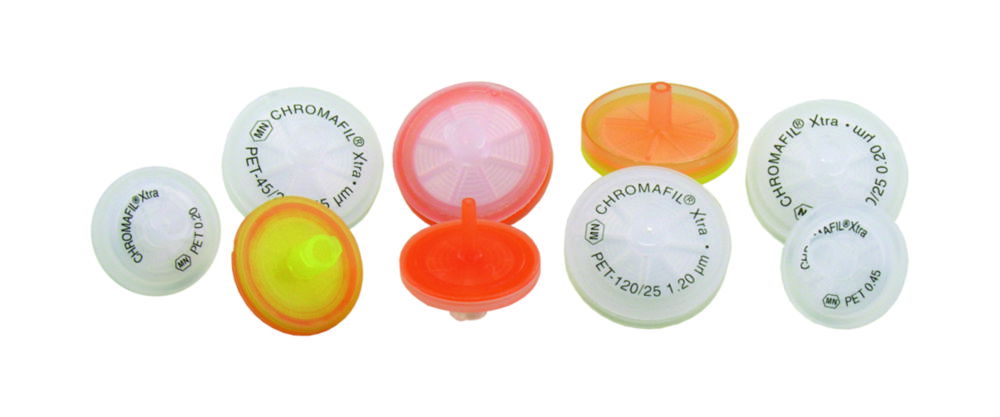

Syringe filter CHROMAFIL®, Polyester (PET)
Hydrophilic membrane for polar as well as non-polar solvents. The HPLC filter, especially suited for mixtures of water and organic solvents; for TOC/DOC determination; not cytotoxic, does not inhibit the growth of microorganisms and higher cells. Polyester filter with integrated glass fibre prefilter (GF/PET): recommended for solutions with a high load of particulate matter or for highly viscous solutions.

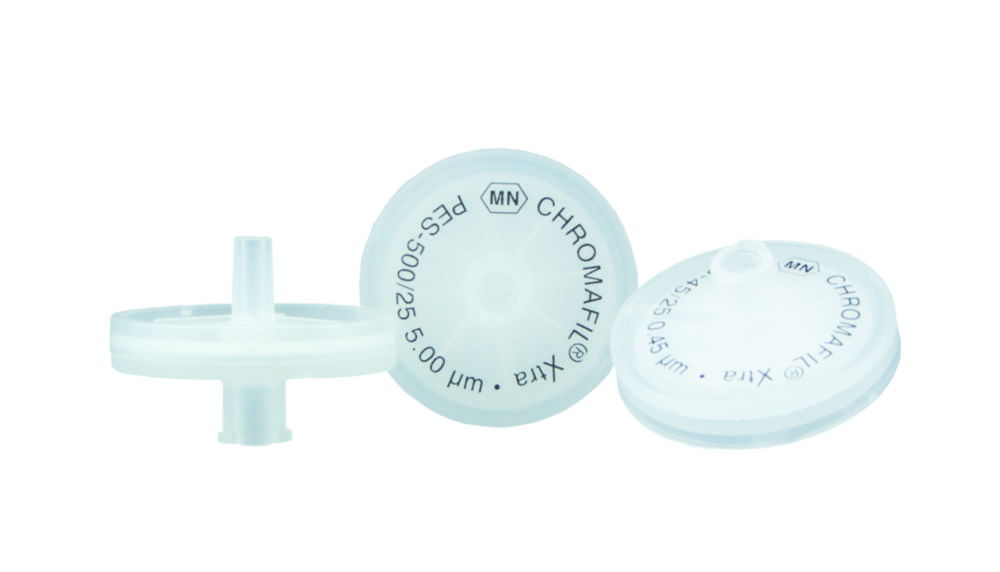

Syringe filter CHROMAFIL®, Polyethersulfone (PES)
The syringe filters are used for filtration of suspended matter from liquid samples and are certified for HPLC. Standard CHROMAFIL syringe filters are color coded. CHROMAFIL Xtra syringe filters are labeled for method validation and certification. All CHROMAFIL syringe filters are autoclavable (121 °C and 1.1 bar for 30 min).Hydrophilic membrane for aqueous and light organic solutions. Very low adsorption of pharmaceuticals and proteins. Good stability against acids and bases. Binding capacity for proteins 29 µg per 25 mm filter.

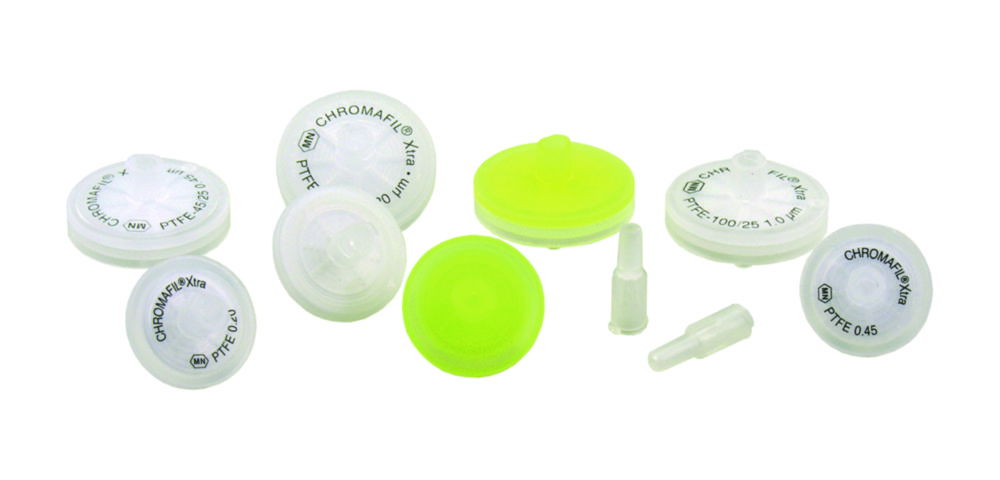

Syringe filter CHROMAFIL®, Polytetrafluoroethylene (PTFE)
The syringe filters are used for filtration of suspended matter from liquid samples and are certified for HPLC. Standard CHROMAFIL syringe filters are color coded. CHROMAFIL Xtra syringe filters are labeled for method validation and certification. All CHROMAFIL syringe filters are autoclavable (121 °C and 1.1 bar for 30 min).A hydrophobic membrane. Ideal for filtration of non-polar liquids and gases. It is very resistant to various solvents as well as acids and bases. By flushing with alcohol, followed by water, the original hydrophobic membrane can be made more hydrophilic.
Syringe filter CHROMAFIL®, Polyvinylidenfluoride (PVDF)
The syringe filters are used for filtration of suspended matter from liquid samples and are certified for HPLC. Standard CHROMAFIL syringe filters are color coded. CHROMAFIL Xtra syringe filters are labeled for method validation and certification. All CHROMAFIL syringe filters are autoclavable (121 °C and 1.1 bar for 30 min).Hydrophilic membrane, for aqueous solutions, water-soluble oligomers and polymers like proteins. Binding capacity for proteins 20 µg/25 mm filter. Minispike on filter exit.
Syringe filter CHROMAFIL®, Polyvinylidenfluoride (PVDF), with glass fibre prefilter
The syringe filters are used for filtration of suspended matter from liquid samples and are certified for HPLC. Standard CHROMAFIL syringe filters are color coded. CHROMAFIL Xtra syringe filters are labeled for method validation and certification. All CHROMAFIL syringe filters are autoclavable (121 °C and 1.1 bar for 30 min).Hydrophilic membrane. For aqueous solutions, water-soluble oligomers and polymers like proteins. The PVDF filter with integrated glass fibre prefilter (GF/P) is recommended for filtration of biological samples with high particle loads. This filter features a high binding capacity for proteins. Also suited for filtration of polar and non-polar solutions.
