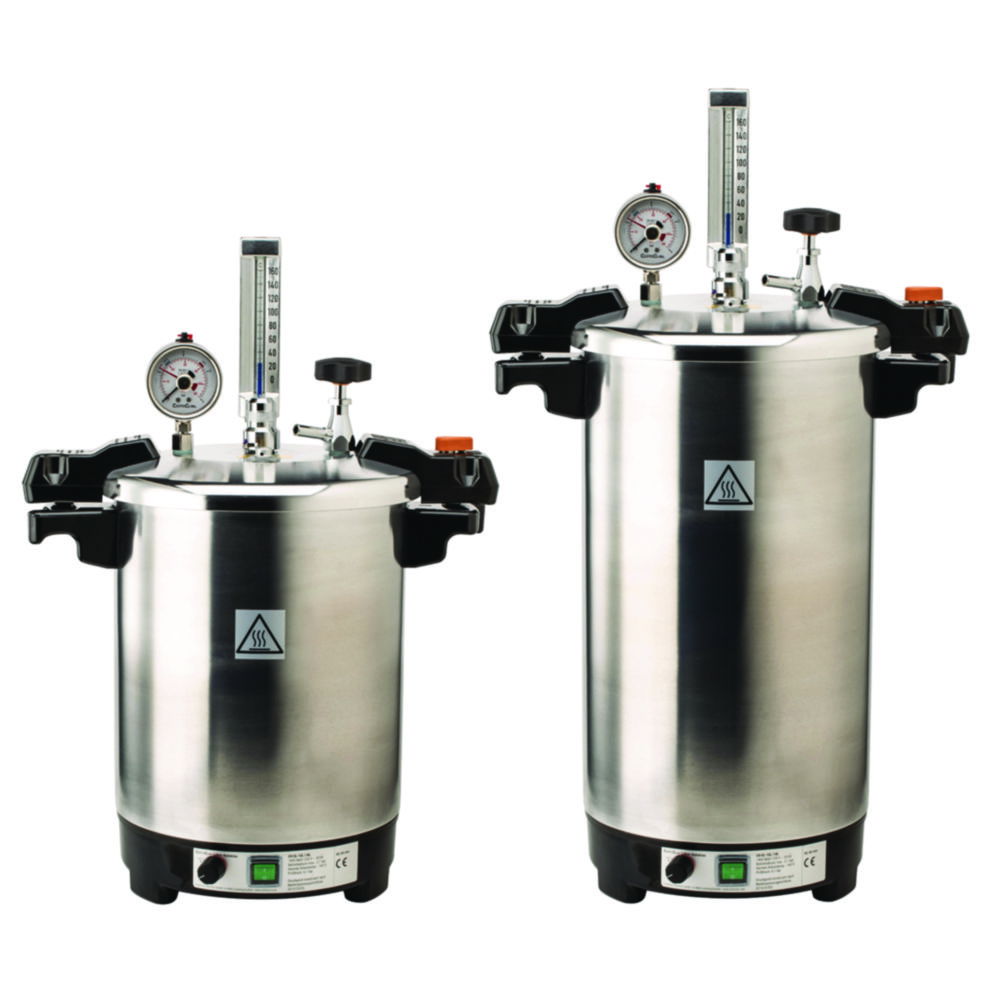

Tabletop autoclaves CertoClav EL
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.The vertical laboratory autoclave is suitable for sterilisation of unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, food preservation, culture media preparation and waste. A precision thermometer, a control valve, and a precision manometer with drag indicator provide precise processes and accurate results for all applications. The autoclave is available in two versions, each with two temperature levels. These temperature settings are controlled via the control valve on the lid. These valves are not interchangeable, because the thermostat of the device is harmonized with and calibrated to the respective valve.Robust constructionThermostat controlledHigh heating powerVenting by flow procedureHeating integrated in the baseScope of supply: Autoclave, instrument tray, power cable

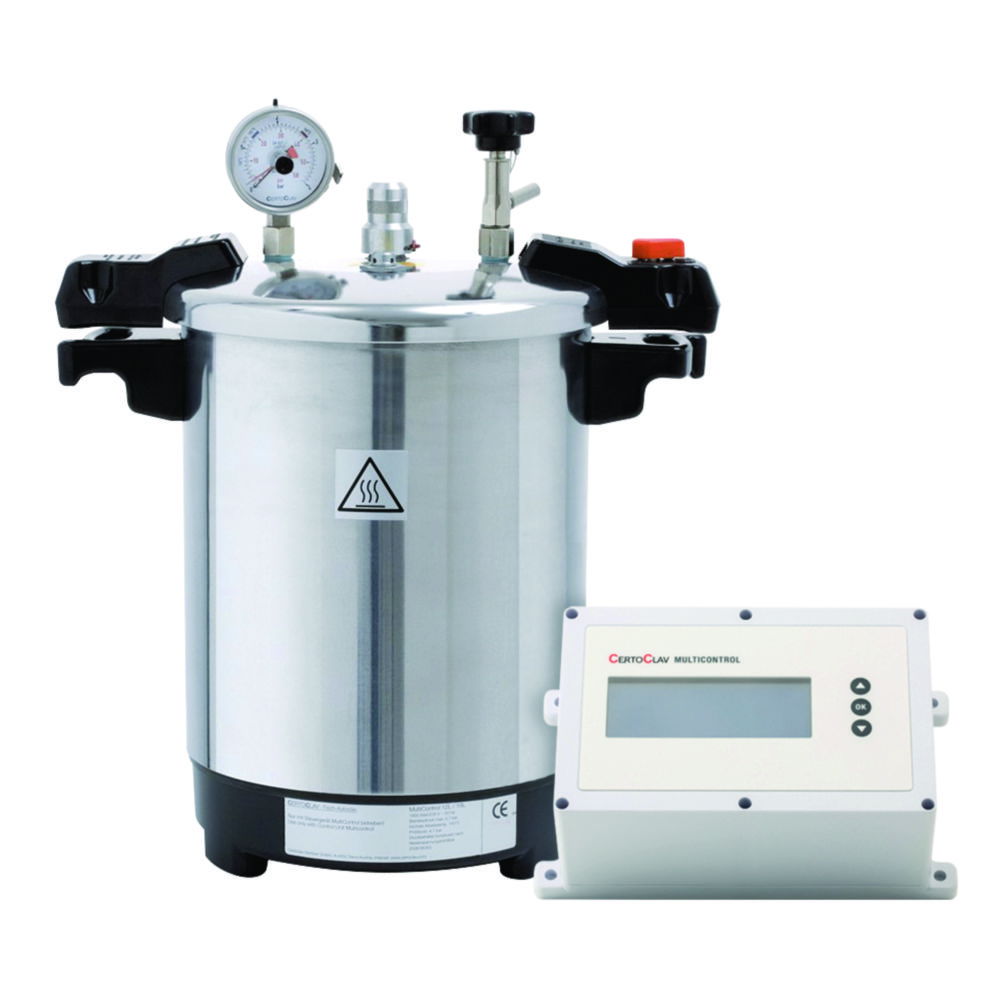

Tabletop autoclaves CertoClav MultiControl
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.The PT100 sensor-controlled, vertical laboratory autoclave is suitable for extended/ long- term cycles, material tests, HAST test, Pressure Cooker Test, ICP-TM 650, culture media preparation, sterilisation of waste, hazardous biological substances (S2), unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials and rubber.Without connecting a PC, the control unit can only be used to set programs that include just one time and one temperature step. For programs that include several time and temperature steps, the PC software professional version is required.Microprocessor-controlledVenting by fractional flow procedureElectronic process controlProgrammable from 1 minute to 30 days and from room temperature to 140 °CControl unit with LCD displayUSB portPrinter port (RS232) for printing sterilisation protocolsHeating integrated in the baseScope of supply: Autoclave, MC2 control unit, instrument tray, power cable, PC software basic version

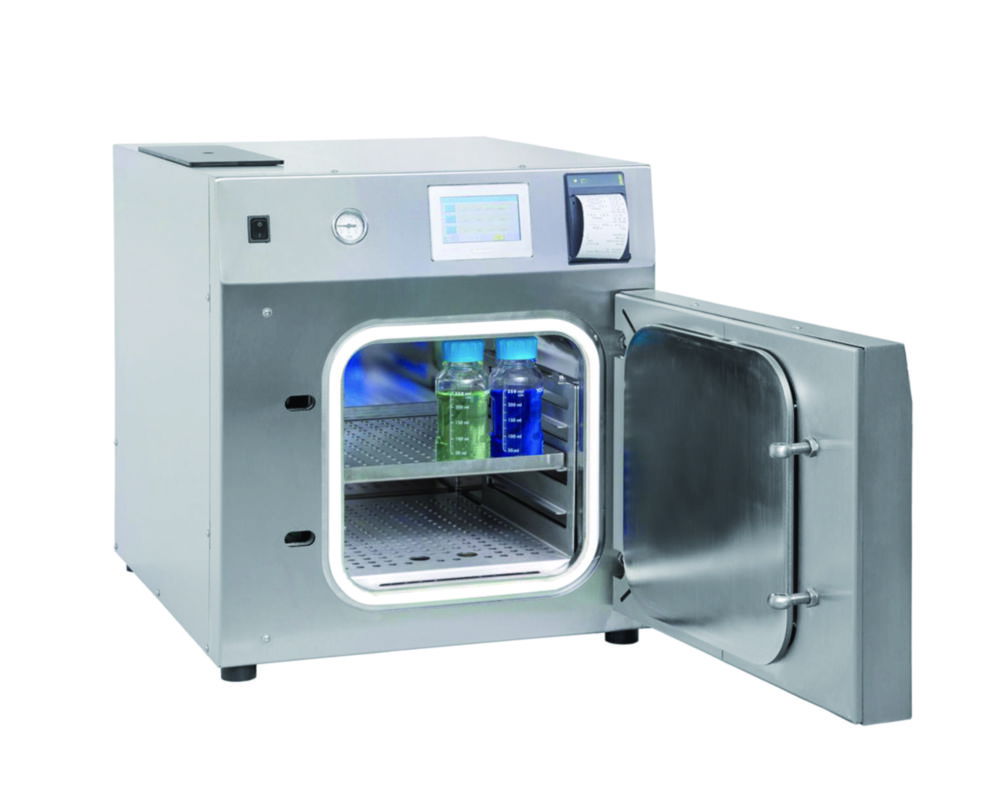

Tabletop autoclaves CertoClav STE-45-T
The preheatable chamber, air cooling system and vacuum pump enable a fast sterilisation cycle including drying. Due to the intelligent combination of vacuum, pressure and steam, the autoclaves are suitable for solid bodies of all materials as well as hollow bodies. The additional media sensor guarantees a complete sterilisation of liquids such as culture media. A drip tray is necessary for autoclaving liquids. The autoclaves can be connected to the free CertoCloud.7-inch touchscreen with video assistantUp to 50 user-definable programs can be freely createdFlexible sensor for measuring the temperature of mediaWater quality sensorAutomatic documentationRS232, RS485, USB, ethernet, LAN, WiFiIntegrated documentation (GMP/GLP conform)Scope of supply: Autoclave, CertoAssist touchscreen, instrument tray, power cable, CertoCloud basic licence
Tabletop autoclaves CertoClav VacPro
The preheatable chamber, air cooling system and vacuum pump enable a fast sterilisation cycle including drying. Due to the intelligent combination of vacuum, pressure and steam, the autoclaves are suitable for solid bodies of all materials as well as hollow bodies. The additional media sensor guarantees a complete sterilisation of liquids such as culture media. A drip tray is necessary for autoclaving liquids. The autoclaves can be connected to the free CertoCloud.7-inch touchscreen with video assistantUp to 50 user-definable programs can be freely createdFlexible sensor for measuring the temperature of mediaWater quality sensorAutomatic documentationRS232, RS485, USB, ethernet, LAN, WiFiIntegrated documentation (GMP/GLP conform)Scope of supply: Autoclave, CertoTouch screen, instrument tray, power cable, CertoCloud basic license
Tabletop autoclaves LabStar 40
Small laboratory table-top autoclave with round chamber for sterilization tasks of various kinds. A hinged lid with electromotive locking mechanism in combination with the robust lip seal ensures easy and safe closing of the sterilization chamber. A temperature lock in the liquid program prevents opening at temperatures higher than 80 °C and therefore unwanted boiling delay. For an exact control the autoclave has an electronic absolute pressure sensor and a flexible temperature sensor PT100 Kl. A.Loading capacity: 15 medium-flasks or 11 Erlenmeyer flasks (500 ml)Safe and simple locking deviceCompletely made of stainless steelFits on any laboratory benchEquipment versionsBasic Lab: With heating elements. For the sterilization of simple materials or liquids without removal dry.Dry Lab: With heating elements, membrane-vacuum pump. For the sterilization of non-infectious waste bags and materials which require intensive subsequent drying.Quick Lab Basic: With heating elements, water-cooling system, internal heat exchanger. For the sterilization of large quantities of liquids.Quick Lab: With heating elements, water-cooling system, internal heat exchanger, membrane-vacuum pump. For the sterilization of non-infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying.Safe Lab: With heating elements, membrane-vacuum pump, exhaust air filtration EAF. For operation in the level S2 lab. Recommended for the sterilization of infectious waste bags and materials which require intensive subsequent drying.Complete Lab: With heating elements, membrane-vacuum pump, exhaust air filtration EAF, water-cooling system, internal heat exchanger. Fully equipped laboratory autoclave for operation in the level S2 lab. Recommended for the sterilization of infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying.SpecificationsChamber volume:40Permissible operating pressure:3.8 bar absolutePermissible operating temperature:140 °CHeat output:2.5 kWChamber dimensions (W x D x H):295 x 460 x 295 mmOuter dimensions (W x D x H):532 x 698 x 605 mmWeight basic unit:65 kgPower supply:240 V, 50 Hz, 16 A
Tabletop autoclaves LabStar 70
Laboratory table-top autoclave with round chamber for sterilization tasks of various kinds. A hinged lid with electromotive locking mechanism in combination with the robust lip seal ensures easy and safe closing of the sterilization chamber. A temperature lock in the liquid program prevents opening at temperatures higher than 80 °C and therefore unwanted boiling delay. For an exact control the autoclave has an electronic absolute pressure sensor and a flexible temperature sensor PT100 Kl. A.Loading capacity: 24 medium-flasks or 17 Erlenmeyer flasks (500 ml)Safe and simple locking deviceCompletely made of stainless steelFits on any laboratory benchEquipment versionsBasic Lab: With heating elements. For the sterilization of simple materials or liquids without removal dry.Dry Lab: With heating elements, membrane-vacuum pump. For the sterilization of non-infectious waste bags and materials which require intensive subsequent drying.Quick Lab Basic: With heating elements, water-cooling system, internal heat exchanger. For the sterilization of large quantities of liquids.Quick Lab: With heating elements, water-cooling system, internal heat exchanger, membrane-vacuum pump. For the sterilization of non-infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying.Quick Lab Advanced: With steam generator, water ring vacuum pump, water-cooling system, internal heat exchanger, air recirculation valve, steam/air mixture method (SAMM). For the sterilization of non-infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying. This also applies to liquids in closed containers.Safe Lab: With heating elements, membrane-vacuum pump, exhaust air filtration EAF. For operation in the level S2 lab. Recommended for the sterilization of infectious waste bags and materials which require intensive subsequent drying.Complete Lab: With heating elements, membrane-vacuum pump, exhaust air filtration EAF, water-cooling system, internal heat exchanger. Fully equipped laboratory autoclave for operation in the level S2 lab. Recommended for the sterilization of infectious waste bags, large quantities of liquids and materials which require intensive subsequent drying.SpecificationsChamber volume:65 lPermissible operating pressure:3.8 bar absolutePermissible operating temperature:140 °CHeat output:6.0 kWChamber dimensions (W x D x H):310 x 680 x 310 mmOuter dimensions (W x D x H):700 x 820 x 644 mmWeight basic unit:125 kgPower supply:400 V, 50 Hz, 16 A

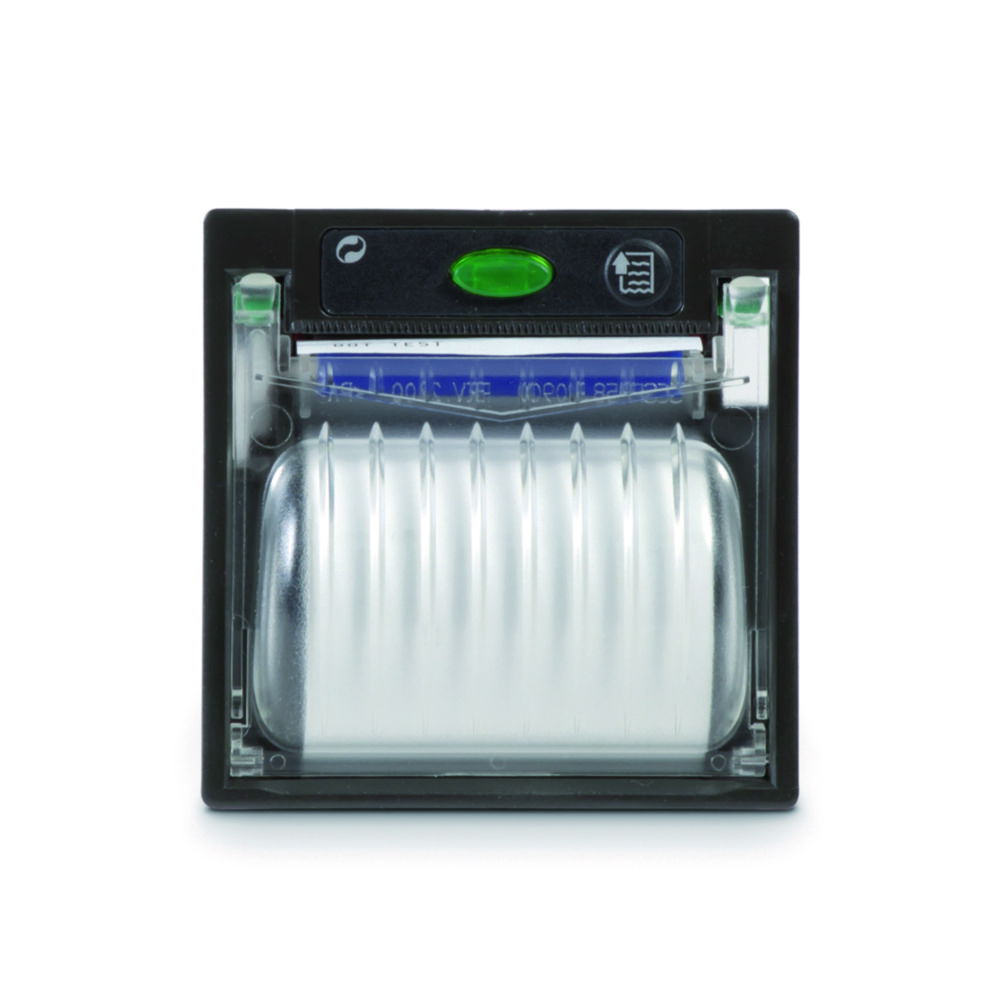

Thermoprinter for automatic autoclaves
Built-in printer IT:Must be installed ex factory, please order with autoclave.For Models: AES-12, AES-28, AES-50, AES-75, AES-110, AES-150, AE-28-DRY, AE-50-DRY, AE-75-DRY, AE-110-DRY, AE-150-DRY, AHS-50-N, AHS-75-N, AH-21-L, AHS-50-DRY, AHS-75-DRYBuilt-in printer IT/TS:Must be installed ex factory, please order with autoclave.For Models: AE-50-B, AE-75-B, AE-110-B, AE-150-B, AH-21-B, AHS-50-B, AHS-75-B, AE-20-MP, AE-40-MP, AE-60-MP, AE-80-MP, AE-100-MPTable top printer ITS:Print program number, cycle number, temperature, date and hour of the run. Error messages are also printed. With RS 232 interface. Only for AES-12 / AES-28 / AES-50 / AES-75 / AES-110 / AES-150 / DRYBuilt-in printer IT/TLVMust be installed ex factory, please order with autoclave.For TLV/Series
