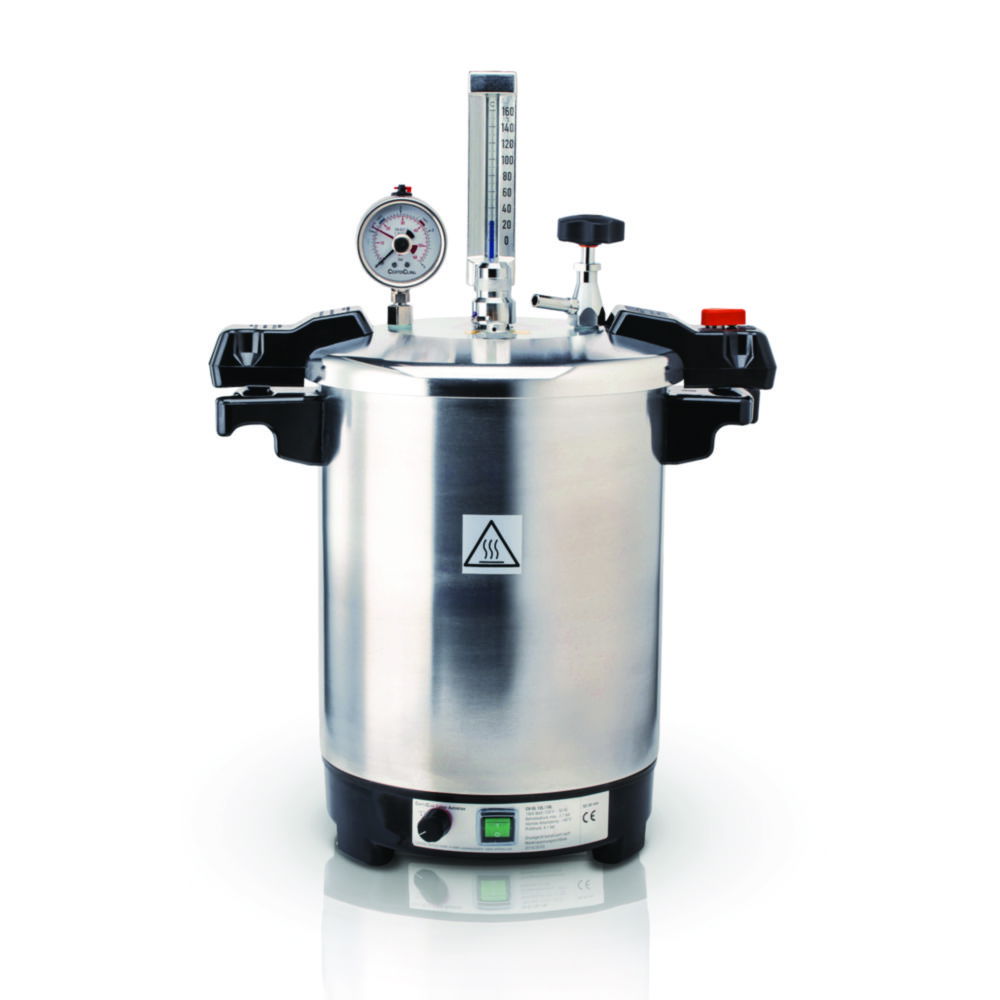

Tabletop autoclaves CertoClav EL
CertoClav Sterilizer GmbH
€0.00
Content: 1
Product number: 9842013
Product information "Tabletop autoclaves CertoClav EL"
Its versatility and compact construction make autoclaves especially interesting for small labs or they can be used as an optimal addition to a large autoclave.
All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
The vertical laboratory autoclave is suitable for sterilisation of unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, food preservation, culture media preparation and waste. A precision thermometer, a control valve, and a precision manometer with drag indicator provide precise processes and accurate results for all applications. The autoclave is available in two versions, each with two temperature levels. These temperature settings are controlled via the control valve on the lid. These valves are not interchangeable, because the thermostat of the device is harmonized with and calibrated to the respective valve.
Scope of supply: Autoclave, instrument tray, power cable
All models: Low-maintenance. No water connection required. Compliant with 2014/35/EU Low Voltage Directive, 2014/30/EU EMV Directive, 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Vertical models: Class N steam sterilisers. Venting procedure: free steam flow process or fractional flow procedure. A heater is integrated in the bottom of the chamber, but it is not exposed. Therefore, it cannot calcify. The autoclaves are easy to transport and location independent. All you need is a power supply and a mixture of tap water and demineralised water. Safeguarded by a multiple safety system. In aluminum models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and the overpressure safety cavity. In stainless steel models, it consists of an overpressure valve, a pressure valve, a safety lock inside the lid to prevent opening under pressure and a two-bimetal safeguard to prevent overheating of the device.
- Robust construction
- Thermostat controlled
- High heating power
- Venting by flow procedure
- Heating integrated in the base
Scope of supply: Autoclave, instrument tray, power cable
| Dimensions internal (Ø x H): | 240 x 260 mm |
|---|---|
| Ext. depth: | 275 mm |
| Ext. height: | 505 mm |
| Ext. width: | 395 mm |
| External dimensions (WxDxH): | 395 x 275 x 505 mm |
| Heating capacity: | 1900 W |
| Height int.: | 260 mm |
| Int. Ø: | 240 mm |
| Manufacturer Article Number: | 8501312 |
| Material interior: | Aluminium |
| Max. pressure: | 2.7 bar |
| Max. voltage: | 230 V |
| Nominal capacity: | 12 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature levels: | 125/140 °C |
| Type: | EL 12 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 6.2 kg |
