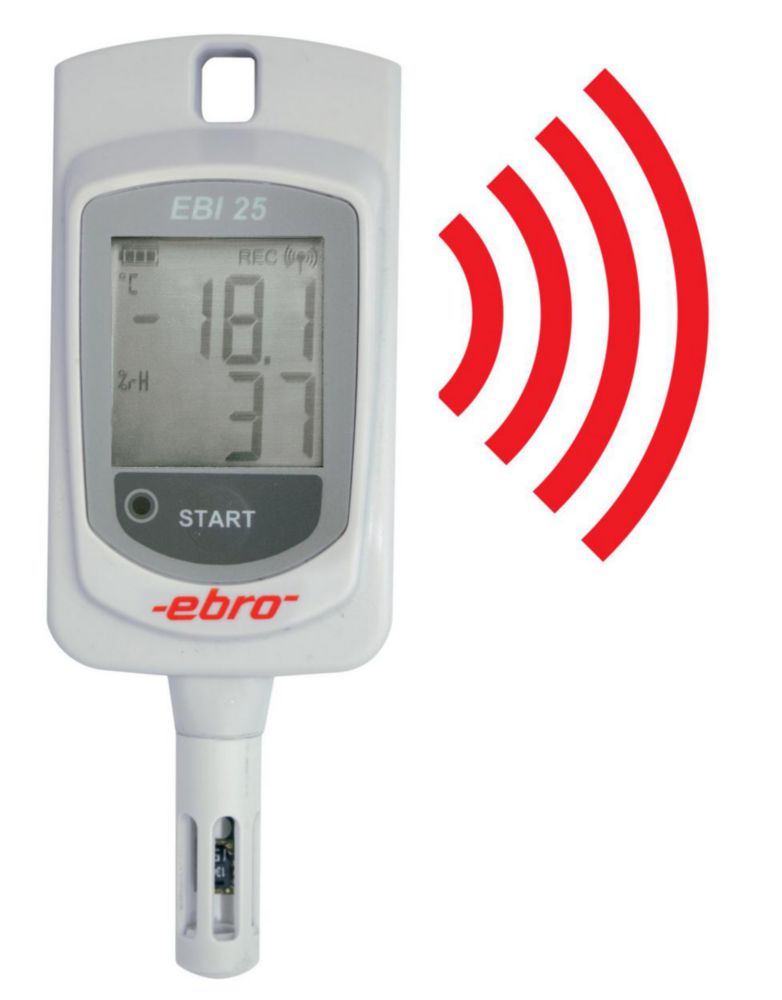

Wireless temperature-humidity data logger EBI 25-TH
€0.00
Product information "Wireless temperature-humidity data logger EBI 25-TH"
- Readout via wireless interface
- Replaceable battery
- LCD display
- Memory for 288 values per channel
The IF 400 base station and the Winlog.web/Winlog.wave PC software are required for programming and evaluating the EBI 25-TH data logger.
Scope of supply: Temperature-humidity data logger, operating manual
| Battery/rechargeable battery: | 3.6 V, Lithium |
|---|---|
| Depth: | 124 mm |
| Dimensions (WxDxH): | 48 x 124 x 27 mm |
| Electrochemical system: | Lithium |
| Height: | 27 mm |
| IP code: | IP 20 |
| Manufacturer Article Number: | 1340-6202 |
| Material housing: | ABS |
| Max. measuring cycle: | 24 h |
| Max. relative humidity: | 100 % |
| Max. temperature: | 60 °C |
| Max. voltage battery/rechargeable battery: | 3.6 V |
| Measuring cycle: | 1 min ... 24 h |
| Min. measuring cycle: | 1 min |
| Min. relative humidity: | 0 % |
| Min. temperature: | -30 °C |
| Relative humidity: | 0 ... 100 % |
| Resolution: | 0.1 °C |
| Resolution relative humidity: | 0.1 % |
| Temperature: | -30 ... 60 °C |
| Type: | EBI 25-TH |
| Type of auxiliary energy: | Battery |
| Width: | 48 mm |
