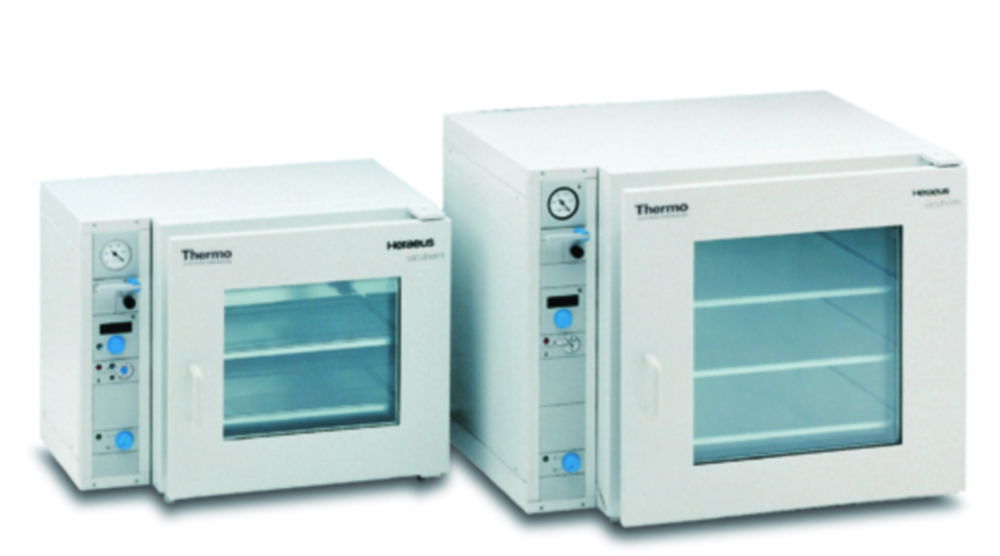

Vacuum oven Vacutherm™ VT 6000 M, heated jacket
Thermo Elect.LED GmbH (Kendro)
€0.00
Content: 1
Product number: 9883511
Product information "Vacuum oven Vacutherm™ VT 6000 M, heated jacket"
For the careful, rapid drying and heat treatment of temperature sensitive substances and components in the electronics, pharmaceutical, cosmetic and biochemical industries. Also features analogue pressure display, stainless steel ball valve to control vacuum, rapid air ventilation valve, inert gas connection with pressure relief safety valve for controlled chamber purging and corrosion resistant vacuum fittings.
Heat is conducted from the heated chamber through the shelves to the sample. The shelves are removeable. With Kelvitron® microprocessor temperature controller.
Fully equipped vacuum pump control station Vacucenter available as an accessory for Vacutherm™ 6060 and 6130 ovens. Choice of 3 different vacuum pumps available according to operating conditions.
- With electro-polished and internally welded, rectangular chamber made of 1.4571 stainless steel
- Silicone door seal
- Small flange (DN 25 KF) vacuum fittings are positioned on the rear panel of the cabinet
- An overheat cut-out (Class 2) is supplied as standard
Fully equipped vacuum pump control station Vacucenter available as an accessory for Vacutherm™ 6060 and 6130 ovens. Choice of 3 different vacuum pumps available according to operating conditions.
| Depth int.: | 371 mm |
|---|---|
| Ext. depth: | 570 mm |
| Ext. height: | 576 mm |
| Ext. width: | 744 mm |
| External dimensions (WxDxH): | 744 x 570 x 576 mm |
| Height int.: | 345 mm |
| IP code: | IP 20 |
| Int. width: | 415 mm |
| Internal dimensions (WxDxH): | 415 x 371 x 345 mm |
| Manufacturer Article Number: | 51014539 |
| Material interior: | Stainless steel 1.4404 |
| Max. no. of inserts: | 4 |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +15 °C |
| Nominal capacity: | 53 l |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1700 W |
| Temperature: | RT+15 ... 200 °C |
| Temperature addition: | RT |
| Type: | VT 6060 M |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Ultimate vacuum: | 0.01 mbar |
| Weight: | 82 kg |
Login
No reviews found. Share your insights with others.
Skip product gallery
Accessories
Vacuum pump cabinet Vacucenter 1
This vacuum pump cabinet can be used with VT 6060 and VT 6130 vacuum drying ovens. It carries the vacuum pump (we offer three different pumps for a broad range of applications) and includes a central power supply and a main switch for both oven and pump.
Regular price: €0.00
