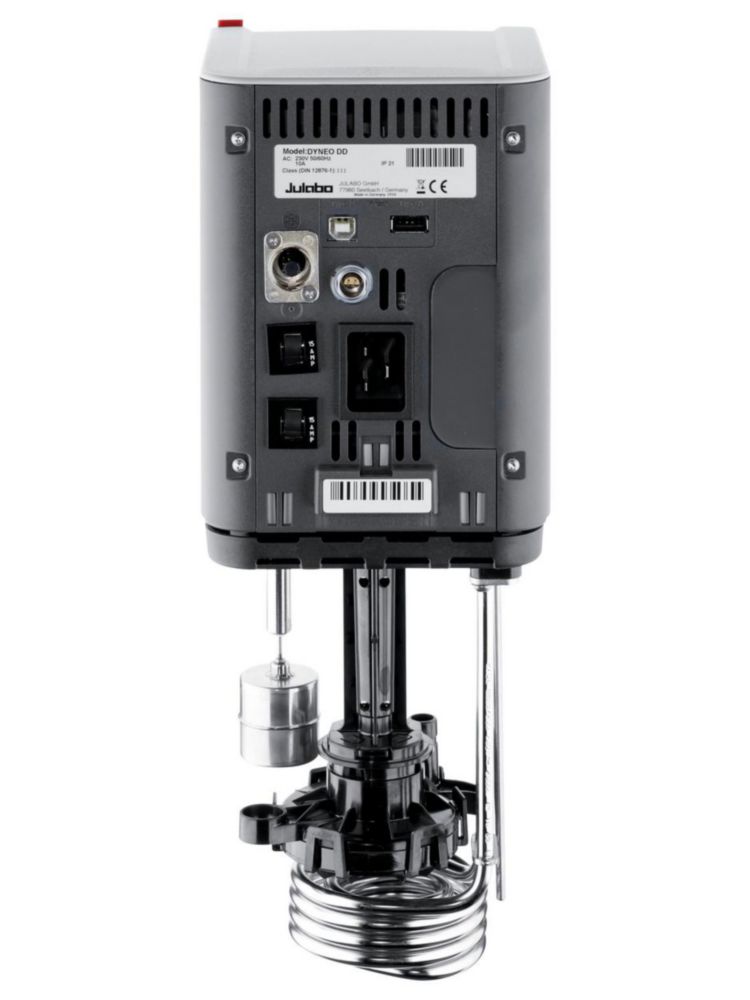

Thermoregulator DYNEO™ DD
€0.00
Product information "Thermoregulator DYNEO™ DD"
- Easy switching between internal and external circulation
- Large colour TFT Display
- Easy to operate via central controller
- Integrated programmer for 8 x 60 program steps
- Continuously adjustable, powerful pressure pump
- USB interface
- External Pt100 sensor connection
- Class III (FL) acc. to DIN 12876-1
- Easy switching between internal and external circulation
- Large colour TFT Display
- Easy to operate via central controller
- Integrated programmer for 8 x 60 program steps
- Continuously adjustable, powerful pressure pump
- USB interface
- External Pt100 sensor connection
- Class III (FL) acc. to DIN 12876-1
| Depth: | 160 mm |
|---|---|
| Dimensions (WxDxH): | 132 x 160 x 355 mm |
| Heating capacity: | 2 kW |
| Height: | 355 mm |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9021000 |
| Max. delivery pressure: | 0.7 bar |
| Max. flow rate: | 27 l/min |
| Max. temperature: | 200 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 20 °C |
| Min. voltage: | 200 V |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | 20 ... 200 °C |
| Temperature stability: | ±0,01 °C |
| Type: | DD |
| Type of auxiliary energy: | Mains connection |
| Type of display: | TFT |
| Weight: | 2.5 kg |
| Width: | 132 mm |
| With timer: | Yes |
Login
Accessories
Pump set for temperature control of external applications with pump connectors M16x1.
Prevents build-up of algae and bacteria in bath tanks providing hygienic operationNo contamination of the tank or immersion thermostat componentsEconomical - only 2 ml of Aqua Stabil is required for every 1 litres of waterRemains effective for weeks, as shown by colour indicator.Use biocides safely. Always read the labelling and the product information before use.
Black. Tubing insulations for CR tubings.
Temperature hoses with special triple insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4 bar (at 350 °C).
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4.6 bar (at 200 °C).
Telescopic bridges are extendable from 330 to 680 mm.
Long-term tested for safe and reliable operation.Low toxicityLow viscosityHigh stabilityAlmost odor-freeGood thermal conductivityLow corrosion susceptibilityWide temperature ranges
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.
