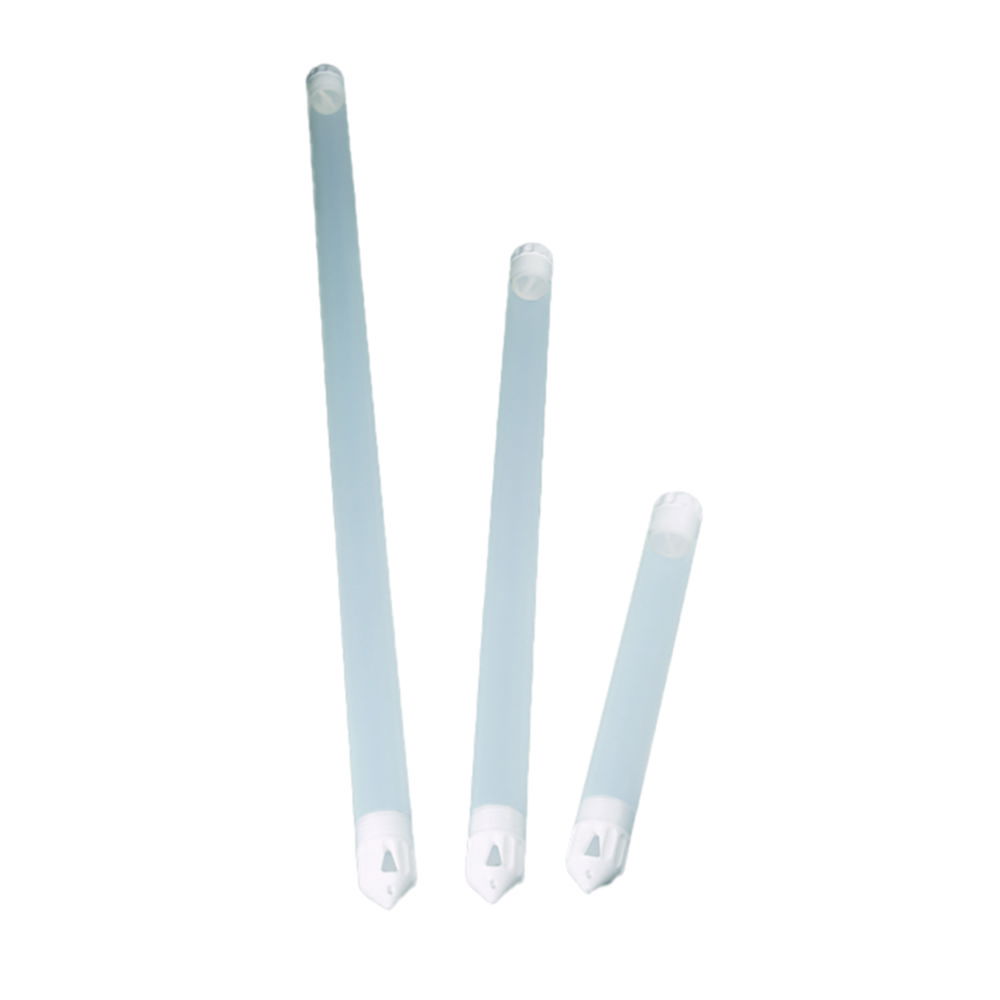

Disposable samplers
Transparent. These disposable samplers were developed especially for sampling of strongly adhesive liquids to avoid a complicated cleaning process. PE provides a surface that resists adhesion of the sample material, minimising sample retention on the dip sampler.
Extendable Pole
Designed for use with the Neogen® Sponge Stick for easier sampling of remote and hard-to-reach areas.Lightweight, extendable rod, robustEnables samples to be taken safely from ceilings and tanks
Fiber glass telescopic pole INGENIOUS
Very robust telescopic pole, ideal for sample taking. Fiber glass makes it almost indestructible and non-corrosive. Comfortable to carry even at low temperatures. Simple extension and adjustment mechanism. You can change the length easily by a quarter rotation. (Pic. 3). At telescope poles of 3,85 to 6 m the length could be easily changed by using the clamp (Pic. 2). Comfortable use of spring mechanism. This type can take all samplers and catchers with universal connecting part. Easy exchange of the sample taking equipment by pressing the spring mechanism.
Immersion Cylinders
For target spot and bottom samples of mineral oil products. Made of nickel-plated brass.Screw-off topWith handleHeavy design for fast loweringWithout lowering and pull cablesTarget spot sample: 1. Immersion cylinder is lowered in the tank to be sampled by the manually operated reel. 2. The separate pull cable is used to open the valve when the target spot is reached and the sample then enters the immersion cylinder.Bottom sample: 1. Lower the immersion cylinder to the bottom. 2. The weight of the immersion cylinder opens the valve automatically when the bottom is reached and the sample then enters the immersion cylinder.
Liquid sampler MiniSampler, PE
Taking samples is quick, easy, clean and practical.With the MiniSampler, the sample liquid only comes into contact with the suction hose and the sample bottle. Cross contamination is largely prevented. Bottles can be tightly sealed immediately after the sample is taken with a tamper-evident cap.The single use, PE suction hose can be quickly replaced, ensuring that samples are never contaminated. A new hose can be used for each sample if required. Because of its small diameter (8mm) and flexibility the hose can reach sampling areas that are otherwise inaccessible. Also suitable for viscous oils.Scope of supply: 10 x 100 ml PE bottles, 10 m of PE suction hose (6 x 8mm), 1 hose cutter , 1 hose weight (V2A/nickel-plated brass), 20 seal-it safety seal labels, carrying case
Liquid sampler UniSampler with flexible sample tubing
UniSampler with PVC hose and hose weight made of stainless steel. For deep, hard-to-reach places. The mass of the metal tube drags the hose to any depth.PVC sample tubing, 2.5 m longIncl. 1000ml sample bottle, manual vacuum pump and adapter for sample bottle, V2A hose weight, 20 seal-it safety seal labels, supplied complete in carrying caseUniversal bottle adapter made of PVC, for bottle necks Ø 24 mm, 31 mm, 39 mm and 50 mm nominal dimension
Liquid-Sampler, single hand operation, stainless steel V4A (1.4404), open with thumb
Sampler for thin to viscous liquids. Easy use with one-handed operation. With discharge funnel for safe filling of sample bottles.
Liquid-Sampler, single hand operation, stainless steel V4A (1.4404), place onto bottle
Sampler for thin to viscous liquids. Easy use with one-handed operation. With discharge funnel for safe filling of sample bottles.
Manually-operated reels and lowering cables
Manually-operated reelsHigh winding capacity of up 150 m for cable 2 mm dia.Reel width: inner 44 mm, outer 55 mm, reel diameter: inner 100 mm, outer 180 mmPlease order the required lowering cable separatelyLowering cablesFor dipping bottles and immersion cylinders, matching manually-operated drum reels made of various materialsTensile load max. up to 10 kg
Pendulum beaker for TeleScoop, PP
TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net e.g. for taking solid and organic samples from water courses) are attached to the rod by a practical snap-in joint. Ideal for sampling from baths, tanks, shafts, open water courses etc. Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.Automatically swings into a vertical position. Nothing can be spilt. Ideal for deep and narrow shafts.
Pendulum beaker for TeleScoop, Stainless steel 1.4301
TeleScoop is a versatile sampling system with exchangeable tools for a wide range of applications. The tools (angular beaker, pendulum beaker, bottle holder, stainless steel beaker and dip net e.g. for taking solid and organic samples from water courses) are attached to the rod by a practical snap-in joint. Ideal for sampling from baths, tanks, shafts, open water courses etc. Sampling depths down to 6 m can be reached with the adjustable telescopic aluminium rod.Automatically swings into a vertical position. Nothing can be spilt. Ideal for deep and narrow shafts.
Pendulum beaker, stainless steel
Nothing can be spilt because beaker automatically swings into a vertical position. Dimension of the beaker: 100 mm diameter, 130 mm height, 1 liter volume. With universal connecting part. For use with INGENIOUS telescopic poles.
Plankton net
Mesh width 65 µm, robust version with sturdy aluminium ring of 200 mm diameter. The ring is covered with nylon fabric to protect the silk gauze from ripping up. With 100 ml collecting vessel (100 ml Kautex flask). Net could be opened at the botton for filling the bottles. With universal connecting part. For use with INGENIOUS telescopic poles.
Sample bottles, PP
Sturdy bottles with wide-necked opening. For viscous media, powder, granules and pastes.
Sampler AquaSampler, PTFE/FEP
Sample collector for groundwater samples from wells, shafts and other sources.Suitable for all common well shafts with inspection openings from Ø 2’, without jamming or snagging.Ultra-pure material guarantees maximum sample purityEasy cleaning thanks to rounded edges and threads
Sampler Liquid CupSampler, stainless steel V4A
For point sampling of liquids of varying viscosity. Media containing particles can also be sampled. Container diameter: 55 mm.Easy cleaning thanks to unscrewable cupFood-safeAutoclavable
Sampler LiquiSampler, PP
DIN EN ISO 15528. For liquids. For contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.
Sampler LiquiSampler, PTFE/FEP
DIN EN ISO 15528. For liquids. Made of ultra pure and chemically inert PTFE/FEP for contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.
Sampler Mini-Sampler, PTFE
For ultrapure sampling. Also suitable for viscous oils.Complete with one PFA Sample Jar 180 ml, 5 m PTFE suction tubing (6 x 8 mm), one tubing cutter, one tubing weight (V2A/nickel-plated brass) and 20 seal-it safety seal labels in case.

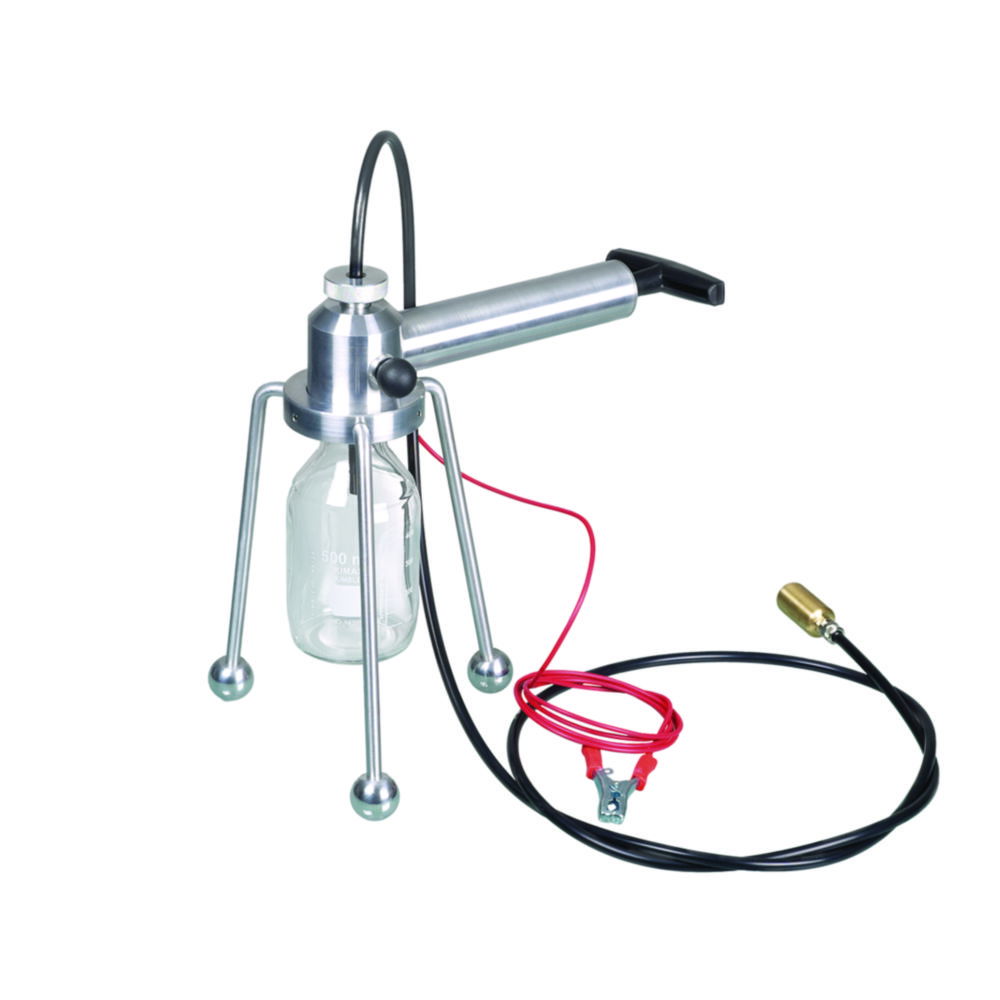

Sampler ProfiSampler, aluminium
Vacuum-operated sample collector for sampling solvents and flammable liquids (Explosion Categories IIA, IIB and IIC) out of drums, tanks, road tankers, railway wagons, ships, lakes, ground water.Filling level control, automatic return flow and overfill protection by built-in venting valveSuction volume: 200 ml, suction pressure 0.5 bar and suction depth down to 4m of waterWith bottle thread GL 45 (suitable for Schott glass bottles 100 to 1000ml)Can be supplied with optimized, straight suction tube for simpler samplingTransport case for tidy transport and disposalAlways check the chemical resistance of parts coming into contact with the sampleWhen taking samples of flammable liquids, the device must be earthedWear protective clothing!Scope of supply: aluminium vacuum pump, with feet (aluminium), venting valve and GL45 bottle thread, 1 x 500 ml glass bottle, 5 x 220 mm long, conductive, black PA suction tubes, 1 tubing cutter, 1 brass hose weight, 20 seal-it bottle seals, earthing cable

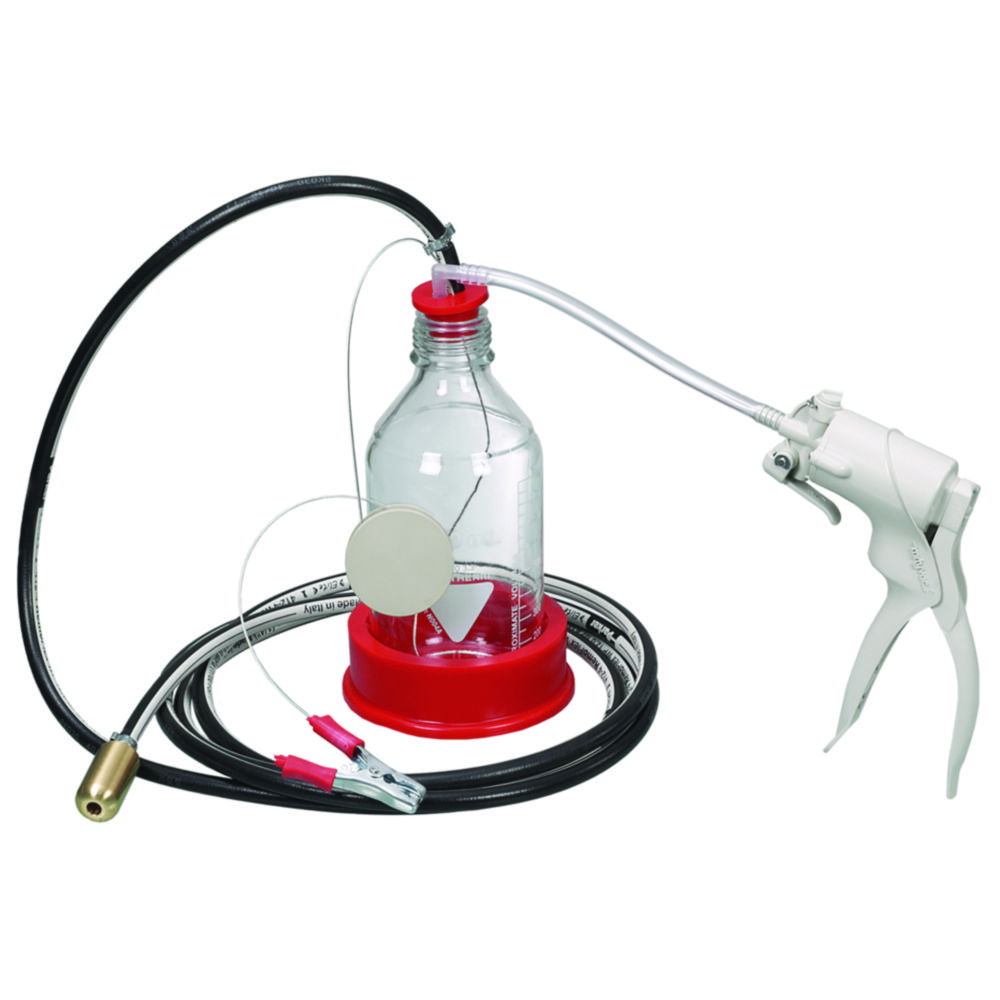

Sampler UniSampler "Ex", for sampling class A1 flammable liquids
Specially developed for sampling class A1 flammable liquids (e.g. benzene, petrol). Glass bottles and tubing electrically connected and grounded via an earthing cable. The UniSampler "EX" was developed in cooperation with "Gütegemeinschaft Tankschutz e.V."PTB approval D-333-009 618/00.Operation:1. Earth the Uni-Sampler. 2. Lower the suction hose to the desired depth. 3. Attach the adapter to the sample bottle. 4. Generate vacuum with the hand pump and collect sample. 5. Remove the filled sample bottle, seal and label.Scope of delivery: UniSampler with 4 m sample tubing, glass sample bottle, manual vacuum pump, bottle adapter, brass hose weight and earthing cable in carry case
Sampler ViscoSampler, PP
Ultra-pure sampler with powerful suction for viscousmedia. Specially developed for viscous substances, such as slurries, silt, wet clay and soil samples, sediments, oils, emulsions and creams. The suction flask sucks up and discharges the material. All surfaces are non-porous and crevice-free, preventing dirt accumulation. Only round-profile threads, suitable for food hygiene applications, are used. Allow easy dismantling and cleaning.
