Mini-H stand with double rod for disperser OV 725 Digital
Ideal solution for easy, precise, and safe positioning of the sample to be processed. The double rod configuration and unique "Easy Sliding" technology enables smooth and easy height adjustment.Scope of supply: Base, double rod, clamp, vessel holder with safety belt
Plate stands for overhead stirrers and Dispersers T 18 and T 25
Plate stands with slip resistant foil. Max. load 5 kg.
Special dispersing heads for disperser T50 digital
R 50 "high speed" stirring shaftUsing the R 50 stirring shaft, the T50 digital is quickly converted into a high speed stirrer. 700W power and 10000rpm are provided for rapid mixing, dissolving, and breaking up pigment agglomerates. The conical shaft is supported by means of ball bearings, the mixing elements have a screw connection. For operational safety a protective cage is fitted around the mixing element.S 50 N - W 80 SMK Jet mixer headFor shortening mixing and dissolving times. The vertical flow and the high tangential speed, up to 10000rpm, ensure intensive mixing. The head is used for adding gases or liquids, for lump-free suspension of difficult to dissolve powders or for dissolving sedimented, accreted substances.S 50 N - W 65 SK Cutting headTo crush large pieces (up to 50mm) of fibrous materials, such as plant matter, vegetables and fruit.

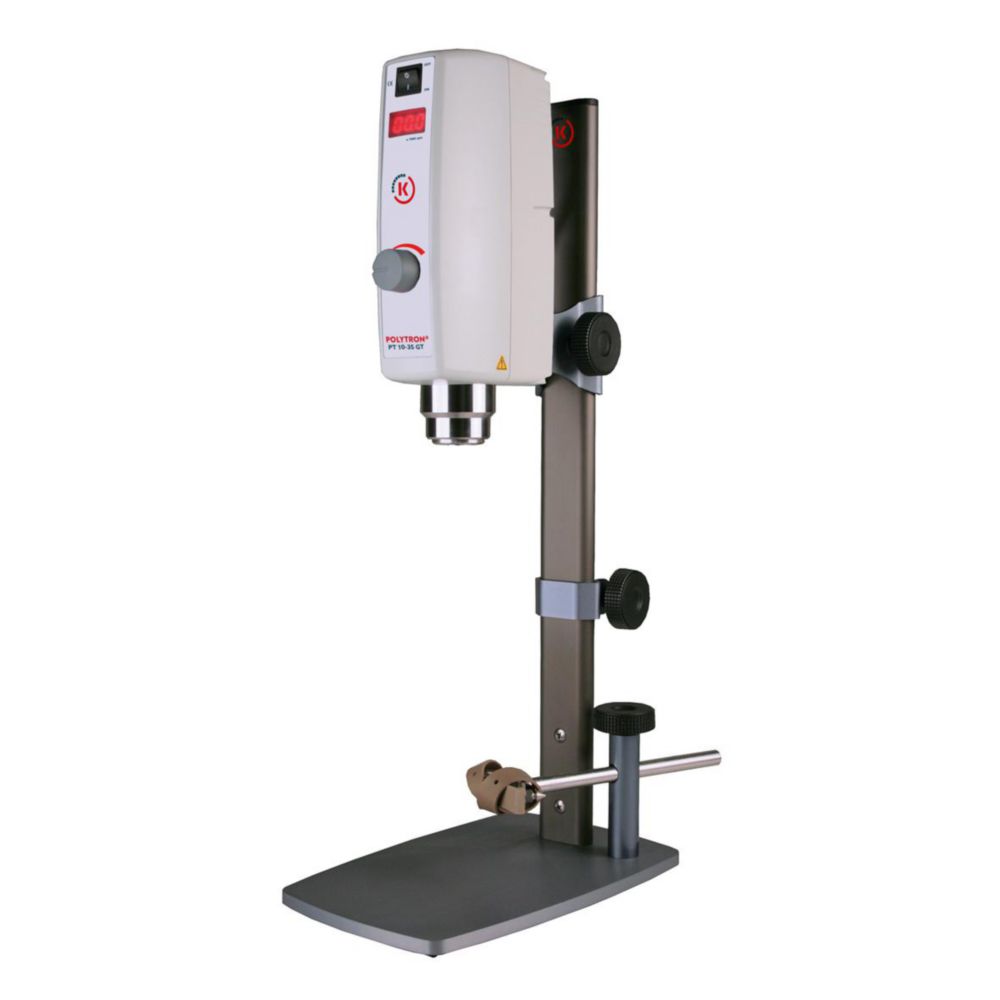

Stand Homogenisers POLYTRON® PT 10-35 GT (Ecoline)
Cost effective dispersing unit for applications with operating volumes up to 10 liters. The powerful motor is useful for sample preparation and also for formulation in scale-up matters. More than 30 dispersion aggregates with different geometries, designs, sizes, materials and coatings are available for selection. The electronic control system continuously compares the pre-selected rpm speed with the actual speed and adjusts it so that the speed remains constant even as the viscosity increases.Aggregate tip speeding up to 34 m/sSoft start to prevent splashing of homogenate from sample vesselIntegrated overheating, overload and blocking protectionSpeed remaining constant even when viscosity changesAggregate replacement using one-handed quick-release coupling (type F)Insulated motor housing keeps motor noise to a safe, approved level during operationVarious models of EasyClean dispersing aggregatesApplications: General homogenisation applications (dispersion and emulsification), Formulation of lotions, creams and food, Production of oil-water emulsions, Dispersion of small quantities from plants, animals or human tissueStand and Dispersing heads must be ordered separately.

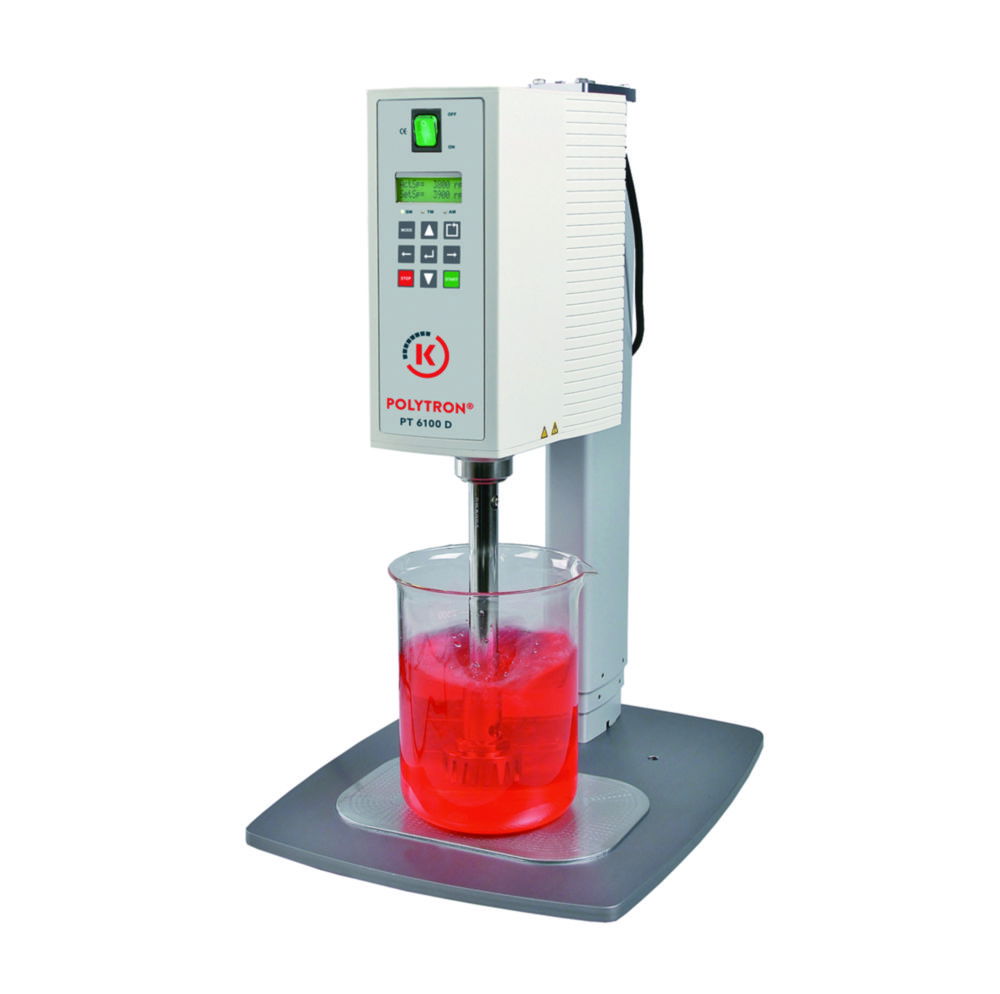

Stand Homogenisers POLYTRON® PT 3100 D / PT 6100 D (High-End-Line)
The PT 3100 D / PT 6100 D dispersion unit is unique in its class. Applications with highest demands on reproducibility or requiring a scale-up step are excellently served by this unit. The complete digitalised control and regulating system can be easily operated using the membrane keyboard. The bright and informative display shows all parameters. Via PC interface, diverse parameters such as speed profile or times can be specified using the enclosed KIN software. Results can be recorded as an Excel file. Up to 30 dispersion aggregates with different geometries, design sizes, materials and coatings are available for selection.Soft start (e.g. for pre-selected speed, prevents splashing sample vessel)Integrated overheating, overload and blocking protectionSpeed stability in the case of viscosity changesSimple operating concept using membrane keyboardSelection of three operating modes: standard, timer, autoPC interface (RS232) for control via KIN softwareAggregate replacement using one-handed quick-release coupling (type F)Sound-insulated housingDigital LCD display with membrane keypad for showing process parameters and messagesComprehensive aggregate portfolio with easy cleaning in Easy Clean designAggregate tip speeds up to 32 m/sStand and Dispersing heads must be ordered separately.
Stand Homogenisers POLYTRON® PT 45-80 GT (Ecoline)
High performance dispersing unit with powerful drive, stepless speed control, high tip speed and a variety of interchangeable dispersion aggregates for a wide range of dispersing and mixing applications.Aggregate tip speeding up to 32 m/sEasy operation with an on-off switch, speed control and membrane keypadIntelligent variable speed control for long equipment lifeIntegrated overheating, overload and blocking protectionSpeed remaining constant even when viscosity changesAggregate replacement using one-handed quick-release coupling (type F)Easy cleaning of the unit thanks to EasyClean designApplications: General homogenisation applications (dispersion and emulsification), Formulation of lotions, creams and food, Production of oil-water emulsions, Dispersion of small quantities from plants, animals or human tissueDispersing heads must be ordered separately.
Stands for Homogenisers POLYTRON®
HS 1200 E: Holder for the support of drive, transformer, four dispersing aggregates and two tools.ST-P 13/320: Stainless steel plate stand with anti-slip mat made of silicone, with height-adjustable holder for the drive and for fastening the base station.ST-P 01/200: Stainless steel joint stand (gas spring) with two rivet plugs for safe fixing of the basic station The drive holder can be rotated in any direction, raised and lowered.ST-P 15/320: Stainless steel plate stand with height-adjustable holder for drive support and for safe fixing of the basic station.ST-P 20/600: Plate stand with two rod design. Height adjustable.ST-P 10/600: Plate stand with one rod design. Allows easy and safe height adjustment of the drive unit. Material: AluminumST-F 10/600: H-foot stand made of anodized aluminum and the height adjustable, swiveling PTFE-coated work table with vessel holder. Material: AluminumST-P 14/590+500: Electric plate stand with lifting telescopic bar for more ease of use. Incl. up/down button and mat to prevent slipping. Stroke 500 mm. The electronics are designed for ambient temperatures of +5°C to +40°C and were tested per EN 60335-1 and UL 962.ST-P 21/700: Stainless steel plate stand with two rod design. Height adjustable. For more safety, the drive unit cannot be twisted sidewise or rotated.*with optional adapter
Strap clamps RH 3 for overhead stirrers and Dispersers T 18 and T 25
For vessel Ø 40 to 300 mm.
Strap clamps RH 5 for overhead stirrers an Disperser T 50 digital ULTRA-TURRAX®
With R 270 bosshead. For vessel Ø 40 to 300 mm.

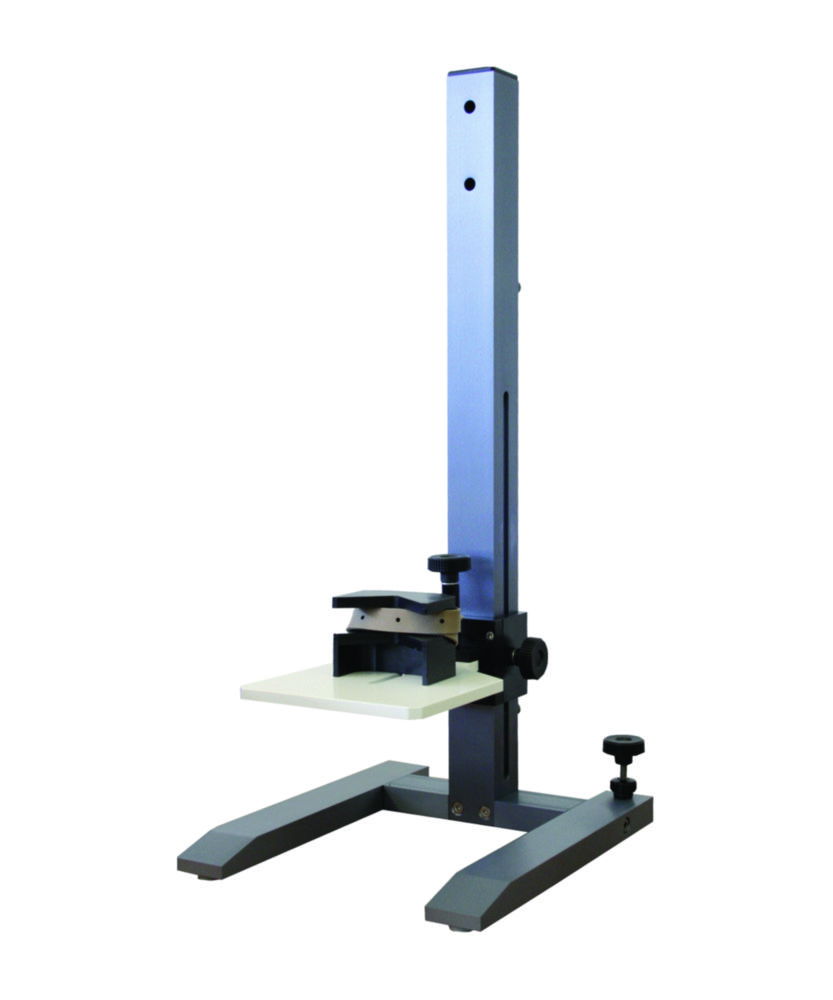

Telescopic stand R 2723 for overhead stirrers and Disperser T 50 digital ULTRA-TURRAX®
Stable stands with H-shaped base. Stands have a levelling screw to compensate for unevenness on the laboratory bench. Max. load 10 kg.
