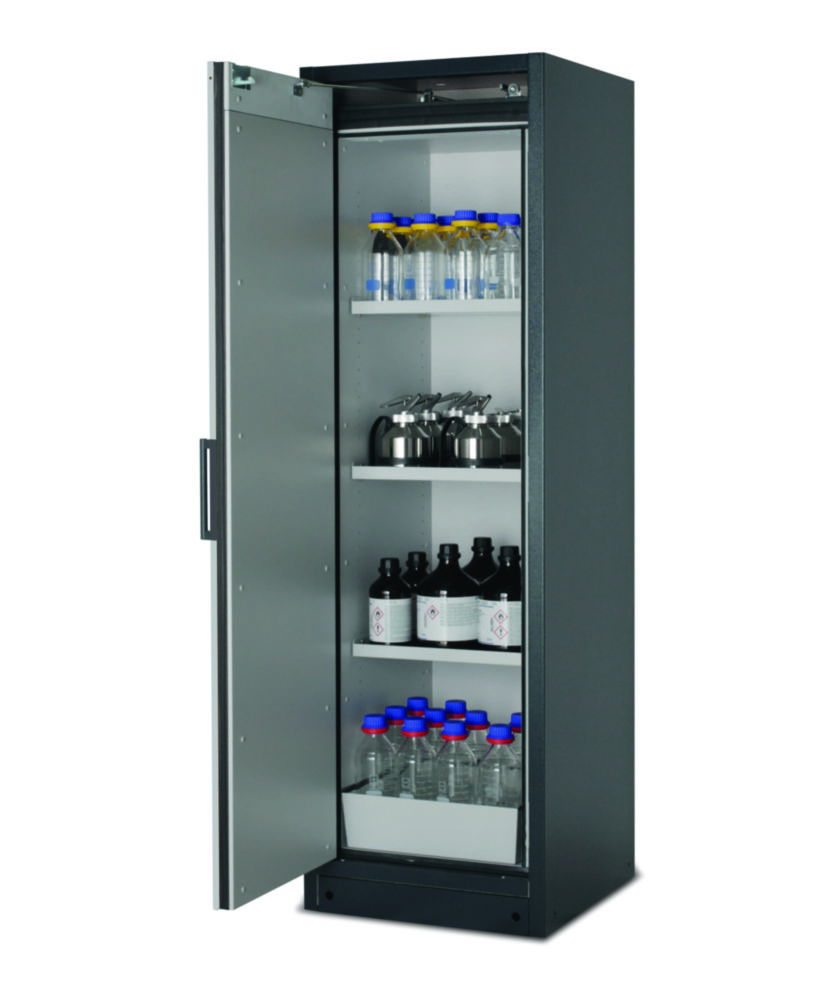

Safety storage cabinets Q-CLASSIC-90
asecos GmbH
€0.00
Content: 1
Product number: 6265138
Product information "Safety storage cabinets Q-CLASSIC-90"
- Safe and approved storage of hazardous materials in workrooms
- Type proofed according to DIN EN 14470-1, fire resistance 90 minutes
- GS approved
- Body made of sheet steel plastic laminated, structure finish
- Colour: Body anthracite grey (RAL 7016) doors light grey (RAL 7035), door colour pure white (RAL 9010) available on request
- Convenient handling with comfort, doors stop in any position, self-closing in the event of a fire
- Doors lockable with cylinder lock (suitable for master-key system) and locking state indicator (red/green)
- Integrated transport base, optional base cover
- Integrated adjusting aids to compensate for uneven floor
- Exhaust air connection (DN 75) on top of the cabinet
Height adjustable shelves (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity of the bottom collecting sump: 33 litre (cabinet width 1193 mm), 22 litre (cabinet width 599 mm)
Scope of delivery: Safety storage cabinet model Q90.195.120 or Q90.195.060 incl. interior equipment with 3 shelves, bottom collecting sump and perforated insert
Many further cabinet versions available.
| Colour body: | Anthracite |
|---|---|
| Colour doors: | Light grey |
| Depth int.: | 522 mm |
| Ext. depth: | 615 mm |
| Ext. height: | 1953 mm |
| Ext. width: | 1193 mm |
| External dimensions (WxDxH): | 1,193 x 615 x 1,953 mm |
| Height int.: | 1647 mm |
| Int. width: | 1050 mm |
| Internal dimensions (WxDxH): | 1,050 x 522 x 1,647 mm |
| Manufacturer Article Number: | 30001-041-30003 |
| Standard: | DIN EN 16121/16122 |
| Type: | Q90.195.120 |
| Version cabinet: | Tall cabinet |
| Weight: | 474.5 kg |
