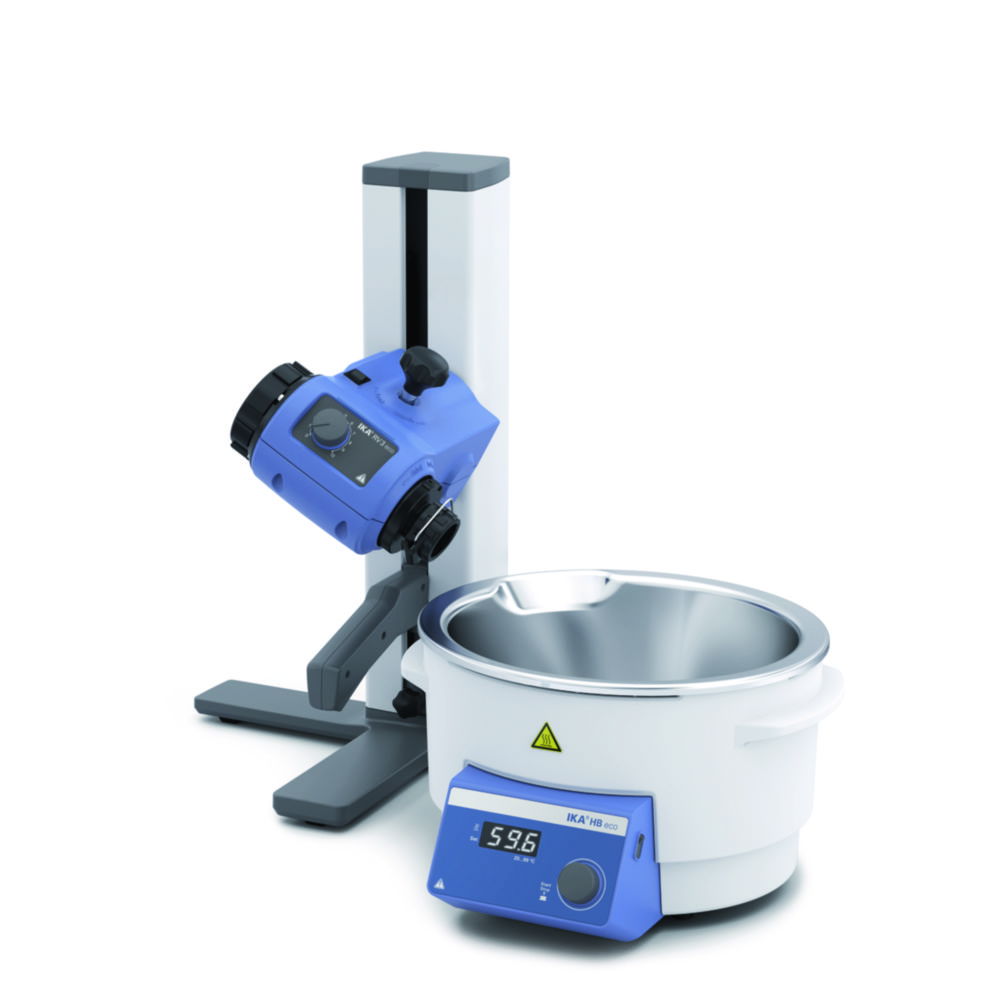

Rotary Evaporator RV 3 FLEX
€0.00
Product information "Rotary Evaporator RV 3 FLEX"
- 4 l water heating bath with digital temperature display and carrying handles
- Mechanical lift end-point safety stop
- Locking mechanism: red indicator shows unlocked position of the vapor tube
- Manual lift for precise positioning of the glassware, single-handed, suitable for left and right-handed operators
- Adjustable immersion angle
- Stepless speed setting with dial control and speed display
- Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
| Condenser: | Without |
|---|---|
| Depth: | 330 mm |
| Dimensions (WxDxH): | 440 x 330 x 530 mm |
| Glassware: | Without |
| Height: | 530 mm |
| IP code: | IP 20 |
| Lift: | Manual |
| Lifting path: | 150 mm |
| Manufacturer Article Number: | 0010003331 |
| Max. speed: | 300 1/min |
| Max. temperature: | 99 °C |
| Max. voltage: | 240 V |
| Max. volume bath: | 4 l |
| Min. speed: | 20 |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Speed: | 20 ... 300 1/min |
| Temperature: | RT ... 99 °C |
| Temperature addition: | RT |
| Type: | RV 3 FLEX |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104804 |
| Weight: | 12 kg |
| Width: | 440 mm |
Login
Set
The Starter Solution is the complete package for the rotary evaporator setup. The RV 3 rotary evaporator is the ideal entry-level model. It finds a multitude of uses in the chemical, pharmaceutical and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories and in plant construction.Scope of supply: rotary evaporator RV 3 Flex, VACSTAR lite vacuum pump, VC 10 lite vacuum controller, HB eco heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, stand pole, set of hoses, cable
Accessories
Vacuum pump for dry, oil-free applications. Slimline, compact design and long service lifeResistant to chemicals as all parts that come into contact with gas are made of PTFE or PTFE compoundsScope of supply: Vacuum pump, vacuum hose, silencer, Y hose connector 8 mm
The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm. It is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.Scope of supply: Vacuum hose (1 m), silencer, USB A-B cable, connecting cable
