Counting chambers, new Thoma ruling, bright line
Bright lined, double net ruling, includes 2 haemocytometer glass covers, with LOT number on the packaging, labelled with: usable until, CE pursuant to IVD 98/79 EC.
Counting chambers, Thoma ruling
Double net ruling, includes 2 haemocytometer glass covers, with LOT number on the packaging, labelled with: usable until, CE pursuant to IVD 98/79 EC. Grid is the same as the grid in the centre of large square in the Neubauer chamber. The area of the small square is 0.0025 mm². Since the large outer squares are not included, the Thoma system is only used to count thrombocytes and erythrocytes.

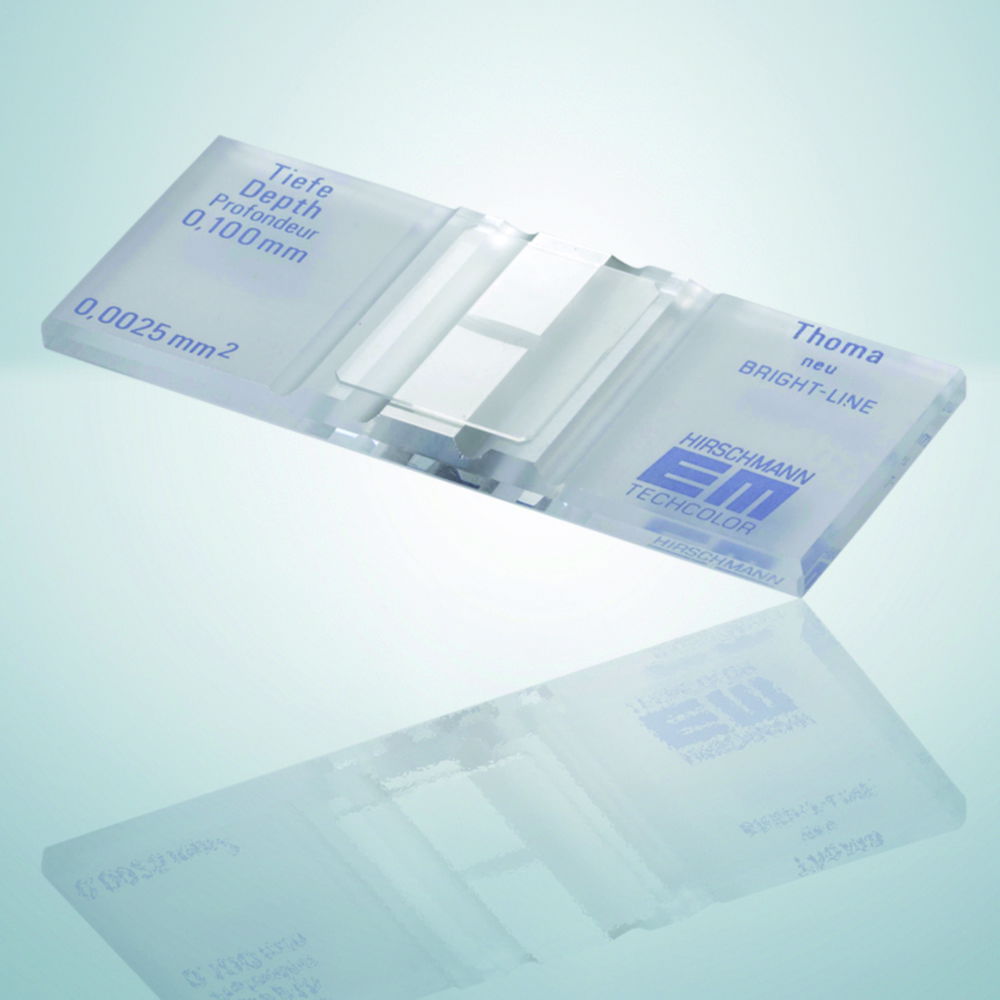

Counting chambers, Thoma ruling, bright line
Bright lined, double net ruling, includes 2 haemocytometer glass covers, with LOT number on the packaging, labelled with: usable until, CE pursuant to IVD 98/79 EC. Grid is the same as the grid in the centre of large square in the Neubauer chamber. The area of the small square is 0.0025 mm². Since the large outer squares are not included, the Thoma system is only used to count thrombocytes and erythrocytes.
Cover for slide holder
Cover made of PS protects the slides against dust and other foreign bodies. Dimensions 345 x 35 x 40 mm.
Cover Glasses
Pure white, clear borosilicate glass, hydrolytic class 1 with excellent chemical resistance. Thickness No. 1, 0.13 to 0.17 mm.
Cover glasses for counting chambers according to McMaster
Dimensions 80 x 18 mm.
Cover glasses for counting chambers according to Sedgewick Rafter
Dimensions 60 x 30 mm.
Cover Glasses, rectangular, Borosilicate glass D263® M
Made of colourless, chemically resistant Borosilicate glass D263® M of the first hydrolytic class acc. to ISO 8255-1, thickness 1 (0,13 to 0,16 mm).Packed in tightly closing plastic boxes of 100 pieces.Other thicknesses are available on request.
Cover Glasses, rectangular, Borosilicate glass D263® M
Made of colourless, chemically resistant Borosilicate glass D263® M of the first hydrolytic class acc. to ISO 8255-1, thickness 1 (0,13 to 0,16 mm).Packed in tightly closing plastic boxes of 50 pieces.Other thicknesses are available on request.
Cover slips, borosilicate glass D 263™ M
Made of chemically resistant borosilicate glass D 263™ M of the 1st hydrolytic class.Absolutely colourless, completely clear, suitable for fluorescence microscopyDIN ISO 8255Thickness No. 0 H (0.085 - 0.115 mm)In hinged lid boxes
Cover slips, borosilicate glass D 263™ M, square
Made of chemically resistant borosilicate glass D 263™ M of first hydrolytic classAbsolutely clear, suitable for fluorescence microscopySuper-hydrophobic surfaces on both sides (e.g. for crystallography)Thickness No. 1 (0.13 - 0.16 mm)
Cover slips, circular
Made of chemically resistant borosilicate glass D 263® M of the first hydrolytic classAbsolutely colourless, perfectly clear, suitable for fluorescence microscopyIn compliance with DIN ISO 8255Thickness No. 1 (0,13 - 0,16 mm) and 1.5H (0.170 mm ± 0.005 mm) as indicated
Cover slips, rectangular
Made of chemically resistant borosilicate glass D 263® M of the first hydrolytic classAbsolutely colourless, perfectly clear, suitable for fluorescence microscopyIn compliance with DIN ISO 8255Thickness No. 1 (0,13 - 0,16 mm) and 1.5H (0.170 mm ± 0.005 mm) as indicated
Cover slips, rectangular
Made of D263 M borosilicate glass. Accurate cutting free of flaws and blisters. Further thicknesses are available on request.
Cover slips, square
Made of D263 M borosilicate glass. Accurate cutting free of flaws and blisters. Further thicknesses are available on request.
Coverslips Nunc™, Plastic, rectangular
Coverslips are treated on one side to optimise cell adhesion and growth. Resistant to commonly used solvents (e.g. xylene, acetone, acetic acid).Suitable for cell staining, mounting, embedding or scintillation countingCan be bent and cutLow gas permeabilityAutofluorescence in the range of 380 nm to 545 nm, therefore not recommended for phase contrast microscopy and fluorescence stainingCoverslips are treated on one side to optimise cell adhesion and growth. Resistant to commonly used solvents (e.g. xylene, acetone, acetic acid).Suitable for cell staining, mounting, embedding or scintillation countingCan be bent and cutLow gas permeabilityAutofluorescence in the range of 380 nm to 545 nm, therefore not recommended for phase contrast microscopy and fluorescence staining
Coverslips Nunc™, Plastic, round
Coverslips are treated on one side to optimise cell adhesion and growth. Resistant to commonly used solvents (e.g. xylene, acetone, acetic acid).Suitable for cell staining, mounting, embedding or scintillation countingCan be bent and cutLow gas permeabilityAutofluorescence in the range of 380 nm to 545 nm, therefore not recommended for phase contrast microscopy and fluorescence stainingCoverslips are treated on one side to optimise cell adhesion and growth. Resistant to commonly used solvents (e.g. xylene, acetone, acetic acid).Suitable for cell staining, mounting, embedding or scintillation countingCan be bent and cutLow gas permeabilityAutofluorescence in the range of 380 nm to 545 nm, therefore not recommended for phase contrast microscopy and fluorescence staining
Diagnostic slides
With well wettable reaction wells and epoxy resin colour masks with high resistance against solvents. Available in black, blue, green, red and white colour.Made of soda lime glass of third hydrolytic classIn compliance with DIN ISO 8037/1With 90° ground edgesWith frosted marking area of approx. 20 mm on one sidePre-cleaned and ready for useAutoclavable
Digital CMOS Microscope Cameras ODC
Specialists in microscopy for measurement, counting, documentation, archiving and image processing.C-Mount USB-camera with CMOS sensorUSB-cable, eyepiece adapter and calibration slide includedKern-Microscope-VIS Software in 6 languages inclusive, for WINDOWS XP and higher
Digital Microscope Eyepiece Cameras ODC
Specialists in microscopy for measurement, counting, documentation, archiving and image processing.USB-Eyepiece Camera mit CMOS SensorUSB-cable, Eyepiece Adapter and calibration slideKern-Microscope-VIS Software in 6 language, for Windows XP and higher
Digital Microscope RED-50X Plus
Digital WiFi microscope. Stream your microscope image live on any device that works with Android and iOS and move freely through the lab or the classroom to show and share your image.Monocular tube with externally used photo tube CMOS 1/3"Resolution: 4MP (2560 x 1440 Pixel)WiFi transmission: 1280 x 1024 pixels (Full HD)Widefield eyepiece WF10X/18 mmReversed triple revolving nosepieceAchromatic objectives 4X, 10X, 40X SCoarse focusing systemRound Gliding stage with "one-touch" sample clipsBuilt-in condenser lens N.A. 0.65LED illumination 3.5 V, 70 mW with intensity controlPower supply 100-240 V, VDE plug (CE)Operation system: Software Motic Images 3.1 for Windows, OSX and Linux, MotiConnect App for OSX, Android and iOS.Scope of supply: Microscope, dust cover, calibration slide, C-Mount adapter 0.5X
