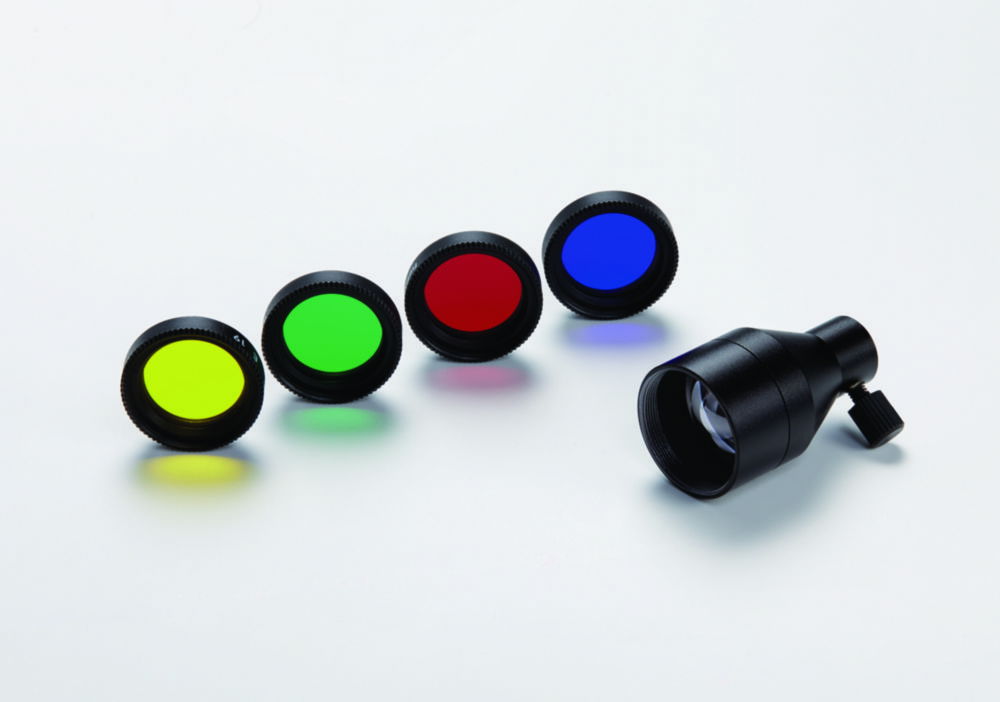

Accessories for Light Microscopes Educational-Line OBE and Lab-Line OBL

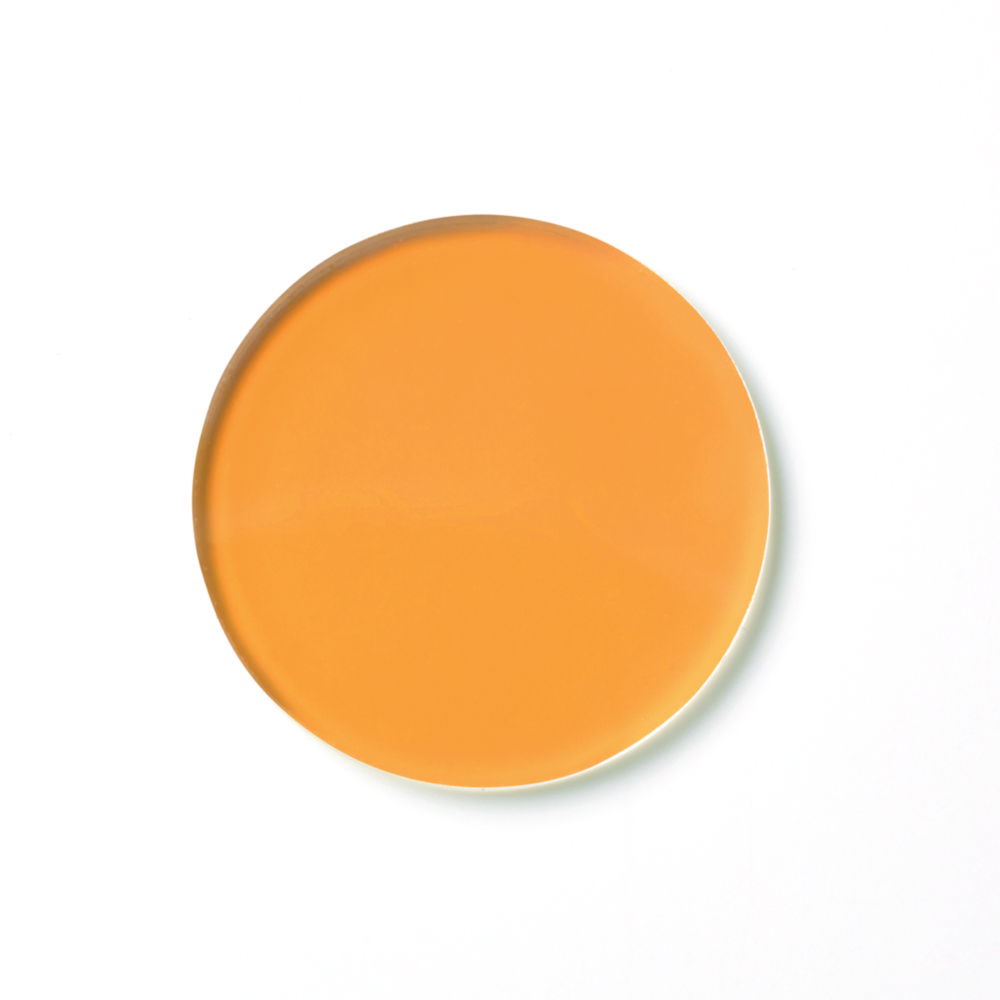

Further eyepieces, phase contrast units and filters available on request. Complete fluorescence units for OBL series available on request.
Adhesive microscope slides HistoBond®+
Suitable for immunohistochemistry and in situ hybridization.Made of soda lime glass of the 3rd hydrolytic classPre-cleaned and ready for useAutoclavableIn compliance with DIN ISO 8037/1 and for in vitro diagnostic applications according to IVD Directive 98/79 / ECWith recommended best-before date and batch numberSuitable for labeling by printer systems and with permanent markers
Adhesive Microscope Slides HistoBond®+, with circle
Suitable for immunohistochemistry and in situ hybridization.Made of soda lime glass of the 3rd hydrolytic classPre-cleaned and ready for useAutoclavableIn compliance with DIN ISO 8037/1 and for in vitro diagnostic applications according to IVD Directive 98/79 / ECWith recommended best-before date and batch numberWith white circle which serves as a microscopic aidSuitable for labeling by printer systems and with permanent markers
Adhesive microscope slides HistoBond®, frosted end
Suitable for immunohistochemistry and in situ hybridization.Made of soda lime glass of the 3rd hydrolytic classPre-cleaned and ready for useAutoclavableIn compliance with DIN ISO 8037/1 and for in vitro diagnostic applications according to IVD Directive 98/79 / ECWith recommended best-before date and batch numberWith silky frosted marking area at one end on both sides on which notes can be made by pencils or labels
Adhesive microscope slides Polysine™
75 x 25 x 1 mm. ground edges 90°, white marking area. Polysine adhesion slides are electrostatically and biochemically adhesive. The preparation is first adhered by electrostatic attraction and then fixed in place by biochemical binding. Polysine adhesion slides are best suited for paraffin-embedded tissue slices from human sources fixed in formalin, alcohol or Bouin solution. For tissue slices 2-5 µm thick.

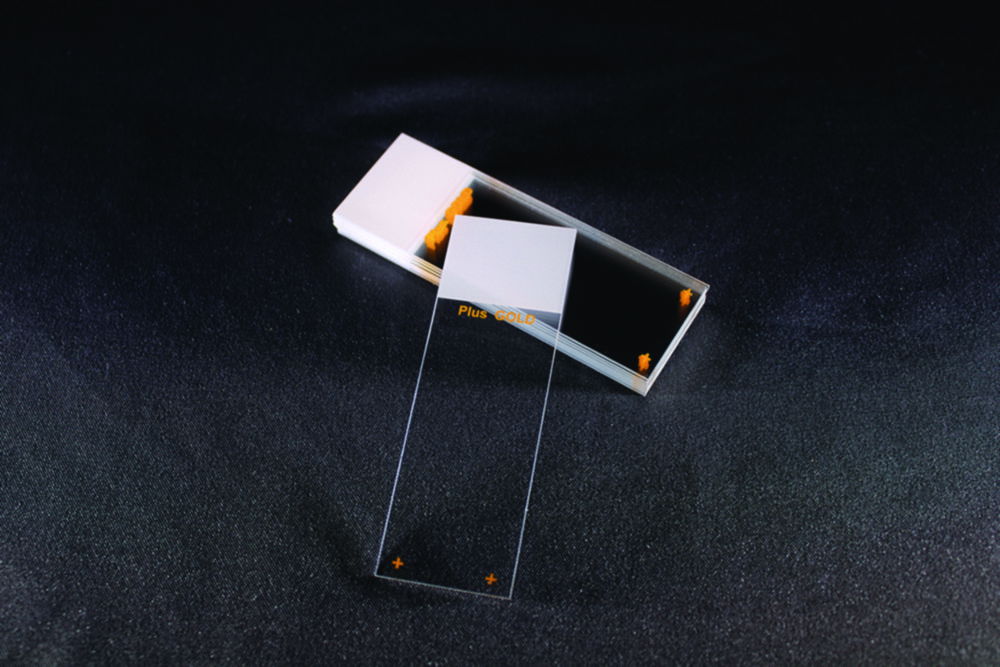

Adhesive microscope slides Superfrost® Plus
A new application method provides the surface of a slide with a permanent positive charge. Electrostatic attraction binds fresh, frozen tissue sections and cytology preparations. Also available with blue, yellow, pink or green SuperFrost marking area.
Adhesive microscope slides Superfrost® Plus Gold
These slides have a complex adhesive technology which attracts and chemically bonds fresh or formalin-fixed frozen tissue sections firmly to the surface of the slide. Recommended for hard-to-hold tissue samples like bone, brain, breast and skin. They are ideal for special stains, immunocytochemical and in-situ DNA hybridisation on these tissue types.

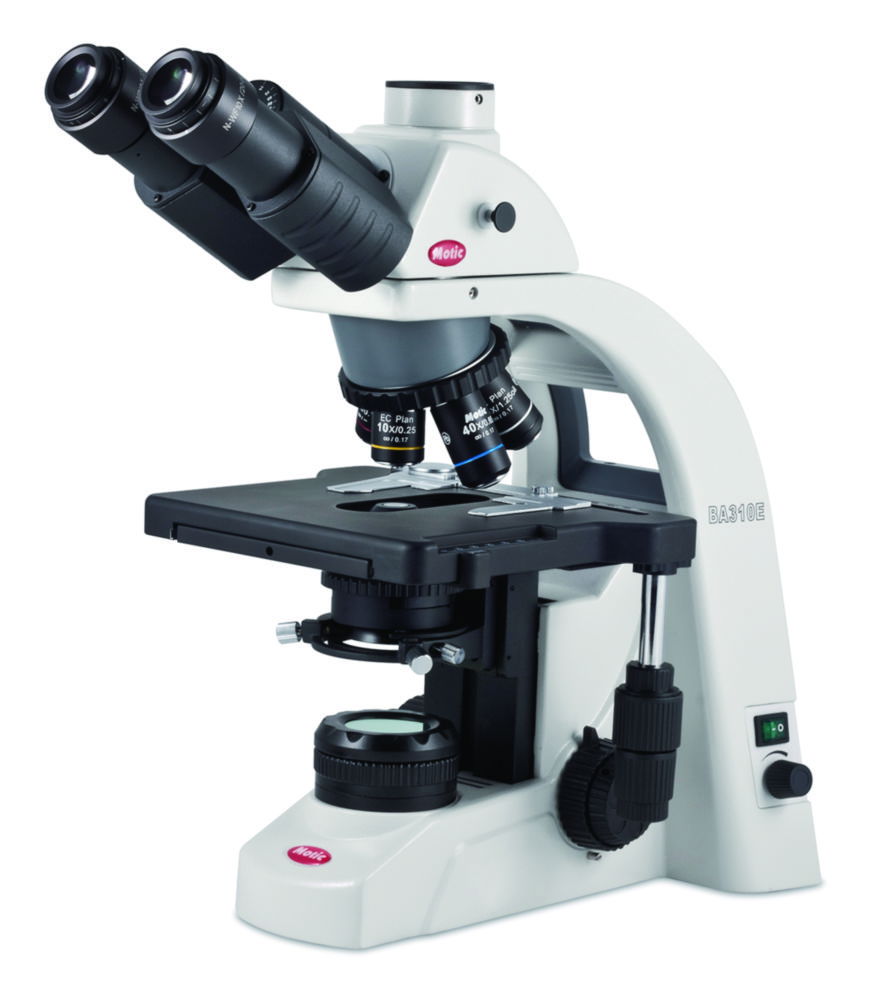

Advanced Upright Microscope for Life Science and Laboratories, BA310E
The BA310E is specially designed for the requirements of daily routine in universities, clinics and laboratories.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20Interpupillary Distance 48-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecupsReversed quintuple revolving nosepieceObjectives CCIS EC Plan 4x, 10x, 40x-S, 100x-S-OilBuilt in low position coaxial, rackless mechanical stage (right hand control)Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slotKoehler illumination 3 W LED with intensity controlUniversal power supply 100-240 VScope of supply: Immersion oil (5 ml), power cord, Allen hexagonal key, thumb crew, vinyl dust cover6 V/30 W HAL illumination available on optionOptional, available: Phase-contrast 10x/20x/40x/100x for slider or Turret-condensor, DF 10x-40x for slider or Turret-condensor, Polarization
Archiving cabinet for microscope slides
Cabinet with 14 drawers for the storage of microscope slides. For 6000 slides with a size of 76 x 26 mm.

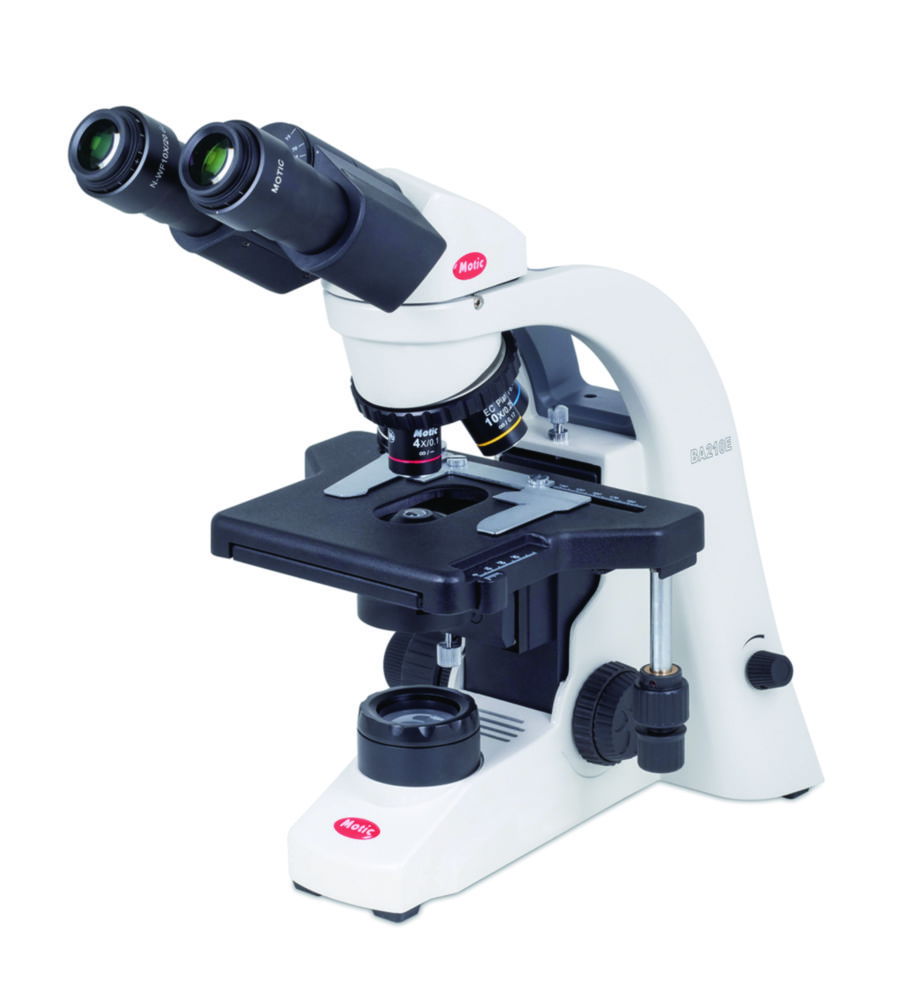

Basic Biological Microscope for Education and Routine, BA210E
Compact and robust, the BA210E is ideal for the requirements of colleges and universities as well as for medical training institutes.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Binocular - / Phototube 30°, F.N. 20Interpupillary Distance 55-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecupsReversed quadruple revolving nosepieceObjectives CCIS EC Plan 4x, 10x, 40x-S, 100x-S-OilBuiltin low position coaxial, rackless mechanical stage (right hand control)Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slotHalogen illumination (6 V / 30 W) and LED illumination (3 W) adjustableUniversal power supply 100-240 V (CE)Scope of supply: Microscope, immersion oil (5 ml), thumb screw, vinyl dust cover, Allen hexagonal key, power cordOptional available: Phase-contrast 10x/40x, DF 10x-40x, Polarization

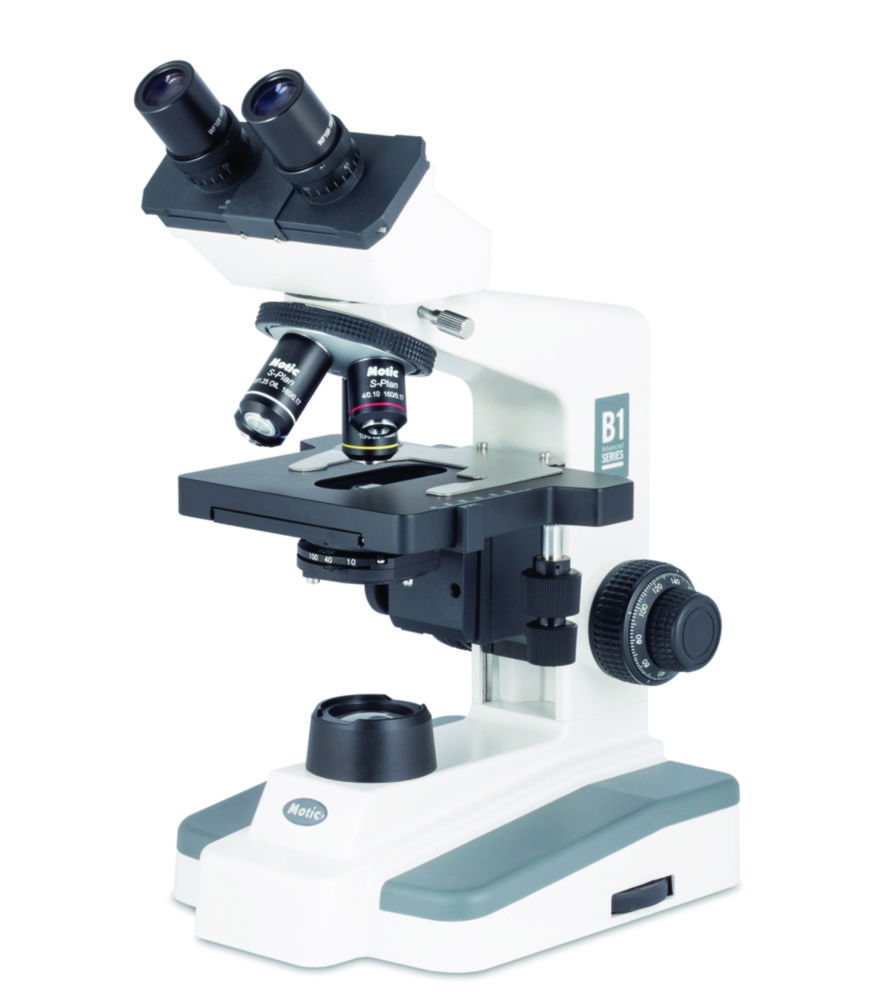

Binocular Microscopes for Schools/Laboratories B1-220E-SP
Established Quality with a new design. The B1 series covers a wide range of the daily work for Laboratory and University use. The Elite Series with improved optics and mechanics enables efficient work for many years. Observation Tube Binocular 45° / Phototube 30°, 360° rotatingWidefield eyepieces WF10X/18 mm Quadruple revolving nosepieceSemi-Plan objectives SP 4X, 10X, 40X S, 100X S-Oil Coaxial coarse and fine focusing system with tension adjustment Built-in low position coaxial rackless mechanical stage Focusable 1.25 N.A. Abbe condenser with iris diaphragm LED illumination 3 W with intensity controlPower supply 100-240 VDust cover and immersion oil

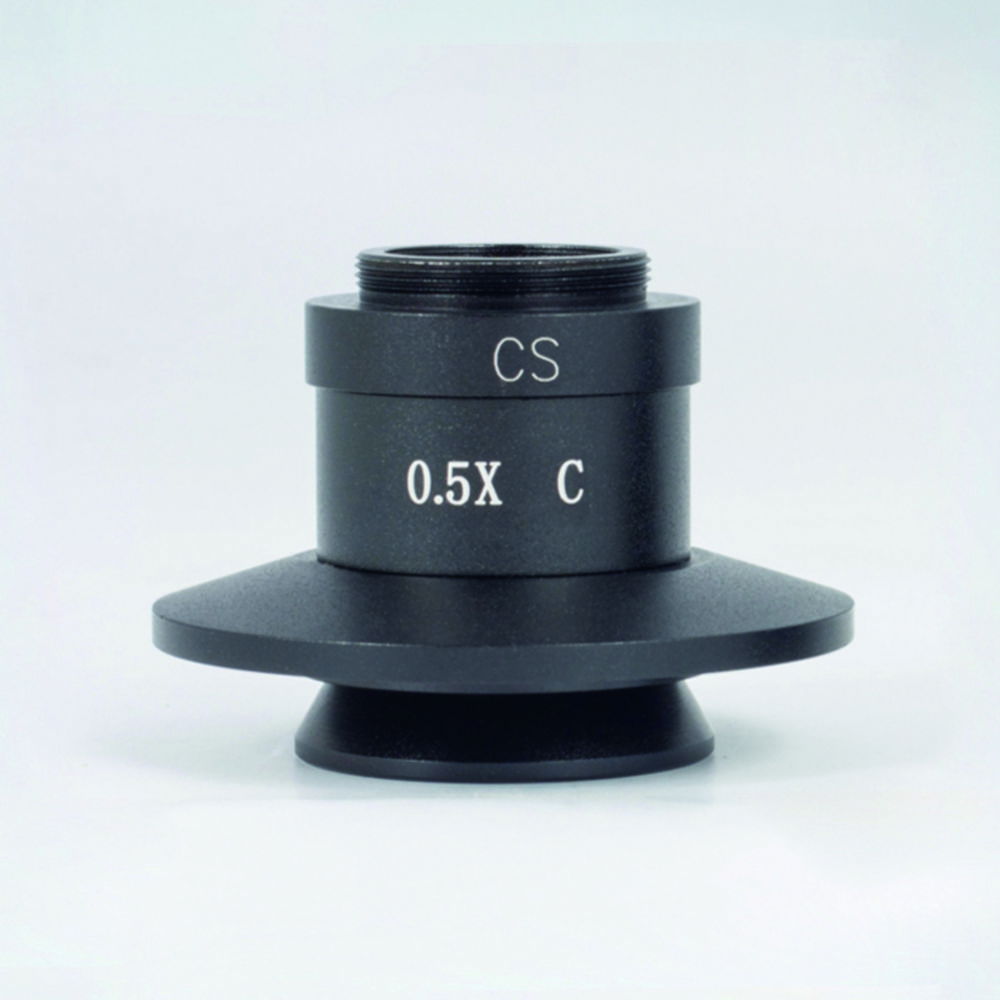

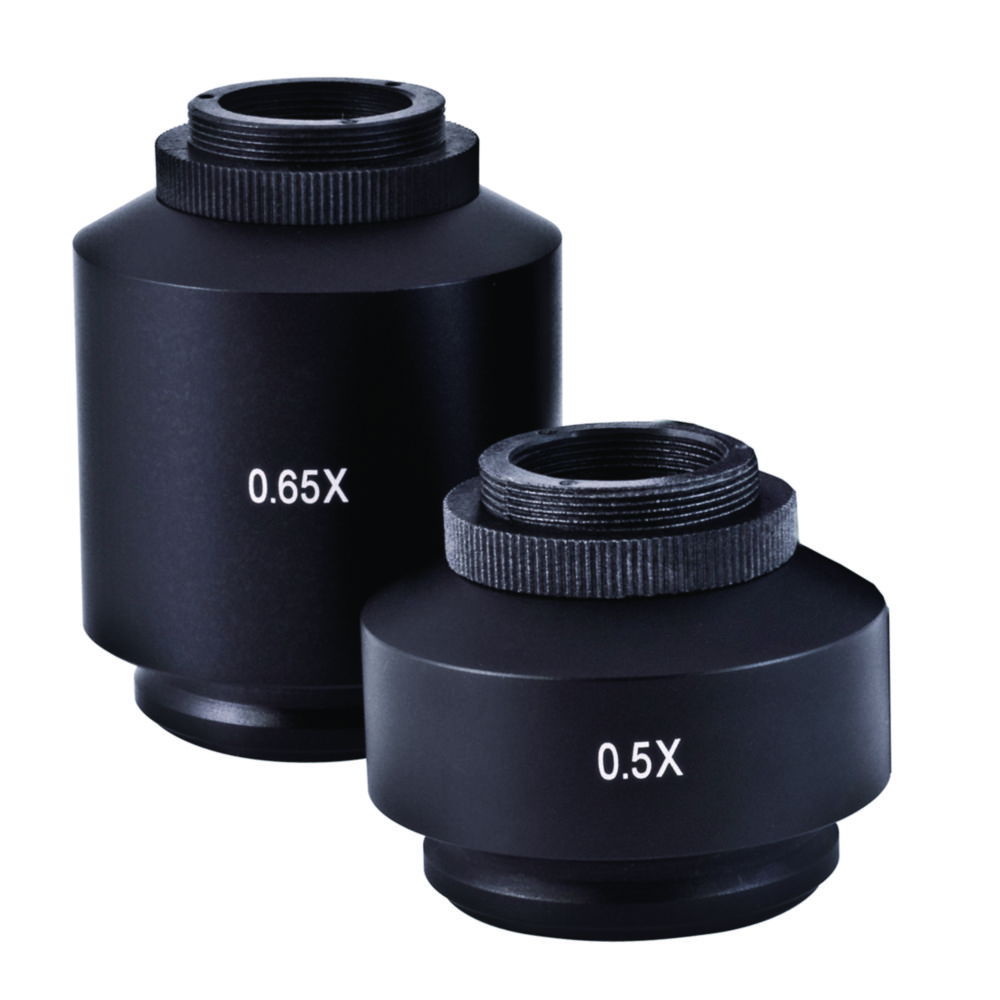

C-Mount camera adapter to BA, AE, SMZ-161 & SMZ-171 series
Suitable for microscopes from year of manufacture 2016.
