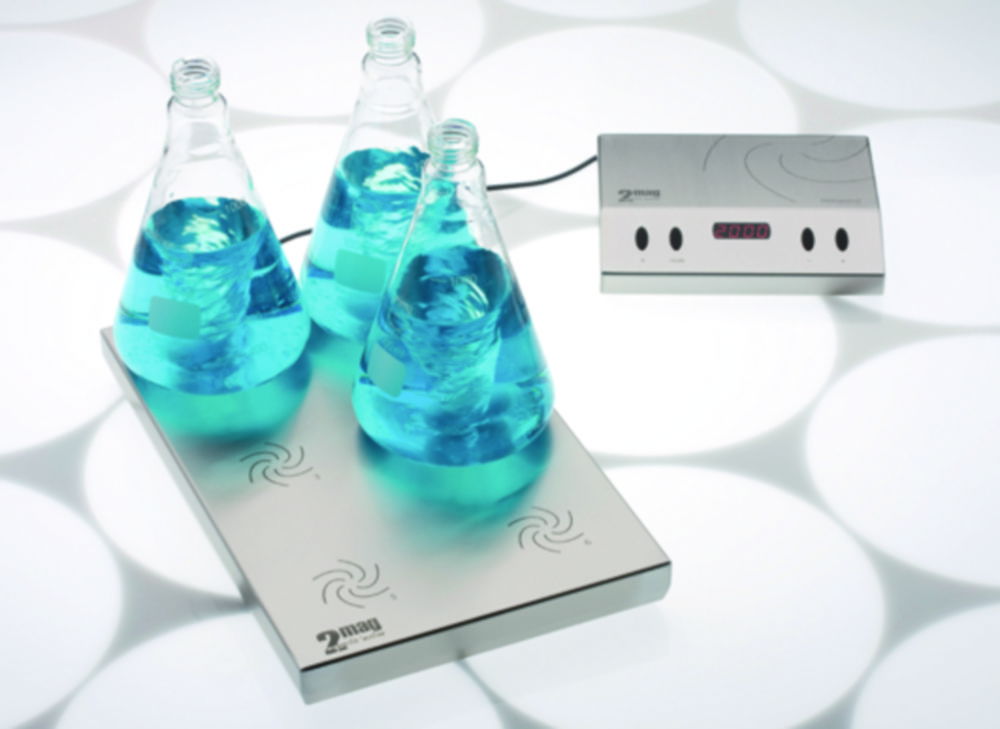

Multi-position stirring drive MIXdrive HT
€0.00
Product information "Multi-position stirring drive MIXdrive HT"
Please order control unit separately.
- Permissible ambient temperature in air from -10 to 200 °C, in water up to 95 °C
| Depth: | 375 mm |
|---|---|
| Dimensions (WxDxH): | 245 x 375 x 38 mm |
| Height: | 38 mm |
| IP code: | IP 68 |
| Manufacturer Article Number: | 40206 |
| Material housing: | Stainless steel |
| Max. voltage: | 48 V·DC |
| No. of stirring positions: | 6 |
| Power supply: | 48 V·DC |
| Rated capacity: | 40 W |
| Stirring capacity per position: | 1000 ml |
| Stirring centre distances: | 130 mm |
| Type: | MIXdrive 6 HT |
| UNSPSC: | 41103806 |
| Warranty: | 3 years |
| Weight: | 8100 g |
| Width: | 245 mm |
| With timer: | No |
Login
Accessories
Universal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
Universal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
Prize-optimized control unit for small to medium volumes.Speed setting and ON/OFF via rotary knobSoftStart
Universal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of one stirring drive.Jerk-free stirring even at low speeds4-step power settingSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
Universal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-cleanUniversal control unit for the connection of two stirring drives. Ideal for demanding stirring tasks and suitable for continuous operation. With 10-step power setting for high performance with large and viscous stirring amounts.Jerk-free stirring even at low speedsSoftStartDigital display for speed and power settingQuickSet for quick setting of the start or maximum speedMemory function to save the last settingsEasy-to-clean
