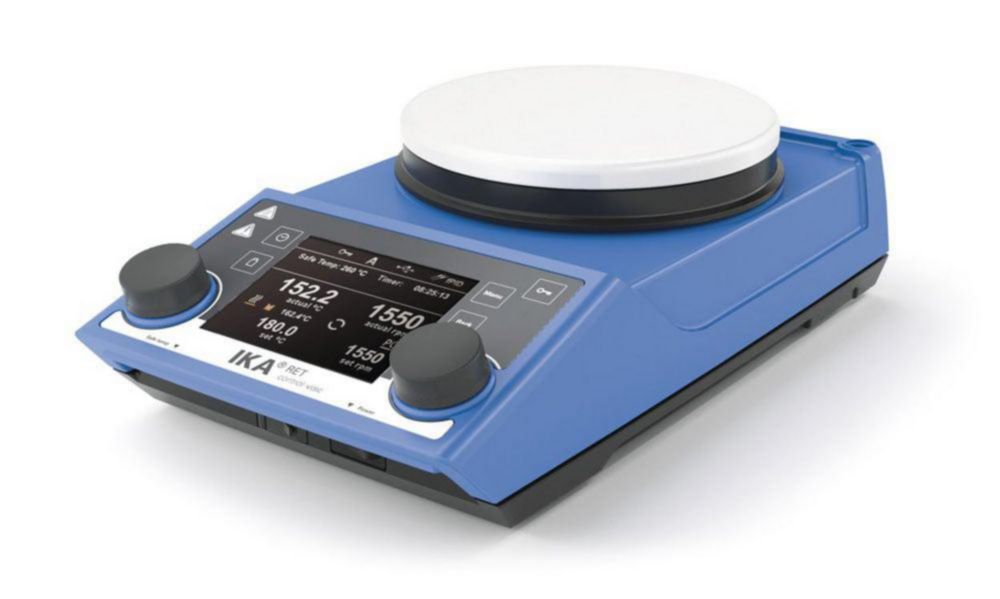

Magnetic stirrer RET® control-visc white

Product information "Magnetic stirrer RET® control-visc white"

Safety magnetic stirrer with heating and integrated balance. Clear, multilingual TFT display makes it easy to set all parameters. Integrated temperature control feature enables connection of a temperature probe, placed directly in the medium, to control medium temperature with a high degree of precision. PT 100 temperature sensor is included. The stainless steel composite hot plate, reaching a temperature of 340 °C, enables rapid heating. RS 232 and USB interfaces enable pc control of the magnetic stirrer and documentation of all test parameters. "Lock" function prevents inadvertent changes of speed and temperature settings. As a safety feature, "HOT" sign flashes when the unit is switched off but surface is still hot.

BNC socket for connection of a pH electrode
Adjustable temperature control mode: rapid heating and very accurate temperature control. The control accuracy with temperature sensor is ±0.2 °C.
Dual sensor for simultaneous control of heat transfer fluid temperature and medium temperature
Timer and countdown functions
Display of viscosity change trend
Detached magnet detection
Intermittent operation
Several modes of operation available
Safety circuit adjustable from 50 to 380°C
Transparent protective cover included
Error code display for easy troubleshooting
Exact temperature and speed adjustment by means of digital display; even when function switched off
Digital display of the safety temperature limit
Suitable for unsupervised operation
Sealed casing (IP 42) ensures a long service life

RET® control-visc white with chemically resistant hot plate.

Colour housing: Blue
Depth: 270 mm
Dimensions (WxDxH): 160 x 270 x 85 mm
Display: Digital
Heating capacity: 600 W
Heating temperature: RT ... 340 °C
Height: 85 mm
IP code: IP 42
Manufacturer Article Number: 0005030000
Material stirring surface: Ceramic
Max. heating rate: 7 °C/min
Max. heating temperature: 340 °C
Max. permitted ambient temperature: 40 °C
Max. relative humidity rate: 80 %
Max. safety temperature: 380 °C
Max. speed: 1700 1/min
Max. stirring capacity: 20 l
Max. voltage: 240 V
Min. permitted ambient temperature: 5 °C
Min. safety temperature: 50 °C
Min. speed: 50 1/min
Min. voltage: 220 V
No. of stirring positions: 1
Permitted ambient temperature: 5 ... 40 °C
Plug type: EU
Power supply: 220 ... 240 V, 50/60 Hz
Power supply frequency: 50/60 Hz
Safety temperature: 50 ... 380 °C
Speed: 50 ... 1,700 1/min
Type: RET® control-visc white
Type of auxiliary energy: Mains connection
UNSPSC: 41103806
Weight: 3 kg
Width: 160 mm
With connection ext. temperature sensor: Yes
With timer: Yes
Working area Ø: 135 mm
