Liquid handling station pipetting robot
€0.00
Product information "Liquid handling station pipetting robot"
Seven ANSI / SLAS formatted workplaces can be freely assigned, including PCR tubes and strips, microcentrifuge tubes, reservoirs, and 96- or 384-well plates. Liquid ends are available in various versions for contact-free fluid delivery. The Liquid Handling Station's compact design and space-saving front door make it an ideal fit where benchtop space is limited.
- Method creation with intuitive software
- USB interface
- Dimensions (W x D x H): 595 x 485 x 530 mm
- Weight: approx. 25 kg
- Operating temperature: 15 to 35 °C
- Housing protection class IP20
Scope of supply: Liquid handling station, motor control unit, operating software, user manual, power cable, USB cable, documentation, on-site training
| Manufacturer Article Number: | 709400 |
|---|---|
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41121504 |
Login
Accessories
For manual pipetting and automation.40 ml working volumeV-bottomLow dead volumeGraduatedCERTIFIED LIFE SCIENCE QUALITY

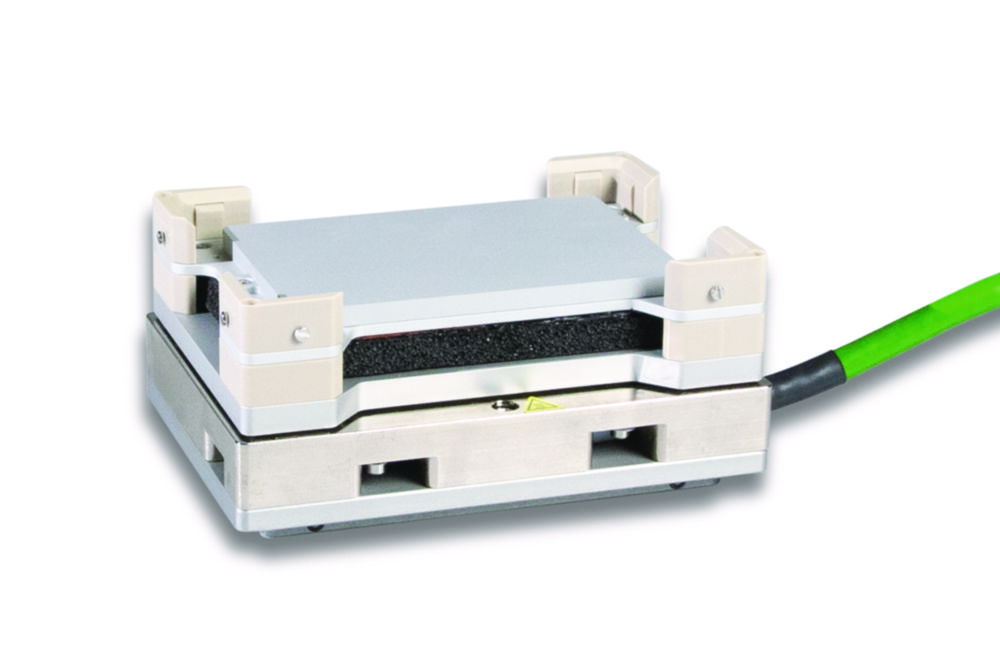

With the module, shaking and heating of samples is possible directly inside the Liquid Handling Station, without removing the plates from the robot. The shaking and heating module is placed on the worktable of the Liquid Handling Station and connected via a USB port to a PC or notebook and a controller.Shaking frequency range: 100 up to 1900 rpmMax temperature: 90 °CScope of supply: Heating/shaking module with centering plate, universal flat-bottom adapter plate
For precise and demanding analyses with the pipetting robot Liquid Handling Station. Tips are manufactured under monitored cleanroom conditions and are automatically packaged. No parting agents or demolding aids are used.Free from DiHEMDA and OleamidBIO-CERT® LIQUID HANDLING QUALITY: Free of human DNA, RNase, DNase, Pyrogens, PCR-Inhibitors and ATP
These reagent reservoirs were designed especially for use with automated liquid handling platforms. They can also be used with manual systems. Different partitions, bottom styles and profiles provide broas application flexibility.ANSI/SLAS standard format Compatible with nearly all liquid handling robots and other automated dispensing systemsDifferent types for use with multichannel pipettes and automatic systemsExcellent stability and chemical resistance made from high-quality polypropyleneFree from RNases and DNases, autoclavable (121 °C, 20 min)
The basis for the pipette modules are components from the familiar Transferpette® S. The volume testing of the pipette modules is carried out according to ISO 8655 part 6. Autoclavable at 121 °C, 20 minutes.
For precise and demanding analyses with the pipetting robot liquid handling station. Tips are manufactured under monitored cleanroom conditions and are automatically packaged. No parting agents or demolding aids are used.Free from DiHEMDA und OleamidTips up to 1000 μl are free of DNA, RNase, endotoxins and ATP
The passive cooler keeps your samples and media cool for up to three hours, without additional power supply. They are designed in ANSI/SLAS format to fit robotic systems like the Liquid Handling Station. All well positions are cooled homogenously.
