Gel electrophoresis tank MultiSUB Midi-96
The MultiSUB series of horizontal gel units offers the most versatile solution for DNA and RNA agarose gel electrophoresis currently available. The tanks are injection molded and therefore leak free. They are equipped with high quality platinum electrodes. Each unit comes with a variety of gel tray sizes and colour coded combs providing high flexibility for the user. The casting dams supplied with the units offer a simple and leak free solution for casting the gels.The MultiSUB Midi-96 Gel System is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands. Its 10 x 12 cm (W x L) gel dimensions and 96-well comb block format correspond to the standard micro plate configuration, with additional lanes for markers. Two different types of comb are available: one which has 8 wells and one additional lane for DNA markers and one which has 8 wells and 2 additional lanes for markers. The offset layout of the wells allows a maximum run length of 1.8 cm per well, resulting in improved separation. MultiSUB Midi 96 can accommodate samples from a 96-well plate; samples can be loaded directly using 8-channel pipettes. As with all MultiSUB units, leak-proof casting is simplified using the supplied casting dams while their ultra-compact size minimises buffer usage and bench space requirements. MultiSUB Midi-96ST (Stretch) Systems are also available for those users requiring an extended run length per well of up to 3.6 cm.Supplied with: MultiSUB Midi-96: UV tray, Comb block with 12 x 8 sample, 1 mm thick combs, casting dams.MultiSUB Midi-96/2M: UV tray, Comb block with 12 x 8 sample, 1 mm thick combs, casting dams. Combs have two marker lanes.MultiSUB Midi-96ST: STRETCH, UV tray, Comb block with 12 x 8 sample, 1 mm thick combs, casting dams.MultiSUB Midi-96ST/2M: STRETCH, UV tray, Comb block with 12 x 8 sample, 1 mm thick combs, casting dams. Combs have two marker lanes.SpecificationsMSMIDI96 / MSMIDI96STGel dimensions (W x L):10 x 12 cm / 10 x 24 cmUnit dimensions (W x D x H):22 x 12.5 x 9 cm / 46.5 x 12.5 x 8 cmMax. sample capacity:96 samples plus 1 or 2 marker lanesBuffer volume:300 ml / 700 ml
Gel electrophoresis tank MultiSUB Mini
The MultiSUB series of horizontal gel units offers the most versatile solution for DNA and RNA agarose gel electrophoresis currently available. The tanks are injection molded and therefore leak free. They are equipped with high quality platinum electrodes. Each unit comes with a variety of gel tray sizes and colour coded combs providing high flexibility for the user. The casting dams supplied with the units offer a simple and leak free solution for casting the gels.The MultiSUB Mini is the smallest unit in the range, designed for low to medium numbers of samples. The cost-effective small gel size does not compromise versatility as two tray options are available: 7 x 7 cm and 7 x 10 cm. Easy preparation up to 16 samples. Simply by altering the gel tray or comb, this compact unit is capable of resolving up to 64 different samples, prepping 1ml of sample or separating sample bands over a distance of 9 cm.Supplied with: MultiSUB Mini 7: 7 x 7 cm UV Tray, 2 x 8 sample combs.MultiSUB Mini 10: 7 x 10 cm UV Tray, 2 x 8 sample combs.MultiSUB Mini DUO: 7 x 7 cm and 7 x 10 cm UV Tray, 2 x 8 sample combs.Set: MultiSUB Mini DUO + Power supply OmniPAC, MINi 300 V 400mA 60 W, 110/230 V.Each model has an additional loading guides and dams.SpecificationsGel dimensions (W x L):7 x 7cm and 7 x 10 cmUnit dimensions (W x L x H):21 x 9 x 9 cmMax. sample capacity:7 x 7 cm tray, 32 samples 7 x 10 cm tray, 64 samplesBuffer volume:225 ml
Gel electrophoresis tank MultiSUB MiniRapide
The MultiSUB series of horizontal gel units offers the most versatile solution for DNA and RNA agarose gel electrophoresis currently available. The tanks are injection molded and therefore leak free. They are equipped with high quality platinum electrodes. Each unit comes with a variety of gel tray sizes and colour coded combs providing high flexibility for the user. The casting dams supplied with the units offer a simple and leak free solution for casting the gels.The MiniRapide is a completely self contained system designed for quick checks of samples. Gel casting, running and analysis are all performed in the same ultra compact unit. Buffer and gel volumes have been kept to a minimum and the parallel electrode arrangement allows ultra efficient current transfer, enabling resolution to be completed within 30 minutes. The UV transparent base allows direct viewing on a UV Transilluminator with no need for time consuming transfer and potential gel damage. Dual comb slots allow the loading of up to 40 samples per gel while multichannel pipette compatible combs further enhance the speed and convenience.Scope of supply: Gel electrophoresis tank with lid, 2 x 8 sample combs 1.5 mm, electrodes, casting damsSpecificationsGel dimensions (W x L):10 x 8 cmUnit dimensions (W x L x H):15 x 15 x 4 cmMax. sample capacity:40 samplesBuffer volume:50 ml
LLG-Agarose Standard
LLG-Agarose is ideal for routine separation of DNA and RNA fragments, as well as PCR products with electrophoresis. High transparency and low background of the agarose gel ensures clear and sharply defined bands.Very good dissolution and rapid gel formationHigh gel strength even at low agarose concentrationsSuitable for agarose concentrations from 0.75 up to 2 %Good separation efficiency for nucleic acid fragments between 250 bp and 23 kbFree of DNAse and RNAseAppearance:White powderClarity (NTU):≤4 (1.5 % gel)Gelling point:36 ± 1.5 °C (1.5 % gel)Melting point:88 ± 1.5 °C (1.5 % gel)Gel strength:≥1000 g/cm2 (1 % gel)Sulphate:≤0.15 %
Power supplies POWERpro for gel electrophoresis tanks
The POWERpro series is perfectly suited to use with all Cleaver Scientific horizontal multiSUB™ systems and omniPAGE mini vertical gel units, and may also be adapted for specialist techniques including the Comet Assay, and clinical and high throughput horizontal electrophoresis.Microprocessor controled with 5 sets of power terminals allow simultaneous operationContinuous run or timed setting up to 999 minutesProgrammable with multi step protocols for advanced electrophoresis methodsStores preset programs for each Cleaver Scientific electrophoresis systemAlarm function2.4" TFT displayStackable designRigorous in-built safety mechansimsAutomatic crossoverDual voltage compatibility

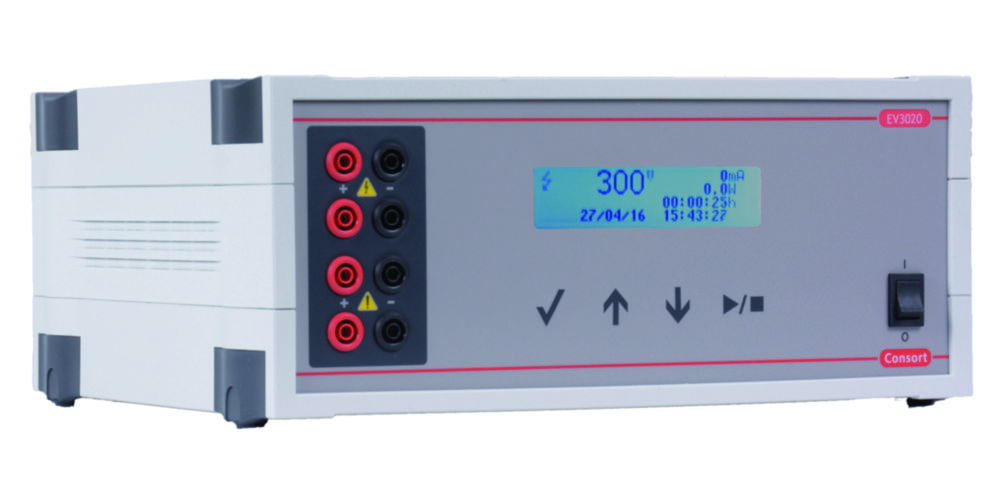

Power Supply Consort Maxi EV3020
4 output terminals to allow up to 4 simultaneous runs. Powerful microprocessor control allows complex programming, while manual mode permits the setting of voltage, current, power and time for routine electrophoretic runs. The parameters may also be changed temporarily without interrupting the run.LCD displayData loggingReal time clock Programs:9 programs, 9 steps eachResolution: Interface:1 V, 1 mA, 1 W USBDimensions (W x D x H):310 x 260 x 130 mmWeight:10 kgMax. voltage:300 VMax. current:2000 mAMax. power:300 WTimer:0 ... 99:59 h

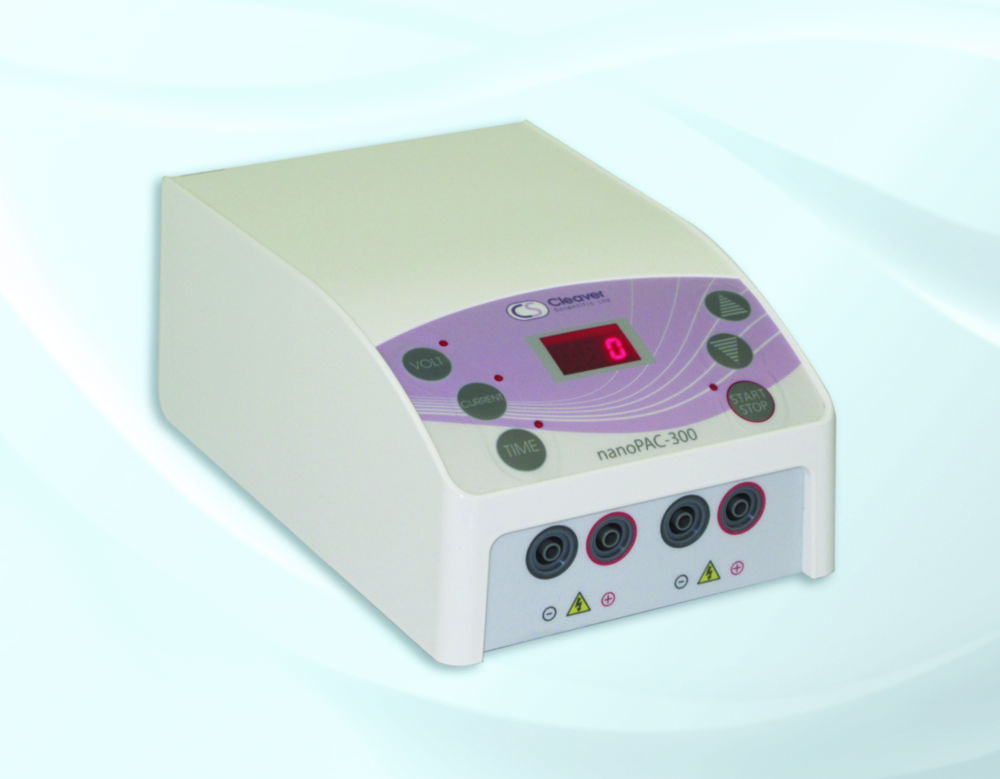

Power supply nanoPAC-300 Mini for gel electrophoresis tanks
The nanoPAC-300 is capable of running all Cleaver Scientific horizontal multiSUB™ systems and vertical omniPAGE mini gel systems.Maximum constant current output of 400mASimple two step feature to set a programmable change in voltage, current and time during the runConstant voltage up to 300 VAdjustable in 1 V and 1 mA incrementsTwo parallel outputsContinuous run or timed setting up to 999 minutesAutomatic safety shutdownAlarm functionEasy-to-clean polycarbonate housing3-digit LED display
Real-time horizontal gel electrophoresis system runVIEW
Versatile, self-contained system on the market for real-time horizontal gel electrophoresisSystem includes everything except chemicals and reagents to run and visualize horizontal SYBR- and EtBr-stained gels in real-timeCombines the flexibility and high resolution capability of the MSCHOICE system with the time- and space saving convenience of having the power supply and gel illuminator integrated within one highly compact bench top unitOptional dark room with 24.1 megapixel digital camera fits directly over the base unit and gel tank to allow gels to be imaged either as bands migrate in real-time or at the end of the electrophoresis runIncludes accessories for standard gel electrophoresis and for size fractionation and simplified real-time gel free DNA band extraction and purificationrunVIEW Gel System with bluVIEW Lid Design: Orange spectral emission filter with condensation-free viewing panel.Extractor fan in the bluVIEW lid eliminates condensation to optimise DNA visualisation and resolution during electrophoresis.Included Double-sided Combs: 2x 1-sample / 2-sample preparatory; 2x 4-sample preparatory / 16-sample combs; 4x 20- /28- sample multichannel compatible screening. Comb Thickness: 1mm. Extra-thick 2x 4- and 2x 6-sample 3mm preparatory combs are also included.SpecificationsrunVIEW Viewing DockBlue Light Wavelength:470 nmVoltage / Resolution:25-150 V / 1 VCurrent / Resolution:300 mA / 1 mAPower:30 WTimer:1 to 999 min (with alarm)Dimensions (W x D x H):29.3 x 22.0 x 8.0 cmPower supply:100-240 V, 50/60 HzrunVIEW Gel SystemGel Dimensions (W X L):15 x 7, 15 x 10 and 15 x 15 cmUnit dimensions (W X D X H):26.5 x 17.5 x 9.0 cmBuffer volume:500 ml
