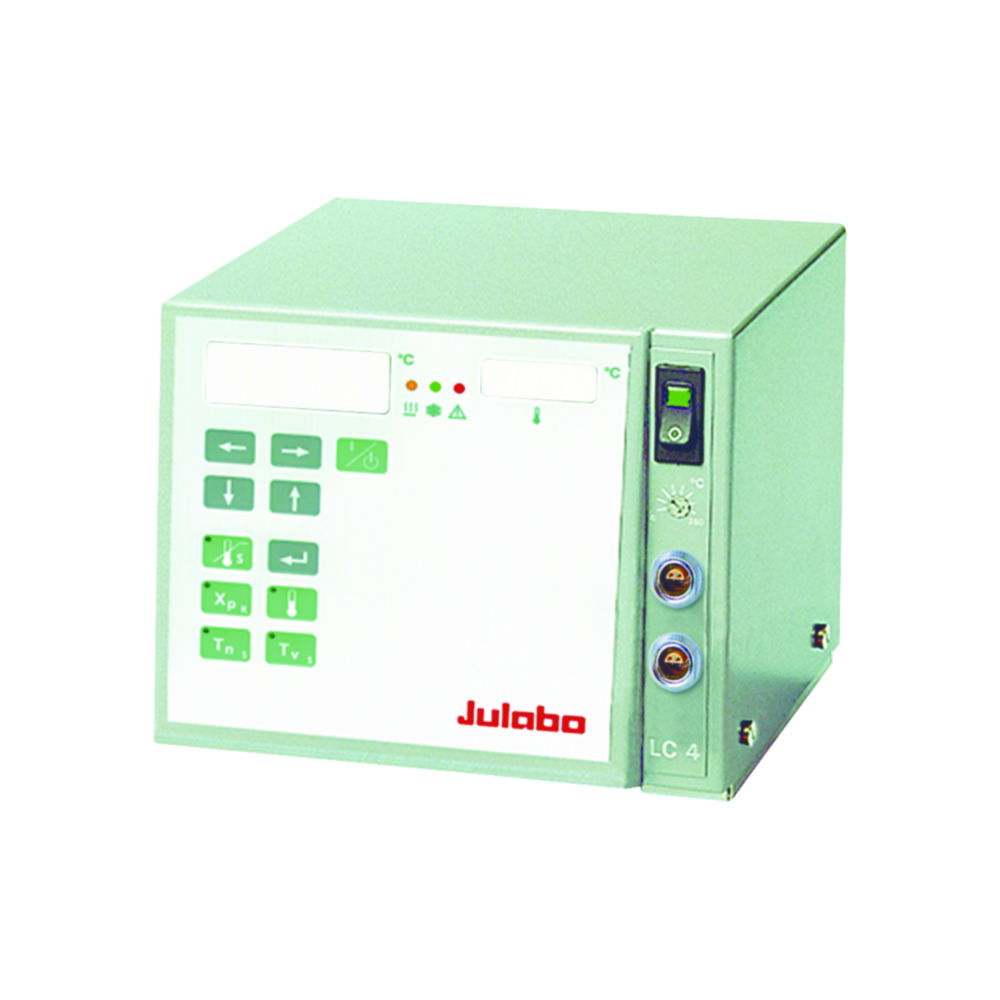

Laboratory temperature regulator LC4
Julabo GmbH
€0.00
Content: 1
Product number: 9724984
Product information "Laboratory temperature regulator LC4"
For monitoring and control of electronic heating equipment, such as heating mantles, heating baths, heating mats, water baths, oil baths etc. Fitted with state of the art control electronics.
- Multi-Display: separate (LED) temperature displays for set and actual values, and for high and low temperature warning and safety functions
- Splashproof, membrane keypad which is easy to use
- Display resolution 0.1 °C
- Adjustable control parameters
- PID control
- Connections for control and safety sensors
- Max. switching capacity: 2 kW
| Depth: | 170 mm |
|---|---|
| Dimensions (WxDxH): | 170 x 170 x 160 mm |
| Height: | 160 mm |
| IP code: | IP 31 |
| Interfaces: | RS232 |
| Manufacturer Article Number: | 9700140 |
| Max. temperature: | 350 °C |
| Max. voltage: | 230 V |
| Min. temperature: | -50 °C |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Sensor inputs: | 2 |
| Temperature: | -50 ... 350 °C |
| Temperature stability: | ±0,05 °C |
| Type: | LC4 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 3 kg |
| Width: | 170 mm |
