Accessories for combination electrodes
Connection cable for pH electrodes with plug head connection to plugs as indicated.
Adapter ADA-DIN-BNC
Adapter for connecting pH electrodes with BNC plug to a meter with DIN socket.
IDS pH electrode SenTix® 940-P
Low maintanance pH electrode with plastic shaft and gel electrolyte, with built-in temperature sensor NTC 30 kOhm. With plug head, please order AS/IDS-x cable combination or IDS WLM-S radio module separately (radio range 100 m).

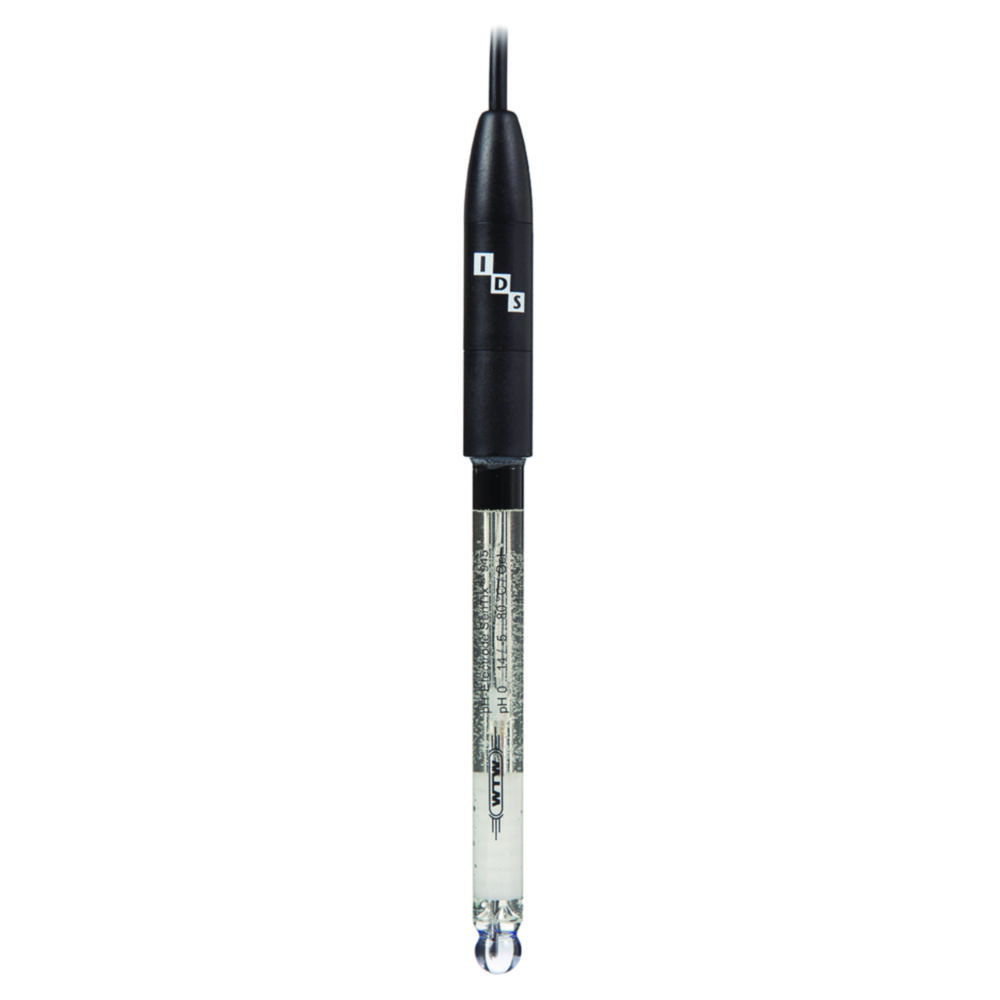

IDS pH electrode SenTix® 945
Low maintanance pH electrode with glass shaft and gel electrolyte, with built-in temperature sensor NTC 30 kOhm.

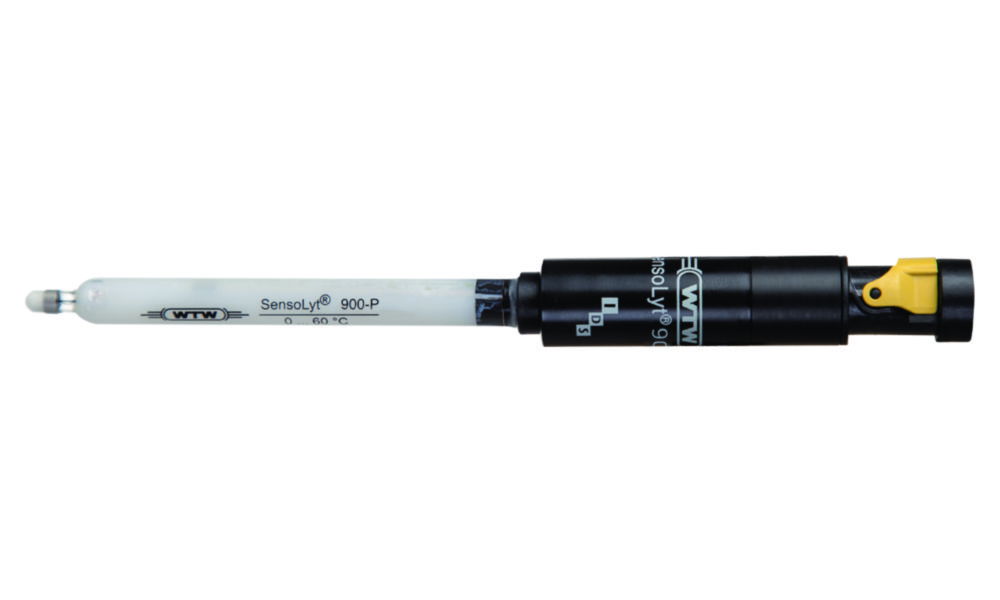

IDS pH electrodes SensoLyt® 900-P
With polymer electrolyte and glass shaft, built-in temperature sensor, pressure resistant up to 10 bars. Electrode with waterproof plug head for connection to a MPP IDS or AS/IDS-x.

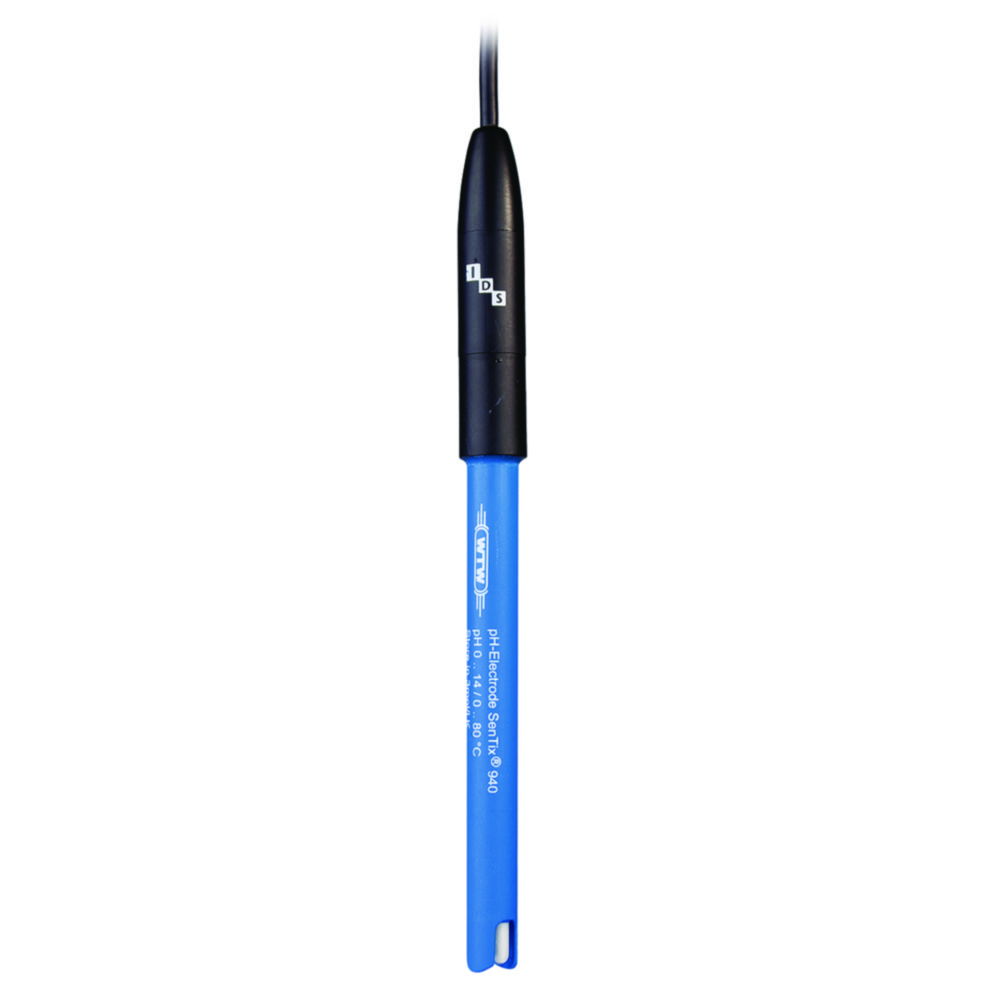

IDS pH electrodes SenTix® 940
Low maintanance pH electrodes with plastic shaft and gel electrolyte, with built-in temperature sensor NTC 30 kOhm. With waterproof digital connector, cable length 1.5 m, SenTix® 940-3 with 3 m cable.

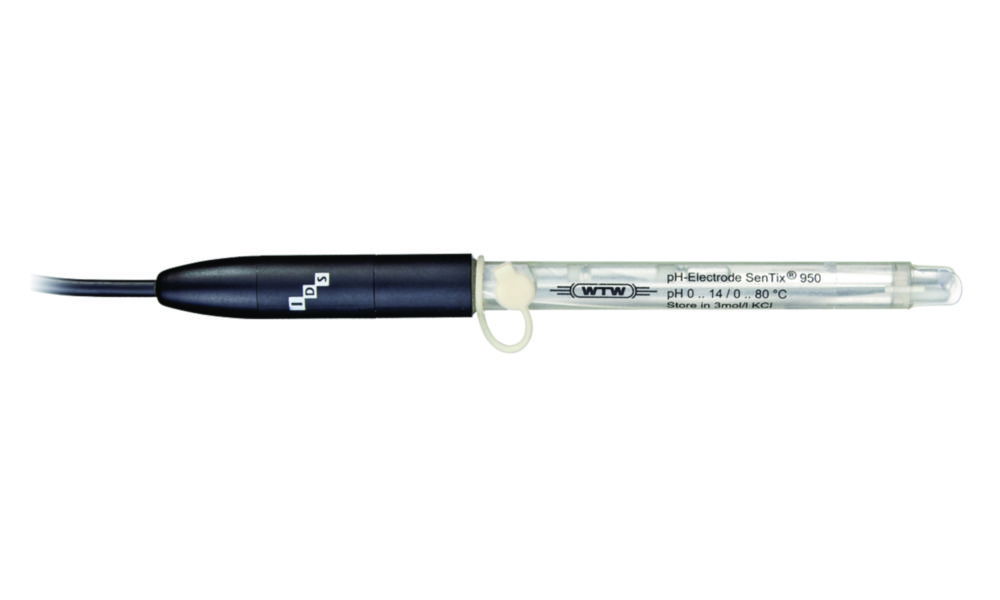

IDS pH electrodes SenTix® 950
Precision pH electrodes with plastic shaft and liquid electrolyte KCl 3 mol/l Ag+ free, with built-in temperature sensor NTC 30 kOhm. Cable length 1.5 m, SenTix® 950-P wireless-ready.

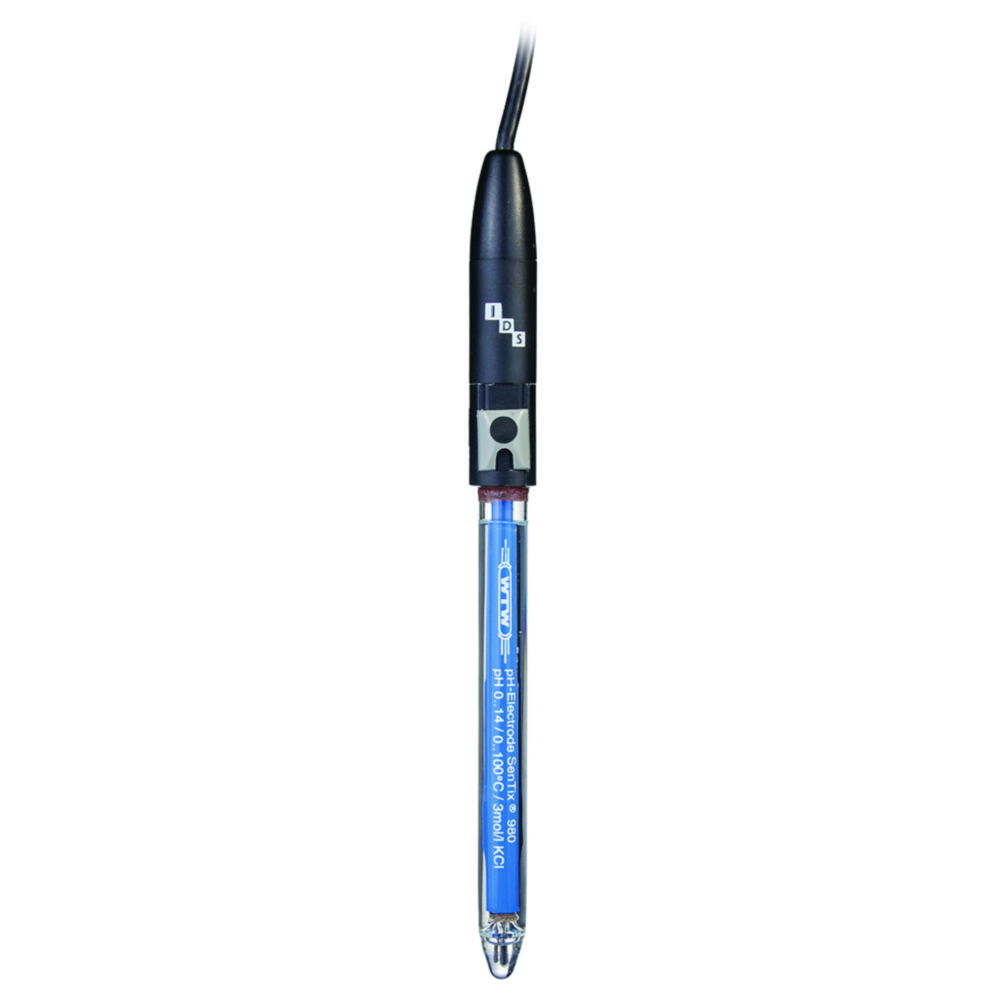

IDS pH electrodes SenTix® 980
Precision pH electrodes with glass shaft and liquid electrolyte KCl 3 mol/l Ag+ free, with built-in temperature sensor NTC 30 kOhm, cable length 1.5 m.

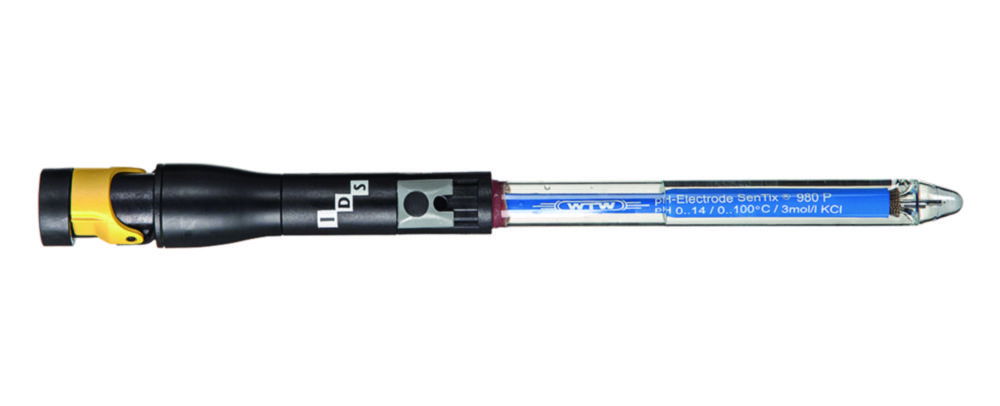

IDS pH electrodes SenTix® 980-P
Precision pH combination electrode with glass shaft and liquid electrolyte KCl 3 mol/l Ag+ free, with built-in temperature sensor NTC 30 kOhm, QSC-capable, memory for 10 calibrations, saved serial number. With plug head.Please order AS/IDS type cables or wireless IDS WLM-S module separately.

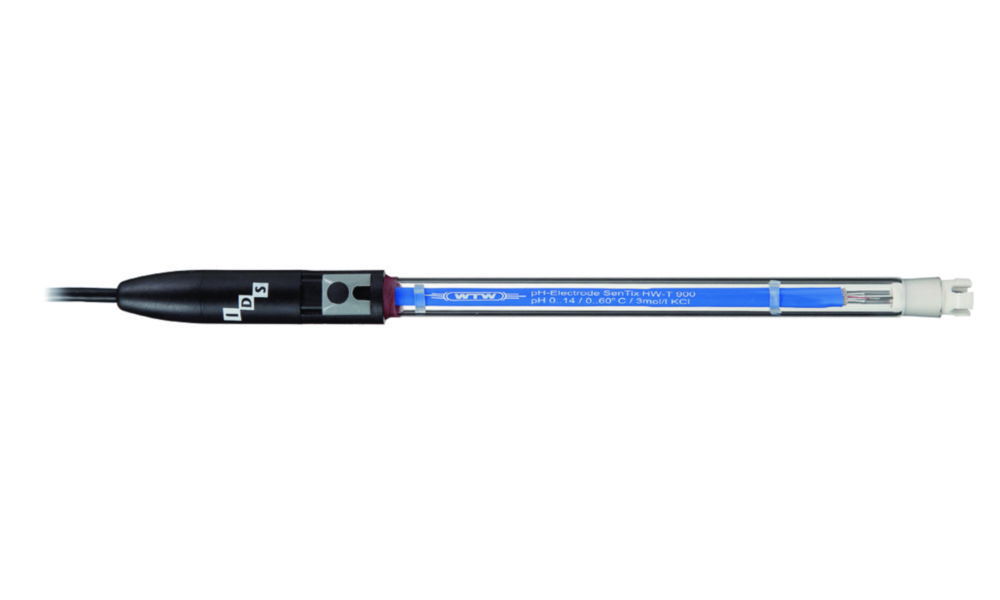

IDS pH electrodes SenTix® HW-T 900
Precision pH electrode for suspensions, emulsions, high and low ion concentrations. With glass shaft, liquid electrolyte KCl 3 mol/l Ag+ free.

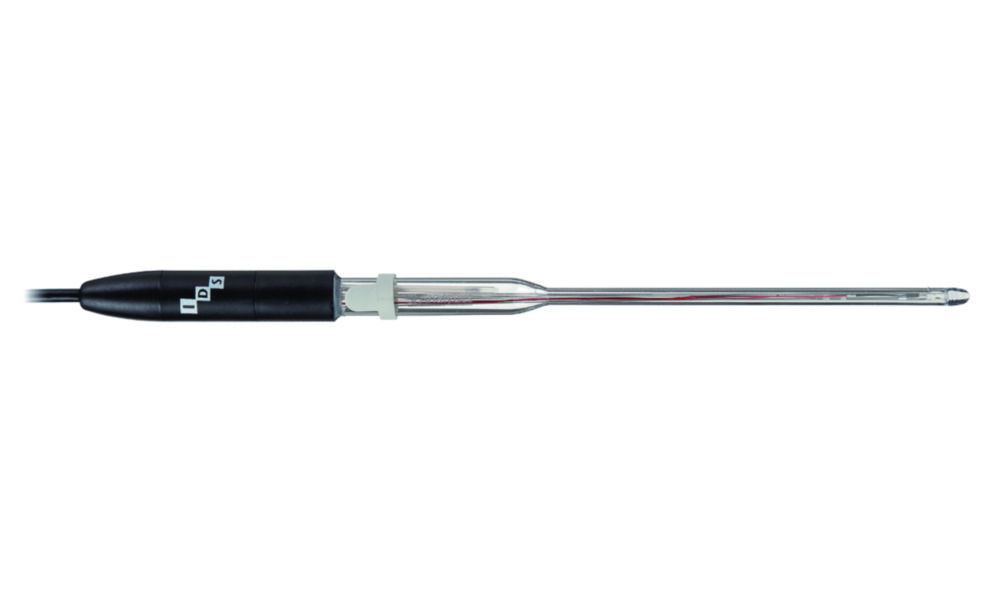

IDS pH electrodes SenTix® Micro 900
Precision pH electrode, lower shaft and diaphragm diameter 5 mm, for measurement in small vessels. With glass shaft, polymer liquid electrolyte. Shaft length 65/130 mm.

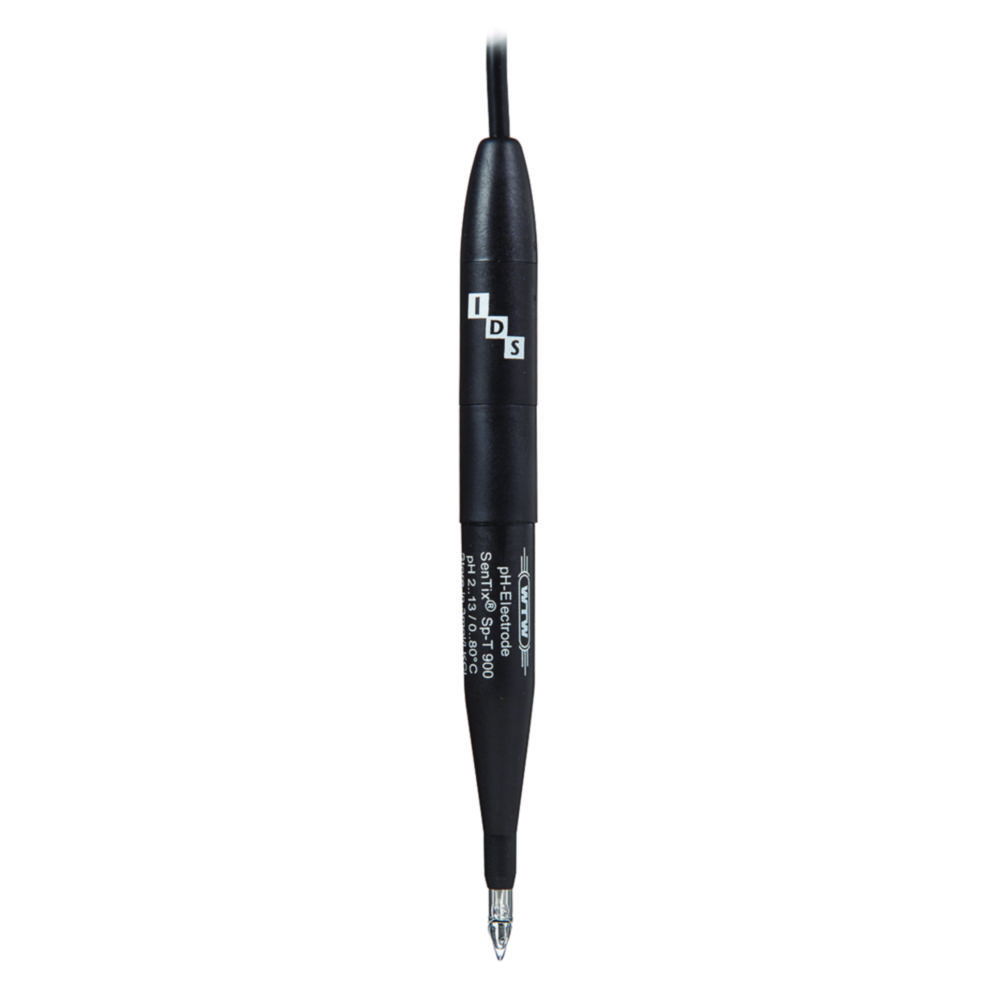

IDS pH electrodes SenTix® SP-T 900
Precision pH electrode with spear-shaped membrane for insertion measurements in semi-solid and viscose samples. With plastic shaft, polymer electrolyte. Shaft length: 65/25 mmShaft Ø: 15/5 mm

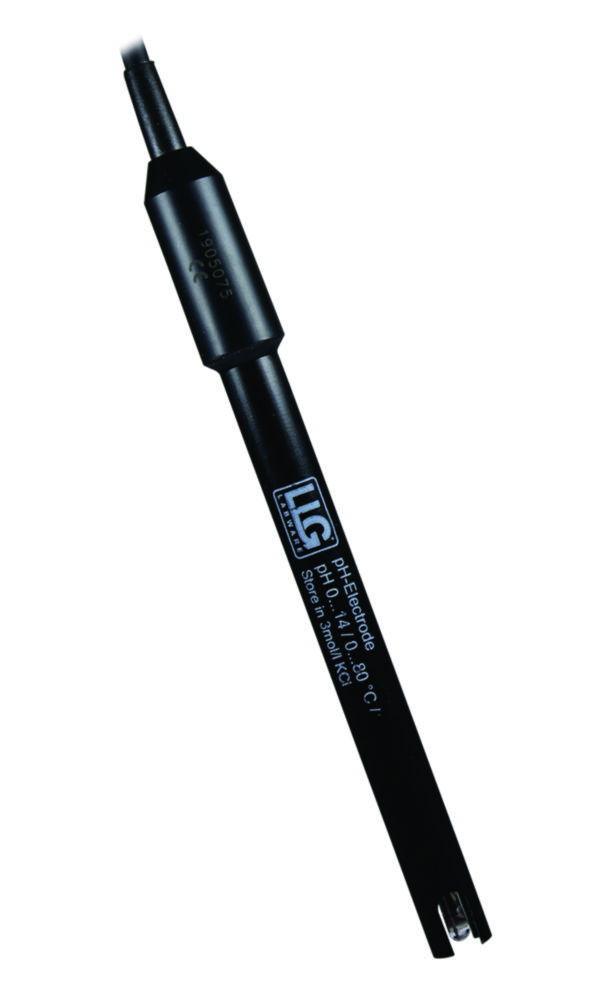

LLG-pH electrode with gel electrolyte
Low maintenance combination electrode with integrated temperature sensor, robust plastic shaft and gel electrolyte.
Metal (ORP) electrodes ScienceLine Ag 6180
With glass shaft, Silamid® reference system and plug head.

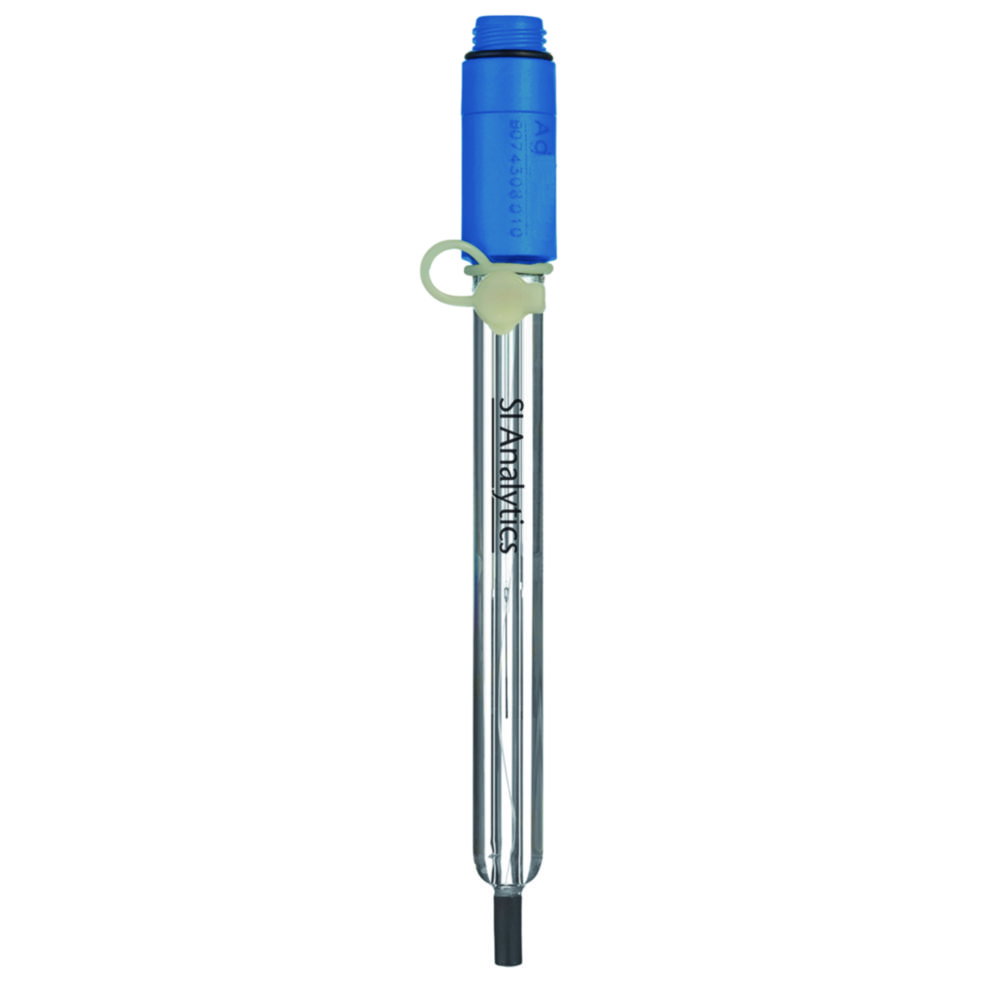

Metal (ORP) electrodes ScienceLine Ag 6280
With glass shaft, Silamid® reference system and plug head.

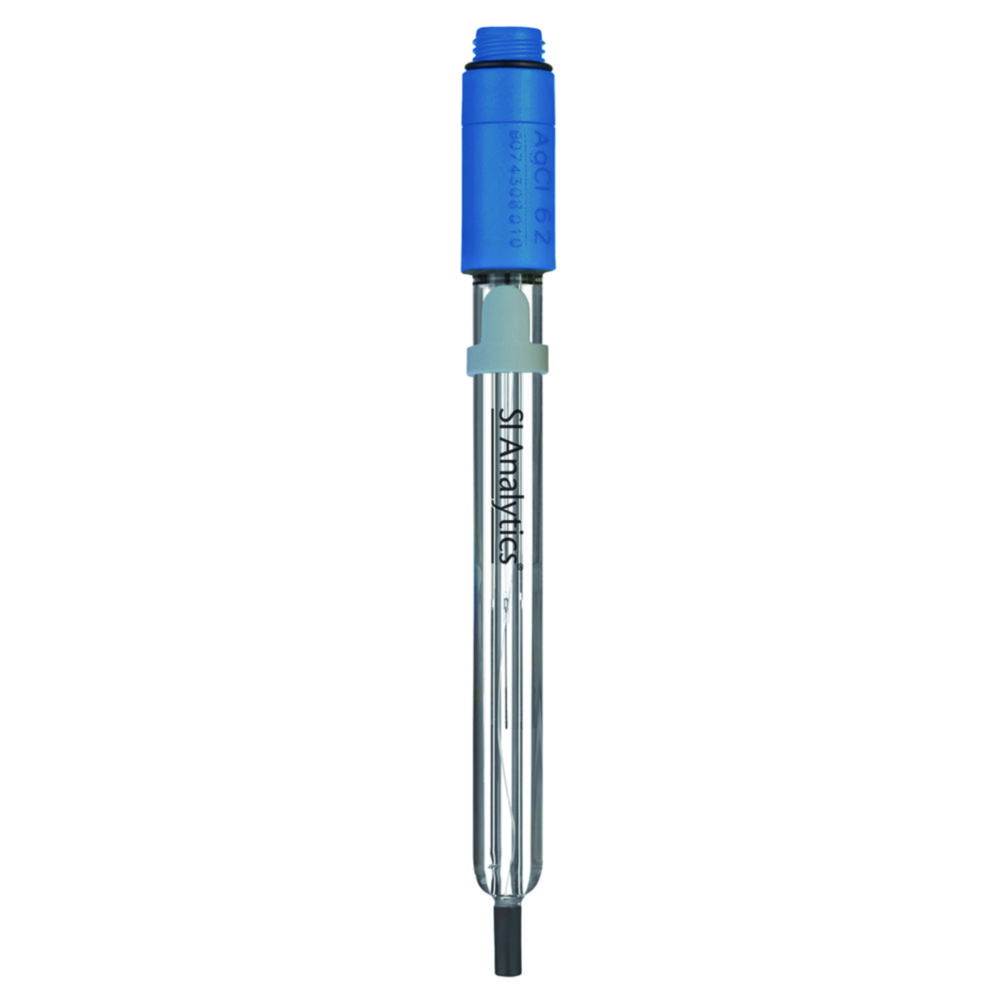

Metal (ORP) electrodes ScienceLine AgCl 62
With glass shaft, Silamid® reference system and plug head. Sensor Ag/Cl coated.

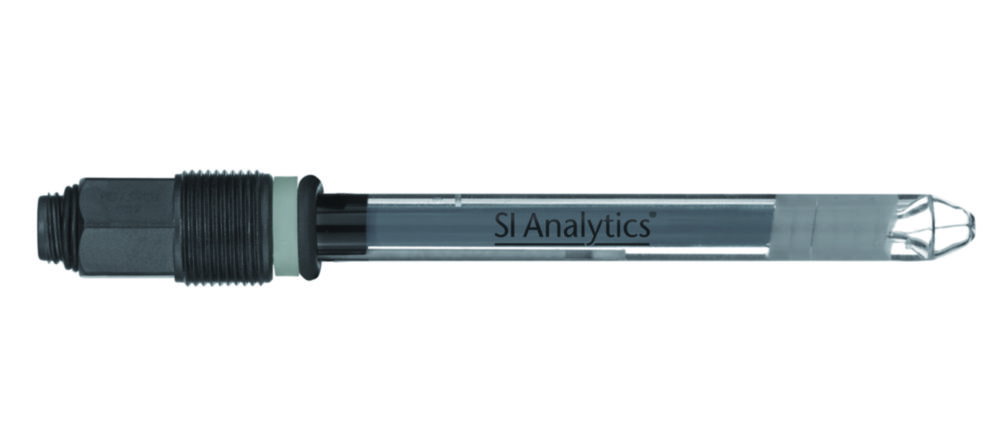

ORP electrode AquaLine 79 Pt
With glass shaft, Silamid® reference system and S8 plug head.
pH and redox electrodes HA405
Low-maintenance combination electrodes for continuous pH and redox measurements, with pre-pressurised gel electrolyte. Suitable for applications in the chemical industry as well as for water and waste water treatment.With silver ion barrierAlso suitable for rough process conditions up to 2.5 bar gauge pressureReference system: Argenthal®
pH combination electrode Eutech™
Universal 3-in-1 pH electrode made of plastic. With Ag/AgCl reference system and BNC connector.Diaphragm: Porous HDPE pin
pH combination electrode Eutech™ with BNC connector
General purpose plastic-body pH electrode. Ag/AgCl reference type. For use with all pH meters with BNC input connector.Diaphragm: HDPE.

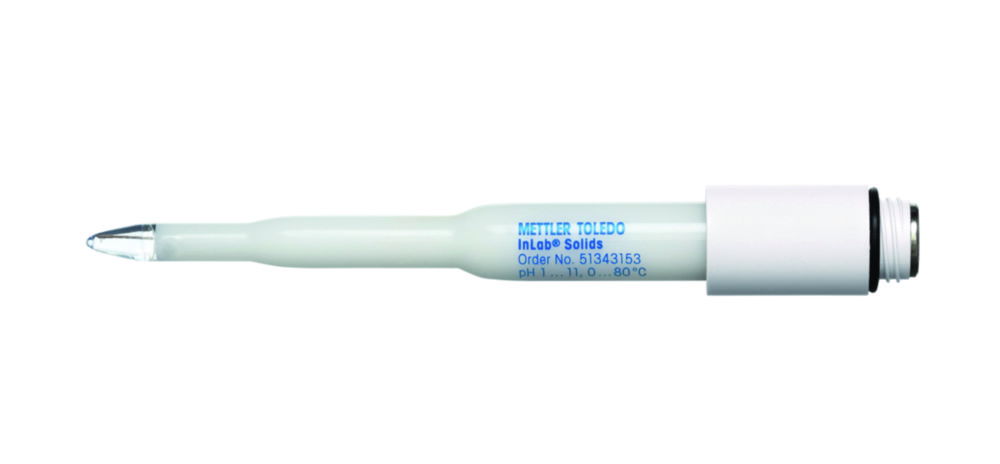

pH combination electrode InLab® Solids
With spear-tip membrane. With glass shaft, Argenthal™ reference system and S7 plug head.Cable - please order separately.
pH combination electrode InPro 3030
Low-maintenance gel pH electrode for applications in the biotechnology and food industries.For use under aseptic conditionssterilizable/autoclavablePressure resistant up to 6 barWith silver ion barrier for the measurement of sulfide-containing samplesPlease order connection cable separately.SpecificationspH range:0 ... 14Temperature range:0 ... 80 °C (140 °C when sterilised)Reference system:Argenthal®Diaphragm:CeramicShaft diameter:12 mmConnection:K8S
pH combination electrode InPro 4010
Low-maintenance, pressure-resistant pH electrode with built-in PT 1000 temperature sensor for temperature compensation.Robust version with plastic housingFor use in industrial waters and waste watersAlso suitable for heavily soiled samplesWaterproof VarioPin connector (IP68)Please order connection cable separately.
pH combination electrode InPro 4800/4800i
pH combination electrode for use in aggressive media, e.g. acidic, alkaline or strongly oxidizing solutions containing sulphides. With integrated sensor for temperature compensation.Low maintenanceSuitable for high operating pressures at varying operating temperatures"-i" version with intelligent sensor managementDirt repellent annular junctionApproved for Ex-protected environmentsAg/AgCl reference system.Please order connection cable separately.

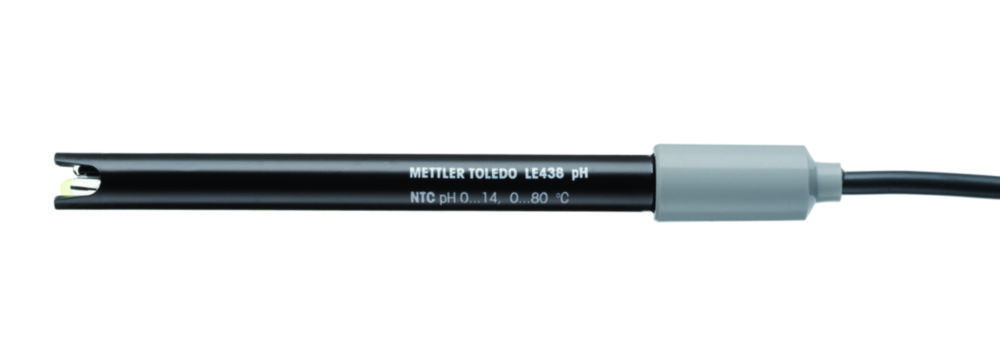

pH combination electrode LE 438
With epoxy body and gel electrolyte, fixed cable with BNC / Cinch connection. For simple measurements, particularly suitable for portable pH meters, with temperature sensor.

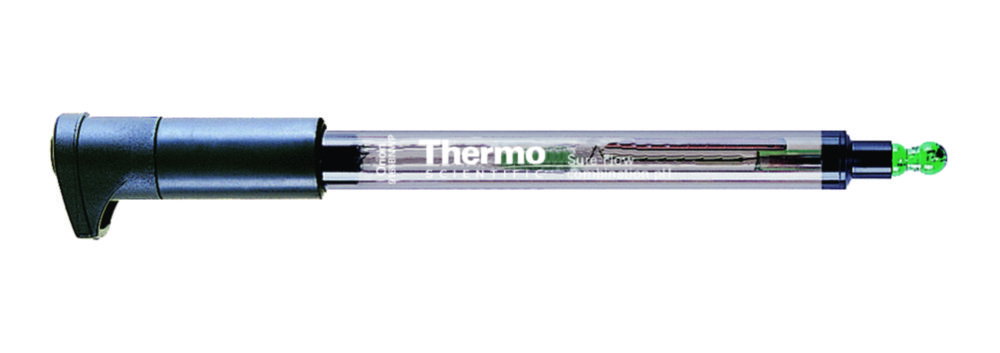

pH combination electrode Orion™ Sure-Flow
9165 BNWP: For fast results in difficult samples and soils. With waterproof BNC connector and epoxy body. Please order cable separately.91-72 BNWP: For measurements in soils, sludges, colloids and viscous materials. With waterproof BNC connector, cable and glass body. 1 m cable included.

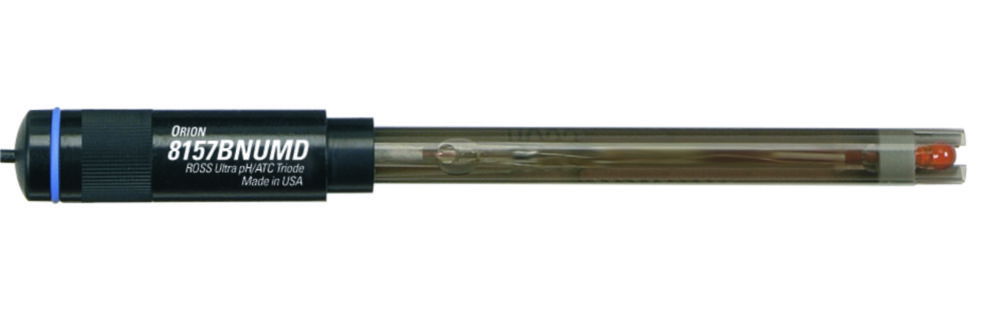

pH combination electrode ROSS™ Ultra Triode™
Combination electrodes with temperature compensation, suitable for a variety of applications.For use with Versa Star-, Star A- and Dual Star pH metersWith robust epoxy body
pH combination electrode, gel electrolyte, SenTix®
Basic pH combination electrodes, with plastic body, gel reference system. SenTix® 20 with plug head (AS/DIN or AS/BNC cable combination please order separately). Sentix 21-3 and Sentix 41-3 with 3 m fixed cable.

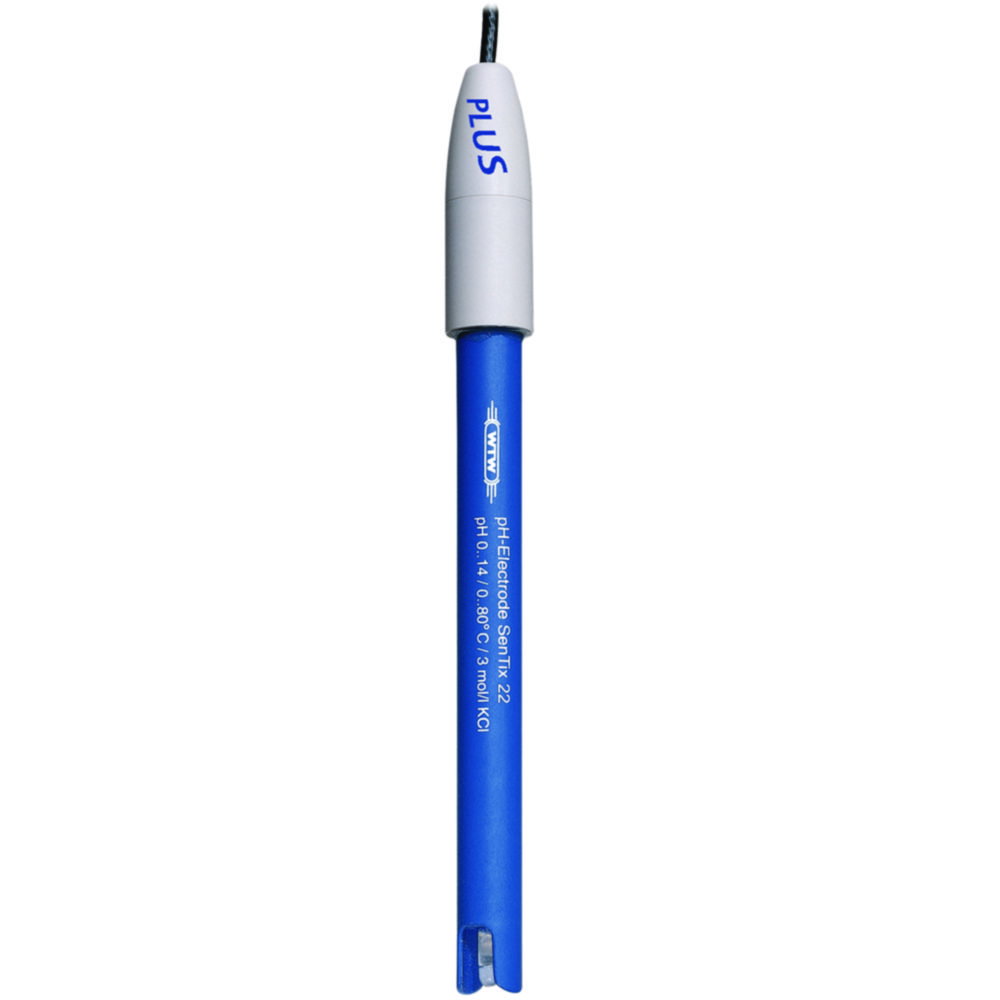

pH combination electrode, gel electrolyte, SenTix® 22
Basic pH combination electrodes, with plastic body, gel reference system. 1 m fixed cable.

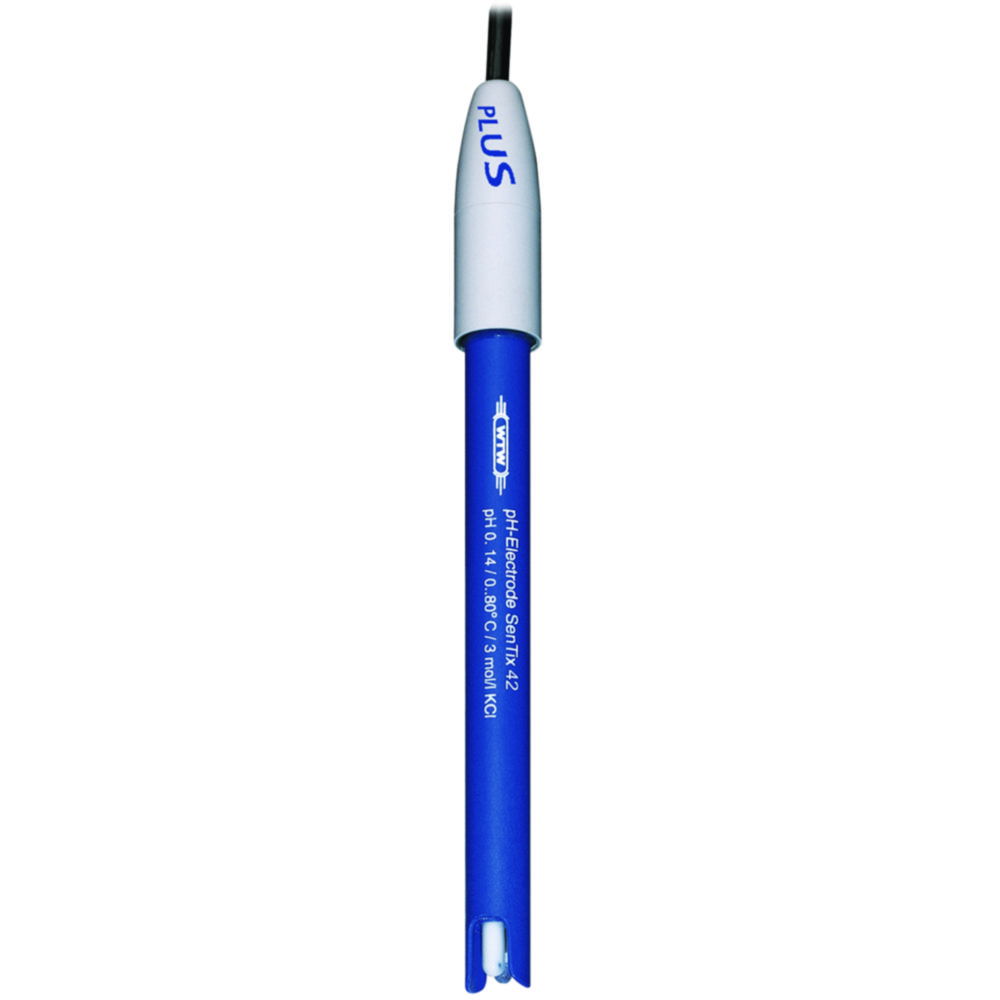

pH combination electrode, gel electrolyte, SenTix® 42
Basic pH combination electrodes, with plastic body, gel reference system. 1 m fixed cable.

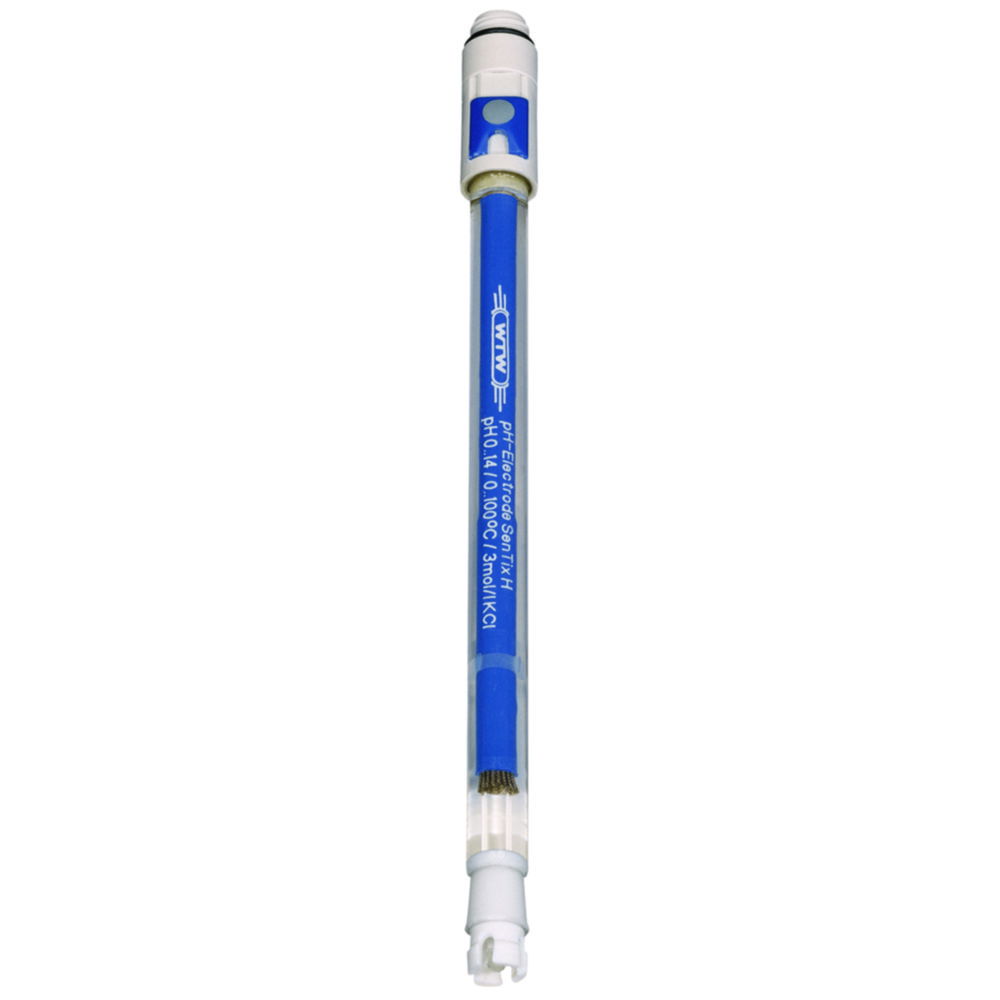

pH combination electrode, SenTix® H / SenTix® HW, refillable
Precision pH combination electrodes with glass shaft and liquid electrolyte. With plug head (AS/DIN or AS/BNC cable combination please order separately). SenTix® H for high alkaline solutions, SenTix® HW for low conductive samples.

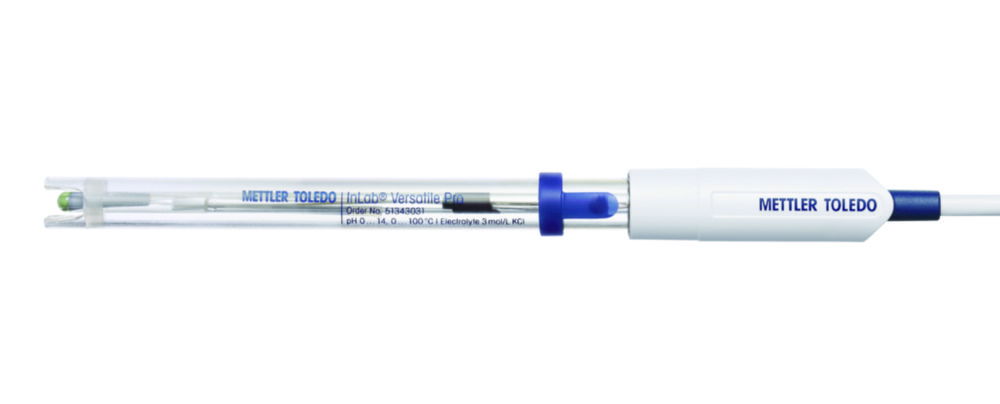

pH combination electrodes InLab® Versatile Pro
Interchangeable ceramic junction, ARGENTHAL™ reference system with silver ion trap, BNC/RCA fitting.
pH combination electrodes InPro 2000/2000i/2002
pH combination electrodes with integrated temperature sensor for temperature compensation.Refillable reference electrolyte"-i" version with integrated sensor management ISMSterilisableReduced maintenance requirementsWith silver ion barrier for the measurement of sulfide-containing samplesPlease order connection cable separately.
