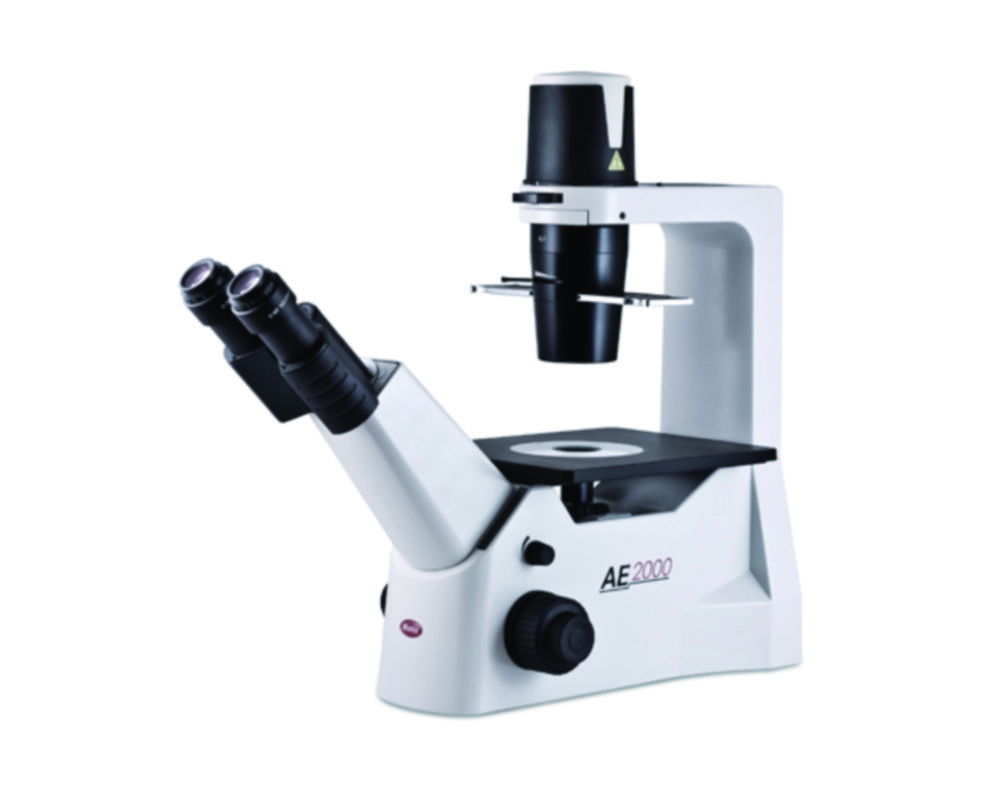

Inverted Routine microscope for live cell inspection, AE2000
MOTIC Deutschland GmbH
€0.00
Content: 1
Product number: 9727030
Product information "Inverted Routine microscope for live cell inspection, AE2000"
Classic cell culture microscope for daily work in the laboratory.
Optional: phase-contrast 4x/40x, mechanical stage with well plate holder.
- Infinity Optics [CCIS®]
- Observation Tube Siedentopf Type, Binocular - / Phototube 45°, F.N. 20
- Interpupillary Distance 48 mm-75 mm
- Eyepieces High-Eyepoint N-WF 10x/20 mm provide dioptre adjustment for both eyes
- Side facing quadruple nosepiece
- Objectives CCIS Plan Achromat PL 4x, LWD PL 40x
- CCIS Plan Achromat Phase PL Ph10x, LWD PL Ph20x
- Plain stage 200 mm x 239 mm surface with metal & glass stage inserts
- Condensor ELWD N.A. 0.3 with phase slider (Ph1, BF)
- Illumination 6V/30W halogen with intensity control and sleeping mode
- Universal power supply 100 V-240 V (CE)
- Ø 45 mm blue, green interference and neutral density filters with filter slider, centering telescope, power cord, Allen hexagonal key, vinyl dust cover
- Interchangeable LED module available
Optional: phase-contrast 4x/40x, mechanical stage with well plate holder.
| Condenser: | ELWD 0.30 |
|---|---|
| Depth stage: | 239 mm |
| Inclination angle tube: | 45° |
| Interpupillary distance: | 48 ... 75 mm |
| Light type: | Halogen |
| Magnification objectives: | 4x, PH 10x, LWD PH 20x, LWD 40x |
| Manufacturer Article Number: | 1100103800043 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 240 V |
| Min. interpupillary distance: | 48 mm |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 240 V |
| Revolving nosepiece: | 4-fold |
| Stage (WxD): | 200 x 239 mm |
| Tube: | Binocular |
| Type: | AE2000 |
| Width stage: | 200 mm |
